Influence of graphene oxide/polyaniline functional film on electromagnetic shielding property of cotton fabrics

ZOU Lihua1(), XU Zhenzhen1, SUN Yanyan1, WANG Tairan1, QIU Yiping2

  1. 1. International Cooperation Research Center of Textile Structure Composite Materials, Anhui Polytechnic University,Wuhu, Anhui 241000, China
    2. College of Textiles, Donghua University, Shanghai 201620, China
  • Received:2018-05-21 Revised:2019-05-03 Online:2019-08-15 Published:2019-08-16

RichHTML

5

PDF (PC)

145

摘要：

为制备轻质高效的吸波型电磁屏蔽织物,采用层层组装方法在棉织物表面涂层氧化石墨烯/聚苯胺(GO/PANI)电磁屏蔽功能膜。研究苯胺单体浓度、氧化石墨烯质量浓度、组装层数对整理棉织物电性能及电磁屏蔽性能的影响,并分析了屏蔽电磁能的吸收率、反射率以及吸收屏蔽效能和反射屏蔽效能。结果表明:苯胺单体浓度和组装层数的增加有利于提高棉织物的电磁屏蔽效能,而随着氧化石墨烯质量浓度的增加,织物的电磁屏蔽效能先增加后减小;组装4层GO/PANI功能膜后棉织物的屏蔽效能达到19.91 dB,可屏蔽98.98%的电磁能,其吸收率达到57.63%,而反射率为41.35%,主要屏蔽机制是吸收。

关键词: 聚苯胺, 氧化石墨烯, 层层组装, 棉织物, 电磁屏蔽性能, 功能膜

Abstract:

In order to prepare lightweight and efficient electromagnetic shielding fabric of absorption-type, a graphene oxide (GO)/polyaniline (PANI) functional film was coated on cotton fabric using layer-by-layer assembling method. The influences of the concentration of aniline (AN) monomer, the concentration of GO and the number of assembly layers on the electrical properties and electromagnetic shielding properties of cotton fabrics were studied. The absorptivity, reflectivity, and shielding effectiveness due to absorption and reflection were analyzed. The results show that the increase of AN concentration and the number of assembling bilayer improve the electromagnetic shielding effectiveness of the fabric, but with the increase of GO concentration, the shielding effectiveness value of the fabric increases first and then decreases, the shielding effectiveness of fabric with 4 bilayers of GO/PANI reaches 19.91 dB, which could shield 98.98% of electromagnetic energy, the absorptivity of the fabric is 57.63%, and the reflectivity is 41.35%, the main shielding mechanism is absorption.

Key words: polyaniline, graphene oxide, layer-by-layer assembly, cotton fabric, electromagnetic shielding property, functional film

中图分类号:

  • TS101.8

图1

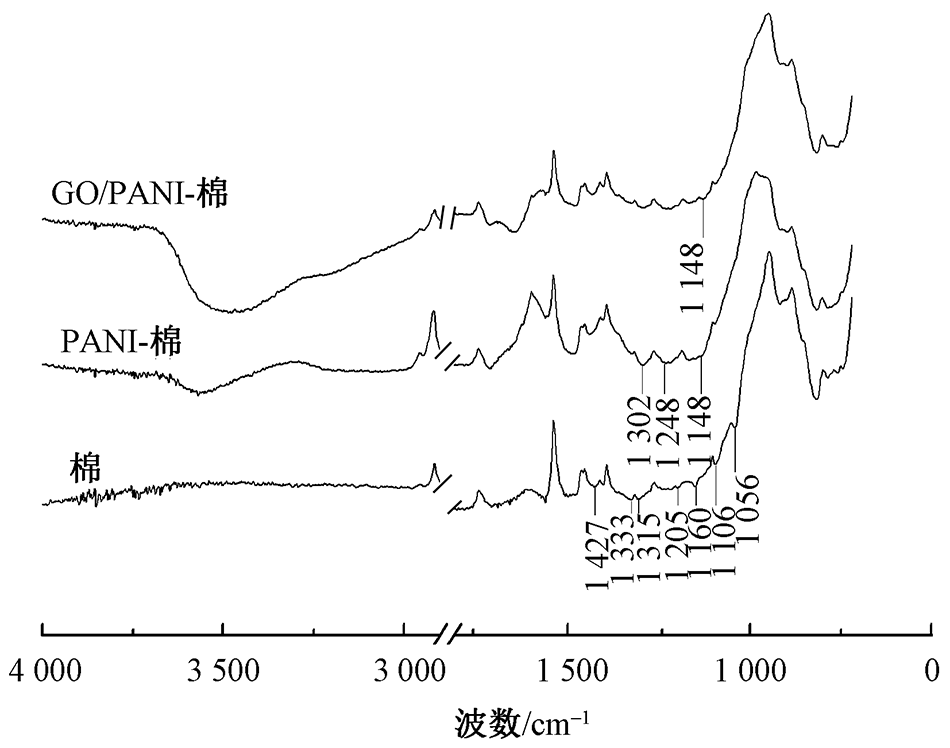

棉、PANI涂层棉及GO/PANI涂层棉织物的红外光谱"

图2

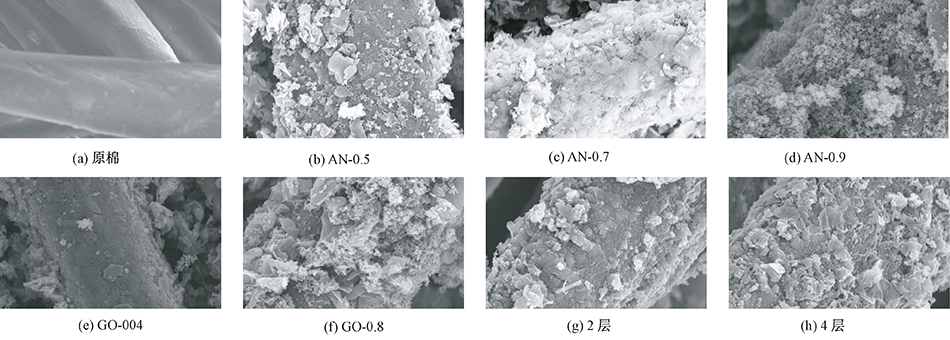

不同AN单体浓度、GO质量浓度和组装层数时GO/PANI涂层棉纤维前后的扫描电镜照片(×5 000)"

表1

苯胺浓度对氧化石墨烯/聚苯胺组装棉织物上载量、厚度及表面电阻的影响"

AN浓度/
(mol·L-1)		 上载量/
(mg·cm-2)		 厚度/
mm		 表面电阻/
(Ω·□-1)
0.3 1.67±0.09 0.439±0.023 1 237.5±92.3
0.5 2.94±0.08 0.457±0.029 414.7±23.7
0.7 3.81±0.13 0.478±0.031 310.4±18.5
0.9 4.06±0.16 0.513±0.038 197.9±11.3

表2

氧化石墨烯质量浓度对涂层棉织物上载量、厚度及表面电阻的影响"

GO质量浓
度/(g·L-1)		 上载量/
(mg·cm-2)		 厚度/
mm		 表面电阻/
(Ω·□-1)
0.2 0.87±0.09 0.437±0.021 356.8±19.8
0.4 2.19±0.08 0.461±0.028 216.7±13.7
0.6 3.81±0.13 0.478±0.031 310.4±18.5
0.8 4.36±0.16 0.496±0.035 874.5±45.9

表3

氧化石墨烯/聚苯胺组装层数对棉织物上载量、厚度及表面电阻的影响"

组装
层数		 上载量/
(mg·cm-2)		 厚度/
mm		 表面电阻/
(Ω·□-1)
1 2.19±0.08 0.461±0.028 216.7±13.7
2 4.44±0.11 0.506±0.051 175.9±9.1
3 6.56±0.17 0.558±0.059 115.3±7.6
4 8.77±0.21 0.607±0.053 66.1±4.8

图3

AN浓度与GO/PANI涂层棉织物电磁屏蔽性能的关系"

图4

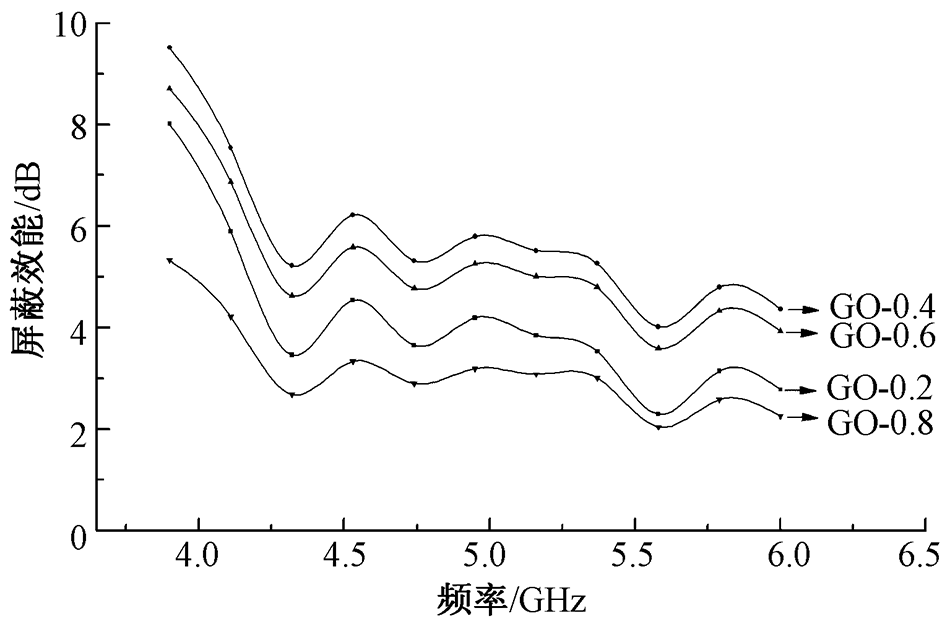

GO质量浓度与GO/PANI涂层棉织物电磁屏蔽性能的关系"

图5

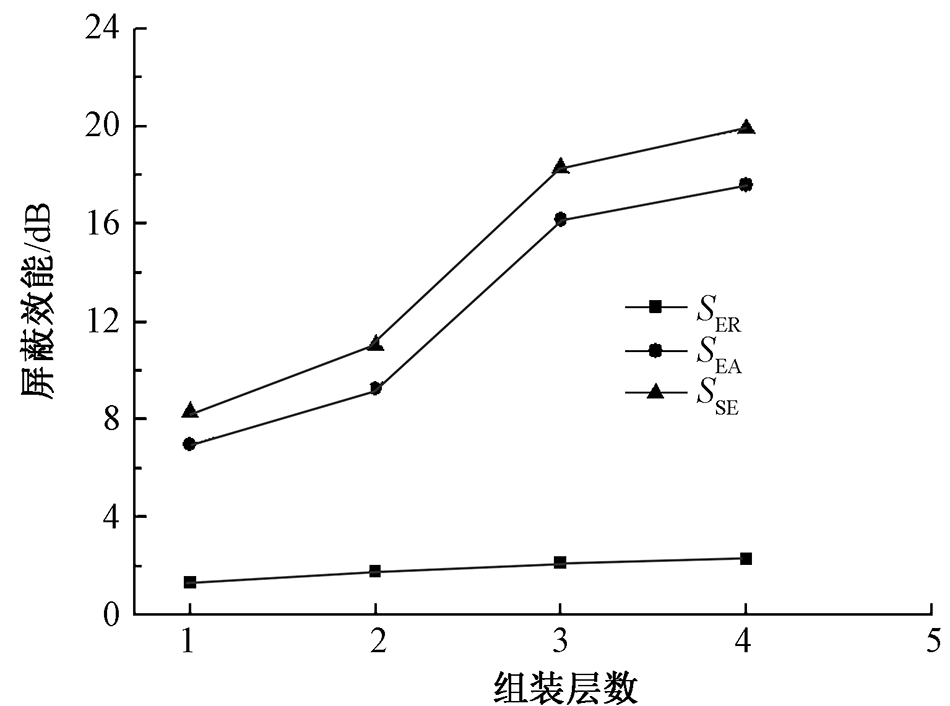

组装层数与GO/PANI涂层棉织物电磁屏蔽性能关系"

图6

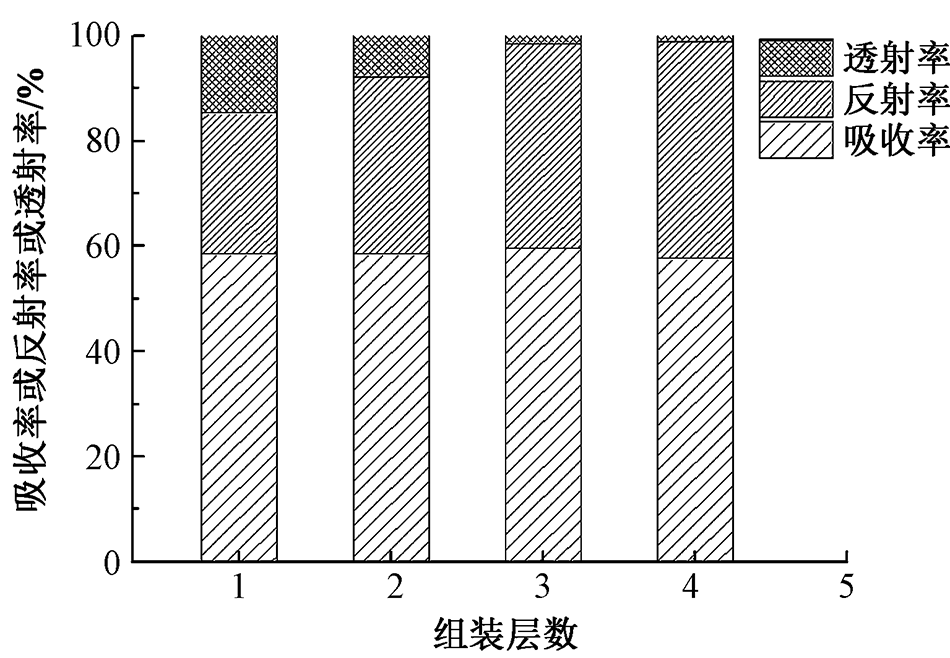

棉织物组装不同层数GO/PANI时其吸收率、反射率和透射率关系变化"

表4

不同条件下GO/PANI涂层棉织物电磁屏蔽效能的耐久性"

样品名称 屏蔽效能/dB
未洗涤参照样 19.91±2.00
去离子水中浸泡24 h 19.35±1.92
去离子水中超声30 min 19.05±2.11
洗衣液中超声30 min 18.91±2.04
[1] 曲华洋, 谢春萍, 徐伯俊 , 等. 全聚赛络纺双芯纱及其弹性电磁屏蔽针织物的制备[J]. 纺织学报, 2018,39(6):52-58.
QU Huayang, XIE Chunping, XU Bojun , et al. Preparation of elastic radiation resistant textile based on double filament core-spun yarn[J]. Journal of Textile Research, 2018,39(6):52-58.
[2] 段永洁, 谢春萍, 刘新金 . 棉/不锈钢长丝机织物的电磁屏蔽及折皱回复性能[J]. 纺织学报, 2016,37(9):31-36.
DUAN Yongjie, XIE Chunping, LIU Xinjin . Electromagnetic shielding and wrinkle recovery property of cotton/stainless steel filament woven fabric[J]. Journal of Textile Research, 2016,37(9):31-36.
[3] 师艳丽, 李娜娜, 付元静 , 等. 用于纺织品表面改性的磁控溅射技术研究进展[J]. 纺织学报, 2016,37(4):165-169.
SHI Yanli, LI Nana, FU Yuanjing , et al. Research pro-gress of magnetron sputtering in textiles[J]. Journal of Textile Research, 2016,37(4):165-169.
[4] 缪润伍, 金丽华, 魏祺煜 , 等. 多轴向导电芳纶增强复合材料及其电磁屏蔽性能[J]. 纺织学报, 2019,40(2):100-104.
MIAO Runwu, JIN Lihua, WEI Qiyu , et al. Preparation and electromagnetic shielding property of conductive poly(p-phenylene terephamide) of reinforced composite materials[J]. Journal of Textile Research, 2019,40(2):100-104.
[5] TUNAKOVA V, GREGR J, TUNAK M , et al. Functional polyester fabric/polypyrrole polymer composites for electromagnetic shielding: optimization of process parameters[J]. Journal of Industrial Textiles, 2018,47(5):686-711.
doi: 10.1177/1528083716667262
[6] ZOU L, LAN C, LI X , et al. Superhydrophobization of cotton fabric with multiwalled carbon nanotubes for durable electromagnetic interference shielding[J]. Fibers and Polymers, 2015,16(10):2158-2164.
doi: 10.1007/s12221-015-5436-1
[7] YUAN Y, YIN W, YANG M , et al. Lightweight, flexible and strong core-shell non-woven fabrics covered by reduced graphene oxide for high-performance electromagnetic interference shielding[J]. Carbon, 2018,130:59-68.
doi: 10.1016/j.carbon.2017.12.122
[8] HAJI A, RAHBAR R, SHOUSHTARI A . Improved microwave shielding behavior of carbon nanotube-coated PET fabric using plasma technology[J]. Applied Surface Science, 2014,311:593-601.
doi: 10.1016/j.apsusc.2014.05.113
[9] 张松林, 邹梨花, 张梓萌 , 等. 氧化石墨烯多层膜在棉织物上的层层组装及其电磁屏蔽性能[J]. 东华大学学报(自然科学版), 2016,42(1):30-34,39.
ZHANG Songlin, ZOU Lihua, ZHANG Zimeng , et al. Graphene oxide multilayer films on cotton fabrics through layer-by-layer assembly and its electromagnetic shielding property[J]. Journal of Donghua University(Natural Science Edition), 2016,42(1):30-34, 39.
[10] ESMAEELI A, GHAFFARINEJAD A, ZAHEDI A , et al. Copper oxide-polyaniline nanofiber modified fluorine doped tin oxide (FTO) electrode as non-enzymatic glucose sensor[J]. Sensors and Actuators B: Chemical, 2018,266:294-301.
doi: 10.1016/j.snb.2018.03.132
[11] AHAD I, HARUN S, GAN S , et al. Polyani-line (PANI) optical sensor in chloroform detection[J]. Sensors and Actuators B: Chemical, 2018,261:97-105.
doi: 10.1016/j.snb.2018.01.082
[12] LI M, ZHOU S . Alpha-Fe2O3/polyaniline nanocom-posites as an effective catalyst for improving the electrochemical performance of microbial fuel cell[J]. Chemical Engineering Journal, 2018,339:539-546.
doi: 10.1016/j.cej.2018.02.002
[13] LIU H, ZOU Y, HUANG L , et al. Enhanced electrochemical performance of sandwich-structured polyaniline-wrapped silicon oxide/carbon nanotubes for lithium-ion batteries[J]. Applied Surface Science, 2018,442:204-212.
doi: 10.1016/j.apsusc.2018.02.023
[14] SHI M, BAI M, LI B . Synjournal of mesoporous crosslinked polyaniline using SDS as a soft template for high-performance supercapacitors[J]. Journal of Materials Science, 2018,53(13):9731-9741.
doi: 10.1007/s10853-018-2280-x
[15] JOSEPH N, VARGHESE J, SEBASTIAN M . A facile formulation and excellent electromagnetic absorption of room temperature curable polyaniline nanofiber based inks[J]. Journal of Materials Chemistry C, 2016,4(5):999-1008.
doi: 10.1039/C5TC03080C
[16] KOH Y, MOKHTAR N, PHANG S . Effect of microwave absorption study on polyaniline nanocomposites with untreated and treated double wall carbon nanotubes[J]. Polymer Composites, 2018,39(4):1283-1291.
doi: 10.1002/pc.v39.4
[17] JIANG L, SYED J, GAO Y , et al. Electrodeposition of Ni(OH)2 reinforced polyaniline coating for corrosion protection of 304 stainless steel[J]. Applied Surface Science, 2018,440:1011-1021.
doi: 10.1016/j.apsusc.2018.01.145
[18] HOGHOGHIFARD S, MOKHTARI H, DEHGHANI S . Improving EMI shielding effectiveness and dielectric properties of polyaniline-coated polyester fabric by effective doping and redoping procedures[J]. Journal of Industrial Textiles, 2018,47(5):587-601.
doi: 10.1177/1528083716665630
[19] ENGIN F, USTA I . Development and characterisation of polyaniline/polyamide (PANI/PA) fabrics for electromagnetic shielding[J]. Journal of The Textile Institute, 2015,106(8):872-879.
doi: 10.1080/00405000.2014.950085
[20] ZHAO H, HOU L, BI S , et al. Enhanced X-Band electromagnetic-interference shielding performance of layer-structured fabric-supported polyaniline/cobalt-nickel coatings[J]. Acs Applied Materials & Interfaces, 2017,38(9):33059-33070.
[21] ZOU L, ZHANG S, LI X , et al. Nanocomposites: step-by-step strategy for constructing multilayer structured coatings toward high-efficiency electromagnetic interference shielding[J]. Advanced Materials Interfaces, 2016,3(5). DOI: 10.1002/admin.201670019.
doi: 10.1002/admi.201670022 pmid: 27088067
[22] SAINI P, CHOUDHARY V . Conducting polymer coated textile based multilayered shields for suppression of microwave radiations in 8.2-12.4 GHz range[J]. Journal of Applied Polymer Science, 2013,129(5):2832-2839.
doi: 10.1002/app.38994
[23] GAUTAM V, SINGH K, YADAV V . Preparation and characterization of green-nano-composite material based on polyaniline, multiwalled carbon nano tubes and carboxymethyl cellulose: for electrochemical sensor applications[J]. Carbohydrate Polymers, 2018,189:218-228.
doi: 10.1016/j.carbpol.2018.02.029 pmid: 29580402
[24] RYBICKI T, STEMPIEN Z, RYBICKI E , et al. EMI shielding effectiveness of polyacrylonitrile fabric with polyaniline deposition by reactive ink-jet printing and model approach[J]. IEEE Transactions on Electromagnetic Compatibility, 2016,58(4):1025-1032.
doi: 10.1109/TEMC.15
[25] TISSERA N, WIJESENA R, RATHNAYAKE S , et al. Heterogeneous in situ polymerization of polyani-line (PANI) nanofibers on cotton textiles: improved electrical conductivity, electrical switching, and tuning properties[J]. Carbohydrate Polymers, 2018,186:35-44.
doi: 10.1016/j.carbpol.2018.01.027 pmid: 29455996
[26] 梁然然, 肖红, 王妮 . 双层及多层电磁屏蔽织物的屏蔽效能[J]. 纺织学报, 2017,38(9):51-58.
LIANG Ranran, XIAO Hong, WANG Ni . Shielding effectiveness of double and multilayer electromagnetic shielding fabric[J]. Journal of Textile Research, 2017,38(9):51-58.
[27] JI J, LI R, LI H , et al. Phytic acid assisted fabrication of graphene/polyaniline composite hydrogels for high-capacitance supercapacitors[J]. Composites Part B: Engineering, 2018,155:132-137.
doi: 10.1016/j.compositesb.2018.08.037
