纯棉水刺非织造材料的单向导水无氟整理

doi:10.13475/j.fzxb.20180703409

摘要/Abstract

摘要：

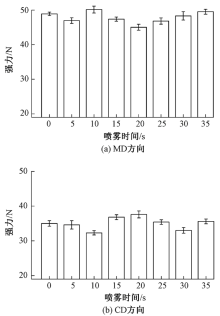

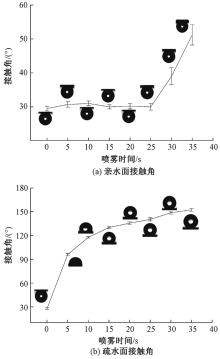

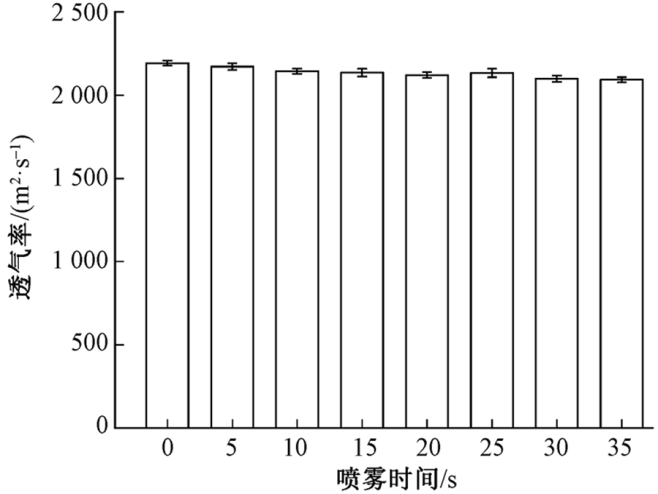

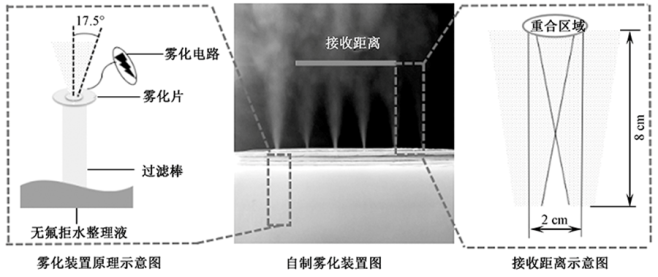

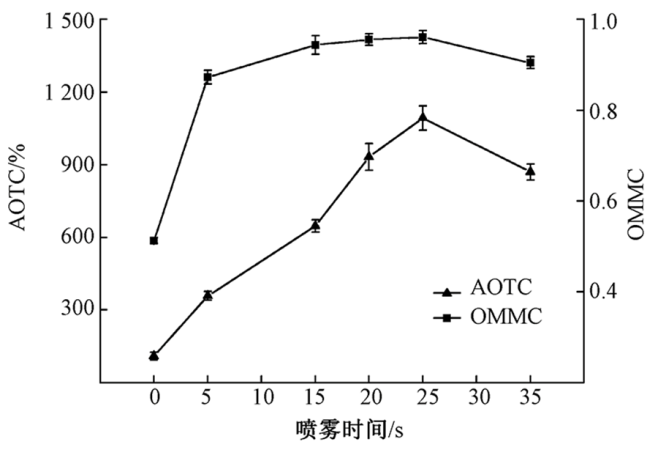

为实现纯棉水刺非织造材料单向导水无氟整理工艺的工业化,采用自制的雾化设备,并利用体积分数为0.67%的德国无氟拒水剂RUCO-DRY ECO 对纯棉水刺非织造材料进行单面拒水喷雾整理,测试了不同喷雾时间整理材料的物理力学性能、接触角、液态水分动态管理能力等性能,分析讨论了其物理力学性能基本无变化以及接触角、液态水分动态管理能力变化的原因,并采用经过此种工艺整理过的纯棉水刺非织造材料进行了纸尿裤面层性能测试。结果表明:其单向传递指数(AOTC)可达1 093%,液态水动态传递综合指数(OMMC)可达0.960 6;在保证纯棉材料不反渗的前提下,液体穿透时间可达4 s。

关键词: 自制雾化设备, 纯棉水刺非织造材料, 单面拒水, 无氟整理, 纸尿裤面层材料

Abstract:

In order to realize the industrialization of pure cotton spunlace non-woven materials single-directional water-free fluorine-free finishing process, self-made atomization equipment and the German fluorine-free water repellent RUCO-DRY ECO with a volume fraction of 0.67% were adopted to one-side water-repellent spray finish the cotton spunlace non-woven materials. This paper studied the physical and mechanical properties, contact angle and moisture management tester(MMT)performance of the materials after finishing for different spray time, discussed the reasons for the little change of physical and mechanical properties and the changes of contact angle and MMT performance, and carried out the diaper surface performance test of the finished cotton spunlace non-woven materials. The results show that its one-way transfer index (AOTC) can reach 1 093%, the liquid water dynamic transfer index (OMMC) can reach 0.960 6. Under the premise of ensuring pure cotton material does not reverse osmosis, the liquid penetration time can reach 4 s.

Key words: self-made spray device, pure cotton spunlace non-woven material, one-sided water repellent, non-fluorine finishing, side layer material of diaper

中图分类号:

TS174.8

齐国瑞, 柯勤飞, 李祖安, 黄族健, 靳向煜, 黄晨. 纯棉水刺非织造材料的单向导水无氟整理[J]. 纺织学报, 2019, 40(07): 119-127.

QI Guorui, KE Qinfei, LI Zu'an, HUANG Zujian, JIN Xiangyu, HUANG Chen. Single-guide water non-fluorinated finishing of cotton spunlace non-woven materials[J]. Journal of Textile Research, 2019, 40(07): 119-127.

图/表 18

图1

图2

表1

表2

图3

图4

图5

图6

图7

图8

图9

表3

图10

表4

图12

图11

图13

表5

参考文献 18

[1]	王科林, 孟霞 . 精纺毛织物的无氟拒水整理[J]. 纺织学报, 2016,37(3):114-118.
	WANG Kelin, MENG Xia . Fluorine-free water repellent finish of worsted fabric[J]. Journal of Textile Research, 2016,37(3):114-118.
[2]	SHEN Keke, YU Miao, LI Qianqian . Synjournal of a fluorine-free polymeric water-repellent agent for creation of superhydrophobic fabrics[J]. Applied Surface Science, 2017,426:694-703.
[3]	CAI Ronggang, KARINE Glinel, DE Smet . Environmentally friendly super-water-repellent fabrics prepared from water-based suspensions[J]. ACS Applied Materials & Interfaces, 2018,10:15346-15351. doi: 10.1021/acsami.8b02707 pmid: 29688696
[4]	MA Yue, ZHU Danjie, SI Yang . Fabricating durable, fluoride-free, water repellency cotton fabrics with CPDMS[J]. Journal of Applied Polymer Science, 2018,135(25):1-6.
[5]	ZHANG Junping, LI Bucheng, WU Lei . Facile preparation of durable and robust superhydrophobic textiles by dip coating in nanocomposite solution of organosilanes[J]. Chemical Communications, 2013,49(98):11509-11511. doi: 10.1039/c3cc43238f pmid: 23884359
[6]	LIU Yang, XIN Jicong, CHOI Ch . Cotton fabrics with single-faced superhydrophobicity[J]. Langmuir, 2012,28(50):17426-17434. doi: 10.1021/la303714h pmid: 23186211
[7]	KAICHI Sasaki, MIZUKI Tenjimbayashi . Asymmetric superhydrophobic/superhydrophilic cotton fabrics designed by spraying polymer and nanoparticles[J]. ACS Applied Materials & Interfaces, 2016,8(1):651-659. doi: 10.1021/acsami.5b09782 pmid: 26595458
[8]	刘慧慧, 王云仪 . 纸尿裤服用性能测评研究进展[J]. 纺织学报, 2018,39(6):175-182.
	LIU Huihui, WANG Yunyi . Progress in holistic wearability evaluation of disposable diapers[J]. Journal of Textile Research, 2018,39(6):175-182.
[9]	AIJAZ Ahmed Babar, WANG Xianfeng . Tailoring differential moisture transfer performance of nonwoven/polyacrylonitrile-SiO₂ nanofiber composite mem-branes[J]. Advanced Materials Interfaces, 2017,15(4):1-10.
[10]	MUHAMMAD Zahid, JOSE A . Robust water repellent treatment for woven cotton fabrics with ecofriendly polymers[J]. Chemical Engineering Journal, 2017,319:321-332.
[11]	CAO Chunyan, GE Mingzheng . Robust fluorine-free superhydrophobic PDMS-ormosil@fabrics for highly effective self-cleaning and efficient oil-water separ-ation[J]. Journal of Materials Chemistry A, 2016(4):12179-12187.
[12]	ZHAO Qing, LI Yiyang . Ambient-curable superhydrophbic fabric coating prepared by water-based non-fluorinated formulation[J]. Mater Des, 2016,92:541-545.
[13]	SEYED Mostafa Hosseinalipour, HADISE Karimaei, EHSAN Movahednejad . Mechanical reinforcement and water repellency induced to cellulose sheets by a polymer treatment[J]. Cellulose, 2013,20:1501-1509.
[14]	FU Qing, WANG Fei . Application of maximum entropy principle to predict droplet size distribution for swirl injectors[J]. Iranian Journal of science and Technology: Transactions of Mechanical Engineering, 2017,40(4):305-313.
[15]	FENG Zhuangbo, ZHOU Xiaoqing . Impacts of humidification process on indoor thermal comfort and air quality using portable ultrasonic humidifier[J]. Building and Environment, 2018,133:62-72.
[16]	SUN Di, WANG Wei . Preparation of fluorine-free water repellent finishing via thiol-ene click reaction on cotton fabrics[J]. Materials Letters, 2016,185:514-518.
[17]	王伟, 黄晨, 靳向煜 . 单向导湿织物的研究现状及进展[J]. 纺织学报, 2016,37(5):167-172.
	WANG Wei, HUANG Chen, JIN Xiangyu . Development of unidirectional water-transfer fabrics[J]. Journal of Textile Research, 2016,37(5):167-172.
[18]	郝习波, 李辉芹, 巩继贤 , 等. 单向导湿功能纺织品的研究进展[J]. 纺织学报, 2015,36(7):157-161.
	HAO Xibo, LI Huiqin , GONG Jixian,et.al.Review on unidirectional water transport functional fabrics[J]. Journal of Textile Research, 2015,36(7):157-161.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

水刺工艺	速度/(m·min^-1)	顺序	压力/kPa
预水刺	2	正	2 500
第1道	2	正	3 500
第2道	2	正	4 500
第3道	2	正	6 500
第4道	2	正	7 500

喷雾时间/s	方向	t/s	B/%	A/%	C/%
20	↓	3.2	26	6	68
20	↑	3.2	28	64	8
25	↓	4.0	20	5	75
25	↑	4.0	25	75	0
30	↓	5.2	24	18	58
30	↑	5.2	22	78	0

评语	单向传递指数 (AOTC)/%	液态水动态传递指数(OMMC)
非常差	<-50	0~0.2
差	<-50	0.2~0.4
好	100~200	0.4~0.6
非常好	200~400	0.6~0.8
极好	>400	>0.8

试样	液体穿透时间/s	滑移量/ g	返湿量/g
A	1.06	0.092 3	0.052 2
B	2.24	0.918 1	0.124 8
A与B比值	0.47	0.10	0.42
