纺织学报 ›› 2019, Vol. 40 ›› Issue (02): 159-165.doi: 10.13475/j.fzxb.20181004707

• 管理与信息化 • 上一篇    下一篇

基于信息物理系统的环锭纺纱智能车间温度闭环精准控制方法

殷士勇, 鲍劲松(), 孙学民, 王佳铖

  1. 东华大学 机械工程学院, 上海 201620
  • 收稿日期:2018-10-25 修回日期:2018-12-01 出版日期:2019-02-15 发布日期:2019-02-01
  • 通讯作者: 鲍劲松
  • 作者简介:殷士勇(1979—),男,副教授,博士生。主要研究方向为智能制造与测控。
  • 基金资助:
    国家重点研发计划资助项目(2017YFB1304000);工信部智能制造综合标准化与新模式应用项目(工信厅装函[2018]265号);中央高校基本科研业务费专项资金资助项目(2232017A-03)

Method of temperature close-loop precision control based on cyber-physical systems for intelligent workshop of ring spinning

YIN Shiyong, BAO Jinsong(), SUN Xuemin, WANG Jiacheng

  1. College of Mechanical Engineering, Donghua University, Shanghai 201620, China
  • Received:2018-10-25 Revised:2018-12-01 Online:2019-02-15 Published:2019-02-01
  • Contact: BAO Jinsong

RichHTML

2

PDF (PC)

112

摘要：

环锭纺纱智能车间的温度对纺纱工艺和成纱质量有很大影响,需要精准控制其波动。提出基于信息物理系统的环锭纺纱智能车间的温度控制方法,通过对环锭纺纱温度大数据的分析,形成对空调出风量、加热量等的调节策略,实现温度闭环精准控制。首先,提出温度闭环精准控制架构,该架构分为物理层、通信层、信息层和控制层4层;其次,建立温度闭环精准控制模型,通过数据分析形成温度精准控制策略;最后通过案例仿真智能车间的气流场和温度场,并对实测平均温度值与模拟温度值作对比。结果表明,所实测平均值和模拟值相比偏差不超过 ±0.62 ℃,所提方法可以将智能车间温度精准控制在2 ℃内波动。

关键词: 温度控制模型, 闭环控制, 信息物理系统, 环锭纺纱, 智能车间

Abstract:

The temperature of the intelligent workshop of ring spinning has a great influence on the spinning process and the quality of spinning, and it is necessary to precisely control its fluctuation. The temperature control method of the intelligent workshop of ring spinning based on cyber-physical systems was proposed by analyzing the big data of the ring spinning, forming an adjustment strategy for air conditioning air volume, heating capacity, etc. and the temperature closed-loop precise control was realized. Firstly, the temperature closed-loop precise control architecture was proposed, which is divided into four layers: physical layer, communication layer, information layer and control layer. Secondly, the temperature closed-loop precision control model was established, and the temperature precise control strategy was formed through data analysis. Finally, the airflow field and temperature field of the intelligent workshop were simulated through a case study, and the measured average temperature value was compared with the simulated temperature value. The results show that the deviation between the measured average and the simulated value does not exceed ±0.62 ℃, and the proposed method can accurately control the intelligent workshop temperature to fluctuate within 2 ℃.

Key words: temperature control model, closed-loop control, cyber-physical systems, ring spinning, intelligent workshop

中图分类号:

  • TS108.8

图1

基于CPS的环锭纺纱智能车间温度闭环精准控制架构"

表1

环锭纺纱车间温度控制范围"

车间 冬季温度 夏季温度
清棉 20~22 29~31
梳棉 22~24 29~31
精梳 22~24 28~30
并条 22~24 29~31
粗纱 22~24 29~31
细纱 24~26 30~32
络筒 20~22 30~32

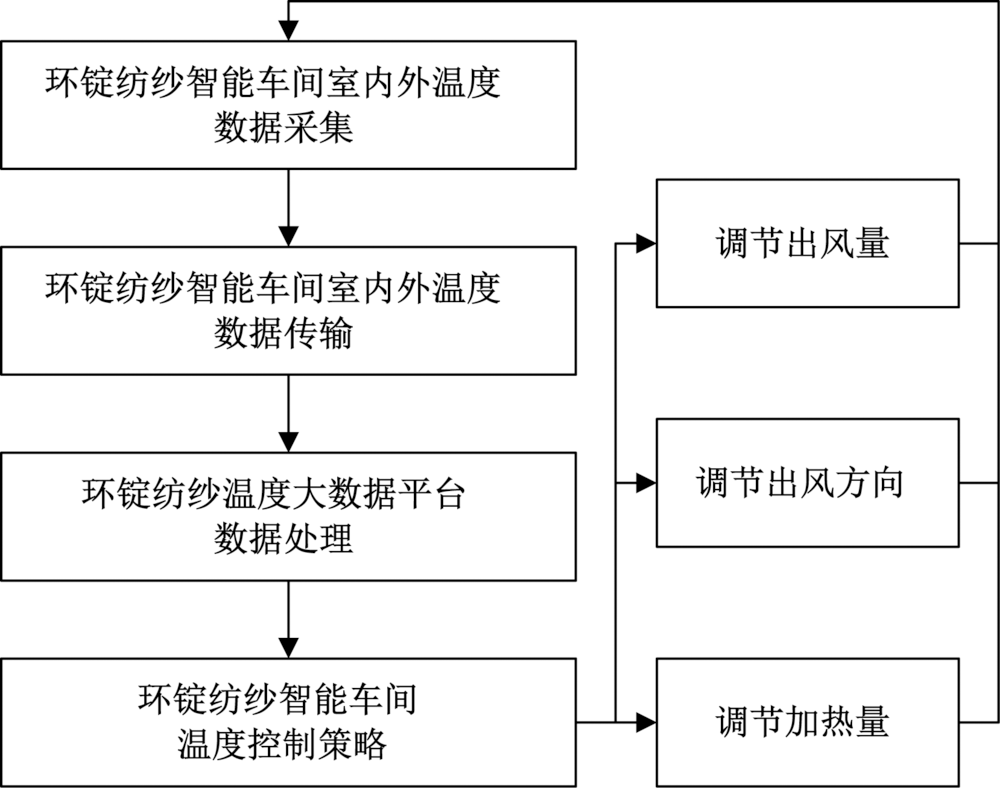

图2

基于CPS的环锭纺纱智能车间温度闭环精准控制"

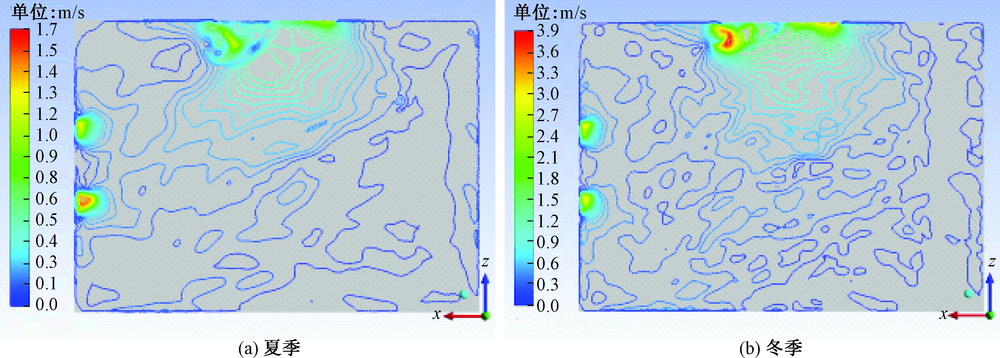

图3

环锭纺纱智能车间气流场速度云图"

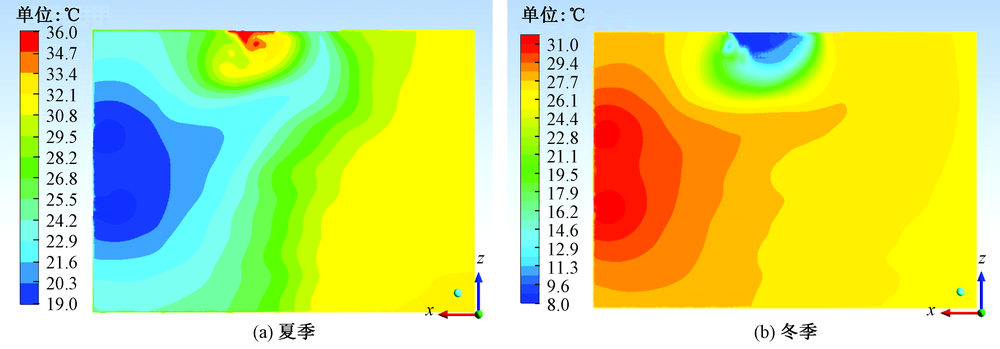

图4

环锭纺纱智能车间温度场云图"

图5

实测温度数据与模拟温度数据的对比"
