纬平针棉针织物平幅丝光条件与其线圈结构的关系

doi:10.13475/j.fzxb.20181106008

纺织学报 ›› 2020, Vol. 41 ›› Issue (04): 98-105.doi: 10.13475/j.fzxb.20181106008

纬平针棉针织物平幅丝光条件与其线圈结构的关系

尉腾祥¹^,², 李敏¹^,², 彭虹云¹^,², 付少海¹^,²()

1.江苏省纺织品数字喷墨印花工程技术研究中心, 江苏无锡 214122
2.生态纺织教育部重点实验室(江南大学), 江苏无锡 214122

收稿日期:2018-11-21 修回日期:2020-01-15 出版日期:2020-04-15 发布日期:2020-04-27
通讯作者: 付少海
作者简介:尉腾祥(1994—),男,硕士生。主要研究方向为针织物平幅丝光线圈形态变化规律。
基金资助:
国家重点研发计划资助项目(2017YFB0309701)

Relationship between open-width mercerization condition and loop structure of weft plain-knitted cotton fabrics

WEI Tengxiang¹^,², LI Min¹^,², PENG Hongyun¹^,², FU Shaohai¹^,²()

1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing, Wuxi, Jiangsu 214122, China
2. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China

Received:2018-11-21 Revised:2020-01-15 Online:2020-04-15 Published:2020-04-27
Contact: FU Shaohai

摘要/Abstract

摘要：

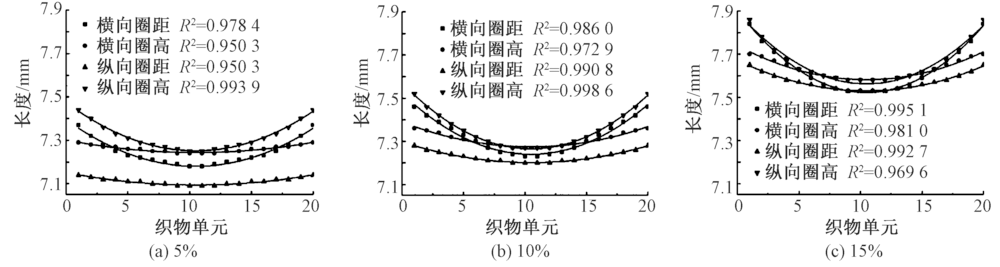

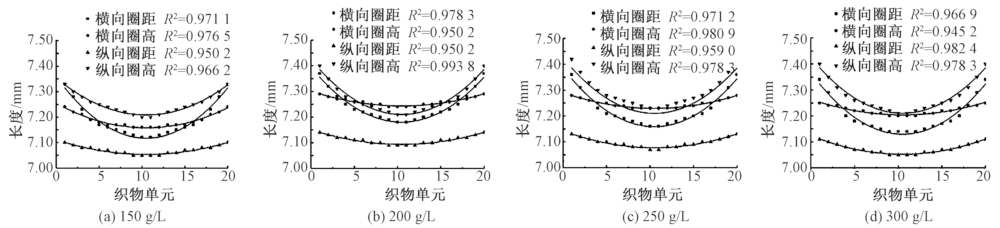

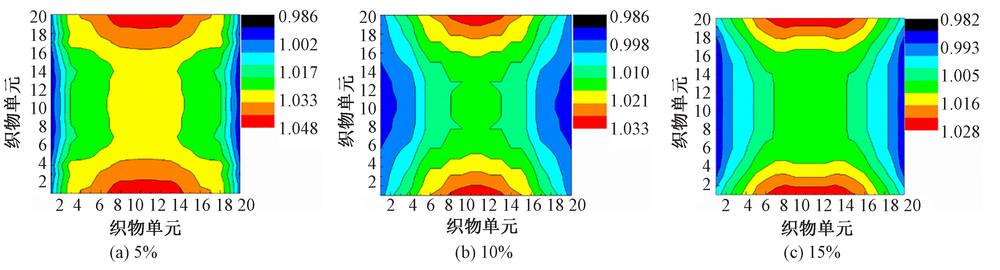

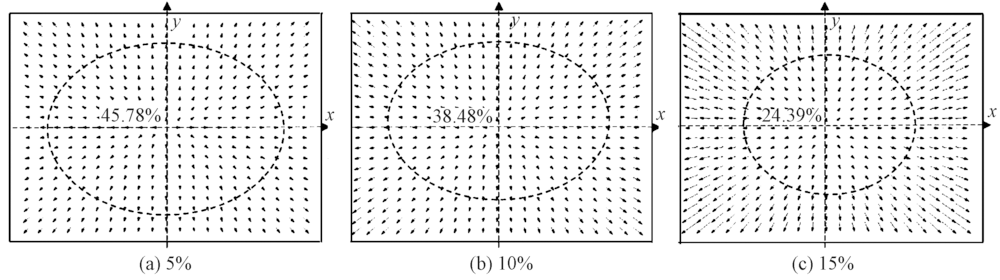

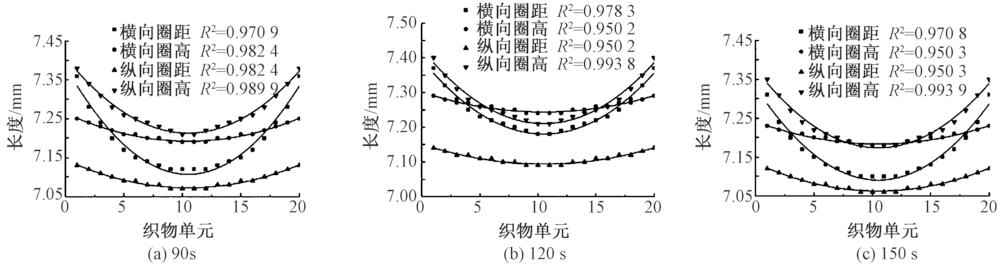

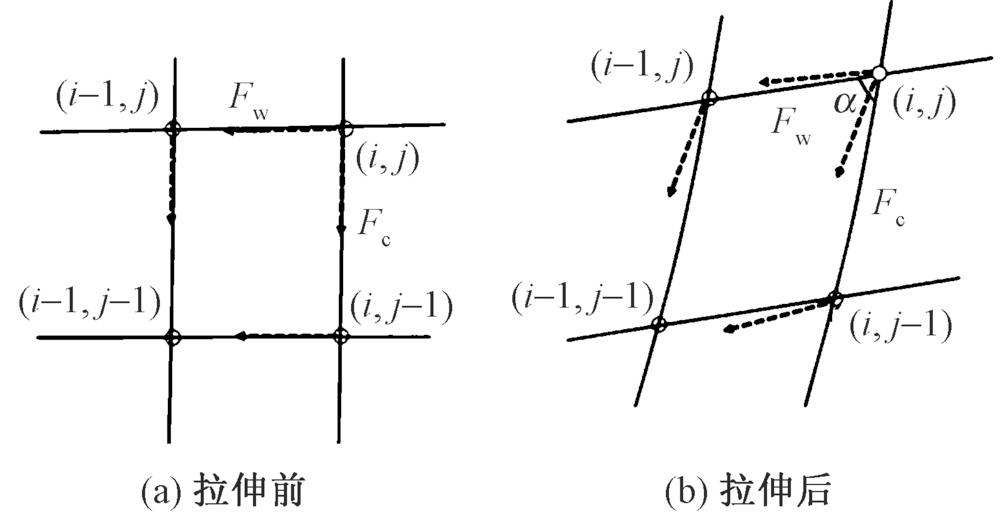

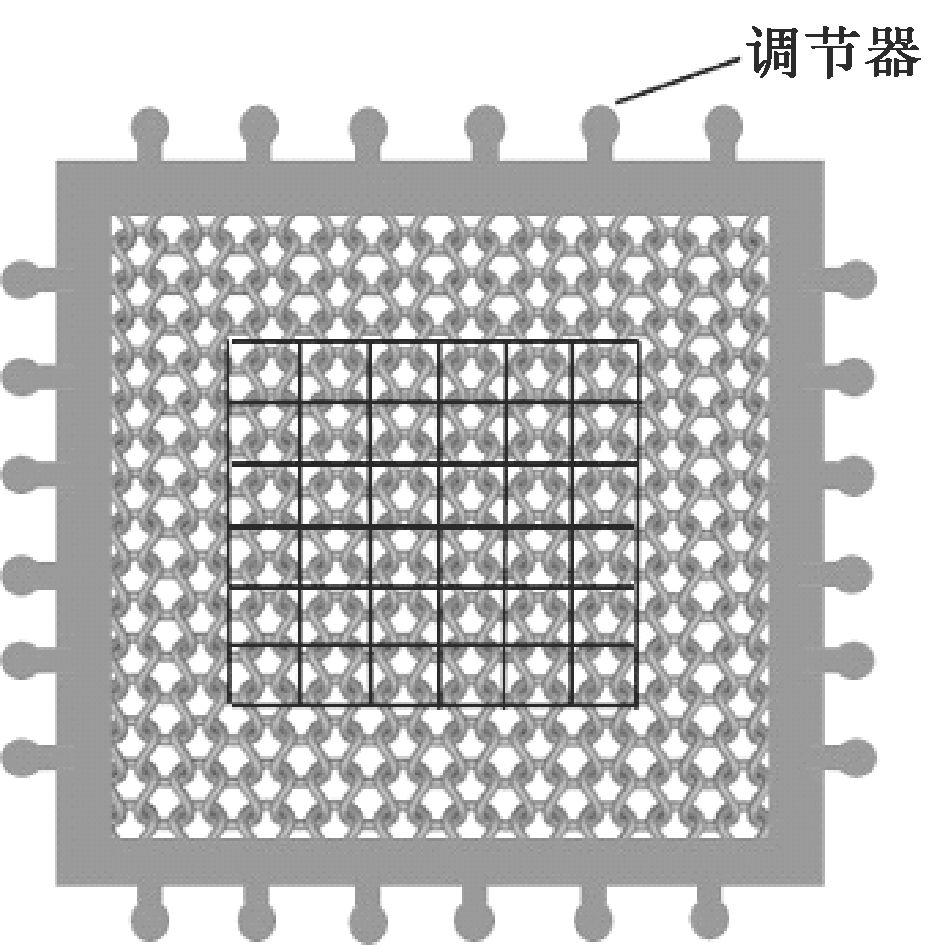

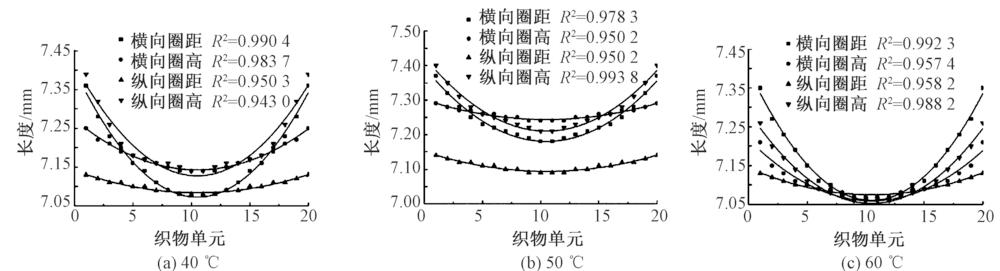

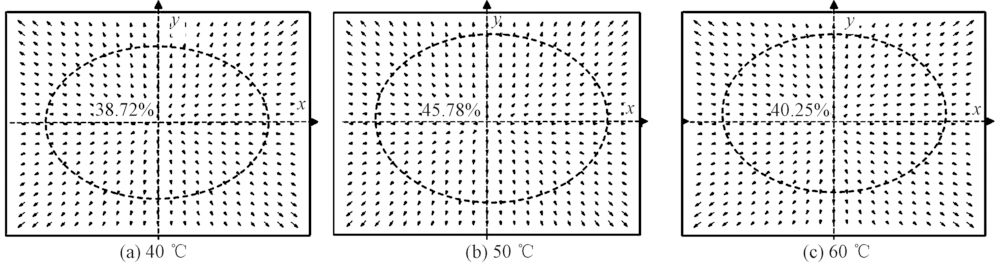

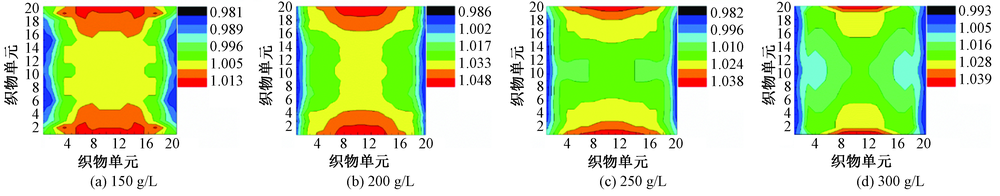

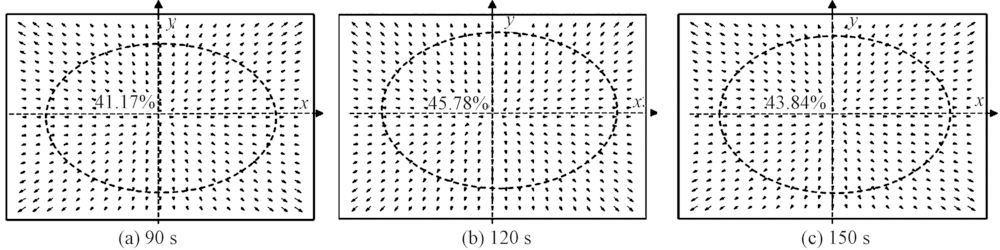

针对纬平针棉针织物在平幅丝光过程中线圈拉伸易变形的问题,探究了其在不同丝光条件下线圈结构的变化规律,采用网格法将织物分成不同的织物单元,研究双向拉伸条件下不同单元的位移矢量、圈距、圈高、形态系数、剪切角等结构参数沿拉伸方向的变化规律。结果表明:张力和氢氧化钠质量浓度对线圈结构参数变化的影响较大,丝光温度和时间对线圈结构参数的影响较小;丝光后位移矢量场中出现织物形变较小(位移比小于50%)的椭圆形区域,圈距和圈高均服从抛物线变化(拟合度高于0.94),形态系数呈周期性梯度分布,剪切角的分布存在明显的递变规律;较佳的丝光工艺为双向拉伸扩幅5%,氢氧化钠质量浓度200 g/L,温度50 ℃,时间120 s。

关键词: 纬平针棉针织物, 网格法, 平幅丝光, 双向拉伸, 线圈形态, 织物向量场

Abstract:

The change of loop structure of mercerized weft plain-knitted cotton fabric was studied to solve the problem that the loop is easily deformed in the process of open-width mercerization. In this research, the fabric was cut into different fabric pieces using the grid method, and the displacement vector, loop spacing and height, shape coefficient and shear angle of different units under biaxial stretching were investigated under biaxial tensile loading. The results show that tension and NaOH concentration of mercerizing have significant effects on the shape change of the loops, while temperature and time of mercerizing have less effect on the loop shape. For the mercerized fabric, a uniform elliptical region appeared with the displacement ratio less than 50%. Moreover, the loop spacing and height obey parabola model with the fitting degree higher than 0.94. The loop shape coefficient presents periodic gradient distribution. The shear angle exhibites an obvious response to the optimal mercerizing condition, which is obtained to be 5% tension extension, 200 g/L NaOH at 50 ℃ for 120 s.

Key words: weft plain-knitted cotton fabric, grid method, open-width mercerizing, biaxial stretching, loop shape, fabric vector field

中图分类号:

TS181

尉腾祥, 李敏, 彭虹云, 付少海. 纬平针棉针织物平幅丝光条件与其线圈结构的关系[J]. 纺织学报, 2020, 41(04): 98-105.

WEI Tengxiang, LI Min, PENG Hongyun, FU Shaohai. Relationship between open-width mercerization condition and loop structure of weft plain-knitted cotton fabrics[J]. Journal of Textile Research, 2020, 41(04): 98-105.

图/表 18

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

图18

参考文献 13

[1]	MOGHASSEM A R, BAKHSHI M R. Dimensional stabilization of cotton plain weft knitted fabric using mercerization treatment[J]. Fibers & Polymers, 2009,10(6):847-854.
[2]	KIM J T, NETRAVALI A N. Mercerization of sisal fibers: effect of tension on mechanical properties of sisal fiber and fiber-reinforced composites[J]. Composites Part A: Applied Science & Manufacturing, 2010,41(9):1245-1252.
[3]	王宝华, 陈祥勤, 何贻康. 针织物丝光处理技术和新进展[J]. 针织工业, 2010(1):40-41.
	WANG Baohua, CHEN Xiangqin, HE Yikang. The technology and new progress of mercerizing of knitted fabrics[J]. Knitting Industries, 2010(1):40-41.
[4]	汤根娣, 龙海如. 亚麻/棉混纺针织物的丝光工艺优化[J]. 纺织科技进展, 2012(4):49-51.
	TANG Gendi, LONG Hairu. Optimization of silk finishing technology of flax/cotton blended knit-wear[J]. Progress in Science & Textile Technology, 2012(4):49-51.
[5]	胡萍, 杨陈. 纤维素酶对丝光苎麻织物的抗刺痒感整理[J]. 毛纺科技, 2018,46(6):42-44.
	HU Ping, YANG Chen. Study on anti-itchy finishing of mercerized ramie fabric by cellulose[J]. Wool Textile Journal, 2018,46(6):42-44.
[6]	AYATOLLAHI P, ALAMDARYAZDI A, SARRAFSHIRAZI M J. The influence of cold mercerization on comfort properties of summer cotton fabrics[J]. International Journal of Clothing Science & Technology, 2013,25(4):257-265.
[7]	MOGHASSEM A R, VALIPOUR P. An extensive look into the effect of mercerization treatment on: dimensional properties of cotton plain knitted fabric[J]. Fibers & Polymers, 2013,14(2):330-337.
[8]	PARK S W, COLLIE S, HERATH C N, et al. Dimensional stability of single jersey fabrics of lincLITE^© and conventional yarns: II: fabric dimensional changes [J]. Fibers & Polymers, 2007,8(1):72.
[9]	ARAÚJO M D, FANGUEIRO R, HONG H. Modelling and simulation of the mechanical behavior of weft-knitted fabrics for technical applications: part II: 3D model based on the elastica theory[J]. Autex Research Journal, 2003,3(4):166-172.
[10]	尉腾祥, 李敏, 彭虹云, 等. 纬平棉针织物双向拉伸线圈形态分析[J]. 纺织学报, 2019,40(11):64-68.
	WEI Tengxiang, LI Min, PENG Hongyun, et al. Shape analysis of biaxial stretching coil of weft plain knitted cotton fabric[J]. Journal of Textile Research, 2019,40(11):64-68.
[11]	LIU D, CHRISTE D, SHAKIBAJAHROMI B, et al. On the role of material architecture in the mechanical behavior of knitted textiles[J]. International Journal of Solids & Structures, 2017,109:101-111.
[12]	DUSSERRE G, BALEA L, BERNHART G. Elastic properties prediction of a knitted composite with inlaid yarns subjected to stretching: a coupled semi-analytical model[J]. Composites Part A: Applied Science and Manufacturing, 2014,64:185-193.
[13]	DUHOVIC M, BHATTACHARYYA D. Simulating the deformation mechanisms of knitted fabric compo-sites[J]. Composites Part A: Applied Science and Manufacturing, 2006,37(11):1897-1915.
