纺织学报 ›› 2019, Vol. 40 ›› Issue (12): 146-151.doi: 10.13475/j.fzxb.20190105306

• 综合述评 • 上一篇    下一篇

基于卷积神经网络的织物图像特征提取与检索研究进展

孙洁1,2, 丁笑君1,3,4, 杜磊1,3,4, 李秦曼1, 邹奉元1,3,4()

  1. 1.浙江理工大学 服装学院, 浙江 杭州 310018
    2.浙江传媒学院 设计艺术学院, 浙江 杭州 310018
    3.浙江省服装工程技术研究中心, 浙江 杭州 310018
    4.丝绸文化传承与产品设计数字化 技术文化和旅游部重点实验室, 浙江 杭州 310018
  • 收稿日期:2019-01-28 修回日期:2019-07-23 出版日期:2019-12-15 发布日期:2019-12-18
  • 通讯作者: 邹奉元
  • 作者简介:孙洁(1987—),女,讲师,博士生。主要研究方向为服装数字化技术。
  • 基金资助:
    浙江省教育厅项目(Y201840287);浙江省大学生科技创新项目(2018R406076);浙江省2011协同创新中心科技研发专项(17034005-F)

Research progress of fabric image feature extraction and retrieval based on convolutional neural network

SUN Jie1,2, DING Xiaojun1,3,4, DU Lei1,3,4, LI Qinman1, ZOU Fengyuan1,3,4()

  1. 1. School of Fashion Design & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. School of Design & Art, Communication University of Zhejiang, Hangzhou, Zhejiang 310018, China
    3. Zhejiang Provincial Research Center of Clothing Engineering Technology, Hangzhou, Zhejiang 310018, China
    4. Key Laboratory of Silk Culture Inheriting and Products Design Technology, Ministry of Culture and Tourism, Hangzhou, Zhejiang 310018, China
  • Received:2019-01-28 Revised:2019-07-23 Online:2019-12-15 Published:2019-12-18
  • Contact: ZOU Fengyuan

摘要:

为实现织物图像的快速自动识别与检索,从织物图像浅层视觉特征提取、深度语义特征学习以及检索模型构建3个方面综述了该领域的研究进展,分析了现有研究中存在的问题。发现织物图像浅层视觉特征在小样本数据集的检索中具有较好的适用性,且多特征融合应用可有效提升检索精度,但在大样本数据集及高层语义识别检索问题中的应用存在局限性,深度卷积神经网络是克服这一问题的有效途径;织物语义属性的优化设计、卷积神经网络结构优化以及距离尺度学习是目前提升深度检索模型语义识别精度的3个有效途径;认为未来织物图像识别检索精度的提升主要依赖于标准化的语义系统设计、精准的图像分割与识别技术以及多模态的信息融合检索。

关键词: 织物图像特征, 特征提取, 图像检索, 卷积神经网络

Abstract:

In order to explore the problem of automatic recognition and retrieval in fabric images, the research progress of this field in three aspects: shallow visual feature extraction, deep semantic feature representation and retrieval model construction was summarized, and then the existing problems were analyzed. The research shows that shallow visual features of fabric images have good applicability in the retrieval of small sample data sets, and the application of multi-feature fusion can effectively improve the retrieval accuracy, but there are limitations in the retrieval of large sample data sets and high-level semantic recognition. The deep convolutional neural network can effectively overcome this problem. The optimal design of fabric semantic attributes, the structural optimization of convolutional neural network and distance metric learning are three effective ways to improve the precision of deep retrieval model. It is believed that the improvement of fabric image recognition and retrieval accuracy in the future mainly depends on three aspects: accurate image segmentation and recognition technology, standardized semantic system design and multi-modal retrieval information fusion.

Key words: fabric image recognition, feature extract, image retrieval, convolutional neural network

中图分类号:

  • TP181

表1

织物浅层视觉特征提取文献比较"

文献 特征类别 指标/方法 样本个数 织物属性要素 是否涉及语义识别
[2] 颜色+形状特征 颜色直方图、Hu不变矩 300 纹样
[6] 颜色+全局特征 颜色矩、GIST特征 700 纹样
[8] 形状特征 离散余弦变换(DCT)特征 纹样
[13] 颜色+纹理特征 颜色直方图、LBP特征 200 风格
[14] 颜色+纹理特征 颜色直方图、分形纹理特征 200 表面肌理
[17] 纹理特征 灰度共生矩阵 组织结构
[19] 纹理特征 LBP特征 150 表面纹理
[22] 颜色+形态特征 三维CVQ特征、Hu不变矩 202 纹样
[24] 颜色+形态特征 Canny算子、颜色直方图 1 000 纹样

图1

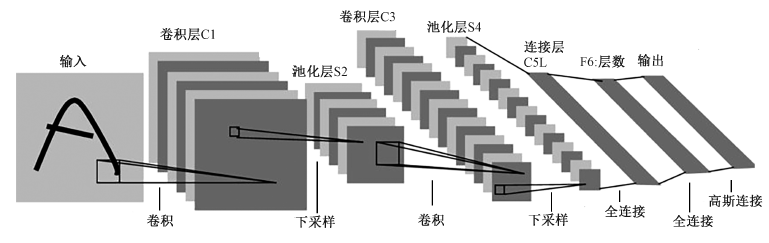

LeNet-5 CNN模型结构"

图2

基于CNN的织物图像语义识别框架"
