纺织学报 ›› 2020, Vol. 41 ›› Issue (06): 168-173.doi: 10.13475/j.fzxb.20190304306

• 综合述评 • 上一篇    下一篇

电泳沉积碳纳米管和氧化石墨烯修饰碳纤维表面的研究进展

李莉萍1, 吴道义1, 战奕凯1, 何敏1,2()

  1. 1.贵州大学 材料与冶金学院, 贵州 贵阳 550025
    2.国家复合改性聚合物材料工程技术研究中心, 贵州 贵阳 550014
  • 收稿日期:2019-03-15 修回日期:2020-02-03 出版日期:2020-06-15 发布日期:2020-06-28
  • 通讯作者: 何敏
  • 作者简介:李莉萍(1995—),女,硕士生。主要研究方向为碳纤维表面修饰及其与锦纶6复合材料性能。
  • 基金资助:
    国家自然科学基金资助项目(51663006);贵州省科技计划项目(黔科合基础 [2016] 1025号)

Review on carbon fiber surface modification using electrophoretic deposition of carbon nanotubes and graphene oxide

LI Liping1, WU Daoyi1, ZHAN Yikai1, HE Min1,2()

  1. 1. College of Materials and Metallurgy, Guizhou University, Guiyang, Guizhou 550025, China
    2. National Engineering Research Center for Compounding and Modification of Polymeric Materials, Guiyang, Guizhou 550014, China
  • Received:2019-03-15 Revised:2020-02-03 Online:2020-06-15 Published:2020-06-28
  • Contact: HE Min

RichHTML

16

PDF (PC)

486

摘要：

针对碳纤维表面极性官能团少,化学活性低,与基体间的界面结合强度弱等问题,综述了国内外关于电泳沉积碳纳米管和氧化石墨烯修饰碳纤维提高其复合材料力学性能的最新研究进展。阐述了在不同的电泳沉积工艺下,分别在碳纤维表面引入碳纳米管和氧化石墨烯,对修饰碳纤维表面及其复合材料力学性能的影响。总结了影响电泳沉积修饰碳纤维效果的因素,并提出了相应的建议。展望了电泳沉积修饰碳纤维表面的研究发展方向,指出对碳纤维、碳纳米管和氧化石墨烯进行预处理,添加辅助工艺的电泳沉积设备制造将会成为未来的重要研究方向。

关键词: 碳纤维, 电泳沉积, 碳纳米管, 氧化石墨烯, 复合材料, 力学性能

Abstract:

Carbon fiber (CF) surface has few polar functional groups, and hence is chemically inactive, leading to weak interface bonding strength with the matrix in composites. Aiming at this problem, this article reviewed the latest research progress in carbon fiber surface modification with electrophoretic deposition of carbon nanotubes and graphene oxide to improve the mechanical properties of composites. Based on the adoption of the electrophoretic deposition processes, the work on carbon fiber surface modification with carbon nanotubes and graphene oxide and the effect of the fiber modification on mechanical properties of modified carbon fiber and their composite materials were described. The factors affecting the effect of electrophoretic deposition on modified carbon fibers were summarized, and corresponding suggestions were put forward. The research trend in carbon fiber surface modification based on the use of electrophoretic deposition was explained, and the paper pointed out that pretreatment of carbon fiber, carbon nanotubes and graphene oxide, and the addition of auxiliary electrophoretic deposition equipment manufacturing will become an important research direction in the future.

Key words: carbon fiber, electrophoretic deposition, carbon nanotube, graphene oxide, composite material, mechanical property

中图分类号:

  • TQ342.74

图1

电泳沉积碳纳米管的碳纤维扫描电镜照片(×13 000)"

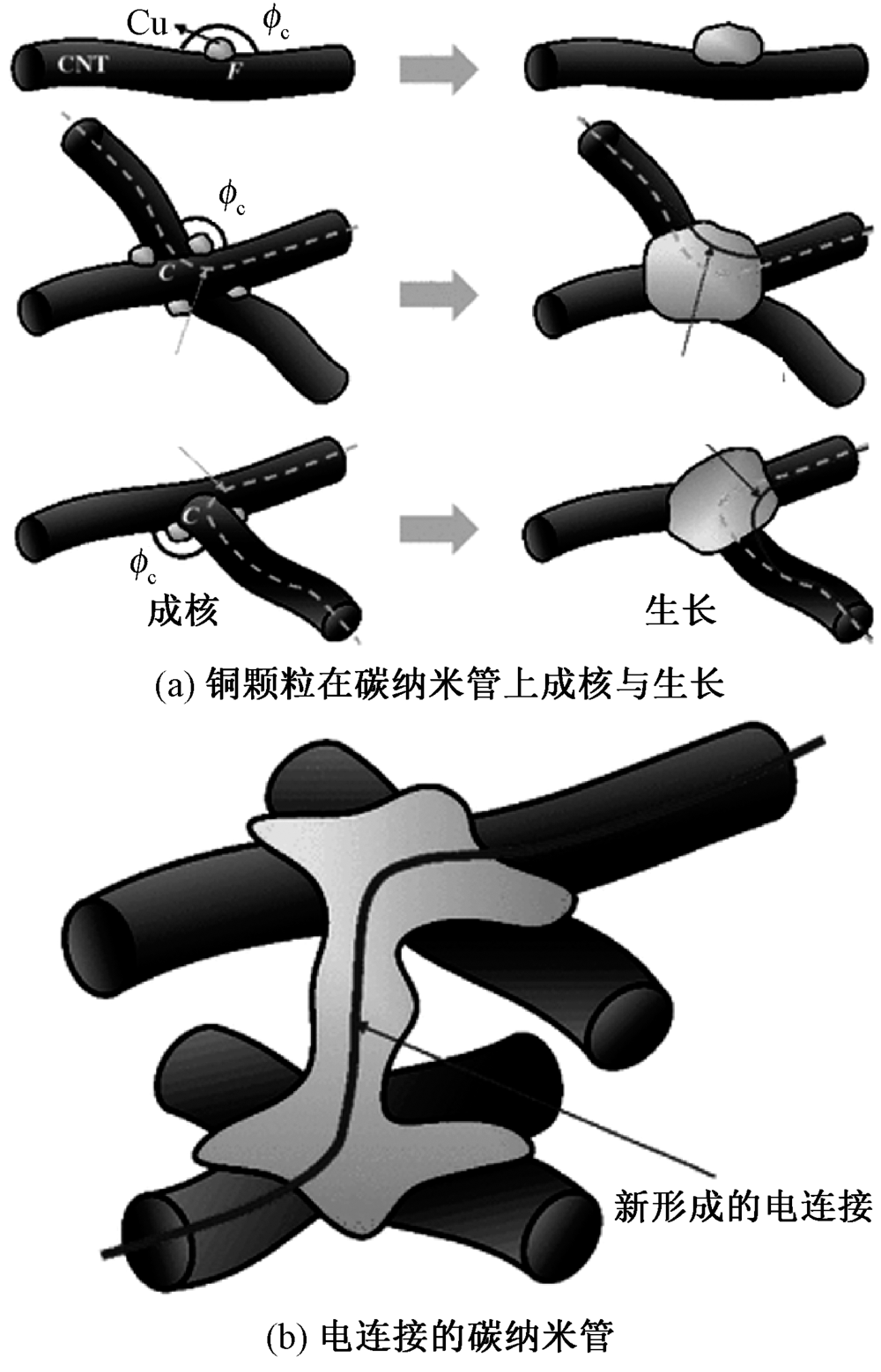

图2

CNT/Cu杂化纳米结构的图示"

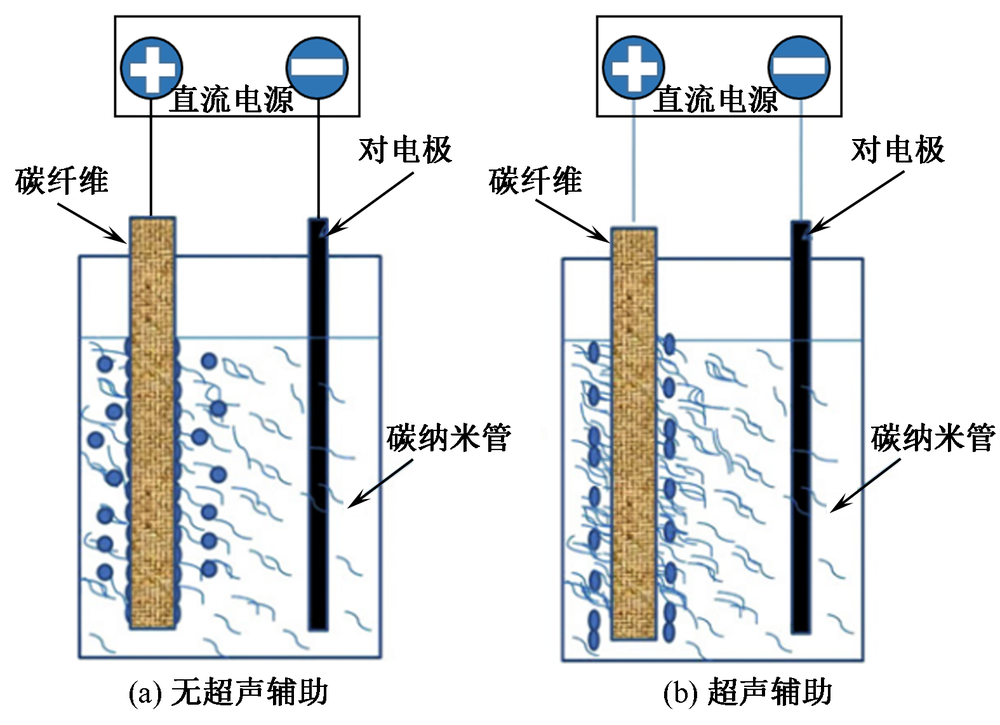

图3

电泳沉积碳纳米管修饰碳纤维示意图"

图4

电泳沉积氧化石墨烯的碳纤维扫描电镜照片"

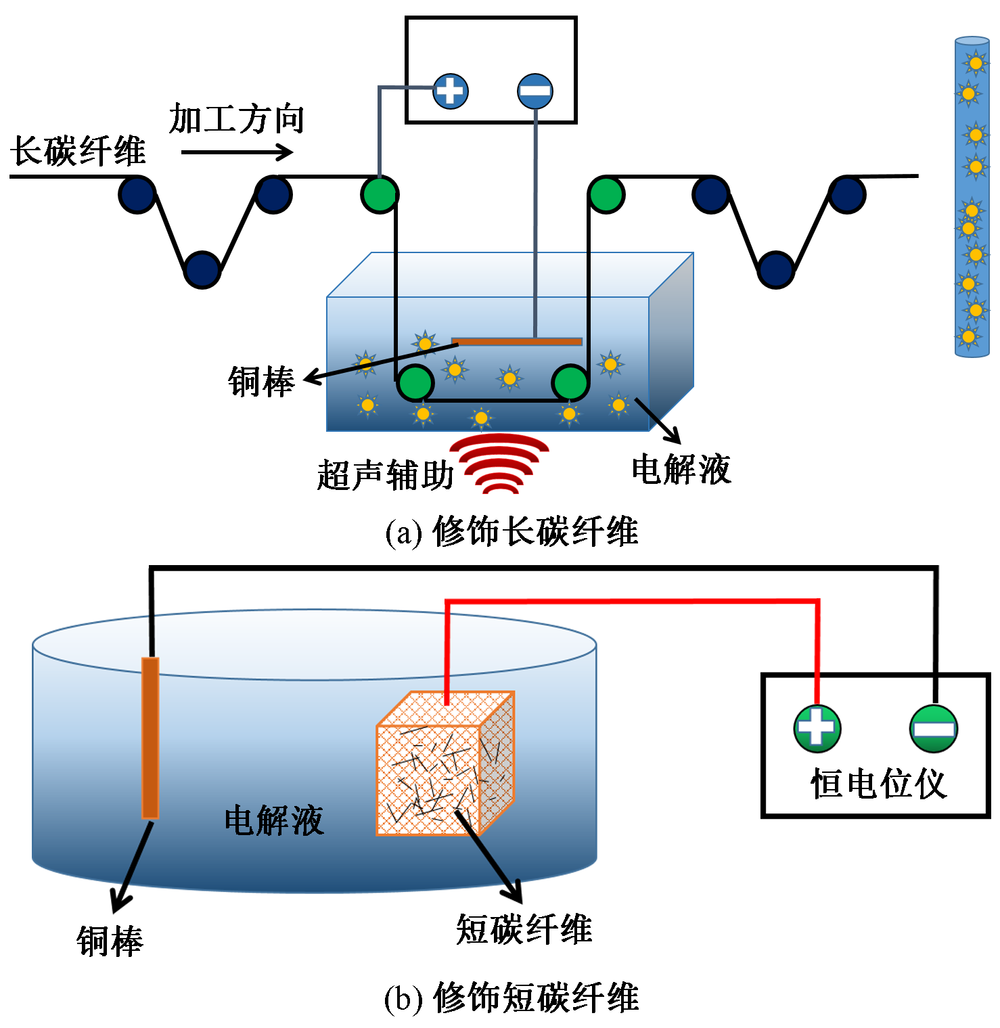

图5

电泳沉积氧化石墨烯修饰碳纤维设备"

[1] ZHAO Zhongbo, TENG Kunyue, LI Nan, et al. Mechanical thermal and interfacial performances of carbon fiber reinforced composites flavored by carbon nanotube in matrix/interface[J]. Composite Structures, 2017,159:761-772.
[2] 韩潇, 肇研, 孙健明, 等. 氧化石墨烯/炭纤维/环氧树脂基复合材料的制备及其层间剪切性能[J]. 新型炭材料, 2017,32(1):48-55.
HAN Xiao, ZHAO Yan, SUN Jianming, et al. Effect of graphene oxide addition on the interlaminar shear property of carbon fiber-reinforced epoxy composites[J]. New Carbon Materials, 2017,32(1):48-55.
[3] CHEN Y K, GREEN M L H, TSANG S C. Synjournal of carbon nanotubes filled with long continuous crystals of molybdenum oxides[J]. Chemical Communications, 1996(21):2489-2490.
[4] 刘敏敏, 蔡超, 张志杰. 纳米碳材料负载过渡金属氧化物用作超级电容器电极材料[J]. 材料导报, 2019,33(1):103-109.
LIU Minmin, CAI Chao, ZHANG Zhijie. Carbon nanomaterials supported transition metal oxides as supercapacitor electrodes[J]. Materials Reports, 2019,33(1):103-109.
[5] 李君, 矫维成, 闫美玲, 等. 碳纳米材料接枝碳纤维的复合材料界面增效研究进展[J]. 玻璃钢/复合材料, 2018(1):108-113.
LI Jun, JIAO Weicheng, YAN Meiling, et al. Research progress on composite interface design of grafting carbon nanomaterials onto carbon fibers[J]. Fiber Reinforced Plastics/Composites, 2018(1):108-113.
[6] NGUYEN-TRAN H D, HOANG V T, DO V T, et al. Effect of multiwalled carbon nanotubes on the mechanical properties of carbon fiber-reinforced polyamide-6/ polypropylene composites for lightweight automotive parts[J]. Materials, 2018,11(3). DOI: 10.3390/ ma11030429.
doi: 10.3390/ma11030452 pmid: 29558402
[7] LV Peng, FENG Yiyu, ZHANG Peng, et al. Increasing the interfacial strength in carbon fiber/epoxy composites by controlling the orientation and length of carbon nanotubes grown on the fibers[J]. Carbon, 2011,49(14):4665-4673.
[8] LI Fei, QU Chengbing, HUA Yang, et al. Largely improved dimensional stability of short carbon fiber reinforced polyethersulfone composites by graphene oxide coating at a low content[J]. Carbon, 2017,119:339-349.
[9] LU Haibao, YAO Yongtao, HUANG Weimin, et al. Noncovalently functionalized carbon fiber by grafted self-assembled graphene oxide and the synergistic effect on polymeric shape memory nanocomposites[J]. Composites Part B: Engineering, 2014(67):290-295.
[10] PARK S J, JANG Y S, RHEE K Y. Interlaminar and ductile characteristics of carbon fibers-reinforced plastics produced by nanoscaled electroless nickel plating on carbon fiber surfaces[J]. Journal of Colloid and Interface Science, 2002,245(2):383-390.
pmid: 16290372
[11] HE Shuqing, ZHANG Shouchun, LU Chunxiang. Coating carbon fiber using polyimide:silica nanocomposite by electrophoretic deposition[J]. Colloids & Surfaces A: Physicochemical & Engineering Aspects, 2011,387(1):86-91.
[12] 眭凯强, 张庆波, 刘丽. 碳纤维电泳沉积碳纳米管对界面性能的影响[J]. 材料科学与工艺, 2015,23(1):45-50.
SUI Kaiqiang, ZHANG Qingbo, LIU Li. The influence of carbon fiber reinforcement composite by electrophoretic deposition carbon nanotubes on interfacial property of carbon fiber surface[J]. Materials Science & Technology, 2015,23(1):45-50.
[13] LIU J, RINZLER A G, DAI H J, et al. Fullerene pipes[J]. Science, 1998,280(5367):1253-1256.
doi: 10.1126/science.280.5367.1253 pmid: 9596576
[14] HAMON M A, CHEN J, HU H, et al. Dissolution of single-walled carbon nanotubes[J]. Advanced Materials, 2010,11(10):834-840.
[15] BEKYAROVA E, THOSTENSON E T, YU A, et al. Multiscale carbon nanotube-carbon fiber reinforcement for advanced epoxy composites[J]. Langmuir the Acs Journal of Surfaces & Colloids, 2007,23(7):3970.
doi: 10.1021/la062743p pmid: 17326671
[16] DENG Chao, JIANG Jianjun, LIU Fa, et al. Influence of carbon nanotubes coatings onto carbon fiber by oxidative treatments combined with electrophoretic deposition on interfacial properties of carbon fiber composite[J]. Applied Surface Science, 2015,357:1274-1280.
[17] LEE W, LEE S B, CHOI O, et al. Formicary-like carbon nanotube/copper hybrid nanostructures for carbon fiber-reinforced composites by electrophoretic deposi-tion[J]. Journal of Materials Science, 2011,46(7):2359-2364.
doi: 10.1007/s10853-010-5082-3
[18] GUO Jinhai, LU Chunxiang, AN Feng, et al. Preparation and characterization of carbon nanotubes/carbon fiber hybrid material by ultrasonically assisted electrophoretic deposition[J]. Materials Letters, 2012,66(1):382-384.
doi: 10.1016/j.matlet.2011.09.022
[19] YEO S H, CHOO J H, SIM K H A. On the effects of ultrasonic vibrations on localized electrochemical deposition[J]. Journal of Micromechanics & Microengineering, 2002,12(3):271.
[20] JIANG J J, LIU F, DENG C, et al. Influence of deposited CNTs on the surface of carbon fiber by ultrasonically assisted electrophoretic deposition[J]. IOP Conference Series: Materials Science and Engineering, 2015,87:012103.
doi: 10.1088/1757-899X/87/1/012103
[21] RUMMELI M H, ROCHA C G, ORTMANN F, et al. Graphene: piecing it together[J]. Advanced Materials, 2011,23(39):4471-4490.
doi: 10.1002/adma.201101855
[22] EDA Goki, NATHAN Arokia, WOBKENBERG Paul, et al. Graphene oxide gate dielectric for graphene-based monolithic field effect transistors[J]. Applied Physics Letters, 2013,102(13):3322-3324.
[23] SHAO Jiaojing, LV Wei, YANG Quanhong. Self-assembly of graphene oxide at interfaces[J]. Advanced Materials, 2015,26(32):5586-5612.
doi: 10.1002/adma.201400267 pmid: 24852899
[24] CHEN Liuyun, TANG Yanhong, WANG Ke, et al. Direct electrodeposition of reduced graphene oxide on glassy carbon electrode and its electrochemical application[J]. Electrochemistry Communications, 2011,13(2):133-137.
doi: 10.1016/j.elecom.2010.11.033
[25] DREYER D R, PARK S J, BIELAWSKI C W, et al. The chemistry of graphene oxide[J]. Chem Soc Rev, 2010,39(1):228-240.
doi: 10.1039/b917103g pmid: 20023850
[26] HUANG Shengyun, WU Gangping, CHEN Chengmeng, et al. Electrophoretic deposition and thermal annealing of a graphene oxide thin film on carbon fiber surfaces[J]. Carbon, 2013,52:613-616.
doi: 10.1016/j.carbon.2012.09.062
[27] JIANG Jianjun, YAO Xuming, XU Chumeng, et al. Influence of electrochemical oxidation of carbon fiber on the mechanical properties of carbon fiber/graphene oxide/epoxy composites[J]. Composites Part A: Applied Science & Manufacturing, 2017,95:248-256.
[28] DENG Chao, JIANG Jianjun, LIU Fa, et al. Influence of graphene oxide coatings on carbon fiber by ultrasonically assisted electrophoretic deposition on its composite interfacial property[J]. Surface & Coatings Technology, 2015,272(8):176-181.
[29] DENG Chao, JIANG Jianjun, LIU Fa, et al. Effects of electrophoretically deposited graphene oxide coatings on interfacial properties of carbon fiber composite[J]. Journal of Materials Science, 2015,50(17):5886-5892.
doi: 10.1007/s10853-015-9138-2
[30] MOON I K, LEE J, LEE H. Highly qualified reduced graphene oxides: the best chemical reduction[J]. Chemical Communications, 2011,47(34):9681-9683.
doi: 10.1039/c1cc13312h
[31] LEE W, LEE J, BYUN J H, et al. Partially reduced graphene oxide as a multi-functional sizing agent for carbon fiber composites by electrophoretic deposi-tion[J]. Rsc Advances, 2013,3(48):25609-25613.
doi: 10.1039/c3ra44155e
[32] WANG Caifeng, LI Jun, SUN Shaofan, et al. Electrophoretic deposition of graphene oxide on continuous carbon fibers for reinforcement of both tensile and interfacial strength[J]. Composites Science & Technology, 2016,135:46-53.
[33] KWON Y J, KIM Y, JEON H, et al. Graphene/carbon nanotube hybrid as a multi-functional interfacial reinforcement for carbon fiber-reinforced composites[J]. Composites Part B: Engineering, 2017,122:23-30.
doi: 10.1016/j.compositesb.2017.04.005
[34] LU Zeyu, AHANIF Asad, SUN Guoxing, et al. Highly dispersed graphene oxide electrodeposited carbon fiber reinforced cement-based materials with enhanced mechanical properties[J]. Cement & Concrete Composites, 2018,87:220-228.
[35] PÉREZ-MARTÍNEZ P, GALVAN-MIYOSHI J M, ORTIZ-LÓPEZ J. Ultrasonic cavitation effects on the structure of graphene oxide in aqueous suspension[J]. Journal of Materials Science, 2016,51(24):10782-10792.
doi: 10.1007/s10853-016-0290-0
