水性聚丙烯酸酯对涂层商标织物图案打印效果的影响

doi:10.13475/j.fzxb.20190700608

纺织学报 ›› 2020, Vol. 41 ›› Issue (08): 55-62.doi: 10.13475/j.fzxb.20190700608

水性聚丙烯酸酯对涂层商标织物图案打印效果的影响

朱清¹^,², 徐丹丹¹, 潘园歌¹, 王成龙¹^,², 郑今欢¹^,³()

1.浙江理工大学先进纺织材料与制备技术教育部重点实验室, 浙江杭州 310018
2.浙江省清洁染整技术研究重点实验室, 浙江绍兴 312000
3.浙江理工大学生态染整技术教育部工程研究中心, 浙江杭州 310018

收稿日期:2019-07-01 修回日期:2020-03-23 出版日期:2020-08-15 发布日期:2020-08-21
通讯作者: 郑今欢
作者简介:朱清(1994—),女,硕士生。主要研究方向为绿色环保型涂层技术及其在纺织品上的应用。
基金资助:
浙江省清洁染整技术研究重点实验室开放基金项目(1810)

Influence of waterborne polyacrylate on printing effect of coated label fabrics

ZHU Qing¹^,², XU Dandan¹, PAN Yuange¹, WANG Chenglong¹^,², ZHENG Jinhuan¹^,³()

1. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Zhejiang Sci-Tech University, Hangzhou,Zhejiang 310018, China
2. Zhejiang Key Laboratory of Clean Dyeing and Finishing Technology, Shaoxing,Zhejiang 312000, China
3. Engineering Research Center for Eco-Dyeing and Finishing of Textiles,Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China

Received:2019-07-01 Revised:2020-03-23 Online:2020-08-15 Published:2020-08-21
Contact: ZHENG Jinhuan

摘要/Abstract

摘要：

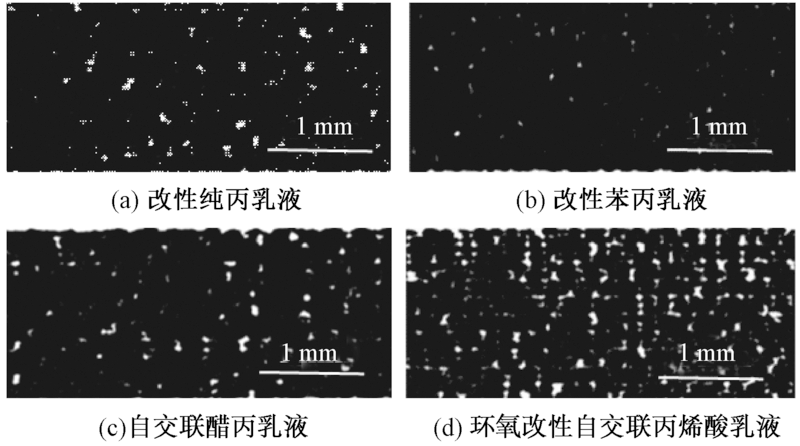

为解决涂层商标织物打印时吸墨速干性能差、打印图案不清晰等问题,通过对涂层剂粒径、涂层浆料流变性能,以及涂层商标织物的质量损失率、接触角和清晰度等性能进行测试,研究不同改性结构的涂层剂对涂层商标织物打印效果的影响,建立涂层表面结构与打印效果间的相关性。结果表明:涂层商标织物0.001~0.010 μm² 孔面积区间的孔隙率高于0.509%时,喷印图案易出现露白情况,且随着孔隙率的升高,露白现象加剧;当0.1~1.0 μm² 区间的孔隙率高于2.656%时,易出现墨水渗化现象;在1~100 μm²的孔面积区域中,微孔尺寸大都分布在1 μm² 左右,当该区域的孔隙率过高(超过9%以上)时,涂层商标织物表面大孔结构较多,打印文本图案的连续性较差。

关键词: 商标织物, 水性聚丙烯酸酯, 吸墨速干性能, 打印清晰度, 商标打印

Abstract:

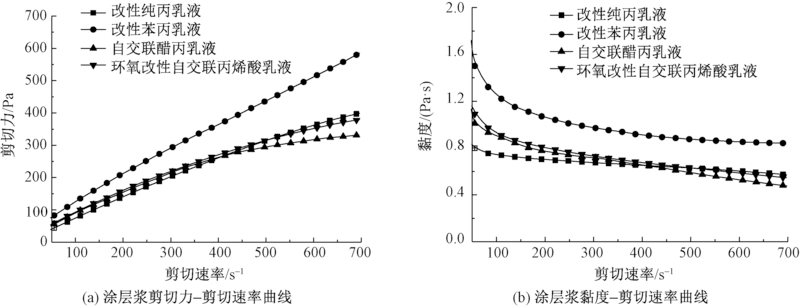

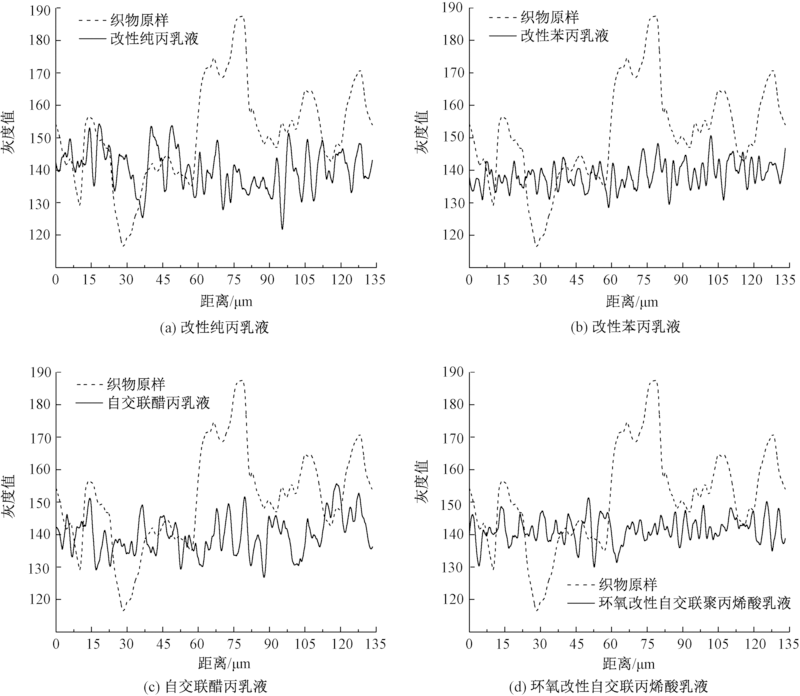

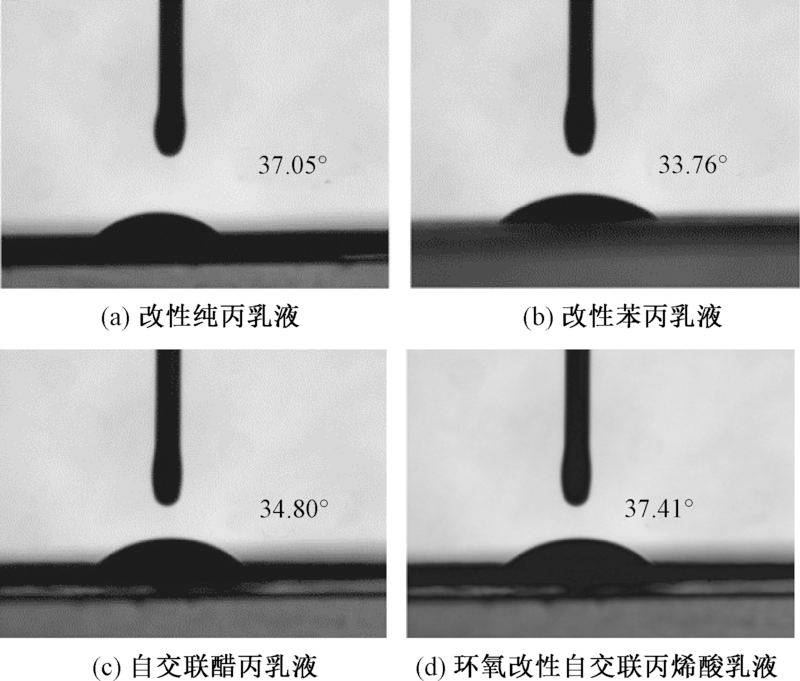

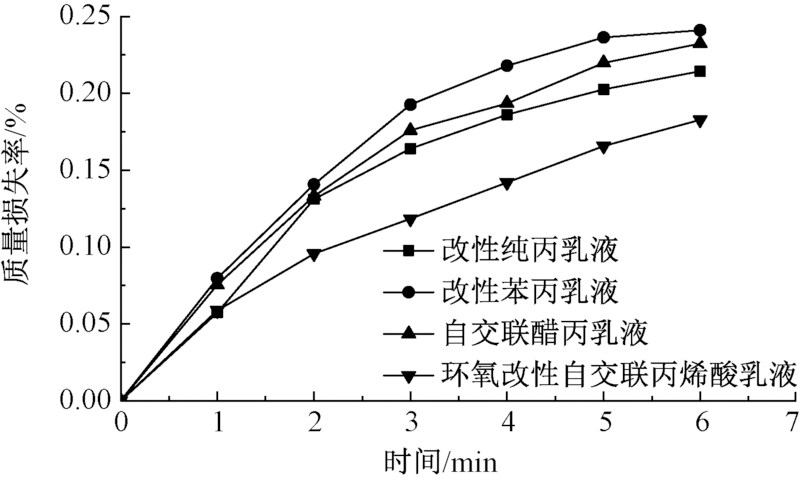

In order to solve the problems of slow drying and low print resolution in coated label fabrics, this paper reported the influence of coating agents with different modified structures on the printing effect of coated label fabrics by testing the particle size of coating agent, rheological properties of coating slurry, weight loss rate, contact angle and printing resolution of coated label fabrics. The correlation between the coating surface structure and printing effect was established. The findings indicate that when the coated label fabrics have porosity higher than 0.509% for the pore areas ranging from 0.001 to 0.010 μm², the printed pattern tends to show bad coverage, and the phenomenon is exacerbated with the increase of porosity. When the porosity ranging from 0.1 to 1 μm² is higher than 2.656%, ink bleeding occurs. The micropore size is mostly distributed around 1 μm² in the interval of 1-100 μm². If the porosity in this interval is too high(more than 9%), there are more large pores on the surface of the coated label fabric, resulting in poor continuity of the printed patterns.

Key words: label fabric, waterborne polyacrylate, ink absorption and quick drying performance, print resolution, label printing

中图分类号:

TS195.5

朱清, 徐丹丹, 潘园歌, 王成龙, 郑今欢. 水性聚丙烯酸酯对涂层商标织物图案打印效果的影响[J]. 纺织学报, 2020, 41(08): 55-62.

ZHU Qing, XU Dandan, PAN Yuange, WANG Chenglong, ZHENG Jinhuan. Influence of waterborne polyacrylate on printing effect of coated label fabrics[J]. Journal of Textile Research, 2020, 41(08): 55-62.

图/表 13

图1

表1

图2

图3

图4

图5

图6

表2

图7

表3

图8

图9

表4

参考文献 14

[1]	张岩, 陈杰, 曹云峰. 喷墨打印纸涂层中胶黏剂配比对油墨扩散渗透的影响[J]. 中国造纸学报, 2015,30(1):32-35.
	ZHANG Yan, CHEN Jie, CAO Yunfeng. Effect of adhesive ratio on diffusion and penetration of inkjet printing paper coatings[J]. China Journal of Paper, 2015,30(1):32-35.
[2]	韦莹. 浅谈高速喷墨印刷技术发展及应用现状[J]. 数字印刷, 2016(4):36-38.
	WEI Ying. Discussion on the development and application status of high speed inkjet printing technology[J]. Digital Printing, 2016(4):36-38.
[3]	刘青松. 阳离子改性介孔二氧化硅吸墨层的制备及其喷墨打印性能研究[D]. 哈尔滨:哈尔滨工业大学, 2014: 14-16.
	LIU Qingsong. Preparation of cation-modified mesoporous silica ink-receiving layer and its inkjet printing performance[D]. Harbin: Harbin Institute of Technology, 2014: 14-16.
[4]	李涛, 杜奕铃, 李红艳, 等. 无机填充剂对聚酰胺湿法涂层商标织物性能的影响[J]. 纺织学报, 2017,38(3):114-121.
	LI Tao, DU Yiling, LI Hongyan, et al. Effect of inorganic fillers on properties of polyamide wet coated trademark fabrics[J]. Journal of Textile Research, 2017,38(3):114-121.
[5]	TIAN Y, JIN X Y, JIN N G, et al. Research on the microstructure formation of polyacrylate latex modified mortars[J]. Construction & Building Materials, 2013,47:1381-1394.
[6]	霍彦东, 段玉丰, 张松, 等. 水性油墨用丙烯酸酯树脂的改性研究进展[J]. 信息记录材料, 2014,15(3):49-55.
	HUO Yandong, DUAN Yufeng, ZHANG Song, et al. Research progress in modification of acrylate resin for waterborne ink[J]. Information Recording Materials, 2014,15(3):49-55.
[7]	刘日平, 李明, 周向东. 吸墨快干聚丙烯酸酯涂层剂的合成与应用[J]. 印染, 2016,42(23):5-9.
	LIU Riping, LI Ming, ZHOU Xiangdong. Synjournal and application of ink absorbing and fast-drying polyacrylate coating agent[J]. China Dyeing & Finishing, 2016,42(23):5-9.
[8]	郭丽娜. 彩喷纸涂层结构与打印性能关系的研究[D]. 天津:天津科技大学, 2010: 22-24.
	GUO Lina. Research on the relationship between color spray paper coating structure and printing perfor-mance[D]. Tianjin: Tianjin University of Science and Technology, 2010: 22-24.
[9]	叶思佳. 高岭土改性及其在聚酰胺湿法涂层中的应用研究[D]. 杭州:浙江理工大学, 2018: 13-14.
	YE Sijia. Kaolin modification and its application in polyamide wet coating[D]. Hangzhou: Zhejiang Sci-Tech University, 2018: 13-14.
[10]	WU S Q, WANG J W, SHAO J, et al. Building a novel chemically modified polyaniline/thermally reduced graphene oxide hybrid through π-π interaction for fabricating acrylic resin elastomer based composites with enhanced dielectric property[J]. ACS Applied Materials & Interfaces, 2017,9(34):28887-28901. doi: 10.1021/acsami.7b07785 pmid: 28776970
[11]	KROTIL H, STIFTER T, WASCHIPKY H, et al. Pulsed force mode: a new method for the investigation of surface properties[J]. Surface & Interface Analysis, 2015,27(5):336-340.
[12]	刘国栋. 造纸涂层材料自渗吸行为机制及理论建模研究[D]. 西安:陕西科技大学, 2014: 108-110.
	LIU Guodong. Self-osmotic behavior mechanism and theoretical modeling of paper coating materials[D]. Xi'an: Shaanxi University of Science and Technology, 2014: 108-110.
[13]	姚志明. 纸张表面孔隙分析方法的建立及应用[D]. 广州:华南理工大学, 2016: 6-8.
	YAO Zhiming. Establishment and application of paper surface pore analysis method[D]. Guangzhou: South China University of Technology, 2016: 6-8.
[14]	李莹. 涂布纸油墨渗透的表征及影响油墨渗透因素的研究[D]. 广州:华南理工大学, 2011: 11-14.
	LI Ying. Characterization of infiltration of coated paper ink and study on factors affecting ink penetration[D]. Guangzhou: South China University of Technology, 2011: 11-14.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

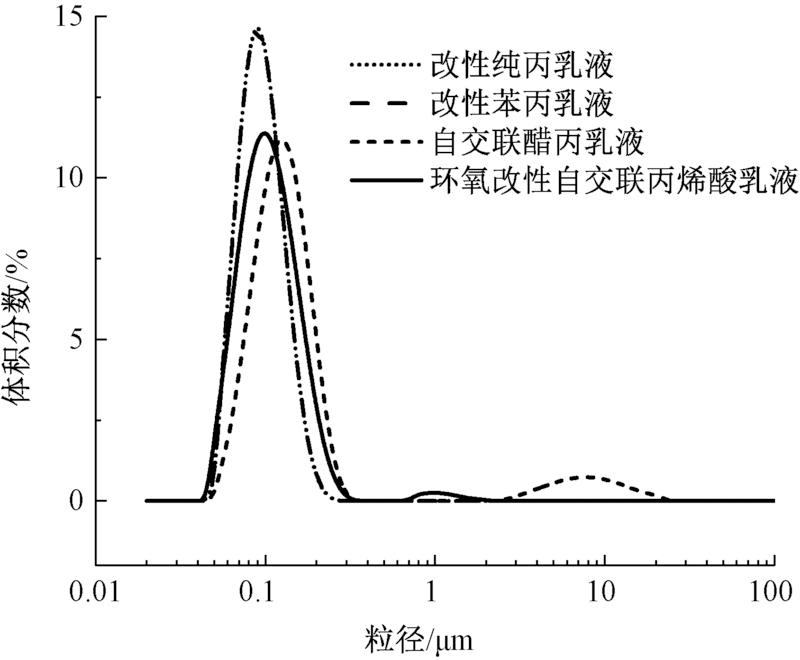

涂层剂名称	平均粒径/nm	方差/nm²
改性纯丙乳液	95	0.247
改性苯丙乳液	95	0.247
自交联醋丙乳液	133	5.830
环氧改性自交联丙烯酸乳液	104	0.459

涂层浆原料	平均宽度/mm	方差/nm²
改性纯丙乳液	1.49	0.000 25
改性苯丙乳液	1.49	0.000 22
自交联醋丙乳液	1.45	0.000 42
环氧改性自交联丙烯酸乳液	1.43	0.000 31

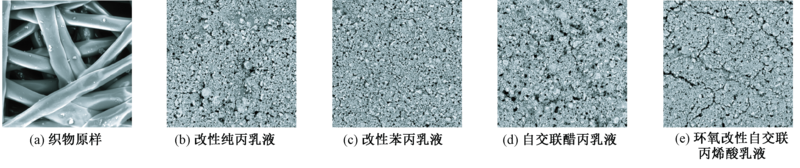

涂层浆原料	0.001~0.010 μm²			0.01~0.10 μm²			0.1~1.0 μm²			1~100 μm²
涂层浆原料	孔数	平均孔面积/μm²	孔隙率/%	孔数	平均孔面积/μm²	孔隙率/%	孔数	平均孔面积/μm²	孔隙率/%	孔数	平均孔面积/μm²	孔隙率/%
改性纯丙乳液	20 648	0.005	0.602	5 345	0.029	0.882	1 542	0.308	2.656	401	3.950	10.108
改性苯丙乳液	17 443	0.005	0.509	6 124	0.028	0.970	1 246	0.320	2.236	430	3.783	9.117
自交联醋丙乳液	21 041	0.005	0.615	5 825	0.029	0.960	1 782	0.328	3.280	515	4.666	13.500
环氧改性自交联丙烯酸乳液	30 347	0.005	0.889	7 255	0.026	1.042	1 650	0.335	3.101	531	4.398	13.100

涂层浆原料	耐干摩擦色牢度	耐湿摩擦色牢度
改性纯丙乳液	3	2~3
改性苯丙乳液	4	3~4
自交联醋丙乳液	3	2~3
环氧改性自交联丙烯酸乳液	2	2

水性聚丙烯酸酯对涂层商标织物图案打印效果的影响

Influence of waterborne polyacrylate on printing effect of coated label fabrics

RichHTML

PDF (PC)

摘要/Abstract

引用本文

使用本文

图/表 13

参考文献 14

相关文章 2

Metrics

本文评价

推荐阅读 0

[1]	李涛杜奕玲李红艳吴耀东郑今欢. 无机填充剂对聚酰胺湿法涂层商标织物性能的影响[J]. 纺织学报, 2017, 38(03): 114-121.
[2]	张龙智海辉郑今欢. 再生聚酯纤维中低聚物的结构表征[J]. 纺织学报, 2015, 36(04): 25-30.
