回转结构预制体柔性针刺成型系统设计

陈小明1,2, 李皎2, 张一帆1,2, 谢军波1,2, 李晨阳2, 陈利1,2()

  1. 1.天津工业大学 纺织科学与工程学院, 天津 300387
    2.天津工业大学 先进纺织复合材料教育部重点实验室, 天津 300387
  • 收稿日期:2019-07-31 修回日期:2020-08-10 出版日期:2020-11-15 发布日期:2020-11-26
  • 通讯作者: 陈利
  • 作者简介:陈小明(1984—),男,实验师,博士。主要研究方向为纺织机器人装备及纺织复合材料。
  • 基金资助:
    天津市教委科研计划项目(2018ZD13);天津市科委科研计划项目(19JCTPJC45800);国家自然科学基金项目(11802203);国家自然科学基金项目(11802204);天津市自然科学基金项目(18JCYBJC89000);天津市高等学校创新团队项目(TD13-5043)

Design of flexible needle-punching forming system for rotary structure preform

CHEN Xiaoming1,2, LI Jiao2, ZHANG Yifan1,2, XIE Junbo1,2, LI Chenyang2, CHEN Li1,2()

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. Key Laboratory of Advanced Textile Composite Materials, Ministry of Education, Tiangong University, Tianjin 300387, China
  • Received:2019-07-31 Revised:2020-08-10 Online:2020-11-15 Published:2020-11-26
  • Contact: CHEN Li

RichHTML

4

PDF (PC)

100

摘要：

针对现有异型针刺成型装备专用性强,难以适应小批量、多品种回转结构复合材料预制体的针刺成型要求的问题,提出一种复合材料回转预制体柔性针刺成型系统。根据回转预制体的针刺成型特性,提出采用四轴联动的针刺机运动机构和气动针刺头构型,基于可编程控制器(PLC)和触摸屏,设计了柔性针刺成型控制系统,并进行实验验证。实验结果表明:针刺实验针迹和模拟针迹高度一致,证明了四轴柔性针刺系统的可行性,该系统可以实现回转预制体的针刺成型;通过采用单气缸新型针刺头,针刺频率达到110次/min,针刺效率比现有的双气缸针刺头提高了1倍。

关键词: 回转结构复合材料, 三维针刺复合材料, 回转工作台, 预制体, 针刺成型

Abstract:

Existing special shaped needle-punching forming equipment is difficult to be adapted to the needle-punching forming requirements of small-volume and multi-variable rotary structure composite preforms. To address on this problem, a needle-punching forming system for flexible rotary preforms was proposed. According to the needle-punching forming characteristics of the rotary preform, a four-axis linkage needle-punching moving mechanism and a pneumatic needle-punching head configuration were used, and a needle forming system was constructed using the programmable logic controller (PLC) and the touch screen, which was verified by experiments. The research results show that the needle traces of the needle punching experiment and the simulated needle traces are highly consistent, proving the feasibility of the four-axis needle punching system. The needle punching frequency reaches 110 times per minute, and the needle punching efficiency is doubled compared with the existing double-cylinder needle punching head.

Key words: rotary structure composite, 3-D needled composite, rotary table, preform, needle-punching forming

中图分类号:

  • TB332

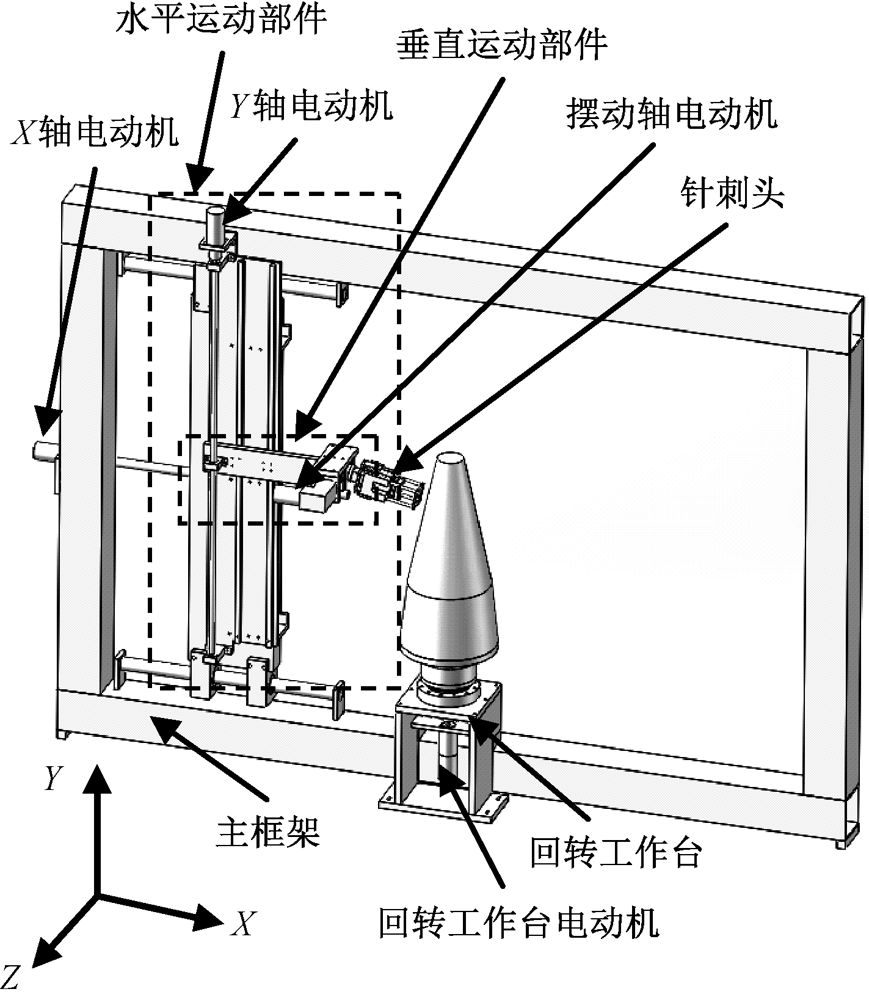

图1

柔性针刺机整体结构图"

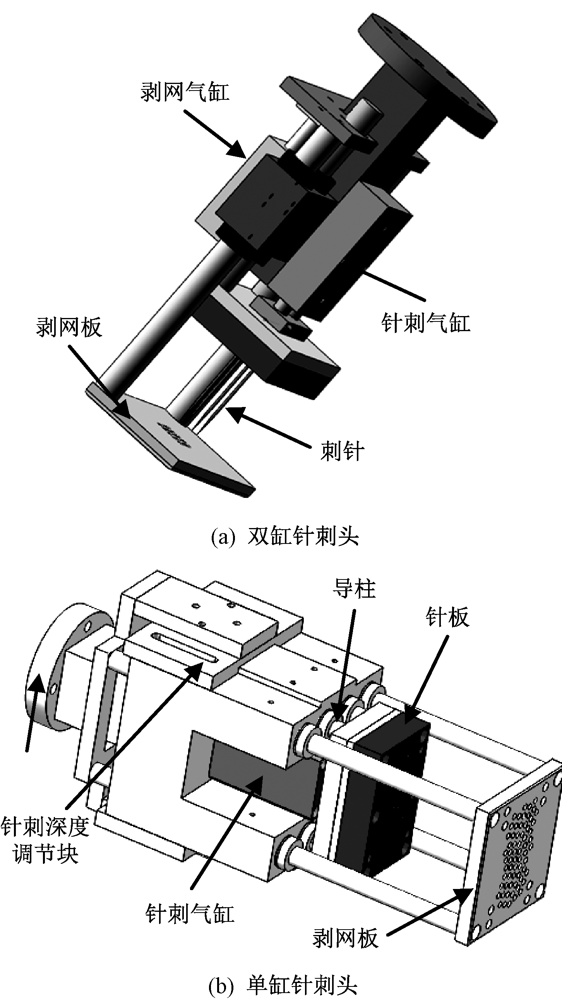

图2

针刺头结构图"

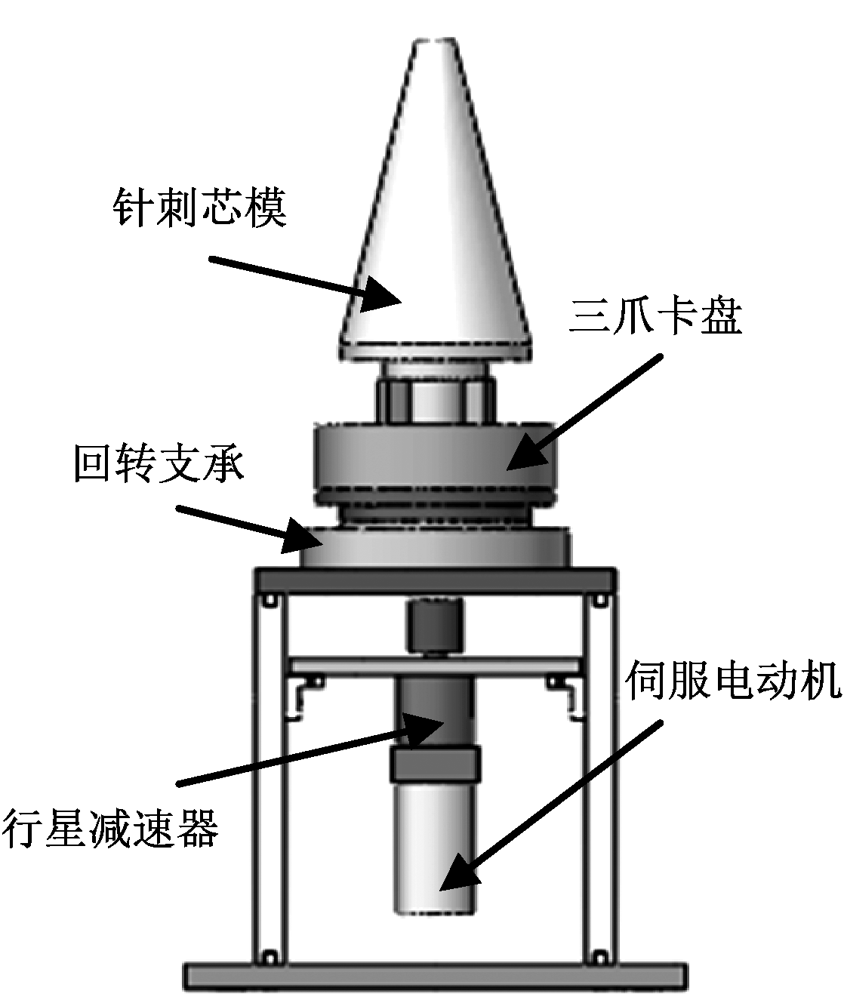

图3

回转工作台"

表1

气缸和伺服系统参数"

参数 数值 参数 数值
F 400 N Jm 1.51×10-4 kg·m2
η 0.85 Jg 0.51×10-4和
0.72×10-4 kg·m2
D 40 mm η1 0.9
P 0.5 MPa η2 0.9
Jload <0.9 kg·m2 Tm 2.4 N·m
I 60 和 12 L 20 mm

图4

PLC控制系统硬件组成"

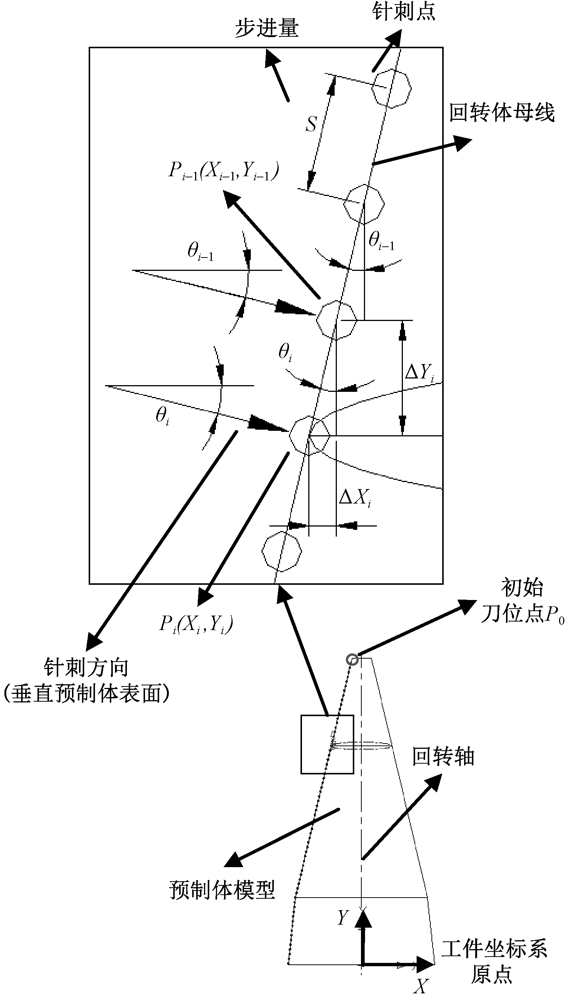

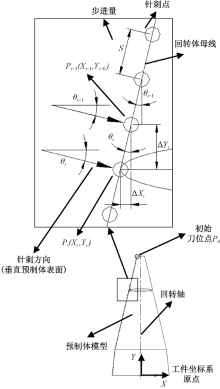

图5

针刺轨迹计算模型"

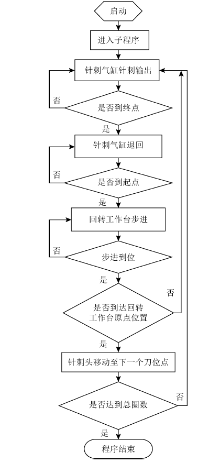

图6

针刺子程序运行流程图"

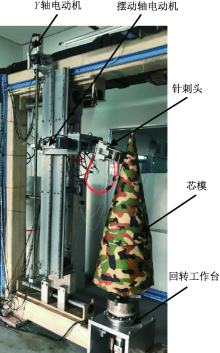

图7

柔性针刺机样机"

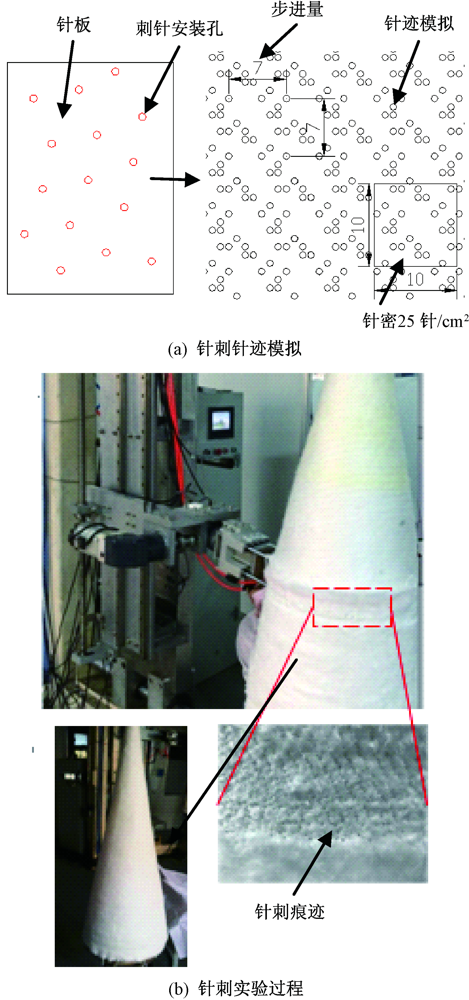

图8

柔性针刺机实验验证"

[1] MOURITZ A P, BANNISTER M K, FALZON P J, et al. Review of applications for advanced three-dimensional fibre textile composites[J]. Composites Part A: Applied Science and Manufacturing, 1999,30(12):1445-1461.
[2] YAN S, ZENG X, BROWN L, et al. Geometric modeling of 3D woven preforms in composite T-joints[J]. Textile Research Journal, 2018,88(16):1862-1875.
[3] BILISIK K. Three-dimensional braiding for composites: a review[J]. Textile Research Journal, 2013,83(13):1414-1436.
[4] LEONG K H, RAMAKRISHNA S, HUANG Z M, et al. The potential of knitting for engineering composites: a review[J]. Composites Part A: Applied Science and Manufacturing, 2000,31(3):197-220.
[5] CHEN X, Chen L, Zhang C, et al. Three-dimensional needle-punching for composites: a review[J]. Composites Part A: Applied Science and Manufacturing, 2016,85:12-30.
[6] JI A, CUI H, LI H, et al. Performance analysis of a carbon cloth/felt layer needled preform[J]. New Carbon Materials, 2011,26(2):109-116.
[7] LACOSTE M, LACOMBE A, JOYEZ P, et al. Carbon/carbon extendible nozzles[J]. Acta Astronautica, 2002,50(6):357-367.
[8] SU J, CUI H, LI R, et al. The structure and property of new needle carbon cloth C/C composite[J]. New Carbon Materials, 2000,15(2):11-15
[9] GUO Z. Space navigation composites [M]. Beijing: Space Navigation Publishing Company, 1999: 1-20.
[10] CHEN T, LIAO J, LIU G, et al. Effects of needle-punched felt structure on the mechanical properties of carbon/carbon composites[J]. Carbon, 2003,41(5):993-999.
[11] YUN H. Study on needle felt of plane brake[J]. Aviation Precision Manufacturing Technology, 1995,31(2):32-34.
[12] VIGNOLES G L, ASPA Y, QUINTARD M. Modelling of carbon-carbon composite ablation in rocket nozzles[J]. Composites Science & Technology, 2010,70(9):1303-1311.
[13] YIN J, XIONG X, ZHANG H, et al. The development of C/C composites on SRM[J]. Materials Science andEngineering of Powder Metallurgy, 2003,8(3):231-237.
[14] LAWTON P G, SMITH N. Production of a shaped filamentary structure: US4955123[P]. 1990-09-11.
[15] OLRY P. Process for manufacturing homogeneously needled three-dimensional structures of fibrous material: US4790052[P]. 1988-12-13.
[16] OLRY P, COUPE D, BOMPARD B, et al. Method for making fibrous preforms for producing annular parts from a composite material: US6009605[P]. 2000-01-04.
[17] OLRY P. Process and apparatus for manufacturing axi-symmetrical three-dimensional structures: US4621662[P]. 1986-11-11.
[18] 房坤鹏, 刘延友, 乔志炜, 等. 一种变直径回转体织物针刺成型设备:107059252A[P]. 2017-03-30.
FANG Kunpeng, LIU Yanyou, QIAO Zhiwei, et al. Variable diameter rotary fabric needle forming device: 107059252A[P]. 2017-03-30.
[19] 郝宏大. 薄壁回转体几何参数精密测量的轨迹规划[D]. 大连:大连理工大学, 2008: 8-16.
HAO Hongda. Trajectory planning for precise measurement of geometric parameters of thin-walled rotating body[D]. Dalian: Dalian University of Technology, 2008: 8-16.
[20] 杨红红. 回转体缠绕线型设计及轨迹规划研究[D]. 哈尔滨: 哈尔滨理工大学, 2015: 14-29.
YANG Honghong. Research on rotary winding design and trajectory planning[D]. Harbin:Harbin University of Science and Technology, 2015: 14-29.
[21] CHEN X, ZHAO Y, ZHANG C, et al. Robot needle-punching for manufacturing composite preforms[J]. Robotics and Computer-Integrated Manufacturing, 2018,50:132-139.
[22] CHEN X, ZHANG Y, XIE J, et al. Robot needle-punching path planning for complex surface preforms[J]. Robotics and Computer-Integrated Manufacturing, 2018,52:24-34.
