管道式通风服头部与躯干部位的热湿舒适性评价

doi:10.13475/j.fzxb.20190707907

纺织学报 ›› 2020, Vol. 41 ›› Issue (08): 88-94.doi: 10.13475/j.fzxb.20190707907

管道式通风服头部与躯干部位的热湿舒适性评价

张昭华¹^,²^,³(), 李璐瑶¹, 安瑞平¹

1.东华大学服装与艺术设计学院, 上海 200051
2.东华大学现代服装设计与技术教育部重点实验室, 上海 200051
3.同济大学上海国际设计创新研究院, 上海 200092

收稿日期:2019-07-31 修回日期:2020-05-12 出版日期:2020-08-15 发布日期:2020-08-21
作者简介:张昭华(1977—),女,副教授,博士。主要研究方向为服装舒适性与工效性。E-mail: zhangzhaohua@dhu.edu.cn。
基金资助:
中央高校基本科研业务费专项资金资助项目(2232020G-08)

Thermal-wet comfort evaluation of head and torso ventilation of pipe garment

ZHANG Zhaohua¹^,²^,³(), LI Luyao¹, AN Ruiping¹

1. College of Fashion and Design, Donghua University, Shanghai 200051, China
2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
3. Shanghai International Institute of Design & Innovation, Tongji University, Shanghai 200092, China

Received:2019-07-31 Revised:2020-05-12 Online:2020-08-15 Published:2020-08-21

摘要/Abstract

摘要：

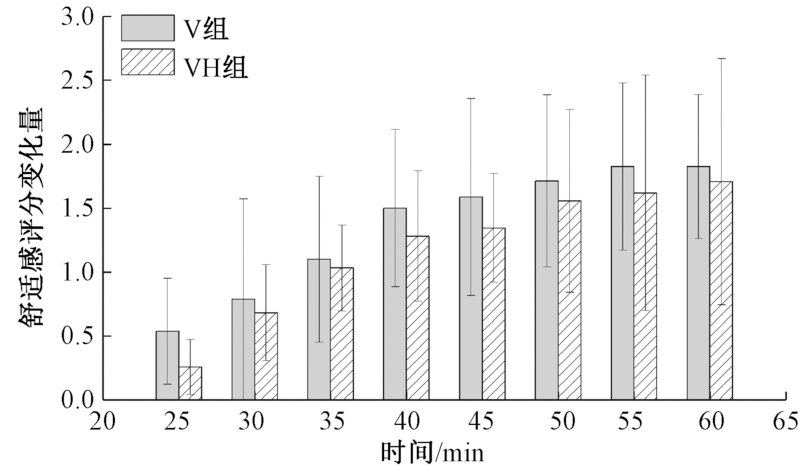

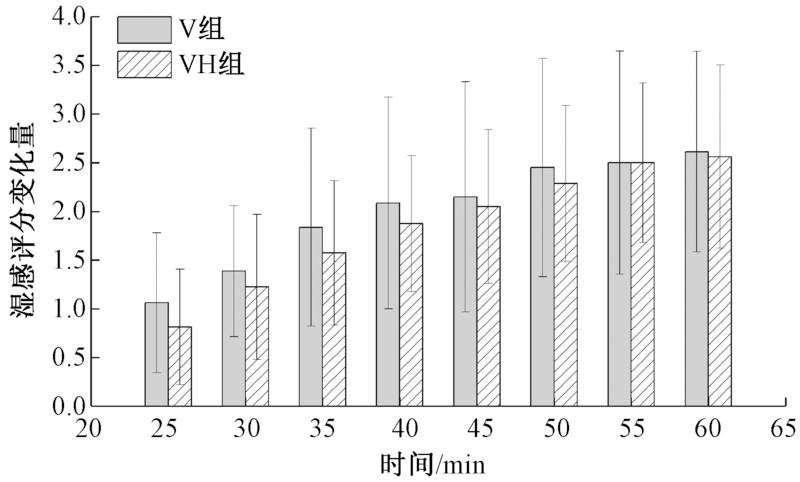

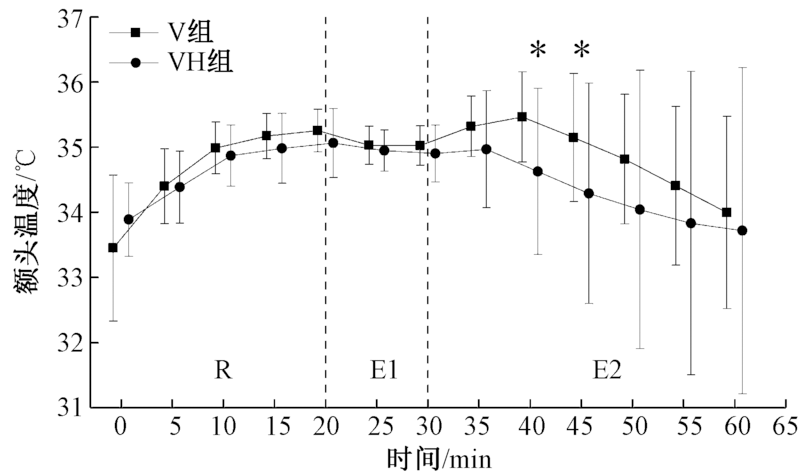

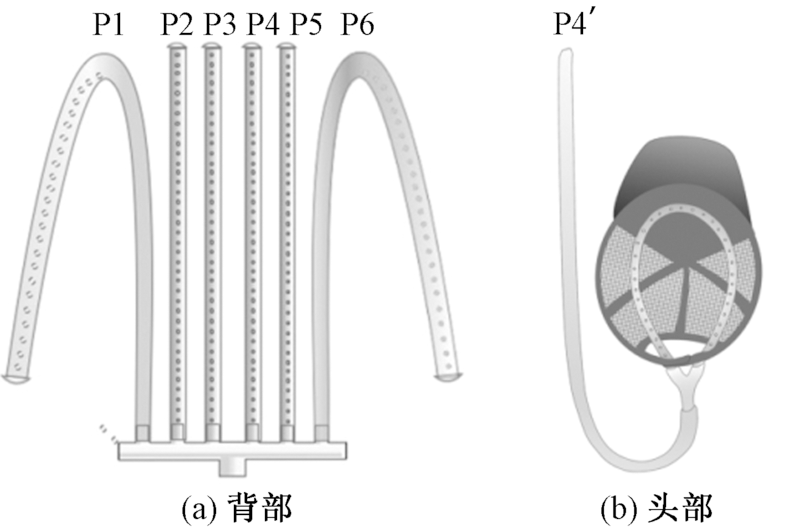

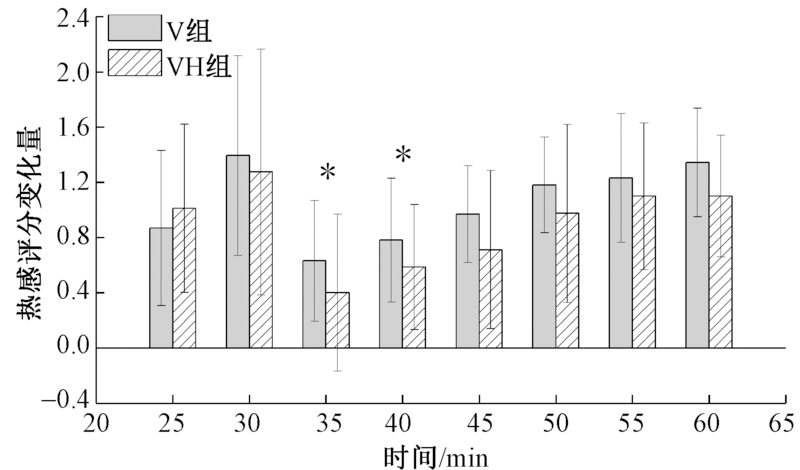

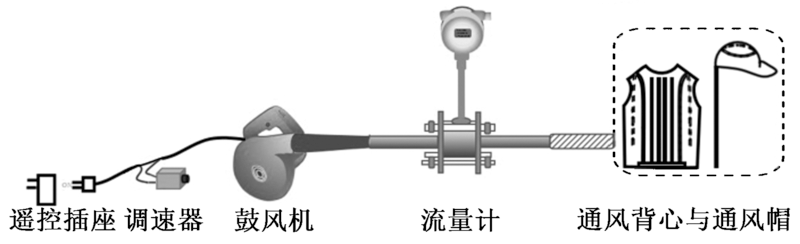

热环境中人体躯干与头部都是大量出汗的部位,且头部的热感能在很大程度上影响整体的热感,因此通风降温服的设计应兼顾这两大区域进行针对性的降温。为探究热环境中头部联合躯干降温方式的效果,制作了管道通风背心与通风帽,并进行了躯干降温和躯干联合头部降温的对比试验。在温度为30 ℃、相对湿度为40%的人工气候室内,8位男性受试者完成了2次运动试验,试验中记录受试者的生理响应与主观感觉评价。结果显示:在总通风量恒定(9 L/s)的情况下,躯干与头部联合降温可显著降低额头部位的皮肤温度,对促进头部散热有积极作用;增加头部降温有助于降低受试者运动过程中的热感、湿感与不舒适感,特别是能显著缓解整体热感,但对湿感和不舒适感无统计学上的显著作用。

关键词: 头部通风降温, 管道通风服, 体温调节, 功能服装, 热湿舒适性

Abstract:

The torso and head are the sweating parts in hot environment, and the thermal sensation of the head has a great impact on overall thermal sensation. Therefore, when designing ventilation cooling garments, both the torso and head must be taken into account. The purpose of this study was to compare the cooling effect of only the torso cooling (V) and the torso plus head cooling (VH) methods in two exercise trials. A pipe ventilation vest and a ventilating cap were made and evaluated on eight male subjects in an artificial climate chamber with a temperature of 30 ℃ and a relative humidity of 40%. The physiological responses of the subjects and the subjective sensation votes were recorded during the whole test. The results show that with the total ventilation constant at 9 L/s, the VH method significantly reduces the skin temperature of the forehead and has a positive effect on promoting heat dissipation in the head. VH method helps reducing the subjects' thermal, wet and discomfort sensation during the exercise. Especially it significantly relieves the overall feeling of heat. However, there is no statistically significant difference in wet and discomfort sensations between V and VH method.

Key words: head ventilation and cooling, pipe ventilation garment, body temperature regulation, functional garment, thermal-wet comfort property

中图分类号:

TS941.16

张昭华, 李璐瑶, 安瑞平. 管道式通风服头部与躯干部位的热湿舒适性评价[J]. 纺织学报, 2020, 41(08): 88-94.

ZHANG Zhaohua, LI Luyao, AN Ruiping. Thermal-wet comfort evaluation of head and torso ventilation of pipe garment[J]. Journal of Textile Research, 2020, 41(08): 88-94.

图/表 14

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

图11

图12

图13

参考文献 19

[1]	NUNNELEY S A. Heat stress in protective clothing:interactions among physical and physiological fac-tors[J]. Scandinavian Journal of Work Environment & Health, 1989,15:52-57.
[2]	郑国忠. 高温高湿环境下相关人群的生理应激响应研究[D]. 天津:天津大学, 2013: 1-147.
	ZHENG Guozhong. Study on physiological responses of relaive population in hot and humid environments[D]. Tjianjin:Tianjin University, 2013: 1-147.
[3]	吕石磊, 朱能, 冯国会, 等. 高温高湿热环境下人体耐受力研究[J]. 沈阳建筑大学学报(自然科学版), 2007,23(6):982-985.
	LÜ Shilei, ZHU Neng, FENG Guohui, et al. Experimental research on people's heat endurance in high temperature and humidity environments[J]. Journal of Shenyang Jianzhu University (Natural Science Edition), 2007,23(6):982-985.
[4]	GONZALEZ J A, BERGLUND L G, KOLKA M A, et al. Forced ventilation of protective garments for hot industries[C]// Proceedings of the Sixth International Thermal Manikin and Modeling Meeting. Hong Kong:The Hong Kong Polytechnic University, 2006: 165-169.
[5]	LAI D D, WEI F R, LU Y H, et al. Evaluation of a hybrid personal cooling system using a manikin operated in constant temperature mode and thermoregulatory model control mode in warm conditions[J]. Textile Research Journal, 2017,87(1):46-56. doi: 10.1177/0040517515622152
[6]	YAZDI M M, SHEIKHZADEH M. Personal cooling garments:a review[J]. The Journal of The Textile Institute, 2014,105(12):1231-1250. doi: 10.1080/00405000.2014.895088
[7]	庞诚, 顾鼎良. 头部的温度调节及其选择性致冷[J]. 航空学报, 1995,16(1):7-11.
	PANG Cheng, GU Dingliang. Thermo regulation and its selective cooling in the head[J]. Acta Aeronautica Et Ast Ronautica Sinica, 1995,16(1):7-11.
[8]	SMITH C J, HAVENTH G. Body mapping of sweating patterns in male athletes in mild exercise-induced hyperthermia[J]. European Journal of Applied Physiology, 2010,111(7):1391-1404. pmid: 21153660
[9]	丁千茹. 非均匀环境下局部热感觉对整体热反应的影响[D]. 大连:大连理工大学, 2008: 1-61.
	DING Qianru. Effect of local thermal sensation on human responses in non-uniform thermal environment[D]. Dalian:Dalian University of Technology, 2008: 1-61.
[10]	UNDERWOOD L, JERMY M, ELOI P, et al. Thermal comfort and drag of a streamlined cycling helmet as a function of ventilation hole placement[J]. Sports Engineering, 2015,18(4):241-248. doi: 10.1007/s12283-015-0181-7
[11]	KUMAR K S, ANSHUMAN D A, RAJ H, et al. New design and fabrication of smart helmet[J]. IOP Conference Series: Materials Science and Engineering, 2018,402(1):12-55.
[12]	梁国治, 周孟颖, 张奋奋. 矿用降温安全帽的研制[J]. 煤矿现代化, 2014(3):83-85.
	LIANG Guozhi, ZHOU Mengying, ZHANG Fenfen. Development of mine cooling helmet[J]. Coal Mine Modernization, 2014(3):83-85.
[13]	WICKWIRE P J, BISHOP P A, GREEN J M, et al. Physiological and comfort effects of a commercial "cooling cap" worn under protective helmets[J]. Journal of Occupational and Environmental Hygiene, 2009,6(8):455-459. pmid: 19412861
[14]	GRISHAM S C, HILL D W, CURETON K J, et al. Diurnal variations in responses to exercise of morning types and evening types[J]. The Journal of Sports Medicine and Physical Fitness, 1988,28(3):213-221. pmid: 3230901
[15]	BOIS D D, BOIS E F D. A formula to estimate the approximate surface area if height and weight be known[J]. Archives of Internal Medicine, 1916,17, 863-871.
[16]	WYNDHAM C H, MITCHELL D. Comparison of weighting formulas for calculating mean skin tempera-ture[J]. Journal of Applied Physiology, 1969,26(5):616-622. doi: 10.1152/jappl.1969.26.5.616 pmid: 5781615
[17]	LIN L Y, WANG F, KUKLANE K, et al. A laboratory validation study of comfort and limit temperatures of four sleeping bags defined according to EN 13537 (2002)[J]. Applied Ergonomics, 2013,44(2):321-326. doi: 10.1016/j.apergo.2012.09.001 pmid: 23021632
[18]	RACCUGLIA M, SALES B, HEYDE C, et al. Clothing comfort during physical exercise: determining the critical factors[J]. Applied Ergonomics, 2018,73:33-41. doi: 10.1016/j.apergo.2018.05.014 pmid: 30098640
[19]	宇传华. SPSS与统计分析[M]. 北京: 电子工业出版社, 2007: 242-253.
	YU Chuanhua. SPSS and statistical analysis[M]. Beijing: Publishing House of Electronics Industry, 2007: 242-253.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试验组	出汗量/g	汗液蒸发率/%
V组	678.6±190.3	91.5±4.7
VH组	610.2±103.3	90.1±5.8
