骨架镍的制备及其在染料中间体合成中的应用

doi:10.13475/j.fzxb.20190802407

纺织学报 ›› 2020, Vol. 41 ›› Issue (11): 95-101.doi: 10.13475/j.fzxb.20190802407

骨架镍的制备及其在染料中间体合成中的应用

冯鹏耀¹, 王蓉¹, 瞿建刚¹^,², 董玲¹, 胡啸林¹^,²()

1.南通大学纺织服装学院, 江苏南通 226019
2.东华大学纺织面料技术教育部重点实验室, 上海 201620

收稿日期:2019-08-09 修回日期:2020-08-07 出版日期:2020-11-15 发布日期:2020-11-26
通讯作者: 胡啸林
作者简介:冯鹏耀(1995—),男,硕士生。主要研究方向为纺织印染助剂及新技术研发。
基金资助:
南通市基础科学研究项目(JC2018036);南通大学纺织服装学院研究生自主创新项目(FZ201814)

Preparation of Raney nickel and its application in synthesis of dye intermediates

FENG Pengyao¹, WANG Rong¹, QU Jian'gang¹^,², DONG Ling¹, HU Xiaolin¹^,²()

1. College of Textile and Clothing, Nantong University, Nantong, Jiangsu 226019, China
2. Key Laboratory of Textile Science & Technology, Ministry of Education, Donghua University, Shanghai 201620, China

Received:2019-08-09 Revised:2020-08-07 Online:2020-11-15 Published:2020-11-26
Contact: HU Xiaolin

摘要/Abstract

摘要：

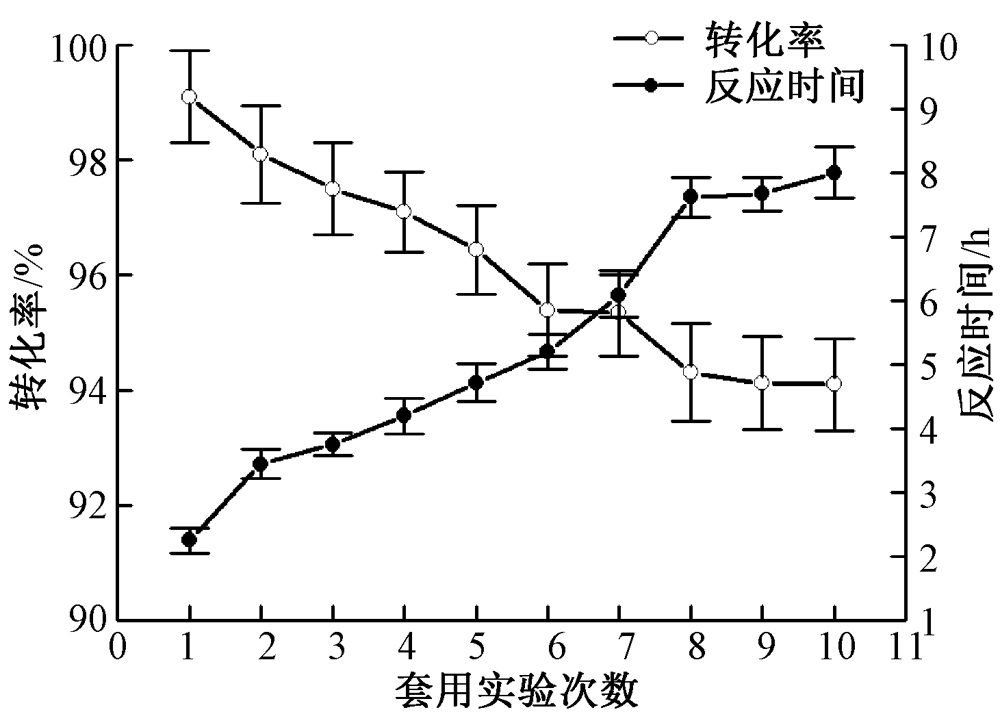

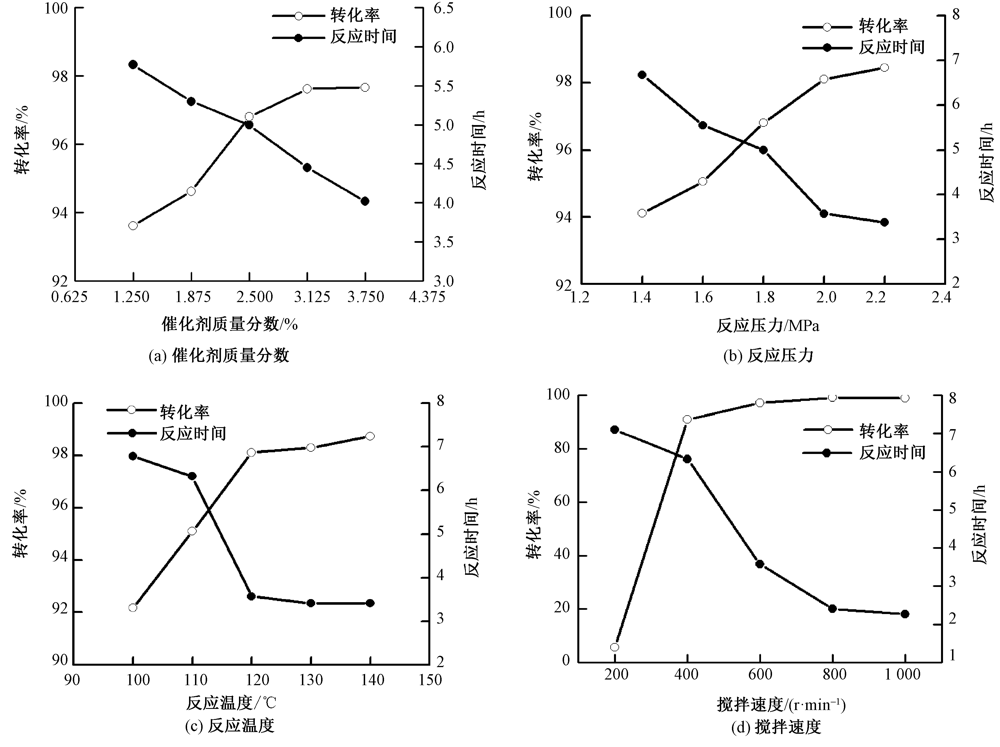

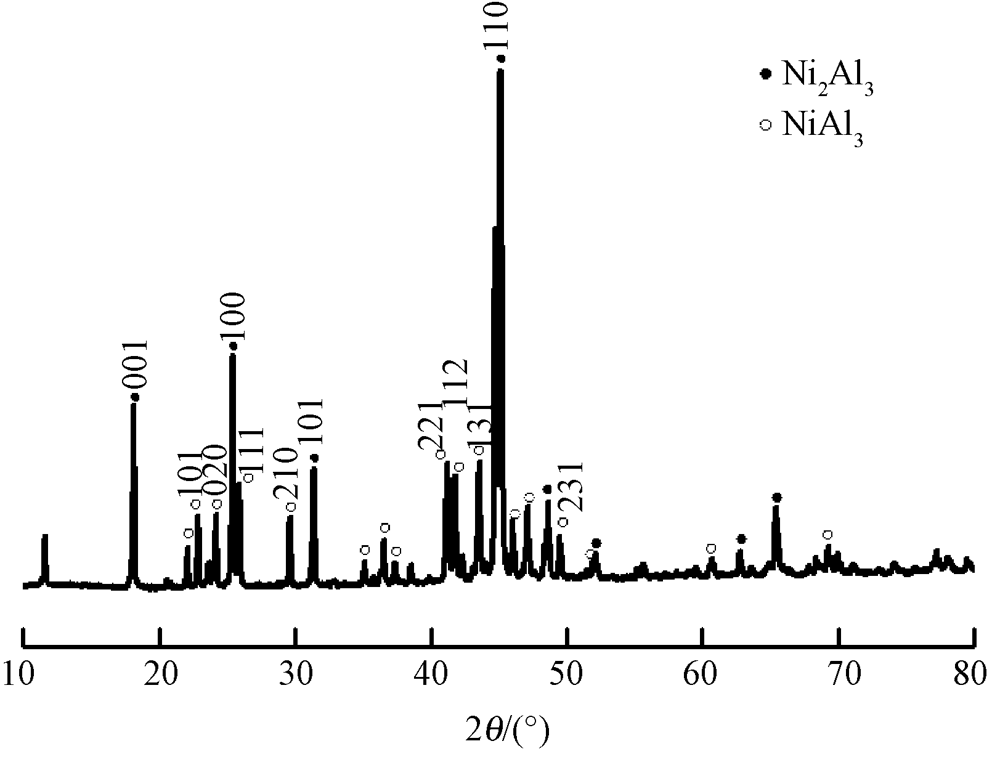

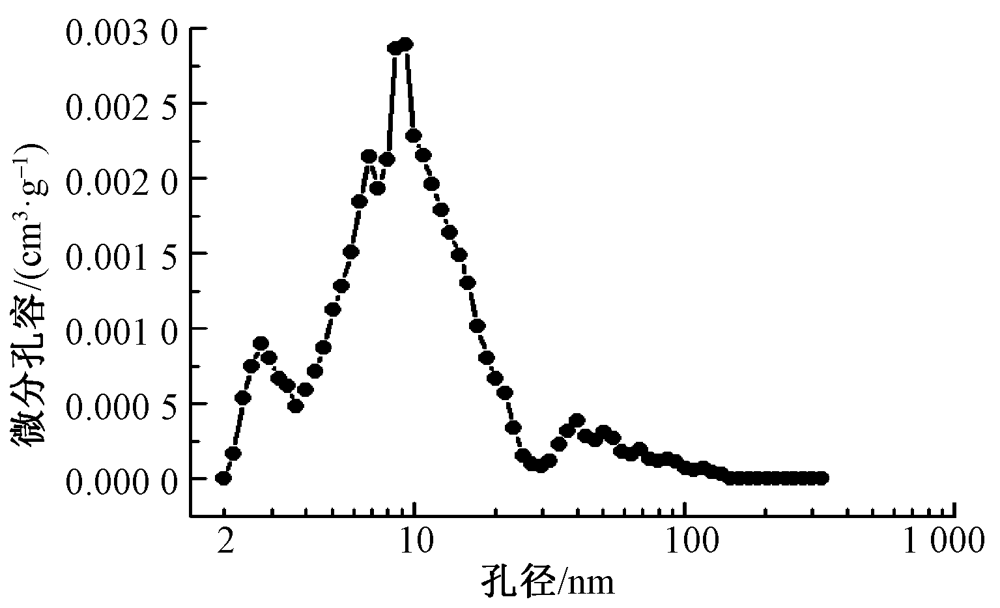

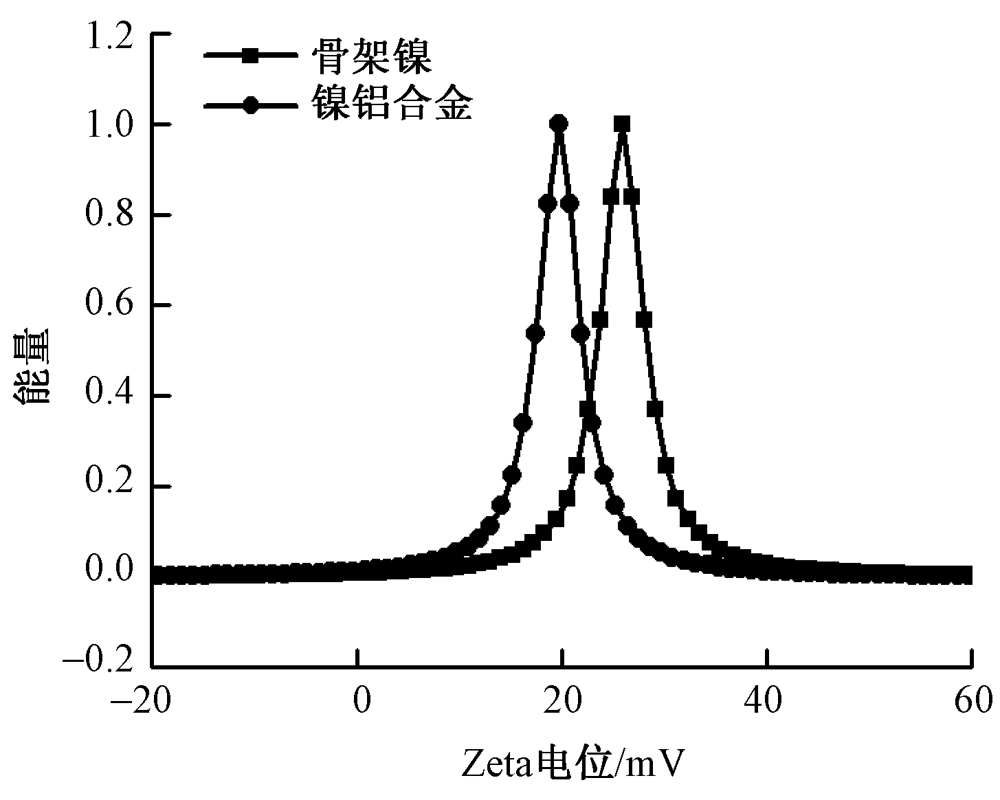

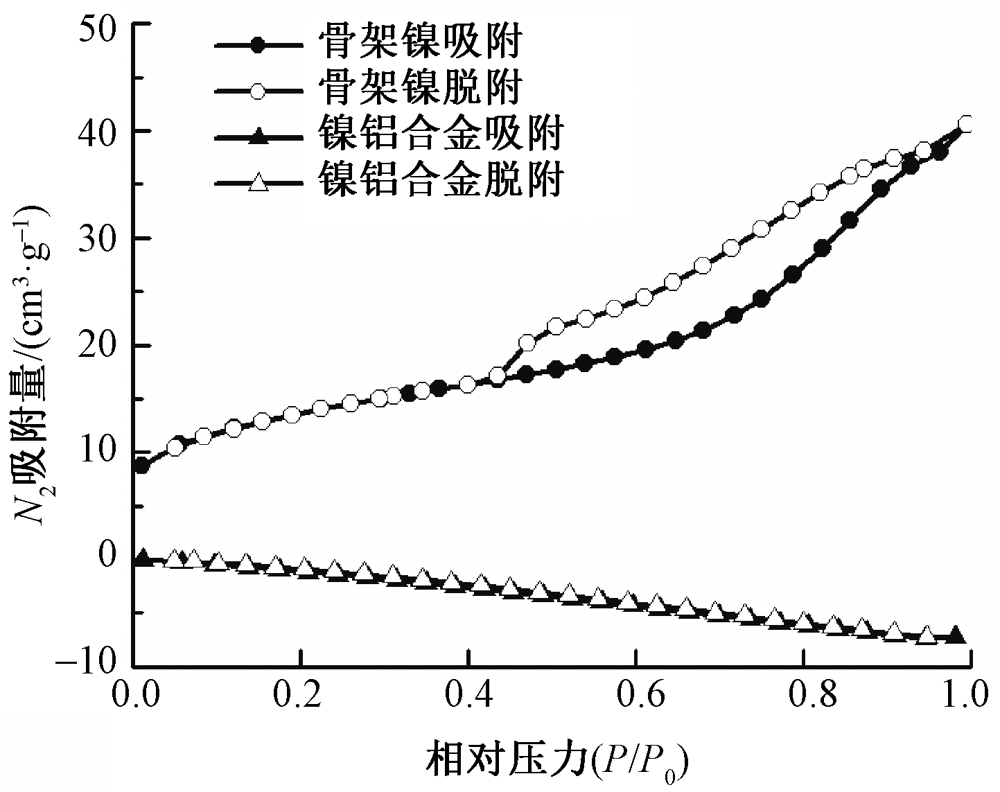

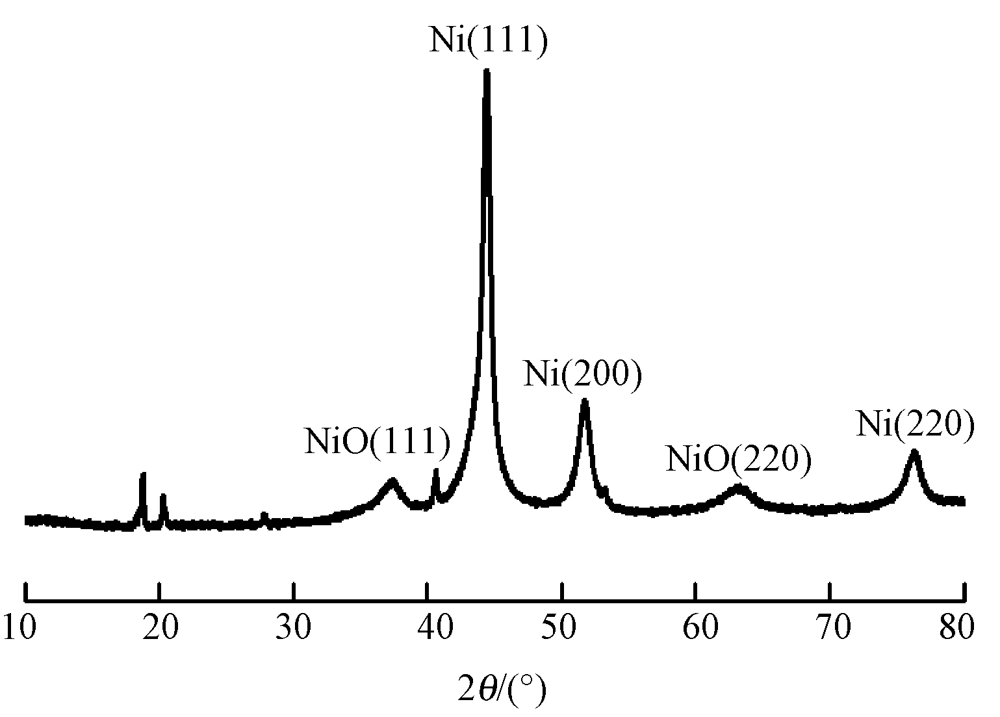

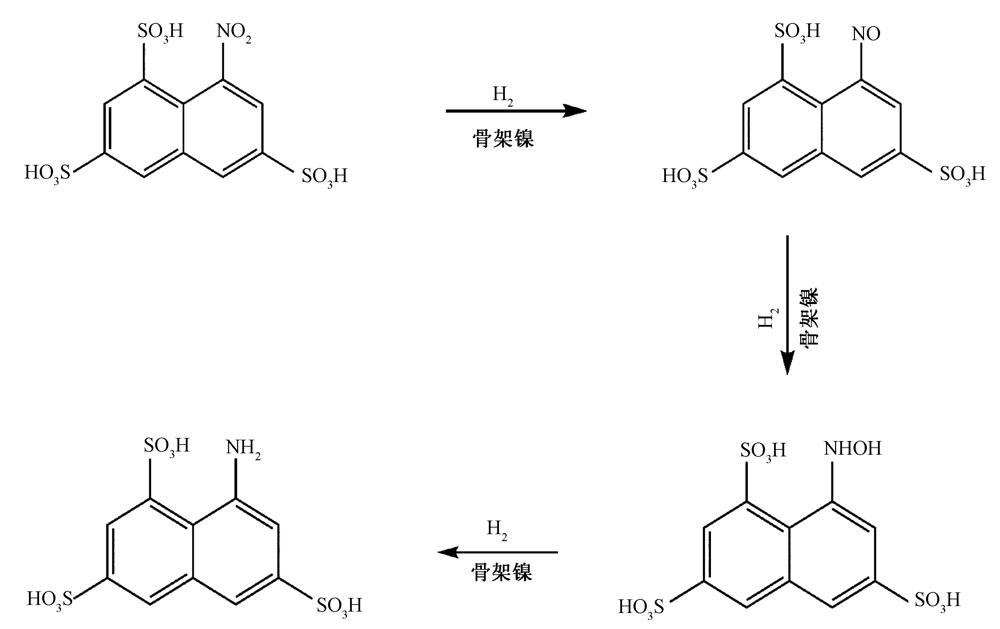

为满足清洁生产的要求,提高T酸合成的反应速率和转化率,以镍铝合金粉末作为催化剂前驱体,经过氢氧化钠活化制备骨架镍催化剂,借助扫描电子显微镜、X射线衍射仪、比表面积及孔隙分析仪和Zeta电位分析仪等手段对其结构和性能进行表征,并研究其在硝基T酸加氢还原制备T酸中的应用。结果表明:制备的骨架镍催化剂含有大量的孔道,以中孔为主,比表面积为46.88 m²/g,平均晶粒尺寸为15.8 nm。制备的骨架镍在硝基T酸加氢还原中的最佳应用工艺为:催化剂质量分数2.500%,反应压力2.0 MPa,反应温度120 ℃,搅拌速度800 r/min。在此最佳工艺条件下,硝基T酸的转化率达99.07%,并且套用10次无明显失活现象。

关键词: 骨架镍, 硝基T酸, 催化加氢, T酸, 染料中间体

Abstract:

In order to meet the requirements for clean production and to improve the reaction rate and conversion rate of T-acid synthesis, the nickel-aluminum alloy powder was used as the catalyst precursor to prepare the Raney nickel catalyst by sodium hydroxide activation. The prepared structure and properties of the materials were studied by means of scanning electron microscope, X-ray diffractometer, specific surface area and pore structure tester and Zeta potential tester, and so on, and its application in the preparation of T-acid by hydrogenation reduction of nitro T-acid was investigated. The results show that the prepared Raney nickel catalyst is rich in pore structures, mainly mesopores, with a specific surface area of 46.88 m²/g and an average grain size of 15.8 nm. The optimum application process of the prepared Raney nickel in the hydrogenation reduction of nitro T-acid is as follows: catalyst dosage 2.500%, reaction pressure 2.0 MPa, reaction temperature 120 ℃, stirring speed 800 r/min. Under the best process conditions, the conversion of nitro T-acid reaches 99.07%, and there is no obvious deactivation after ten times of reuse.

Key words: Raney nickel, nitro T-acid, catalytic hydrogenation, T-acid, dye intermediate

中图分类号:

TQ612.3

冯鹏耀, 王蓉, 瞿建刚, 董玲, 胡啸林. 骨架镍的制备及其在染料中间体合成中的应用[J]. 纺织学报, 2020, 41(11): 95-101.

FENG Pengyao, WANG Rong, QU Jian'gang, DONG Ling, HU Xiaolin. Preparation of Raney nickel and its application in synthesis of dye intermediates[J]. Journal of Textile Research, 2020, 41(11): 95-101.

图/表 11

图1

图2

图3

图4

表1

图5

图6

表2

图7

图8

图9

参考文献 20

[1]	YANG Fan, WANG Minjian, LIU Wei, et al. Atomically dispersed Ni as the active site towards selective hydrogenation of nitroarenes[J]. Green Chemistry, 2019,21(3):704-711. doi: 10.1039/C8GC03664K
[2]	孟明扬, 徐广峰, 马瑛, 等. H酸清洁生产工艺改进[J]. 染料与染色, 2014(3):47-49.
	MENG Mingyang, XU Guangfeng, MA Ying, et al. Review on process improvements of clean production of H-acid[J]. Dyestuffs and Coloration, 2014(3):47-49.
[3]	谭春伟, 崔艳姗. 液相加氢法合成H-酸工艺研究[J]. 化工科技, 2002(4):16-19.
	TAN Chunwei, CUI Yanshan. A stduy on technology of H-acid synjournal by liquid-phase hydrogenation process[J]. Science and Technology in Chemical Industry, 2002(4):16-19.
[4]	ZHANG Yaowen, LIU Chunling, FAN Guoli, et al. A robust-shell nanostructured nickel-iron alloy@nitrogen-containing carbon catalyst for the highly efficient hydrogenation of nitroarenes[J]. Dalton Transactions, 2018,47(38):13668-13679. doi: 10.1039/c8dt03033b pmid: 30209499
[5]	RYABCHUK P, AGOSTINI G, POHL M M. Intermetallic nickel silicide nanocatalyst: a non-noble metal-based general hydrogenation catalyst[J]. Science Advances, 2018,4(6):1-10.
[6]	马永欢. 液相催化加氢法合成T酸和CLT酸[D]. 大连:大连理工大学, 2008: 2-9.
	MA Yonghuan. Synthesis of T-acid and CLT acid by liquid catalytic hydrogenation[D]. Dalian: Dalian University of Technology, 2008: 2-9.
[7]	靖丹, 曹亚峰, 李沅, 等. 雷尼镍催化加氢制备3,4-二甲基苯胺[J]. 大连工业大学学报, 2012(5):339-341.
	JING Dan, CAO Yafeng, LI Yuan, et al. Preparation of 3,4-dimethylaniline bu raney nickel catalyst.[J]. Journal of Dalian Polytechnic University, 2012(5):339-341.
[8]	TOMASZ W, LUKASZ P, KRZYSZTOF Z W, et al. Nickel nanowires: synjournal, characterization and application as effective catalysts for the reduction of nitroarenes[J]. Catalysts, 2018,8(11):1-12 doi: 10.3390/catal8010001
[9]	刘星. 骨架镍与负载镍催化愈创木酚加氢的研究[D]. 大连:大连理工大学, 2018: 6-11.
	LIU Xing. The study of skeletal Ni and supported Ni for guaiacol hydrogenation[D]. Dalian: Dalian University of Technology, 2018: 6-11.
[10]	URABE K, YOSHIOKA T, OZAKI A. Ammonia synjournal activity of a raney ruthenium catalyst[J]. Journal of Catalysis, 1978,54(1):52-56. doi: 10.1016/0021-9517(78)90026-X
[11]	SMITH A J, TRIMM D L. The preparation of skeletal catalysts[J]. Annual Review of Materials Reserach, 2005,35(1):127-142.
[12]	杨薇. 骨架镍上催化对苯二胺加氢制备1,4-环己二胺[D]. 上海:华东理工大学, 2012: 62-63.
	YANG Wei. Catalytic hydrogenation of p-Phenylenediamine to prepare diaminocyclohexane over Raney-Ni[D]. Shanghai: East China University of Science and Technology, 2012: 62-63.
[13]	马永欢, 王晓会, 侯洁, 等. 液相催化加氢法合成T酸的研究[J]. 染料与染色, 2008,45(6):35-38.
	MA Yonghuan, WANG Xiaohui, HOU Jie, et al. Research on the preparation of T-acid by liquid catalytic hydrogenation[J]. Dyestuffs and Coloration, 2008,45(6):35-38.
[14]	夏少武, 刘红天, 赵纯洁, 等. 雷尼镍活性本质的探讨[J]. 工业催化, 2003,11(2):36-41.
	XIA Shaowu, LIU Hongtian, ZHAO Chunjie, et al. A probe into the mechanism for activity of raney-nickel catalysts[J]. Industrial Catalysis, 2003,11(2):36-41.
[15]	赖冬志, 陈文兴. 纳米镍胶体的制备及其在织物化学镀活化中的应用[J]. 纺织学报, 2012,33(11):77-80.
	LAI Dongzhi, CHEN Wenxing. Preparation of nano-nickel colloid and its application to activation of electroless plating of fabrics[J]. Journal of Textile Research, 2012,33(11):77-80.
[16]	YU Qinwei, LI Yani, ZHANG Qian, et al. Synjournal of 1,2-propanediamine via reductive amination of isopropanolamine over raney Ni under the promotion of K₂CO₃[J]. Chemical Papers, 2019,73:2019-2026. doi: 10.1007/s11696-019-00734-9
[17]	陈康. 金属镍、氧化镍复合石墨烯催化材料的制备及其在葡萄糖检测中的应用[D]. 太原:太原理工大学, 2019: 33-34.
	CHEN Kang. Preparation of metal nickel and nickel oxide catalytic materials supported by graphere and their application in glucose detection[D]. Taiyuan: Taiyuan University of Technology, 2019: 33-34.
[18]	BAEK M H, YOON J W, HONG J S, et al. Application of TiO₂-containing mesoporous spherical activated carbon in a fluidized bed photoreactor: adsorption and photocatalytic activity[J]. Applied Catalysis A: General, 2013,450(7):222-229. doi: 10.1016/j.apcata.2012.10.018
[19]	唐成, 邹志娟, 宋昆鹏. Ni-P共掺杂超交联聚合物的制备及催化还原4-硝基苯酚[J]. 应用化学, 2019,36(7):782-789.
	TANG Cheng, ZOU Zhijuan, SONG Kunpeng. Preparation of Ni-P co-doped hyper-crosslinked polymer and used for reduction of 4-nitrophenol[J]. Chinese Journal of Applied Chemistry, 2019,36(7):782-789.
[20]	NJOKU V O, HAMEED B H. Preparation and characterization of activated carbon from corncob by chemical activation with H₃PO₄ for 2,4-dichlorophenoxyacetic acid adsorption[J]. Chemical Engineering Journal, 2011,173(2):391-399. doi: 10.1016/j.cej.2011.07.075

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

元素种类	质量分数/%
元素种类	镍铝合金	骨架镍
Ni	59.3	54.4
Al	36.7	14.4
C	4.0	4.3
O	0	26.9

比表面积S_BET/ (m²·g^-1)	总孔容V_P/ (cm³·g^-1)	平均孔径D/ nm	DFT全孔径分析
比表面积S_BET/ (m²·g^-1)	总孔容V_P/ (cm³·g^-1)	平均孔径D/ nm	微孔率/ %	中孔率/ %	大孔率/ %
46.88	0.063	5.4	0	95.20	4.80
