纺织学报 ›› 2020, Vol. 41 ›› Issue (06): 93-98.doi: 10.13475/j.fzxb.20190900606

• 染整与化学品 • 上一篇    下一篇

硼氮掺杂碳点对棉织物防紫外线性能的影响

成世杰, 王晨洋, 张宏伟, 左丹英()

  1. 武汉纺织大学 湖北省纺织新材料与先进加工技术省部共建国家重点实验室, 湖北 武汉 430020
  • 收稿日期:2019-09-02 修回日期:2020-02-28 出版日期:2020-06-15 发布日期:2020-06-28
  • 通讯作者: 左丹英
  • 作者简介:成世杰(1994—),男,硕士生。主要研究方向为功能纺织纤维。
  • 基金资助:
    湖北省自然科学基金项目(2018CFB267)

Effect of boron nitrogen doped carbon dots on ultraviolet-protection of cotton fabrics

CHENG Shijie, WANG Chenyang, ZHANG Hongwei, ZUO Danying()

  1. State Key Laboratory for Hubei New Textile Materials and Advanced Processing Technology, Wuhan Textile University, Wuhan, Hubei 430020, China
  • Received:2019-09-02 Revised:2020-02-28 Online:2020-06-15 Published:2020-06-28
  • Contact: ZUO Danying

RichHTML

9

PDF (PC)

267

摘要：

为提高棉织物的防紫外线能力,以柠檬酸、乙二胺和硼砂为原料,采用一步水热法合成了硼氮掺杂碳点(BN-CDs), 将BN-CDs水溶液、BN-CDs/聚乙烯醇共混水溶液和BN-CDs/水性聚氨酯共混水溶液分别喷涂于棉织物表面,再对棉织物进行碾压干燥处理,测试了织物的紫外线防护系数及其耐水洗性能等。结果表明:所制备的BN-CDs表面上含有丰富羟基和胺基的石墨状纳米晶体,兼具良好水溶性;在紫外区具有强吸收峰,在紫外光激发下可以发出蓝色荧光,且荧光发射波长不依赖于激发波长;整理后的棉织物均表现出极高的紫外线防护系数(UPF); 经BN-CDs/水性聚氨酯整理后的棉织物效果最佳,水洗10次后UPF值仍保持在48左右,达到较高的保护级别,且棉织物表面形态基本不变,手感良好,可满足棉织物紫外线防护要求。

关键词: 硼氮掺杂, 碳点, 棉织物, 防紫外线性能, 紫外线防护系数, 水洗性能

Abstract:

In order to improve the UV-resistant ability of cotton fabrics, boron-nitrogen-doped carbon dots (BN-CDs) were synthesized by a one-step hydrothermal method with citric acid, ethylenediamine and borax as raw materials. BN-CDs aqueous solution, BN-CDs/PVA aqueous solution and BN-CDs/waterborne polyurethane aqueous solution were sprayed on the surface of cotton fabric, respectively, and then the cotton fabric was rolled and dried. The results show that the prepared BN-CD is a graphite-like nanocrystal having a rich hydroxyl group and amine group on the surface, which make BN-CDs soluble in water. BN-CDs has a strong absorption peak in the ultraviolet region, and could emit bright blue fluorescence which is independent of excitation wavelengths. The finished cotton fabrics show high UV protection factors (UPF), BN-CDs/WPU finishing has the optimal effect. After 10 times washing, the UPF value remained at around 48, achieving the excellent protection level. The surface morphology of the cotton fabric is basically unchanged, and the hand feel was good, and meeting the ultraviolet protection requirement of the cotton fabrics.

Key words: boron nitrogen doping, carbon dot, cotton fabric, UV resistance, UV protection value, water washing performance

中图分类号:

  • TS195.5

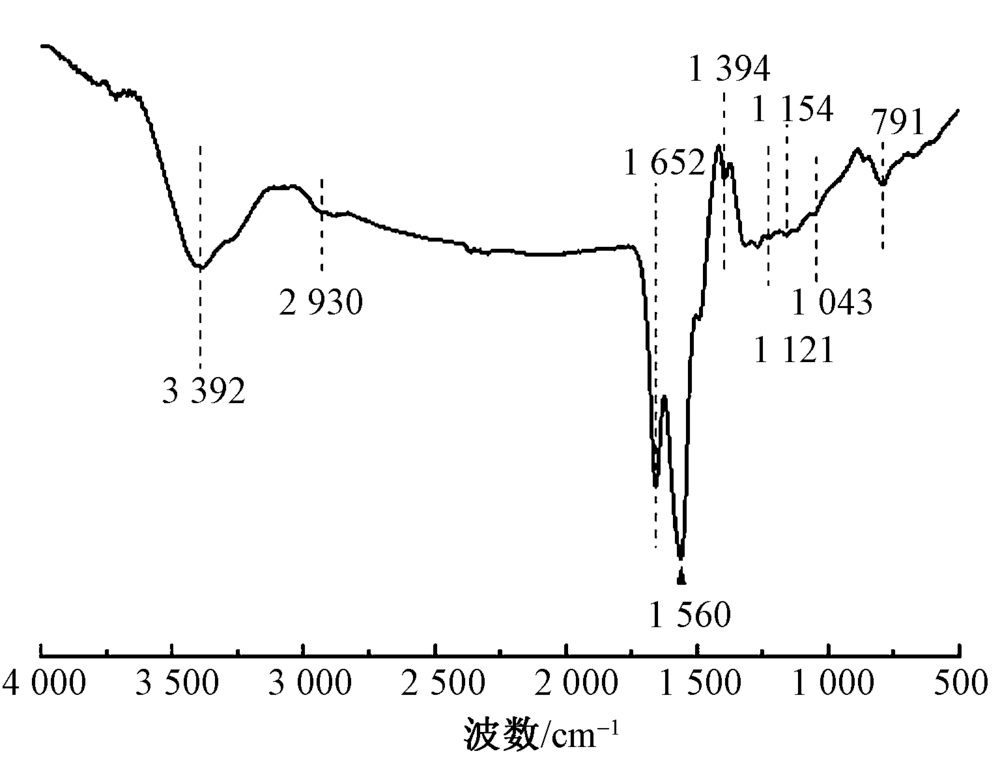

图1

BN-CDs的红外光谱"

图2

BN-CDs的透射电镜照片"

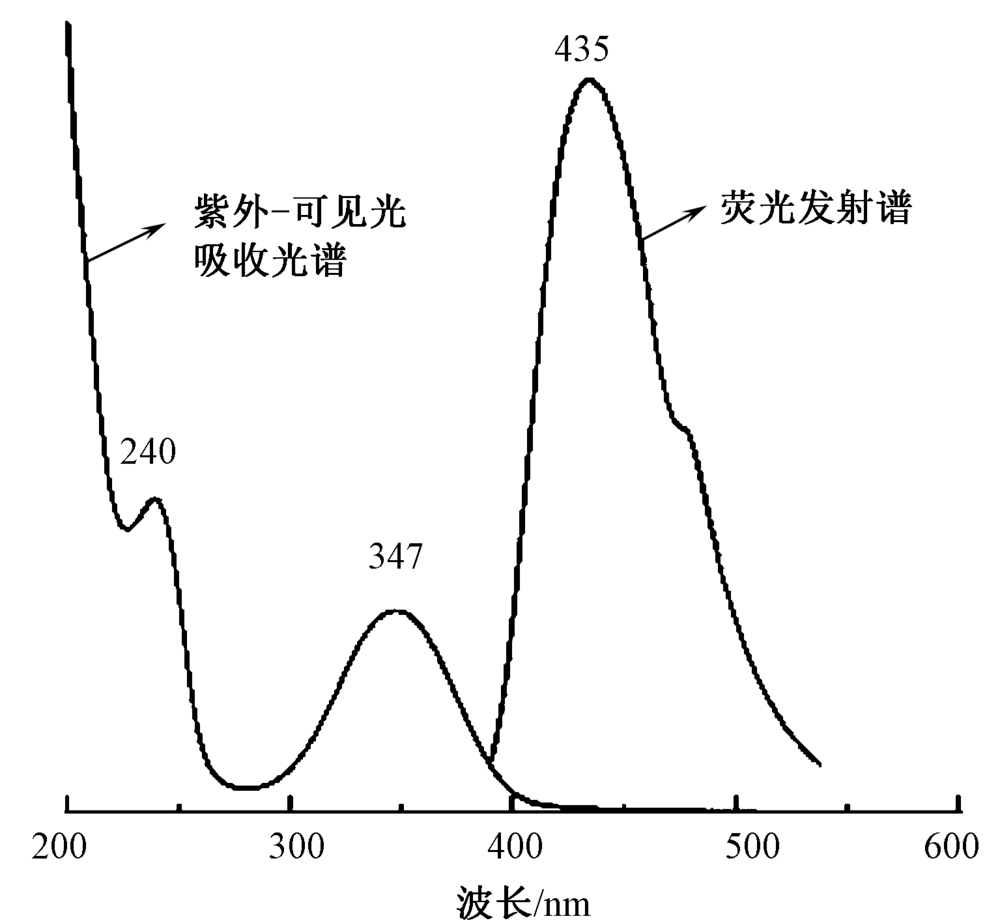

图3

BN-CDs紫外-可见光吸收光谱及其荧光发射谱"

图4

BN-CDs 在365 nm紫外灯下的照射图"

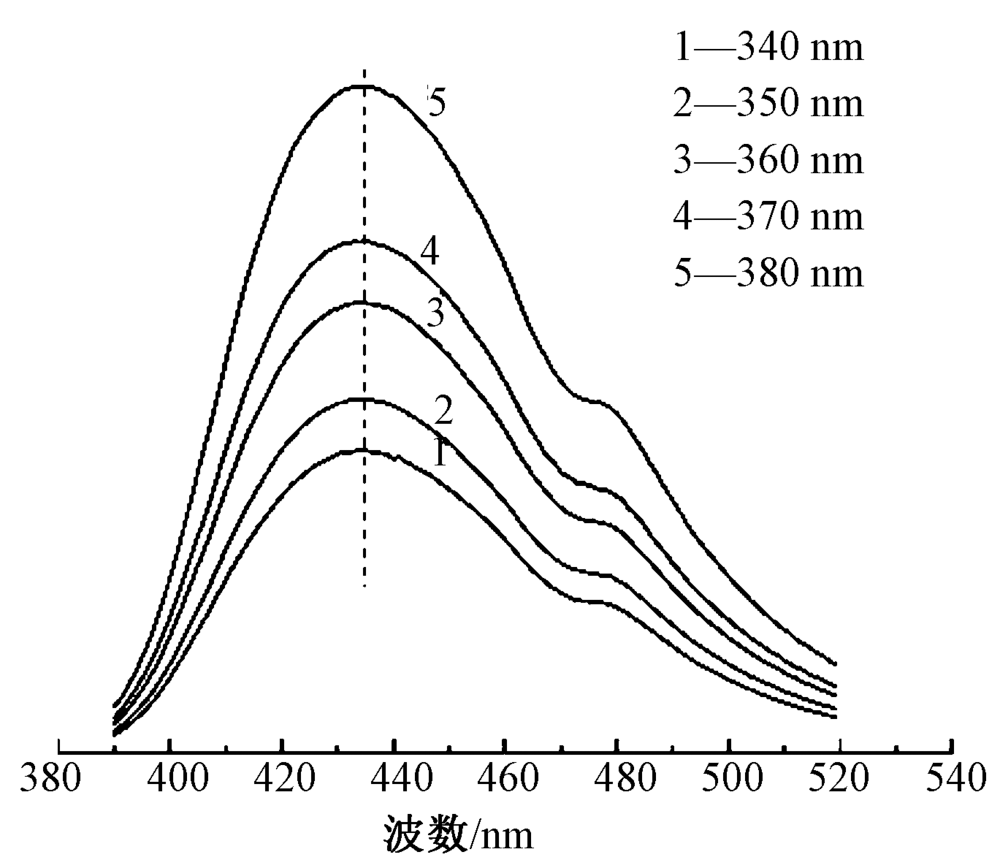

图5

不同激发波长下的BN-CDs的荧光发射谱"

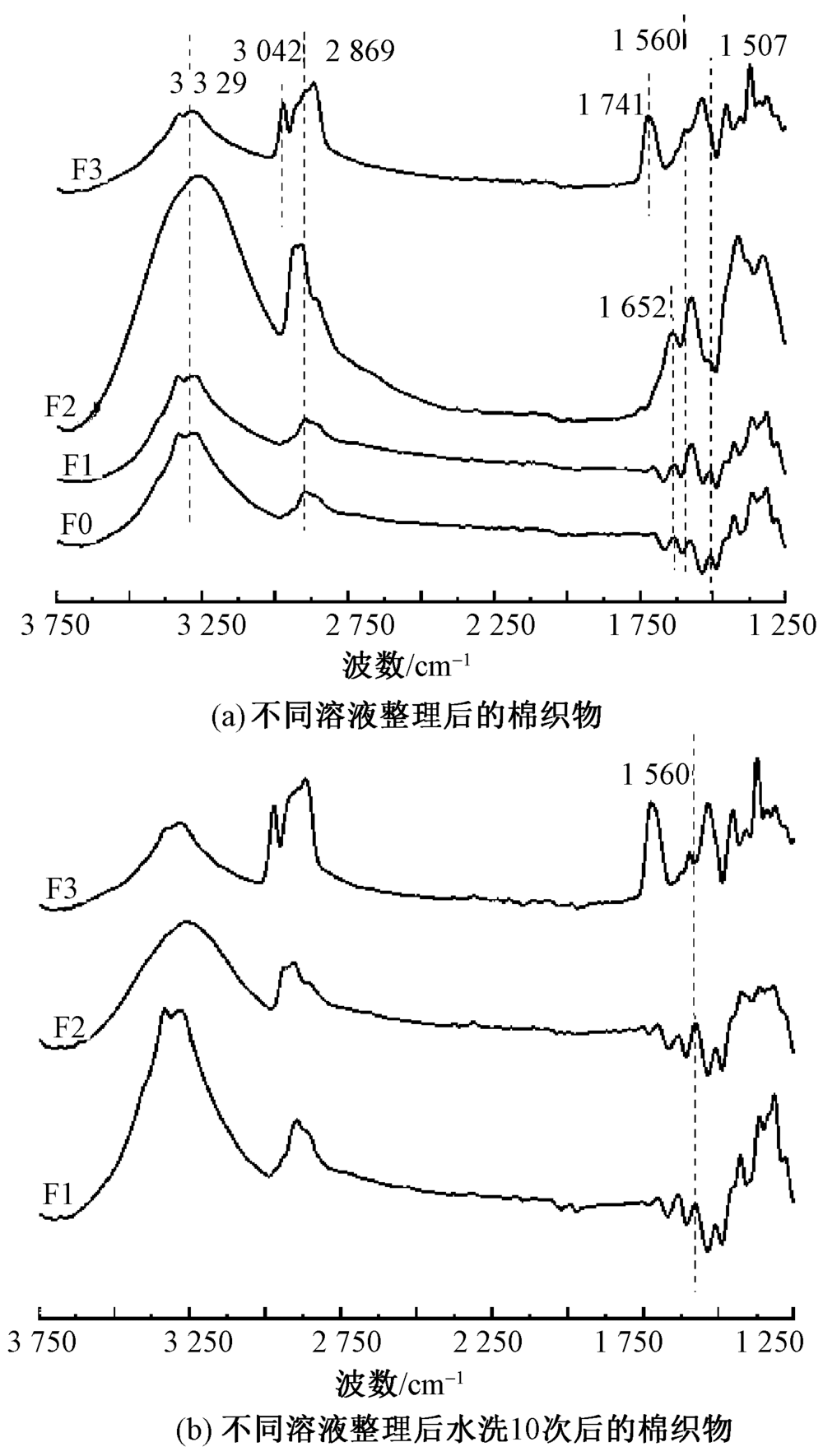

图6

棉织物的红外谱图"

表1

整理后和不同水洗次数棉织物的紫外线防护系数"

编号 初始棉布 整理后 洗1次 洗2次 洗5次 洗10次
F1 31.2 130.5 39.5 44.0 35.3 36.3
F2 31.4 170.2 124.7 103.0 91.1 61.7
F3 31.2 97.1 53.0 49.2 48.4 50.1

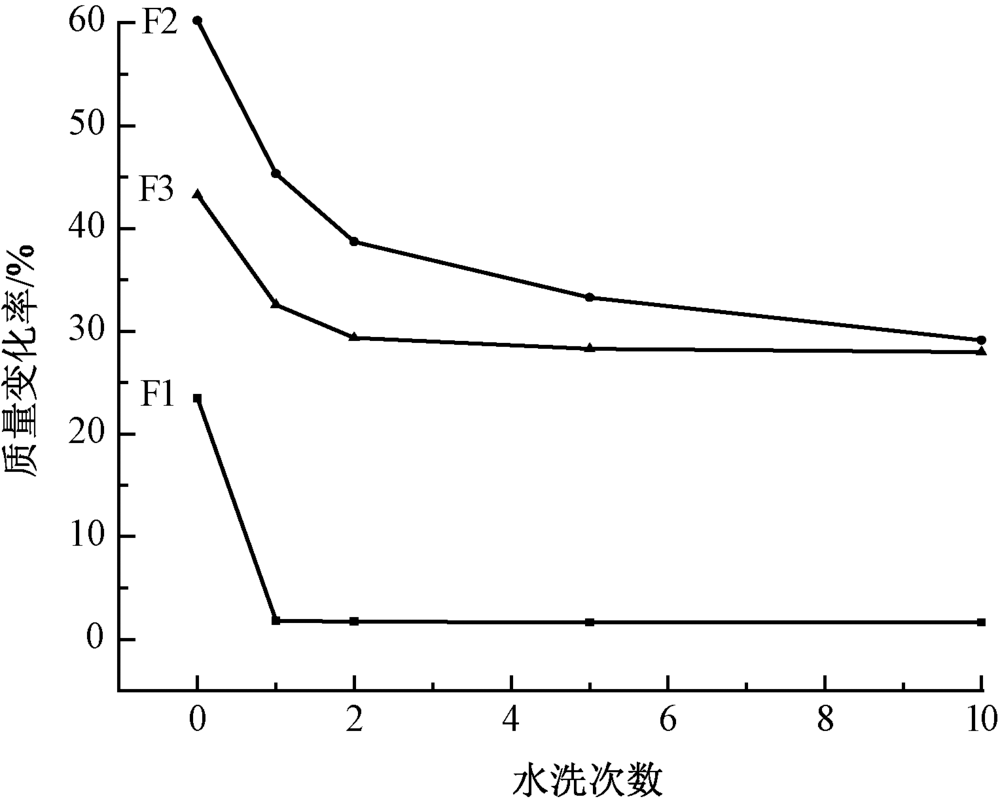

图7

整理后棉织物随水洗次数质量变化率"

[1] QU L, TIAN M, HU X, et al. Functionalization of cotton fabric at low graphene nanoplate content for ultrastrong ultraviolet blocking[J]. Carbon, 2014,80(1):565-574.
[2] 王晓菊, 王晓云. 抗紫外线纺织品的研究新进展[J]. 纺织导报, 2017(6):74-77.
WANG Xiaoju, WANG Xiaoyun. New research progress on ultraviolet resistant textiles[J]. China Textile Leader, 2017 (6):74-77.
[3] SHAHEEN T I, El-NAGGAR M E, ABDELGAWAD A M, et al. Durable antibacterial and UV protections of in situ synthesized zinc oxide nanoparticles onto cotton fabrics[J]. International Journal of Biological Macromolecules, 2016,83:426-432.
doi: 10.1016/j.ijbiomac.2015.11.003 pmid: 26546870
[4] EMAM H E, ABDELHAMEED R M. Anti UV radiation textiles designed by embracing with nano MIL (Ti, In)-metal organic framework[J]. Acs Applied Materials & Interfaces, 2017,9(33):28034-28045.
pmid: 28745870
[5] TANG X, TIAN M, QU L, et al. Functionalization of cotton fabric with graphene oxide nanosheet and polyaniline for conductive and UV blocking pro-perties[J]. Synthetic Metals, 2015,202:82-88.
[6] 梁慧, 张光先, 张凤秀, 等, 紫外线纳米二氧化钛改性高亲水涤纶织物的制备[J]. 纺织学报, 2013,34(3):82-86.
LIANG Hui, ZHANG Guangxian, ZHANG Fengxiu, et al. Preparation of highly hydrophilic polyester fabrics via UV irradiation/nano-TiO2 modification[J]. Journal of Textile Research, 2013,34(3):82-86.
[7] 李瑞雪, 沈小林, 张兴亚, 等. 原位生成二氧化钛对棉纤维抗紫外线性能的影响[J]. 纺织学报, 2016,37(3):78-81.
LI Ruixue, SHEN Xiaolin, ZHANG Xingya, et al. Study on anti-UV property of cotton fibers by in-situ generation of TiO2[J]. Journal of Textile Research, 2016,37(3):78-81.
[8] 宫国梁, 张朋, 赵德丰. 含苯并三唑基团抗紫外辐射活性染料合成与应用性能研究[J]. 大连理工大学学报, 2009,49(1):24-27.
GONG Guoliang, ZHANG Peng, ZHAO Defeng. Synjournal and application properties of anti-uv radiation reactive dyes containing benz-otriazole groups[J]. Journal of Dalian University of Technology, 2009,49(1):24-27.
[9] 陈和春, 尹桂波. 双元配体转光剂的合成及其在防紫外线织物中的应用[J]. 纺织学报, 2014,35(5):83-86.
CHEN Hechun, YIN Guibo. Synjournal of dual ligand rare-earth light conversion agent and its application on UV-protection fabric[J]. Journal of Textile Research, 2014,35(5):83-86.
[10] BONET-ARACIL M Á, DIAZ-GARCIA P, BOU-BELDA E, et al. UV protection from cotton fabrics dyed with different tea extracts[J]. Dyes & Pigments, 2016,134:448-452.
[11] LIM S Y, SHEN W, GAO Z. Carbon quantum dots and their applications[J]. Chemical Society Reviews, 2015,44(1):362-81.
pmid: 25316556
[12] 陶咏真, 鄢芸, 徐卫林, 等. 丝素蛋白与聚氨酯共混膜的制备及结构和性能[J]. 高分子学报, 2010,31(1):27-32.
TAO Yongzhen, YAN Yun, XU Weilin, et al. Preparation, structure and properties of silk fibroin and polyurethane blend membrane[J]. Journal of Polymer Science, 2010,31(1):27-32.
[13] HEBEISH A, SHARAF S, FAROUK A. Utilization of chitosan nanoparticles as a green finish in multifunctionalization of cotton textile[J]. International Journal of Biological Macromolecules, 2013,60(9):10-17.
[14] LI Z, YU H, BIAN T, et al. Highly luminescent nitrogen-doped carbon quantum dots as effective fluorescent probes for mercuric and iodide ions[J]. Journal of Materials Chemistry C, 2015,3(9):1922-1928.
[15] ZHANG Y Q, MA D K, ZHUANG Y, et al. Onepot synjournal of N-doped carbon dots with tunable luminescence properties[J]. Journal of Materials Chemistry, 2012,22(33):16714-16718.
[16] CHEN X, ZHANG W, WANG Q, et al. C8-structured carbon quantum dots: synjournal, blue and green double luminescence, and origins of surface defects[J]. Carbon, 2014,79:165-173.
[17] RAJABOOPATHI S, THAMBIDURAI S. Evaluation of UPF and antibacterial activity of cotton fabric coated with colloidal seaweed extract functionalized silver nanoparticles[J]. Journal of Photochemistry & Photobiology B: Biology, 2018,183:75-87
