基于染料掺杂型液晶微胶囊的电刺激响应智能纺织品的制备及其性能

doi:10.13475/j.fzxb.20191002206

纺织学报 ›› 2020, Vol. 41 ›› Issue (08): 63-68.doi: 10.13475/j.fzxb.20191002206

基于染料掺杂型液晶微胶囊的电刺激响应智能纺织品的制备及其性能

盛明非¹^,², 张丽平¹^,², 付少海¹^,²()

1.江苏省纺织品数字喷墨印花工程技术研究中心, 江苏无锡 214122
2.生态纺织教育部重点实验室(江南大学), 江苏无锡 214122

收稿日期:2019-10-10 修回日期:2020-05-14 出版日期:2020-08-15 发布日期:2020-08-21
通讯作者: 付少海
作者简介:盛明非(1995—),男,博士生。主要研究方向为先进液晶材料与智能可穿戴纺织品。
基金资助:
中央高校基本科研专项资金资助项目(JUSRP51514);江苏省产业研究院重大原创性技术创新项目(BO2015001);江南大学研究生科研与实践创新计划项目(JNKY19_024)

Preparation and property of dye-doped liquid crystal microcapsules for electro-stimulated responsive smart textiles

SHENG Mingfei¹^,², ZHANG Liping¹^,², FU Shaohai¹^,²()

1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing, Wuxi, Jiangsu 214122, China
2. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China

Received:2019-10-10 Revised:2020-05-14 Online:2020-08-15 Published:2020-08-21
Contact: FU Shaohai

摘要/Abstract

摘要：

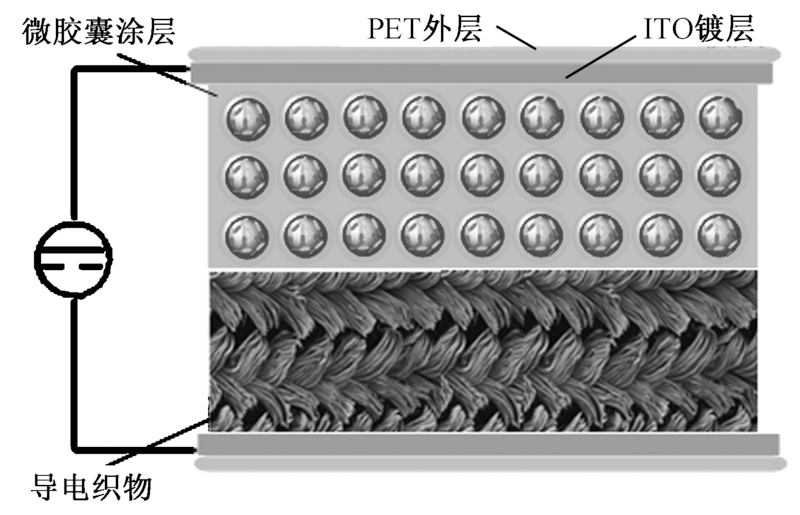

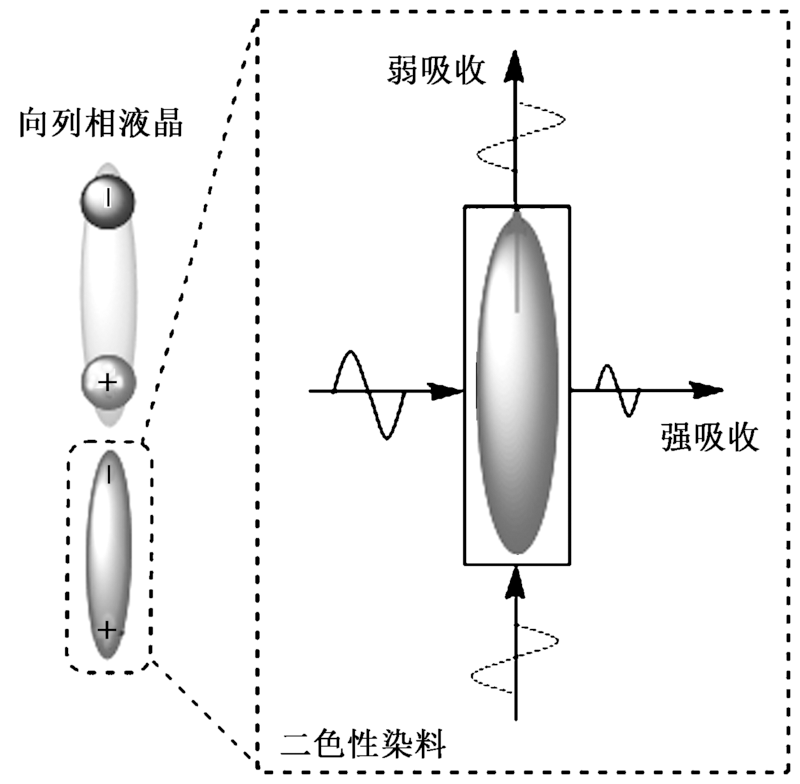

针对电致变色液晶易流动,难以塑形而不易与纺织品结合应用的问题,在向列相液晶中掺杂二色性染料形成宾主材料,采用乳液聚合方法将其作为芯材封装在以聚甲基丙烯酸甲酯为壁材的微胶囊内,得到染料掺杂型液晶微胶囊。通过偏光显微镜分析液晶在限域条件下的独特光学性质,借助扫描电子显微镜、透射电子显微镜、热重分析仪等表征微胶囊的形貌结构及热学性能,并探讨微胶囊包覆对染料掺杂型液晶的驱动电压与使用寿命的影响。结果表明:制备的染料掺杂型液晶微胶囊具有明显的核壳结构,粒径为3 μm,芯材载量约为70%,驱动电压为3.6 V,远低于人体安全电压;以微胶囊为原料涂敷在导电织物上,其光学外观可在直流电源刺激下于无色态和有色态之间发生可逆转变,从而为优化电致变色液晶微胶囊器件制备工艺和提高纺织品柔性显示性能奠定基础。

关键词: 智能纺织品, 电致变色, 二色性染料, 液晶, 乳液聚合, 微胶囊

Abstract:

Aiming at the problems that the electrochromic liquid crystal is easy to flow, difficult to shape and difficult to apply to textiles, the dichroic dyes were doped in nematic liquid crystal to form a guest-host material, which was further encapsulated in a microcapsule with polymethyl methacrylate as the shell material by emulsion polymerization. In addition, the unique optical properties of liquid crystals confinement effect were analyzed by polarizing microscope. The morphology and structure of microcapsules were characterized by scanning electron microscope, transmission electron microscope and thermal gravimetric analyzer. The influence of microcapsule coating on the driving voltage and service life of dye-doped liquid crystal were also investigated. The results show that dye-doped liquid crystal microcapsule have obvious core-shell structure, with particle size of 3 μm, core material loading of 70%, and driving voltage of 3.6 V, which is far lower than the human safety voltage. The optical appearance of the microcapsule coated on the conductive fabric can be reversibly changed from colorless state to colored state under the stimulation of direct-current power supply, which lays the foundation for optimizing the preparation process of electrochromic liquid crystal microcapsule devices and improving the flexible display performance of textiles.

Key words: smart textile, ectrochromic, dichroic dye, liquid crystal, emulsion polymerization, microcapsule

中图分类号:

TS101.8

盛明非, 张丽平, 付少海. 基于染料掺杂型液晶微胶囊的电刺激响应智能纺织品的制备及其性能[J]. 纺织学报, 2020, 41(08): 63-68.

SHENG Mingfei, ZHANG Liping, FU Shaohai. Preparation and property of dye-doped liquid crystal microcapsules for electro-stimulated responsive smart textiles[J]. Journal of Textile Research, 2020, 41(08): 63-68.

图/表 8

图1

图2

图3

图4

图5

表1

图6

图7

参考文献 11

[1]	杨晨啸, 李鹂. 柔性智能纺织品与功能纤维的融合[J]. 纺织学报, 2018,39(5):165-174.
	YANG Chenxiao, LI Li. Integration of soft intelligent textile and functional fiber[J]. Journal of Textile Research, 2018,39(5):165-174.
[2]	陈志林. 智能服装开发与应用现状[J]. 纺织科技进展, 2010(2):88-93.
	CHEN Zhilin. Development and application of prospect smart clothing[J]. Progress in Textile Science & Technology, 2010(2):88-93.
[3]	吴琼, 张观广, 陈皇星, 等. 柔性电致变色材料的研究与发展[J]. 功能材料, 2019,50(10):10040-10046.
	WU Qiong, ZHANG Guanguang, CHEN Huangxing, et al. The state-of-the-art flexible electrochromic mate-rial[J]. Journal of Functional Materials, 2019,50(10):10040-10046.
[4]	冯博学, 陈冲, 何毓阳, 等. 电致变色材料及器件的研究进展[J]. 功能材料, 2004,35(2):145-150.
	FENG Boxue, CHEN Chong, HE Yuyang, et al. Advance in research on electrochromic materials and devices[J]. Journal of Functional Materials, 2004,35(2):145-150.
[5]	AHMAD F, JAMIL M, JEON Y J. Advancement trends in dye-doped polymer dispersed liquid crystals:a survey review[J]. Molecular Crystals and Liquid Crystals, 2017,648(1):88-113. doi: 10.1080/15421406.2017.1301860
[6]	吕奎. 液晶微胶囊的制备与显示应用性能研究[D]. 天津:天津大学, 2012: 6-19.
	LÜ Kui. Study on the preparation of liquid crystal microcapsules and their applied performances in dis-plays[D]. Tianjin: Tianjin University, 2012: 6-19.
[7]	KIM M, PARK K J, SEOK S, et al. Fabrication of microcapsules for dye-doped polymer-dispersed liquid crystal-based smart windows[J]. ACS Applied Materials & Interfaces, 2015,7(32):17904-17909. pmid: 26192469
[8]	CHEN K F, WANG F H, CHAN L H, et al. Multicolor polymer disperse microencapsulated liquid crystal displays[J]. Journal of Display Technology, 2009,5(6):184-187. doi: 10.1109/JDT.2009.2013485
[9]	郝鸿飞, 刘晓艳. 胆固醇液晶热致变色微胶囊的制备及其性能[J]. 纺织学报, 2017,38(6):75-79.
	HAO Hongfei, LIU Xiaoyan. Preparation and properties of thermotropic cholesterol liquid crystal microcap-sules[J]. Journal of Textile Research, 2017,38(6):75-79.
[10]	SHENG M, ZHANG L, WANG D, et al. Fabrication of dye-doped liquid crystal microcapsules for electro-stimulated responsive smart textiles[J]. Dyes and Pig-ments, 2018,158:1-11.
[11]	SHENG M, ZHANG L, GUAN Y, et al. The photoelec-tric properties characteristics of dye-doped nematic liq-uid crystal microcapsules with different structural com-position[J]. Journal of Molecular Liquids, 2019,283:816-822. doi: 10.1016/j.molliq.2019.03.138

相关文章 15

[1]	陈云博, 朱翔宇, 李祥, 余弘, 李卫东, 徐红, 隋晓锋. 相变调温纺织品制备方法的研究进展[J]. 纺织学报, 2021, 42(01): 167-174.
[2]	马丽芸, 吴荣辉, 刘赛, 张玉泽, 汪军. 包缠复合纱摩擦纳米发电机的制备及其电学性能[J]. 纺织学报, 2021, 42(01): 53-58.
[3]	杨宇晨, 覃小红, 俞建勇. 静电纺纳米纤维功能性纱线的研究进展[J]. 纺织学报, 2021, 42(01): 1-9.
[4]	肖渊, 王盼, 张威, 张成坤. 织物表面导电线路喷射打印起始端凸起形成过程研究[J]. 纺织学报, 2020, 41(12): 81-86.
[5]	王亮, 马晓光, 李俊君, 杨州. 热敏变色微胶囊的变色色谱拓展及其应用[J]. 纺织学报, 2020, 41(09): 88-94.
[6]	庞雅莉, 孟佳意, 李昕, 张群, 陈彦锟. 石墨烯纤维的湿法纺丝制备及其性能[J]. 纺织学报, 2020, 41(09): 1-7.
[7]	赵芷芪, 李秋瑾, 孙月静, 巩继贤, 李政, 张健飞. 磁性氧化石墨烯/聚丙烯胺盐酸盐微胶囊在染料吸附中的应用[J]. 纺织学报, 2020, 41(07): 109-116.
[8]	王森, 陈英. 纳米TiO₂ 稳定乳液的制备及其在微胶囊制备中的应用[J]. 纺织学报, 2020, 41(05): 105-111.
[9]	陈慧, 王玺, 丁辛, 李乔. 基于全织物传感网络的温敏服装设计[J]. 纺织学报, 2020, 41(03): 118-123.
[10]	吴荣辉, 马丽芸, 张一帆, 刘向阳, 于伟东. 银纳米线涂层的编链结构纱线拉伸应变传感器[J]. 纺织学报, 2019, 40(12): 45-49.
[11]	杨帆, 刘俊华, 边昂挺, 王燕萍, 钱琦渊, 倪建华, 夏于旻, 何勇, 王依民. 热处理对热致液晶聚芳酯纤维结构与性能的影响[J]. 纺织学报, 2019, 40(11): 9-12.
[12]	杨建, 张国庆, 刘国金, 柯孝明, 周岚. 复合相变微胶囊制备及其在棉织物上的应用[J]. 纺织学报, 2019, 40(10): 127-133.
[13]	张治斌, 李刚, 毛森贤, 厉巽巽, 陈玉霜, 毛青山, 李翼, 潘志娟, 王晓沁. 丝素蛋白/壳聚糖微球制备及其抗菌性能[J]. 纺织学报, 2019, 40(10): 7-12.
[14]	项伟, 杨宏林, 全琼瑛. 聚丙烯酸酯/罗丹明B复合乳胶的细乳液聚合制备及其应用[J]. 纺织学报, 2019, 40(09): 122-127.
[15]	陈旭, 吴炳洋, 范滢, 杨木生. 蓄热调温织物低温防护过程的数值模拟[J]. 纺织学报, 2019, 40(07): 163-168.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试样名称	驱动电压/V	透过率/%		对比度	循环次数
试样名称	驱动电压/V	最大	最小	对比度	循环次数
微胶囊化前	2.4	91.7	38.3	2.4	小于100
微胶囊化后	3.6	90.3	34.1	2.6	大于500
