稀土铝酸盐在面料上的发光性能

doi:10.13475/j.fzxb.20191005207

摘要/Abstract

摘要：

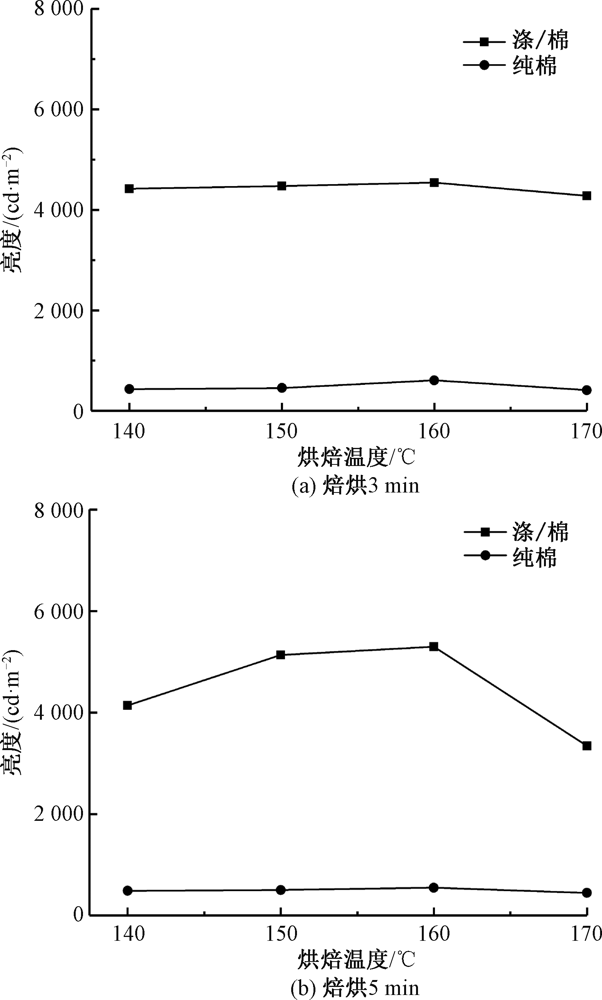

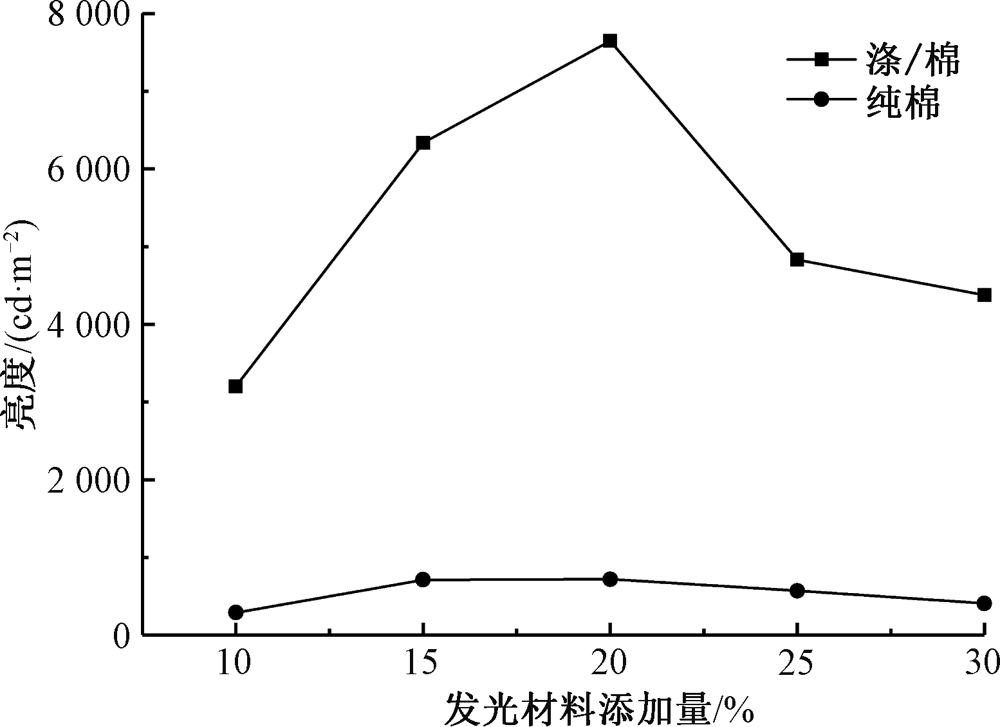

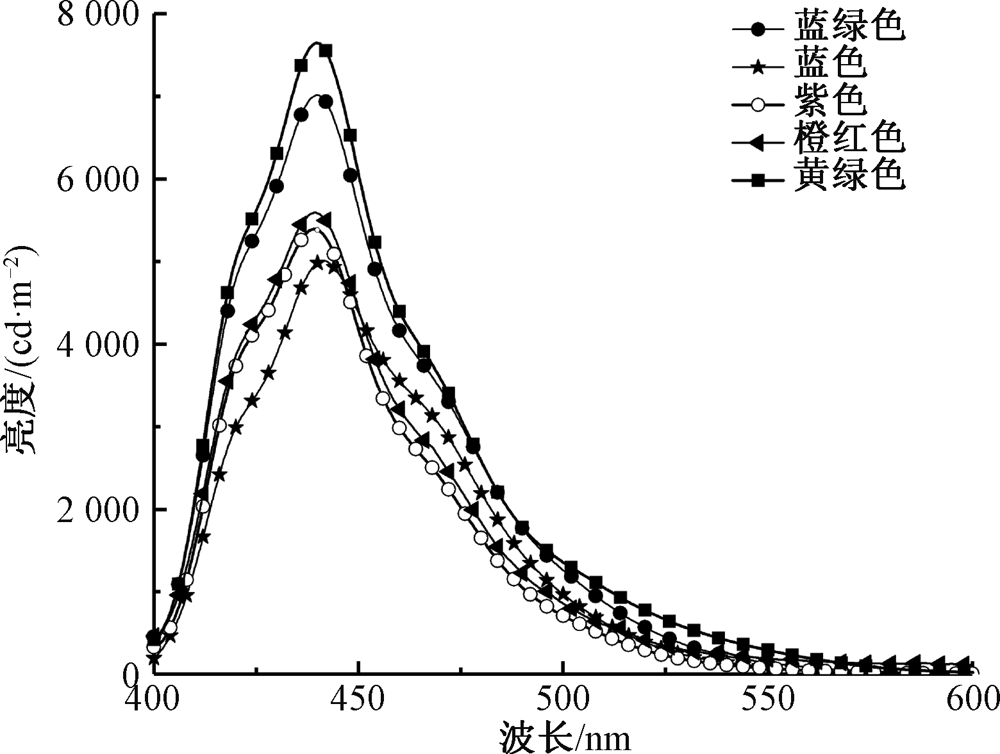

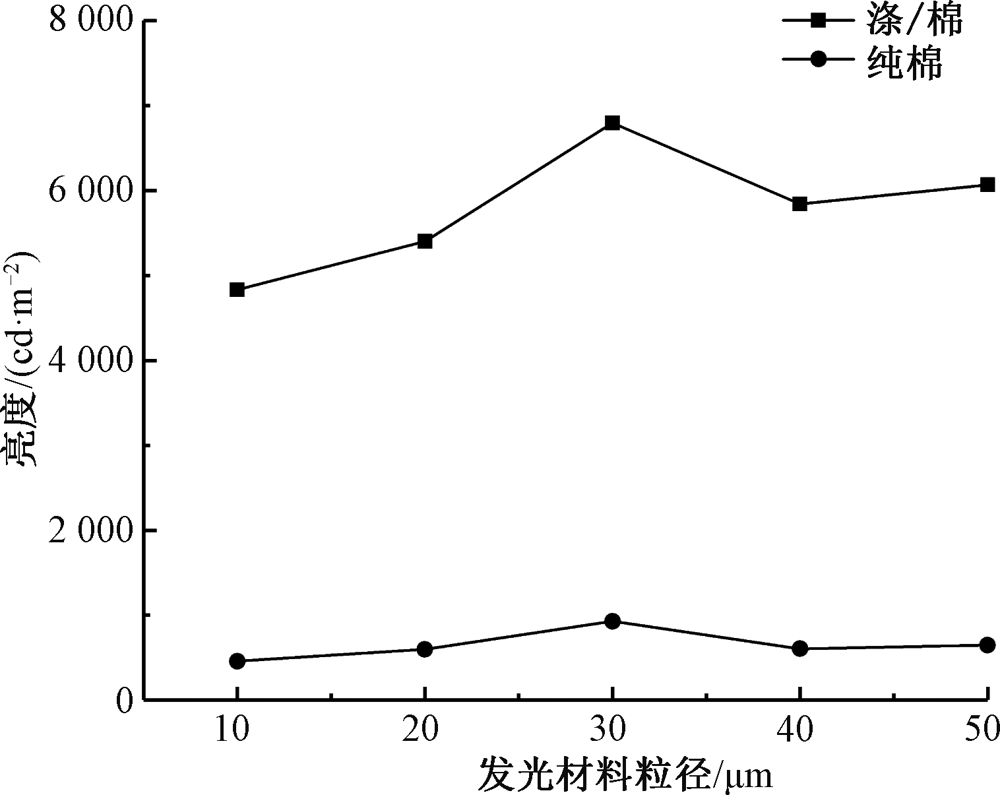

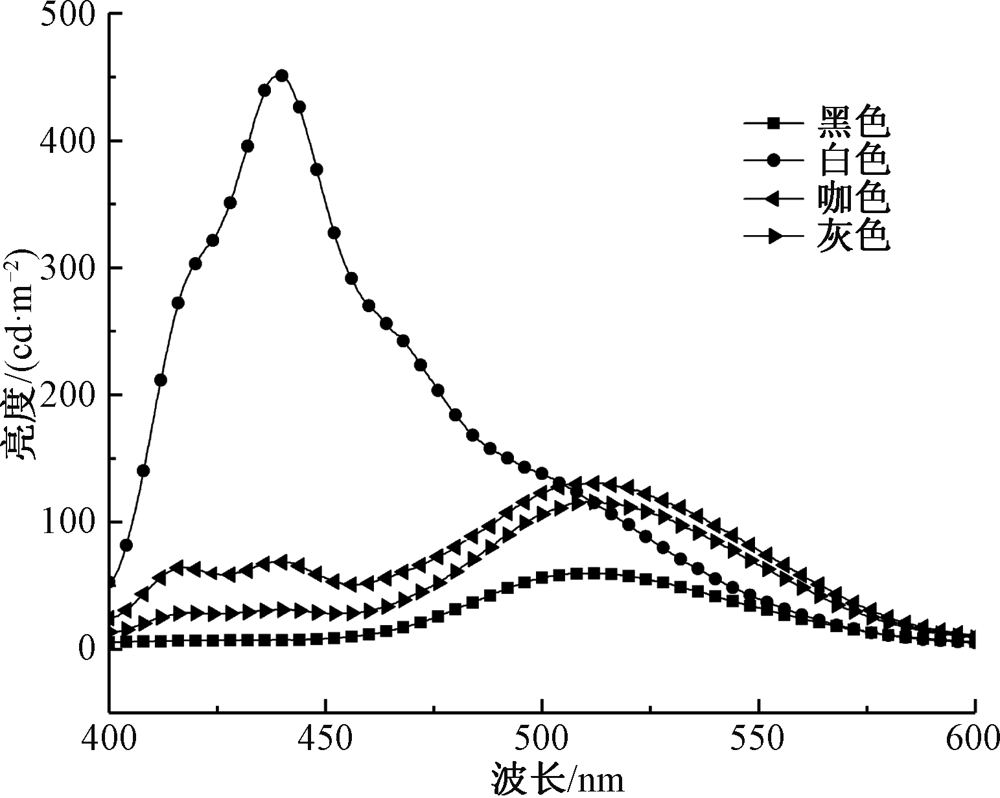

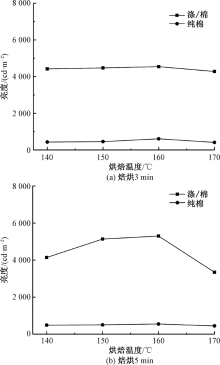

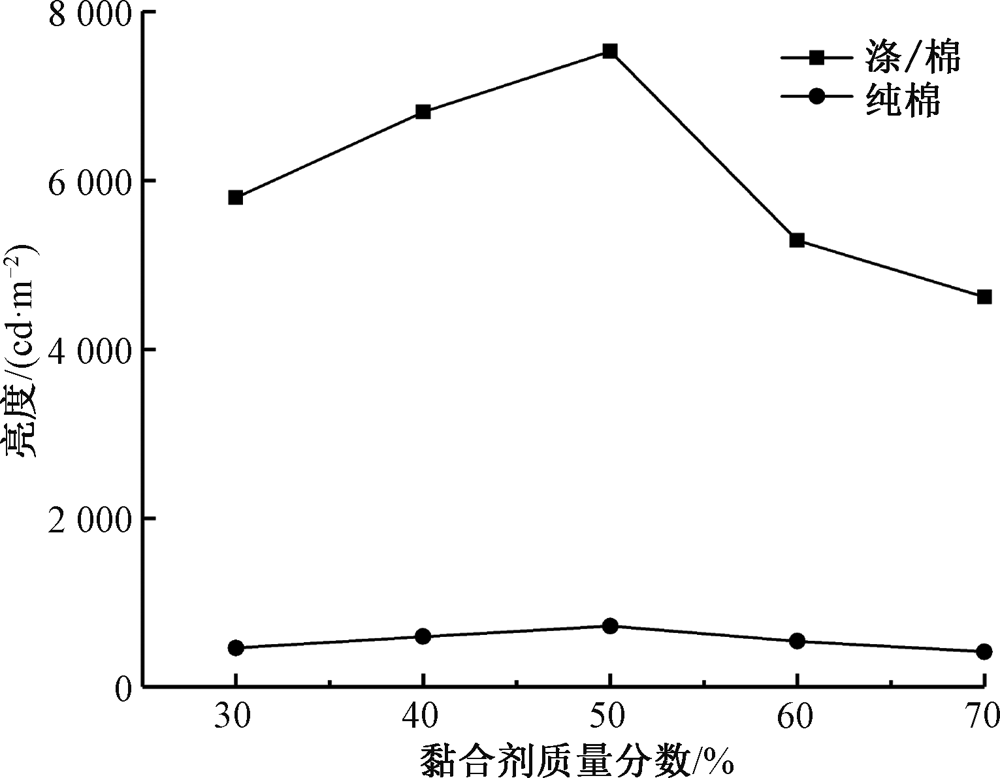

为提高稀土铝酸盐在面料上的发光印花效果,采用单因素分析方法和正交试验研究发光材料稀土铝酸盐粒径大小及添加量、黏合剂质量分数及丝网目数和焙烘条件等制备工艺对纯棉及涤/棉(65/35)2种面料发光印花效果的影响。探究了不同颜色发光材料及不同颜色面料基底对发光印花效果的影响,测试与分析了发光印花面料的服用性能,得到最佳发光印花效果面料的制备工艺:发光材料粒径为30 μm,发光材料添加量为25%,黏合剂质量分数为50%,丝网为80目,焙烘温度为160 ℃,焙烘时间为3 min。结果表明:不同色相面料基底之间的发光效果存在个体差异性,其中面料基底颜色明度越高,发光效果越好,所得发光印花面料的服用性能相对较好。

关键词: 稀土铝酸盐, 发光面料, 印花, 发光性能, 服用性

Abstract:

In order to improve the luminous printing effect of rare earth aluminate on fabrics,the method of single factor analysis and orthogonal experimental study were adopted to investigate the effect of the particle size and theadding quantity of the luminescent material, adhesive concentration, mesh number and the baking conditions on the preparation of printing performance of pure cotton and polyester/cotton (65/35) fabrics. Under the optimal preparation conditions, the influences of different colored luminescent materials and different colored fabric substrates on luminescent printing effect were explored. Finally, the wearability of printed fabrics with better luminescent effect was tested and analyzed. The experimental results show that the best parameters of luminescent printing process are 30 μm particle size of luminescent material, 25% content of luminescent material, 50% concentration of adhesive, 80 mesh number of the screen, with 160 ℃ baking for 3 min. Individual differences in the luminescence effect exist for different color substrates, among which the higher the luminosity of the fabric substrates, the better the luminescence effect.The wearability of the light-emitting printed fabric is regarded as acceptable.

Key words: rare earth aluminate, luminescent fabric, printing, luminescent property, wearability

中图分类号:

TS194.6

赵欢, 潘力, 崔晓爽. 稀土铝酸盐在面料上的发光性能[J]. 纺织学报, 2021, 42(03): 136-142.

ZHAO Huan, PAN Li, CUI Xiaoshuang. Luminescent properties of rare earth aluminate on fabrics[J]. Journal of Textile Research, 2021, 42(03): 136-142.

图/表 18

表1

图1

图2

图3

图4

图5

图6

表2

图7

表3

图8

图9

图10

图11

图12

图13

图14

表4

参考文献 17

[1]	肖志国. 夜光材料及其制品[M]. 北京: 化学工业出版社, 2002:76-82, 93-113,149.
	XIAO Zhiguo. Luminous materials and their products[M]. Beijing: Chemical Industry Press, 2002:76-82, 93-113,149.
[2]	李建宇. 稀土发光材料及其应用[M]. 北京: 化学工业出版社, 2003:3-22, 92-139.
	LI Jianyu. Rare earth luminescent materials and their applications[M]. Beijing: Chemical Industry Press, 2003:3-22, 92-139.
[3]	卡赞金, 马尔科夫斯基. 无机发光材料[M]. 丁清秀,刘洪楷,译. 北京: 化学工业出社, 1980:1-71, 77-89.
	CARDWOWGOL, MALKOWSKI. Common luminescence materials[M]. DING Qingxiu, LIU Hongkai, Translating. Beijing: Chemical Industry Press, 1980:1-71, 77-89.
[4]	孙家跃, 杜海燕, 胡文祥. 固体发光材料[M]. 北京: 化学工业出版社, 2003: 3-209.
	SUN Jiayue, DU Haiyan, HU Wenxiang. Solid luminescent materials[M]. Beijing: Chemical Industry Press, 2003: 3-209.
[5]	刘岚. Eu²+,Pr³+共激活Sr₃Al₂O₆基红色长余辉发光材料的研究[D]. 天津:天津大学, 2007: 4-8.
	LIU Lan. Eu²+,Pr³+ Co-activated Sr₃Al₂O₆-based red long-afterglow luminescent materials[D]. Tianjin:Tianjin University, 2007: 4-8.
[6]	王建, 余媛, 葛明桥. 高弹性夜光织物的制备及性能研究[J]. 功能材料, 2016,47(4):108-111.
	WANG Jian, YU Yuan, GE Mingqiao. Preparation and properties of high elastic luminous fabrics[J]. Functional Materials, 2016,47(4):108-111.
[7]	罗军, 张开砚, 李梦娟, 等. 静电纺稀土铝酸锶发光纳米短纤维的制备与表征[J]. 纺织学报, 2015,36(1):1-5.
	LUO Jun, ZHANG Kaiyan, LI Mengjuan, et al. Preparation and characterization of strontium aluminate luminescent nanometer staple fiber for electrostatic spinning rare earth[J]. Journal of Textile Research, 2015,36(1):1-5.
[8]	西鹏, 舒登坤. 纳微米醋酸纤维素多孔发光纤维的制备及其荧光性能[J]. 天津工业大学学报, 2017 (6):1-5.
	XI Peng, SHU Dengkun. Preparation and fluorescence properties of nanomoter cellulose acetate porous luminescent fibers[J]. Journal of Tiangong University, 2017(6):1-5.
[9]	闫彦红, 王来力, 顾冰菲. 儿童夜光安全服装的等效亮度[J]. 纺织学报, 2019,40(8):136-140.
	YAN Yanhong, WANG Laili, GU Bingfei. Equivalent luminance of children's safety clothing in night light[J]. Journal of Textile Research, 2019,40(8):136-140.
[10]	史晨, 侯雪斌, 晋阳, 等. 长余辉发光再生纤维素纤维的制备[J]. 纺织学报, 2016,37(12):1-5.
	SHI Chen, HOU Xuebin, JIN Yang, et al. Preparation of long after glow regenerated cellulose fiber[J]. Journal of Textile Research, 2016,37(12):1-5.
[11]	郝士杰, 张丽平. 发光材料在纺织上的应用研究进展[J]. 纺织导报, 2017(11):64-67.
	HAO Shijie, ZHANG Liping. Progress in application of luminescent materials in textile[J]. Textile Leader, 2017(11):64-67.
[12]	EBRAHIMZADE A, MOJTAHEDI MRM, RAHBAR RS. Study on characteristics and afterglow properties of luminous polypropylene/rare earth strontium aluminate fiber[J]. Journal of Materials Science Materials in Electronics, 2017,28(11):8167-8176.
[13]	袁燕, 孙莹莹, 曾令坤, 等. 丝网印刷夜光油墨的制备及性能研究[J]. 信息记录材料, 2014(4):26-29.
	YUAN Yan, SUN Yingying, ZENG Lingkun, et al. Preparation and properties of silk-screen luminous ink[J]. Information Recording Materials, 2014(4):26-29.
[14]	朱瑞萍. 圆网夜光印花[J]. 江苏纺织, 2013(5):51-52.
	ZHU Ruiping. Round net luminous printing[J]. Jiangsu Textiles, 2013(5):51-52.
[15]	KHATTAB TA, REHA M, HAMOUDA T. Smart textile framework: photochromic and fluorescent cellulosic fabric printed by strontium aluminate pigment[J]. Carbohydrate Polymers, 2018,195(10):143-152.
[16]	刘瑞江, 张业旺, 闻崇炜, 等. 正交试验设计和分析方法研究[J]. 实验技术与管理, 2010,27(9):52-55.
	LIU Ruijiang, ZHANG Yewang, WEN Chongwei, et al. Research on orthogonal experimental design and analysis method[J]. Experimental Technology and Management, 2010,27(9):52-55.
[17]	朱亚楠. 织物夜光涂层整理及性能研究[D]. 无锡:江南大学, 2011: 18-20.
	ZHU Yanan. Study on finishing and properties of luminous coating on fabrics[D]. Wuxi: Jiangnan University, 2011: 18-20.

相关文章 15

[1]	张陈恬, 赵连英, 顾学锋. 中空咖啡碳聚酯纤维/棉混纺纬平针织物的服用性能[J]. 纺织学报, 2021, 42(03): 102-109.
[2]	曹根阳, 王运利, 盛丹, 潘恒, 徐卫林. 丝素粉体/颜料复合体耐热真空升华色牢度提升机制[J]. 纺织学报, 2021, 42(02): 1-6.
[3]	沈瑞超, 郗欣甫, 孙以泽. 三维增材鞋面印花机对位平台的冗余驱动控制策略[J]. 纺织学报, 2020, 41(10): 164-169.
[4]	郑畑子, 王建萍. 服装印花图案设计的感性研究[J]. 纺织学报, 2020, 41(08): 101-107.
[5]	马飞飞. 离散树脂成型复合材料的防刺与服用性能[J]. 纺织学报, 2020, 41(07): 67-71.
[6]	金诗怡, 周赳. 具有双层效果的提花-印花-剪花织物的设计[J]. 纺织学报, 2020, 41(06): 48-54.
[7]	侯学妮, 陈国强, 邢铁玲. 活性墨水流体特性对喷射性能的影响[J]. 纺织学报, 2020, 41(03): 91-99.
[8]	贾小军, 叶利华, 邓洪涛, 刘子豪, 陆锋杰. 基于卷积神经网络的蓝印花布纹样基元分类[J]. 纺织学报, 2020, 41(01): 110-117.
[9]	王晓晖, 刘月刚, 孟婥, 孙以泽. 基于遗传算法和神经网络的3D增材印花工艺参数优化[J]. 纺织学报, 2019, 40(11): 168-174.
[10]	叶嘉浩, 王莉莉, 吴明华, 郭文登, 汪可豪, 陈妮. 蚕丝织物同花同色双面数码喷墨印花上浆工艺[J]. 纺织学报, 2019, 40(10): 92-97.
[11]	高晶, 张俊, 赵泽阳, 李婉迪, 王佳珺, 王璐. 氧化石墨烯协同TiO₂/SiO₂改性涤/棉织物的抗菌持久性与服用性[J]. 纺织学报, 2019, 40(10): 120-126.
[12]	陈智杰, 胡旭东, 黄卓, 宋丽苗, 戚栋明, 向忠. 基于细乳液法含硅颜料胶囊的制备及其对涤纶的印花性能[J]. 纺织学报, 2019, 40(08): 69-75.
[13]	杨海贞, 房宽峻, 刘秀明, 蔡玉青, 安芳芳, 韩双. 棉织物组织结构对墨滴铺展及颜色性能的影响[J]. 纺织学报, 2019, 40(07): 78-84.
[14]	艾丽, 朱亚伟. 黏合剂的合成及其在分散蓝79微水印花中的应用[J]. 纺织学报, 2019, 40(06): 50-57.
[15]	安芳芳, 房宽峻, 刘秀明, 蔡玉青, 韩双, 杨海贞. 羊毛织物的蛋白酶改性对墨滴铺展及颜色性能的影响[J]. 纺织学报, 2019, 40(06): 58-63.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

	试验号	A	B	C	亮度/(cd·m^-2)
	试验号	A	B	C	涤/棉	纯棉
	1	20	15	40	4 874	445
	2	20	20	60	5 403	548
	3	20	25	50	6 301	623
	4	30	15	60	6 887	674
	5	30	20	50	7 532	719
	6	30	25	40	7 358	689
	7	40	15	50	6 679	533
	8	40	20	40	6 327	496
	9	40	25	60	5 927	458
涤/棉亮度	均值1	5 526	6 146.667	6 186.334
	均值2	7 259	6 420.667	6 837.334
	均值3	6 311	6 528.667	6 072.334
	极差	1 733	382	765
纯棉亮度	均值1	538.667	550.667	543.334
	均值2	694.000	587.667	625.000
	均值3	495.667	590.000	560.000
	极差	198.333	39.333	81.667

试验组	黏合剂质量分数/%	焙烘条件		悬垂系数/%	拉伸断裂强力/N	耐磨次数	色牢度/级
试验组	黏合剂质量分数/%	温度/℃	时间/min	悬垂系数/%	拉伸断裂强力/N	耐磨次数	日晒	摩擦	皂洗
A	40	160	3	59	899.4	219	3	3	2
	50			67	942.7	345	4~5	3~4	2~3
	60			83	967.9	589	4~5	3~4	2~3
	70			86	985.3	643	4~5	4	3
B	50	140	3	61	922.3	134	4~5	3	2
		140	5	73	811.8	285	4~5	3~4	2
		150	3	67	938.6	345	4~5	3	2~3
		150	5	74	854.3	365	4~5	3.5~4	2~3
		160	3	76	942.7	489	4~5	3.5	2
		160	5	80	902.2	435	4~5	4	2~3
		170	3	78	977.1	427	4~5	3.5	2
		170	5	83	913.2	409	4~5	4	2~3
