典型纺织基人工韧带及其移出物结构与力学性能

doi:10.13475/j.fzxb.20191100307

纺织学报 ›› 2020, Vol. 41 ›› Issue (11): 66-72.doi: 10.13475/j.fzxb.20191100307

典型纺织基人工韧带及其移出物结构与力学性能

刘明洁¹^,², 林婧¹^,², 关国平¹^,²(), BROCHU G³, GUIDOIN R³, 王璐¹^,²

1.东华大学纺织学院, 上海 201620
2.东华大学纺织面料技术教育部重点实验室, 上海 201620
3.拉法尔大学外科系, 魁北克 G1V0A6, 加拿大

收稿日期:2019-11-01 修回日期:2020-05-15 出版日期:2020-11-15 发布日期:2020-11-26
通讯作者: 关国平
作者简介:刘明洁(1996—),女,硕士生。主要研究方向为生物医用纺织材料。
基金资助:
国家重点研发计划项目(2018YFC1106200)

Structures and mechanical properties of typical textile-based artificial ligaments and explants

LIU Mingjie¹^,², LIN Jing¹^,², GUAN Guoping¹^,²(), BROCHU G³, GUIDION R³, WANG Lu¹^,²

1. College of Textiles, Donghua University, Shanghai 201620, China
2. Key Laboratory of Textiles Scienceand Technology, Ministry of Education, Donghua University, Shanghai 201620, China
3. Department of Surgery, Laval University, Quebec G1V0A6, Canada

Received:2019-11-01 Revised:2020-05-15 Online:2020-11-15 Published:2020-11-26
Contact: GUAN Guoping

摘要/Abstract

摘要：

针对目前临床上人工韧带产品需求量大但淘汰率高的问题,从几何特征、织造方式、表面形态等方面对当前11种典型纺织基人工韧带进行了系统分析,同时对比分析了典型产品Stryker^?-Meadox的移出样和原样的力学性能、纤维形貌、降解性能等,并对其体内失效机制进行了探究。结果表明:人工韧带产品结构多样且形态各异,主要与其临床适应症有关;长期植入后材料与骨组织之间的磨损及体内复杂环境下高分子材料的结构变化可能是导致其失效的主要原因,研究可为优化现有人工韧带产品结构、进一步改善其性能提供参考。

关键词: 医用纺织品, 人工韧带, 前交叉韧带, 移出物, 失效机制

Abstract:

In view of large clinical demand for artificial ligament (AL) products and high elimination rate, the present work reports on research where eleven AL products were investigated comprehensively on their geometric features, textures, and surface morphology. In addition, failure mechanisms of a typical product Stryker^?-Meadox were explored in terms of mechanical property, fiber morphology and biodegradation through analysis of explants and virgin samples. The results show that the existing AL products have various structures and different shapes, which is related to their clinical indications, and that the surface abrasion of the samples and internal structural changes of the polymers might be the leading causes of the failure after long-term implantation. The findings of this work provide some insights into optimizing the existing AL products.

Key words: medical textile, artificial ligament, anterior cruciate ligament, explant, failure mechanisms

中图分类号:

TS101.4

刘明洁, 林婧, 关国平, BROCHU G, GUIDOIN R, 王璐. 典型纺织基人工韧带及其移出物结构与力学性能[J]. 纺织学报, 2020, 41(11): 66-72.

LIU Mingjie, LIN Jing, GUAN Guoping, BROCHU G, GUIDION R, WANG Lu. Structures and mechanical properties of typical textile-based artificial ligaments and explants[J]. Journal of Textile Research, 2020, 41(11): 66-72.

图/表 10

表1

表2

表3

表4

图1

图2

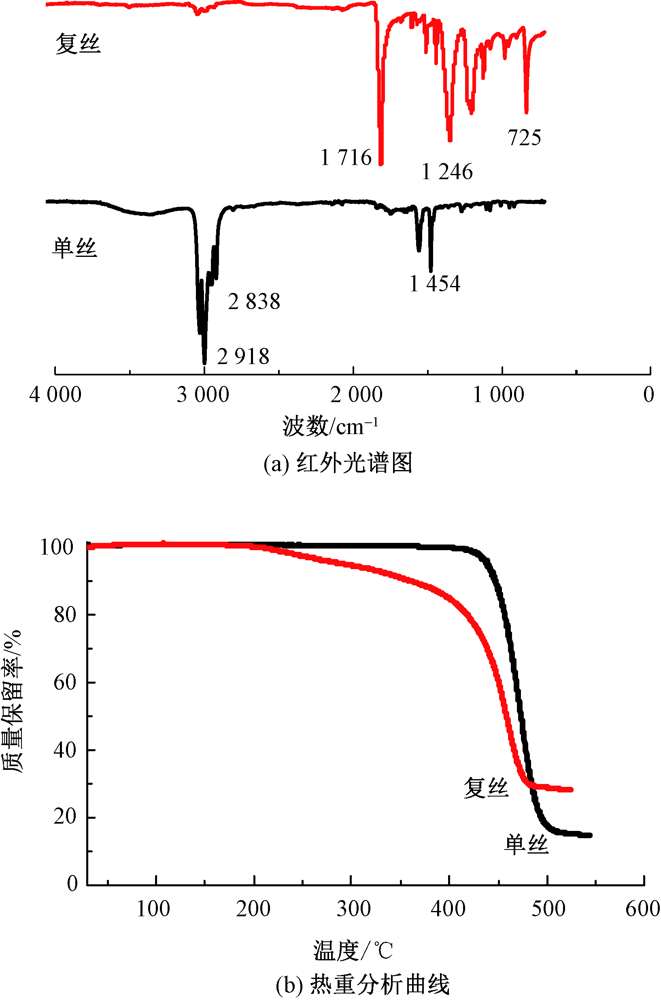

图3

图4

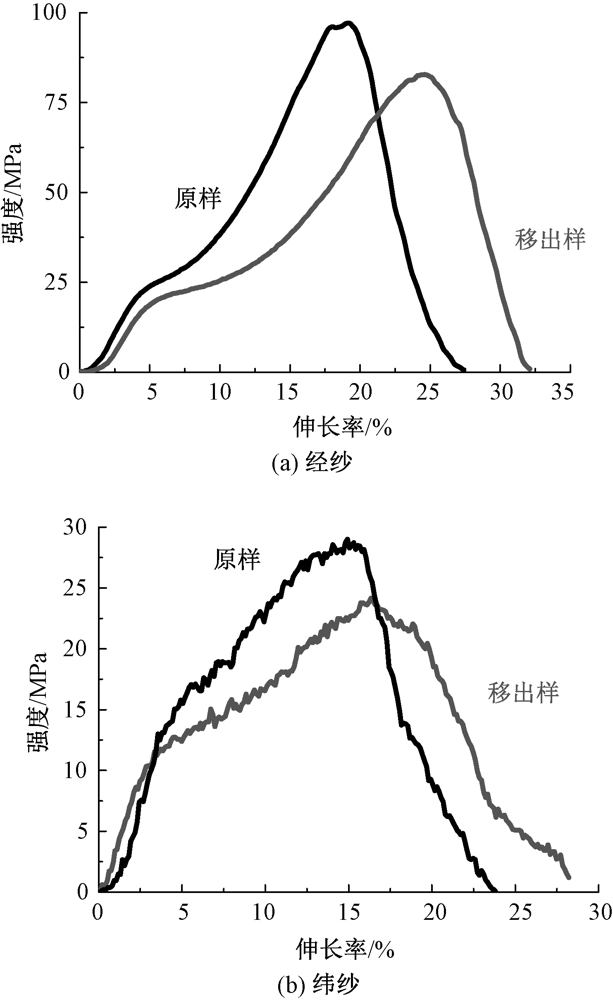

图5

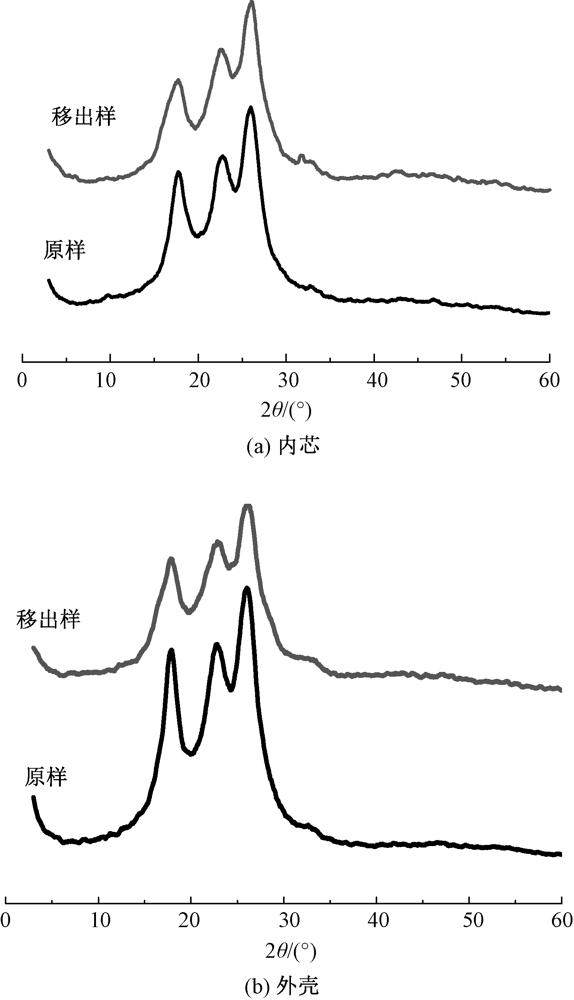

图6

参考文献 18

[1]	SANDERS T L, MARADIT K H, BRYAN A J, et al. Incidence of anterior cruciate ligament tears and reconstruction: a 21-year population-based study[J]. The American Journal of Sports Medicine, 2016.DOI: 10.1177/0363546516629944. doi: 10.1177/0363546520980109 pmid: 33411565
[2]	MARIESWARAN M, ISHITA J, BHAVUK G, et al. A review on biomechanics of anterior cruciate ligament and materials for reconstruction[J]. Applied Bionics and Biomechanics, 2018.DOI: 10.1155/2018/4657824. pmid: 33273964
[3]	PERRONE G S, PROFFEN B L, KIAPOUR A M, et al. Bench-to-bedside: bridge-enhanced anterior cruciate ligament repair.[J] Journal of orthopaedic research, 2017,35:2606-2612 doi: 10.1002/jor.23632 pmid: 28608618
[4]	王荣浩, 温昱, 刘旭, 等. 应用LARS韧带重建术与保守治疗50岁以上膝关节慢性前向不稳定患者的效果比较[J]. 中国综合临床, 2019,35(2):110-115.
	WANG Ronghao, WEN Yu, LIU Xu, et al. Comparasion of clinical outcomes of reconstruction by LARS and conservative treatment for patients older than 50 years with chronic forward instability of knee joint[J]. Clinical Medicine of China, 2019,35(2):110-115.
[5]	李宇, 张豪, 王立志, 等. LARS韧带与自体腘绳肌腱重建前交叉韧带的中期疗效比较[J]. 实用骨科杂志, 2019,25(6):509-513.
	LI Yu, ZHANG Hao, WANG Lizhi, et al. Medium-term outcomes of anterior cruciate ligament reconstruction with LARS artificial ligament versus hamstring tendon autograft[J]. Journal of Practical Orthopaedics, 2019,25(6):509-513.
[6]	GUIDOIN M F, MAROIS Y, BEJUI J, et al. Analysis of retrieved polymer fiber based replacements for the ACL[J]. Biomaterials, 2000,21(23):2461-74. doi: 10.1016/s0142-9612(00)00114-9 pmid: 11055294
[7]	MOUKAIED M S, NACCACHE N R. Reconstruction of anterior cruciate ligament using the Leeds-Keio device-short-term results[J]. Saudi Medical Journal, 1992,13(5):412-416
[8]	ROOLKER W, PATT T W, VANDIJK C N, et al. The Gore-Tex prosthetic ligament as a salvage procedure on deficient knees[J]. Knee Surg Sports Traumatol Arthrosc, 2000,8(1):20-25. doi: 10.1007/s001670050005 pmid: 10663315
[9]	MALETIUS W, GILLQUIST J. Long-term results of anterior cruciate ligament reconstruction with a dacron prosjournal: the frequency of osteoarthritis after seven to eleven years[J]. American Journal of Sports Medicine, 1997,25(3):288-293.
[10]	SCOTT J T, BRIAN M D, CAMERON J N, et al. Synovitis following anterior cruciate ligament reconstruction using the LARS device[J]. Knee Surgery, Sports Traumatology, Arthroscopy, 2019,27(8). doi: 10.1007/s00167-018-5283-x pmid: 30421166
[11]	LAVOIE P, FLETCHER J, DUVAL N. Patient satisfaction needs as related to knee stability and objective findings after ACL reconstruction using the LARS artificial ligament[J]. Knee, 2000,7(3):157-163. doi: 10.1016/s0968-0160(00)00039-9 pmid: 10927209
[12]	CHEN T, CHEN S. Artificial ligaments applied in anterior cruciate ligament repair and reconstruction: current products and experience[J]. Chinese Journal of Reparative and Reconstructive Surgery, 2020 (34):1-9.
[13]	刘冰, 王璐, 林婧, 等. 4种腔内隔绝术用覆膜支架老化特性的比较研究[J]. 中国生物医学工程学报, 2012(4):634-640. pmid: 14716864
	LIU Bing, WANG Lu, LIN Jing, et al. Comparative aging failing mechanism in four different types of stent-grafts[J]. Chinese Journal of Biomedical Engineering, 2012(4):634-640. pmid: 14716864
[14]	武亚琼. 疝修补片移出物的结构与性能演变研究[D]. 上海:东华大学, 2018: 11-39.
	WU Yaqiaong. The evolution of structure and properties of explanted hernia meshes[D]. Shanghai:Donghua University, 2018: 11-39.
[15]	关国平, 关红涛, 王璐. 韧带损伤及人工韧带应用与研究[J]. 生物医学工程学进展, 2013,34(4):234-238.
	GUAN Guoping, GUAN Hongtao, WANG Lu. Ligament injury and application and research of artificial ligaments[J]. Progress in Biomedical Engineering, 2013,34(4):234-238.
[16]	王欢. 聚氨酯表面形貌对细胞分化行为的影响[D]. 广州:华南理工大学, 2018: 5-43.
	WANG Huan. Effect of surface topography of polyurethane on cell differentiation behaviours[D]. Guangzhou: South China University of Technology, 2018: 5-43.
[17]	王旭萍, 宋佳, 崔静洁. 多孔材料的生物合成研究进展[J]. 生物加工过程, 2019,17(6):597-603.
	WANG Xuping, SONG Jia, CUI Jingjie. Progress in biomimetic synjournal of porous materials[J]. Chinese Journal of Bioprocess Engineering, 2019,17(6):597-603.
[18]	倪卓, 陈晓霞, 朱进普, 等. SEBS/PP共混材料结晶度的测定[J]. 塑料科技, 2019(10):60-65.
	NI Zhuo, CHEN Xiaoxia, ZHU Jinpu, et al. Determination of crystallinity of SEBS/PP blends[J]. Plastics Science and Technology, 2019(10):60-65.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试样编号	宽度/ cm	厚度/ mm	织造方式	特殊结构
1^#	0.61	0.59	经编	芯壳结构, 芯纱为单丝
2^#	0.66	0.87	经编	两端接有末端开有小孔的塑料管
3^#	0.57	0.50	经编	两端接有辅助细线, 细线末尾连接金属丝环
4^#	1.77	0.77	机织	一端由细线悬吊, 另一端开有圆孔
5^#	4.21	0.40	机织	织带结构
6^#	0.44	4.58	经编机织	经编外壳, 多条机织内芯
7^#	0.98	0.76	编织	两端为胶封
8^#	0.46	0.47	编织	16股编织结构, 每股中4根编织股纱
9^#	0.85	0.56	编织	4股编织结构, 每股中11根编织股纱
10^#	1.07	0.67	编织	编织管状结构
11^#	0.38	1.60	编织	编织管状结构

试样编号	密度/(线圈·(5 cm)^-1)
试样编号	横密	纵密
1^#	24.8	30.2
2^#	45.6	105.3
3^#	26.2	91.4

试样编号	经纬密/(根数·(10 cm)^-1)
试样编号	经密	纬密
4^#	39.02	50.24
5^#	38.68	51.26
6^#	222.87	144.70

试样编号	编织角/(°)	编织节点数/(个·cm^-1)
7^#	42.34	4.12
8^#	34.15	14.16
9^#	49.32	0.84
10^#	24.68	4.40
11^#	37.16	6.67
