石墨烯纤维的湿法纺丝制备及其性能

doi:10.13475/j.fzxb.20191106007

纺织学报 ›› 2020, Vol. 41 ›› Issue (09): 1-7.doi: 10.13475/j.fzxb.20191106007

• 纤维材料 • 下一篇

石墨烯纤维的湿法纺丝制备及其性能

庞雅莉¹^,², 孟佳意¹^,², 李昕¹^,²(), 张群¹^,², 陈彦锟¹^,²

1.北京服装学院服装材料研究开发与评价北京市重点实验室, 北京 100029
2.北京市纺织纳米纤维工程技术研究中心, 北京 100029

收稿日期:2019-11-26 修回日期:2020-06-12 出版日期:2020-09-15 发布日期:2020-09-25
通讯作者: 李昕
作者简介:庞雅莉(1967—),女,讲师,硕士。主要研究方向为基础及纺织化学的教学及个体防刺服、智能纺织品和导电纤维。
基金资助:
国家自然科学基金项目(51873003);北京市教委科技重点项目(KZ201910012015);北京市属高等学校高层次人才引进与培养计划项目(CTT&TCD20180321);北京市教委科技一般项目(KM202010012003)

Preparation of graphene fibers by wet spinning and fiber characterization

PANG Yali¹^,², MENG Jiayi¹^,², LI Xin¹^,²(), ZHANG Qun¹^,², CHEN Yankun¹^,²

1. Beijing Key Laboratory of Clothing Materials R & D and Assessment, Beijing Institute of Fashion Technology, Beijing 100029, China
2. Beijing Engineering Research Center of Textile Nanofiber, Beijing 100029, China

Received:2019-11-26 Revised:2020-06-12 Online:2020-09-15 Published:2020-09-25
Contact: LI Xin

摘要/Abstract

摘要：

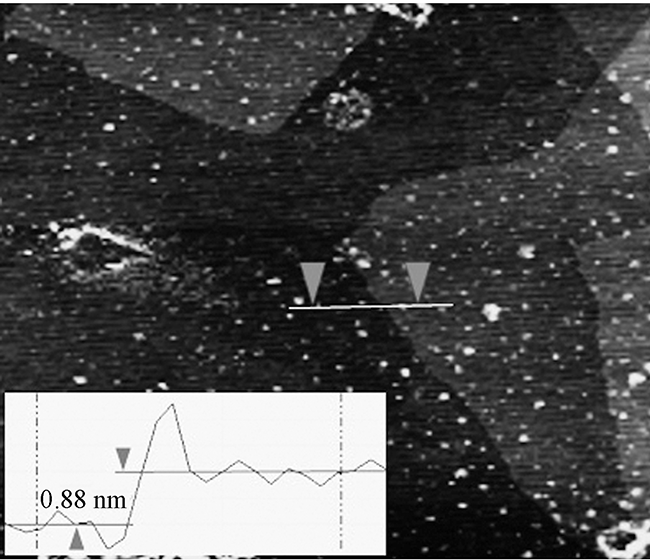

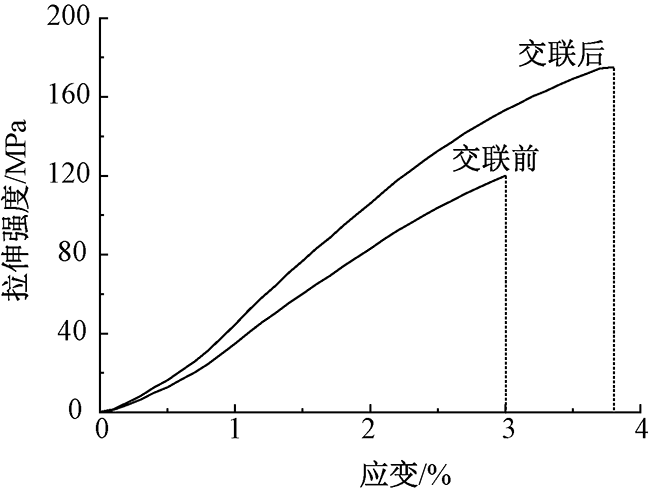

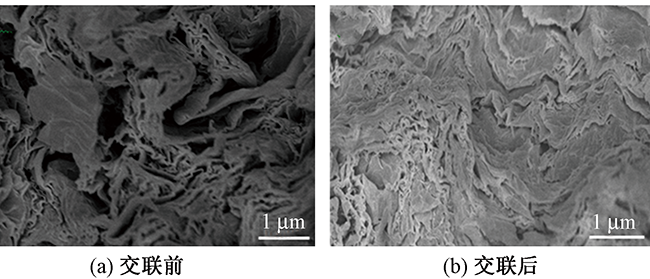

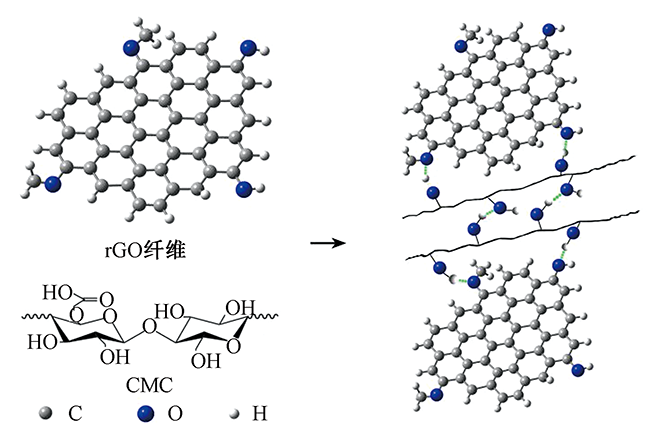

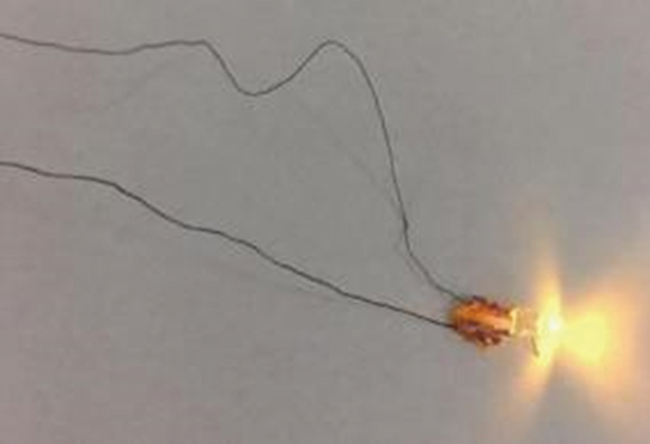

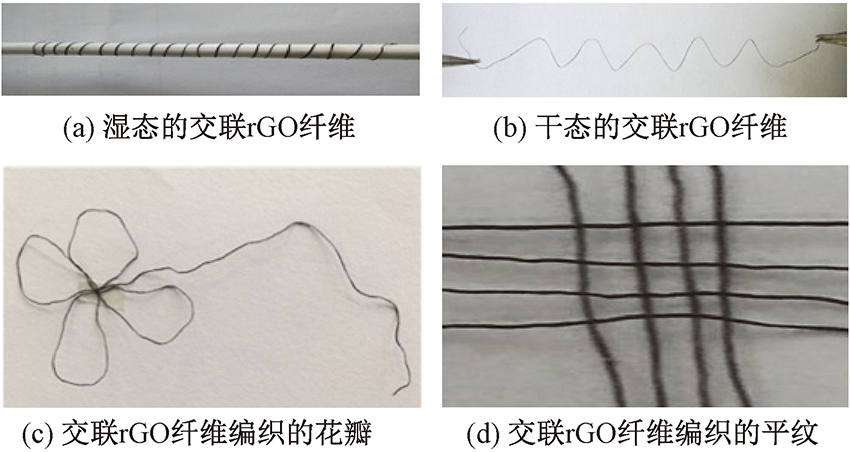

为制备兼具导电性和柔韧性的石墨烯纤维,首先采用改进的Hummers法制备氧化石墨烯,然后以氧化石墨烯溶液为纺丝液,CaCl₂的乙醇溶液为凝固浴,通过湿法纺丝后经氢碘酸还原制备得到石墨烯纤维;并以羧甲基纤维素为交联剂对石墨烯纤维进行改性处理,得到交联石墨烯纤维。最后对2种石墨烯纤维的表面形态、导电性和力学性能进行测试与分析,并初步应用。结果表明:制备的氧化石墨烯含氧量为31.37%,单片层厚度为0.88 nm;2种石墨烯纤维表面均较光滑,交联石墨烯纤维内部片层排列更加紧密,其电导率达124 S/cm,与交联前的石墨烯纤维相差不大,但拉伸强度由交联前的120 MPa增加至179 MPa;单根交联石墨烯纤维作为电路导线可点亮灯泡,且可任意弯曲打结编织成花瓣及平纹网状结构。

关键词: 石墨烯, 湿法纺丝, 导电纤维, 导电性, 力学性能, 智能纺织品

Abstract:

In order to prepare graphene fiber with both conductivity and flexibility, the soluble graphene oxide was prepared through modified Hummers method. The graphene oxide solution was used as the spinning solution, and the CaCl₂ ethanol solution as the coagulation bath. The graphene fiber was obtained by hydroiodic reduction via wet spinning. The fiber was treated with carboxymethylcellulose as cross-linking agent to obtain cross-linked graphene fiber for comparison. The surface morphology, electrical conductivity and mechanical properties of the two graphene fibers were characterized for preliminary applications. The results show that the prepared graphene oxide fiber has an oxygen content of 31.37% and a monolayer thickness of 0.88 nm. Besides, the surfaces of the two types of graphene fibers are smooth, but the inner layers of the cross-linked graphene fiber are arranged more closely with the conductivity of 124 S/cm, which is similar to the conductivity of the graphene fiber before crosslinking. However, the tensile strength is significantly increased from 120 MPa to 179 MPa after crosslinking. The single cross-linked graphene fiber can be used as a circuit wire to light the bulb, and can be arbitrarily bent and knotted to form a petal and a plain mesh structure.

Key words: graphene, wet spinning, conductive fiber, conductivity, mechanical property, smart textiles

中图分类号:

TS102.5

庞雅莉, 孟佳意, 李昕, 张群, 陈彦锟. 石墨烯纤维的湿法纺丝制备及其性能[J]. 纺织学报, 2020, 41(09): 1-7.

PANG Yali, MENG Jiayi, LI Xin, ZHANG Qun, CHEN Yankun. Preparation of graphene fibers by wet spinning and fiber characterization[J]. Journal of Textile Research, 2020, 41(09): 1-7.

图/表 11

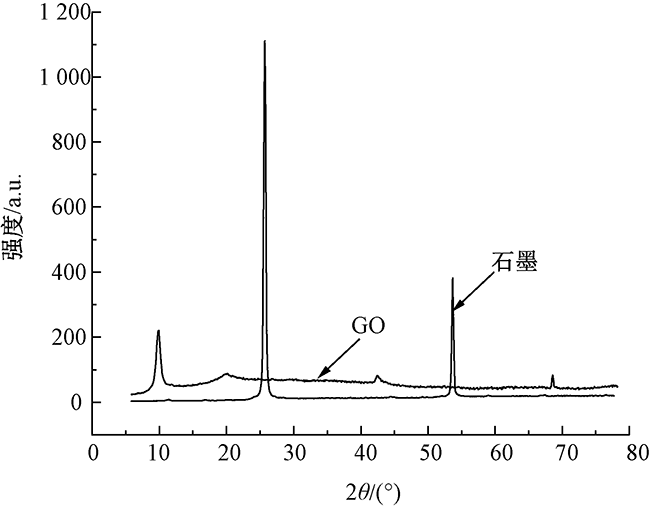

图1

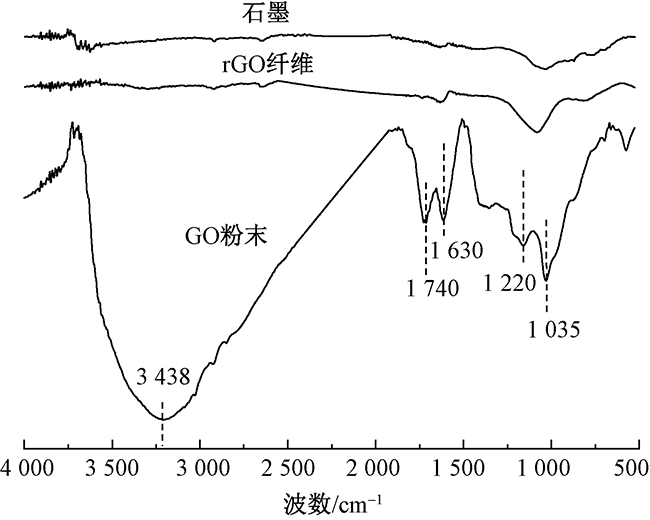

图2

图3

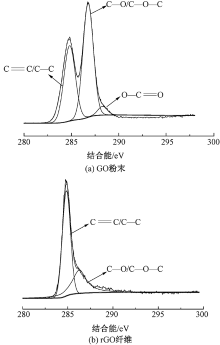

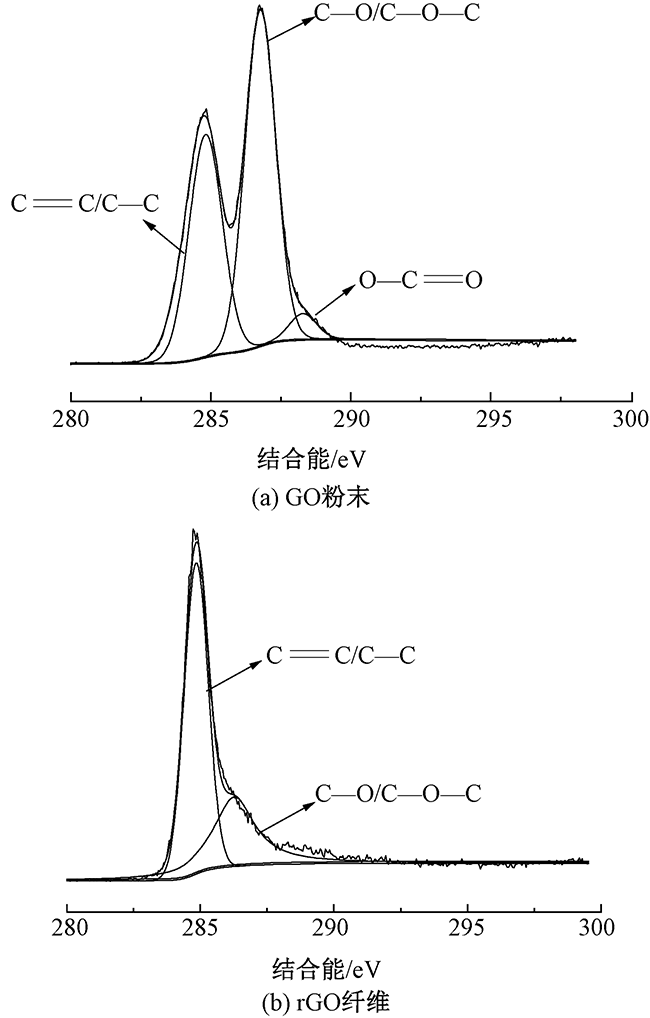

图4

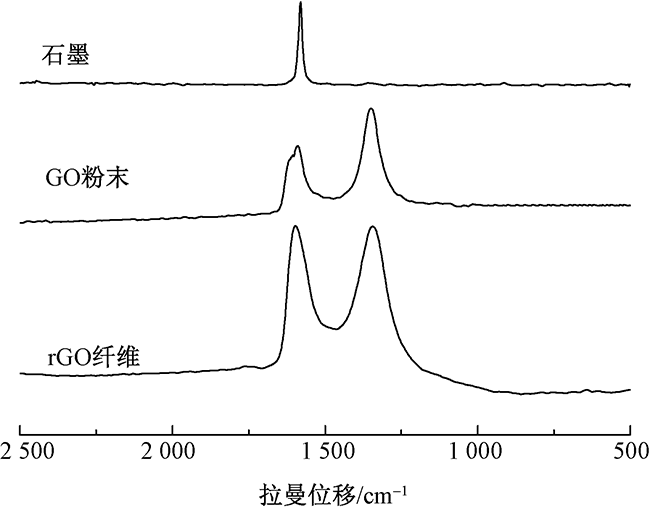

图5

表1

图6

图7

图8

图9

图10

参考文献 26

[1]	杨俊杰, 张扬, 陈国印, 等. 石墨烯纤维的制备与应用[J]. 中国材料进展, 2018,37(5):357-365.
	YANG Junjie, ZHANG Yang, CHEN Guoyin, et al. Graphene fiber: preparation and application[J]. Materials China, 2018,37(5):357-365.
[2]	JALILI R, ABOUTALEBI S H, ESRAFILZADEH D, et al. Scalable one-step wet-spinning of graphene fibers and yarns from liquid crystalline dispersions of graphene oxide: towards multifunctional textiles[J]. Advanced Functional Materials, 2013,23(43):5345-5354. doi: 10.1002/adfm.201300765
[3]	曲丽君, 田明伟, 迟淑丽, 等. 部分石墨烯复合纤维与制品的研发[J]. 纺织学报, 2016,37(10):170-177.
	QU Lijun, TIAN Mingwei, CHI Shuli, et al. Research and development of graphene composite fibers and fabrics[J]. Journal of Textile Research, 2016,37(10):170-177.
[4]	YANG Z B, SUN H, CHEN T, et al. Photovoltaic wire derived from a graphene composite fiber achieving an 8.45% energy conversion efficiency[J]. Angewandte Chemie, 2013,125(29):7545-7548.
[5]	史妍, 曲良体. 石墨烯纤维研究进展[J]. 科技导报, 2015,33(3):99-104. doi: 10.3981/j.issn.1000-7857.2015.03.017
	SHI Yan, QU Liangti. Recent progressin graphene fibers research[J]. Science Technology Review, 2015,33(3):99-104.
[6]	XU Z, GAO C. Graphene chiral liquid crystals and macroscopic assembled fibres[J]. Nature Communications, 2011,2:571-579. pmid: 22146390
[7]	XU Z, LIU Z, SUN H, et al. Highly electrically conductive Ag-doped graphene fibers as stretchable conductors[J]. Advanced Materials, 2013,25(23):3249-3253. pmid: 23640822
[8]	SANG S Y, KANG E L, CHA H J, et al. Highly conductive graphene/Ag hybrid fibers for flexible fiber-type transistors[J]. Scientific Reports, 2015,5:16366. doi: 10.1038/srep16366 pmid: 26549711
[9]	ZHONG X, WANG R, YANG W, et al. Carbon nanotube and graphene multiple-thread yarns[J]. Nanoscale, 2013,5(3) : 1183-1187. doi: 10.1039/c2nr32735j pmid: 23299393
[10]	LI X M, ZHAO T S, WANG K L, et al. Directly drawing self-assembled, porous, and monolithic graphene fiber from chemical vapor deposition grown graphene film and its electrochemical properties[J]. Langmuir, 2011,27(19) : 12164-12171. pmid: 21875131
[11]	CHENG H, DONG Z, HU C, et al. Textile electrodes woven by carbon nanotube-graphene hybrid fibers for flexible electrochemical capacitors[J]. Nanoscale, 2013,5(8) : 3428-3434. doi: 10.1039/c3nr00320e pmid: 23475309
[12]	DONG Z, JIANG C, CHENG H, et al. Facile fabrication of light, flexible and multifunctional graphene fibers[J]. Advanced Materials, 2012,24(14):1856-1861. doi: 10.1002/adma.v24.14 pmid: 22415895
[13]	SHENG L, WEI T, LIANG Y, et al. Ultra-high toughness all graphene fibers derived from synergetic effect of interconnected graphene ribbons and graphene sheets[J]. Carbon, 2017,120:17-22.
[14]	CHEN L L, LIU Y, ZHAO Y, et al. Graphene-based fibers for supercapacitor applications[J]. Nanotechnology, 2016,27(3):1-16.
[15]	张克勤, 杜德壮. 石墨烯功能纤维[J]. 纺织学报, 2016,37(10):155.
	ZHANG Keqin, DU Dezhuang. Functional fibers based on graphene[J]. Journal of Textile Research, 2016,37(10):155.
[16]	HUMMERS W S, OFFEMAN R E. Preparation of graphitic oxide[J]. Journal of The American Chemical Society, 1958,80(6):1339-1339.
[17]	QI Y C, YANG M L, XU W H, et al. Natural polysaccharides-modified graphene oxide for adsorption of organic dyes from aqueous solutions[J]. Journal of Colloid and Interface Science, 2016,486:84-96. pmid: 27693553
[18]	ROURKE J P, PANDEY P A, MOORE J J, et al. The real graphene oxide revealed: stripping the oxidative debris from the graphene-like sheets[J]. Angewandte Chemie International Edition, 2011,50(14):3173-3177. pmid: 21432951
[19]	李昕, 廖佳星, 王万金, 等. 石墨烯纤维的湿法纺丝制备及性能研究[J]. 北京服装学院学报, 2017,37(1):27-30.
	LI Xin, LIAO Jiaxing, WANG Wanjin, et al. Preparation and properties of graphene fibers prepared by wet-spinning[J]. Journal of Beijing Institute of Fashion Technology, 2017,37(1):27-30.
[20]	孟佳意, 李昕, 龚龑, 等. 石墨烯基光子晶体纤维的制备及性能调控[J]. 高分子学报, 2018,3:389-394.
	MENG Jiayi, LI Xin, GONG Yan, et al. Preparation and performance adjustment of graphene-based photonic crystal fibers[J]. Acta Polymerica Sinica, 2018,3:389-394.
[21]	陈政龙, 潘恒沛, 高灵清. 石墨烯常用表征方法[J]. 理化检验(物理分册), 2018,54:89-96.
	CHEN Zhenglong, PAN Hengpei, GAO Lingqing. Common characterization methods of graphene[J]. Physical Testing and Chemical Analysis (Part A: Physical Testing), 2018,54:89-96.
[22]	吴娟霞, 徐华, 张锦. 拉曼光谱在石墨烯结构表征中的应用[J]. 化学学报, 2014,72(3):301-318. doi: 10.6023/A13090936
	WU Juanxia, XU Hua, ZHANG Jin. Raman spectroscopy of graphene[J]. Acta Chimica Sinica, 2014,72(3):301-318. doi: 10.6023/A13090936
[23]	DAS A, CHAKRABORTY B, SOOD A K. Raman spectroscopy of graphene on different substrates and influence of defects[J]. Bulletin of Materials Science, 2008,31:579. doi: 10.1007/s12034-008-0090-5
[24]	李秀婷, 应豪, 陈姗姗. 拉曼光谱法表征石墨烯晶界[J]. 曲靖师范学院学报, 2017,36(6):18-22.
	LI Xiuting, YING Hao, CHEN Shanshan. Characterization of grain boundaries in graphene by raman spectroscopy[J]. Journal of Qujing Normal University, 2017,36(6):18-22.
[25]	LI B, ZHOU L, WU D, et al. Photochemical chlorination of graphene[J]. ACS Nano, 2011,5:5957. doi: 10.1021/nn201731t pmid: 21657242
[26]	胡晓珍. 石墨烯功能化及宏观组装仿贝壳纤维[D]. 杭州:浙江大学, 2014: 6.
	HU Xiaozhen. Graphene: functionalization and macroscopic assembled nacre-mimic fibers[D]. Hangzhou: Zhejiang University, 2014: 6.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样品名称	C	O	N	S	I
GO粉末	65.57	31.37	1.79	1.27
rGO纤维	83.46	14.55		1.68	0.32
