纺织学报 ›› 2020, Vol. 41 ›› Issue (09): 59-66.doi: 10.13475/j.fzxb.20191204308

• 纺织工程 • 上一篇    下一篇

基于图元分割与Gabor滤波的织物瑕疵检测方法

狄岚1,2(), 杨达1, 梁久祯3, 马明寅1

  1. 1.江南大学 人工智能与计算机学院, 江苏 无锡 214122
    2.道路交通安全公安部重点实验室, 江苏 无锡 214151
    3.常州大学 信息科学与工程学院, 江苏 常州 213164
  • 收稿日期:2019-12-17 修回日期:2020-06-04 出版日期:2020-09-15 发布日期:2020-09-25
  • 作者简介:狄岚(1965—),女,副教授。主要研究方向为模式识别与图像处理。E-mail: dilan@jiangnan.edu.cn。
  • 基金资助:
    江苏省研究生科研与实践创新计划项目(SJCX19_0794);道路交通安全公安部重点实验室开放课题基金资助项目(2020ZDSYSKFKT03-2)

Fabric defect detection method based on primitive segmentation and Gabor filtering

DI Lan1,2(), YANG Da1, LIANG Jiuzhen3, MA Mingyin1

  1. 1. School of Artificial Intelligence and Computer Science, Jiangnan University, Wuxi, Jiangsu 214122, China
    2. Key Laboratory of Ministry of Public Security for Road Traffic Safety, Wuxi, Jiangsu 214151, China
    3. College of Information Science and Engineering, Changzhou University, Changzhou, Jiangsu 213164, China
  • Received:2019-12-17 Revised:2020-06-04 Online:2020-09-15 Published:2020-09-25

RichHTML

9

PDF (PC)

101

摘要：

为实现含复杂图案织物的自动化检测,提出基于图元分割与Gabor滤波的织物瑕疵检测方法,对具有复杂周期变化图案的织物进行检测。根据图像纹理的周期变化规律,确定图案单位模板大小,即包含一个周期图案的晶格。对图像进行自适应分割,并通过图元分割获得单元图像元素。通过Gabor滤波器生成特征的响应分布,获取理想的模板晶格,根据提出的投票程序,通过分析其特征向量的Manhattan根据距离图元晶格差异的分布来识别瑕疵图元晶格。实验结果表明:检测方法对星形和箱形图案的织物样本数据集上检测效果较好,显著提高了样本的查全率。

关键词: 图元分割, Gabor滤波, 织物瑕疵, 瑕疵检测

Abstract:

In order to deal with the complex fabric defect detection with periodic variation pattern, a fabric defect detection method based on primitive segmentation and Gabor filtering was proposed. The template size of the pattern unit was determined according to the periodic variation of the image texture, i.e. a lattice containing a periodic pattern. The image was adaptively segmented, and the image elements of the smaller unit are obtained by the primitive segmentation. The response distribution given by the Gabor filter to the convolutional lattice produced an ideal template lattice. According to the proposed voting procedure, the lattice of the defect is identified by analyzing the distribution of the lattice differences represented by the Manhattan distance of the eigenvectors. Experiments show that the method has better detection effect on the fabric samples of star and box patterns, and significantly reducing the recall rate of the samples.

Key words: primitive segmentation, Gabor filtering, fabric defect, defect inspection

中图分类号:

  • TS131.9

图1

获得图像单位模板大小"

图2

星状图的图元分割"

图3

Gabor 滤波器卷积投影"

图4

全部晶格卷积后的特征向量"

表1

不同算法对星状图织物瑕疵检测结果"

星状图 MTPR/
%		 MFPR/
%		 MPPV/
%		 MNPV/
%		 f值/
%		 方法
86 2 20 99 33 本文算法
31 16 1 99 5 BB
断端 32 2 11 100 5 RB
73 4 9 100 5 WGIS
1 0 0 99 15 ER
81 1 26 99 40 本文算法
33 15 1 100 4 BB
破洞 43 3 8 100 5 RB
26 7 3 100 2 WGIS
4 0 0 99 0 ER
82 0 15 99 2 本文算法
6 0 22 98 10 BB
细条纹 3 0 27 98 6 RB
0 3 0 99 0 WGIS
45 2 12 99 2 ER
75 1 71 99 73 本文算法
10 16 2 96 56 BB
粗条纹 21 3 13 97 54 RB
89 19 20 100 8 WGIS
38 1 57 99 29 ER

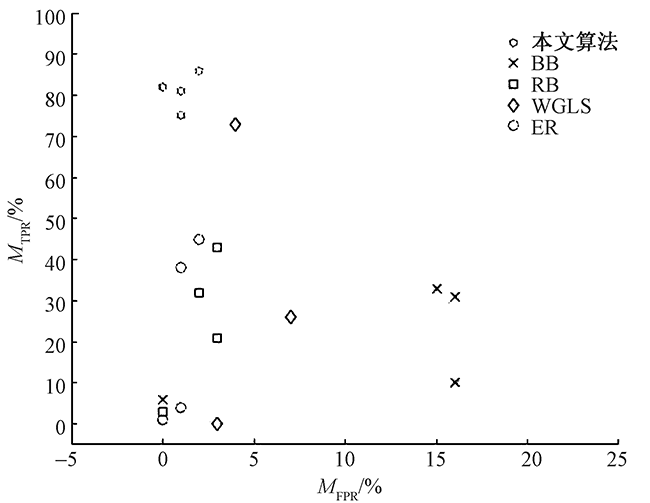

图5

5种方法对星状图检测的MFPR-MTPR图"

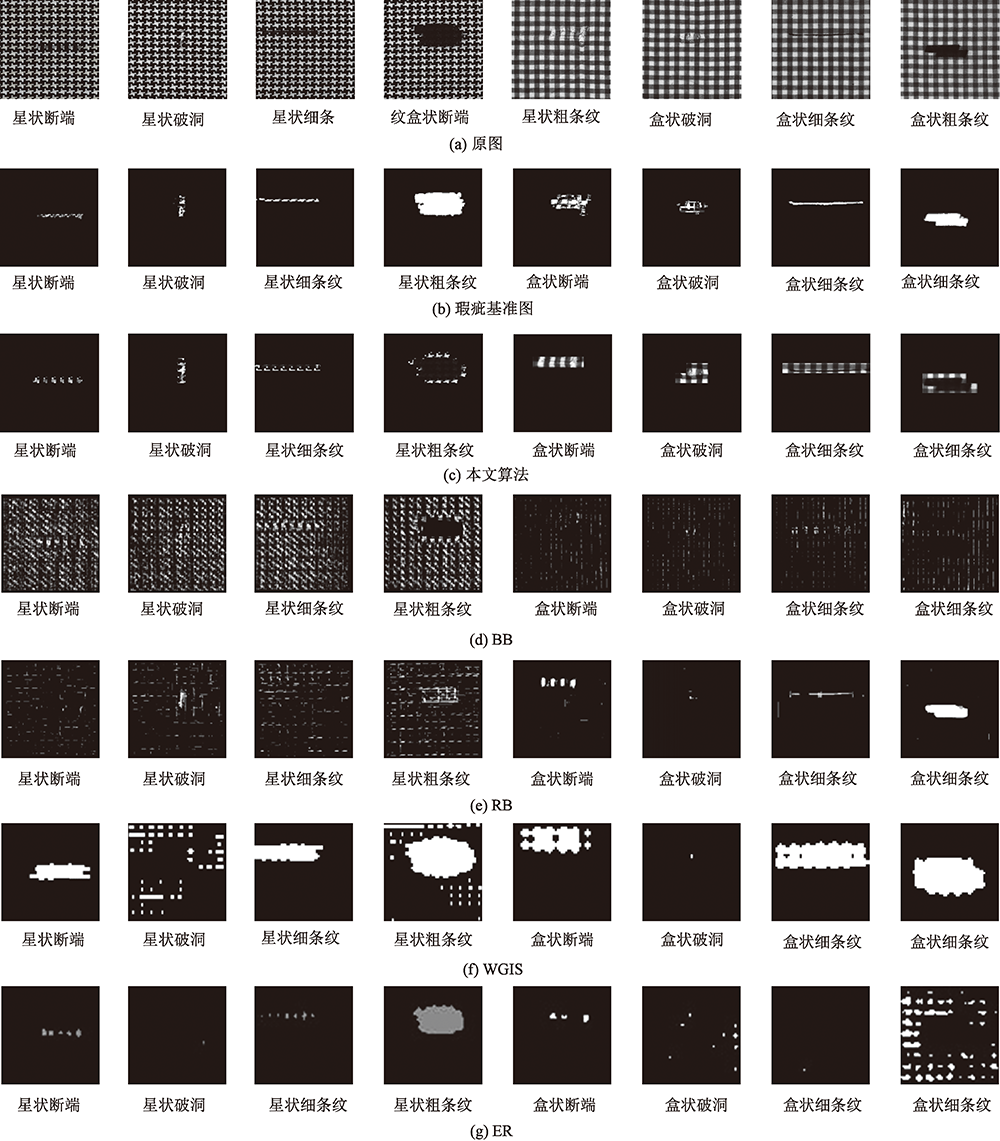

图6

不同算法的检测结果"

表2

不同算法对盒状图织物瑕疵检测结果"

盒状图 MTPR/
%		 MFPR/
%		 MPPV/
%		 MNPV/
%		 f值/
%		 方法
79 2 38 99 51 本文算法
4 2 4 98 3 BB
断端 49 1 56 99 6 RB
64 8 14 99 0 WGIS
1 0 0 98 8 ER
68 1 30 99 57 本文算法
8 2 3 99 4 BB
破洞 10 0 47 99 11 RB
2 1 4 99 0 WGIS
0 0 0 99 16 ER
73 4 15 99 24 本文算法
31 0 29 99 31 BB
细条纹 32 0 30 99 31 RB
26 24 1 99 2 WGIS
5 4 2 97 3 ER
81 3 33 97 47 本文算法
8 2 8 97 41 BB
粗条纹 58 1 68 99 31 RB
99 14 15 100 5 WGIS
2 0 0 98 61 ER

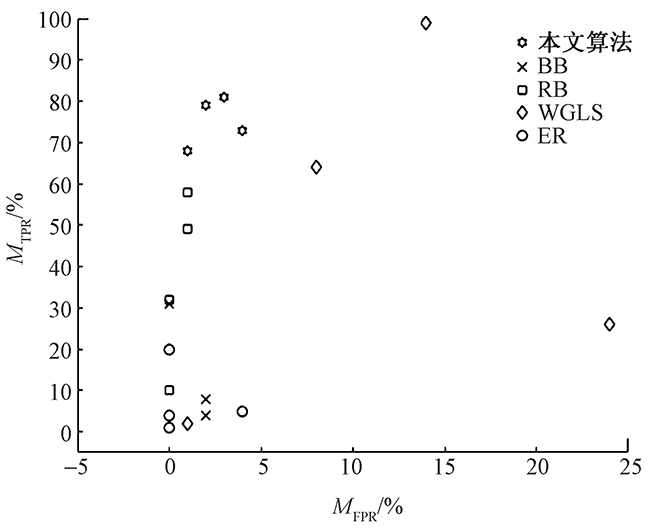

图7

5种方法对盒状图检测的MFPR-MTPR图"
