模拟太阳光下金属酞菁/多壁碳纳米管催化降解染料

doi:10.13475/j.fzxb.20200305008

摘要/Abstract

摘要：

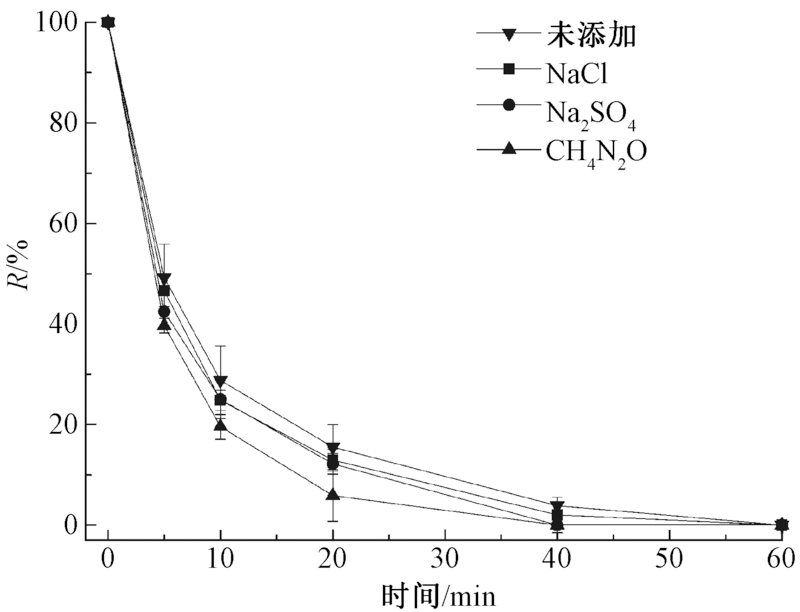

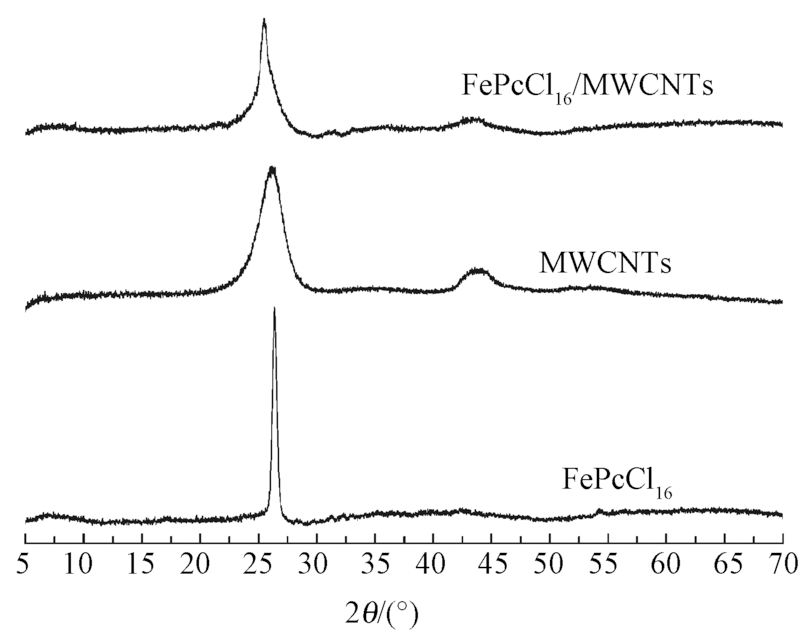

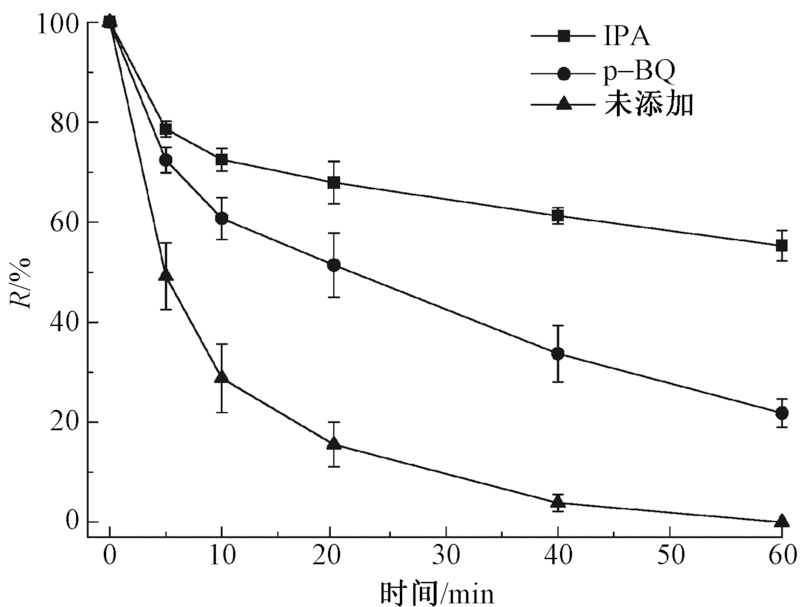

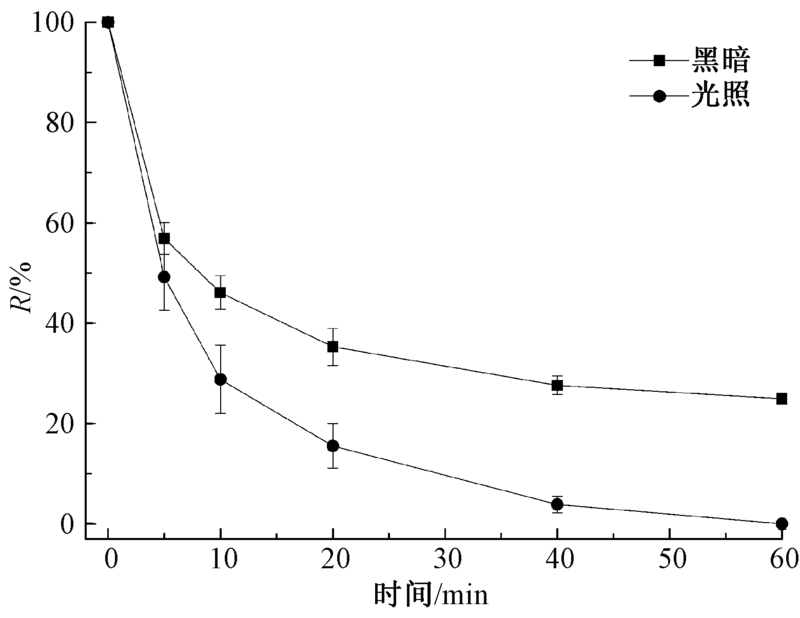

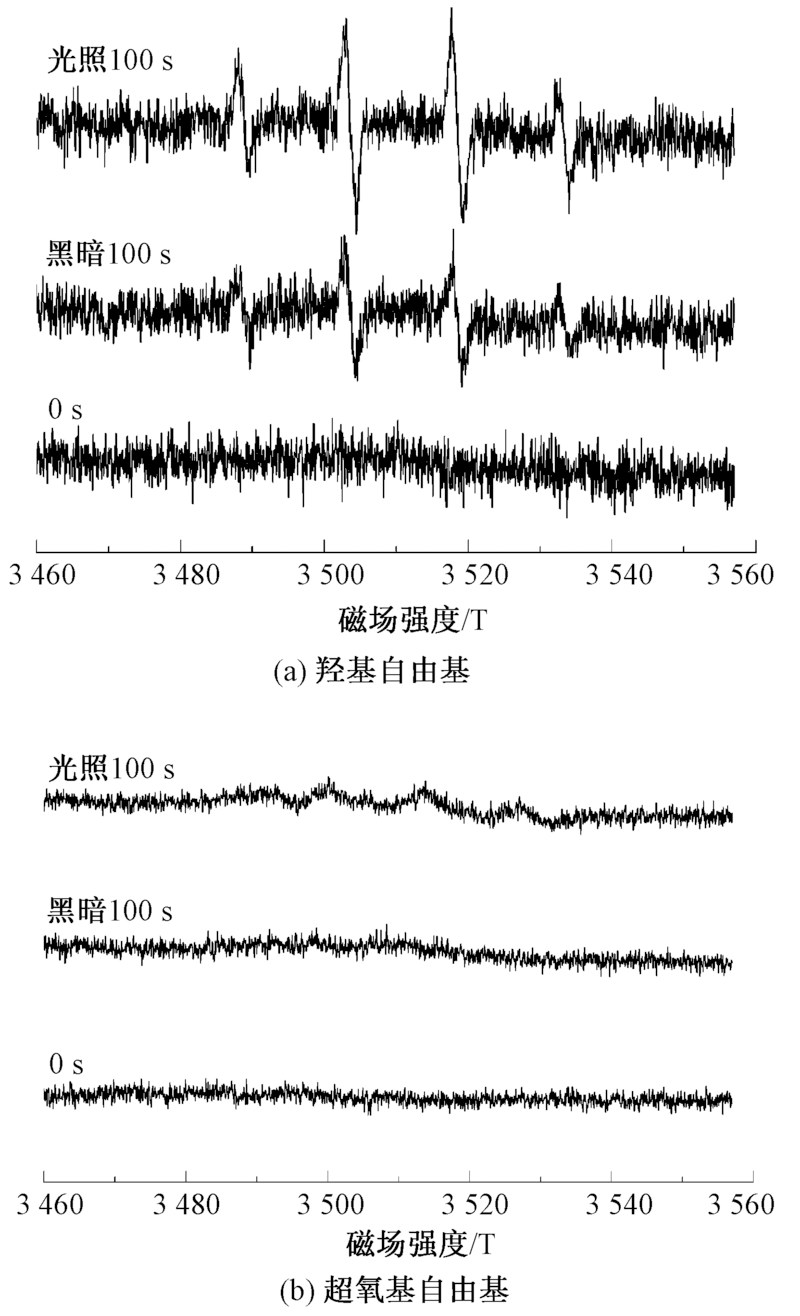

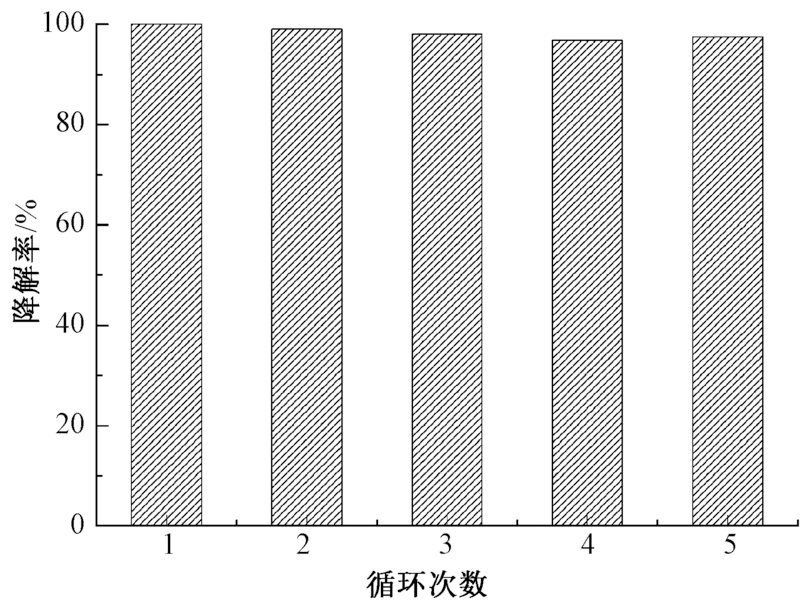

为拓宽芬顿体系pH值的使用范围以高效降解水体中的染料,采用回流法制备多壁碳纳米管负载的十六氯铁酞菁 (FePcCl₁₆/MWCNTs)催化剂,以双氧水(H₂O₂)为氧化剂,在模拟太阳光照的作用下催化降解酸性橙7(AO7) 染料。借助扫描电子显微镜、透射电子显微镜、红外光谱仪、热重分析仪和X射线衍射仪等对催化体系的催化性能、影响因素和催化机制进行研究。结果表明:催化体系在酸性、无机盐及尿素环境中,对AO7的降解率均为100%,在中性环境中为97%,在碱性条件下为75%;该催化体系经5次循环使用后,对AO7的降解率仍在95%以上;催化体系中降解AO7的主要活性种为羟基自由基和超氧自由基,光照可促进活性种的产生而提高体系的催化性能。

关键词: 模拟太阳光, 金属酞菁, 多壁碳纳米管, 催化降解, 酸性橙7染料, 类芬顿体系, 废水处理

Abstract:

In order to expand the pH value of the Fenton system to degrade dye efficiently, the catalyst FePcCl₁₆/multi-walled carbon nanotubes (FePcCl₁₆/MWCNTs), synthesized by means of FePcCl₁₆ loaded on MWCNTs via reflux with H₂O₂ as oxidant, was employed to degrade Acid Orange 7 dye (AO7) under simulated solar light irradiation. The catalytic performance, influencing factors and catalytic mechanism of the catalytic system were characterized by scanning electron microscope, transmission electron microscope, Fourier transform infrared spectrometer, thermogravimetric analyzer and X-ray diffractomer. The results show that the degradation rate of AO7 is 100% under acidic, inorganic salts and urea conditions in catalytic system, 97% under the neutral condition, and 75% under the alkaline condition. The degradation rate of AO7 is still above 95% after 5 cycles of the catalytic system. The results of catalytic mechanism show that the main active species of AO7 degradation in the catalytic system are hydroxyl radicals and superoxide radicals. Solar light irradiation promotes the production of active species to improve the catalytic performance of the system.

Key words: simulated solar light, metal phthalocyanine, multi-walled carbon nanotube, catalytic degradation, Acid Orange 7 dye, Fenton-like system, wastewater treatment

中图分类号:

O643.32

夏云, 吕汪洋, 陈文兴. 模拟太阳光下金属酞菁/多壁碳纳米管催化降解染料[J]. 纺织学报, 2020, 41(12): 94-101.

XIA Yun, LÜ Wangyang, CHEN Wenxing. Catalytic degradation of dye by metal phthalocyanine/multi-walled carbon nanotubes under simulated solar light[J]. Journal of Textile Research, 2020, 41(12): 94-101.

图/表 14

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 16

[1]	SANCHEZ-SANCHEZ A, IZQUIERDO M T, MATHIEU S, et al. Structure and electrochemical properties of carbon nanostructures derived from nickel(II) and iron(II) phthalocyanines[J]. J Adv Res, 2020,22:85-97. doi: 10.1016/j.jare.2019.11.004 pmid: 31956445
[2]	HUANG W J, AHLFIELD J M, KOHL P A, et al. Heat treated tethered iron phthalocyanine carbon nanotube-based catalysts for oxygen reduction reaction in hybrid fuel cells[J]. Electrochimica Acta, 2017,257:224-232. doi: 10.1016/j.electacta.2017.10.048
[3]	崔桂新, 董永春, 王鹏. 羊毛/铁配合物非均相芬顿反应光催化剂的制备及其应用性能[J]. 纺织学报, 2019,40(12):68-73.
	CUI Guixin, DONG Yongchun, WANG Peng. Preparation and application properties of wool-Fe complex-based heterogeneous Fenton photocatalysts[J]. Journal of Textile Research, 2019,40(12):68-73. doi: 10.1177/004051757004000110
[4]	庄帅, 阳海, 安继斌, 等. 硫酸根自由基对酸性红37的降解动力学与机制[J]. 纺织学报, 2019,40(11):131-139.
	ZHUANG Shuai, YANG Hai, AN Jibin, et al. Degradation kinetics and mechanism of Acid Red 37 under attack of sulfate radicals[J]. Journal of Textile Research, 2019,40(11):131-139.
[5]	GHANBARI F, MORADI M. Application of peroxymonosulfate and its activation methods for degradation of environmental organic pollutants: review[J]. Chem Eng J, 2017,310:41-62. doi: 10.1016/j.cej.2016.10.064
[6]	INAGAKI M, KONNO H, TANAIKE O. Carbon materials for electrochemical capacitors[J]. J Power Sources, 2010,195(24):7880-7903. doi: 10.1016/j.jpowsour.2010.06.036
[7]	ATALAY S, ERS Z G. Advanced oxidation pro-cesses [M]//Novel Catalysts in Advanced Oxidation of Organic Pollutants. Cham: Springer International Publishing, 2016: 23-34.
[8]	PRIYANKA K P, SANKARARAMAN S, BALAKRISHNA K M, et al. Enhanced visible light photocatalysis using TiO₂/phthalocyanine nanocomposites for the degradation of selected industrial dyes[J]. J Alloys Compd, 2017,720:541-549. doi: 10.1016/j.jallcom.2017.05.308
[9]	MPHUTHI N G, ADEKUNLE A S, FAYEMI O E, et al. Phthalocyanine doped metal oxide nanoparticles on multiwalled carbon nanotubes platform for the detection of dopamine[J]. Sci Rep, 2017,7:43181. pmid: 28256521
[10]	ZHU Zhexin, LU Wangyang, LI Nan, et al. Pyridyl-containing polymer blends stabilized iron phthalocyanine to degrade sulfonamides by enzyme-like process[J]. Chem Eng J, 2017,321:58-66. doi: 10.1016/j.cej.2017.03.039
[11]	LIU Hongya, BAO Shuxiang, CAI Zutong, et al. A novel method for ultra-deep desulfurization of liquid fuels at room temperature[J]. Chem Eng J, 2017,317:1092-1098. doi: 10.1016/j.cej.2017.01.086
[12]	FAN X, CHANG D W, CHEN X, et al. Functionalized graphene nanoplatelets from ball milling for energy applications[J]. Current Opinion in Chemical Engineering, 2016,11:52-58. doi: 10.1016/j.coche.2016.01.003
[13]	MARINHO B, GHISLANDI M, TKALYA E, et al. Electrical conductivity of compacts of graphene, multi-wall carbon nanotubes, carbon black, and graphite powder[J]. Powder Technol, 2012,221:351-358. doi: 10.1016/j.powtec.2012.01.024
[14]	LU Wangyang, LI Nan, CHEN Wenxing, et al. The role of multiwalled carbon nanotubes in enhancing the catalytic activity of cobalt tetraaminophthalocyanine for oxidation of conjugated dyes[J]. Carbon, 2009,47(14):3337-3345. doi: 10.1016/j.carbon.2009.07.055
[15]	HU Jirun, LIU Hongya, WANG Lulin, et al. Electronic properties of carbon nanotubes linked covalently with iron phthalocyanine to determine the formation of high-valent iron intermediates or hydroxyl radicals[J]. Carbon, 2016,100:408-416. doi: 10.1016/j.carbon.2016.01.010
[16]	WU F, HUANG H, XU T, et al. Visible-light-assisted peroxymonosulfate activation and mechanism for the degradation of pharmaceuticals over pyridyl-functionalized graphitic carbon nitride coordinated with iron phthalocyanine[J]. Appl Catal B: Environ, 2017,218:230-239. doi: 10.1016/j.apcatb.2017.06.057
