经编机电子横移系统高速响应性的影响因素

doi:10.13475/j.fzxb.20200404105

纺织学报 ›› 2021, Vol. 42 ›› Issue (01): 162-166.doi: 10.13475/j.fzxb.20200404105

经编机电子横移系统高速响应性的影响因素

郭威东, 夏风林(), 张琦

江南大学针织技术教育部工程研究中心, 江苏无锡 214122

收稿日期:2020-04-15 修回日期:2020-08-28 出版日期:2021-01-15 发布日期:2021-01-21
通讯作者: 夏风林
作者简介:郭威东(1995—),男,硕士生。主要研究方向为经编装备数控技术。
基金资助:
中央高校基本科研业务费专项资金资助项目(JUSRP51727A);中央高校基本科研业务费专项资金资助项目(JUSRP52013B);湖北省纺织新材料及其应用国家重点实验室资助项目(DTL2017009)

Influencing factors on high speed of electronic shogging system in warp knitting machines

GUO Weidong, XIA Fenglin(), ZHANG Qi

Engineering Research Center for Knitting Technology, Ministry of Education,Jiangnan University, Wuxi, Jiangsu 214122, China

Received:2020-04-15 Revised:2020-08-28 Online:2021-01-15 Published:2021-01-21
Contact: XIA Fenglin

摘要/Abstract

摘要：

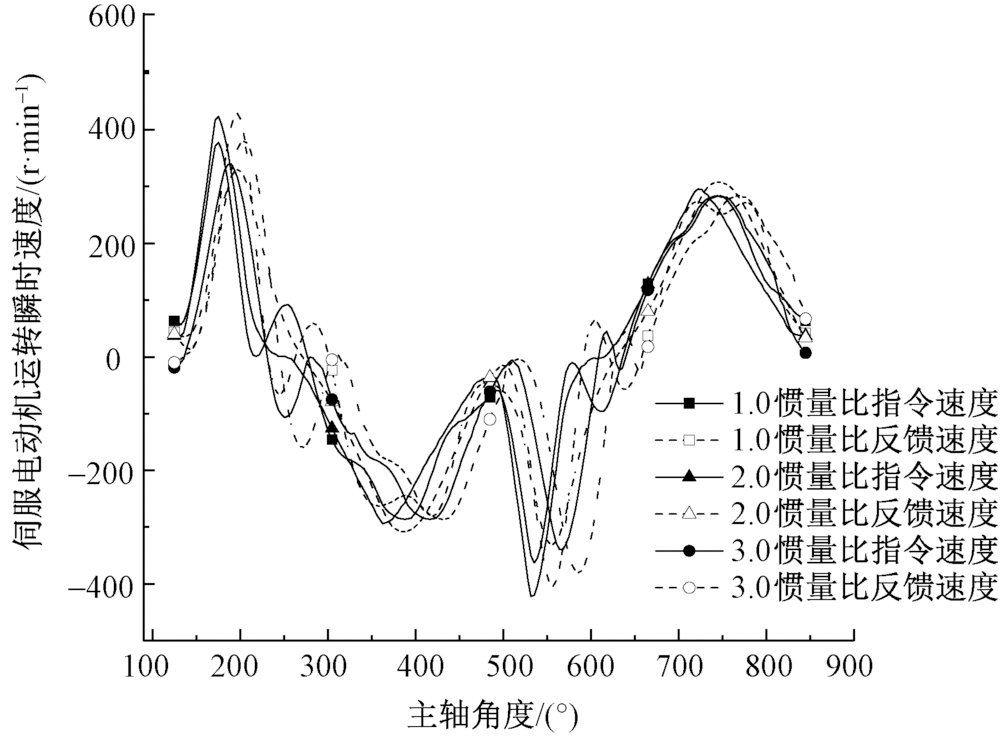

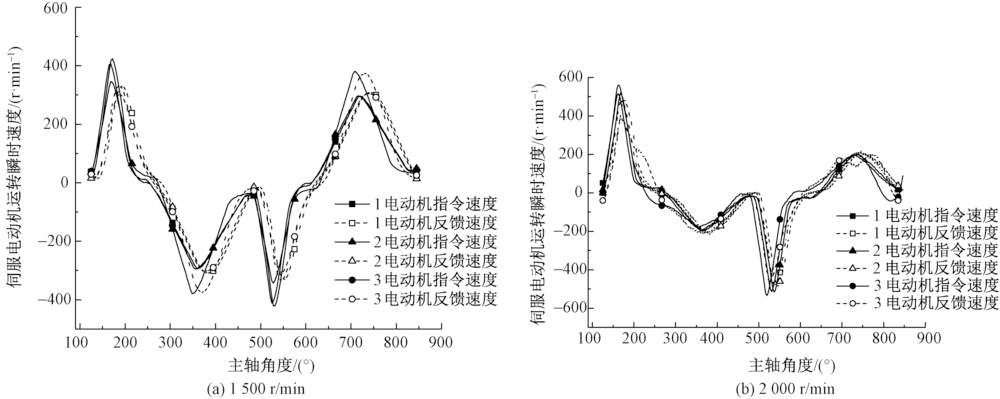

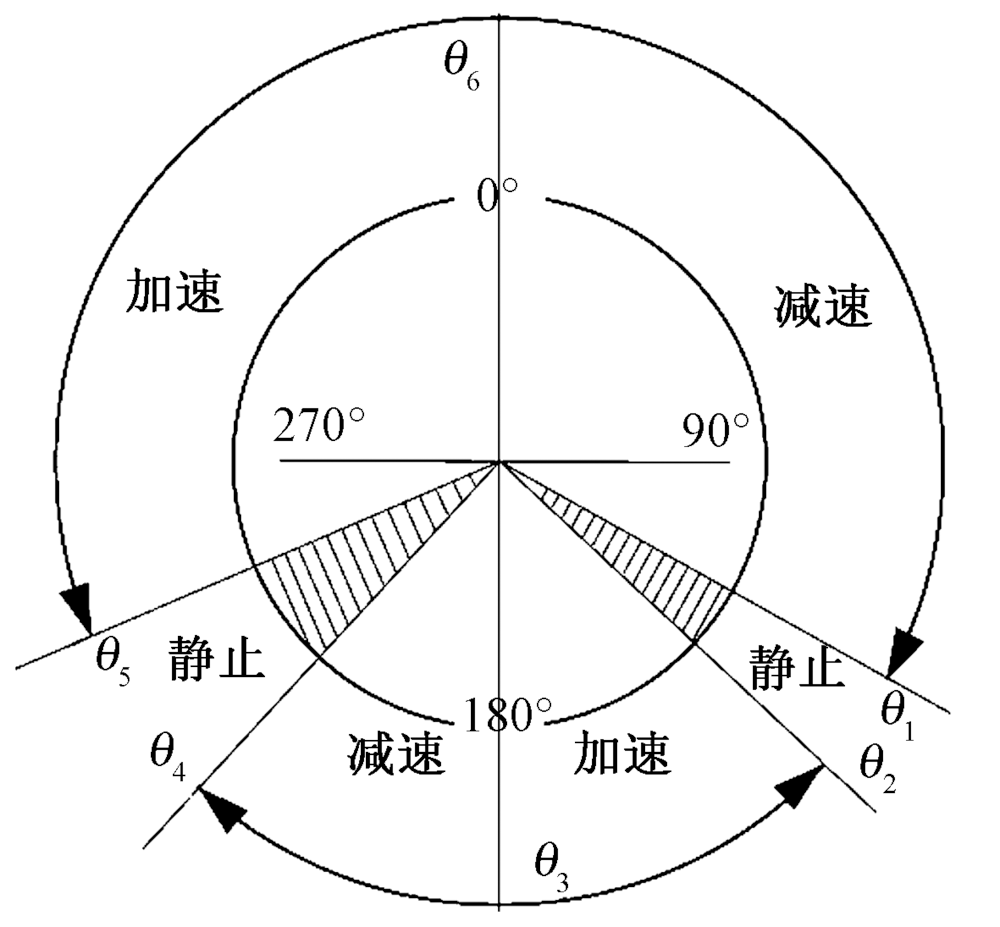

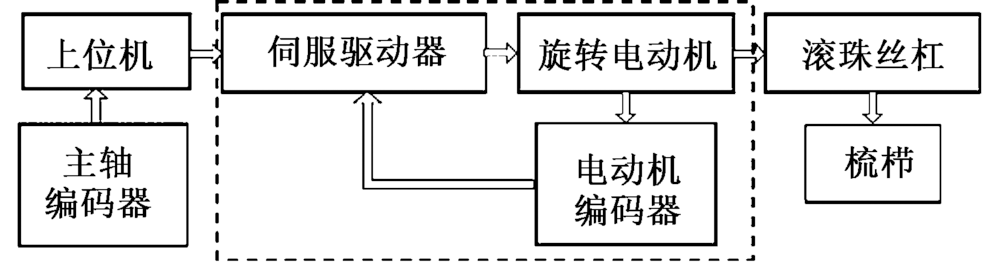

针对高速经编机电子横移控制系统高速响应性不佳的问题,根据经编机梳栉横移的运动要求,搭建了一套梳栉横移运动响应性的测试平台。通过测试电子横移系统中伺服惯量比、电动机选型(如电动机功率、磁极对数等)等参数改变后,横移伺服电动机的实际运动曲线与控制系统指令曲线,分析这些因素变化对电子横移控制系统高速性能的影响。结果表明:电子横移系统的伺服惯量比参数设置应与实际的负载情况相吻合,否则会导致横移时梳栉振荡、或运动刚性不足,影响横移精度;伺服电动机选型应考虑磁极对数与功率大小,增加伺服电动机的磁极对数可大大提升系统的响应性,而电动机功率的选择以够用为宜,增大电动机功率无助于系统响应性的提高。

关键词: 经编机, 电子横移系统, 伺服控制, 运动曲线

Abstract:

The high-speed response of electronic shogging system in high-speed warp knitting machines is generally poor. According to the motion requirements of warp knitting machine guide bar, this research built a set of test platforms for the response of guide bar motion. Parameters such as servo inertia ratio, motor selection (such as motor power, magnetic pole pairs, and so on) of the electronic shogging system were experimented on to analyze the actual motion curve of the shogging servo motor and the control system command curve against the parameter variations. The experimental results show that the servo inertia ratio parameter setting of the electronic traverse system should be consistent with the actual load, otherwise it will cause comb bar oscillation during traverse, or insufficient motion rigidity, affecting the traverse accuracy. The selection of servo motor should consider the number of pole pairs and the motor power. Increasing the number of pole pairs of the servo motor can greatly improve the responsiveness of the system, and increasing the power of the motor does not contribute to the improvement of system responsiveness.

Key words: warp knitting machine, electronic traverse system, servo control, motion curve

中图分类号:

TS183.92

郭威东, 夏风林, 张琦. 经编机电子横移系统高速响应性的影响因素[J]. 纺织学报, 2021, 42(01): 162-166.

GUO Weidong, XIA Fenglin, ZHANG Qi. Influencing factors on high speed of electronic shogging system in warp knitting machines[J]. Journal of Textile Research, 2021, 42(01): 162-166.

图/表 5

图1

图2

图3

表1

图4

参考文献 11

[1]	孔震, 蒋高明, 夏风林. 经编机伺服控制系统的参数调节方法[J]. 纺织学报, 2008,29(10):102-108.
	KONG Zhen, JIANG Gaoming, XIA Fenglin. Parameters adjusting methods of warp knitting servo-control system[J]. Journal of Textile Research, 2008,29(10):102-108.
[2]	张琦, 蒋高明, 夏风林, 等. 动态变结构控制策略在经编机高速电子横移中的应用[J]. 纺织学报, 2013,34(3):121-126.
	ZHANG Qi, JIANG Gaoming, XIA Fenglin, et al. Research on dynamic variable structure control strategy for high-speed electronic shogging motion on warp knitting machine[J]. Journal of Textile Research, 2013,34(3):121-126.
[3]	夏风林, 蒋高明, 葛明桥. 高速经编机电子横移系统运动精度分析[J]. 纺织学报, 2009,30(3):106-110.
	XIA Fenglin, JIANG Gaoming, GE Mingqiao. Moving precision analysis of electronic shogging system on high speed warp knitting machine[J]. Journal of Textile Research, 2009,30(3):106-110.
[4]	KARL Mayer. Tricot machine KS4 EL-EBC with electronic pattern drive[J].Kettenwirk Praxis, 2015(2):8-9. pmid: 5518636
[5]	郑宝平, 蒋高明, 夏风林, 等. 双PID控制的经编机电子横移系统设计[J]. 纺织学报, 2012,33(5):135-139.
	ZHENG Baoping, JIANG Gaoming, XIA Fenglin, et al. Design of electronic shogging system based on double PID control on warp knitting machine[J]. Journal of Textile Research, 2012,33(5):135-139.
[6]	刘念, 夏风林, 张琦, 等. 经编机梳栉横移机构的动力学分析[J]. 纺织学报, 2012,33(11):121-126.
	LIU Nian, XIA Fenglin, ZHANG Qi, et al. Dynamic analysis of shogging motion mechanism ofguide bar on warp knitting machine[J]. Journal of Textile Research, 2012,33(11):121-126.
[7]	付睿云, 孟婥, 卜剑秋, 等. 经编机电子横移系统伺服刚度的提高[J]. 东华大学学报(自然科学版), 2019,45(2):270-274,284.
	FU Ruiyun, MENG Zhuo, BU Jianqiu, et al. Improvement of servo stiffness of electronic shogging system on warp knitting machine[J]. Journal of Donghua University(Natural Science Edition), 2019,45(2):270-274,284.
[8]	张琦, 蒋高明, 夏风林, 等. 高速经编机电子横移控制模型选择及动态响应分析[J]. 纺织学报, 2012,33(1):126-131.
	ZHANG Qi, JIANG Gaoming, XIA Fenglin. Choice and dynamic response analysis of control model forelectronicshogging motion on high-speed warp knitting machine[J]. Journal of Textile Research, 2012,33(1):126-131.
[9]	李军, 黄伟. 数控机床进给伺服系统惯量的分析与计算[J].装备制造技术, 2014(2):151-152,157.
	LI Jun, HUANG Wei. Analysis and calculation of inertia of CNC machine tool feed servo system[J]. Equipment Manufacturing Technology, 2014(2):151-152,157.
[10]	黄捷建, 张静, 李浩, 等. 伺服电机负载惯量比的合理取值[J]. 微电机, 2017,50(11):72-75.
	HUANG Jiejian, ZHANG Jing, LI Hao, et al. Reasonable design of inertia ratio between load and motor[J]. Micromotors, 2017,50(11):72-75.
[11]	肖磊, 张海, 许宝玉, 等. 径向调制永磁齿轮磁极数量对传动特性的影响研究[J]. 机械传动, 2019,43(5):1-5.
	XIAO Lei, ZHANG Hai, XU Baoyu, et al. Study on influence of number of permanent magnetic pole pair on transmission characteristic of radial modulated permanent magnetic gear[J]. Journal of Mechanical Transmission, 2019,43(5):1-5.

相关文章 15

[1]	孙帅, 缪旭红, 张琦, 王瑾. 高速经编机上纱线张力的波动规律[J]. 纺织学报, 2020, 41(03): 51-55.
[2]	汪健东, 夏风林, 李亚林, 赵钰宁. 经编机梳栉电子横移伺服的最优滑模控制[J]. 纺织学报, 2020, 41(02): 143-148.
[3]	徐云龙, 夏风林. 双针床经编机间隔距离对纱线需求量的影响分析[J]. 纺织学报, 2019, 40(08): 151-156.
[4]	张琦, 魏莉, 罗成, 夏风林, 蒋高明. 基于双总线架构的经编机双贾卡提花控制系统[J]. 纺织学报, 2019, 40(07): 145-150.
[5]	徐云龙, 夏风林. 双针床经编机梳栉摆动对瞬时需纱量和纱线张力的影响[J]. 纺织学报, 2019, 40(06): 106-110.
[6]	苏柳元孟婥张玉井赵义满. 经编机梳栉横移系统误差建模与仿真[J]. 纺织学报, 2018, 39(08): 130-137.
[7]	郑静夏风林刘浪. 基于Simulink的经编机电子横移系统仿真[J]. 纺织学报, 2018, 39(02): 150-156.
[8]	牛善宇曹清林. 采用电子凸轮的多梳栉经编机成圈运动[J]. 纺织学报, 2017, 38(04): 127-133.
[9]	赖森财任雯刘永桂. 嵌入式电子贾卡控制系统设计[J]. 纺织学报, 2016, 37(10): 135-140.
[10]	曹清林赵红霞曹娟娟张大伟樊腾飞. 浮纹贾卡经编机纱线选取机构的设计[J]. 纺织学报, 2016, 37(10): 130-134.
[11]	张琦夏风林刘念李怀宇李萍孙黎明. 经编机梳栉的横移振动分析[J]. 纺织学报, 2013, 34(7): 121-125.
[12]	张琦蒋高明夏风林刘苏汤鲲鹏. 动态变结构控制策略在经编机高速电子横移中的应用[J]. 纺织学报, 2013, 34(3): 121-126.
[13]	王恒刚胡克勤郭吉丰. 基于伺服控制和曲柄连杆滑块机构的导纱系统[J]. 纺织学报, 2012, 33(9): 130-134.
[14]	刘鑫, 胡旭东, 陈洪立. 基于柔性多体系统的经编机梳栉摆动机构动力学分析[J]. 纺织学报, 2012, 33(6): 92-96.
[15]	郑宝平, 蒋高明, 夏风林, 张琦, 秦文. 双PID控制的经编机电子横移系统设计[J]. 纺织学报, 2012, 33(5): 135-139.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

电动机	型号	磁极对数	额定功率/kW
伺服电动机1	CSMS-20BQ	10	2.0
伺服电动机2	TCLT-20BQ	8	2.0
伺服电动机3	CSMS-25BQ	10	2.5
