纺织品单向导水性能测试方法分析

doi:10.13475/j.fzxb.20200407108

纺织学报 ›› 2021, Vol. 42 ›› Issue (05): 51-58.doi: 10.13475/j.fzxb.20200407108

纺织品单向导水性能测试方法分析

江燕婷¹, 严庆帅¹, 辛斌杰¹(), 高琮¹, 施楣梧²

1.上海工程技术大学纺织服装学院, 上海 201620
2.军事科学院系统工程研究院军需工程技术研究所, 北京 100010

收稿日期:2020-04-28 修回日期:2021-02-18 出版日期:2021-05-15 发布日期:2021-05-20
通讯作者: 辛斌杰
作者简介:江燕婷(1995—),女,硕士生。主要研究方向为纺织品导水性能的图像法测试与表征。
基金资助:
国家自然科学基金项目(61876106);上海市自然科学基金项目(19ZR1421500)

Comparative study on testing methods for unidirectional water transport in fabrics

JIANG Yanting¹, YAN Qingshuai¹, XIN Binjie¹(), GAO Cong¹, SHI Meiwu²

1. School of Textiles and Fashion, Shanghai University of Engineering Science, Shanghai 201620, China
2. Institute of Quartermaster Engineering & Technology, Institute of System Engineering, Academy of Military Sciences, Beijing 100010, China

Received:2020-04-28 Revised:2021-02-18 Online:2021-05-15 Published:2021-05-20
Contact: XIN Binjie

摘要/Abstract

摘要：

为提升夏季用纺织品或运动纺织品的舒适性,在分析液态水分管理测试仪(MMT)测试方法用针排传感器测试液态水扩散状态的基础上,选用4种典型纺织品,采用MMT法和自制的图像采集系统测试了纺织品的单向导水性能,比较了纺织品的单向导水效果。结果表明:对于采用点状施加拒水剂实现单向导水功能的纺织品及嵌织导电纤维的单向导水纺织品,MMT法容易出现较大的测试误差;采用图像法动态采集纺织品正反面的导水图像的新方法,获得了较为完整的水浸润信息,可以简捷地测试纺织品单向导水性能,并得到更加精准的测试结果。采用图像法动态采集纺织品正反面的导水图像的新方法具有良好的应用前景。

关键词: 纺织品, 吸湿速干, 单向导水, 图像处理, 动态水分传递, 热湿舒适性

Abstract:

The unidirectional water transport performance of textiles is a key index that affects the comfort of textiles or sports textiles used for the summer season. On the basis of analyzing the state of water diffusion measured by moisture management tester (MMT) needle array sensor, four types of fabrics are selected for actual measurement. It is reflected that the MMT method is prone to large test errors for fabrics with dot-array water repellent application for unidirectional water transport function and for unidirectional water transport fabrics with embedded conductive fibers. A new method was proposed to collect dynamically the water transfer image of the front and back sides of textiles, which offers more complete water infiltration information. The unidirectional water transfer performance of textiles in one direction were evaluated easily to obtain more accurate results. The new image method for dynamical collection of water transmission images of the front and back of textiles demonstrates a good application prospect.

Key words: textiles, moisture absorption and quick drying, unidirectional water transport, image processing, dynamic water transfer, thermal and wet comfort

中图分类号:

TS107.1

江燕婷, 严庆帅, 辛斌杰, 高琮, 施楣梧. 纺织品单向导水性能测试方法分析[J]. 纺织学报, 2021, 42(05): 51-58.

JIANG Yanting, YAN Qingshuai, XIN Binjie, GAO Cong, SHI Meiwu. Comparative study on testing methods for unidirectional water transport in fabrics[J]. Journal of Textile Research, 2021, 42(05): 51-58.

图/表 9

图1

表1

图2

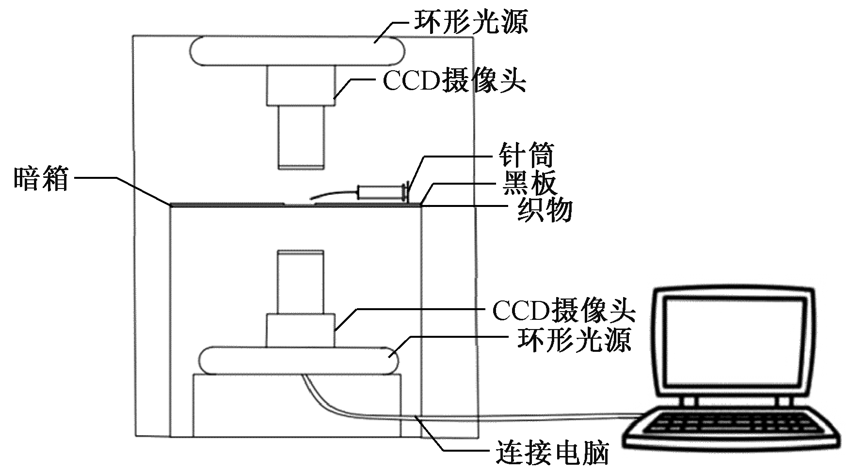

图3

图4

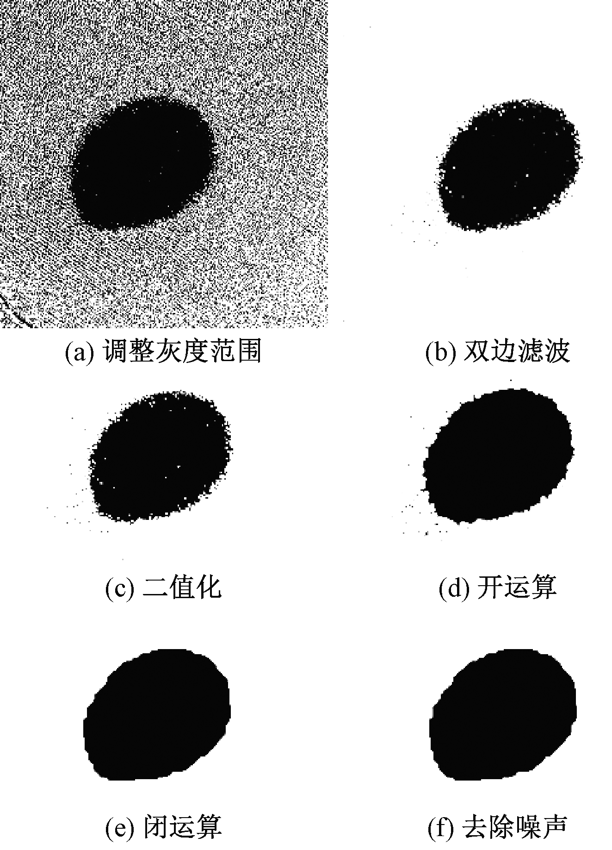

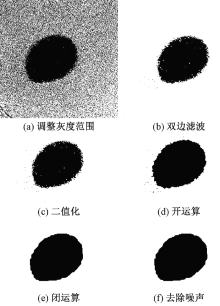

图5

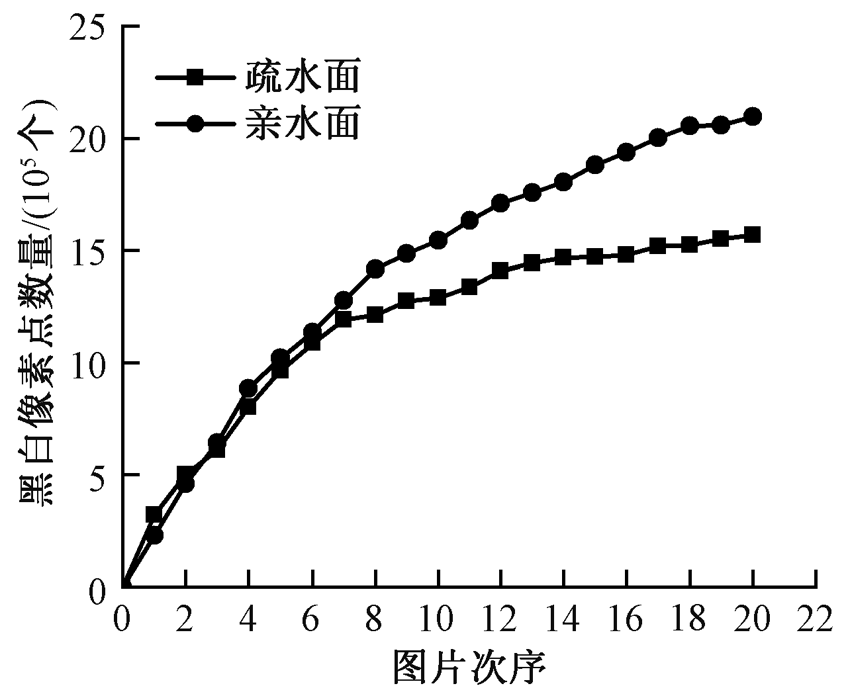

图6

图7

图8

参考文献 16

[1]	王欢, 张富丽, 李艳梅. 吸湿速干面料性能测试与评价[J]. 丝绸, 2019,56(2):48-54.
	WANG Huan, ZHANG Fuli, LI Yanmei. Performance test and evaluation of hygroscopic and quick-drying fabrics[J]. Journal of Silk, 2019,56(2):48-54.
[2]	贺建国, 章为敬. 一种新型单向导湿面料的开发[J]. 现代纺织技术, 2019,27(4):24-27.
	HE Jianguo, ZHANG Weijing. Development of a new type of unidirectional wet fabric[J]. Advanced Textile Technology, 2019,27(4):24-27.
[3]	徐伟杰, 张玉高. 导湿快干与单向导湿织物[J]. 印染, 2011,37(2):46-51.
	XU Weijie, ZHANG Yugao. Moisture-conducting, quick-drying and unidirectional moisture-absorbing fabric[J]. China Dyeing & Printing, 37(2):46-51.
[4]	汝新伟, 张君秋, 李永海. 武警新一代多功能体能训练服面料的研制和生产[C]// 2016全国针织技术交流会. 北京:中国纺织工程学会, 2016: 21-25.
	RU Xinwei, ZHANG Junqiu, LI Yonghai. Development and production of a new generation of mu.pngunctional physical training clothing fabrics for the armed police[C]// 2016 National Knitting Technology Exchange Conference. Beijing: China Textile Engineering Society, 2016: 21-25.
[5]	周长胜, 许俊明, 刘壮洪. 针织面料在军服中的应用[J]. 针织工业, 2019(8):10-13.
	ZHOU Changsheng, XU Junming, LIU Zhuanghong. Application of knitted fabrics in military uniforms[J]. Knitting Industries, 2019 (8):10-13.
[6]	刘明远, 尉霞, 开吴珍. 纺织品吸湿速干性标准的对比[J]. 印染, 2019,45(22):47-52.
	LIU Mingyuan, WEI Xia, KAI Wuzhen. Comparison of hygroscopic and quick-drying standards for textiles[J]. China Dyeing & Finishing, 2019,45(22):47-52.
[7]	周嘉齐. 纺织材料液体传递性能测试方法的研究[D]. 上海: 东华大学, 2017: 4-18.
	ZHOU Jiaqi. Research on testing method of liquid material liquid transfer performance[D]. Shanghai:Donghua University, 2017: 4-18.
[8]	YAO B G, LI Y, HU J Y, et al. An improved test method for characterizing the dynamic liquid moisture transfer in porous polymeric materials[J]. Polymer Testing, 2006,25(5):677-689. doi: 10.1016/j.polymertesting.2006.03.014
[9]	谢梅娣, 王启明, 黄雅萍. 图像处理测试织物导湿性能的应用研究[J]. 上海纺织科技, 2005(11):62-63.
	XIE Meidi, WANG Qiming, HUANG Yaping. Application research on image processing to test the moisture conductivity of fabrics[J]. Shanghai Textile Science and Technology, 2005 ( 11):62-63.
[10]	贺庆楼. 基于图像技术的纺织品导湿性能的测试方法研究[D]. 上海:东华大学, 2007: 11-50.
	HE Qinglou. Research on testing method of textile moisture permeability based on image technology[D]. Shanghai: Donghua University, 2007: 11-50.
[11]	余绍勇. 基于图像处理的织物导湿性能研究[D]. 上海: 东华大学, 2008: 5-28.
	YU Shaoyong. Research on fabric moisture permeability based on image processing[D]. Shanghai: Donghua University, 2008: 5-28.
[12]	杜文豪, 张慧萍, 晏雄. 运用高速摄影对不同结构参数织物导湿性能的研究[J]. 天津纺织科技, 2009(1):12-17.
	DU Wenhao, ZHANG Huiping, YAN Xiong. Using high-speed photography to study the moisture conductivity of fabrics with different structural parameters[J]. Tianjin Textile Science and Technology, 2009(1):12-17.
[13]	HU Junyan, LI Yi, YEUNG K W, et al. Moisture management tester: a method to characterize fabric liquid moisture management properties[J]. Textile Research Journal, 2005,75(1):57-62. doi: 10.1177/004051750507500111
[14]	王建平, 朱雯喆, 党敏. 吸湿速干纺织产品性能评价中的标准适用性问题[J]. 纺织导报, 2017(10):107-110,112-113.
	WANG Jianping, ZHU Wenzhe, DANG Min. Applicability of standards in the performance evaluation of hygroscopic and quick-drying textile products[J]. China Textile Leader, 2017 (10):107-110,112-113.
[15]	任惠, 吴雄英, 李毅. 纺织品中液态水传递性能的测试方法[J]. 上海纺织科技, 2005(10):28-30.
	REN Hui, WU Xiongying, LI Yi. Test method of liquid water transfer performance in textiles[J]. Shanghai Textile Science and Technology, 2005(10):28-30.
[16]	陈百顺, 郭峰, 何泽寿. 单向导湿针织面料的开发[J]. 针织工业, 2014(2):1-4.
	CHEN Baishun, GUO Feng, HE Zeshou. Development of unidirectional wet-knit fabrics[J]. Knitting Industries, 2014 (2):1-4.

相关文章 15

[1]	苏梦茹, 邹婷, 陈颀超, 李超婧, 王富军, 王璐. 医用倒刺缝合线的研究进展[J]. 纺织学报, 2021, 42(05): 178-184.
[2]	骆晓蕾, 李紫嫣, 马亚男, 刘琳, KRUCINSKAIzabella, 姚菊明. 纺织品生态阻燃技术研究进展[J]. 纺织学报, 2021, 42(05): 193-202.
[3]	王莉, 张冰洁, 王建萍, 刘莉, 杨雅岚, 姚晓凤, 李倩文, 卢悠. 基于仿生学的冬季针织运动面料开发与性能评价[J]. 纺织学报, 2021, 42(05): 66-72.
[4]	肖渊, 李红英, 李倩, 张威, 杨鹏程. 棉织物/聚二甲基硅氧烷复合介电层柔性压力传感器制备[J]. 纺织学报, 2021, 42(05): 79-83.
[5]	蒋君莹, 高晶, 张剑. 吻合口加固修补组件背衬面料的选择与防漏性能评价[J]. 纺织学报, 2021, 42(04): 69-73.
[6]	李永贺, 瞿凌曦, 徐壁, 蔡再生, 葛凤燕. 生物基聚对苯二甲酸丙二醇酯织物的阻燃与三防一步法泡沫整理[J]. 纺织学报, 2021, 42(04): 8-15.
[7]	张陈恬, 赵连英, 顾学锋. 中空咖啡碳聚酯纤维/棉混纺纬平针织物的服用性能[J]. 纺织学报, 2021, 42(03): 102-109.
[8]	杨阳, 俞欣, 章为敬, 张佩华. 针织面料凉爽性能的评价方法及其预测模型[J]. 纺织学报, 2021, 42(03): 95-101.
[9]	周颖雨, 王锐, 靳高岭, 王文庆. 光诱导表面改性技术在织物阻燃中的应用研究进展[J]. 纺织学报, 2021, 42(03): 181-189.
[10]	李东洁, 郭帅, 杨柳. 基于改进图像阈值分割算法的纱线疵点检测[J]. 纺织学报, 2021, 42(03): 82-88.
[11]	唐千惠, 王蕾, 高卫东. 基于图像处理的织物保形性检测[J]. 纺织学报, 2021, 42(03): 89-94.
[12]	丁子寒, 邱华. 纳米二氧化硅改性水性聚氨酯防水透湿涂层织物的制备及其性能[J]. 纺织学报, 2021, 42(03): 130-135.
[13]	孟灵灵, 魏取福, 严忠杰, 仲珍珍, 王小慧, 沈佳宇, 陈洪炜. 磁控溅射Ag/ZnO纳米薄膜涤纶织物的制备及其性能[J]. 纺织学报, 2021, 42(03): 143-148.
[14]	姜兆辉, 李永贵, 杨自涛, 郭增革, 张战旗, 齐元章, 金剑. 聚合物基石墨烯复合纤维及其纺织品研究进展[J]. 纺织学报, 2021, 42(03): 175-180.
[15]	孟朔, 夏旭文, 潘如如, 周建, 王蕾, 高卫东. 基于卷积神经网络的机织物密度均匀性检测[J]. 纺织学报, 2021, 42(02): 101-106.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样品编号		浸湿时间			吸水速率			最大浸湿半径			液态水扩散速度			单向传递指数
样品编号		平均值/s	标准偏差/s	CV 值/%	平均值/ (%·s^-1)	标准偏差/ (%·s^-1)	CV 值/%	平均值/mm	标准偏差/mm	CV 值/%	平均值/ (mm·s^-1)	标准偏差/ (mm·s^-1)	CV 值/%	平均值	标准偏差	CV 值/%
1	上	1.13	0.47	42	46.83	8.62	18	28.33	2.89	10	7.48	2.21	30	58.47	58.64	100
1	下	0.66	0.35	53	60.68	6.28	10	28.33	2.89	10	10.87	4.52	42	58.47	58.64	100
2	上	0.32	0.00	0	36.71	2.44	7	30.00	0.00	0	17.66	0.42	2	534.59	20.27	4
2	下	0.32	0.00	0	71.56	6.89	10	30.00	0.00	0	21.00	3.45	16	534.59	20.27	4
3	上	1.13	0.05	4	42.81	3.09	7	30.00	0.00	0	7.95	0.39	5	288.45	93.02	32
3	下	0.32	0.00	0	65.91	3.12	5	30.00	0.00	0	17.17	0.29	2	288.45	93.02	32
4	上	1.13	0.20	17	38.21	4.30	11	30.00	0.00	0	8.61	1.07	12	174.90	11.37	7
4	下	0.32	0.00	0	54.13	10.18	19	30.00	0.00	0	19.79	4.49	23	174.90	11.37	7
