氯离子协同增强十六氯铁酞菁/聚丙烯腈复合纳米纤维光催化降解性能

doi:10.13475/j.fzxb.20200802807

纺织学报 ›› 2021, Vol. 42 ›› Issue (05): 9-15.doi: 10.13475/j.fzxb.20200802807

氯离子协同增强十六氯铁酞菁/聚丙烯腈复合纳米纤维光催化降解性能

竺哲欣, 马晓吉, 夏林, 吕汪洋(), 陈文兴

浙江理工大学材料科学与工程学院, 浙江杭州 310018

收稿日期:2020-08-04 修回日期:2021-01-29 出版日期:2021-05-15 发布日期:2021-05-20
通讯作者: 吕汪洋
作者简介:竺哲欣(1989—),男,讲师,博士。主要研究方向为环境净化功能纤维材料。
基金资助:
浙江省自然科学基金青年基金项目(LQ19E030023);国家自然科学基金青年基金项目(22006136)

Photocatalytic performance of iron hexadecachlorophthalocyanine/ polyacrylonitrile composite nanofibers synergistically enhanced by chloride ion

ZHU Zhexin, MA Xiaoji, XIA Lin, LÜ Wangyang(), CHEN Wenxing

School of Materials Science & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China

Received:2020-08-04 Revised:2021-01-29 Online:2021-05-15 Published:2021-05-20
Contact: Lü Wangyang

摘要/Abstract

摘要：

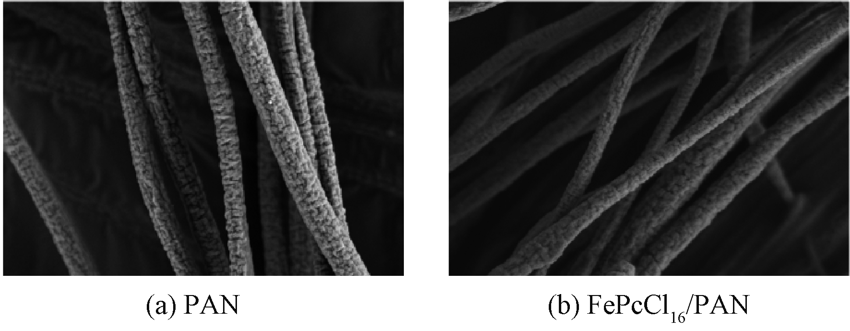

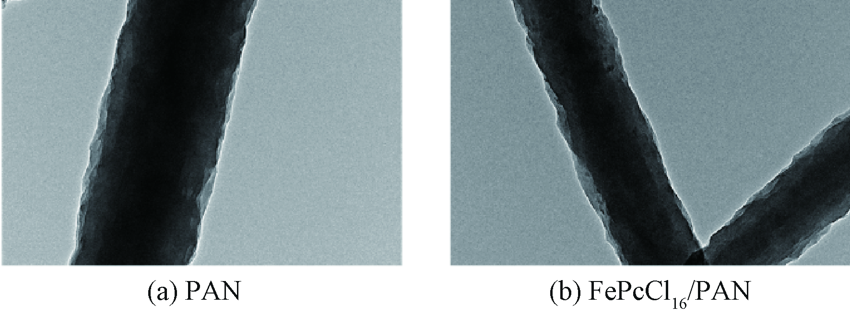

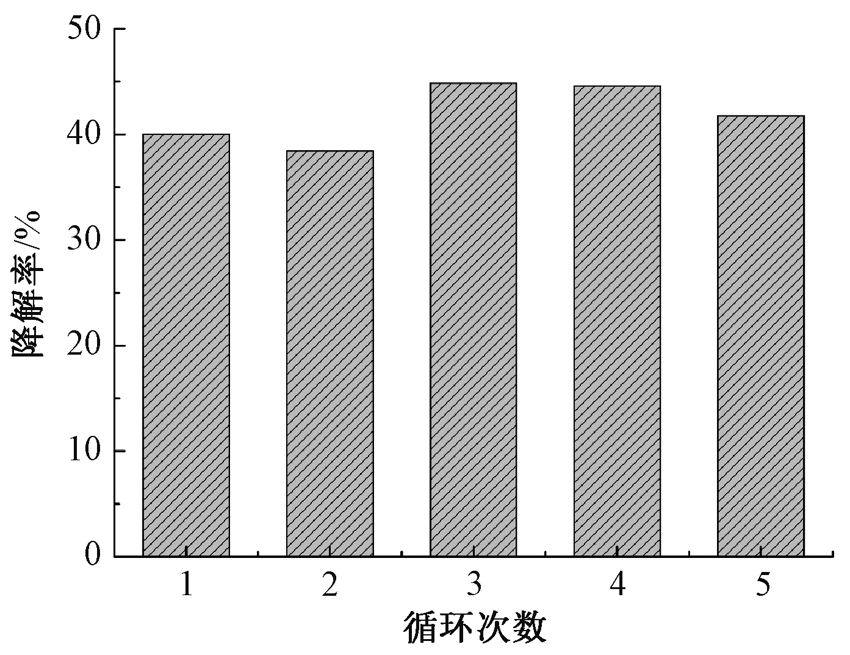

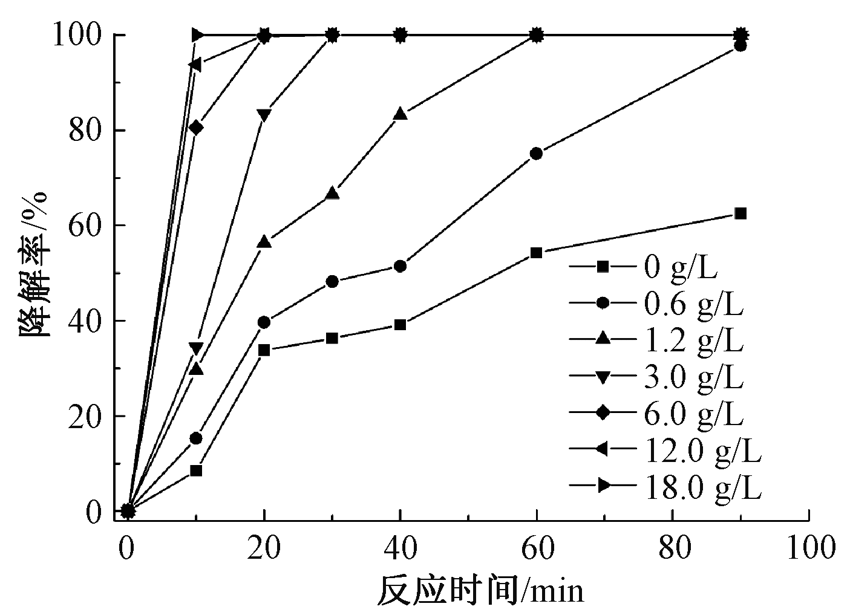

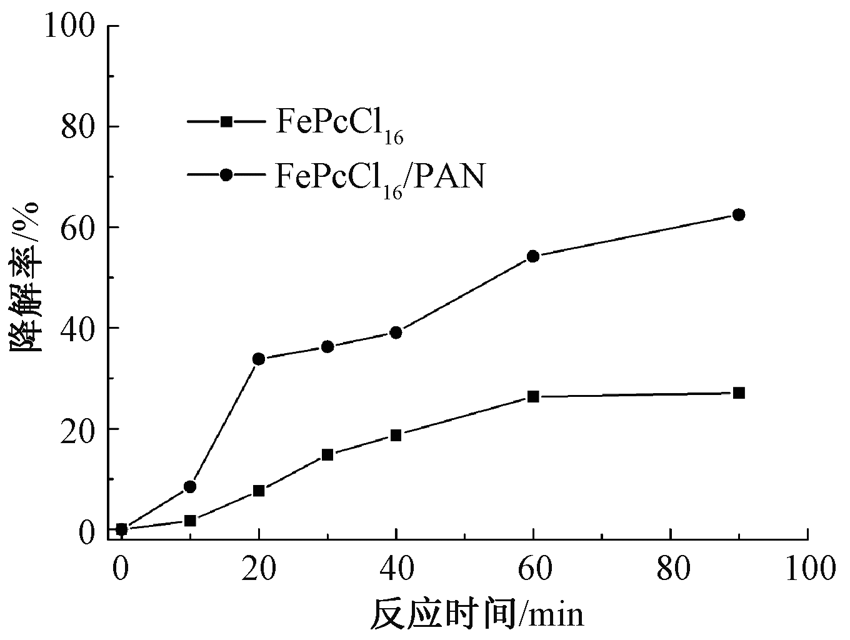

为提升粉末催化剂的催化活性及重复使用性能,高效去除高盐废水中的有机污染物,采用静电纺丝技术制备十六氯铁酞菁/聚丙烯腈(FePcCl₁₆/PAN)复合纳米纤维。借助扫描电子显微镜、透射电子显微镜、X射线衍射仪等表征了纳米纤维的微观形貌、结晶结构等特性。选取卡马西平(CBZ)作为模型污染物,研究了氯离子存在下,FePcCl₁₆/PAN复合纳米纤维光活化过一硫酸盐的催化降解活性。结果表明:FePcCl₁₆可有效分散于PAN纳米纤维中,从而避免因FePcCl₁₆分子团聚而影响催化活性;在模拟太阳光照射下,随着氯离子质量浓度的增加,FePcCl₁₆/PAN复合纳米纤维催化活性逐渐增强;在较高氯离子质量浓度(6.0~18.0 g/L)下,CBZ及其降解产物(包括具有潜在毒性的氯代有机副产物)都能降解完全,FePcCl₁₆/PAN复合纳米纤维循环降解5次后仍具有良好的催化降解性能。

关键词: 有机污染物降解, 静电纺丝, 十六氯铁酞菁, 纳米纤维, 降解产物, 光催化活性, 废水处理

Abstract:

In order to improve the catalytic activity and reusability of the powder catalyst and effectively remove the organic pollutants in high salinity wastewater, iron hexadecachlorophthalocyanine (FePcCl₁₆)/polyacrylonitrile(PAN) composite nanofibers were prepared using electrospinning technology. The composite nanofibers were characterized by field emission scaning electron microscopy, transmission electron microscopy and X-ray diffraction. Carbamazepine (CBZ) was selected as the model pollutant to study the photocatalytic degradation activity of photoactivated persulfate of composite nanofibers in the presence of chloride ions. The results show that FePcCl₁₆ was well dispersed in PAN nanofibers, and FePcCl₁₆ molecular clustering was successfully avoided to maintain its catalytic performance. Under simulated sunlight, the catalytic activity of composite nanofibers increased with the increase of chloride ion concentration. At higher chloride ion concentrations (6.0-18.0 g/L), CBZ and its degradation products (including potentially toxic chlorinated compounds) can be completely degraded. After 5 degradation recycling tests, FePcCl₁₆/PAN still demonstrate good catalytic degradation performance.

Key words: organic pollutant degradation, electrospinning, iron hexadecachlorophthalocyanine, nanofiber, degradation product, photocatalytic activity, wasterwater treatment

中图分类号:

O634.32

竺哲欣, 马晓吉, 夏林, 吕汪洋, 陈文兴. 氯离子协同增强十六氯铁酞菁/聚丙烯腈复合纳米纤维光催化降解性能[J]. 纺织学报, 2021, 42(05): 9-15.

ZHU Zhexin, MA Xiaoji, XIA Lin, LÜ Wangyang, CHEN Wenxing. Photocatalytic performance of iron hexadecachlorophthalocyanine/ polyacrylonitrile composite nanofibers synergistically enhanced by chloride ion[J]. Journal of Textile Research, 2021, 42(05): 9-15.

图/表 10

图1

图2

图3

图4

图5

图6

表1

图7

图8

图9

参考文献 22

[1]	GUO Y, ZHOU X, ZHANG Y, et al. Carbamazepine degradation by heterogeneous activation of peroxymonosulfate with lanthanum cobaltite perovskite: performance, mechanism and toxicity[J]. Journal of Environmental Science, 2020,91:10-21.
[2]	GARCIA-ESPIONZA J D, MIJAYLOVA-NACHEVA P, AVILES-FLORES M. Electrochemical carbamazepine degradation: effect of the generated active chlorine, transformation pathways and toxicity[J]. Chemosphere, 2018,192:142-151. doi: 10.1016/j.chemosphere.2017.10.147
[3]	AZAROFF A, MONPERRUS M, MIOSSEC C, et al. Microbial degradation of hydrophobic emerging contaminants from marine sediment slurries (capbreton canyon) to pure bacterial strain[J]. Journal of Hazardous Materials, 2021,402:123477. doi: 10.1016/j.jhazmat.2020.123477
[4]	郭丽, 袁颐进, 冯丽贞, 等. 电活化过硫酸盐降解全氟辛酸及其中间产物的研究[J]. 环境科学学报, 2020,40(6):2045-2054.
	GUO Li, YUAN Yijin, FENG Lizhen, et al. Electrochemical activated persulfate to degrade perfluorooctanoic acid and the analysis of intermediate products[J]. Acta Scientiae Circumstantiae, 2020,40(6):2045-2054.
[5]	杨生浛, 毕文龙, 张建, 等. 硫酸根自由基对甲基橙的处理效果及机理[J]. 工业水处理, 2020,40(4):55-59.
	YANG Shenghan, BI Wenlong, ZHNAG Jian, et al. Effect and mechanism of sulfate radical on methyl orange treatment[J]. Industrial Water Treatment, 2020,40(4):55-59.
[6]	HUANG Y, SHENG B, YANG F, et al. Chlorine incorporation into dye degradation by-product (coumarin) in UV/peroxymonosulfate process: a negative case of end-of-pipe treatment[J]. Chemosphere, 2019,229:374-382. doi: 10.1016/j.chemosphere.2019.05.024
[7]	LAI X, NING X, CHEN J, et al. Comparison of the Fe²+/H₂O₂ and Fe²+/PMS systems in simulated sludge: removal of PAHs, migration of elements and formation of chlorination by-products [J]. Journal of Hazardous Material, 2020,398:122826. doi: 10.1016/j.jhazmat.2020.122826
[8]	刘布雷, 张改, 陈卫星, 等. 金属酞菁/TiO₂的制备及脱硫性能研究[J]. 应用化工, 2019,48(5):1054-1057.
	LIU Bulei, ZHANG Gai, CHEN Weixing, et al. Preparation and desulfurization property of phthalocyanine/TiO₂ catysts[J]. Applied Chemical Industry, 2019,48(5):1054-1057.
[9]	DONG L, XU T, CHEN W, et al. Synergistic multiple active species for the photocatalytic degradation of contaminants by imidazole-modified g-C₃N₄ coordination with iron phthalocyanine in the presence of peroxymonosulfate[J]. Chemical Engineering Journal, 2019,357:198-208. doi: 10.1016/j.cej.2018.09.094
[10]	WANG L, LU W, NI D, et al. Solar-initiated photocatalytic degradation of carbamazepine on excited-state hexadecachlorophthalocyanine in the presence of peroxymonosulfate[J]. Chemical Engineering Journal, 2017,330:628-634.
[11]	代岩, 王硕, 田黎明, 等. FePc-TiO₂/CS复合材料制备及光催化降解染料废水[J]. 现代化工, 2018,38(7):89-92.
	DAI Yan, WANG Shuo, TIAN Liming, et al. Preparation of FePc-TiO₂/CS composites and application in photocatalytic degradation of dye wastewater[J]. Modern Chemical Industry, 2018,38(7):89-92.
[12]	钱怡帆, 周堂, 张礼颖, 等. 聚丙烯腈/醋酸纤维素/TiO₂复合纳米纤维膜的制备及其光催化降解性能[J]. 纺织学报, 2020,41(5):8-14.
	QIAN Yifan, ZHOU Tang, ZHANG Liying, et al. Preparation of polyacrylonitrile/cellulose acetate/TiO₂ composite nanofiber membrane and its photocatalytic degradation performance[J]. Journal of Textile Research, 2020,41(5):8-14.
[13]	张梦媛, 黄庆林, 黄岩, 等. 静电纺丝聚四氟乙烯/二氧化钛光催化纳米纤维膜的制备及其应用[J]. 纺织学报, 2019,40(9):1-7.
	ZHANG Mengyuan, HUANG Qinglin, HUANG Yan, et al. Electrospun poly(tetrafluoroethylene)/TiO₂ photocatalytic nanofiber membrane and its application[J]. Journal of Textile Research, 2019,40(9):1-7. doi: 10.1177/004051757004000101
[14]	KONAREV D V, KUZMIN A V, ISHIKAWA M, et al. Layered salts with iron hexadecachlorophthalocyanineanions-the formation of [{FeCl₁₆Pc}(2)](3-) dimers contain-ing [(FeCl₁₆Pc)-Cl-I(2-)](-) and diamagne-tic [(FeCl₁₆Pc)-Cl-0(2-)](2-)[J]. European Journal of Inorganic Chemistry, 2014,24:3863-3870.
[15]	ZHANG T Y, XU B, YAO S, et al. Conversion of chlorine/nitrogen species and formation of nitrogenousdisinfection by-products in the pre-chlorination/post-UV treatment of sulfamethoxazole[J]. Water Research, 2019,160:188-196. doi: 10.1016/j.watres.2019.05.063
[16]	ETO S, TANAKA N, NODA H, et al. Chiral separation of 10, 11-dihydro-10, 11-transdihydroxycarbamazepine, a metabolite of carbamazepine with two asymmetric carbons, in human serum[J]. Journal of Chromatography, 1996,677:328-330.
[17]	CHIRON S, MINERO C, VIONE D. Photodegradation processes of the antiepileptic drug carbamazepine, relevant to estuarine waters[J]. Environmental Science & Technology, 2006,40:5977-5983. doi: 10.1021/es060502y
[18]	SUN S, ZENG X, LEMLEY A T. Kinetics and mechanism of carbamazepine degradation by a modified Fenton-like reaction with ferric-nitrilotriacetate complexes[J]. Journal of Hazardous Materials, 2013,252/253:155-165. doi: 10.1016/j.jhazmat.2013.02.045
[19]	MCDOWELL D C, HUBER M M, WAGNER M, et al. Ozonation of carbamazepine in drinking water: ide.pngication and kinetic study of major oxidation products[J]. Environmental Science & Technology, 2005,39:8014-8022. doi: 10.1021/es050043l
[20]	RAO Y F, QU L, YANG H, et al. Degradation of carbamazepine by Fe(II)-activated persulfate process[J]. Journal of Hazardous Materials, 2014,268:23-32. doi: 10.1016/j.jhazmat.2014.01.010
[21]	ZHENG M, XU G, PEI J, et al. EB-radiolysis of carbamazepine: in pure-water with different ionsand in surface water[J]. Journal of Radioanalytical and Nuclear Chemistry, 2014,302:139-147. doi: 10.1007/s10967-014-3322-8
[22]	ZHU Z, LU W, XU T, et al. High-valent iron-oxo complexes as dominant species to eliminate pharmaceuticals and chloride-containing intermediates by the activation of peroxymonosulfate under visible irradiation[J]. Catalysis Letters, 2020,150(5):1355-1367. doi: 10.1007/s10562-019-03047-4

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

降解产物编号	化学式	质荷比	保留时间/min
A	C₁₃H₉N	180.082 6	5.72
B	C₁₃H₉NO	196.077 3	4.33
C	C₁₄H₉NO	210.092 3	5.93
D	C₁₅H₁₀N₂O₂	251.082 4	3.73
E1	C₁₅H₁₂N₂O₂	253.098 0	3.20
E2	C₁₅H₁₂N₂O₂	253.092 8	3.97
E3	C₁₅H₁₂N₂O₂	253.098 1	4.57
F	C₁₅H₁₃NO	224.108 3	4.14

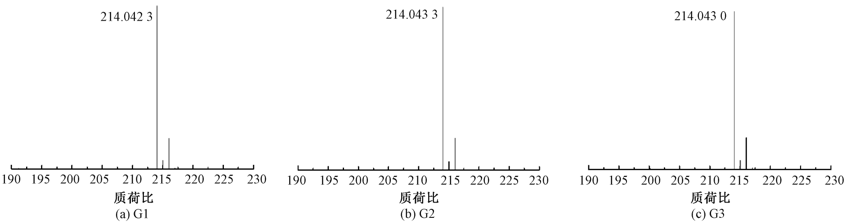

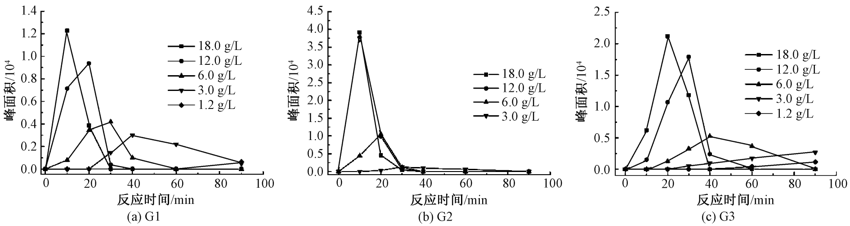

G1	C₁₃H₈ClN	214.042 3	6.81
G2	C₁₃H₈ClN	214.043 3	6.90
G3	C₁₃H₈ClN	214.043 0	7.39
