木质素/聚丙烯腈基碳纤维的制备及其表征

doi:10.13475/j.fzxb.20200808308

纺织学报 ›› 2021, Vol. 42 ›› Issue (07): 54-61.doi: 10.13475/j.fzxb.20200808308

木质素/聚丙烯腈基碳纤维的制备及其表征

阳智¹, 刘呈坤¹(), 吴红², 毛雪¹

1.西安工程大学纺织科学与工程学院, 陕西西安 710048
2.陕西省纺织科学研究院, 陕西西安 710038

收稿日期:2020-08-20 修回日期:2021-04-09 出版日期:2021-07-15 发布日期:2021-07-22
通讯作者: 刘呈坤
作者简介:阳智(1992—),男,硕士生。主要研究方向为静电纺纳米纤维的制备与应用。
基金资助:
国家自然科学基金项目(51503168);陕西省创新能力支撑计划-科技资源开放共享平台项目(2020PT-043);陕西省创新人才推进计划-青年科技新星项目(2017KJXX-23);山东省博士后创新项目专项资金资助项目(201504)

Preparation and characterization of lignin/polyacrylonitrile-based carbon fibers

YANG Zhi¹, LIU Chengkun¹(), WU Hong², MAO Xue¹

1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
2. Shaanxi Textile Science Institute, Xi'an, Shaanxi 710038,China

Received:2020-08-20 Revised:2021-04-09 Published:2021-07-15 Online:2021-07-22
Contact: LIU Chengkun

摘要/Abstract

摘要：

为实现木质素作为一种可再生、易降解的环保原材料在制备碳纤维领域的应用,通过静电纺丝、预氧化和炭化工艺制备了木质素/聚丙烯腈基碳纤维。借助旋转流变仪、电导率仪、扫描电子显微镜、傅里叶变换红外光谱仪、X射线光电子能谱仪和比表面积测试仪研究了木质素的添加对纺丝溶液的性质、预氧丝和碳纤维结构与性能的影响。结果表明:在保证溶液可纺性和纤维成纤性的基础上,木质素与聚丙烯腈的质量比可提高到90∶10,最大程度地实现了木质素的高值化利用;添加木质素后,预氧丝具有耐热稳定的梯形结构,制备的碳纤维比表面积从50.49增大到849.89 m²/g,在电池和超级电容器等能源领域具有重要的潜在应用价值。

关键词: 静电纺丝, 木质素, 聚丙烯腈, 预氧丝, 碳纤维

Abstract:

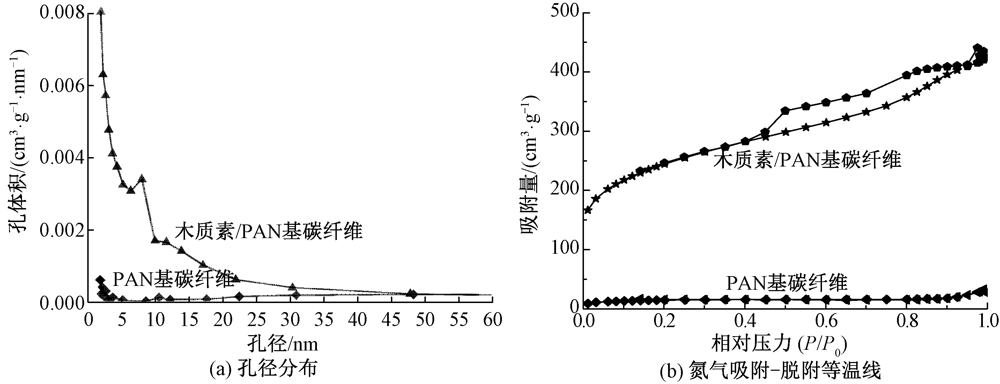

In order to use lignin as a renewable and degradable raw material in the preparation of carbon fiber, lignin/polyacrylonitrile (PAN) based carbon fiber was prepared by electrospinning, pre-oxidation and carbonization. The effect of lignin addition on the properties of spinning solution and structure and properties of preoxidized fiber and carbon fiber were studied by means of rotary rheometer, conductivity meter, scanning electron microscope, Fourier transform infrared spectrometer, X-ray photoelectron spectroscopy and specific surface area tester.The results show that the mass ratio of lignin to PAN can be increased to 90∶10 on the basis of ensuring the solution spinnability and fiber-forming property, which maximizes the high-value utilization of lignin. The pre-oxidized fiber has a heat-resistant and stable trapezoidal structure after adding lignin. The specific surface area of carbon nanofiber increases from 50.49 to 849.89 m²/g, which has important potential application value in battery, supercapacitor and other energy fields.

Key words: electrospinning, lignin, polyacrylonitrile, pre-oxidized fiber, carbon fiber

中图分类号:

TS102.6

阳智, 刘呈坤, 吴红, 毛雪. 木质素/聚丙烯腈基碳纤维的制备及其表征[J]. 纺织学报, 2021, 42(07): 54-61.

YANG Zhi, LIU Chengkun, WU Hong, MAO Xue. Preparation and characterization of lignin/polyacrylonitrile-based carbon fibers[J]. Journal of Textile Research, 2021, 42(07): 54-61.

图/表 12

图1

表1

图2

图3

图4

图5

表2

图6

图7

图8

图9

图10

参考文献 23

[1]	RAZA A, WANG J Q, YANG S, et al. Hierarchical porous carbon nanofibers via electrospinning[J]. Carbon Letters, 2014, 15(1):1-14. doi: 10.5714/CL.2014.15.1.001
[2]	SCHLEE P, HEROU S, JERVIS R, et al. Free-standing supercapacitors from kraft lignin nanofibers with remarkable volumetric energy density[J]. Chemical Science, 2019, 10(10):2980-2988. doi: 10.1039/C8SC04936J
[3]	许丽洪. 电纺木质素/聚丙烯腈基碳纤维复合纳米材料及其储能特性研究[D]. 福州: 福建师范大学, 2015:11-12.
	XU Lihong. Energy storage performance of composite nanomaterials derived from electrospun LN-/PAN-based carbon fibers[D]. Fuzhou: Fujian Normal University, 2015: 11-12.
[4]	JAYAWICKRAMAGE R, BALKUS K J, FERRARIS J P, et al. Binder free carbon nanofiber electrodes derived from polyacrylonitrile-lignin blends for high performance supercapacitors[J]. Nanotechnology, 2019, 30(35):355402. doi: 10.1088/1361-6528/ab2274
[5]	KAZZAZ A E, FATEHI P. Fabrication of amphoteric lignin and its hydrophilicity/oleophilicity at oil/water interface[J]. Journal of Colloid and Interface Science, 2020, 561:231-243. doi: 10.1016/j.jcis.2019.11.111
[6]	ZHU J D, YAN C Y, ZHANG X, et al. A sustainable platform of lignin: from bioresources to materials and their applications in rechargeable batteries and supercapacitors[J]. Progress in Energy and Combustion Science, 2020, 76:100788. doi: 10.1016/j.pecs.2019.100788
[7]	SCHLEE P, HOSSEINAEI O, BAKER D, et al. From waste to wealth: from kraft lignin to free-standing supercapacitors[J]. Carbon, 2019, 145:470-480. doi: 10.1016/j.carbon.2019.01.035
[8]	DAI Z, REN P G, AN Y L, et al. Nitrogen-sulphur Co-doped graphenes modified electrospun lignin/polyacrylonitrile-based carbon nanofiber as high performance supercapacitor[J]. Journal of Power Sources, 2019, 437:226937. doi: 10.1016/j.jpowsour.2019.226937
[9]	TAO L, HUANG Y B, ZHENG Y W, et al. Porous carbon nanofiber derived from a waste biomass as anode material in lithium-ion batteries[J]. Journal of the Taiwan Institute of Chemical Engineers, 2019, 95:217-226. doi: 10.1016/j.jtice.2018.07.005
[10]	SONG M, TANG X H, XU J, et al. The formation of novel carbon/carbon composite by chemical vapor deposition: an efficient adsorbent for enhanced desulfurization performance[J]. Journal of Analytical and Applied Pyrolysis, 2016, 118:34-41. doi: 10.1016/j.jaap.2015.12.020
[11]	顾红星, 王浩静, 范立东, 等. 聚丙烯腈预氧丝预氧化程度表征分析[J]. 化工学报, 2015, 66(3):1228-1233.
	GU Hongxing, WANG Haojing, FAN Lidong, et al. Evaluation and analysis of pre-oxidation extent of polyacrylonitrile fiber[J]. CIESC Journal, 2015, 66(3):1228-1233.
[12]	MA A, LI C, DU W, et al. Study on biomass based nanofibers preparation by electrospinning[J]. Journal of Nanoscience and Nanotechnology, 2014, 14(9):7204-7210. doi: 10.1166/jnn.2014.8976
[13]	WANG X, ZHANG W, CHEN M Z, et al. Electrospun enzymatic hydrolysis lignin-based carbon nanofibers as binder-free supercapacitor electrodes with high performance[J]. Polymers, 2018, 10(12):1306. doi: 10.3390/polym10121306
[14]	王成国, 朱波. 聚丙烯腈基碳纤维[M]. 北京: 中国科学出版社, 2011: 114-118.
	WANG Chengguo, ZHU Bo. Polyacrylonitrile-based carbon fiber [M]. Beijing: China Science Press, 2011: 114-118.
[15]	贺福. 碳纤维及石墨纤维[M]. 北京: 化学工业出版社, 2017: 161-163.
	HE Fu. Carbon fiber and graphite fiber [M]. Beijing: Chemical Industry Press, 2017: 161-163.
[16]	DING R, WU H, THUNGA M, et al. Processing and characterization of low-cost electrospun carbon fibers from organosolv lignin/polyacrylonitrile blends[J]. Carbon, 2016, 100:126-136. doi: 10.1016/j.carbon.2015.12.078
[17]	DAI Z, SHI X, LIU H, et al. High-strength lignin-based carbon fibers via a low-energy method[J]. RSC Advances, 2018, 8(3):1218-1224. doi: 10.1039/C7RA10821D
[18]	DALLMEYER I, LIN L T, LI Y, et al. Preparation and characterization of interconnected, kraft lignin-based carbon fibrous materials by electrospinning[J]. Macromolecular Materials and Engineering, 2014, 299(5):540-551. doi: 10.1002/mame.v299.5
[19]	OROUMEI A, FOX B, NAEBE M. Thermal and rheological characteristics of biobased carbon fiber precursor derived from low molecular weight organosolv lignin[J]. ACS Sustainable Chemistry & Engineering, 2015, 3(4):758-769.
[20]	蔡则田. 用Raman光谱研究碳纤维结构及其微观力学性能[D]. 上海: 东华大学, 2010: 4-9.
	CAI Zetian. Stduies on the structure and micro-mechanical properties of carbon fiber by raman sepectrum[D]. Shanghai: Donghua University, 2010: 4-9.
[21]	LAI C L, ZHOU Z P, ZHANG L F, et al. Free-standing and mechanically flexible mats consisting of electrospun carbon nanofibers made from a natural product of alkali lignin as binder-free electrodes for high-performance supercapacitors[J]. Journal of Power Sources, 2014, 247:134-141. doi: 10.1016/j.jpowsour.2013.08.082
[22]	JAYAWICKRAMAGE R A P, FERRARIS J P. High performance supercapacitors using lignin based electrospun carbon nanofiber electrodes in ionic liquid electrolytes[J]. Nanotechnology, 2019, 30(15):155402. doi: 10.1088/1361-6528/aafe95
[23]	王欢. 木质素碳/ZnO复合材料的制备及在光催化和超级电容器中的应用[D]. 广州: 华南理工大学, 2018: 133-134.
	WANG Huan. Preparation of lignin-based carbon and ZnO composite and its application in photocatalysis and supercapacitor[D]. Guangzhou: South China University of Technology, 2018: 133-134.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

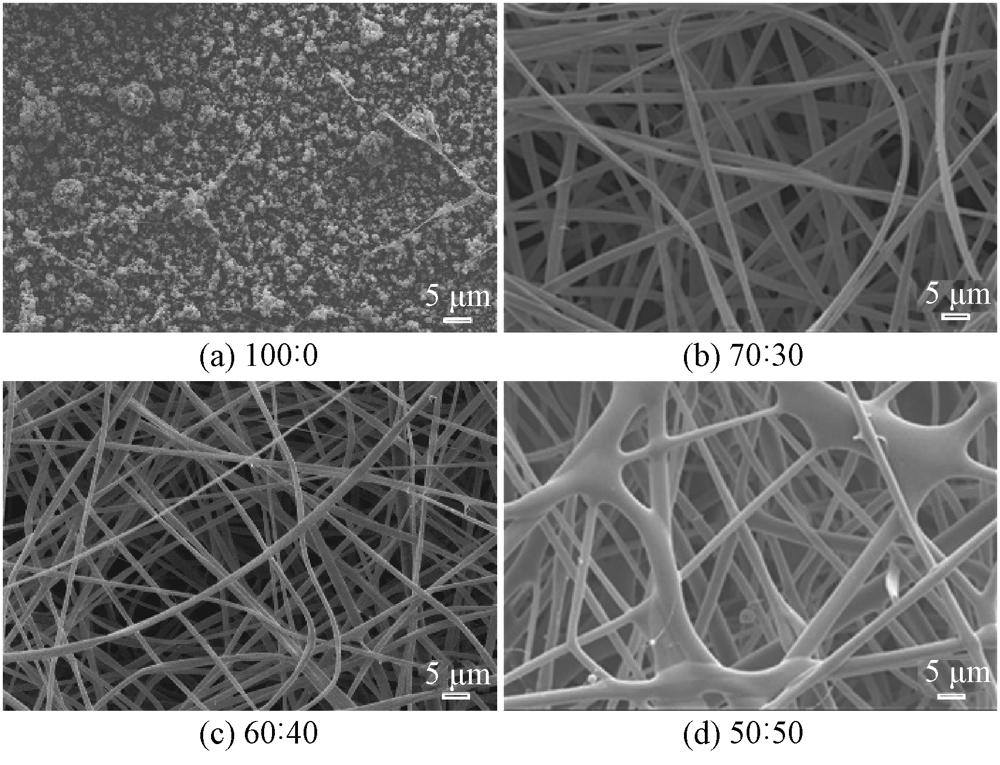

DMSO和DMF体积比	电导率/(mS·cm^-1)	黏度/(Pa·s)
100:0	0.32	0.878
70:30	0.39	1.309
60:40	0.47	2.294
50:50	0.58	2.634

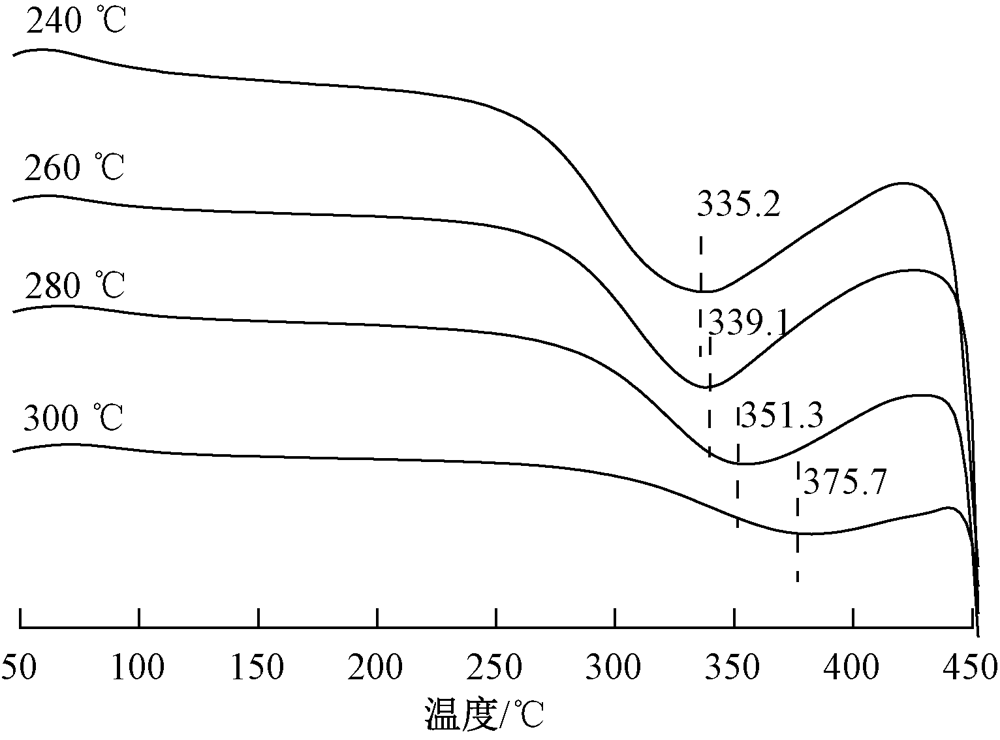

预氧化温度/℃	放热起始温度/℃	放热峰值温度/℃	放热终止温度/℃	放热量/ (J·g^-1)	环化度/%
240	262.9	332.9	411.3	4 276	48.8
260	275.3	339.1	404.3	3 511	57.9
280	284.7	351.3	420.1	2 769	83.5
300	297.6	375.7	441.0	1 341	83.9
