环锭纺及转杯纺和喷气涡流纺混色纱的纤维混合效果研究

doi:10.13475/j.fzxb.20200903907

纺织学报 ›› 2021, Vol. 42 ›› Issue (07): 76-81.doi: 10.13475/j.fzxb.20200903907

环锭纺及转杯纺和喷气涡流纺混色纱的纤维混合效果研究

杨瑞华¹(), 潘博¹, 郭霞¹, 王利军², 李健伟³

1.生态纺织教育部重点实验室(江南大学), 江苏无锡 214122
2.德州华源生态科技有限公司,山东德州 253000
3.苏州多道自动化科技有限公司, 江苏苏州 215000

收稿日期:2020-09-06 修回日期:2021-03-15 出版日期:2021-07-15 发布日期:2021-07-22
作者简介:杨瑞华(1981—),女,教授。主要研究方向为纺织新技术。E-mail: yangrh@jiangnan.edu.cn。
基金资助:
江苏省自然科学基金面上项目(BK20181350);国家自然科学基金青年基金项目(51403085)

Study on fiber mixing effect in ring spun, rotor and air-jet-vortex spun color blended yarns

YANG Ruihua¹(), PAN Bo¹, GUO Xia¹, WANG Lijun², LI Jianwei³

1. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
2. Dezhou Huayuan Ecological Technology Co., Ltd., Dezhou, Shandong 253000, China
3. Suzhou Duodao Automation Technology Co., Ltd., Suzhou, Jiangsu 215000, China

Received:2020-09-06 Revised:2021-03-15 Published:2021-07-15 Online:2021-07-22

摘要/Abstract

摘要：

为研究环锭纺、转杯纺和喷气涡流纺3种不同成纱方法对混色纱中各色纤维混合效果的影响,分别使用3种成纱方法、2种条混方式(1道并条工序、3道并条工序)纺制6种混色纱,并制作6种混色纱的横截面切片样本,通过计算汉密尔顿指数,表征混色纱中各色纤维径向分布的均匀程度,分析不同成纱方法的纤维混合规律;同时测试6种混色纱的成纱性能,分析不同成纱方法混色纱的成纱质量。结果表明:转杯纺混色纱纤维混合效果优于环锭纺和喷气涡流纺,环锭纺次之,喷气涡流纺纤维混合最不均匀;经过3道并条工序的混色纱纤维混合效果优于经过1道并条工序的混色纱;环锭纺混色纱的强度最高,喷气涡流纺混色纱的毛羽最少。

关键词: 环锭纺, 转杯纺, 喷气涡流纺, 混色纱, 汉密尔顿指数, 混合效果

Abstract:

In order to study the influence of different yarn forming methods (ring spun, rotor spun and air-jet-vortex spun) on the mixing effect of different colored fibers in blended yarns, six types of color blended yarns were spun by using two blending methods (one-drawing process and three-drawing process) and three yarn forming methods. Cross-sectional samples of color blended yarns were made, and Hamilton index was calculated to characterize the radial distribution of colored fibers in the blended yarns. By testing the yarn properties, the yarn quality associated to different spinning methods was analyzed. The results show that the fiber mixing effect of rotor spun blended yarn is best, followed by the air-jet-vortex and ring spun yarns. The fiber mixing effect of the color blended yarns with three-drawing processes was better than that with one-drawing process, and the strength of blended ring spun yarns was the highest, and the hairiness of air-jet-vortex spun blended yarns was the least.

Key words: ring spun, rotor spun, air-jet-vortex spun, color blended yarn, Hamilton index, mixing effect

中图分类号:

TS101.2

杨瑞华, 潘博, 郭霞, 王利军, 李健伟. 环锭纺及转杯纺和喷气涡流纺混色纱的纤维混合效果研究[J]. 纺织学报, 2021, 42(07): 76-81.

YANG Ruihua, PAN Bo, GUO Xia, WANG Lijun, LI Jianwei. Study on fiber mixing effect in ring spun, rotor and air-jet-vortex spun color blended yarns[J]. Journal of Textile Research, 2021, 42(07): 76-81.

图/表 6

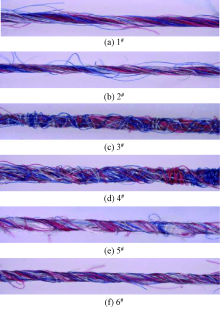

图1

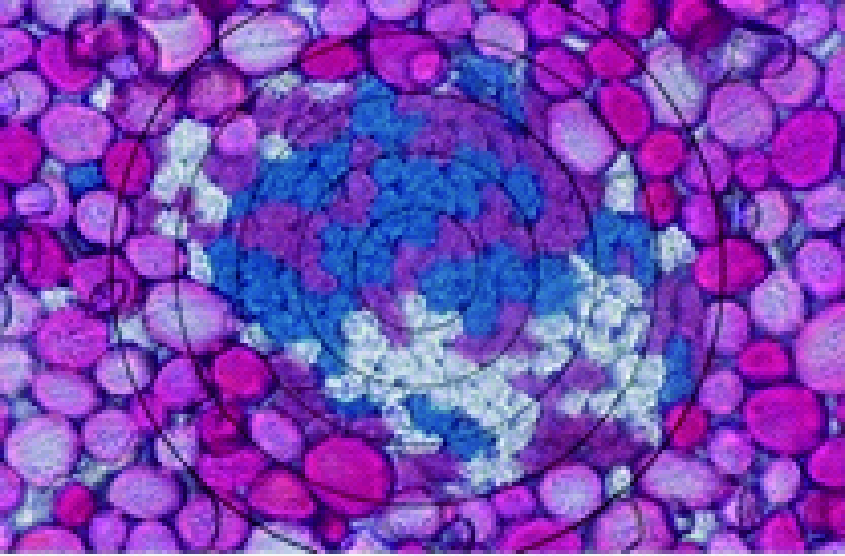

图2

表1

表2

图3

表3

参考文献 17

[1]	童艺翾, 周丽娜, 徐舒曼, 等. 转杯纺混色纱线横截面内纤维转移的分布规律分析[J]. 纺织报告, 2018(1):64-67.
	TONG Yixuan, ZHOU Lina, XU Shuman, et al. Study on the fiber distribution in the cross section of OE mélange yarn[J]. Textile Reports, 2018(1):64-67.
[2]	杨瑞华, 徐亚亚, 韩瑞叶, 等. 多通道转杯纺混色纱的Friele配色模型[J]. 纺织学报, 2019, 40(3):44-48.
	YANG Ruihua, XU Yaya, HAN Ruiye, et al. Friele color matching model of multi-channel rotor-spun mixed color yarn[J]. Journal of Textile Research, 2019, 40(3):44-48.
[3]	桂亚夫. 色纺纱产品设计和质量控制方法[J]. 纺织导报, 2020(6):32-35.
	GUI Yafu. Product design and quality control methods for colored spun yarn[J]. China Textile Leader, 2020(6):32-35.
[4]	罗建红, 刘光彬, 刘晓东. 不同混和方式对色纺纱混和均匀性的影响分析[J]. 棉纺织技术, 2015, 43(9):42-45.
	LUO Jianhong, LIU Guangbin, LIU Xiaodong. Innuence analyses of different blending method on blending uniformity of colored spun yarn[J]. Cotton Textile Technology, 2015, 43(9):42-45.
[5]	徐惠君, 史倩倩, 汪军. 纺纱方法的分析与创新[J]. 纺织器材, 2019, 46(6):51-54.
	XU Huijun, SHI Qianqian, WANG Jun. Analysis and innovation of spinning methods[J]. Textile Accessories, 2019, 46(6):51-54.
[6]	章友鹤, 赵连英. 环锭细纱机的技术进步与创新[J]. 纺织导报, 2015(1):52-57.
	ZHANG Youhe, ZHAO Lianying. Technological advancement and innovation of ring-spinning machine[J]. China Textile Leader 2015(1):52-57.
[7]	徐造林, 程四新, 章友鹤. 自动化、智能化技术助推纺纱企业提质降耗、减员增效[J]. 纺织导报, 2019(4):62-67.
	XU Zaolin, CHENG Sixin, ZHANG Youhe. Automation and intelligent technology promote the sustainable development of spinning enterprises[J]. China Textile Leader 2019(4):62-67.
[8]	胡田田, 杨瑞华, 邓茜茜, 等. 喷气涡流混色纱成纱结构与纤维混合特征[J]. 纺织科技进展, 2019(5):29-32.
	HU Tiantian, YANG Ruihua, DENG Qianqian, et al. Yarn structure and fiber mixing effect of color-blended air-jet vortex yarn[J]. Progress in Textile Science & Technology 2019(5):29-32.
[9]	郭明瑞, 杨瑞华, 周建, 等. 环锭数码纺粗纱喂入位置对混色纱表面显色的影响[J]. 纺织学报, 2018, 39(4):30-35,41.
	GUO Mingrui, YANG Ruihua, ZHOU Jian, et al. Influence of roving feeding location of ring digital spinning on color proportion of melange yarn[J]. Journal of Textile Research, 2018, 39(4):30-35,41.
[10]	邓茜茜, 杨瑞华, 徐亚亚, 等. 转杯纺混色棉纱的纤维混合均匀度[J]. 纺织学报, 2019, 40(7):31-37.
	DENG Qianqian, YANG Ruihua, XU Yaya, et al. Study on mixing uniformity of fibers in rotor-spun mixed yarns[J]. Journal of Textile Research, 2019, 40(7):31-37.
[11]	吴爱儿, 程四新, 王利清. 用环锭纺纱新技术开发新颖色纺纱[J]. 现代纺织技术, 2014, 22(2):22-24.
	WU Aier, CHENG Sixin, WANG Liqing. Development of new colored spun-dyed yarn with new technology of ring spinning[J]. Advanced Textile Technology, 2014, 22(2):22-24.
[12]	田光祥. 喷气涡流纺与环锭纺、转杯纺方法综合对比分析[J]. 现代纺织技术, 2011, 19(6):26-29.
	TIAN Guangxiang. Comprehensive comparative analysis of air jet vortex spinning, ring spinning and rotor spinning[J]. Advanced Textile Technology, 2011, 19(6):26-29.
[13]	陈顺明, 徐士琴, 姚锄强, 等. 喷气涡流纺开发腈毛混纺色纺纱的技术探析[J]. 纺织导报, 2018(1):46-49.
	CHEN Shunming, XU Shiqin, YAO Chuqiang, et al. Developing acrylic/wool blended heather yarn with air-jet vortex spinning technology[J]. China Textile Leader 2018(1):46-49.
[14]	荣慧, 章友鹤, 叶威威. 喷气涡流纺开发新颖色纺纱的生产实践[J]. 浙江纺织服装职业技术学院学报, 2018, 17(2):1-5,18.
	RONG Hui, ZHANG Youhe, YE Weiwei. Production practice of developing new color yarn with air-jet vortex spinning[J]. Journal of Zhejiang Fashion Institute of Technology, 2018, 17(2):1-5,18.
[15]	于伟东, 王锦成. 纤维分布和混纺比对毛涤混纺纱毛型感的影响[J]. 东华大学学报(自然科学版), 2001, 27(1):24-28.
	YU Weidong, WANG Jincheng. Effct of fiber distribution and blending ratio on hairiness of wool-polyester blended yarn[J]. Journal of Donghua University(Natural Science), 2001, 27(1):24-28.
[16]	周梦岚, 王府梅. 木棉纤维混纺纱中纤维的径向分布规律[J]. 纺织学报, 2015, 36(9):18-22.
	ZHOU Menglan, WANG Fumei. Fiber radial distribution rule of kapok fiber blended yarn[J]. Journal of Textile Research, 2015, 36(9):18-22.
[17]	于伟东, 储才元. 纺织物理[M]. 上海: 东华大学出版社, 2009:305-306.
	YU Weidong, CHU Caiyuan. Textile physics[M]. Shanghai: Donghua University Press, 2009:305-306.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样本编号	纤维类别	1^#	2^#	3^#	4^#	5^#	6^#
1	红色纤维	-23.94	43.45	23.68	-3.70	5.15	14.62
	白色纤维	-8.50	83.65	-9.52	-2.93	32.27	-11.84
	蓝色纤维	35.05	33.33	-8.12	5.75	-35.45	-3.39
2	红色纤维	-10.82	21.92	-1.37	-11.43	19.15	9.77
	白色纤维	17.86	50.11	20.00	-12.06	8.54	-2.65
	蓝色纤维	-9.59	26.47	-18.20	20.13	-27.48	-6.71
3	红色纤维	-33.66	11.37	8.41	11.34	33.17	13.69
	白色纤维	25.43	-16.39	14.05	-7.06	-21.40	-4.41
	蓝色纤维	4.28	7.21	-18.57	-1.68	-8.68	-5.86
4	红色纤维	-15.00	-11.61	8.74	4.06	3.41	11.83
	白色纤维	-0.69	8.47	15.20	5.28	23.77	-12.19
	蓝色纤维	18.81	2.91	-20.59	-8.42	-25.16	0.92
5	红色纤维	8.22	5.82	-29.04	-13.75	10.40	10.84
	白色纤维	4.17	5.13	10.71	-1.71	7.48	-13.30
	蓝色纤维	-11.27	-10.98	8.91	14.18	-19.49	6.80

混色纱编号	红色纤维	白色纤维	蓝色纤维
1^#	-16.29	8.29	7.87
2^#	2.69	2.95	-5.73
3^#	2.08	10.09	-11.31
4^#	-2.70	-3.70	5.99
5^#	14.25	10.13	-23.25
6^#	12.15	-8.88	-1.65

混色纱编号	断裂强度/ (cN·tex^-1)	断裂伸长率/%	毛羽指数 (3~9 mm)	CV值/%
1^#	12.7	13.3	15.8	12.8
2^#	14.3	13.9	17.3	10.3
3^#	11.2	10.9	10.4	12.1
4^#	11.6	11.5	12.3	12.2
5^#	11.2	10.8	0.1	13.8
6^#	13.6	13.1	0.1	12.1
