基于海藻酸钠/磷虾蛋白的支架材料制备及其性能

doi:10.13475/j.fzxb.20201008107

纺织学报 ›› 2021, Vol. 42 ›› Issue (02): 53-59.doi: 10.13475/j.fzxb.20201008107

基于海藻酸钠/磷虾蛋白的支架材料制备及其性能

殷聚辉¹, 郭静¹^,²(), 王艳¹^,², 曹政¹, 管福成¹^,², 刘树兴¹

1.大连工业大学纺织与材料工程学院, 辽宁大连 116034
2.辽宁省功能纤维及复合材料工程技术中心, 辽宁大连 116034

收稿日期:2020-10-29 修回日期:2020-11-06 出版日期:2021-02-15 发布日期:2021-02-23
通讯作者: 郭静
作者简介:殷聚辉(1994—),男,硕士生。主要研究方向为高分子材料研发。
基金资助:
国家自然科学基金项目(51773024);国家自然科学基金项目(51373027);辽宁省科技创新团队项目(LT2017017)

Preparation and properties of sodium alginate/krill protein scaffold materials

YIN Juhui¹, GUO Jing¹^,²(), WANG Yan¹^,², CAO Zheng¹, GUAN Fucheng¹^,², LIU Shuxing¹

1. School of Textile and Material Engineering, Dalian Polytechnic University, Dalian, Liaoning 116034, China
2. Functional Fiber and Its Composite Materials Engineering Technology Research Center of Liaoning Province, Dalian, Liaoning 116034, China

Received:2020-10-29 Revised:2020-11-06 Online:2021-02-15 Published:2021-02-23
Contact: GUO Jing

摘要/Abstract

摘要：

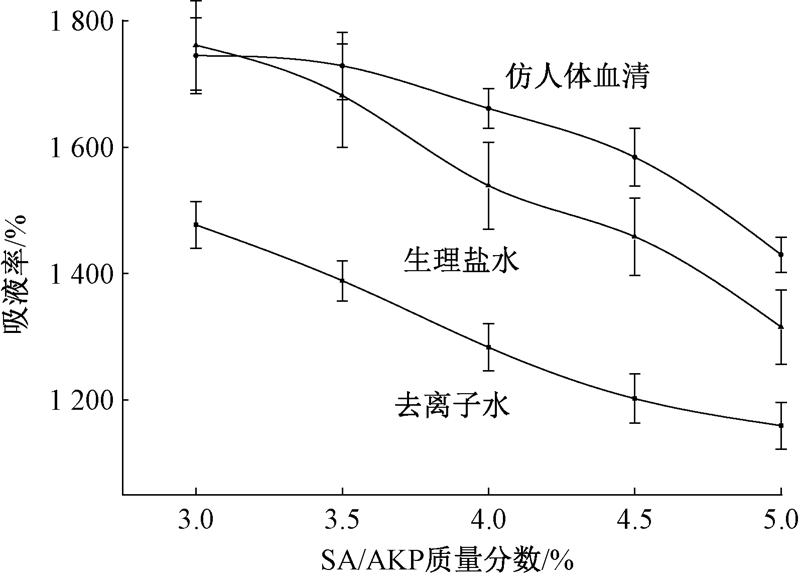

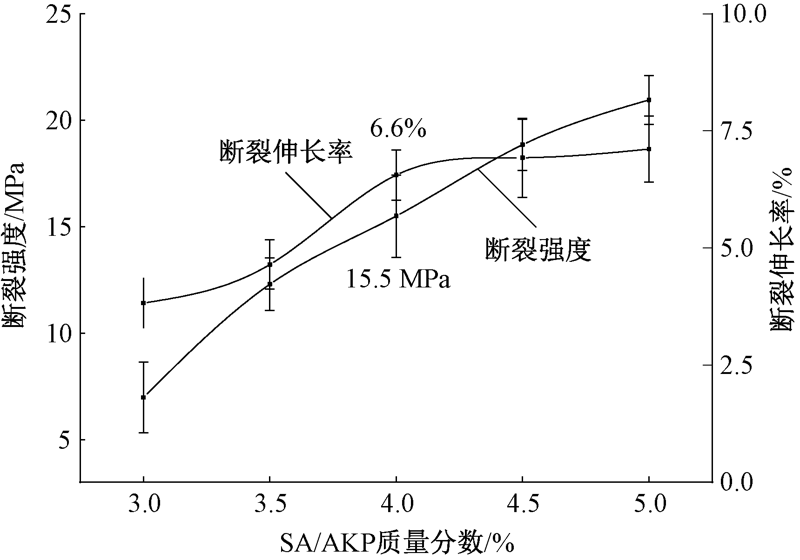

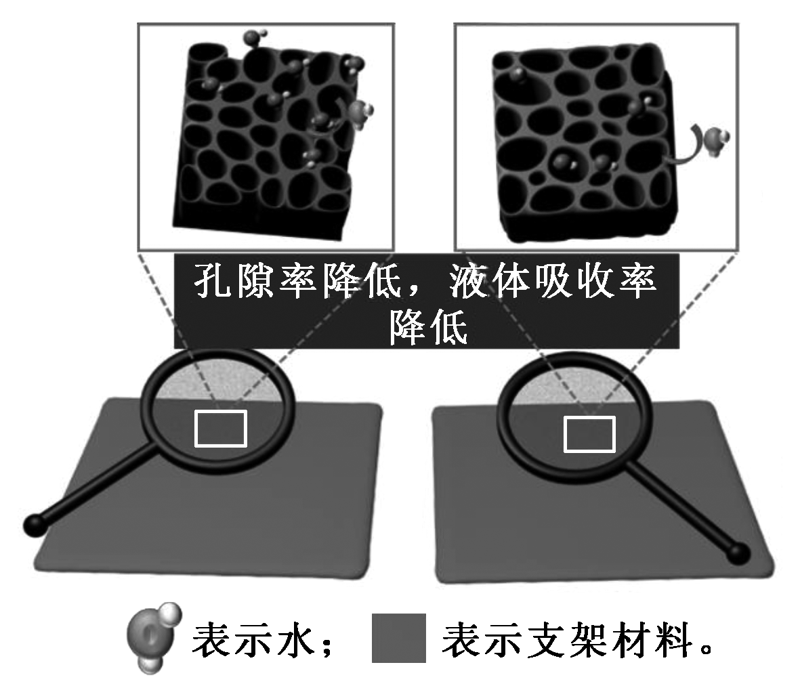

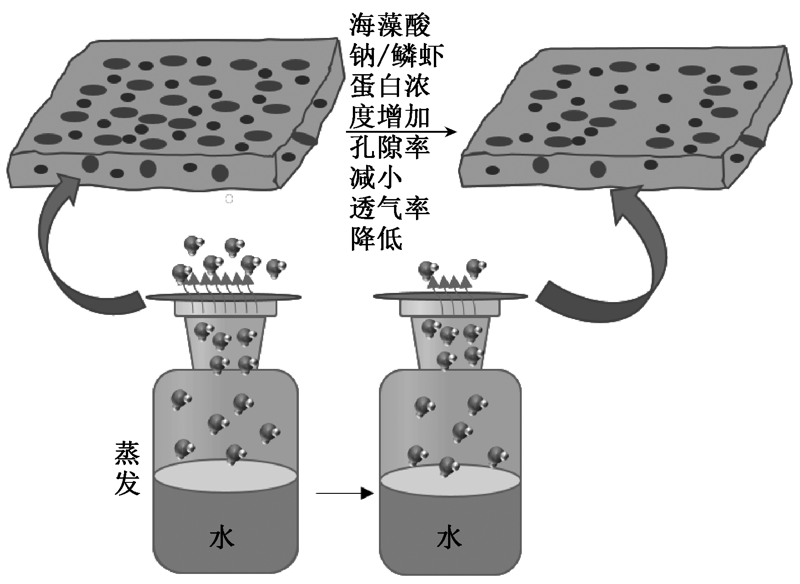

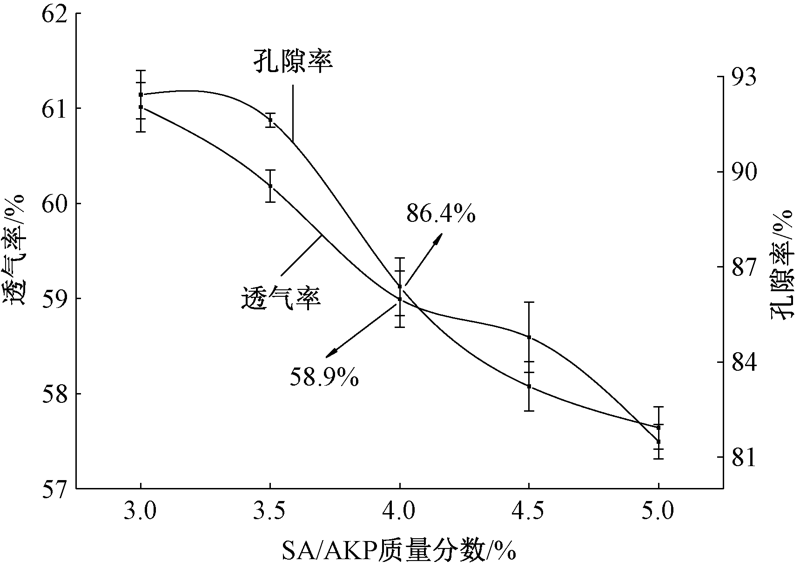

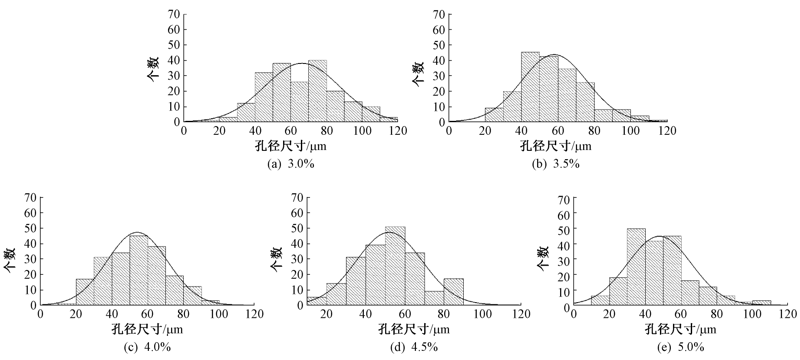

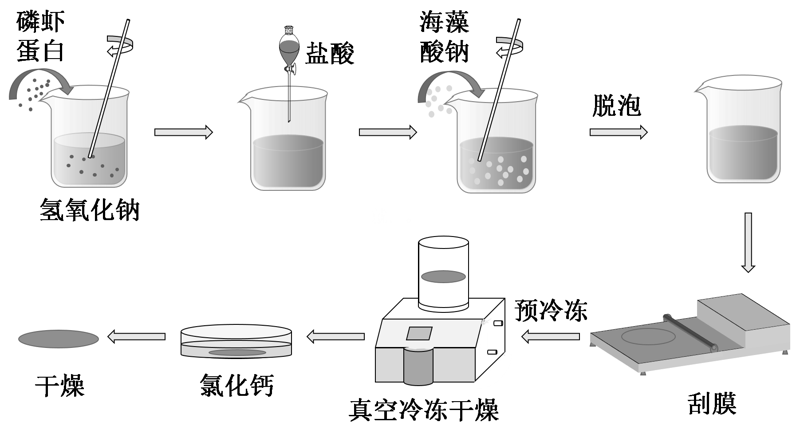

为提高海藻酸钠基支架材料的强度和生物相容性,以海藻酸钠(SA)和磷虾蛋白(AKP)构成聚电解质复合体系,通过低温诱导相分离-化学交联法制备SA/AKP支架材料,比较不同质量分数SA/AKP溶液制备的支架材料的结构形态、力学性能、孔隙率、透气性、吸水性及生物相容性。结果表明:在SA/AKP溶液质量分数为4%时,支架孔径在20~96 μm之间,孔径大小均一,形状规整;支架材料的孔隙率、透气性、液体吸收性随SA/AKP溶液质量分数增加而降低,断裂强度和断裂伸长率随SA/AKP溶液质量分数增加而增加,在质量分数为4%时,支架材料的孔隙率为86.4%,透气率为58.9%,且具有较高的强度与伸长;支架材料的细胞毒性等级为0级,具有优异的生物安全性。

关键词: 海藻酸钠, 磷虾蛋白, 低温诱导相分离, 支架材料, 生物相容性, 医用纺织品

Abstract:

In order to improve the strength and bio-compatibility of sodium alginate based scaffold materials made from polyelectrolyte composite system with sodium alginate (SA) and krill protein (AKP), SA/AKP scaffold materials were prepared by inducing phase separation-chemical cross-linking method at low-temperature. The structural morphology, mechanical properties, porosity, air permeability, water absorption and bio-compatibility of different concentrations of SA/AKP solutions were compared. The results show that when the concentration of SA/AKP sample is 4%, the pore size of the stent is between 20 and 96 μm with uniform and regular shape. The porosity, and absorptive characteristics of liquid and air permeability of the tissue scaffold decreased with the increasing concentration of SA/AKP solutions, and the fracture strength and elongation of the scaffold increased with the increasing concentration of SA/AKP solutions. When the concentration is 4%, the porosity of the scaffold material is 86.4%, the air permeability is 58.9%, while offering high strength and elongation. The cell toxicity grade of the scaffold is 0, indicating excellent biological safety.

Key words: sodium alginate, krill protein, low temperature induced phase separation, scaffold, bio-compatibility, medical textile

中图分类号:

O636.1

殷聚辉, 郭静, 王艳, 曹政, 管福成, 刘树兴. 基于海藻酸钠/磷虾蛋白的支架材料制备及其性能[J]. 纺织学报, 2021, 42(02): 53-59.

YIN Juhui, GUO Jing, WANG Yan, CAO Zheng, GUAN Fucheng, LIU Shuxing. Preparation and properties of sodium alginate/krill protein scaffold materials[J]. Journal of Textile Research, 2021, 42(02): 53-59.

图/表 11

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 20

[1]	YANG W, XU H J, LAN Y, et al. Preparation and characterisation of a novel silk fibroin/hyaluronic acid/sodium alginate scaffold for skin repair[J]. International Journal of Biological Macromolecules, 2019,130:58-67. pmid: 30797808
[2]	孙范忱, 郭静, 于跃, 等. 聚羟基脂肪酸酯/海藻酸钠纳米纤维的制备及其性能[J]. 纺织学报, 2020,41(5):15-19.
	SUN Fanchen, GUO Jing, YU Yue, et al. Preparation and properties of polyhydroxy fatty acid ester/sodium alginate composite electrospun nanofibers[J]. Journal of Textile Research, 2020,41(5):15-19.
[3]	王明强, 崔明洁, 蒋秋路, 等. 壳聚糖/海藻酸钠复合膜制备及性能研究[J]. 化工新型材料, 2017,45(8):59-61.
	WANG Mingqiang, CUI Mingjie, JIANG Qiulu, et al. Preparation and property of chitosan/sodium alginate composite film[J]. New Chemical Materials, 2017,45(8):59-61.
[4]	AYUB A D, CHIU H L, MAT YUSUF S N A, et al. Biocompatible disulphide cross-linked sodium alginate derivative nanoparticles for oral colon-targeted drug delivery[J]. Artificial Cells, Nanomedicine, and Biotechnology, 2019,47(1):353-369. pmid: 30691309
[5]	MAO X Y, LI X Y, ZHANG W J, et al. Development of microspheres based on thiol-modified sodium alginate for intestinal-targeted drug delivery[J]. ACS Applied Bio Materials, 2019,2:5810-5818.
[6]	DELIA N L, SILVA R R, SARTUQUI J, et al. Development and characterisation of bilayered periosteum-inspired composite membranes based on sodium alginate-hydroxyapatite nanoparticles[J]. Journal of Colloid and Interface Science, 2020,572:408-420. pmid: 32272315
[7]	舒华金, 吴春萱, 杨康, 等. 快速膨胀海藻酸钠/二氧化硅纤维复合支架的制备及其快速止血功能的应用[J]. 材料工程, 2019,47(12):124-129.
	SHU Huajin, WU Chunxuan, YANG Kang, et al. Preparation of rapid expansion alginate/silica fiber composite scaffold and application of rapid hemostatic function[J]. Journal of Materials Engineering, 2019,47(12):124-129.
[8]	SOLOVIEVA E V, FEDOTOV A Y, MAMONOV V E, et al. Fibrinogen-modified sodium alginate as a scaffold material for skin tissue engineering[J]. Biomedical Materials, 2018,13(2):025007.
[9]	YANG W, XU H J, LAN Y, et al. Preparation and characterisation of a novel silk fibroin/hyaluronic acid/sodium alginate scaffold for skin repair[J]. International Journal of Biological Macromolecules, 2019,130:58-67. pmid: 30797808
[10]	LI L Y, CHEN Y Z, WANG Y W, et al. Effects of concentration variation on the physical properties of alginate-based substrates and cell behavior in cul-ture[J]. International Journal of Biological Macromolecules, 2019,128:184-195. pmid: 30684581
[11]	陈娜丽, 任亚鹏, 翁立娟, 等. 海藻酸钠的浓度对聚苯胺/海藻酸钠电化学性能的影响[J]. 精细化工, 2016,33(4):372-376.
	CHEN Nali, REN Yapeng, WENG Lijuan, et al. Effect of sodium alginate concentration on the electrochemical performance of polyaniline/sodium alginate[J]. Fine Chemicals, 2016,33(4):372-376.
[12]	QI R R, GUO J, LIU Y F, et al. Effects of salt content on secondary structure of protein in sodium alginate/antarctic krill protein composite system and characterization of fiber properties[J]. Dyes and Pigments, 2019,171:107686.
[13]	杨利军, 郭静, 李圣林, 等. 高强度南极磷虾蛋白/海藻复合纤维的制备与表征[J]. 复合材料学报, 2016,33(7):1524-1530.
	YANG Lijun, GUO Jing, LI Shenglin, et al. Preparation and characterization of high strength antarctic krill protein/alginate composite fiber[J]. Acta Materiae Compositae Sinica, 2016,33(7):1524-1530.
[14]	ZHANG R, GUO J, WU J, et al. Preparation, characterization and properties of high-salt-tolerance sodium alginate/krill protein composite fibers[J]. Fibers and Polymers, 2018,19(5):1074-1083.
[15]	郭静, 李学才, 于春芳, 等. 南极磷虾蛋白的提取及其复合纤维的性能[J]. 大连工业大学学报, 2014,33(4):270-273.
	GUO Jing, LI Xuecai, YU Chunfang, et al. Extraction of antarctic krill protein and properties of its composite fibers[J]. Journal of Dalian Polytechnic University, 2014,33(4):270-273.
[16]	方艳, 徐水, 吴婷芳, 等. 丝胶蛋白/羟基磷灰石/聚己内酯复合支架材料的制备及表征[J]. 材料导报, 2019,33(S2):533-537.
	FANG Yan, XU Shui, WU Tingfang, et al. Preparation and characterization of sericin/hydroxyapatite/polycaprolactone composite scaffold materials[J]. Materials Reports, 2019,33(S2):533-537.
[17]	张珂, 隋淑英, 朱平, 等. 海藻酸钠/魔芋葡甘露聚糖复合海绵材料的制备及性能[J]. 化工进展, 2017,36(11):4176-4181.
	ZHANG Ke, SUI Shuying, ZHU Ping, et al. Preparation and performance of sodium alginate/KGM sponge[J]. Chemical Industry and Engineering Progress, 2017,36(11):4176-4181.
[18]	WU C N, FUH S C, LIN S P, et al. TEMPO-oxidized bacterial cellulose pellicle with silver nanoparticles for wound dressing[J]. Biomacromolecules, 2018,19(2):544-554. pmid: 29334612
[19]	LEE W, DEBASITIS J C, LEE V K, et al. Multi-layered culture of human skin fibroblasts and keratinocytes through three-dimensional freeform fabrication[J]. Biomaterials, 2009,30(8):1587-1595. doi: 10.1016/j.biomaterials.2008.12.009 pmid: 19108884
[20]	LAN Y, LI W, GUO R, et al. Preparation and characterisation of vancomycin-impregnated gelatin microspheres/silk fibroin scaffold[J]. Journal of Biomaterials Science, Polymer Edition, 2014,25(1), 75-87.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

细胞增殖率/%	毒性水平/级
≥100	0
75~99	1
50~74	2
25~49	3
1~24	4
0	5
