基于四节点体温调节模型的睡眠系统舒适性预测

潘梦娇1, 卢业虎1,2,3(), 王敏2

  1. 1.苏州大学 纺织与服装工程学院, 江苏 苏州 215006
    2.东华大学 现代服装设计与技术教育部重点实验室, 上海 200051
    3.吴江万旺纺织有限公司, 江苏 苏州 215226
  • 收稿日期:2020-12-28 修回日期:2021-06-04 出版日期:2021-09-15 发布日期:2021-09-27
  • 通讯作者: 卢业虎
  • 作者简介:潘梦娇(1998—),女,硕士生。主要研究方向为服装舒适性。
  • 基金资助:
    中国博士后基金面上项目(2020M671605);现代服装设计与技术教育部重点实验室开放课题资助项目(KCLDT2020-3)

Prediction of thermal comfort for bedding system based on four-node thermoregulation model

PAN Mengjiao1, LU Yehu1,2,3(), WANG Min2

  1. 1. College of Textile and Clothing Engineering, Soochow University, Suzhou, Jiangsu 215006, China
    2. Key Laboratory of Clothing Design & Technology, Ministry of Education, Donghua University, Shanghai 200051, China
    3. Wujiang Wanwang Textile Co., Ltd., Suzhou, Jiangsu 215226, China
  • Received:2020-12-28 Revised:2021-06-04 Published:2021-09-15 Online:2021-09-27
  • Contact: LU Yehu

RichHTML

22

PDF (PC)

140

摘要：

为了优化设计人体睡眠系统,考虑了不同睡眠时期生理参数的差异性,建立并验证了睡眠状态下四节点体温调节模型,预测了核心温度和皮肤温度的变化,探讨了环境温度、被褥热阻及人体与被褥的接触面积3个因素对睡眠人体热舒适性的影响。研究结果表明:核心温度和皮肤温度均随环境温度的升高而上升,但在较低环境温度下处于非快速眼动时期的核心温度几乎不受环境温度的影响;被褥热阻对核心温度的影响不大,皮肤温度随被褥热阻的增大而上升;核心温度和皮肤温度均随人体与被褥接触面积的增大而上升,但核心温度受接触面积的影响较小。此研究结果将为高性能家用纺织品的开发提供科学的参考。

关键词: 体温调节, 热舒适, 四节点模型, 睡眠系统, 家用纺织品

Abstract:

To optimize the design of bedding systems, the difference of physiological parameters during different sleeping periods was considered. In this research, a four-node thermoregulation model was established and verified, the change of core temperature and skin temperature was predicted, and the effects of ambient temperature, thermal resistance of bedding system and contact area between human body and bedding system on thermal comfort for sleeping human were investigated. The results show that core temperature and skin temperature both increase with the increasing of ambient temperature, whereas core temperature during NREM in low temperature environment is hardly affected by the ambient temperature. The influence of thermal resistance of bedding system on core temperature is not significant, while the skin temperature is kept increasing with thermal resistance of bedding system. The core temperature and skin temperature both increase with the increasing of the contact area between human body and bedding system, but the core temperature is less affected. The results of this study will provide scientific basis for design of high-performance home textile products.

Key words: temperature regulation, thermal comfort, four-node model, bedding system, home textile product

中图分类号:

  • TS941.75

表1

模型输入参数"

被服系统参数 人体参数 环境参数 皮肤各部分的表面积占比αi
被褥热阻/(m2·K·W-1) 床垫热阻/(m2·K·W-1) 身高/m 体重/kg 温度/℃ 湿度/% α1/% α2/% α3/%
0.958 0.690 1.607 53.7 4.93 57.0 4.3 47.6 48.1

图1

Tcr和Tsk的实验与预测结果比较"

图2

睡眠人体与床褥系统的接触情况"

表2

实验设计表"

实验
编号		 环境温
度/℃		 被褥热阻/
(m2·K·W-1)		 睡眠
状态		 α1/% α2/% α3/%
N1 17 0.9 20.4 31.5 48.1
N2 20 0.9 20.4 31.5 48.1
N3 23 0.9 B 20.4 31.5 48.1
N4 20 0.5 20.4 31.5 48.1
N5 20 1.3 20.4 31.5 48.1
N6 20 0.9 A 11.1 40.8 48.1
N7 20 0.9 C 31.1 20.8 48.1

图3

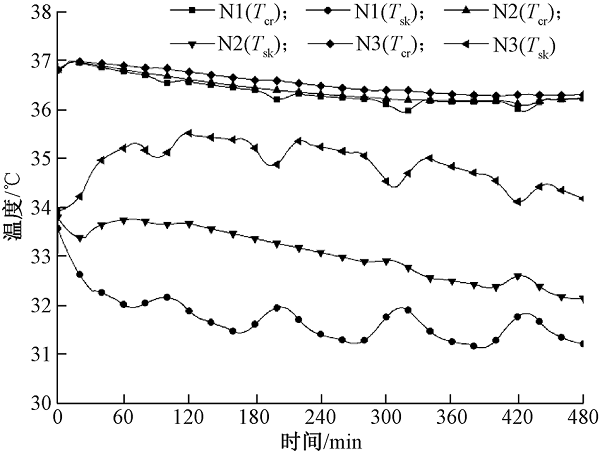

不同环境温度下睡眠人体Tcr和Tsk的比较"

图4

不同被褥热阻下睡眠人体Tcr和Tsk的比较"

图5

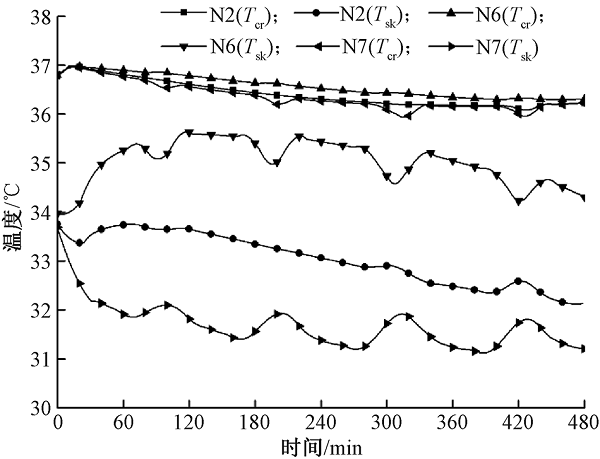

人体与被褥不同接触面积下睡眠人体Tcr和Tsk的比较"
