三维编织复合材料中碳纳米管纱线嵌入位置和数量的优化配置

doi:10.13475/j.fzxb.20210101907

纺织学报 ›› 2021, Vol. 42 ›› Issue (09): 76-82.doi: 10.13475/j.fzxb.20210101907

三维编织复合材料中碳纳米管纱线嵌入位置和数量的优化配置

万振凯¹(), 贾敏瑞², 包玮琛²

1.天津工业大学工程教学中心, 天津 300387
2.天津工业大学纺织科学与工程学院, 天津 300387

收稿日期:2021-01-11 修回日期:2021-03-17 出版日期:2021-09-15 发布日期:2021-09-27
作者简介:万振凯(1964—),男,教授,博士。主要研究方向为三维编织复合材料检测方法。E-mail: wanzhenkai@tiangong.edu.cn。

Optimal configuration of embedded position and number of carbon nanotube yarns in 3-D braided composites

WAN Zhenkai¹(), JIA Minrui², BAO Weichen²

1. Engineering Teaching Center, Tiangong University, Tianjin 300387, China
2. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China

Received:2021-01-11 Revised:2021-03-17 Published:2021-09-15 Online:2021-09-27

摘要/Abstract

摘要：

为解决三维编织复合材料嵌入碳纳米管(CNT)纱线传感器优化配置目标多、目标函数不连续问题,实现航天结构制件内部损伤的全面监测,采用非支配邻域免疫算法对多目标优化问题进行了研究。以四步法三维六向编织工艺为依据,分析了CNT纱线传感器的最佳嵌入位置和数量;通过非支配邻近免疫算法实现了CNT纱线传感器优化配置问题的求解,推导出不同尺寸的三维编织复合材料制件嵌入传感器的最优数量和位置。对损伤制件的应力实验及数据分析证明,CNT纱线传感器优化配置结果适用于三维编织复合材料的损伤监测,损伤定位误差小于0.6 mm。该研究为复合材料损伤源定位模型的建立提供参考。

关键词: 碳纳米管纱线, 非支配邻域免疫算法, 传感器优化配置, 损伤定位源, 三维编织复合材料

Abstract:

In order to facilitate comprehensive monitoring of the internal damage of aerospace structures, the optimal configuration of 3-D intelligent braided composites embedded with carbon nanotube(CNT)yarns as sensors with multiple targets and discontinuous objective function was studied by using the non-dominant neighborhood immune multi-target optimization algorithm. In this paper, the optimal insertion location and quantity of CNT yarn sensors were analyzed based on the three-dimension-four-step-six-direction braiding process. The optimal allocation problem of CNT yarn sensor was solved by using the non-dominant neighborhood immune multi-objective optimization algorithm, and the optimal number and location of different specimen embedded sensors in the 3-D intelligent braided composite were derived. The stress experiment and data analysis on the damaged specimens prove that the principle of optimal configuration of CNT yarn sensor can be applied for damage monitoring of 3-D braided composite materials with the positioning error less than 0.6 mm. This study lays a foundation for the establishment of intelligent composite damage source identification model.

Key words: carbon nanotube yarn, nondominated neighborhood imnaune algorithm, optimal allocation of sensors, damage location source, 3-D braided composite

中图分类号:

TS101.2

万振凯, 贾敏瑞, 包玮琛. 三维编织复合材料中碳纳米管纱线嵌入位置和数量的优化配置[J]. 纺织学报, 2021, 42(09): 76-82.

WAN Zhenkai, JIA Minrui, BAO Weichen. Optimal configuration of embedded position and number of carbon nanotube yarns in 3-D braided composites[J]. Journal of Textile Research, 2021, 42(09): 76-82.

图/表 8

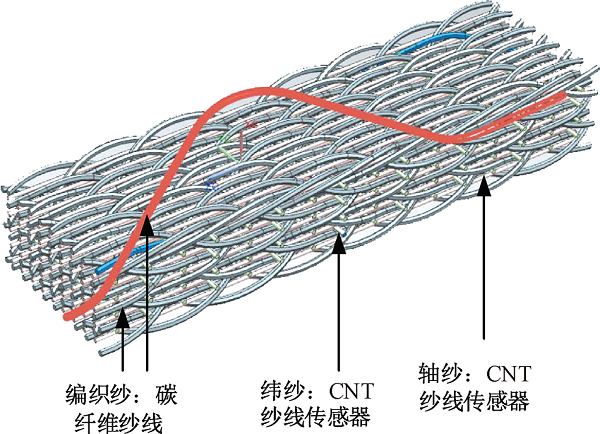

图1

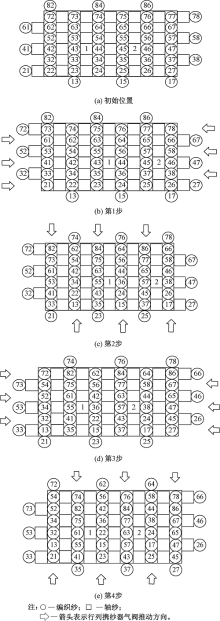

图2

图3

图4

表1

图5

图6

表2

参考文献 10

[1]	国务院. 国家中长期科学和技术发展规划纲要(2006-2020年)[EB/OL].(2006-02-09)[2021-01-02]. http://www.gov.cn/gongbao/content/2006/content_240244.htm.
	The State Council. Outline of national medium and long term science and technology development program (2006-2020)[EB/OL].(2006-02-09)[2021-01-02]. http://www.gov.cn/gongbao/content/2006/content_240244.htm.
[2]	王一博, 刘振国, 胡龙, 等. 三维编织复合材料研究现状及在航空航天中应用[J]. 航空制造技术, 2017(19):78-85.
	WANG Yibo, LIU Zhenguo, HU Long, et al. Recent advancements of 3D braided composite and its applications inaerospace[J]. Aeronautical Manufacturing Technology, 2017(19):78-85.
[3]	DIAMANTI K, SOUTIS C. Structural health monitoring techniques for aircraft composite structures[J]. Progress in Aerospace Sciences, 2010, 46(8):342-352. doi: 10.1016/j.paerosci.2010.05.001
[4]	张瑞莉. 空间网格结构健康监测系统传感器优化布置研究[D]. 南昌:南昌大学, 2020:10-22.
	ZHANG Ruili. Research on optimal sensor placement of health monitoring system on spatial grid structure[D]. Nanchang: Nanchang University, 2020:10-22.
[5]	OLIVEIRA D C, CHAVARETTE F R, LOPES M L M. Damage diagnosis in an isotropic structure using an artificial immune system algorithm[J]. Journal of the Brazilian Society of Mechanical Sciences and Engineering, 2019, 41(11):485. doi: 10.1007/s40430-019-1971-9
[6]	WANG Yi, LI Tao. Local feature selection based on artificial immune system for classification[J]. Applied Soft Computing Journal, 2020, 87:105989. doi: 10.1016/j.asoc.2019.105989
[7]	万振凯, 张志钢, 贾敏瑞, 等. 基于碳纳米线传感器的三维六向编织复合材料内部损伤定位[J]. 纺织学报, 2017, 38(8):68-74.
	WAN Zhenkai, ZHANG Zhigang, JIA Minrui, et al. Internal damage localization of three-dimensional six-directional braided composites based on carbon nanowire sensors[J]. Journal of Textile Research, 2017, 38(8):68-74.
[8]	ALEXOPOULOS N D, BARTHOLOME C, POULIN P, et al. Structural health monitoring of glass fiber reinforced composites using embedded carbon nanotube (CNT) fibers[J]. Composites Science & Technology, 2010, 70(2):260-271.
[9]	MEKONNEN A A, WOO K. Effects of defects on effective material properties of triaxial braided textile composite[J]. International Journal of Aeronautical and Space Sciences, 2020, 21(3):657-669. doi: 10.1007/s42405-019-00244-8
[10]	WAN Z, LI J D, JIA M, et al. Structural health monitoring (SHM) of three-dimensional braided composite material using carbon nanotube thread sensors[J]. Journal of Mechanics, 2013, 29(4):617-621. doi: 10.1017/jmech.2013.42

相关文章 15

[1]	封端佩, 商元元, 李俊. 三维四向和五向编织复合材料冲击断裂行为的多尺度模拟[J]. 纺织学报, 2020, 41(10): 67-73.
[2]	梁双强, 陈革, 周其洪. 开孔三维编织复合材料的压缩性能[J]. 纺织学报, 2020, 41(05): 79-84.
[3]	李鹏, 万振凯, 贾敏瑞. 基于碳纳米管纱线扭电能的复合材料损伤监测[J]. 纺织学报, 2020, 41(04): 58-63.
[4]	刘军, 刘奎, 宁博, 孙宝忠, 张威. 三维编织复合材料T型梁的低温场弯曲性能[J]. 纺织学报, 2019, 40(12): 57-62.
[5]	张燕南, 周伟, 商雅静, 赵文政. 三维编织复合材料拉伸微变形的测量与损伤破坏声发射监测[J]. 纺织学报, 2019, 40(08): 55-63.
[6]	万振凯李鹏贾敏瑞包玮琛裘旭光. 智能复合材料中碳纳米管纱线参数设计及其变化特征[J]. 纺织学报, 2018, 39(06): 58-63.
[7]	王双刘玮刘晓霞许福军程琼王晶. 嵌入机织物的碳纳米管纱线应变传感性能[J]. 纺织学报, 2018, 39(05): 43-48.
[8]	贾树生万振凯杨连贺张恒杰. 碳纳米线的拉伸应变传感特性[J]. 纺织学报, 2018, 39(03): 14-18.
[9]	贾树生杨连贺白会肖万振凯 . 嵌入三维编织复合材料的碳纳米线应变传感特性[J]. 纺织学报, 2018, 39(01): 11-18.
[10]	万振凯贡丽英万莉. 基于损伤指数的三维编织复合材料结构损伤评估[J]. 纺织学报, 2017, 38(05): 69-74.
[11]	万莉郭建民马永军. 三维编织复合材料弯曲承载下嵌入碳纳米线的特性分析[J]. 纺织学报, 2016, 37(01): 57-63.
[12]	万振凯贾敏瑞. 基于磁通图像的平板三维编织复合材料试件内部缺陷检测[J]. 纺织学报, 2015, 36(08): 49-55.
[13]	练军;顾伯洪. 三维编织复合材料动态冲击性能的数值模拟[J]. 纺织学报, 2011, 32(1): 41-45.
[14]	万振凯;王占刚. 基于神经网络的复合材料缺陷超声波检测研究[J]. 纺织学报, 2010, 31(2): 54-59.
[15]	万振凯;王占刚. 基于SQUID的复合材料承载电气特性[J]. 纺织学报, 2010, 31(1): 58-63.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

试件尺寸	传感网络总覆盖率/%	轴向传感器数量	纬向传感器数量	轴向传感器位置	纬向传感器位置
6 cm×1 cm	69.5	2	4	{1,7}	{1,5,8,11}
6 cm×1 cm	62.9	2	5	{1,7}	{1,3,7,10,12}
6 cm×1 cm	70.1	3	4	{1,4,7}	{1,3,7,10,12}
6 cm×2 cm	77.8	4	4	{2,8,14,19}	{1,5,8,11}
6 cm×2 cm	79.5	5	4	{1,5,10,15,19}	{1,5,8,11}
8 cm×1 cm	74.6	2	6	{1,7}	{1,4,7,10,13,16}
8 cm×1 cm	70.4	2	5	{1,7}	{1,5,8,13,16}
8 cm×1 cm	71.2	3	5	{1,4,7}	{1,5,8,13,16}
10 cm×10 cm	90.4	20	7	{1,3,5,7,9,11,13,15,17,19}	{1,4,7,10,13,16,19}
20 cm×20 cm	91.8	40	13	{1,6,11,16,21,26,31,36,41,46, 51,56,61,66,71,76,81,86,91,96, 100,105,110,115,120,125,130, 135,140,145,150,155,160,165, 170,175,180,185,190,195,200}	{1,4,7,11,14,17,21, 24,27,31,34,37,40}

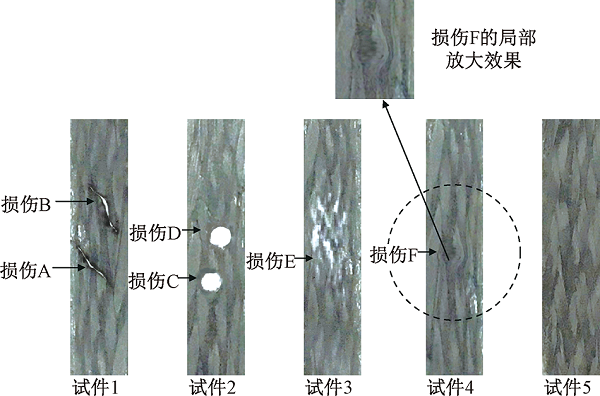

损伤编号	损伤计算坐标	损伤实际坐标	坐标最大偏差/mm
A	(-3.0,2.4)	(-2.3,2.5)	0.5
B	(-2.3,18.4)	(-2.1,18.2)	0.08
C	(-3.2,1.5)	(-3.4,1.1)	0.2
D	(-4.6,13.1)	(-4.9,12.8)	0.58
E	(-2.6,-3.8)	(-2.5,-3.5)	0.1
F	(-4.1,-7.8)	(-4.3,-7.5)	0.13
