纺织学报 ›› 2023, Vol. 44 ›› Issue (03): 19-27.doi: 10.13475/j.fzxb.20211107609

• 纤维材料 • 上一篇    下一篇

磁控溅射银/锌改性聚苯乙烯/聚偏氟乙烯复合纤维膜的制备及其性能

陈萌1, 何瑞东1, 程怡昕1, 李纪伟1,2, 宁新2, 王娜1,2()

  1. 1.青岛大学 纺织服装学院, 山东 青岛 266071
    2.青岛大学 非织造材料与产业用纺织品创新研究院, 山东 青岛 266071
  • 收稿日期:2021-11-16 修回日期:2022-05-09 出版日期:2023-03-15 发布日期:2023-04-14
  • 通讯作者: 王娜(1985—),女,副教授,博士。主要研究方向为功能纳米纤维的制备及其应用。E-mail:wanglinayi@163.com。
  • 作者简介:陈萌(1998—),女,硕士生。主要研究方向为纳米纤维的制备及其在空气过滤中的应用。
  • 基金资助:
    山东省高等学校“青创科技计划”创新团队项目(2022KJ152)

Preparation and properties of Ag/Zn modified polystyrene/polyvinylidene fluoride composite fibrous membranes by magnetron sputtering

CHEN Meng1, HE Ruidong1, CHENG Yixin1, LI Jiwei1,2, NING Xin2, WANG Na1,2()

  1. 1. College of Textile & Clothing, Qingdao University, Qingdao, Shandong 266071, China
    2. Industrial Research Institute of Nonwovens & Technical Textiles, Qingdao University, Qingdao, Shandong 266071, China
  • Received:2021-11-16 Revised:2022-05-09 Published:2023-03-15 Online:2023-04-14

RichHTML

266

PDF (PC)

106

摘要：

为制备得到兼具抗菌和紫外线防护性能的空气过滤材料,以聚苯乙烯(PS)和聚偏氟乙烯(PVDF)为原料,采用静电纺丝技术制备PS/PVDF纳米纤维膜,并在其正反两面分别磁控溅射银(Ag)和锌(Zn)纳米涂层得到PS/PVDF/Ag/Zn复合纤维膜,并对其微观形貌、元素组成、孔径分布、透气性、过滤性能、紫外线防护性能以及抗菌性能进行研究。结果表明:当溅射功率为60 W,溅射总时间为8 min时,所制得的复合纤维膜对300 nm NaCl气溶胶颗粒的过滤效率达到99.7%,压降为103 Pa,品质因子为0.056 Pa-1;此外,该复合纤维膜的紫外线防护系数可达到702.5,对大肠杆菌和金黄色葡萄球菌的抑菌带宽度分别为3.5和6.2 mm,表现出优异的紫外线防护性能和良好的抗菌性能。

关键词: 聚苯乙烯, 聚偏氟乙烯, 静电纺丝, 磁控溅射, 空气过滤, 紫外线防护性能, 抗菌性能

Abstract:

Objective Air filter material is the most commonly used and effective medium to deal with air pollution as well as ultraviolet radiation, especially to block the transmission of pathogens in the air. In addition, the bacteria intercepted during use are loaded on the surface of the filter material, which is easy to cause secondary pollution. In order to deal with air pollution and ultraviolet radiation and acquire antibacterial function at the same time, this paper focuses on the preparation of an air filter material with antibacterial and ultraviolet protective properties.

Method PS/PVDF nanofibrous membranes were prepared by electrospinning using polystyrene (PS) and polyvinylidene fluoride (PVDF) as the main raw materials. The optimal volume ratio of PS and PVDF spinning solutions was determined by analyzing the micromorphology, mechanical properties and air permeability of the fibrous membranes with different mixing ratios. Silver (Ag) and zinc (Zn) nanocoatings were sputtered on both sides of the selected nanofibrous membrane, respectively. The micromorphology, element composition, pore size distribution, air permeability, filtration, ultraviolet (UV) protection and antibacterial properties of the PS/PVDF/Ag/Zn composite membrane were studied.

Results When the volume ratio of PS to PVDF is 1:2, the fibrous membrane has high breaking stress (2.31 MPa) and good air permeability (177.2 mm/s), which meet the requirements of the practical application. On this basis, PS/PVDF fibrous membrane with a surface density of 2.88 g/m2 and a volume ratio of 1:2 was prepared. The surface of the fibrous membrane was modified with different sputtering time periods to prepare PS/PVDF/Ag/Zn fibrous membrane. The Ag and Zn metal particles sputtered on the fibrous membrane surface achieve uniform deposition (Fig.4), and the combination stability between them and the fibrous membrane is excellent (Fig.6). After performance characterization, it was found that when the sputtering time was 8 min, compared with the PS/PVDF fibrous membrane without sputtering, the pore diameter of PS/PVDF/Ag/Zn fibrous membrane was 7.76 μm reduced to 6.36 μm, air permeability decreases slightly (Fig.7), the filtration efficiency of 300 nm NaCl aerosol particles was increased to 99.7%, the pressure drop slightly increased to 103 Pa, and the quality factor value increased to 0.056 Pa-1 (Fig.8). Compared with the PS/PVDF fibrous membrane without sputtering, when the sputtering time was 8 min, the ultraviolet protection factor (UPF) of PS/PVDF/Ag/Zn membrane reaches 702.52±55.15, and the transmittance of long wave ultraviolet (UVA) and short wave ultraviolet (UVB) was (0.26±0.01)% and (0.20±0.02)%, respectively, showing excellent UV protection performance. The PS/PVDF fibrous membrane without sputtering did not demonstrate antibacterial effect, while the width of the inhibition zone of the PS/PVDF/Ag/Zn membrane with sputtering time period of 8 min against Escherichia coli and Staphylococcus aureus reached 3.5 mm and 6.2 mm, respectively, which can effectively reduce the growth of bacteria and prolong the service life of the filter material in practical applications.

Conclusion PS/PVDF fibrous membrane was prepared by electrospinning, and Ag and Zn nanocoatings were deposited on both sides of the fibrous membrane by magnetron sputtering. The results show that the metal coating on the fibrous membrane surface roughens the fibrous surface, reduces the pore size, and improves the filtration efficiency of the fibrous membrane. The presence of Zn and Ag also endows the fibrous membrane with UV protection and antibacterial properties. An air filter material with antibacterial and UV protective properties has been successfully prepared. This research provides a new idea for the research and development of functional air filter materials.

Key words: polystyrene, polyvinylidene fluoride, electrospinning, magnetron sputtering, air filtration, ultraviolet protection performance, antibacterial

中图分类号:

  • TS171

图1

不同体积比PS/PVDF纤维膜的扫描电镜照片"

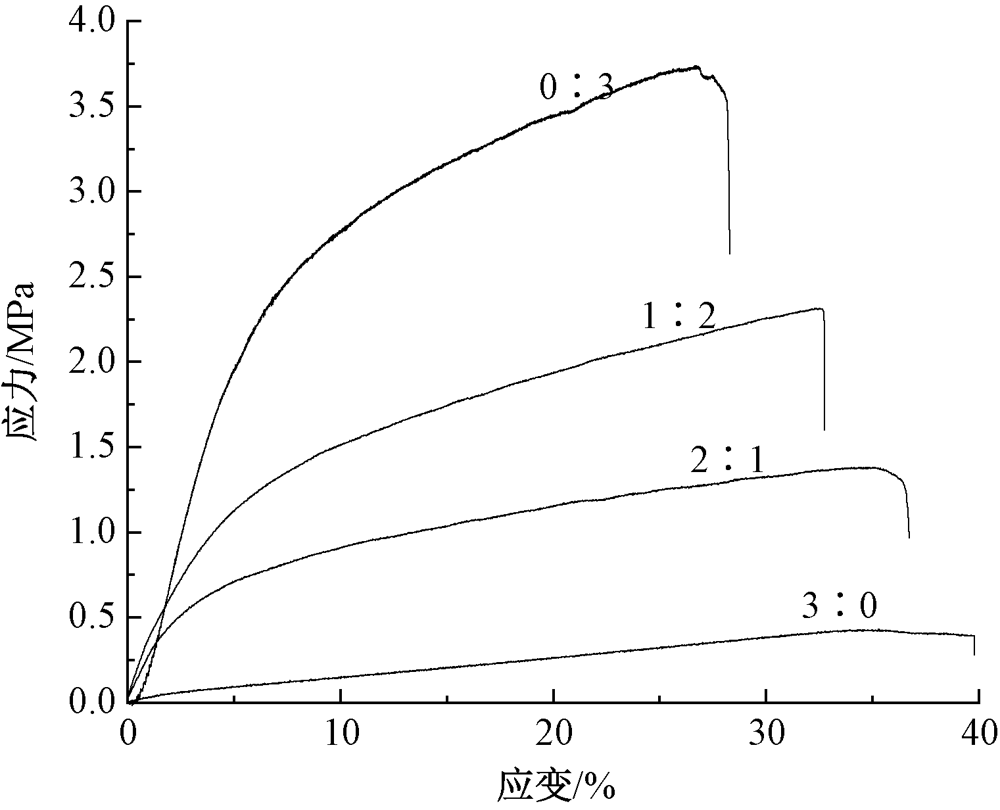

图2

不同体积比的PS/PVDF纤维膜的应力-应变曲线"

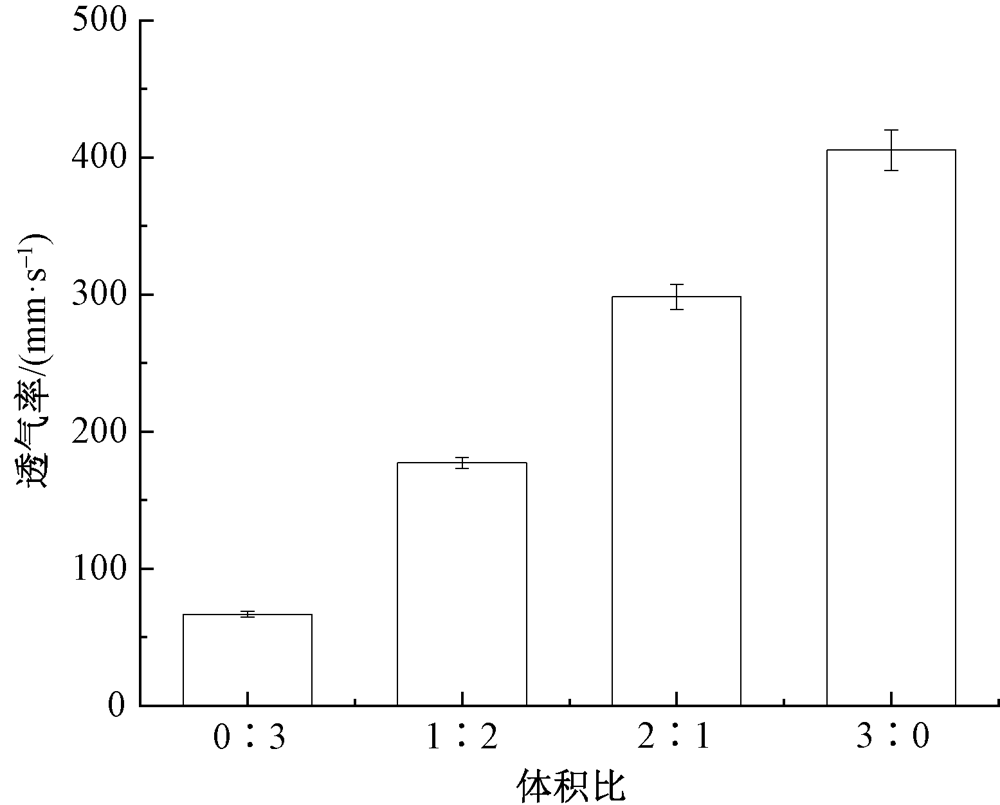

图3

不同体积比的PS/PVDF纤维膜的透气性"

图4

磁控溅射后PS/PVDF纤维膜的扫描电镜照片及EDS图"

图5

溅射后纤维膜的热重曲线"

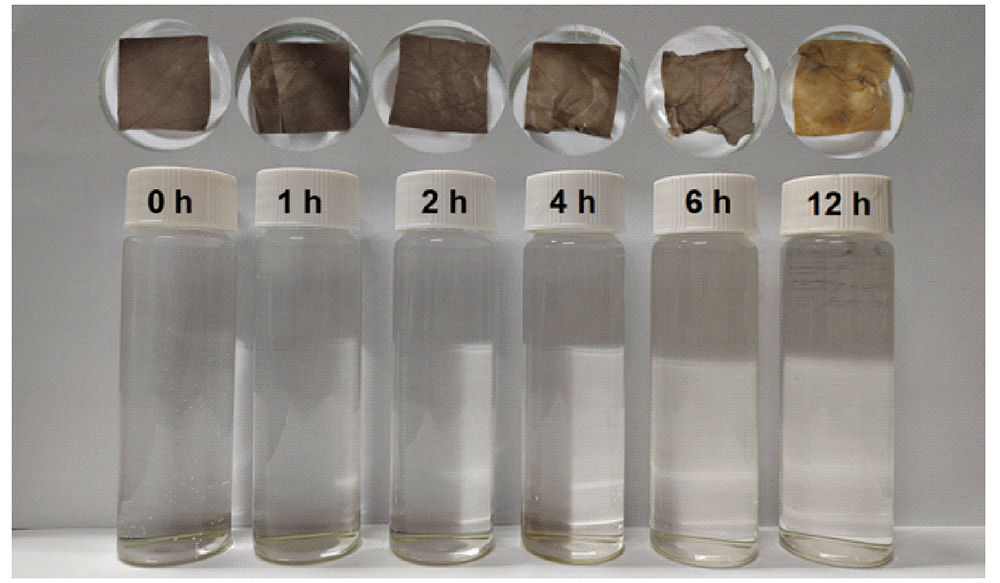

图6

在去离子水中超声波清洗后PS/PVDF/Ag/Zn纤维膜照片"

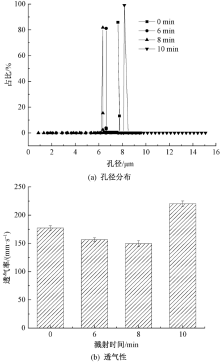

图7

磁控溅射前后PS/PVDF纤维膜的孔径分布及透气性"

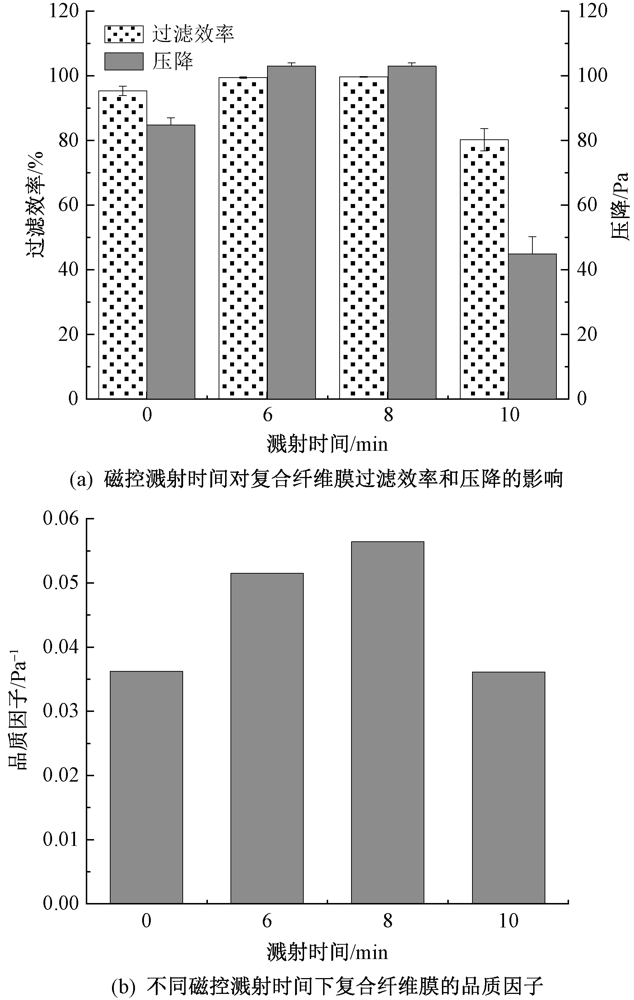

图8

溅射前后PS/PVDF复合纤维膜的过滤性能"

表1

磁控溅射前后PS/PVDF纤维膜的紫外线防护性能"

溅射时间/min UPF值 透射比算术平均值/%
T(UVA)AV T(UVB)AV
0 15.19 ± 0.35 5.63 ± 0.23 1.35 ± 0.07
6 422.31 ± 63.15 0.42 ± 0.06 0.34 ± 0.05
8 702.52 ± 55.15 0.26 ± 0.01 0.20 ± 0.02
10 616.27 ± 74.75 0.29 ± 0.03 0.23 ± 0.03

图9

磁控溅射前后PS/PVDF纤维膜的抑菌圈图"

[1] ZHANG Rufang, LIU Chong, HSU Pochun, et al. Nanofiber air filters with high-temperature stability for efficient PM2.5 removal from the pollution sources[J]. Nano Letters, 2016, 16(6): 36-42.
[2] 丁彬, 斯阳, 俞建勇. 静电纺纳米纤维材料在环境领域中的应用研究进展[J]. 中国材料进展, 2013, 32(8): 492-502.
DING Bin, SI Yang, YU Jianyong. Progress in the research of electrospun nanofibers for environmental applications[J]. Materials China, 2013, 32(8): 492-502.
[3] LU Tao, CUI Jiaxin, QU Qingli, et al. Multistructured electrospun nanofibers for air filtration: a review[J]. ACS Applied Materials & Interfaces, 2021, 13(20): 23293-23313.
[4] FADIL Fatirah, AFFANDI Nor, MISNON Mohd, et al. Review on electrospun nanofiber-applied products[J]. Polymers, 2021. DOI: 10.3390/polym13132087.
doi: 10.3390/polym13132087
[5] ELLMER Klaus. Magnetron sputtering of transparent conductive zinc oxide: relation between the sputtering parameters and the electronic properties[J]. Journal of Physics D:Applied Physics, 2000, 33(4): 17-32.
[6] 王向飞, 朱亮, 唐兴昌, 等. 磁控溅射镀镍提升PVP有机纳米纤维稳定性能的研究[J]. 纺织导报, 2020(4): 31-35.
WANG Xiangfei, ZHU Liang, TANG Xingchang, et al. Research on improving the stability of PVP organic nanofibers by magnetron sputtering Ni plating[J]. China Textile Leader, 2020(4): 31-35.
[7] HUO Yashan, TAN Yujia, ZHAO Kang, et al. Enhanced electromagnetic wave absorption properties of Ni magnetic coating-functionalized SiC/C nanofibers synthesized by electrospinning and magnetron sputtering technology[J]. Chemical Physics Letters, 2021. DOI: 10.1016/j.cplett.2020.138230.
doi: 10.1016/j.cplett.2020.138230
[8] 范晓燕, 袁霞, 逄增媛, 等. 磁控溅射法制备Cu-PANI/PA6复合纳米纤维及其氨敏性能研究[J]. 化工新型材料, 2014, 42(9): 125-128.
FAN Xiaoyan, YUAN Xia, PANG Zengyuan, et al. Preparation by sputtering and ammonia-sensitive properties of Cu-PANI/PA6 composite nanofibers[J]. New Chemical Materials, 2014, 42(9): 125-128.
[9] PERMYAKOVA Elizaveta, KIRYUKHANTSEV Philipp, GUDZ Kristina, et al. Comparison of different approaches to surface functionalization of biodegradable polycaprolactone scaffolds[J]. Nanomaterials, 2019. DOI: 10.3390/nano9121769.
doi: 10.3390/nano9121769
[10] 沈慧颖, 吕子豪, 庄粟裕, 等. 表面沉积铜纳米颗粒的细菌纤维素/壳聚糖交联复合膜的制备及其抗菌性能研究[J]. 化工新型材料, 2021, 49(3): 168-172.
SHEN Huiying, LÜ Zihao, ZHUANG Suyu, et al. Preparation and antibacterial property of Cu-coated bacterial cellulose/chitosan cross-linked composite[J]. New Chemical Materials, 2021, 49(3): 168-172.
[11] 凤权, 华谦, 武丁胜, 等. 基于磁控溅射技术的非织造空气过滤材料的制备及性能研究[J]. 产业用纺织品, 2015, 33(1): 20-24.
FENG Quan, HUA Qian, WU Dingsheng, et al. Preparation of nonwoven filtration material by means of magnetron spurting technology and study on its properties[J]. Technical Textiles, 2015, 33(1): 20-24.
[12] HUANG Xinmin, MENG Lingling, WEI Qufu, et al. Effect of substrate structures on the morphology and interfacial bonding properties of copper films sputtered on polyester fabrics[J]. International Journal of Clothing Science and Technology, 2017, 29(1): 39-46.
doi: 10.1108/IJCST-09-2015-0101
[13] RIVERO Pedro, URRUTIA Aitor, GOICOECHEA Javier, et al. Nanomaterials for functional textiles and fibers[J]. Nanoscale Research Letters, 2015. DOI: 10.1186/s11671-015-1195-6.
doi: 10.1186/s11671-015-1195-6
[14] STULAR Danaja, SAVIO Eilsa, SIMONCIC Barbara, et al. Multifunctional antibacterial and ultraviolet protective cotton cellulose developed by in situ biosynthesis of silver nanoparticles into a polysiloxane matrix mediated by sumac leaf extract[J]. Applied Surface Science, 2021. DOI: 10.1016/j.apsusc.2021.150361.
doi: 10.1016/j.apsusc.2021.150361
[15] LIU Huaqing, HU Dechao, CHEN Xiaojun, et al. Surface engineering of nanoparticles for highly efficient UV-shielding composites[J]. Polymers for Advanced Technologies, 2021, 32(1): 6-16.
doi: 10.1002/pat.v32.1
[16] REYES Vidal, SUAREZ Rojas, RUIZA C, et al. Electrodeposition, characterization, and antibacterial activity of zinc/silver particle composite coatings[J]. Applied Surface Science, 2015, 342(1): 34-41.
doi: 10.1016/j.apsusc.2015.03.037
[17] QIN Zhaojian, ZHENG Youkun, WANG Yihan, et al. Versatile roles of silver in Ag-based nanoalloys for antibacterial applications[J]. Coordination Chemistry Reviews, 2021. DOI: 10.1016/j.ccr.2021.214218.
doi: 10.1016/j.ccr.2021.214218
[18] SHANKAR Shiv, WANG Longfeng, RHIM Jongwhan. Incorporation of zinc oxide nanoparticles improved the mechanical, water vapor barrier, UV-light barrier, and antibacterial properties of PLA-based nanocomposite films[J]. Materials Science and Engineering: C, 2018, 93(1): 289-298.
doi: 10.1016/j.msec.2018.08.002
[19] MOURA Francyelle, FERREIRA Bruno, MUNIZ Elusca, et al. Antioxidant, anti-inflammatory, and wound healing effects of topical silver-doped zinc oxide and silver oxide nanocomposites[J]. International Journal of Pharmaceutics, 2022. DOI: 10.1016/j.ijpharm.2022.121620.
doi: 10.1016/j.ijpharm.2022.121620
[20] LIU Shangpeng, ZHANG Shaohua, YANG Liguo, et al. Nanofibrous scaffold by cleaner magnetron-sputtering additive manufacturing: a novel biocompatible platform for antibacterial application[J]. Journal of Cleaner Production, 2021. DOI: 10.1016/j.jclepro.2021.128201.
doi: 10.1016/j.jclepro.2021.128201
[21] CAI Rongrong, LI Shuzheng, ZHANG Lizhi, et al. Fabrication and performance of a stable micro/nano composite electret filter for effective PM2.5 capture[J]. Science of The Total Environment, 2020. DOI: 10.1016/j.scitotenv.2020.138297.
doi: 10.1016/j.scitotenv.2020.138297
[22] 谷晓博. 空气净化用PVDF纳米纤维过滤材料的制备及性能研究[D]. 上海: 东华大学, 2020: 17-24.
GU Xiaobo. Preparation and performance study of PVDF nanofiber filter material for air purification[D]. Shanghai: Donghua University, 2020: 17-24.
[23] WANG Na, RAZA Aikifa, SI Yang, et al. Tortuously structured polyvinyl chloride/polyurethane fibrous membranes for high-efficiency fine particulate filtra-tion[J]. Journal of Colloid and Interface Science, 2013, 398(19): 240-246.
doi: 10.1016/j.jcis.2013.02.019
[24] 刘强飞, 吴韶华, 杨吉震, 等. 芳纶纳米纤维改性聚四氟乙烯 /聚苯硫醚针刺毡的制备及其性能[J]. 纺织学报, 2021, 42(10): 47-52.
LIU Qiangfei, WU Shaohua, YANG Jizheng, et al. Preparation and properties of polytetrafluoroethylene /phenylene sulfide needled felt modified by aramid nanofiber[J]. Journal of Textile Research, 2021, 42(10): 47-52.
[25] LI Yuyang, YIN Xia, SI Yang, et al. All-polymer hybrid electret fibers for high-efficiency and low-resistance filter media[J]. Chemical Engineering Journal, 2020. DOI: 10.1016/j.cej.2020.125626.
doi: 10.1016/j.cej.2020.125626
[26] 徐秋香. 合金功能性纺织材料的制备及性能表征[D]. 无锡: 江南大学, 2009: 6-9.
XU Qiuxiang. Preparation and characterization of alloy functional textile materials[D]. Wuxi: Jiangnan University, 2009: 6-9.
[27] ARCHER Bright, SHAUMBWA Veino, LIU Dagang, et al. Nanofibrous mats for particulate matter filtra-tion[J]. Industrial & Engineering Chemistry Research, 2021, 60(20): 7517-7534.
doi: 10.1021/acs.iecr.1c00829
[28] LI Yuyao, YIN Xia, YU Jianyong, et al. Electrospun nanofibers for high-performance air filtration[J]. Composites Communications, 2019, 15: 6-19.
doi: 10.1016/j.coco.2019.06.003
[29] 贾琳, 王西贤, 张海霞, 等. 聚丙烯腈/二氧化钛纳米纤维的紫外线防护性能[J]. 纺织学报, 2017, 38(7): 18-22.
JIA Lin, WANG Xixian, ZHANG Haixia, et al. Ultraviolet protective properties of polyacrylonitrile/TiO2 nanofiber[J]. Journal of Textile Research, 2017, 38(7): 18-22.
[30] 徐悦. 聚丙烯腈/聚氨酯/TiO2纤维膜的涂层改性及抗紫外和防水透湿性能研究[D]. 上海: 东华大学, 2018: 6-9.
XU Yue. Functional modification of breathable polyacrylonitrile/polyurethane/TiO2 nanofiberous membrane with robust ultraviolet resistant and waterproof performance[D]. Shanghai: Donghua University, 2018: 6-9.
[31] 师艳丽, 李娜娜, 付元静, 等. 用于纺织品表面改性的磁控溅射技术研究进展[J]. 纺织学报, 2016, 37(4): 165-169.
SHI Yanli, LI Nana, FU Yuanjing, et al. Research progress of magnetron sputtering in textiles[J]. Journal of Textile Research, 2016, 37(4): 165-169.
[32] 李超荣, 舒顺新, 谢勇, 等. 磁控溅射纳米纤维基银膜的结构和性能[J]. 纺织学报, 2014, 35(4): 32-36.
LI Chaorong, SHU Shunxin, XIE Yong, et al. Structure and properties of Ag coatings on nanofibers prepared by magnetron sputtering[J]. Journal of Textile Research, 2014, 35(4): 32-36.
[33] 谭学强, 刘建勇. 磁控溅射镀膜织物的抗菌性能研究进展[J]. 化工新型材料, 2018, 555(12): 69-73.
TAN Xueqiang, LIU Jianyong. Research progress on antibacterial property of fabrics coated by magnetron sputtering[J]. New Chemical Materials, 2018, 555(12): 69-73.
[34] 刘尚鹏. 磁控溅射电活性抗菌敷料的制备及性能研究[D]. 青岛: 青岛大学, 2021: 38-41.
LIU Shangpeng. Characterization of electro-active and antibacterial dressing prepared by megnetron sputter-ing[D]. Qingdao: Qingdao University, 2021: 38-41.
[35] EHERNSBERGER Mark, TOBIAS Menachem, NODZO Scott, et al. Cathodic voltage-controlled electrical stimulation of titanium implants as treatment for methicillin-resistant Staphylococcus aureus periprosthetic infections[J]. Biomaterials, 2015, 41: 97-105.
doi: 10.1016/j.biomaterials.2014.11.013
[36] 穆金龙. 麦饭石/聚乳酸基纤维膜的制备及其过滤和抗菌性能研究[D]. 哈尔滨: 哈尔滨理工大学, 2018: 1-6.
MU Jinlong. Preparation filtration and antibacterial properties of medical stone/PLLA based composite fiberous membranes[D]. Harbin: Harbin University of Science and Technology, 2018: 1-6.
