Key technology research of bobbin change actuator suitable for multiple bobbin types

MAO Huimin1, TU Jiajia1,2, SUN Lei1, DAI Ning1, SHI Weimin1()

  1. 1. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. School of Automation, Zhejiang Institute of Mechanical and Electrical Engineering, Hangzhou, Zhejiang 310053, China
  • Received:2023-03-17 Revised:2024-01-23 Published:2024-06-15 Online:2024-06-15

RichHTML

3

PDF (PC)

11

摘要：

为解决现有换筒夹持机构无法适用于不同规格纱筒抓取的问题,根据针织生产车间纱架结构特征和纱筒更换工艺流程,设计了由夹爪机构、刹车机构、离合机构、推纱机构、翻转机构等组成的换筒末端执行器,该末端执行器可通过外扩电动机和外张气缸分别调节夹爪收缩尺寸以及夹爪间角度,以适用于不同类型的纱筒抓取。在机构设计过程中,不仅对各组成部分及其运动原理进行分析,还通过ANSYS Workbench软件对不同直径和不同长度的夹爪进行了静力学仿真,得出夹爪的直径为18 mm、长度为58 mm时可满足设计要求。同时研制样机,并进行了不同规格圆柱筒和圆锥筒的抓取实验。实验结果表明:该换筒末端执行器能够稳定、快速抓取内径为20~65 mm、质量不大于6 kg的纱筒,可应用于圆型纬编针织生产线。

关键词: 换筒末端执行器, 夹爪机构, 翻转机构, 自动换筒, 机械设计, 纱筒

Abstract:

Objective In a traditional knitting workshop, bobbin changes are carried out manually. This highly repetitive and low automation production method makes it difficult and inefficient to change the top layer bobbins on the yarn frame. Although different sizes of cylindrical and conical bobbins are used with circular knitting machines, the bobbin clamping mechanisms are available only for specific sizes and types of bobbins, causing problems for bobbins with different inner diameters and tapers. Therefore, this research focuses on designs an bobbin change actuator for different types of bobbins to achieve automated circular weft knitting.

Method According to the structural characteristics of the yarn frame and the process of bbbin replacement in the knitting machine, this paper designed a bobbin change actuator composed of a clamping mechanism, a brake mechanism, a clutch mechanism, a yarn pushing mechanism, a flip mechanism, and son on. The actuator was expected to adjust the contraction size of the clamping jaws and the angle between the jaws through the external expansion motor and the external expansion cylinder respectively, for different types of bobbin gripping. In order to solve the situation of symmetrical flare of the yarn frame bar, a flip mechanism was designed to drive the gripper mechanism for 180° rotation to achieve A/B bobbin replacement. After completing the design, the process of bobbin changing was simulated to verify the feasibility of the bobbin change actuator. In addition, in order to improve the operating life and stability of the bobbin change actuator, ANSYS Workbench software was used to simulate the exhaustive mechanics of the jaws with different diameters and lengths.

Results The simulation results showed that when the length of the jaws was unchanged, the stress on the jaws was decreased with the increase of the diameter of the jaws, while when the diameter of the jaws was unchanged, the stress on the jaws was increased with the increase of the length of the jaws. According to the minimum inner diameter of the guide plate and the requirements of the gripping stability of the jaws, the diameter of the jaws was selected as 18 mm, and the length of the jaws is 58 mm. At this time, the deformation of the jaws is 0.1 mm, and the maximum equivalent stress was 29.7 MPa, which was smaller than the permissible stress of the 6060-T6 aluminum alloy, indicating satisfaction of the requirements for the yarn cylinder gripping with operation stability of the. After that, the experimental prototype was made and the gripping experiments of cylindrical and conical cylinders of different specifications were carried out. The experimental results showed that the gripper has a maximum external diameter of 65 mm and a maximum external taper of 15°, capable of gripping yarn tubes with three different sizes with good stability, among which the maximum mass of the gripped bobbin was 6 kg, and the minimum internal diameter of the gripped bobbin was 20 mm.

Conclusion This paper analyzes the components and motion principles of each mechanism of the bobbin change actuator, carries out static simulation of the jaws of different diameters and lengths by using ANSYS Workbench software, and identified the optimal jaws diameter to be 18 mm and the jaws length 58 mm, meeting the design requirements. A prototype was developed, and the gripping experiments of cylindrical and conical cylinders of different specifications were carried out, and the experimental results proved that the bobbin change actuator is capable of gripping cylindrical bobbins and conical bobbins of different shapes and inner diameters. The automatic bobbin changes actuator introduced in this paper has been applied to a circular weft knitting production line in Guangdong, and it could be extended to textile production lines with wide application prospects.

Key words: bobbin change actuator, flip mechanism, rotation mechanism, automatic bobbin change, mechanical design, bobbin

中图分类号:

  • TS103.7

图1

纱架与备纱架示意图"

图2

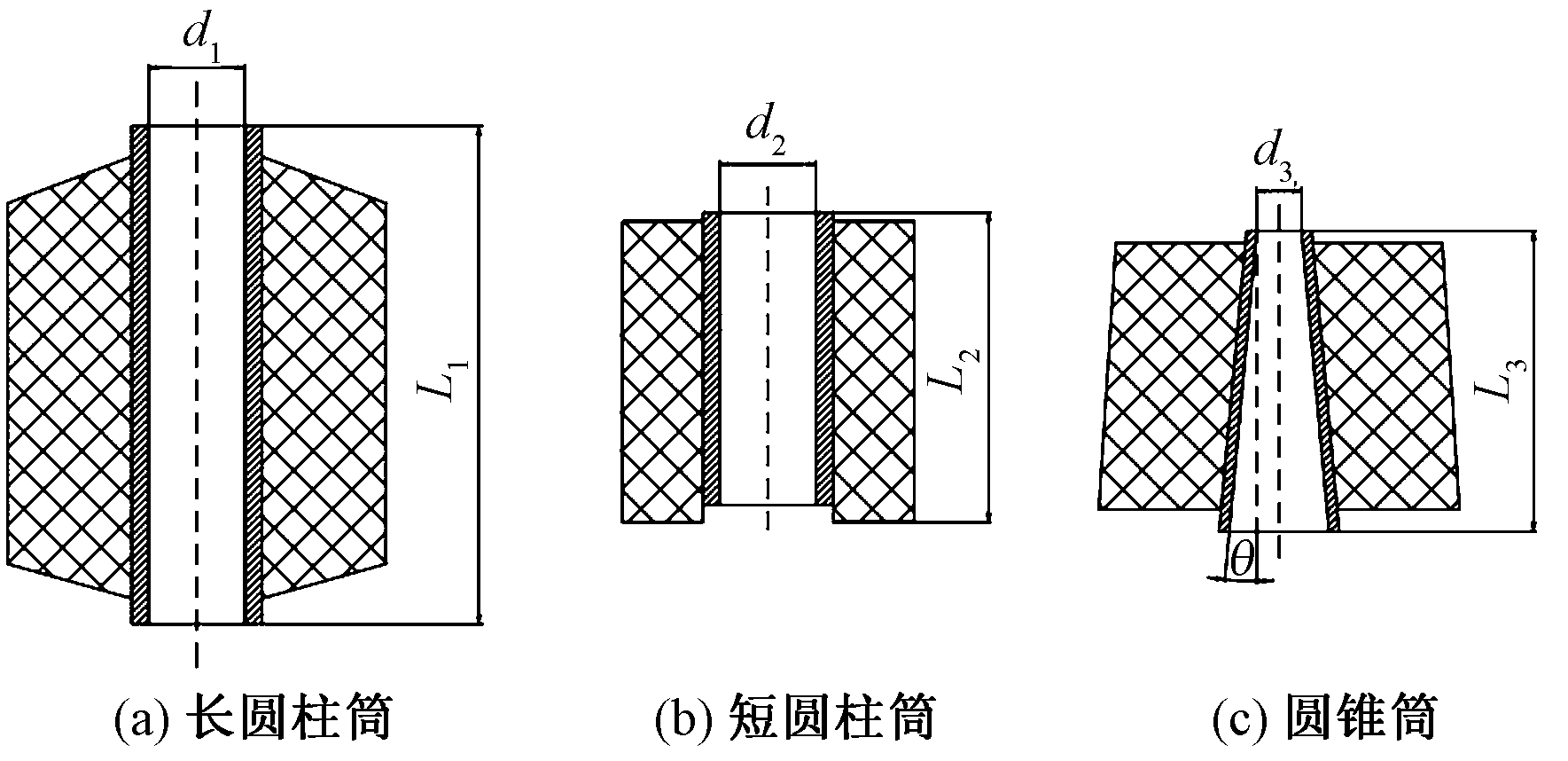

纱筒规格"

表1

换筒工艺要求"

工艺 标准
夹持尺寸 20~56 mm
夹持长度 40~170 mm
夹持角度 0°~5°
夹持质量 ≤6 kg
夹持功能 180°翻转
辅助功能 纱筒推出
定位准度 ±3 cm

图3

换筒末端执行器示意图 1—夹持机构;2—翻转机构;3—空筒检测系统;4—纱筒定位系统;5—桁架机器人末端。"

图4

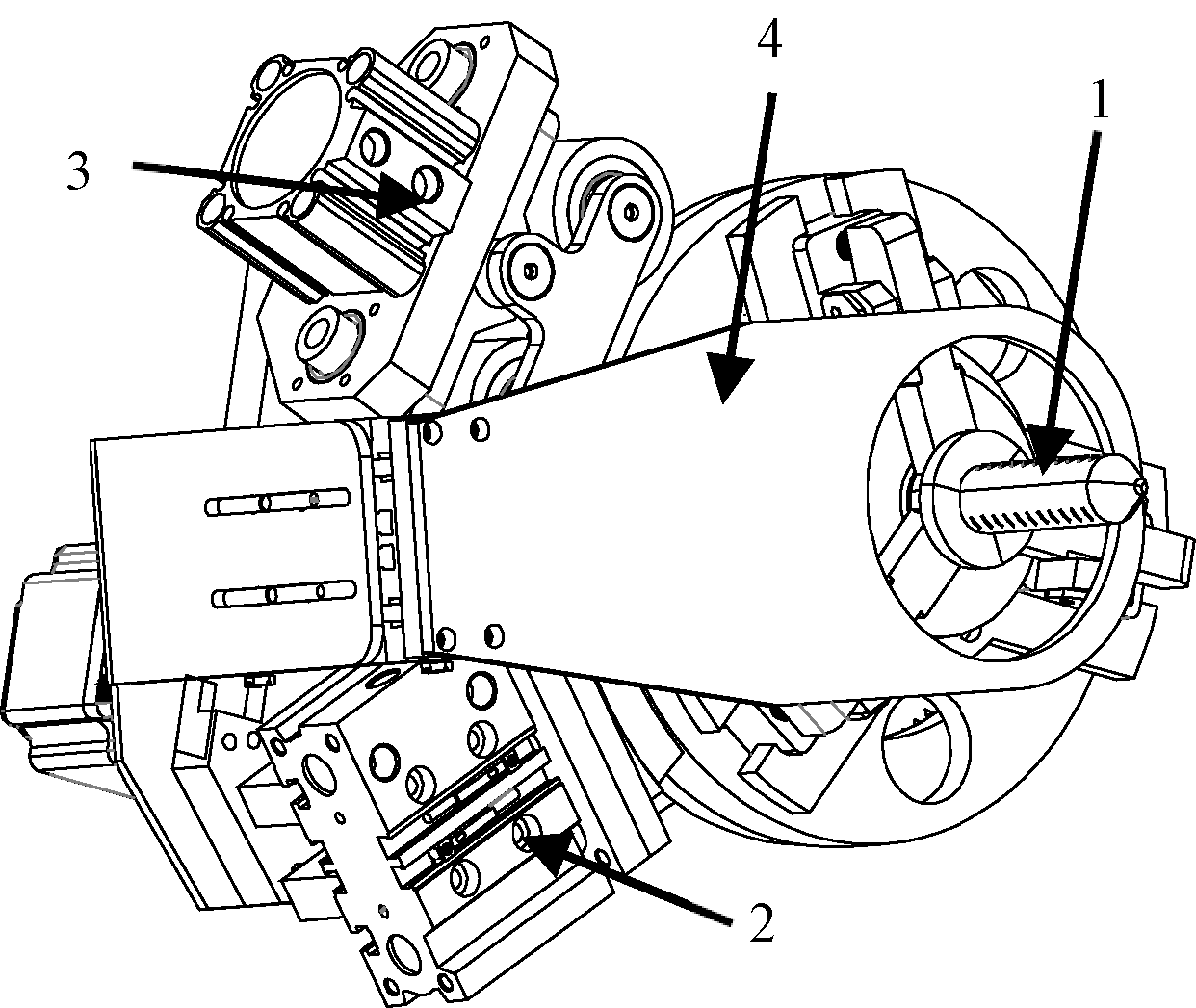

夹持机构示意图 1—夹爪机构;2—刹车机构;3—离合机构;4—推纱机构。"

图5

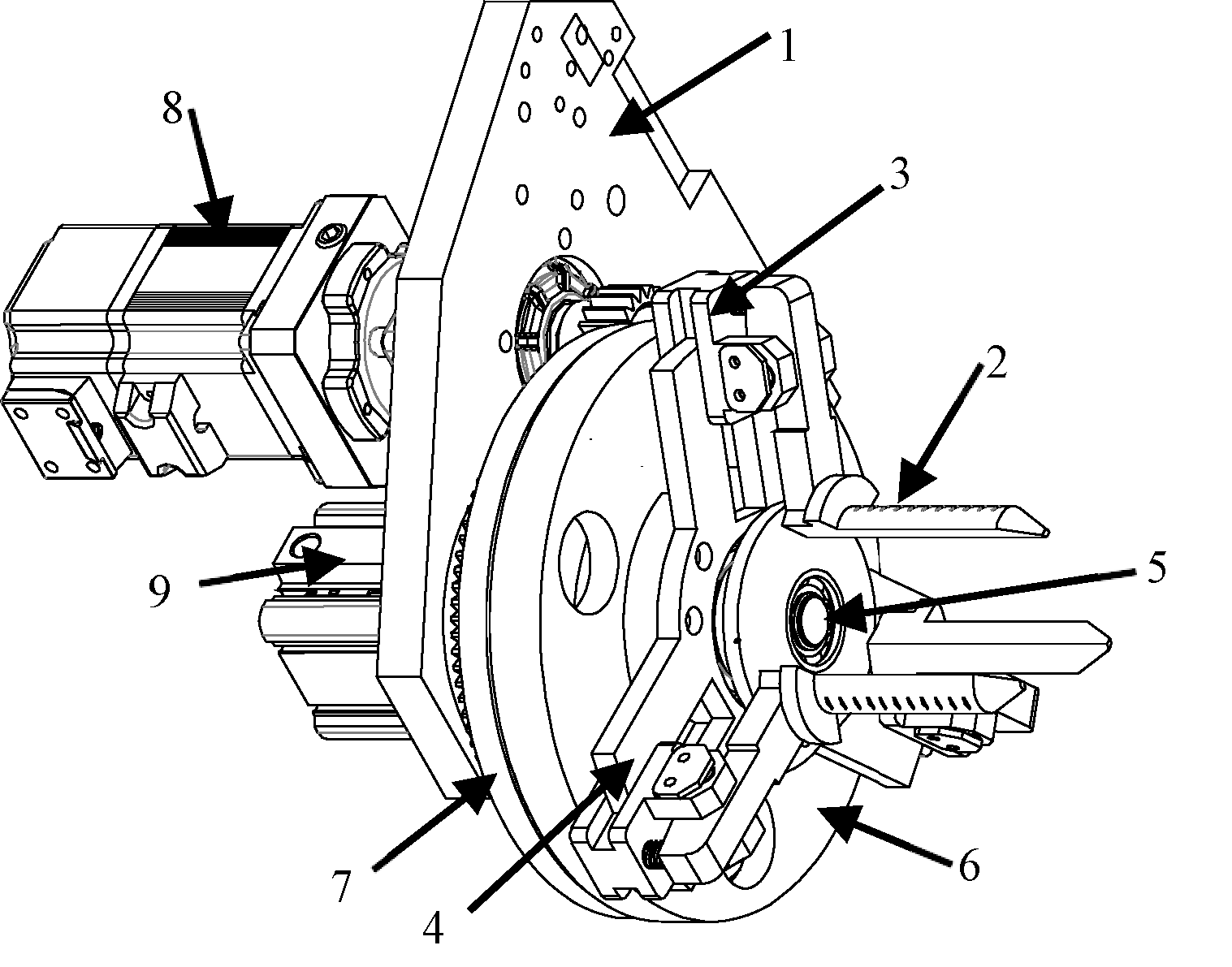

夹爪机构示意图 1—主安装盘;2—夹爪;3—夹爪滑座;4—夹爪导向板;5—顶杆;6—刹车盘;7—导向盘;8—外扩电动机;9—外张气缸"

图6

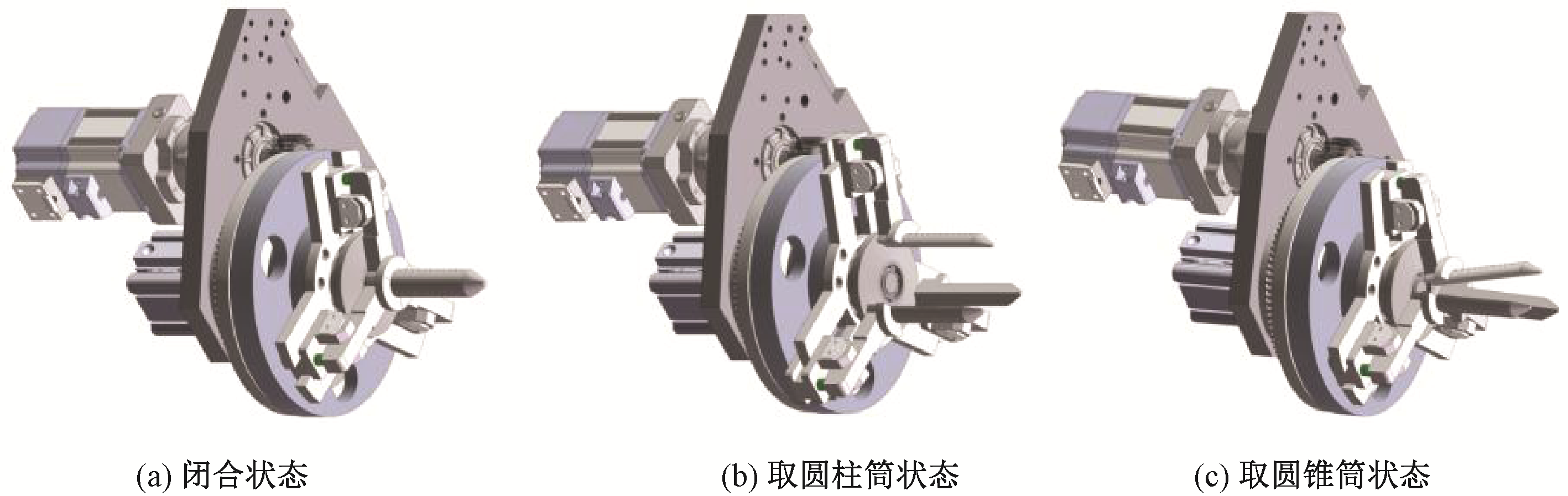

夹爪机构不同的抓取状态"

图7

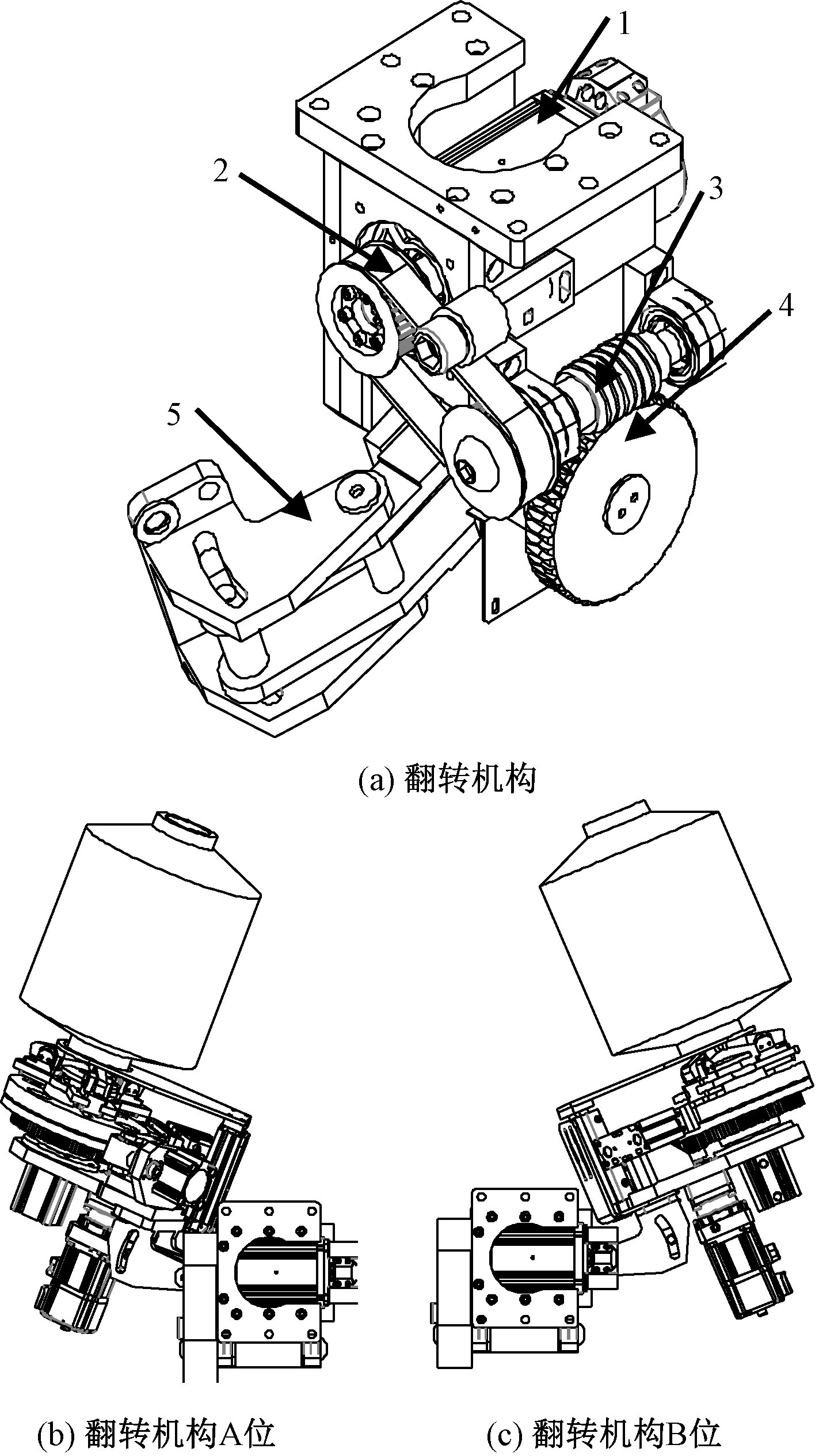

翻转机构示意图 1—翻转电动机;2—同步带;3—蜗杆;4—蜗轮;5—翻转座"

图8

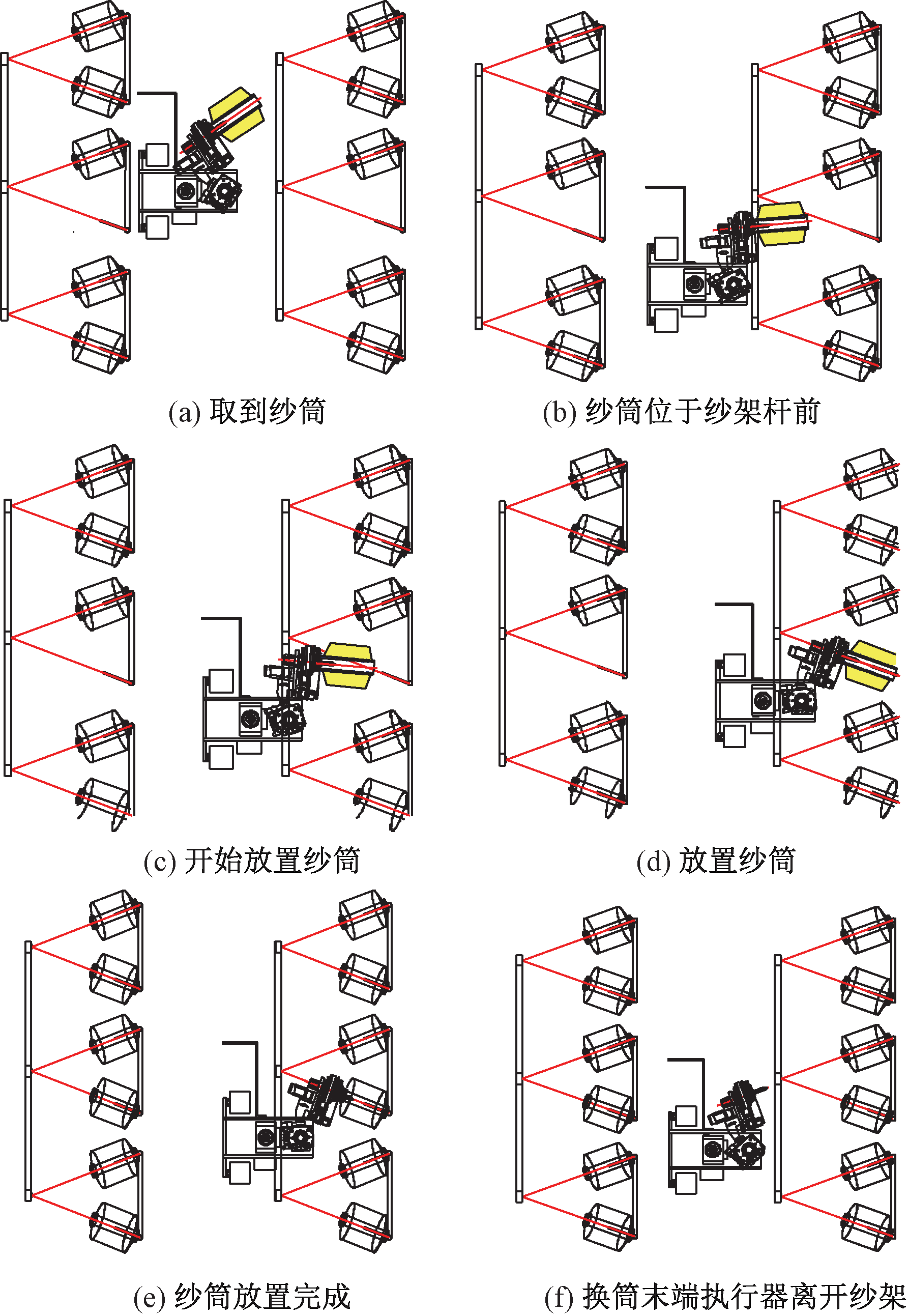

纱筒更换流程"

图9

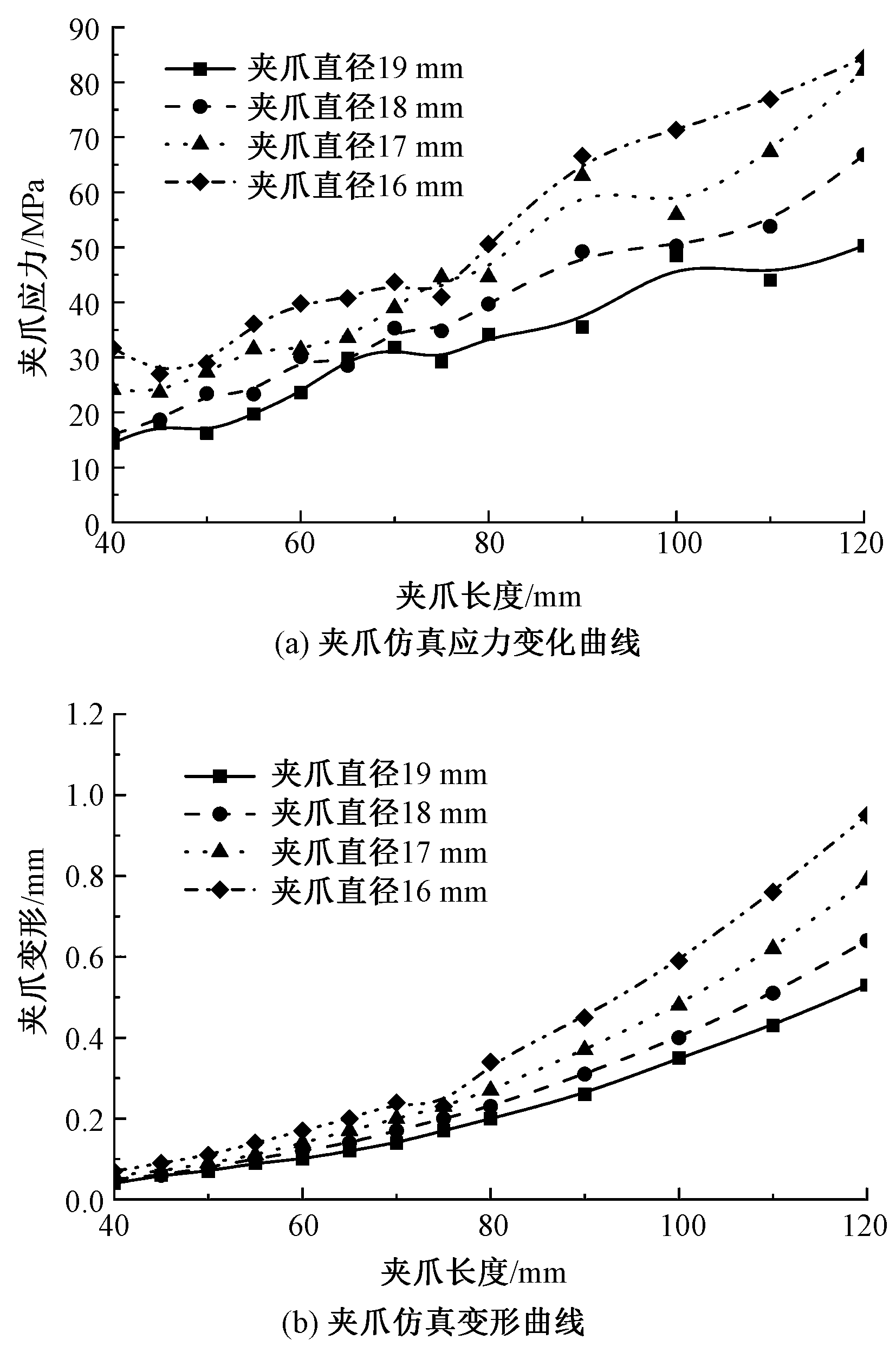

夹爪仿真应力与变形曲线"

图10

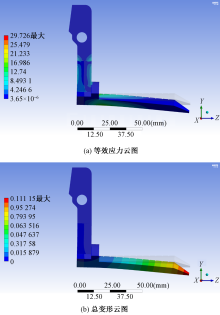

夹爪应力与应变仿真结果"

图11

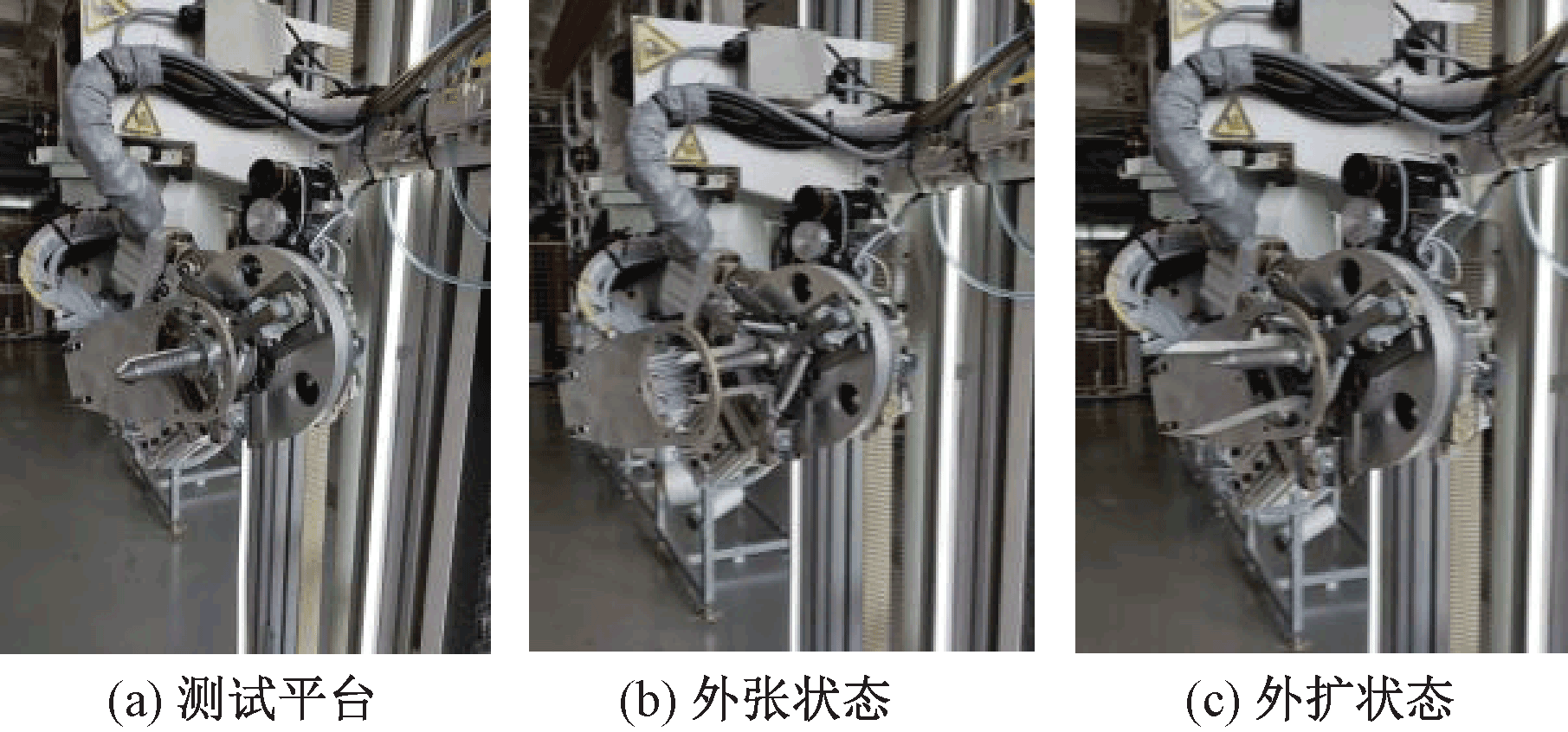

换筒末端执行器空载状态"

图12

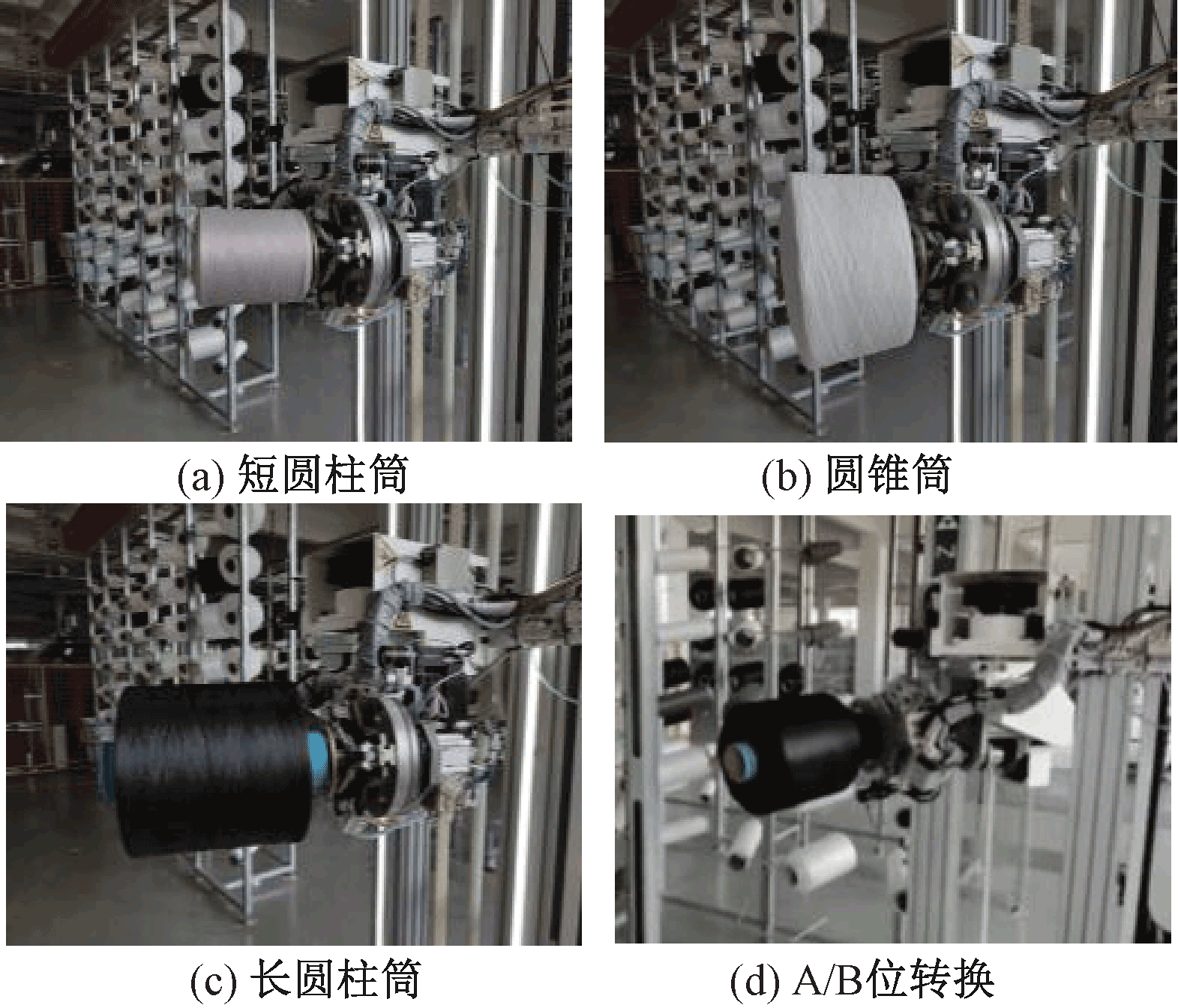

纱筒满筒抓取结果"
