基于三维显微镜成像的墨西哥红酸枝内部纤维分布及结构形态表征

doi:10.13475/j.fzxb.20230700801

纺织学报 ›› 2024, Vol. 45 ›› Issue (09): 56-62.doi: 10.13475/j.fzxb.20230700801

基于三维显微镜成像的墨西哥红酸枝内部纤维分布及结构形态表征

周领辉¹^,², 祝成炎¹^,², 金肖克¹^,², 马雷雷¹^,², 陈海相², 田伟¹^,²()

1.浙江理工大学纺织科学与工程学院(国际丝绸学院), 浙江杭州 310018
2.浙江理工大学先进纺织材料与制备技术教育部重点实验室, 浙江杭州 310018

收稿日期:2023-07-04 修回日期:2024-01-04 出版日期:2024-09-15 发布日期:2024-09-15
通讯作者: 田伟(1978—),女,教授,博士。主要研究方向为纺织结构复合材料、功能性纺织品及非织造布。E-mail: tianwei_zstu@126.com。
作者简介:周领辉(1999—),男,硕士生。主要研究方向为仿生结构复合材料。

Characterization of internal fiber distribution and structural morphology of Mexican red acid branch based on three-dimensional microscope imaging

ZHOU Linghui¹^,², ZHU Chengyan¹^,², JIN Xiaoke¹^,², MA Leilei¹^,², CHEN Haixiang², TIAN Wei¹^,²()

1. College of Textile Science and Engineering (International Institute of silk), Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
2. Key Laboratory of Advanced Textile Materials and Preparation Technology, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China

Received:2023-07-04 Revised:2024-01-04 Published:2024-09-15 Online:2024-09-15

摘要/Abstract

摘要：

为研究设计出轻质、高强的纤维增强仿木复合材料,借助X射线三维显微镜分析墨西哥红酸枝(MRAB)孔隙结构的形态与分布,测量了孔隙结构的尺寸和面积,并根据孔隙面积计算孔隙率;借助扫描电子显微镜观察木纤维的结构形态,并利用X射线粉末衍射仪测量出微纤丝角来表征木纤维的取向度。研究结果表明:MRAB内部孔隙主要分布在导管、木射线、轴向薄壁组织和微孔等结构中,在横切面上孔隙主要呈线状和类圆形,在径切面上主要呈线状和纺锤状,在弦切面上主要呈类圆形和纺锤状;MRAB内部的孔隙率为31.27%,孔隙率由髓心到树皮逐渐变大,木纤维沿轴向紧密平行排列,微纤丝角为3.27°;可将MRAB微观结构作为仿生依据,通过控制织物种类、树脂、产生孔隙的方法和铺层方向等因素来实现全新高性能仿木纤维增强复合材料的结构设计。

关键词: X射线三维显微镜, 墨西哥红酸枝, 仿木复合材料, 孔隙, 木纤维

Abstract:

Objective Under the evolution of billions of years, all things in nature have gradually formed the structure that is most suitable for the environment and has excellent performance. Therefore, studying the microstructure of such biomaterials and applying them to the bionic design of composite structures is one of the effective ways to develop high-performance composite materials.Wood is one of the materials with good mechanical properties in nature,and its density is small.At present,most of the imitation wood materials on the market are bionic from the function and appearance.Among them,the most is wood-plastic composite material, which is used for producing products with similar appearance and good mechanical properties at a lower cost,but it can not replace wood in terms of lightweight and elastic modulus.The superior performance of wood is closely related to the composition and distribution of its internal structure.Starting from the internal structure of wood,structural imitation wood is expected to have the advantages of mechanical properties,lightweight and elastic modulus of wood.

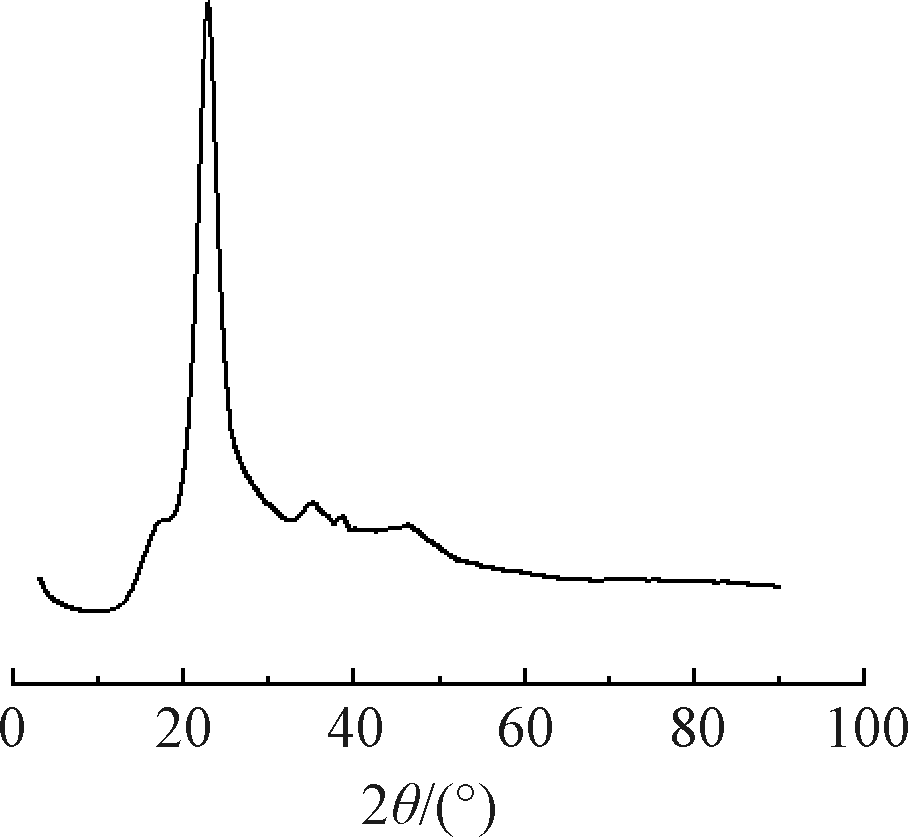

Method In order to study the structural characteristics and distribution of Mexican red acid branch(MRAB),the structures of pores in MRAB were studied by X-ray three-dimensional microscope.The size and area of pores were measured, and the morphology and distribution of pores in each component structure were analyzed. The porosity is calculated according to the pore area of each structure, and the pore distribution was analyzed.At the same time,the structure of wood fiber was observed by scanning electron microscope,and the microfibril angle was measured by X-ray powder diffractometer to characterize the orientation degree of wood fiber.

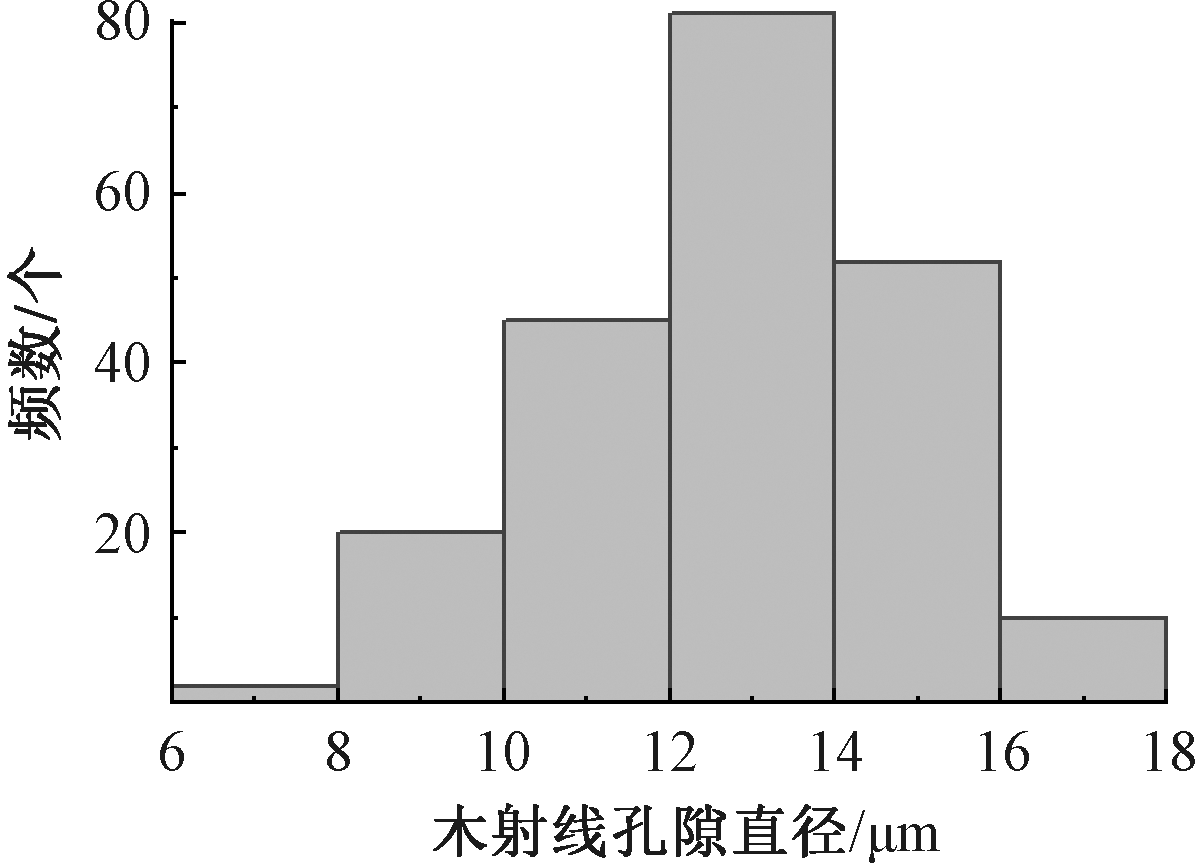

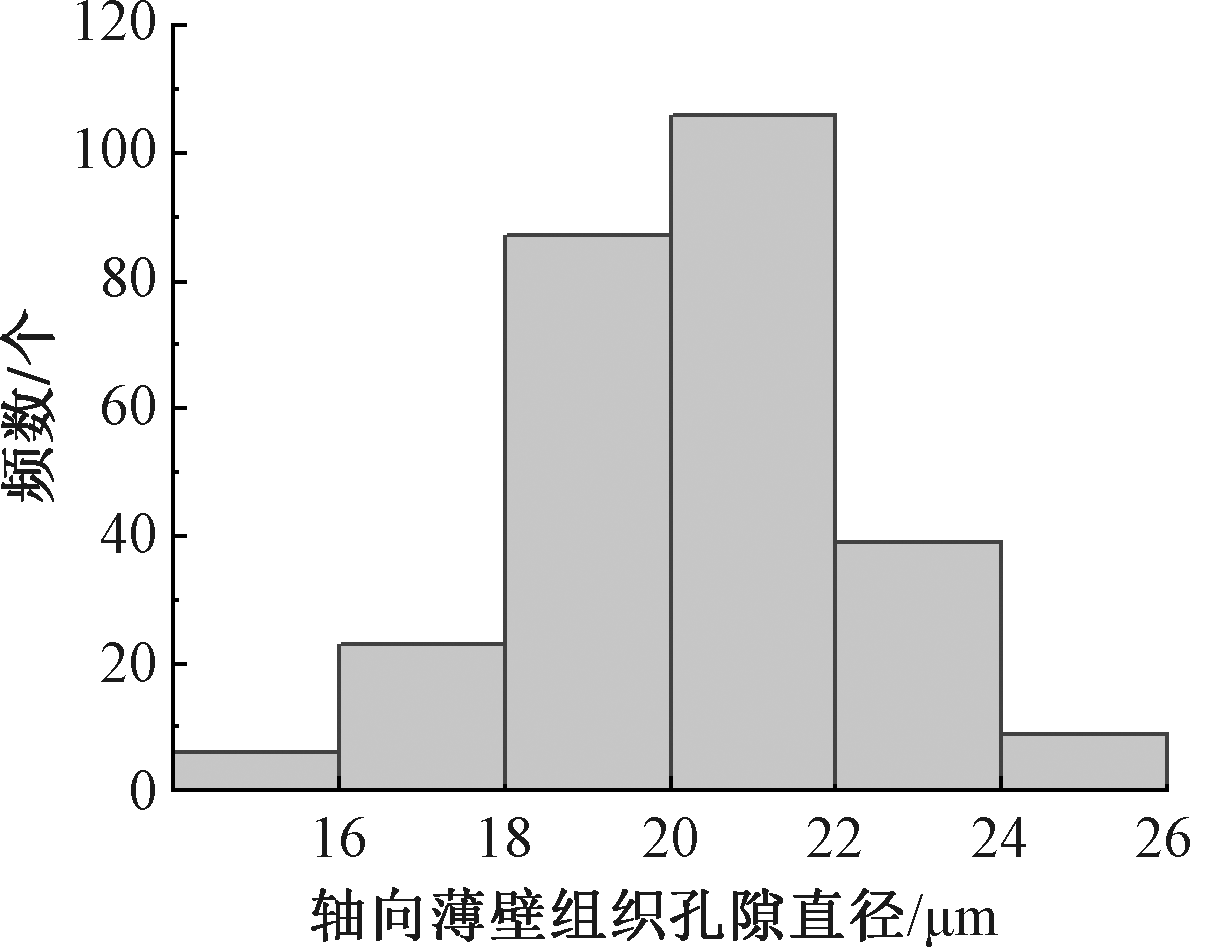

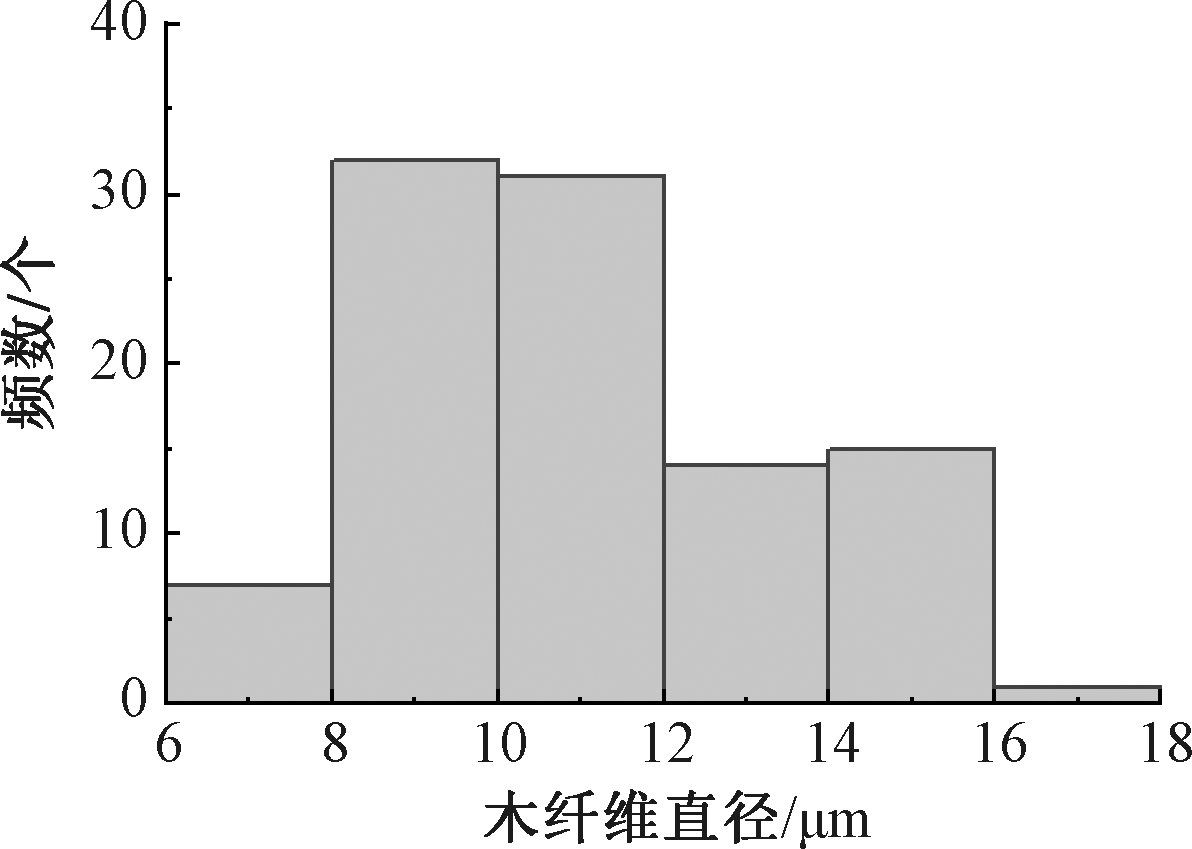

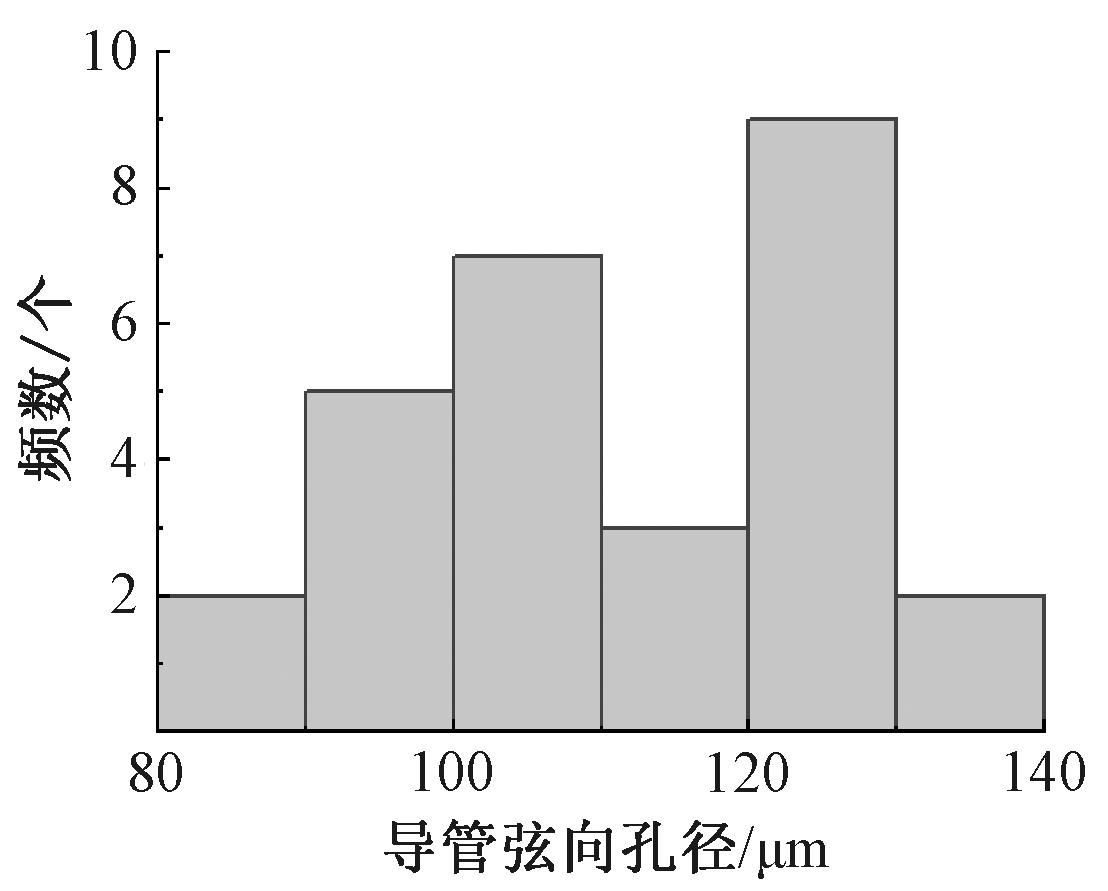

Results The results showed that: 1) the pores of MRAB are mainly distributed in vessels, wood rays, axial parenchyma and micropores, and the pores are mainly linear and round-like on the transverse section. On the radial section, it is mainly linear and spindle-shaped ; on the string section, it is mainly round and spindle-shaped. The diameter of the catheter hole was 109.53 μm, and the density was 2.83 /mm²; the average pore diameter of wood ray was 13.01 μm and the pores of the axial parenchyma are usually composed of two spindle-shaped cell cavities with an average pore diameter of 20.19 μm; 2) the porosity of MRAB is 31.27%, and the pore distribution increases slowly from inside to outside; and 3) wood fibers are closely arranged in parallel along the axial direction, and the microfibril angle is 3.27°, which is smaller than the microfibril angle of most wood, giving wood superior mechanical properties. The transverse mechanical properties are mainly provided by wood rays, and lignin acts as a stress buffer between wood fibers.

Conclusion Since the Mexican red sour branch is a natural cellulose composite material with excellent performance, it can be used as an object for the design of composite imitation wood. Through the analysis of its internal structure, it can be cut from three aspects: pore, wood fiber, wood ray (fiber reinforcement) and lignin (resin matrix) related to fiber reinforced composites. The structural design of high-performance wood-like fiber reinforced composites was realized by unidirectional fabric, resin, pore generation method and ply direction,and then prepare lightweight and high-strength fiber-reinforced composites.

Key words: X-ray three-dimensional microscope, Mexican red acid branch, wood-like composite, pore, wood fiber

中图分类号:

TS101.4

周领辉, 祝成炎, 金肖克, 马雷雷, 陈海相, 田伟. 基于三维显微镜成像的墨西哥红酸枝内部纤维分布及结构形态表征[J]. 纺织学报, 2024, 45(09): 56-62.

ZHOU Linghui, ZHU Chengyan, JIN Xiaoke, MA Leilei, CHEN Haixiang, TIAN Wei. Characterization of internal fiber distribution and structural morphology of Mexican red acid branch based on three-dimensional microscope imaging[J]. Journal of Textile Research, 2024, 45(09): 56-62.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20230700801

http://www.fzxb.org.cn/CN/Y2024/V45/I09/56

图/表 13

表1

图1

图2

图3

图4

图5

图6

图7

图8

表2

图9

图10

图11

参考文献 18

[1]	杨立宁, 郑东昊, 王立新, 等. 基于蜻蜓翅脉结构的连续碳纤维增强树脂基复合材料仿生设计与增材制造[J]. 化工进展, 2022, 41(11): 5961-5967. doi: 10.16085/j.issn.1000-6613.2022-0211
	YANG Lining, ZHENG Donghao, WANG Lixin, et al. Bionic design and additive manufacturing of continuous carbon fiber reinforced resin matrix composites based on dragonfly wing vein structure[J]. Chemicalprogress, 2022, 41 (11): 5961-5967.
[2]	陈海鸟, 田伟, 金肖克, 等. 基于三维显微成像的毛竹横截面结构表征[J]. 纺织学报, 2021, 42(12): 49-54. doi: 10.13475/j.fzxb.20201208206
	CHEN Hainiao, TIAN Wei, JIN Xiaoke, et al. Structural characterization of moso bamboo cross-sections based on three-dimensional microscopic imaging[J]. Journal of Textile Research, 2021, 42(12): 49-54. doi: 10.13475/j.fzxb.20201208206
[3]	张志礼, 王新婷, 李凤凤, 等. 废弃塑料实现木塑复合材料的制备及其性能探究[J]. 包装工程, 2022, 43(11):24-30.
	ZHANG Zhili, WANG Xinting, LI Fengfeng, et al. Preparation and properties of wood-plastic composites by waste plastics[J]. Packaging Engineering, 2022, 43(11): 24-30.
[4]	朱启清. 论仿木材料在公共场所设计中的应用分析[J]. 工业设计, 2019(6): 82-83.
	ZHU Qiqing. On the application of imitation wood materials in the design of public places[J]. Industrial Design, 2019(6): 82-83.
[5]	ZHANG F, LI L, ZHANG L, et al. Determination of elastic constants and mechanical property parameters of five commonly used woods for furniture[J]. Forestry Machinery & Woodworking Equipment, 2012, 40(1): 16-19.
[6]	赵广杰. 木材中的纳米尺度、纳米木材及木材-无机纳米复合材料[J]. 北京林业大学学报, 2002, 24(Z1): 208-211.
	ZHAO Guangjie. Nanoscale,nanowood and wood-inorganic nanocomposites in wood[J]. Journal of Beijing Forestry University, 2002, 24(Z1): 208-211.
[7]	SALMÉN L, BERGSTRM E. Cellulose structural arrangement in relation to spectral changes in tensile loading FTIR[J]. Cellulose, 2009, 16(6): 975-982.
[8]	孙海燕, 苏明垒, 吕建雄, 等. 细胞壁微纤丝角和结晶区对木材物理力学性能影响研究进展[J]. 西北农林科技大学学报(自然科学版), 2019, 47(5): 50-58.
	SUN Haiyan, SU Minglei, LÜ Jianxiong, et al. Research progress on effects of cell wall microfibril angle andcrystalline region on physical and mechanical properties of wood[J]. Journal of Northwest A & F University (Natural Science Edition), 2019, 47(5): 50-58.
[9]	陈居静. 六种酸枝类木材结构特征及相关属性的研究[D]. 福建农林大学, 2013: 44-45.
	CHEN Jujing. Study on the structural characteristics andrelated properties of six kinds of acid wood[D]. Fujian Agriculture and Forestry University, 2013: 44-45.
[10]	赵敏, 陈瑞英. 微凹黄檀木材的构造特征[J]. 安徽农学通报, 2016, 22(1): 9, 22.
	ZHAO Min, CHEN Ruiying. Structural characteristics of Dalbergia microconcave wood[J]. Anhui Agricultural Science Bulletin, 2016, 22(1): 9, 22.
[11]	耿汇泉, 金珲, 周新甲, 等. 基于X-CT技术的木材三维孔隙结构评定与量化研究[J]. 森林工程, 2021, 37(5): 43-49.
	GENG Huiquan, JIN Huan, ZHOU Xinjia, et al. Evaluation and quantification of three-dimensional pore structure of wood based on X-CT technology[J]. Forest Engineering, 2021, 37(5): 43-49.
[12]	许苗苗. 碱催化有机溶剂法分离提取农林生物质木质素及其结构表征[D]. 济南: 齐鲁工业大学, 2020: 58.
	XU Miaomiao. Separation and extraction of lignin from agricultural and forestry biomass by alkali-catalyzed organic solvent method and its structural characteriza-tion[D]. Jinan: Qilu university of technology, 2020: 58.
[13]	CHEN M, WANG C, ZHANG S, et al. Comparative study on microfibril angle of six bamboo species[J]. Journal of Anhui Agricultural University, 2015, 42(1): 31-33.
[14]	何盛, 徐军, 吴再兴, 等. 毛竹与樟子松木材孔隙结构的比较[J]. 南京林业大学学报(自然科学版), 2017, 41(2): 157-162. doi: 10.3969/j.issn.1000-2006.2017.02.023
	HE Sheng, XU Jun, WU Zaixing, et al. Comparison of pore structure between bamboo and pine wood[J]. Journal of Nanjing Forestry University (Natural Science Edition), 2017, 41(2): 157-162.
[15]	YANG J, CHEN P, GAO P. Preparation and properties of lightweight high-strength epoxy resin foam that can befoamed at room temperature[J]. China Plastics, 2022, 36 (10): 7-14.
[16]	黄赤, 汪波, 秦岩, 等. 空心玻璃微球含量对环氧复合泡沫塑料性能的影响[J]. 复合材料学报, 2016, 33(8): 1630-1637.
	HUANG Chi, WANG Bo, QIN Yan, et al. Effect of hollow glass microsphere content on the properties of epoxy composite foam[J]. Journal of Composites, 2016, 33(8): 1630-1637.
[17]	周贤武, 邓丽萍, 王滋, 等. 沙柳的孔隙结构、微纤丝角和纤维素结晶度研究[J]. 西北农林科技大学学报(自然科学版), 2018, 46(1): 46-51.
	ZHOU Xianwu, DENG Liping, WANG Zi, et al. Study onpore structure,microfibril angle and cellulose crystallinity of Salix psammophila[J]. Journal of Northwest A & F University (Natural Science Edition), 2018, 46(1): 46-51.
[18]	SUN D, YANG W, LIU Q, et al. Geographical variation trend of wood microfibril angle among natural populations of Cyclocarya paliurus[J]. Journal of Nanjing Forestry University (Natural Science Edition), 2018, 42(3): 81-85.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

木材类别	密度/ (g·cm^-3)	抗弯曲强度/ MPa	抗冲击强度/ MPa
MRAB	1.13	206.18	124.30
红杉木	1.10	144.18	79.20
黑胡桃木	0.67	97.31	36.50
