装有气流导向装置的网格圈式集聚纺数值模拟与实验验证

摘要/Abstract

图/表 9

参考文献 13

Metrics

doi:10.13475/j.fzxb.20231006301

摘要： 为优化集聚纺集聚区的气流状态,通过在集聚区安装一个气流导向装置来改变流场分布,以增强气流作用效果。为提高研究效率,量化分析流场参数,借助ANSYS Fluent软件对集聚区流场进行数值模拟。将网格圈加入数值模拟模型,优化了仿真参数,得到更准确的集聚区气流分布规律。通过对比气流在集聚区的集聚有效面积,探索负压大小和气流导向装置对集聚区平行于罗拉轴向的气流速度分量的影响,并对结果进行纺纱实验验证。结果表明:负压的增大和气流导向装置均可增大集聚区的集聚有效面积,面积增大幅度分别为34.49%和62.16%;纱线性能方面,线密度越大,气流导向装置的提升效果越好,纺制29.2 tex棉纱时,与无导向装置相比,毛羽(≥3 mm)减少了28.9%,断裂强度提升了7.62%。

关键词: 集聚纺, 数值模拟, 气流导向装置, 气流分析, 纱线质量

Abstract:

Objective In order to optimize the airflow state in the converging zone of the compact spinning system, improve the utilization rate of negative pressure, and reduce the energy consumption of production, this research aims to modify the flow field distribution by installing an airflow-guiding device in the converging zone to enhance the effect of airflow. Through numerical simulations and spinning experiments, the performance of the airflow-guiding device was explored under various yarn densities to assess its enhancement of yarn properties.

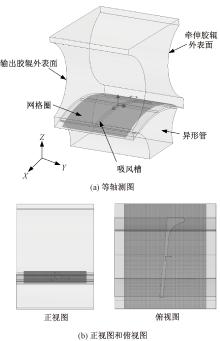

Method A three-dimensional (3-D) geometrical model of the converging zone was developed, and numerical simulations of the flow field were performed using ANSYS Fluent software. A lattice-apron was innovatively added to the model to obtain a more accurate airflow distribution pattern in the converging zone. At the end of the simulation, the effective airflow area in the converging zone was compared, and the influence of negative pressure and the airflow-guiding device on airflow distribution in the converging zone was analyzed. Finally, spinning experiments were conducted to verify the accuracy of the numerical simulation.

Results A comparison of the enhancement of the effective convergence area by increasing negative pressure and installing the airflow-guiding device showed that the enhancement achieved by installing the airflow-guiding device was significantly more remarkable than that achieved by increasing negative pressure. Numerical simulations demonstrated that the airflow-guiding device was efficient and energy-saving, improving the airflow field in the converging zone without increasing production energy consumption thus enabling better fiber convergence. The number of hairiness (≥3 mm) was reduced across all yarn densities after the installation of the airflow-guiding device. For the yarn linear densities (14.6, 19.4, and 29.2 tex), the greater was the yarn linear density, the more effective was the hairiness reduction. In particular, the hairiness for the three yarns was reduced by 2.88%, 22.7%, and 28.9%, respectively. For the 9.7, 7.3, and 6.5 tex yarns, hairiness was reduced, but the reduction rate was smaller, only 3.57%, 1.02%, and 3.05%, respectively. The combination of numerical simulation and the results of the installation of the airflow guiding device showed that the fiber bundles passing through the convergence zone were subjected to greater transverse airflow forces, resulting in narrower fiber bundle widths and smaller twisted triangles, thus reducing yarn hairiness. In terms of breaking strength, for yarns with the linear density in the range of 6.5-29.2 tex, the breaking strength increased by 2.81%, 3.77%, 2.89%, 3.08%, 7.62%, and 2.24% following the installation of the airflow-guiding device. After installation, the fiber bundle in the converging zone became narrower, fibers were more tightly packed, and friction between the fibers increased, making it more difficult for them to slip, which enhanced the yarn strength and elongation. Regarding yarn evenness, the installation of the airflow-guiding device improved the evenness of all yarns to a certain extent. The increased airflow speed caused fibers to shift from the yarn edges and be distributed more uniformly within the yarn, improving the yarn evenness.

Conclusion An airflow-guiding device was designed for four-roller compact spinning with the lattice-apron, and the influence of the airflow-guiding device on the airflow field was investigated through numerical simulation and spinning tests. The numerical simulation results show that both the increase of negative pressure and the installation of the airflow-guiding device can enhance the effect of airflow in the converging zone. The airflow-guiding device directs more transverse airflow into the converging zone, which facilitates fiber bundle convergence. Yarn performance tests confirm that the airflow-guiding device improves yarn hairiness, elongation, and evenness across six different yarn densities, proving the device's effectiveness and broad applicability. In conclusion, the positive effects of the airflow-guiding device were confirmed in high and low-count yarns through numerical simulation and spinning tests.

Key words: compact spinning, numerical simulation, airflow-guiding device, airflow analysis, yarn quality

中图分类号:

TS104.7

宋凯莉, 郭明瑞, 高卫东. 装有气流导向装置的网格圈式集聚纺数值模拟与实验验证[J]. 纺织学报, 2025, 46(01): 34-41.

SONG Kaili, GUO Mingrui, GAO Weidong. Numerical simulation and experimental investigation of lattice-apron compact spinning with airflow-guiding device[J]. Journal of Textile Research, 2025, 46(01): 34-41.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20231006301

http://www.fzxb.org.cn/CN/Y2025/V46/I01/34

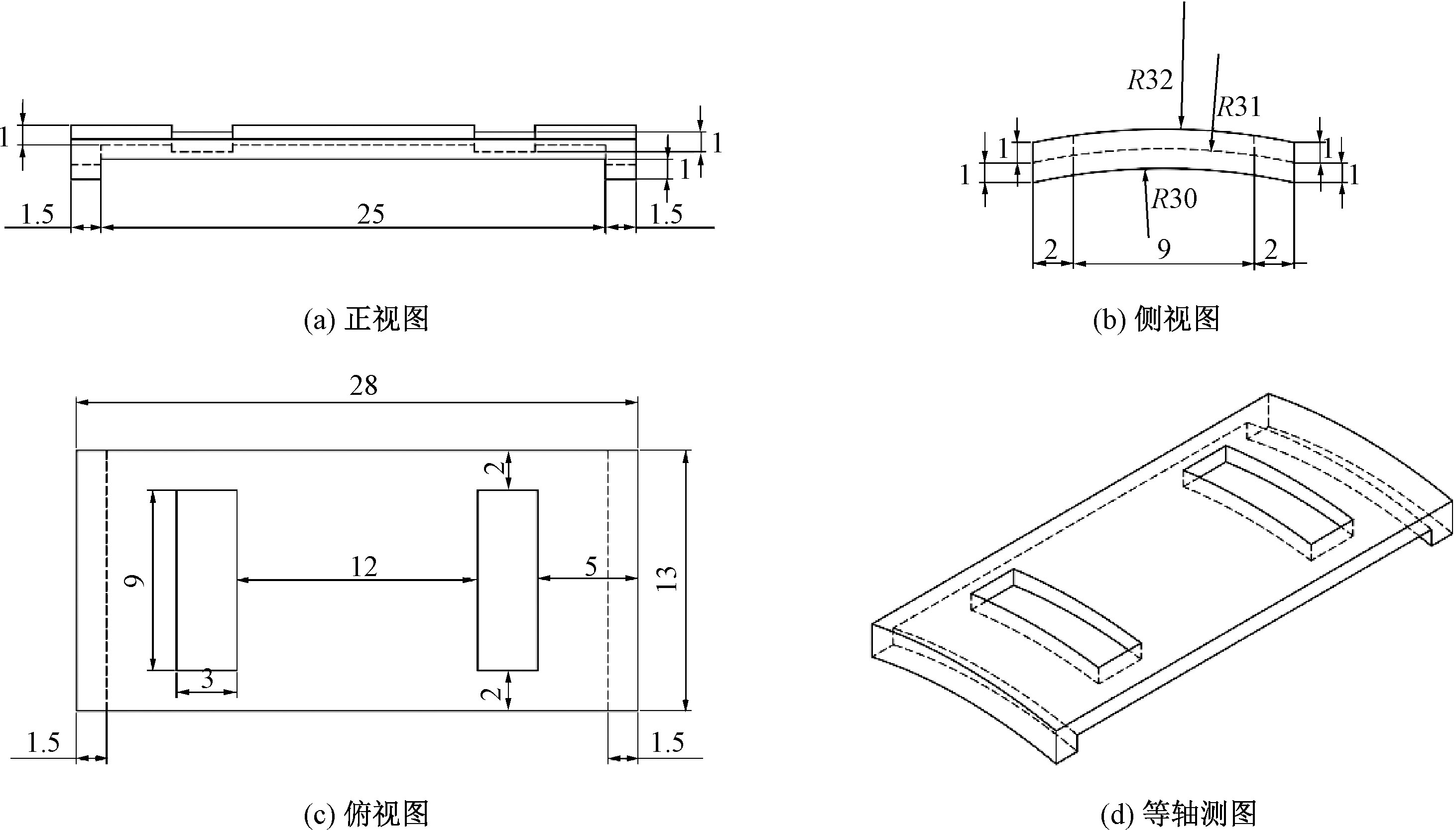

图1

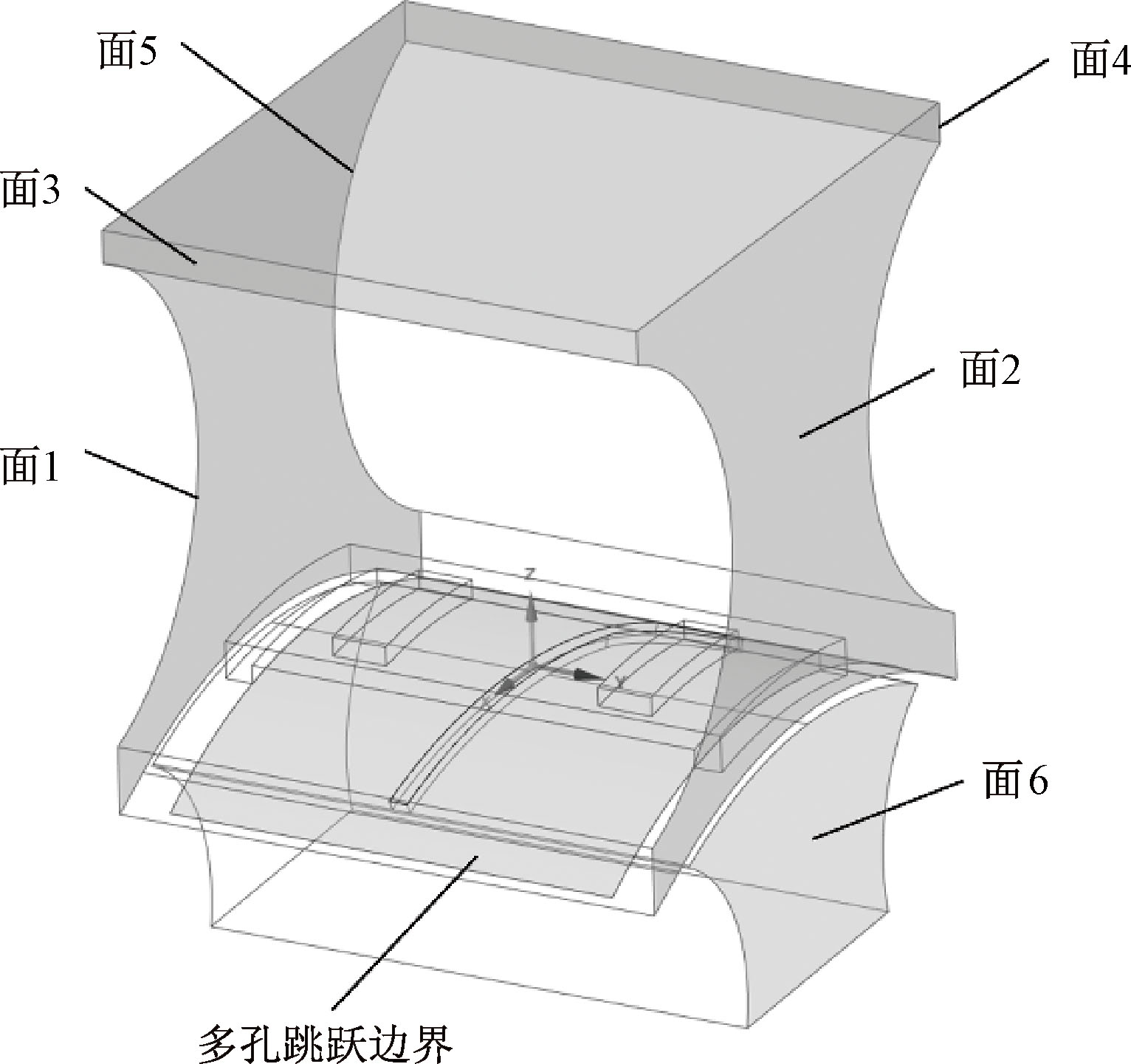

图2

图3

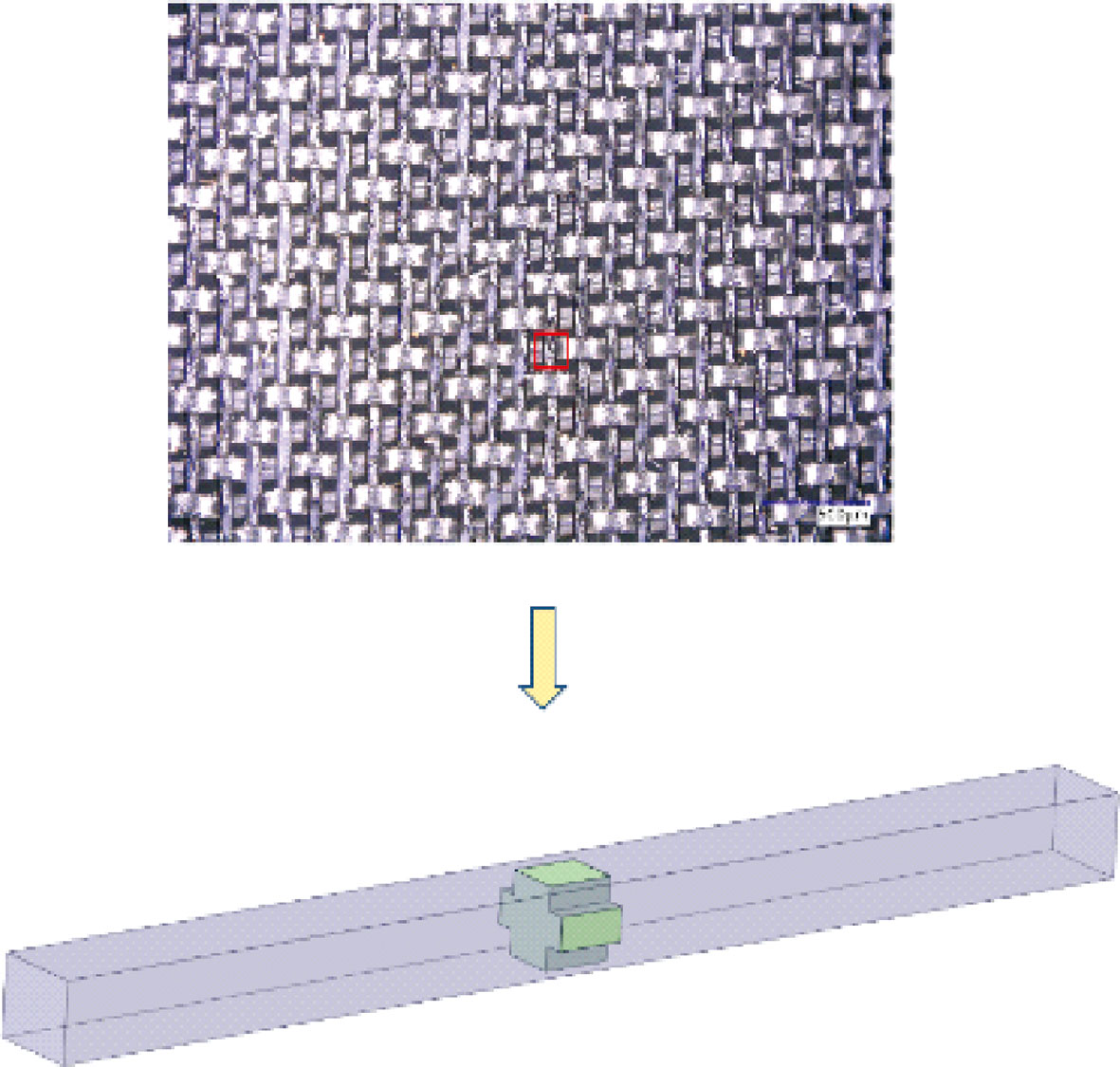

图4

表1

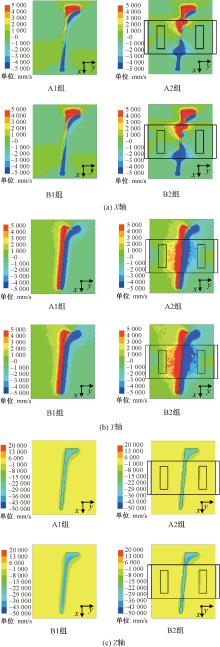

图5

表2

表3

表4

[1]	高小亮, 谢春萍, 苏旭中. 负压对紧密纺成纱质量的影响[J]. 国际纺织导报, 2007(6): 48-50,52.
	GAO Xiaoliang, XIE Chunping, SU Xuzhong. The effect of negative pressure on the quality of compact spun yarns[J]. Melliand China, 2007(6): 48-50,52.
[2]	刘世瑞, 邹专勇, 华志宏, 等. 气流槽聚型集聚纺纱系统集聚过程及机理分析[J]. 东华大学学报(自然科学版), 2009, 35(5): 510-514.
	LIU Shirui, ZOU Zhuanyong, HUA Zhihong, et al. Condensing process and mechanism analysis of compact spinning system with inspiratory groove[J]. Journal of Donghua University(Natural Science), 2009, 35(5): 510-514.
[3]	竺韵德, 邹专勇, 俞建勇, 等. 气流槽聚型集聚纺纱系统三维流场的数值研究[J]. 东华大学学报(自然科学版), 2009, 35(3): 294-298.
	ZHU Yunde, ZOU Zhuanyong, YU Jianyong, et al. Numerical study of three dimensional flow field in compact spinning system with inspiratory groove[J]. Journal of Donghua University(Natural Science), 2009, 35(3): 294-298.
[4]	沈晓来. 立达K44紧密纺装置主要元件的作用[J]. 上海纺织科技, 2005, 33(2): 27-37.
	SHEN Xiaolai. Function of main elements of Rieter K44 compact spinning set[J]. Shanghai Textile Science & Technology, 2005, 33(2): 27-37.
[5]	李聪. 基于Fluent的卡摩纺系统数值模拟与分析[D]. 乌鲁木齐: 新疆大学, 2018: 60-61.
	LI Cong. Numerical simulation and analysis of comfort spinning system using Fluent software[D]. Urumchi: Xinjiang University, 2018: 60-61.
[6]	刘晓艳, 刘新金, 刘娜, 等. 基于有限元方法的全聚纺集聚区流场数值模拟[J]. 纺织学报, 2015, 36(5): 29-33,38.
	LIU Xiaoyan, LIU Xinjin, LIU Na, et al. Numerical simulation on airflow field in complete condensing spinning system using finite element method[J]. Journal of Textile Research, 2015, 36(5): 29-33,38.
[7]	王超, 谢春萍, 苏旭中, 等. 紧密纺集聚区气流导向装置的应用效果[J]. 棉纺织技术, 2011, 39(8): 19-21.
	WANG Chao, XIE Chunping, SU Xuzhong, et al. Application of airflow guide device in compact area[J]. Cotton Textile Technology, 2011, 39(8): 19-21.
[8]	梅恒, 徐伯俊, 王超, 等. 基于Fluent的改进型四罗拉紧密纺系统三维流场数值仿真与分析[J]. 纺织学报, 2012, 33(11): 112-116.
	MEI Heng, XU Bojun, WANG Chao, et al. Numerical simulation and analysis of three dimensional flow field of modified four-roller compact spinning system based on Fluent[J]. Journal of Textile Research, 2012, 33(11): 112-116.
[9]	曾泳春, 郁崇文. 喷气纺喷嘴中气流流动的数值计算[J]. 东华大学学报(自然科学版), 2002, 30(5):11-16.
	ZENG Yongchun, YU Chongwen. Numerical computation of air flow in the nozzle of air-jet spinning[J]. Journal of Donghua University (Natural Science), 2002, 30(5): 11-16.
[10]	傅培花, 程隆棣, 王善元. 集聚纺纱系统技术中气流速度场的数值模拟[J]. 青岛大学学报, 2005, 20(4): 74-79.
	FU Peihua, CHENG Longdi, WANG Shanyuan. Numerical simulation of airflow velocity field in agglomeration spinning system technology[J]. Journal of Qingdao University, 2005, 20(4): 74-79.
[11]	邹专勇, 汪燕, 俞建勇, 等. 网格圈集聚纺纱系统三维流场表征与分析[J]. 纺织学报, 2009, 30(6): 24-28.
	ZOU Zhuanyong, WANG Yan, YU Jianyong, et al. Characterization and analysis of three dimensional flow field in compact spinning with lattice apron[J]. Journal of Textile Research, 2009, 30(6): 24-28.
[12]	刘文龙, 徐伯俊, 谢春萍, 等. 基于Fluent的全聚纺不同吸风槽集聚效果数值模拟[J]. 纺织学报, 2014, 35(9): 137-143.
	LIU Wenlong, XU Bojun, XIE Chunping, et al. Numerical simulation of condensing effect of air suction slot's structure in complete condensing spinning system based on Fluent[J]. Journal of Textile Research, 2014, 35(9): 137-143.
[13]	ZOU Zhuanyong, ZHU Yunde, HUA Zhihong, et al. Studies of flexible fiber trajectory and its pneumatic condensing mechanism in compact spinning with lattice apron[J]. Textile Research Journal, 2010, 80(8): 712-719.

Just accepted

Online first

Just accepted

Online first

Viewed

Full text

From	Others	local

Times	13	28
Rate	32%	68%

Abstract

Just accepted	Online first	Issue

0	0	85

From	Others	local

Times	51	34
Rate	60%	40%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

Discussed

流速/(m·s^-1)	压降/Pa
5	8.75
10	19.27
20	45.60
30	78.98
40	119.43
50	166.94

速率区间/ (mm·s^-1)	不同速率区间分布面积/mm²
速率区间/ (mm·s^-1)	A1组	A2组	B1组	B2组
≥5 000	73.95	97.78	85.31	112.73
[4 000,5 000)	11.02	14.97	12.63	31.39
[3 000,4 000)	16.27	42.99	17.72	55.52
[2 000,3 000)	27.47	68.50	33.63	54.72
[1 000,2 000)	90.63	131.31	145.62	169.75
[0,1 000)	520.87	384.66	445.30	316.10

线密度/ tex	粗纱定量/ (g·(10 m)^-1)	细纱捻系数	吸风负压/Pa	钢丝圈型号
6.5	3.0	400	-1 600	U1UL udr18/0
7.3	3.0	380	-1 600	U1UL udr15/0
9.7	3.0	350	-1 600	U1UL udr11/0
14.6	4.0	340	-2 500	U1UL udr9/0
19.4	4.0	330	-2 500	U1UL udr7/0
29.2	4.0	330	-2 500	U1UL udr1/0

线密度/ tex	有无导向片	毛羽(≥3 mm)/ (根·(100 m)^-1)	断裂强度/ (cN·tex^-1)	条干 CV值/%
6.5	无	163	21.3	15.43
6.5	有	159	21.9	15.28
7.3	无	98	21.2	14.96
7.3	有	97	22.0	14.65
9.7	无	84	24.2	13.14
9.7	有	81	24.9	12.56
14.6	无	104	19.5	17.22
14.6	有	101	20.1	17.13
19.4	无	163	21.0	14.88
19.4	有	126	22.6	14.39
29.2	无	159	22.3	13.25
29.2	有	113	22.8	13.18
