MoS₂/MXene阻燃气敏棉织物的制备及其性能

Preparation and properties of MoS₂/MXene flame retardant gas sensitive cotton fabrics

摘要/Abstract

图/表 9

参考文献 16

Metrics

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 16

相关文章 15

Metrics

本文评价

推荐阅读 0

doi:10.13475/j.fzxb.20240501901

摘要：

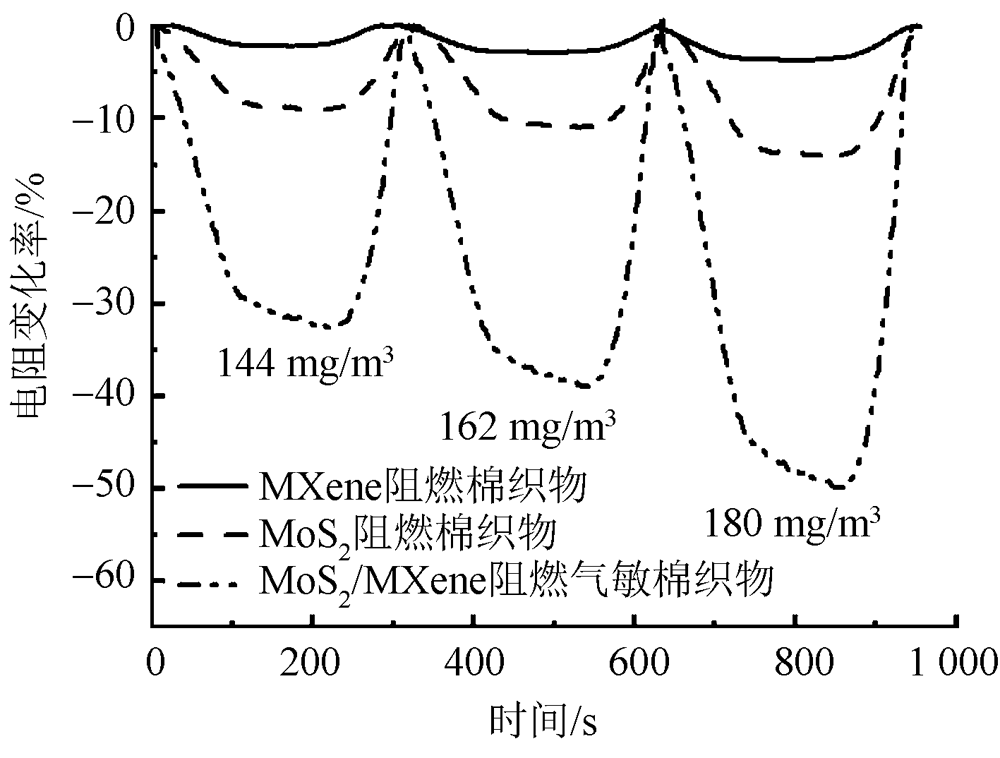

针对易燃棉织物引发的室内火灾难以及时预警的难题,以植酸为掺杂剂,通过原位聚合法制备植酸掺杂聚吡咯改性棉织物,同时采用水热法合成MoS₂/Ti₃C₂T_x杂化纳米材料(MoS₂/MXene),然后通过浸渍法将其组装到改性织物上,得到CO₂响应的阻燃棉织物,研究其热稳定性、阻燃性能和CO₂气敏性,揭示阻燃与气敏机制。结果表明:MoS₂/MXene阻燃涂层使得棉织物的最大质量损失速率降低了55.2%,残炭量从9.6%明显提高到21.7%,提高了棉织物的热稳定性;MoS₂/MXene阻燃涂层使得棉织物的热释放速率峰值和总热释放从235.8 W/g和26.7 kJ/g分别降低到38.9 W/g和8.0 kJ/g,降幅分别高达83.5%和68.7%,这得益于植酸掺杂聚吡咯的P-N协同阻燃效应与MoS₂/MXene的片层阻隔效应;MoS₂/MXene阻燃涂层对CO₂气体具有很高的灵敏度,当CO₂质量浓度仅为180 mg/m³时,电阻变化率高达49.9%,可监测火灾初起阶段燃烧气体中CO₂骤变。

关键词: 二硫化钼, MXene, 异质结构, 阻燃预警, 气敏机制, 阻燃织物, 功能性纺织品

Abstract:

Objective To address the issue of indoor fire alarms caused by flammable cotton fabrics, MoS₂/MXene flame retardant gas sensitive cotton fabrics were prepared with dual functions of active early warning response and passive flame retardant protection. It is significant for protecting personal and property safety by detecting characteristic CO₂ gas in the early stages of a fire and preventing the spread of flames.

Method Phytic acid-doped polypyrrole modified cotton fabrics were prepared using in-situ polymerization with phytic acid as dopant. Meanwhile, MoS₂/MXene hybrid nanomaterials were synthesized via a hydrothermal method and then assembled onto the modified fabrics by impregnation method to obtain CO₂-responsive flame retardant cotton fabrics. The thermal stability, flame retardant performance and CO₂ gas sensitivity were evaluated by thermogravimetric analysis, an FTT micro calorimeter and a digit multimeter, respectively.

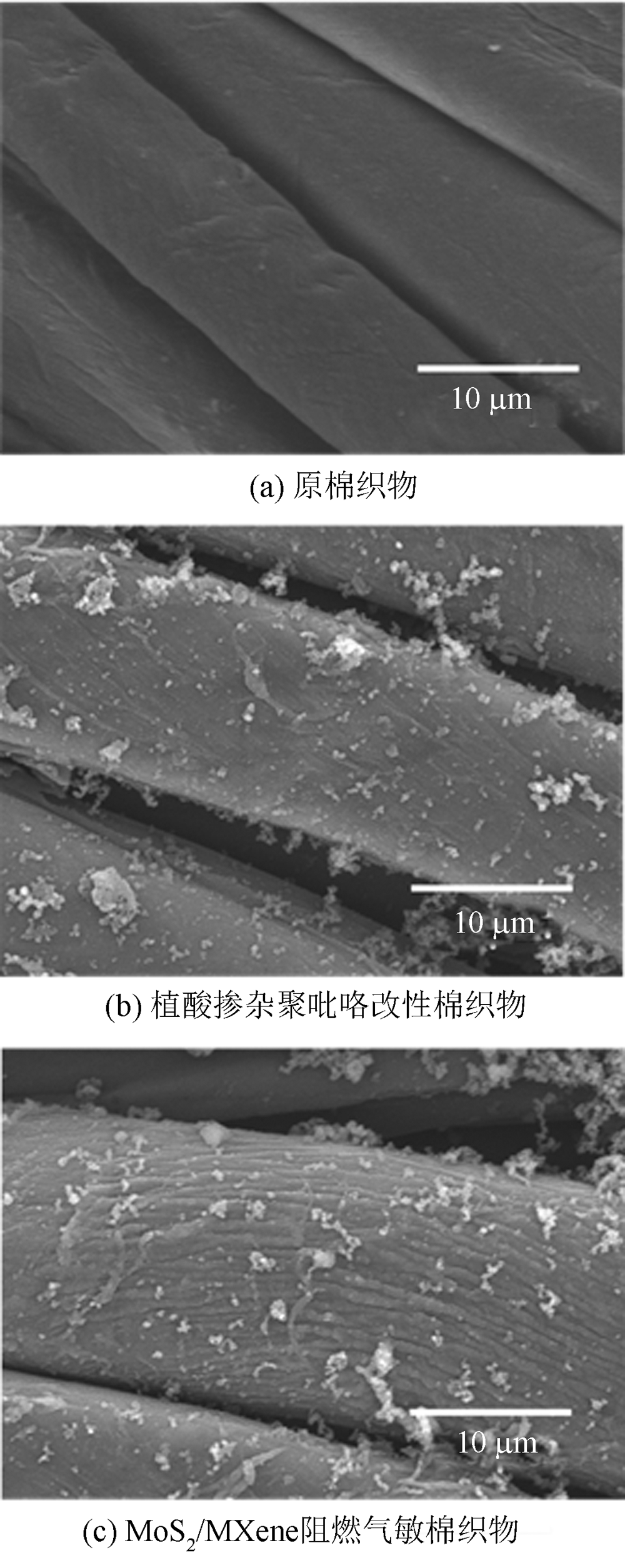

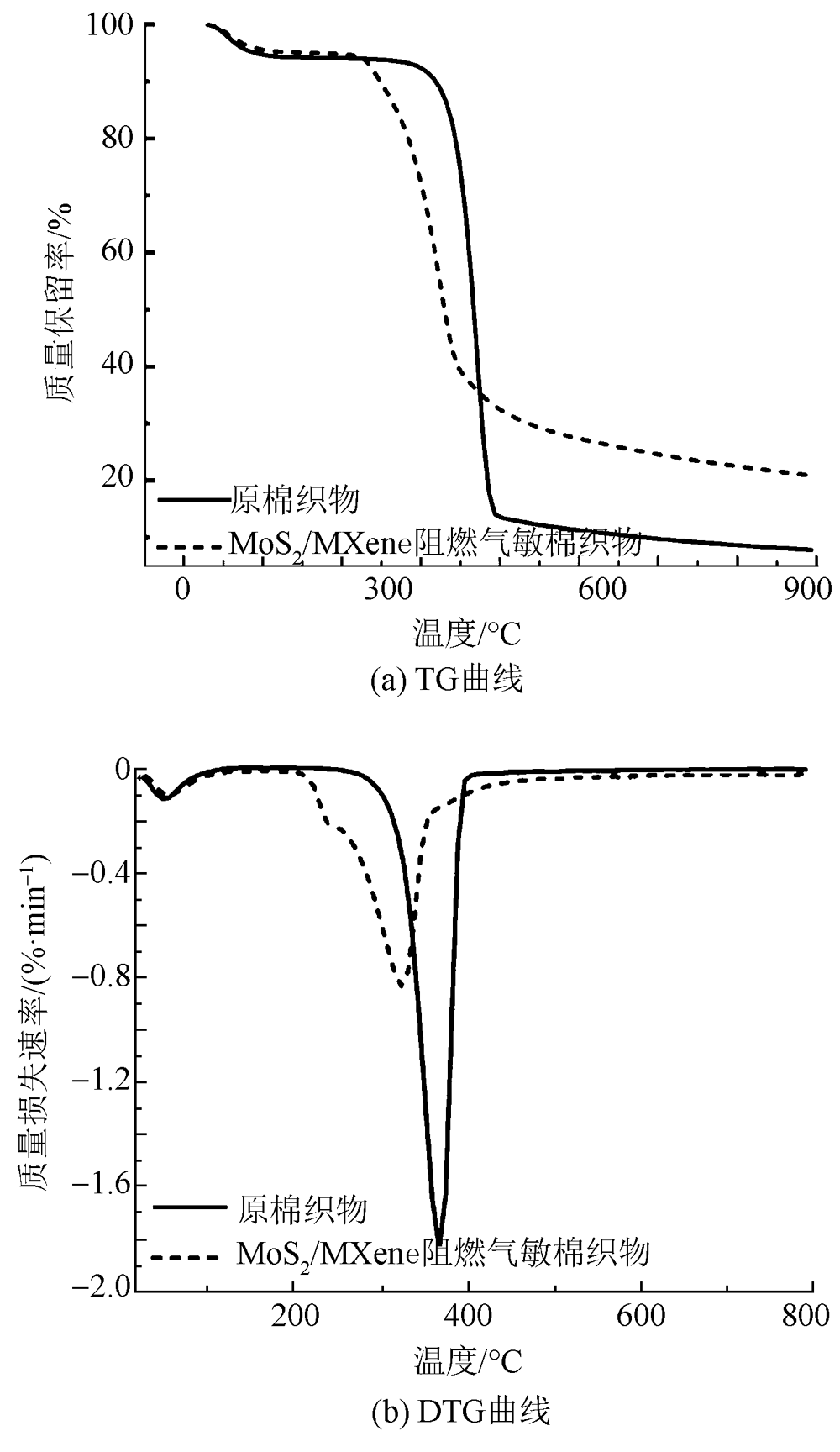

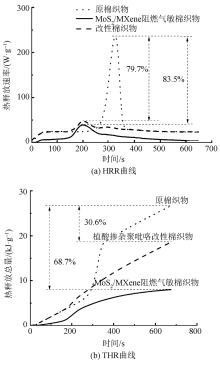

Results MoS₂/MXene flame retardant gas sensitive cotton fabrics were successfully prepared. The surface of the pure cotton fabric was initially smooth, but after modification with phytic acid-doped polypyrrole, it became rough and covered with numerous particles. This change is due to the in-situ synthesis of the doped polypyrrole particles adhering to the cotton fabric. After dipping, the surface of flame-retardant cotton fabric became even rougher with regular folds, indicating successful adsorption of the MoS₂/MXene nano-hybrid material. The MoS₂/MXene flame retardant coating reduced the maximum weight loss rate of cotton fabric by 55.2% and increased the residual carbon content from 9.6% to 21.7%, enhancing thermal stability. Additionally, the coating decreased the peak heat release rate and total heat release by 83.5% and 68.7%, respectively, from 235.8 W/g and 26.7 kJ/g to 38.9 W/g and 8.0 kJ/g. This improvement is attributed to the P-N synergistic flame retardant effect of the doped polypyrrole and the barrier effect of MoS₂/MXene. The fabrics also exhibited high sensitivity to CO₂ gas, with a significantly higher resistance change rate compared to fabrics treated only with MoS₂ or MXene. At a CO₂ concentration of 180 mg/m³, the resistance change rate was as high as 49.9%, allowing for early detection of CO₂ changes during the initial stages of a fire. The presence of P-N heterojunctions in the MoS₂/MXene flame retardant gas sensitive cotton fabrics increased the concentration and migration rate of carriers in the channel, thereby enhancing the sensitivity of MoS₂/MXene flame retardant gas sensitive cotton fabrics to CO₂ gas. In addition, MoS₂/MXene flame retardant gas sensitive cotton fabrics provide more adsorption sites for CO₂ gas, further improving the sensitivity.

Conclusion MoS₂/MXene flame retardant gas sensitive cotton fabrics were successfully synthesized, demonstrating dual functionality of active early warning response and passive flame retardant protection. Compared to pure cotton fabrics, the MoS₂/MXene flame retardant gas sensitive cotton fabrics show significant improved flame retardant efficiency, with an 83.5% reduction in the peak heat release rate and a 68.7% reduction in total heat release. This performance is mainly due to the P-N synergistic flame retardant effect of phytate-doped polypyrrole and the barrier effect of MoS₂/MXene. In addition, MoS₂/MXene flame retardant gas sensitive cotton fabrics exhibit high sensitivity to CO₂gas, capable of monitoring sudden change of CO₂ at the initial stage of a fire. This study shines a new light on fire prevention and control.

Key words: MoS₂, MXene, heterogeneous structure, flame retardant early warning, gas-sensitive mechanism, flame retardant fabric, functional textiles

中图分类号:

TS194.6

关玉, 王冬, 郭一凡, 付少海. MoS₂/MXene阻燃气敏棉织物的制备及其性能[J]. 纺织学报, 2024, 45(12): 159-165.

GUAN Yu, WANG Dong, GUO Yifang, FU Shaohai. Preparation and properties of MoS₂/MXene flame retardant gas sensitive cotton fabrics[J]. Journal of Textile Research, 2024, 45(12): 159-165.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20240501901

http://www.fzxb.org.cn/CN/Y2024/V45/I12/159

图1

图2

图3

图4

表1

图5

图6

图7

图8

[1]	HASOFER A M, THOMAS I. Analysis of fatalities and injuries in building fire statistics[J]. Fire Safety Journal, 2006, 41(1): 2-14.
[2]	王永强. 阻燃材料及应用技术[M]. 北京: 化学工业出版社, 2003:680.
	WANG Yongqiang. Flame retardant materials and application technology[M]. Beijing: Chemical Industry Press,2003:680.
[3]	LI P, WANG B, XU Y J, et al. Ecofriendly flame-retardant cotton fabrics: preparation, flame retardancy, thermal degradation properties, and mechanism[J]. ACS Sustainable Chemistry & Engineering, 2019, 7(23): 19246-192564.
[4]	QI P, CHEN F, LI Y, et al. A review of durable flame-retardant fabrics by finishing: fabrication strategies and challenges[J]. Advanced Fiber Materials, 2023, 5(3): 1-33.
[5]	WANG X, LEI Z, MA X, et al. A lightweight MXene-coated nonwoven fabric with excellent flame retardancy, shielding, and electrothermal/photothermal conversion for wearable heater[J]. Chemical Engineering Journal, 2022. DOI: 10.1016/j.cej.2021.132605.
[6]	ZHU T, LIU L, HUANG J, et al. Multifunctional hydrophobic fabric-based strain sensor for human motion detection and personal thermal management[J]. Journal of Materials Science & Technology, 2023, 138: 108-116.
[7]	ZHAO X, PENG L M, TANG C Y, et al. All-weather-available, continuous steam generation based on the synergistic photo-thermal and electro-thermal conversion by MXene-based aerogels[J]. Materials Horizons, 2020, 7(3): 855-865.
[8]	ULLAH S, SHAHZAD F, QIU B, et al. MXene-based aptasensors: advances, challenges, and prospects[J]. Progress in Materials Science, 2022.DOI:10.1016/j.pmatsci.2022.100967.
[9]	PEI Y, ZHANG X, HUI Z, et al. Ti₃C₂T_x MXene for sensing applications: recent progress, design principles, and future perspectives[J]. ACS Nano, 2021, 15(3): 3996-4017.
[10]	WANG Z, GAO S, FEI T, et al. Construction of ZnO/SnO₂heterostructure on reduced graphene oxide for enhanced nitrogen dioxide sensitive performances at room temperature[J]. ACS Sensors, 2019, 4(8): 2048-2057.
[11]	AHMAD I. 几种二维半导体及其异质结的光电特性及光催化应用的理论研究[D]. 昆明: 昆明理工大学, 2023:151.
	AHMAD I. Theoretical study on the optoelectronic characteristics of several two-dimensional semiconductors and their heterojunctions and their photocatalytic applications[D]. Kunming: Kunming University of Science and Technology, 2023:151.
[12]	SAVENIJE T J, KROEZE J E, YANG X, et al. The effect of thermal treatment on the morphology and charge carrier dynamics in a polythiophene-fullerene bulk heterojunction[J]. Advanced Functional Materials, 2005, 15(8): 1260-1266.
[13]	YAN S H, MA S Y, XU X L, et al. Synthesis and gas sensing application of porous CeO₂-ZnO hollow fibers using cotton as biotemplates[J]. Materials Letters, 2016, 165: 9-13.
[14]	RAMASAMY F. A review on the investigation of biologically active natural compounds on cotton fabrics as an antibacterial textile finishing[J]. International Research Journal of Science and Technology, 2019, 1(1): 49-55.
[15]	BNETIS A, BOUKHRISS A, GRANCARIC A M, et al. Flammability and combustion behavior of cotton fabrics treated by the sol gel method using ionic liquids combined with different anions[J]. Cellulose, 2019, 26: 2139-2153.
[16]	吕宝华, 李玉珍. 水热法制备In₂O₃/ZnO异质结及其高的光催化性能[J]. 原子与分子物理学报, 2022, 39 (6): 56-62.
	LÜ Baohua, LI Yuzhen. Preparation of In₂O₃/ZnO heterojunctions by hydrothermal method and its high photocatalytic Performance[J]. Atomic and Molecular physics Journal, 2022, 39(6):56-62.

Viewed

Full text

From	Others	local

Times	6	11
Rate	35%	65%

Abstract

Just accepted	Online first	Issue

0	0	68

From	Others	local

Times	55	13
Rate	81%	19%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

Discussed

样品	T_d/℃	T_max/℃	R_max/ (%·min^-1)	残炭量/%
原棉织物	277.5	370.2	1.844	9.6
MoS₂/MXene阻燃气敏棉织物	207.9	323.9	0.826	21.7
