改进转杯纺输纤通道气流场及其纤维伸直形态的模拟

Simulation of flow field and fiber straightening in reconstructed fiber transport channel in rotor spinning

改进转杯纺输纤通道气流场及其纤维伸直形态的模拟

Simulation of flow field and fiber straightening in reconstructed fiber transport channel in rotor spinning

摘要/Abstract

图/表 12

参考文献 11

相关文章 15

Metrics

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 11

相关文章 15

Metrics

本文评价

推荐阅读 0

doi:10.13475/j.fzxb.20240906601

纺织学报 ›› 2025, Vol. 46 ›› Issue (02): 100-105.doi: 10.13475/j.fzxb.20240906601

张定眺¹, 王倩茹¹, 邱芳², 李凤艳¹^,²()

1.天津工业大学纺织科学与工程学院, 天津 300387
2.江苏中纺联检验技术服务有限公司, 江苏苏州 215228
3.浙江灏宇科技有限公司,浙江绍兴 312369

收稿日期:2024-09-26 修回日期:2024-11-29 出版日期:2025-02-15 发布日期:2025-03-04
通讯作者: 李凤艳(1978—),女,副教授,博士。研究方向为纺织纤维、纱线及产品开发。E-mail:fengyanli@tiangong.edu.cn。
作者简介:张定眺(2000—),男,硕士生。主要研究方向为新型纺纱流场数值模拟。
基金资助:
国家自然科学基金项目(51403152)

ZHANG Dingtiao¹, WANG Qianru¹, QIU Fang², LI Fengyan¹^,²()

1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
2. United Testing Services (Jiangsu)Co., Ltd., Suzhou, Jiangsu 215228, China
3. Zhejing Haoyu Technology Co., Ltd.,Shaoxing, Zhejiang 312369, China

Received:2024-09-26 Revised:2024-11-29 Published:2025-02-15 Online:2025-03-04

摘要：

为研究输纤通道对弯钩纤维伸直效果的影响,采用流体力学数值模拟方法模拟了改进前后输纤通道内气流场的分布状态,并借助离散元软件建立了柔性纤维模型,利用两相流耦合方法求解弯钩纤维在气流场中的伸直变化过程,讨论了弯钩纤维的伸直效果。结果表明:改进输纤通道内的高速气流区域相对原输纤通道占比较大,对弯钩纤维的加速伸直效果更好;弯钩纤维在改进输纤通道中能更早到达通道出口,且伸直效果优于原输纤通道。改进输纤通道对后弯钩纤维的伸直效果提升更加明显。该研究通过数值模拟的方法分析了弯钩纤维伸直过程,为转杯纺输纤通道等关键部件的设计提供指导。

关键词: 转杯纺, 输纤通道, 弯钩纤维, 纤维伸直度, 数值模拟

Abstract:

Objective The geometry of the fiber transport channel in rotor spinning will change the distribution of the internal airflow field, and the airflow field greatly influences morphological changes in fiber movement. To study the influence of the fiber transport channel on the straightening effect of hooked fiber, the distribution state of the airflow field in the channel before and after reconstruction was simulated by using the fluid mechanics numerical simulation method.

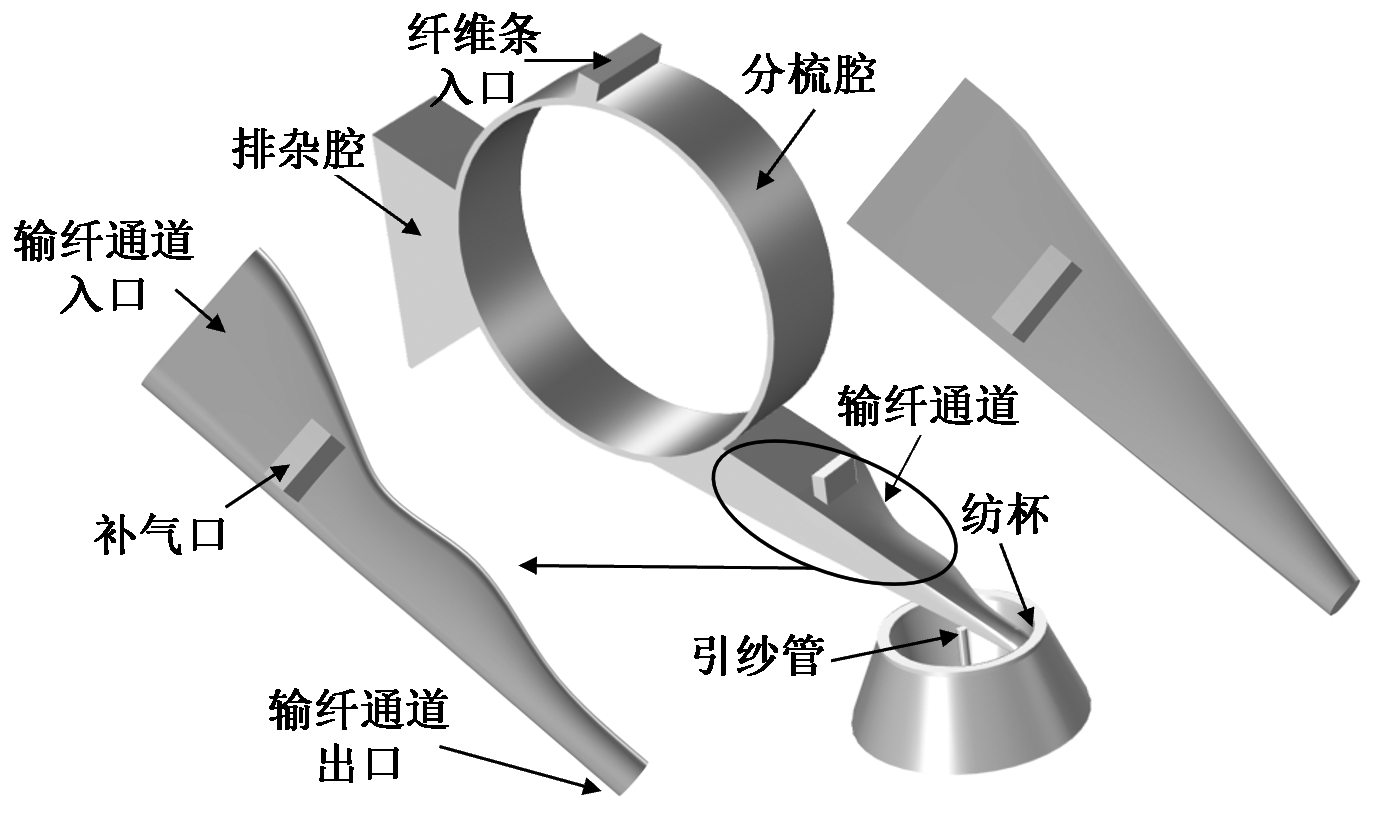

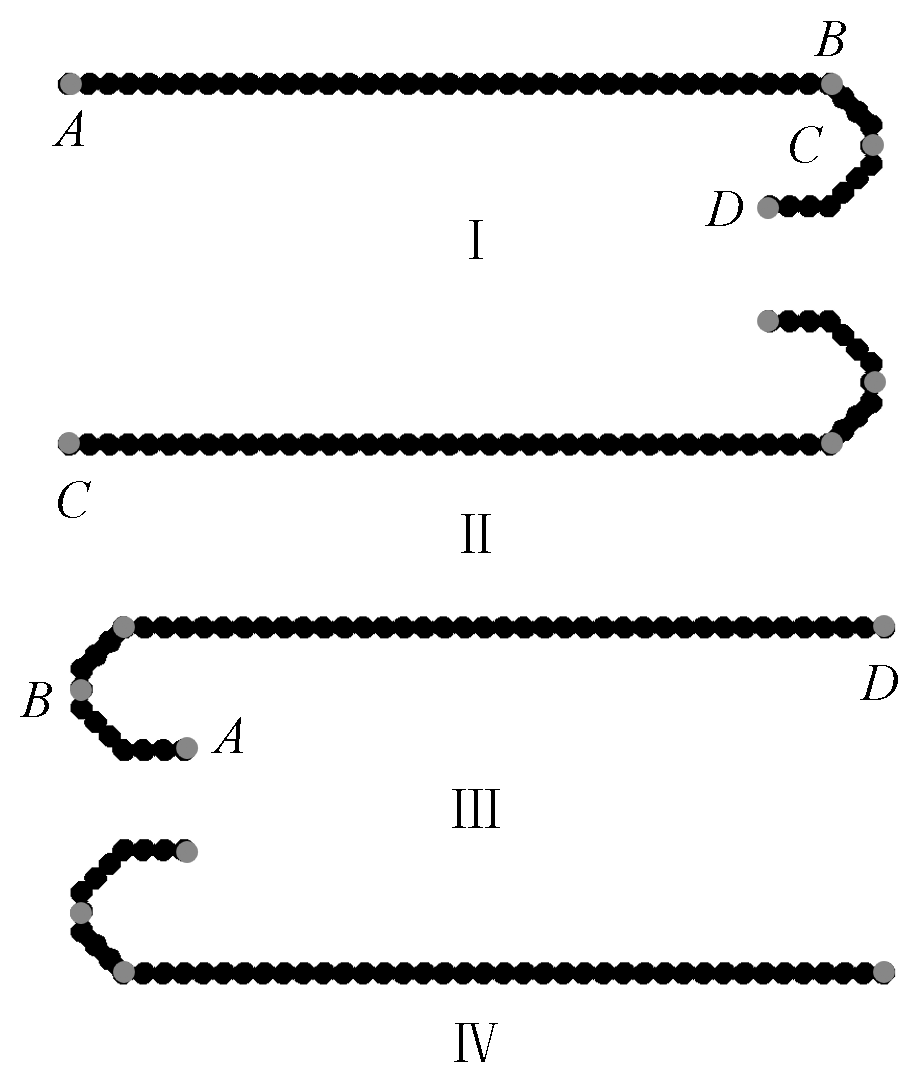

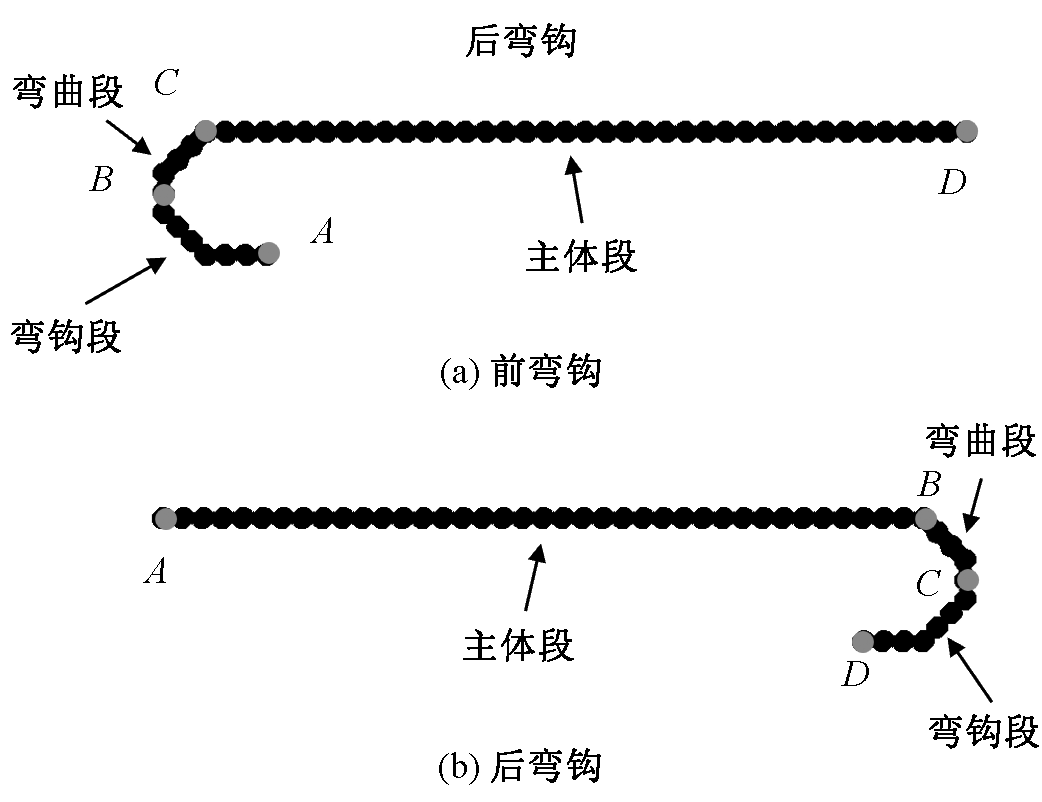

Method A Laval tube fiber transport channel model was designed using SolidWorks software, and airflow motion state inside the reconstructed channel was simulated by Fluent, and the flexible hooked fiber model was established by EDEM. Based on the airflow field data obtained from Fluent simulation calculation, combined with the solid-liquid two-phase flow coupling method in EDEM, the shape change of hooked fibers in the airflow of the fiber transport channel was simulated to study the effect of different types of hooks on the straightening process of hooked fibers.

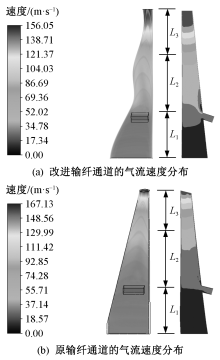

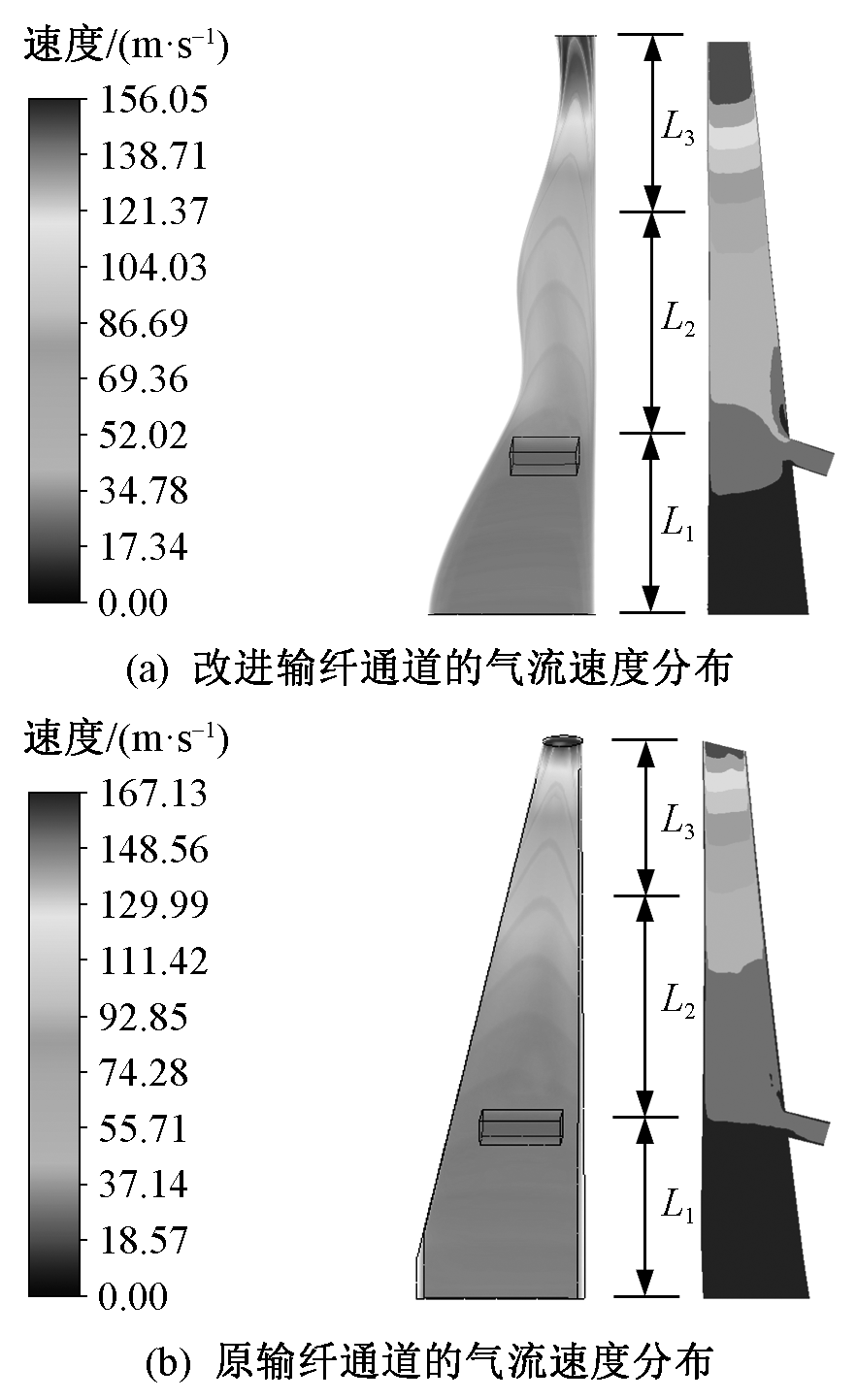

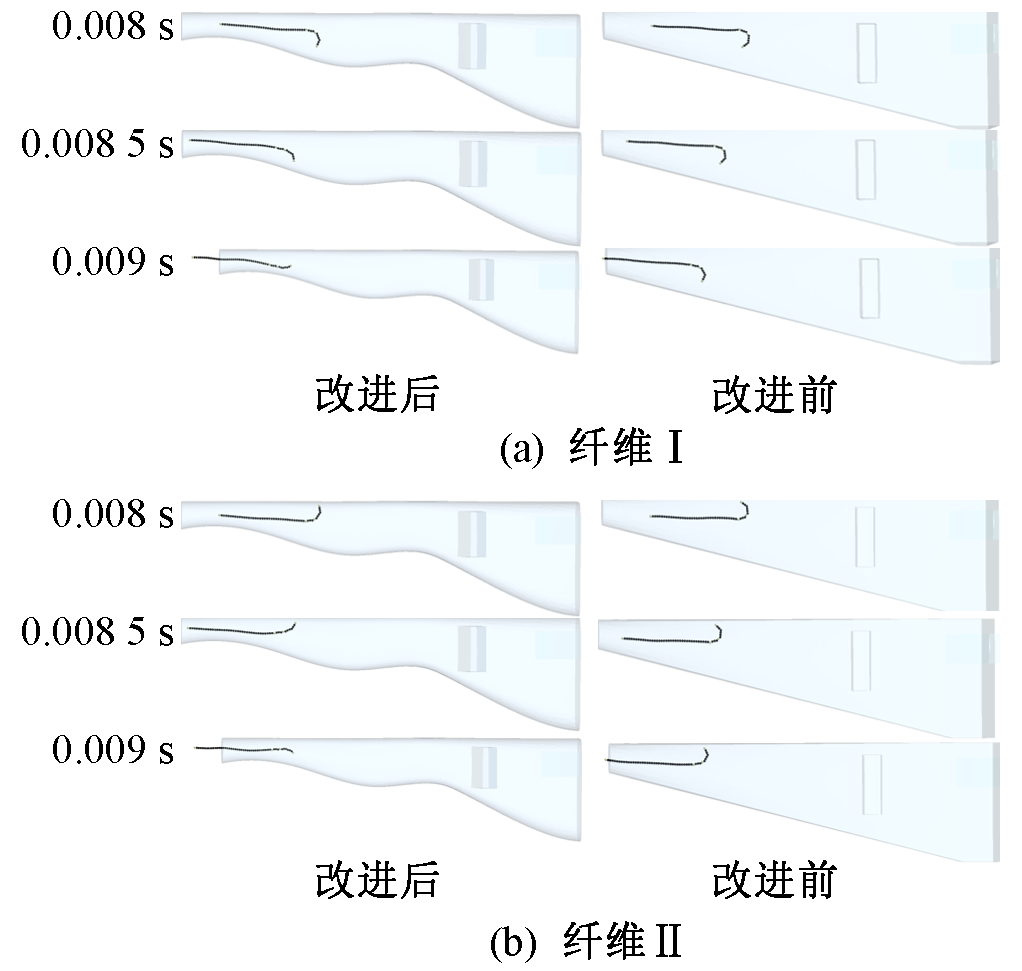

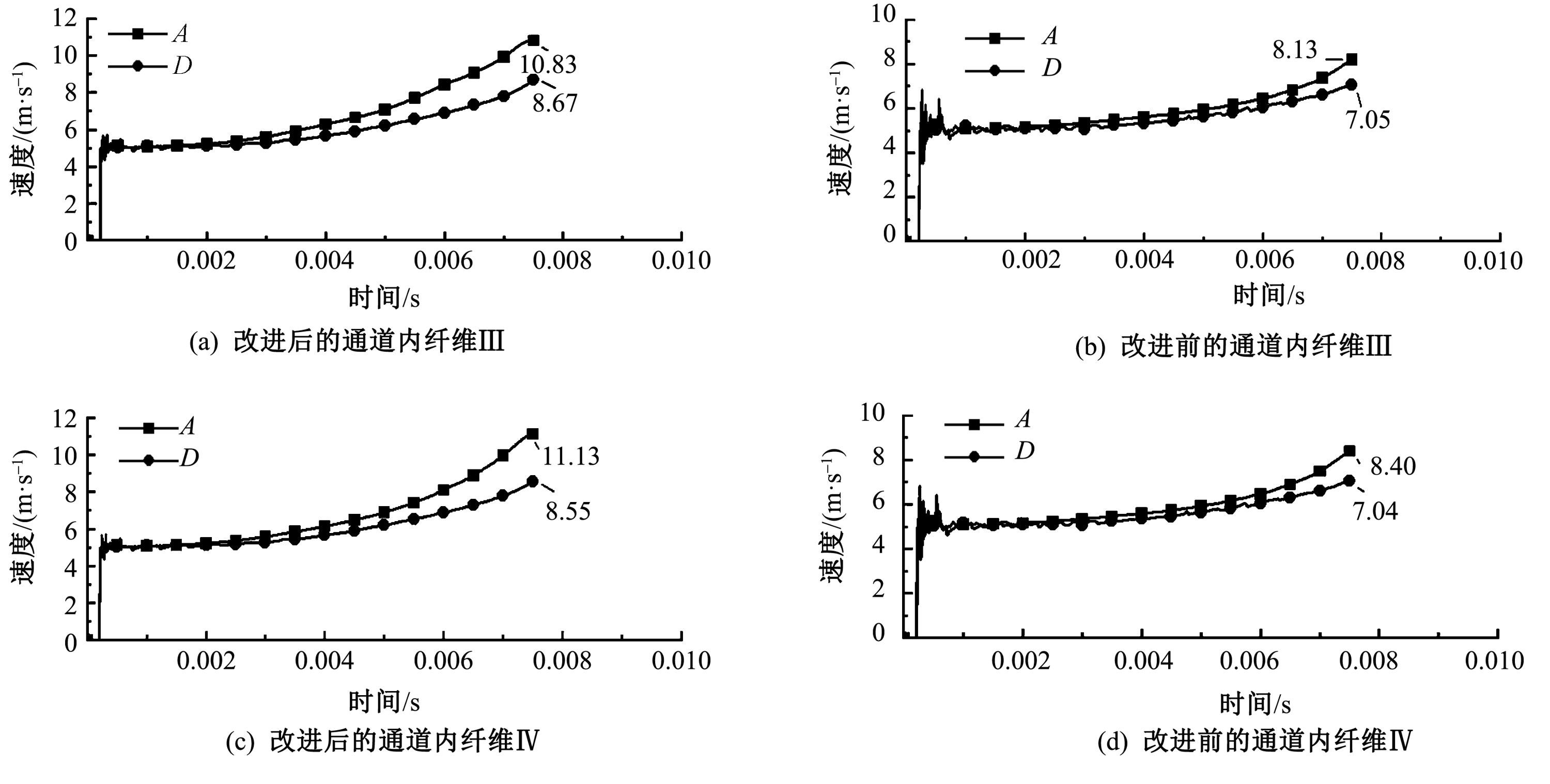

Results The maximum air velocity difference between the reconstructed fiber transport channel and the original is 6.63%, but high-speed airflow in the reconstructed fiber channel is relatively large, especially the area of high-speed airflow L₃ section near the outlet is obviously larger than the original fiber channel outlet. When improving the movement of fibers in the fiber transport channel, the hooked fiber reached the high-speed airflow area earlier and the speed of the fiber head was increased, beneficial to the straightening of the hooked fiber. The hooked fiber in the reconstructed fiber channel was basically straight, while the fiber in the original fiber channel was not straight even when fiber reached the exit. According to the result of the straightness, the airflow field distribution in the reconstructed fiber transport channel was more conducive to the straightening of the hooked fiber. In comparison with the tradiational fiber transport channel, straightness of trailing right hooked fibers Ⅱ is increased from 88.70% to 97.80%.

Conclusion The airflow field of the reconstructed fiber transport channel in rotor spinning has a larger area of high-speed airflow compared with that of the original channel, which is more effective in accelerating the straightening of hooked fibers. Hooked fibers in the reconstructed fiber transport channel reach the channel outlet earlier and straighten better than in the original channel. The straightening effect of the reconstructed channel on the trailing hooked fiber is more obvious. The study analyzed the hooked fiber straightening process through numerical simulation, which guides the design of key components such as rotor-spinning fiber transport channels.

Key words: rotor spinning, fiber transport channel, hooked fiber, fiber straightness, numerical simulation

中图分类号:

TS103.2

张定眺, 王倩茹, 邱芳, 李凤艳. 改进转杯纺输纤通道气流场及其纤维伸直形态的模拟[J]. 纺织学报, 2025, 46(02): 100-105.

ZHANG Dingtiao, WANG Qianru, QIU Fang, LI Fengyan. Simulation of flow field and fiber straightening in reconstructed fiber transport channel in rotor spinning[J]. Journal of Textile Research, 2025, 46(02): 100-105.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20240906601

http://www.fzxb.org.cn/CN/Y2025/V46/I02/100

图1

表1

图2

表2

图3

图4

图5

图6

图7

图8

图9

表3

[1]	SUN Y F, LIU B W, WANG X H, et al. Air-flow field of the melt-blowing slot die via numerical simulation and multiobjective genetic algorithms[J]. Journal of Applied Polymer Science, 2011, 122(6): 3520-3527.
[2]	KRUTKA H M, AND R L S, PAPAVASSILIOU D V. Effects of temperature and geometry on the flow field of the melt blowing process[J]. Ind Eng Chem Res, 2004, 43(15): 4199-4210.
[3]	GUO D J, FAN H, ZHU Z S, et al. Numerical investigation into the effect of geometric shape of slot on air flow field in melt-blown for polymer fiber[J]. The Journal of The Textile Institute, 2022, 113(6): 1133-1141.
[4]	FANG H, SUN H, LIU Q, et al. Optimization analysis of combing box for air yarn based on computational fluid dynamics[J]. Journal of Engineered Fibers and Fabrics, 2022, 17: 1-18.
[5]	LAWRENCE C A, CHEN K Z. A Study of the fibre-transfer-channel design in rotor-spinning: part Ⅱ: optimization of The transfer-channel design[J]. Journal of The Textile Institute, 1988, 79(3): 393-408.
[6]	SEYED S, ESKANDARNEJAD S, EMAMZADEH A. Effect of geometry of end of the fibre transport channel with slotted exit on rotor spun yarn quality[J]. The Journal of The Textile Institute, 2015, 106(5): 564-570.
[7]	LIN H, BERGADÀ J M, ZENG Y, et al. Rotor spinning transfer channel design optimization via computational fluid dynamics[J]. Textile Research Journal, 2018, 88(11): 1244-1262.
[8]	林惠婷, 汪军. 纤维在输纤通道气流场中运动的模拟[J]. 纺织学报, 2018, 39(2): 55-61.
	LIN Huiting, WANG Jun. Simulation on fiber motion in airflow field of transfer channel[J]. Journal of Textile Research, 2018, 39(2): 55-61.
[9]	龚新霞, 杨瑞华. 弯钩纤维在转杯纺纱器内的运动模拟与形态分析[J]. 现代纺织技术, 2024, 32(3): 21-28.
	GONG Xinxia, YANG Ruihua. Motion simulation and morphological analysis of hooked fibers in a rotor spin-ner[J]. Advanced Textile Technology, 2024, 32(3): 21-28.
[10]	TAN D H, HERMAN P K, JANAKIRAMAN A, et al. Influence of Laval nozzles on the air flow field in melt blowing apparatus[J]. Chemical Engineering Science, 2012, 80: 342-348.
[11]	YAMAMOTO S, MATSUOKA T. A method for dynamic simulation of rigid and flexible fibers in a flow field[J]. Journal of Chemical Physics, 1993, 98(1): 644-650.

[1]	李玲, 史倩倩, 田顺, 汪军. 输纤通道对称性对双喂入双分梳转杯纺气流场以及纱线特性的影响[J]. 纺织学报, 2025, 46(02): 69-77.
[2]	宋凯莉, 郭明瑞, 高卫东. 装有气流导向装置的网格圈式集聚纺数值模拟与实验验证[J]. 纺织学报, 2025, 46(01): 34-41.
[3]	汪燕燕, 薛元, 陈宥融, 陈国方. 四基色纤维构建的全色域混色模型及彩色纱纺制[J]. 纺织学报, 2025, 46(01): 62-71.
[4]	李慧敏, 刘淑强, 杜琳琳, 张曼, 吴改红. 玄武岩/聚酰亚胺三维间隔机织物的参数化建模及高温环境传热数值模拟[J]. 纺织学报, 2025, 46(01): 87-94.
[5]	王珏, 晏石林, 李永静, 何龙飞, 谢翔宇, 孟晓旭. 剪切变形对各向异性织物主渗透率及浸润特性的影响[J]. 纺织学报, 2024, 45(12): 109-117.
[6]	龚新霞, 邵秋, 杨瑞华. 纤维在转杯纺纺纱器中的运动和形态变化分析[J]. 纺织学报, 2024, 45(12): 199-205.
[7]	奚传智, 王家源, 王泳智, 陈革, 裴泽光. 低能耗喷气涡流纺喷嘴气流场数值模拟与纺纱实验[J]. 纺织学报, 2024, 45(12): 206-214.
[8]	张定眺, 王倩茹, 邱芳, 李凤艳. 转杯纺分梳排杂区气流场的多维数值模拟对比[J]. 纺织学报, 2024, 45(10): 64-71.
[9]	田少萌, 张丽, 石浩轩, 徐阳. 基于ANSYS Workbench的高密机织滤料动态形变模拟与分析[J]. 纺织学报, 2024, 45(09): 63-69.
[10]	张琦, 左露娇, 屠佳妮, 聂美婷. 经编贾卡鞋面材料透气性的数值模拟[J]. 纺织学报, 2024, 45(09): 78-83.
[11]	岳旭, 王蕾, 孙丰鑫, 潘如如, 高卫东. 基于ABAQUS的平纹织物同面对向弯曲有限元模拟[J]. 纺织学报, 2024, 45(08): 165-172.
[12]	谢红, 张林蔚, 沈云萍. 基于人体臂部的连续动态服装压力预测模型及准确性表征方法[J]. 纺织学报, 2024, 45(07): 150-158.
[13]	刘倩倩, 尤健明, 王琰, 孙成磊, 祝国成. 纤维弯曲对其集合体过滤特性影响的稳态数值分析[J]. 纺织学报, 2024, 45(07): 31-39.
[14]	韩烨, 田苗, 蒋青昀, 苏云, 李俊. 织物-空气层-皮肤三维结构建模及其传热模拟[J]. 纺织学报, 2024, 45(02): 198-205.
[15]	李玲, 丁倩, 汪军. 转杯纺并合效应模型的构建与解析[J]. 纺织学报, 2023, 44(12): 43-49.

Viewed

Full text

From	Others	local

Times	17	9
Rate	65%	35%

Abstract

Just accepted	Online first	Issue

0	0	39

From	Others	local

Times	33	6
Rate	85%	15%

Cited

Web of Science	Crossref	ScienceDirect	Search for Citations in Google Scholar >>


This page requires you have already subscribed to WoS.

Shared

Discussed

模拟参数	类型	数值
网格单元	四面体网格	84 677
输纤通道入口	速度入口	10 m/s
输纤通道出口	压力出口	-8 000 Pa
输纤通道壁面	无滑移边界	—
湍流模型	RNG k-ε	—

类别	密度/(kg·m^-3)	弹性模量/GPa	泊松比
纤维	1 540	7	0.4
输纤通道	7 850	210	0.3

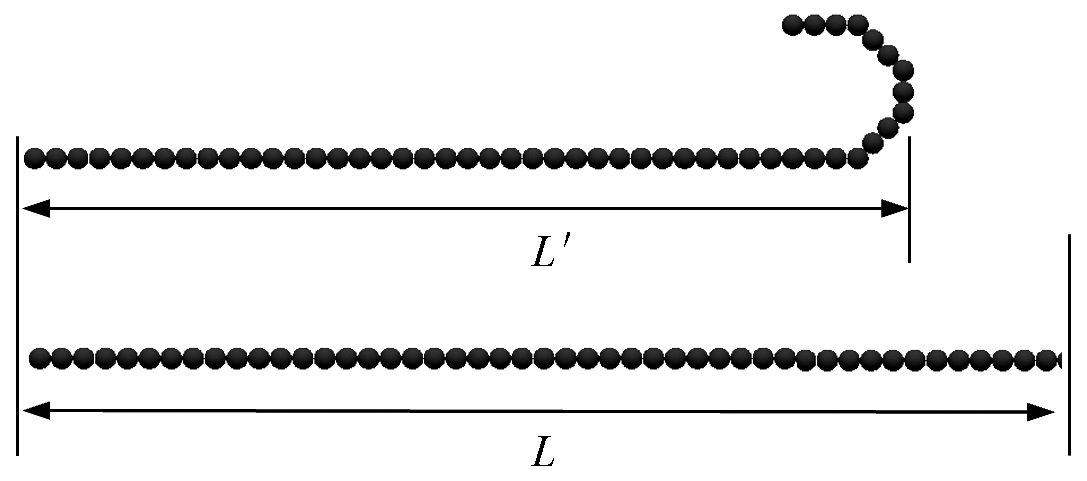

弯钩纤维类别	模拟时间/s	伸直度/%
弯钩纤维类别	模拟时间/s	改进前	改进后
Ⅰ	0.008	83.15	87.65
	0.008 5	87.00	91.40
	0.009	91.20	97.50
Ⅱ	0.008	82.00	88.15
	0.008 5	83.25	93.35
	0.009	88.70	97.80
Ⅲ	0.008	83.00	98.40
	0.008 5	85.80	98.60
	0.009	88.60	98.10
Ⅳ	0.008	85.10	96.50
	0.008 5	86.85	97.25
	0.009	91.25	96.85
