低聚物对生物基聚对苯二甲酸丙二醇酯结晶性能的影响

doi:10.13475/j.fzxb.20200100606

纺织学报 ›› 2020, Vol. 41 ›› Issue (10): 1-6.doi: 10.13475/j.fzxb.20200100606

• 纤维材料 • 下一篇

低聚物对生物基聚对苯二甲酸丙二醇酯结晶性能的影响

陈咏¹^,², 王晶晶², 王朝生², 顾栋华³, 乌婧¹(), 王华平¹^,²

1.东华大学纺织产业关键技术协同创新中心, 上海 201620
2.东华大学材料科学与工程学院,上海 201620
3.江苏国望高科纤维有限公司, 江苏苏州 215226

收稿日期:2020-01-06 修回日期:2020-07-11 出版日期:2020-10-15 发布日期:2020-10-27
通讯作者: 乌婧
作者简介:陈咏(1992—),男,博士生。主要研究方向为环境友好高分子材料。
基金资助:
国家重点研发计划项目(2017YFB0309400)

Effect of oligomers on crystalline properties of polytrimethylene terephthalate

CHEN Yong¹^,², WANG Jingjing², WANG Chaosheng², GU Donghua³, WU Jing¹(), WANG Huaping¹^,²

1. Co-Innovation Center for Textile Industry, Donghua University, Shanghai 201620, China
2. College of Materials Science and Engineering, Donghua University, Shanghai 201620, China
3. Jiangsu Guowang Hi-Tech Fiber Co., Ltd., Suzhou, Jiangsu 215226, China

Received:2020-01-06 Revised:2020-07-11 Online:2020-10-15 Published:2020-10-27
Contact: WU Jing

摘要/Abstract

摘要：

逐步缩聚聚合物中通常含有一定比例的线性及环状低聚物,会影响纤维材料的成形加工、纤维性能、纺织品加工等。为探究低聚物对生物基对苯二甲酸丙二醇酯(PTT)结晶性能的影响,通过外部添加法制备得到具有不同低聚物质量分数(主要以环状二聚体为主)的生物基 PTT ,采用差示扫描量热仪分析方法对生物基PTT的结晶动力学进行研究。结果表明:低聚物的存在主要起成核剂的作用,其质量分数的增加可提高生物基 PTT的结晶速率、结晶温度及结晶度;添加低聚物质量分数为10%时,生物基 PTT的结晶速率常数由未添加的0.528提升至0.603,同时结晶温度由172.11 ℃提升至178.85 ℃。

关键词: 低聚物, 环状低聚物, 生物基聚酯, 聚对苯二甲酸丙二醇酯, 结晶动力学

Abstract:

Step-polymerization of polymers usually contains a certain proportion of linear and circular oligomers, which will affect the forming process of fiber materials, fiber properties, textile processing and so on. To investigate the influence of oligomers on the crystallization properties of bio-based polytrimethylene terephthalate (PTT), bio-based PTT samples with varied oligomer contents (mainly comprising cyclic dimers) were prepared by adding the extracted oligomers into relatively pure PTT samples. Differential scanning calorimetry analysis was used to study the crystallization kinetics of bio-based PTT polyesters. The results show that the existence of oligomer mainly acts as nucleating agent, and the increase of its mass fraction can significantly increase the crystallization rate, the crystallization temperature and crystallinity of bio-based PTT. When the mass fraction of oligomer is 10%, the crystallization rate constant of PTT increased from 0.528 to 0.603, while the crystallization temperature increased from 172.11 ℃ to 178.85 ℃.

Key words: oligomer, cyclic oligomer, bio-based polyester, polytrimethylene terephthalate, crystallization kinetic

中图分类号:

TQ342

陈咏, 王晶晶, 王朝生, 顾栋华, 乌婧, 王华平. 低聚物对生物基聚对苯二甲酸丙二醇酯结晶性能的影响[J]. 纺织学报, 2020, 41(10): 1-6.

CHEN Yong, WANG Jingjing, WANG Chaosheng, GU Donghua, WU Jing, WANG Huaping. Effect of oligomers on crystalline properties of polytrimethylene terephthalate[J]. Journal of Textile Research, 2020, 41(10): 1-6.

图/表 6

图1

图2

图3

表1

图4

表2

参考文献 15

[1]	祝爱兰, 任明利. PET中环状齐聚物的研究[J]. 上海化工, 2005,30(5):24-28.
	ZHU Ailan, REN Mingli. Study on cyclic oligomers in PET[J]. Shanghai Chemical Industry, 2005,30(5):24-28.
[2]	相东旭. 聚酯纤维低聚物的产生原因、性质及防止[J]. 印染助剂, 2006,23(5):8-10.
	XIANG Dongxu. Formation, properties and prevention of oligomers in polyester fibers[J]. Textile Auxiliaries, 2006,23(5):8-10.
[3]	张龙, 智海辉, 郑今欢. 再生聚酯纤维中低聚物的结构表征[J]. 纺织学报, 2015,36(4):25-30.
	ZHANG Long, ZHI Haihui, ZHENG Jinhuan. Structure Characterization of oligomers in recycled polyester fabric[J]. Journal of Textile Research, 2015,36(4):25-30.
[4]	赵斌. PET聚酯中齐聚物表征及控制方法研究[D]. 上海: 东华大学, 2008: 24-28.
	ZHAO Bin. Study on characterization and content control of oligomers in poly(ethylene tereph-thalate)[D]. Shanghai: Donghua University, 2008: 24-28.
[5]	VERMYLEN V, LODEFIER P, DEVAUX J, et al. Study of the thermal evolution of the cyclic,ligomer formation in a cyclic, ligomer-free PET[J]. Journal of Polymer Science Part A: Polymer Chemistry, 2000,38(3):416-422. doi: 10.1002/(ISSN)1099-0518
[6]	张建强, 张征, 陈鹏, 等. 环状对苯二甲酸丁二酯低聚物CBT的研究进展[J]. 高分子通报, 2016,202(2):56-64.
	ZHANG Jianqiang, ZHANG Zheng, CHEN Peng, et al. Progress in cyclic butylene terephthalate oligomers[J]. Polymer Bulletin, 2016,202(2):56-64.
[7]	杨始堃, 陈玉君, 陈显才, 等. 涤纶树脂中环状低聚体的测定及生成机理探讨[J]. 合成纤维工业, 1980,9(2):19-23.
	YANG Shikun, CHEN Yujun, CHEN Xiancai, et al. Determination of cyclic oligomers in polyester resin and discussion of formation mechanism[J]. China Synthetic Fiber Industry, 1980,9(2):19-23.
[8]	王彦芳, 李文刚, 刘灯胜, 等. 低聚物对聚酯纤维性能影响的研究[J]. 现代工业经济和信息化, 2018,163(7):54-56.
	WANG Yanfang, LI Wengang, LIU Dengsheng, et al. Study on the effect of oligomer on the properties of polyester fiber[J]. Modern Industrial Economy and Informationization, 2018,163(7):54-56.
[9]	吴从意, 陈静. 1,3-丙二醇制备研究进展[J]. 分子催化, 2012,26(3):276-283.
	WU Congyi, CHEN Jing. Research progress in the preparation of 1,3-propanediol[J]. Journal of Molecular Catalysis, 2012,26(3):276-283.
[10]	WU R, XU Y, LIU D. Progress in down-stream processing of biologically produced 1,3-propanediol[J]. Chinese Journal of Biotechnology, 2011,27(3):493-501.
[11]	沈瑶瑶, 于建荣, 毛开云. 生物基1,3-丙二醇技术开发及产业发展趋势[J]. 生物产业技术, 2014(4):38-43.
	SHEN Yaoyao, YU Jianrong, MAO Kaiyun. Bio-based 1,3-propanediol technology development and industry development trend[J]. Biotechnology Business, 2014(4):38-43.
[12]	李汀阳. 新型聚酯纤维PTT的多种功能开发的研究进展[J]. 信息记录材料, 2018,19(1):3-5.
	LI Tingyang. Research progress of various functional development of new polyester fiber PTT[J]. Information Recording Materials, 2018,19(1):3-5.
[13]	王启明. 生物基聚酯PTT与PDT的发展概况[J]. 高分子通报, 2013(10):129-135.
	WANG Qiming. From PTT to PDT, development of biological based polyester[J]. Polymer Bulletin, 2013(10):129-135.
[14]	MIAO S, ZHANG S, SU Z, et al. Synjournal of bio-based polyurethanes from epoxidized soybean oil and isopropanolamine[J]. Journal of Applied Polymer Science, 2013,127(3):1929-1936. doi: 10.1002/app.37564
[15]	CHEN J, WEI W, QIAN Q, et al. The structure and properties of long-chain branching poly(trimethylene terephthalate)[J]. Rheologica Acta, 2014,53(1):67-74. doi: 10.1007/s00397-013-0737-z

相关文章 15

[1]	王晶晶, 陈咏, 王朝生, 王华平, 边树昌, 乌婧. 生物基聚对苯二甲酸丙二醇酯低聚物的提取及其热性能[J]. 纺织学报, 2020, 41(06): 1-7.
[2]	周铃, 靳向煜. 热气流固结纤维网串珠结构可控性及其结晶动力学[J]. 纺织学报, 2019, 40(08): 27-34.
[3]	陈广建唐开亮马士洲张丽丽冯新星. 新型长碳链聚酰胺1211的非等温结晶动力学[J]. 纺织学报, 2018, 39(12): 1-6.
[4]	王勇军陈世昌刘梅曾卫卫吕汪洋张先明陈文兴. 高分子量聚对苯二甲酸乙二醇酯中低聚物的提取及其表征[J]. 纺织学报, 2018, 39(11): 1-7.
[5]	洪剑寒韩潇陈建广彭蓓福苏敏惠林梁广明. 聚对苯二甲酸丙二醇酯/聚苯胺复合导电纱的电学与力学性能[J]. 纺织学报, 2017, 38(02): 40-46.
[6]	戈欢朱志国王锐尹会会王睿张秀芹. 不同分子质量聚乳酸立体复合物的结晶性能及球晶形貌[J]. 纺织学报, 2016, 37(2): 27-34.
[7]	张龙智海辉郑今欢. 再生聚酯纤维中低聚物的结构表征[J]. 纺织学报, 2015, 36(04): 25-30.
[8]	邵建中黄益. 用于纺织品数码印花的蓝光固化聚合体系性能研究[J]. 纺织学报, 2015, 36(02): 121-127.
[9]	相恒学王世超闻晓霜周哲朱美芳. 静电纺丝制备聚(3-羟基丁酸酯-co-3-羟基戊酸酯)纳米纤维的研究进展[J]. 纺织学报, 2014, 35(8): 150-0.
[10]	王世超相恒学费海燕冯琦云朱美芳. 低聚物含量对聚乳酸熔纺成形工艺的影响[J]. 纺织学报, 2014, 35(8): 133-0.
[11]	季广建聂玲燕陆信曜宗红宋健方慧英诸葛斌. 碳源对克氏菌合成PTT原料PDO的影响及对DhaB的表达调控[J]. 纺织学报, 2014, 35(8): 144-0.
[12]	倪永刘志红胡腾蛟. PET、PTT与PBT材料的定性与定量鉴别方法[J]. 纺织学报, 2012, 33(10): 28-32.
[13]	廉志军;潘菊芳;江渊;庄小雄. 筒子纱染色涤纶纤维表面杂质及对策[J]. 纺织学报, 2010, 31(6): 90-94.
[14]	江渊;潘菊芳;廉志军;徐憬. 涤纶纤维筒子染色过程中白色粉末性质的探讨[J]. 纺织学报, 2010, 31(5): 24-29.
[15]	陈海珍. 纳米二氧化钛对聚酯纤维结晶性能的影响[J]. 纺织学报, 2010, 31(4): 25-29.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

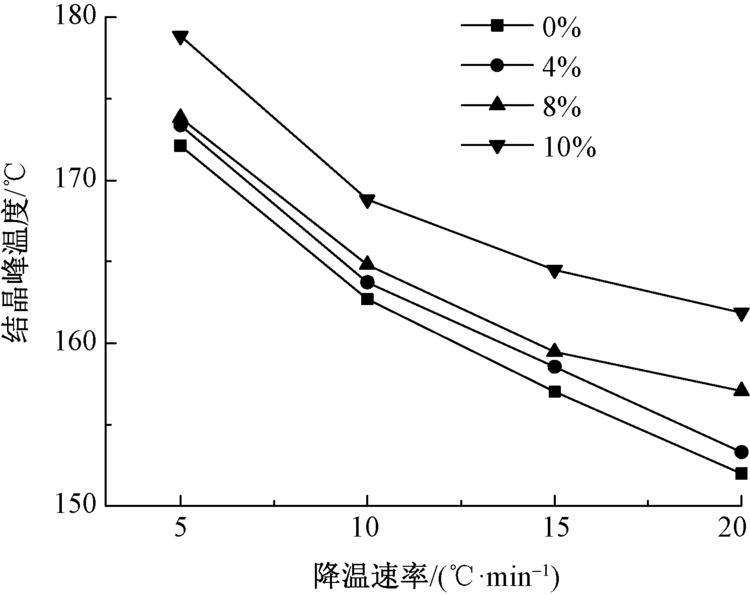

降温速率/ (℃·min^-1)	0%			4%			8%			10%
降温速率/ (℃·min^-1)	T_P	△W	t_1/2	T_P	△W	t_1/2	T_P	△W	t_1/2	T_P	△W	t_1/2
5	172.11	9.80	1.26	173.35	9.72	1.24	173.83	8.15	0.91	178.85	5.58	0.90
10	162.69	13.53	1.60	163.73	13.38	1.55	164.81	7.35	1.21	168.8	6.47	1.20
15	157.02	16.91	2.31	158.55	16.89	2.28	159.46	8.43	1.90	164.49	6.08	1.77
20	151.99	20.46	3.90	153.31	20.16	3.53	157.07	9.55	3.52	161.86	6.41	2.95

降温速率/ (℃·min^-1)	0%			4%			8%			10%
降温速率/ (℃·min^-1)	n	Z_t	Z_c	n	Z_t	Z_c	n	Z_t	Z_c	n	Z_t	Z_c
5	1.050	0.041	0.528	1.046	0.063	0.589	1.035	0.071	0.575	1.033	0.079	0.603
10	1.024	0.112	0.803	1.016	0.134	0.817	1.025	0.164	0.834	1.022	0.177	0.841
15	1.037	0.191	0.895	1.018	0.198	0.898	1.025	0.271	0.916	1.024	0.279	0.918
20	1.034	0.264	0.935	1.024	0.272	0.937	1.021	0.380	0.952	1.029	0.300	0.953
