转杯纺旁路通道设计对成纱质量的影响

doi:10.13475/j.fzxb.20181007006

摘要/Abstract

摘要：

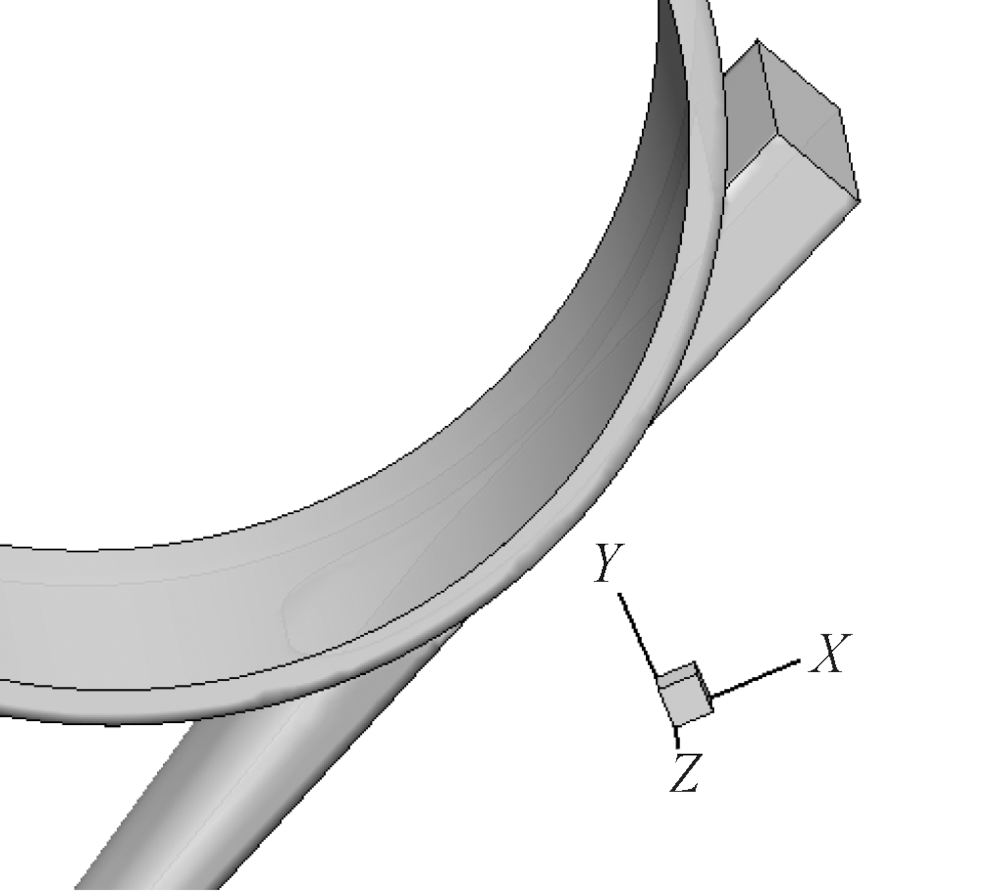

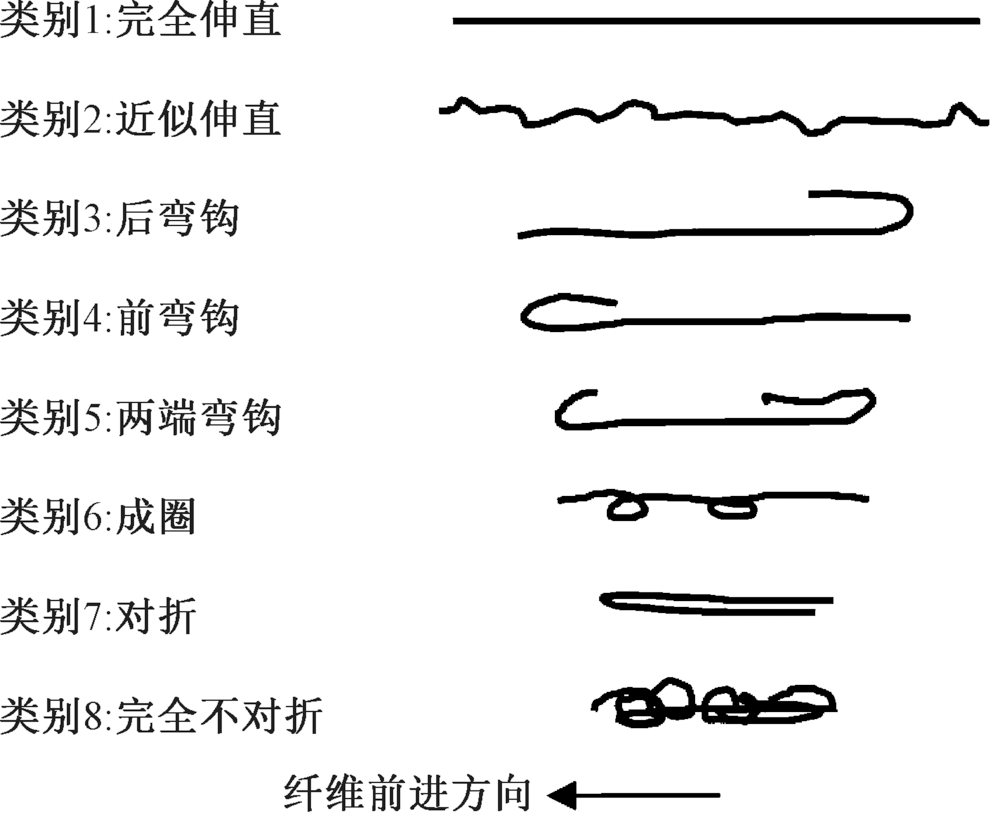

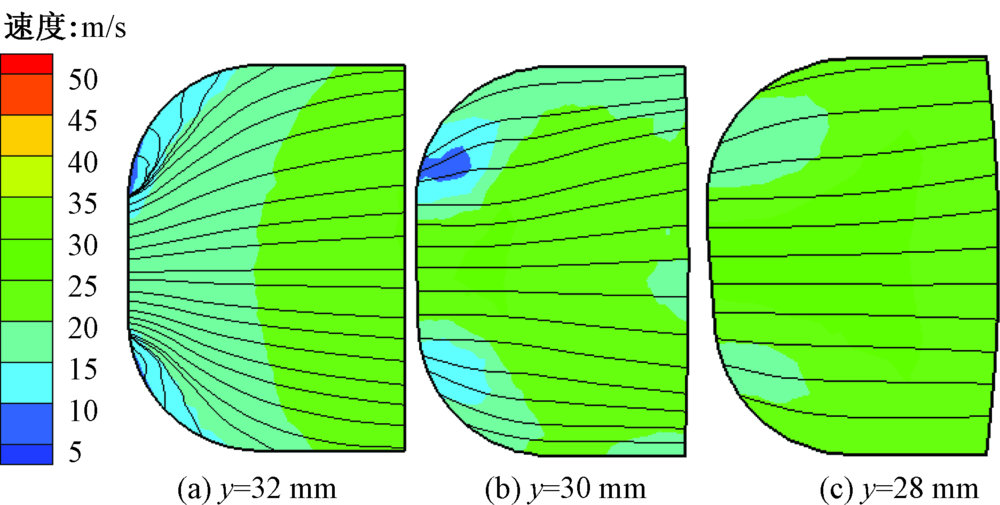

为减小或消除在输纤通道入口处产生的气流漩涡以降低其对纤维形态产生的不良影响,通过在输纤通道长轴一侧设置旁路通道向输纤通道补气,并采用数值模拟方法研究设置有旁路通道的气流场分布,结合纺纱试验和纤维形态测试,研究该旁路通道对改善气流场分布及转杯成纱性能的效果。结果表明:采用旁路通道进行补气可消除输纤通道入口处的气流漩涡,提高纤维剥取区的气流速度,从而提高纤维剥离牵伸倍数;设置有旁路通道的转杯纺纱器对提高成纱断裂强度具有良好的作用,对降低凝聚槽中弯钩纤维的数量有一定的效果,说明消除气流漩涡和提高纤维剥离牵伸倍数有助于纤维形态的改善,从而提高成纱断裂强度。

关键词: 转杯纺, 输纤通道, 旁路通道, 气流, 成纱质量, 纤维形态

Abstract:

In order to reduce or eliminate the vortices generated at the transport channel inlet so as to decrease its adverse effect on fiber configuration, a bypass channel located on the extension of the long side of the transport channel was introduced as an air supply channel. The numerical simulation method was adopted to study the airflow dynamics of the modified transport channel. Combining with the spinning tests and fiber configuration tests, the effectiveness of the bypass channel in improving the airflow field and rotor spun-yarn properties was evaluated. The results show that by adopting the bypass channel, the vortices generated at the transport channel can be eliminated, and the air velocity in fiber separation area is increased, thus increasing the fiber peeling-drawing ratio. The rotor spinning machine with the bypass channel has a positive effect on improving the yarn tenacities as well as decreasing the number of hook fibers in the rotor groove. This indicates that eliminating the vortices and increasing the fiber peeling-drawing ratio are beneficial to fiber morphology, thus improving the yarn fracture strength.

Key words: rotor spinning, transport channel, bypass channel, airflow, yarn quality, fiber configuration

中图分类号:

TS104.1

林惠婷, 高备, 张玉泽, 史倩倩, 汪军. 转杯纺旁路通道设计对成纱质量的影响[J]. 纺织学报, 2019, 40(02): 153-158.

LIN Huiting, AKANKWASA Nicholus Tayari, ZHANG Yuze, SHI Qianqian, WANG Jun. Effect of bypass channel on rotor-spun yarn properties in rotor spinning[J]. Journal of Textile Research, 2019, 40(02): 153-158.

图/表 15

图1

图2

图3

图4

表1

图5

图6

表2

表3

表4

表5

表6

表7

表8

表9

参考文献 11

[1]	DAS A, ALAGIRUSAMY R. Fundamental principles of open end yarn spinning[J]. Advances in Yarn Spinning Technology, 2010: 79-101.
[2]	LAWRENCE C A, CHEN K Z. A study of the fibre-transfer-channel design in rotor-spinning: part II: optimization of the transfer-channel design[J]. Journal of the Textile Institute, 1988,79(3):393-408.
[3]	LAWRENCE C A, CHEN K Z. A Study of the fibre-transfer-channel design in rotor-spinning: part I: the fibre trajectory[J]. Journal of the Textile Institute, 1988,79(3):367-392.
[4]	张礼会, 张百祥. 转杯纺纤维输送管道的研究[J]. 中国纺织大学学报, 1991,17(6):16-24.
	ZHANG Lihui, ZHANG Baixiang. A study of fiber transfer channel in rotor spinning[J]. Journal of China Textile University, 1991,17(6):16-24.
[5]	KONG L X, PLATFOOT R A. Two-dimensional simulation of air flow in the transfer channel of open-end rotor spinning machines[J]. Textile Research Journal, 1996,66(10):641-650.
[6]	LIN H T, BERGADA J M, ZENG Y C, et al. Rotor spinning transfer channel design optimization via computational fluid dynamics[J]. Textile Research Journal, 2018,88(11):1244-1262.
[7]	KONG L X, PLATFOOT R A. Fibre transportation in confined channel with recirculations[J]. Computers & Structures, 2000,78(1):237-245.
[8]	KONG L X, PLATFOOT R A. Computational two-phase air/fiber flow within transfer channels of rotor spinning machines[J]. Textile Research Journal, 1997,67(4):269-278.
[9]	上海市纺织科学研究院. 气流纺纱理论与实践 [M]. 上海: 上海科学技术出版社, 1984: 35-62.
	Shanghai Institute of Textile Science. Theory and Practice of Rotor Spinning [M]. Shanghai: Shanghai Scientific and Technical Publishers, 1984: 35-62.
[10]	LAWRENCE C A, JIANG R K. A study of the mechanics of fibre-straightening during deposition in the disc-spinning process. part I: theoretical conside-ration[J]. Journal of the Textile Institute, 1996,87(1):23-36.
[11]	LAWRENCE C A, CHEN K Z. 16-high-speed photographic studies of the fibre configuration during transfer from the opening roller of a rotor-spinning unit[J]. Journal of the Textile Institute, 1986,77(3):201-211.

相关文章 15

[1]	初曦, 邱华. 不同压强条件下环锭旋流喷嘴内部流场模拟[J]. 纺织学报, 2020, 41(09): 33-38.
[2]	刘宜胜, 徐光逸. 斜吹气流入射角对纱线折入的影响[J]. 纺织学报, 2020, 41(07): 72-77.
[3]	马晓琳, 唐新军, 宋均燕, 刘霞, 张玉高. 集聚纺气流导向元件的偏移对集聚效果的影响[J]. 纺织学报, 2019, 40(09): 42-47.
[4]	姬长春, 张开源, 王玉栋, 王新厚. 熔喷三维气流场的数值计算与分析[J]. 纺织学报, 2019, 40(08): 175-180.
[5]	邓茜茜, 杨瑞华, 徐亚亚, 高卫东. 转杯纺混色棉纱的纤维混合均匀度[J]. 纺织学报, 2019, 40(07): 31-37.
[6]	广少博, 金玉珍, 祝晓晨. 喷气织机延伸喷嘴内气流场特性分析[J]. 纺织学报, 2019, 40(04): 135-139.
[7]	尚珊珊, 郁崇文, 杨建平, 钱希茜. 喷气涡流纺纺纱过程中的气流场数值模拟[J]. 纺织学报, 2019, 40(03): 160-167.
[8]	杨瑞华, 徐亚亚, 韩瑞叶, 薛元, 高卫东. 多通道转杯纺混色纱的Friele配色模型[J]. 纺织学报, 2019, 40(03): 44-48.
[9]	史倩倩, 高备, 林惠婷, 张玉泽, 汪军. 传统型与双喂给转杯纺纺纱器及其成纱性能对比[J]. 纺织学报, 2019, 40(02): 63-68.
[10]	查刘根, 谢春萍. 应用四层BP神经网络的棉纱成纱质量预测[J]. 纺织学报, 2019, 40(01): 52-56.
[11]	何吉欢李晓霞田丹. 气泡纺技术及其纳米纤维的工业化生产[J]. 纺织学报, 2018, 39(12): 175-180.
[12]	杨瑞华韩瑞叶徐亚亚薛元王鸿博高卫东. 数码转杯纺混色纱中有色纤维混合效果分析[J]. 纺织学报, 2018, 39(07): 32-38.
[13]	刘宜胜裘燚斌吴震宇. 气动折入装置异向射流场中纱线的运动规律[J]. 纺织学报, 2018, 39(07): 122-129.
[14]	徐亚亚杨瑞华韩瑞叶薛元高卫东. 应用Kubelka-Munk双常数理论的数码转杯纱混色效果预测[J]. 纺织学报, 2018, 39(06): 36-41.
[15]	杨瑞华刘超薛元高卫东. 转杯复合纺成纱器内流场模拟及纱线质量分析[J]. 纺织学报, 2018, 39(03): 26-30.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

所用原料	原料参数				纱线线密度/tex	纺纱工艺参数						温度/ ℃	湿度/ %
所用原料	纤维长度/mm	纤维线密度/dtex	条子定量/tex		纱线线密度/tex	分梳辊转速/ (r·min^-1)		转杯转速/ (r·min^-1)		引纱速度/ (r·min^-1)		温度/ ℃	湿度/ %
棉	29	1.8		4 200	34		6 500		51 000		61.11	30 ± 2	50 ± 2
棉	29	1.8		4 200	42						68.75
粘胶	38	1.67		4 312	34						60.44
棉/粘胶(50/50)	-	-		3 250	34						60.44

纺纱器类别	34 tex 棉纱	42 tex 棉纱	34 tex 粘胶纱	34 tex 混纺纱
传统	13.80	13.62	7.99	9.86
改进	15.59	15.04	8.67	10.61

纱线类别	F值	P值
34 tex棉纱	51.72	0.000
42 tex棉纱	31.67	0.000
34 tex粘胶纱	22.77	0.000
34 tex棉/粘胶混纺纱	18.34	0.000

纺纱器类别	34 tex 棉纱	42 tex 棉纱	34 tex 粘胶纱	34 tex 混纺纱
传统	14.29	13.97	14.44	17.42
改进	15.63	14.34	15.0	17.18
显著性检验	AB	AA	AA	AA

纺纱器类别	34 tex 棉纱	42 tex 棉纱	34 tex 粘胶纱	34 tex 混纺纱
传统	18	4	4	36.7
改进	2	20	8	28.89
显著性检验	AB	AA	AA	AA
