短裤特征截面廓形分析及间隙量预测模型构建

doi:10.13475/j.fzxb.20180608606

纺织学报 ›› 2019, Vol. 40 ›› Issue (05): 113-118.doi: 10.13475/j.fzxb.20180608606

短裤特征截面廓形分析及间隙量预测模型构建

李涛¹, 杜磊¹^,², 孙洁¹, 张益洁¹, 邹奉元¹^,²()

1.浙江理工大学服装学院, 浙江杭州 310018
2.浙江理工大学浙江省服装工程技术研究中心, 浙江杭州 310018

收稿日期:2018-06-29 修回日期:2018-11-21 出版日期:2019-05-15 发布日期:2019-05-21
通讯作者: 邹奉元
作者简介:李涛(1993—),男,博士生。主要研究方向为人体工程与服装数字化技术。
基金资助:
国家自然科学基金面上项目(11671009);“浙江省服装工程技术研究中心”重点实验室开放基金项目(2018FZFK13)

Typical cross section silhouette analysis and interval prediction model construction of shorts

LI Tao¹, DU Lei¹^,², SUN Jie¹, ZHANG Yijie¹, ZOU Fengyuan¹^,²()

1. Fashion College, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
2. Clothing Engineering Research Center of Zhejiang Province, Zhejiang Sci-Tech University,Hangzhou, Zhejiang 310018, China

Received:2018-06-29 Revised:2018-11-21 Online:2019-05-15 Published:2019-05-21
Contact: ZOU Fengyuan

摘要/Abstract

摘要：

为探究短裤松量变化对截面廓形的影响,选取与裤装造型密切相关的腰围、臀围等特征截面进行研究。通过[TC] ²三维扫描仪获取截面点云数据,利用小脑神经网络进行曲线拟合,提取最小外接矩形面积、厚宽比及间隙量表征截面廓形变化,通过回归分析构建短裤间隙量与松量的预测模型。结果表明:短裤松量与臀围、裆围及裤口围截面厚宽比呈负相关,臀围、裆围处间隙量主要向截面两侧及后中部位累积,截面形状趋于宽扁;经两配对样本T检验,间隙量的预测值与实际测量结果之间无显著差异,间隙量预测模型的拟合优度较好。研究结果可为建立人体、服装截面廓形及三维仿真之间的关系提供参考。

关键词: 短裤, 松量, 廓形, 小脑神经网络, 间隙量

Abstract:

In order to explore the influence of ease allowance on the shorts silhouette, the waist, hip and other typical cross sections which closely related to the shorts shape were selected as the research object. [TC] ² 3-D scanner was adopted to collect point cloud data of typical section, and the curve was fitted by cerebellar model articulation controller (CMAC) neural network. The minimum enclosing rectangle, thickness to width ratio and the interval were used to characterize the cross section silhouette. The prediction model of interval and ease allowance was established by regression analysis. The results show that negative correlation exists between the ease allowances and the thickness to width ratio of the hip, thigh and leg opening. The interval of hip and thigh accumulates mainly on both sides and back middle part, resulting in the shape of the cross section is gradually flattening. Upon two paired samples T examination, no significant difference exists between the predicted values and actual measured results. The interval prediction model has a good fit, which can provide reference for establishing the relationship between human body data, cross section silhouette and 3-D simulation.

Key words: shorts, ease allowance, silhouette, cerebellar model articulation controller neural network, interval

中图分类号:

TS941.17

李涛, 杜磊, 孙洁, 张益洁, 邹奉元. 短裤特征截面廓形分析及间隙量预测模型构建[J]. 纺织学报, 2019, 40(05): 113-118.

LI Tao, DU Lei, SUN Jie, ZHANG Yijie, ZOU Fengyuan. Typical cross section silhouette analysis and interval prediction model construction of shorts[J]. Journal of Textile Research, 2019, 40(05): 113-118.

图/表 9

图1

表1

图2

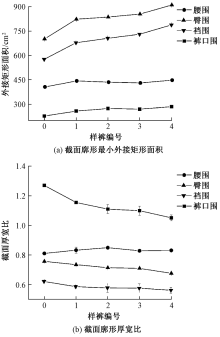

图3

表2

表3

图4

表4

表5

参考文献 12

[1]	LAGE A, ANCUTIENE K. Virtual try-on technologies in the clothing industry: part 1: investigation of distance ease between body and garment[J]. The Journal of The Textile Institute, 2017,108(10):1-7.
[2]	XU J H, CHEN X F, ZHANG W B. A study on area ease distribution between body and garment[J]. Journal of Fiber Bioengineering and Informatics, 2009,2(2):101-107.
[3]	THOMASSEY S, BRUNIANUX P. A template of ease allowance for garment based on a 3D reverse methodology[J]. International Journal of Industrial Ergonomics, 2013,43:406-416.
[4]	刘正, 李基拓, 陆国栋, 等. 着装间隙量空间形态分布研究及其应用研究[J]. 计算机辅助设计与图形学学报, 2012,24(10):1294-1301.
	LIU Zheng, LI Jituo, LU Guodong, et al. Review on 3D allocation of ease allowance and its application in garment design[J]. Journal of Computer-Aided Design & Computer Graphics, 2012,24(10):1294-1301.
[5]	GU B F, SU J Q, LIU G L, et al. Pattern alteration of women's suits based on ease allowance[J]. International Journal of Clothing Science and Technology, 2015,28(2):201-215. doi: 10.1108/IJCST-07-2015-0083
[6]	WANG Z H, NG R, NETWON E. Investigation of jacket silhouette based on ease distribution[J]. Journal of Donghua University (Eng. Ed.), 2014,31(3):316-319.
[7]	张文斌. 服装结构设计[M]. 3版. 北京: 中国纺织出版社, 2007: 88-89.
	ZHANG Wenbin. Pattern Making for Fashion Design[M]. 3rd ed. Beijing: China Textile & Apparel Press, 2007: 88-89.
[8]	中泽·愈. 人体与服装[M]. 袁观洛, 译. 北京: 中国纺织出版社, 2003: 12-13.
	ZHONG Zeyu. The Human Body and Clothing[M]. YUAN Guanluo, Translating. Beijing: China Textile & Apparel Press, 2003: 12-13.
[9]	ALBUS J S. A new approach to manipulator control: The cerebellar model articulation controller (CMAC)[J]. Journal of Dynamic Systems, Measurement, and Control, 1975,97(3):220-227.
[10]	徐少川, 刘东昆, 刘宝伟. 基于模糊算法的多小脑神经网络在混凝投药系统中的应用[J]. 计算机应用与软件, 2016,33(10):52-56.
	XU Shaochuan, LIU Dongkun, LIU Baowei. Application of fuzzy algorithm-based multiple CMAC neural networks in coagulant dosing system[J]. Computer Applications and Software, 2016,33(10):52-56.
[11]	金娟, 王耀南. 基于模糊CMAC的移动机器人轨迹跟踪控制[J]. 计算机工程与应用, 2015,51(1):54-58.
	JIN Juan, WANG Yaonan. Fuzzy CMAC-based trajectory tracking control for nonholonomic mobile robot[J]. Computer Engineering and Applications, 2015,51(1):54-58.
[12]	GU B F, LIU G L, XU B G. Girth prediction of young female body using orthogonal silhouettes[J]. The Journal of The Textile Institute, 2016,108(1):140-146.

相关文章 15

[1]	胡紫婷, 郑晓慧, 冯铭铭, 王英健, 刘莉, 丁松涛. 衣下空气层对透气型防护服热阻和湿阻的影响[J]. 纺织学报, 2019, 40(11): 145-150.
[2]	应欣, 程碧莲, 刘正, 邹奉元. 体表形态凸角对腰围间隙量的影响[J]. 纺织学报, 2019, 40(10): 152-157.
[3]	顾冰菲, 闫彦红, 苏军强, 刘国联. 女西装特征部位松量分布规则[J]. 纺织学报, 2019, 40(05): 107-112.
[4]	吴欢, 丁笑君, 李秦曼, 杜磊, 邹奉元. 采用卷积神经网络 CaffeNet 模型的女裤廓形分类[J]. 纺织学报, 2019, 40(04): 117-121.
[5]	傅白璐李峻刘晓刚. 基于人体分割的智能女装廓形尺寸数据库构建[J]. 纺织学报, 2018, 39(01): 119-125.
[6]	吴巧英李亚玲朱航宁吴春胜. 翻驳领松量及里外匀预测模型[J]. 纺织学报, 2015, 36(06): 92-96.
[7]	叶晓露庞程方金娟凤邹奉元. 短裤特征截面曲线的径向基函数神经网络模型构建[J]. 纺织学报, 2015, 36(05): 83-88.
[8]	陶晨段亚峰印梅芬. 服装廓形的识别与量化[J]. 纺织学报, 2015, 36(05): 79-82.
[9]	王永进. 动态人体尺寸的测量方法[J]. 纺织学报, 2013, 34(4): 104-110.
[10]	张爱萍, 王云仪, 姚怡. 服装胸围截面上距离松量的分配关系[J]. 纺织学报, 2012, 33(6): 76-80.
[11]	张龙琳周莉安妮. 礼服设计中面料的立体构成技法[J]. 纺织学报, 2011, 32(8): 102-106.
[12]	郑娟;戴建国;徐蓉蓉;陈美珍;邵新阳. 立体裁剪专用松量模型的开发[J]. 纺织学报, 2011, 32(3): 105-109.
[13]	王永进;莫碧贤;李翼;郭旖莲. 人体腰部及下肢运动对服装松量设计的影响[J]. 纺织学报, 2010, 31(3): 92-97.
[14]	徐继红;张文斌. 人体与服装特征曲面间距离松量的影响因子[J]. 纺织学报, 2009, 30(05): 104-108.
[15]	徐继红;张文斌;肖平. 人体与服装特征曲面间面积松量的分配关系[J]. 纺织学报, 2008, 29(5): 102-106.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样本	裤长	立裆	腰围	臀围	裤口围	腰头
人台			68	90	49
样裤1	36	24.5	70	96	51	3
样裤2	36	24.5	71	98	52	3
样裤3	36	24.5	72	100	53	3
样裤4	36	24.5	73	102	54	3

特征截面	廓形面积与松量		廓形形状与松量
特征截面	Pearson 相关系数	显著性 (双侧)	Pearson 相关系数	显著性 (双侧)
腰围	0.149	0.851	-0.350	0.650
臀围	0.942	0.058	-0.974^*	0.026
裆围	0.978^*	0.022	-0.967^*	0.033
裤口围	0.893	0.107	-0.976^*	0.024

模型	非标准化系数		标准系数	t值	Sig.	B的95.0%置信区间
模型	B	标准误差	试用版	t值	Sig.	下限	上限
常量	24.233	0.274	—	88.286	0.000	23.052	25.414
自变量:松量	0.042	0.030	0.711	1.432	0.289	-0.085	0.170
因变量:厚度
常量	30.172	1.064	—	28.355	0.002	25.593	34.750
自变量:松量	0.507	0.115	0.952	4.412	0.048	0.013	1.000
因变量:宽度

极角/(°)	回归预测方程	R²
-90	y=-0.239x²+4.183x+0.785	0.976
-70	y=0.008x³-0.049x²+6.800	0.912
-30	y=0.255x²-3.48x+15.234	0.915
0	y=0.032x³-4.989x+36.468	0.957
20	y=0.008x³-0.016x²+4.578	0.991
50	y=0.409x²-6.538x+30.977	0.995
80	y=0.104x²-2.769x+18.438	1.000

配对样本	极角/ (°)	成分差分			Sig. (双侧)
配对样本	极角/ (°)	均值	标准差	标准误	Sig. (双侧)
预测值- 实际值	-90	0.038	0.180	0.09	0.703
	-70	-0.218	1.002	0.501	0.693
	-30	-0.033	0.9498	0.4749	0.949
	0	0.3283	1.84	0.9201	0.745
	20	-0.241	0.4938	0.2469	0.399
	50	-0.043	0.2059	0.103	0.701
	80	-0.005	0.0035	0.017	0.062
