数字化羊绒测色法及其在长度测量中的应用

doi:10.13475/j.fzxb.20200205307

纺织学报 ›› 2020, Vol. 41 ›› Issue (12): 42-48.doi: 10.13475/j.fzxb.20200205307

数字化羊绒测色法及其在长度测量中的应用

衡冲¹^,², 沈华¹^,², 王府梅¹^,²()

1.东华大学纺织学院, 上海 201620
2.东华大学纺织面料技术教育部重点实验室, 上海 201620

收稿日期:2020-02-26 修回日期:2020-06-30 出版日期:2020-12-15 发布日期:2020-12-23
通讯作者: 王府梅
作者简介:衡冲(1993—),女,博士生。主要研究方向为纤维测试技术。
基金资助:
国家自然科学基金项目(51673036);中央高校基本科研业务费专项资金资助项目(CUSF-DH-D-2020014)

Digital cashmere color measurement and its application in length measurement

HENG Chong¹^,², SHEN Hua¹^,², WANG Fumei¹^,²()

1. College of Textiles, Donghua University, Shanghai 201620, China
2. Key Laboratory of Textile Science & Technology, Ministry of Education, Donghua University, Shanghai 201620, China

Received:2020-02-26 Revised:2020-06-30 Online:2020-12-15 Published:2020-12-23
Contact: WANG Fumei

摘要/Abstract

摘要：

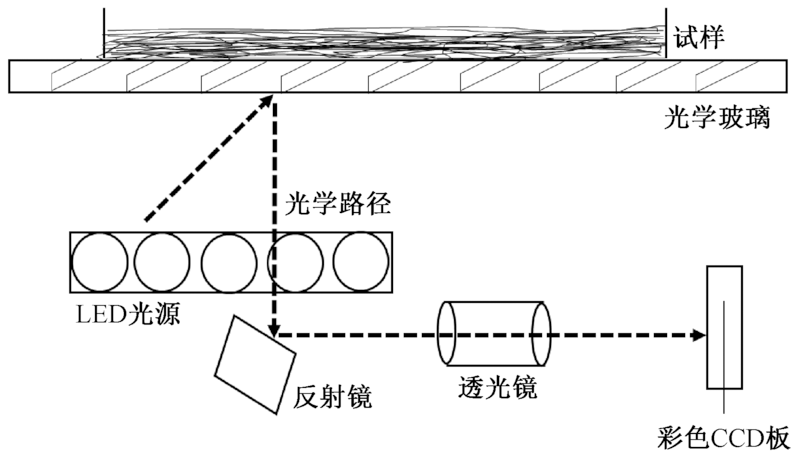

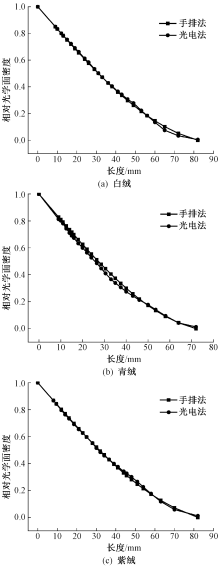

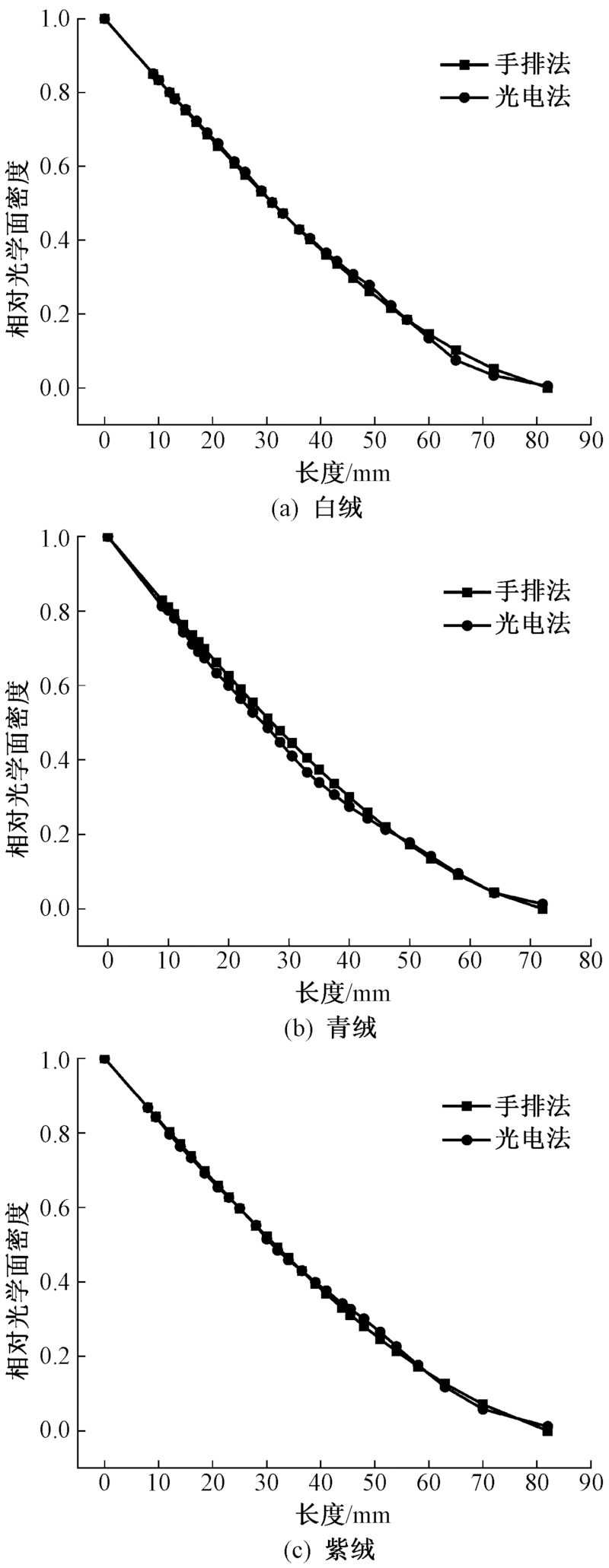

针对光电法测试纤维长度等性质时,存在纤维的透光及反光信号与颜色高度相关的问题,采用数字化方法表征羊绒的颜色类别并精准地测量羊绒的长度。将彩色光电耦合器作为测色传感器,搭建了更适合纤维材料的测色装置;通过颜色模型在3种色空间的转换,得到3类颜色的羊绒在三维色空间的分布;基于系列实验,创建了有色羊绒的光学参数即无穷厚时的表观反射率表观反射率与测色装置计算的亮度指标之间的换算模型,并用实验证明采用测得的表观反射率可计算得到准确的须丛线密度曲线,从而可用光电法精准测量有色羊绒的长度。结果表明,该测色方法的测样面积大,代表性好,成本低,同时可用于其他纤维和纺织品的颜色测量。

关键词: 光电测色法, 色空间转换, 羊绒长度测量, 光学信号, 有色羊绒

Abstract:

In photoelectric measurement of fiber length, the dependence of fiber transmittance and reflective signals on fiber brightness remains to be a problem. In order to characterize objectively the color category of cashmere and test the cashmere length precisely, a color measurement device based on color optocoupler(CCD) principle was developed. Through the transformation of color model in the three-color spaces, the distribution of cashmere of three colors in the three-dimensional color space was obtained. The conversion model between the optical parameter apparent reflectance (reflectance rate with infinite sample thickness) and brightness parameter was established based on the experiment results. The research shows that the clump density and surface density curve are accurately calculated with the apparent reflectance values obtained with the established method, which could be used in the length measurement of cashmere by photoelectric method. The color measurement method has the advantages of having large area, good representativeness and low cost, so it is able to be used for color measurement of fibers and textiles.

Key words: photoelectric colorimetric method, color space conversion, cashmere length measurement, optical signal, colored cashmere

中图分类号:

TS117

衡冲, 沈华, 王府梅. 数字化羊绒测色法及其在长度测量中的应用[J]. 纺织学报, 2020, 41(12): 42-48.

HENG Chong, SHEN Hua, WANG Fumei. Digital cashmere color measurement and its application in length measurement[J]. Journal of Textile Research, 2020, 41(12): 42-48.

图/表 8

图1

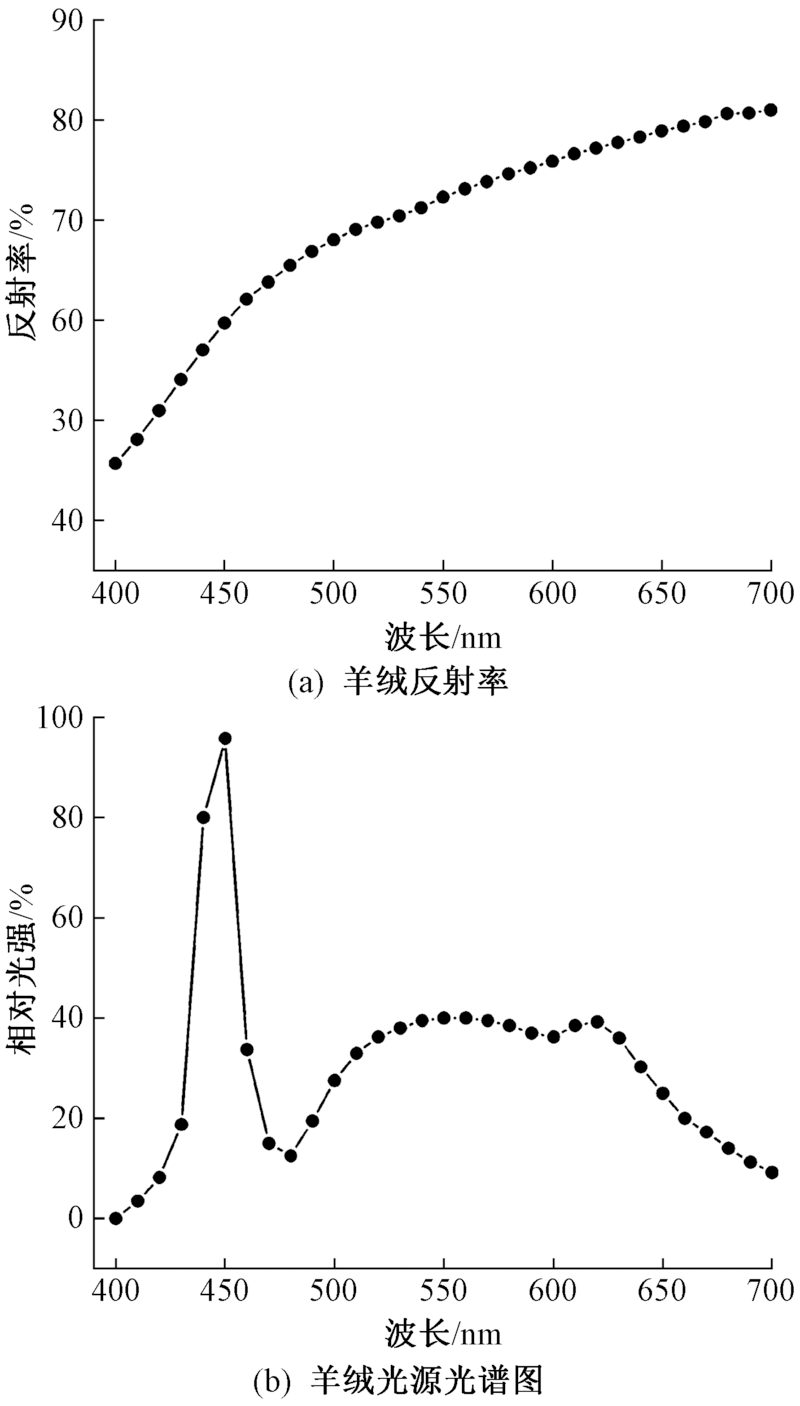

图2

图3

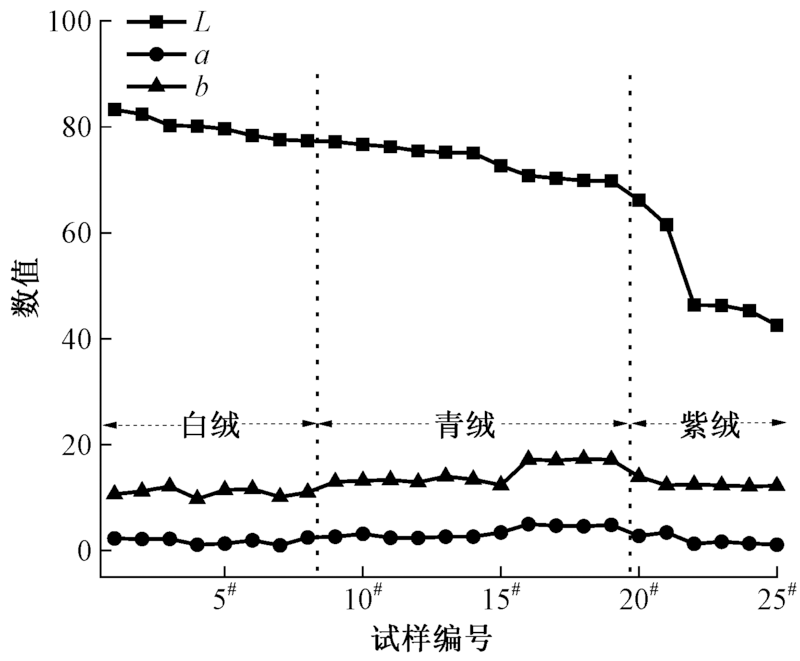

图4

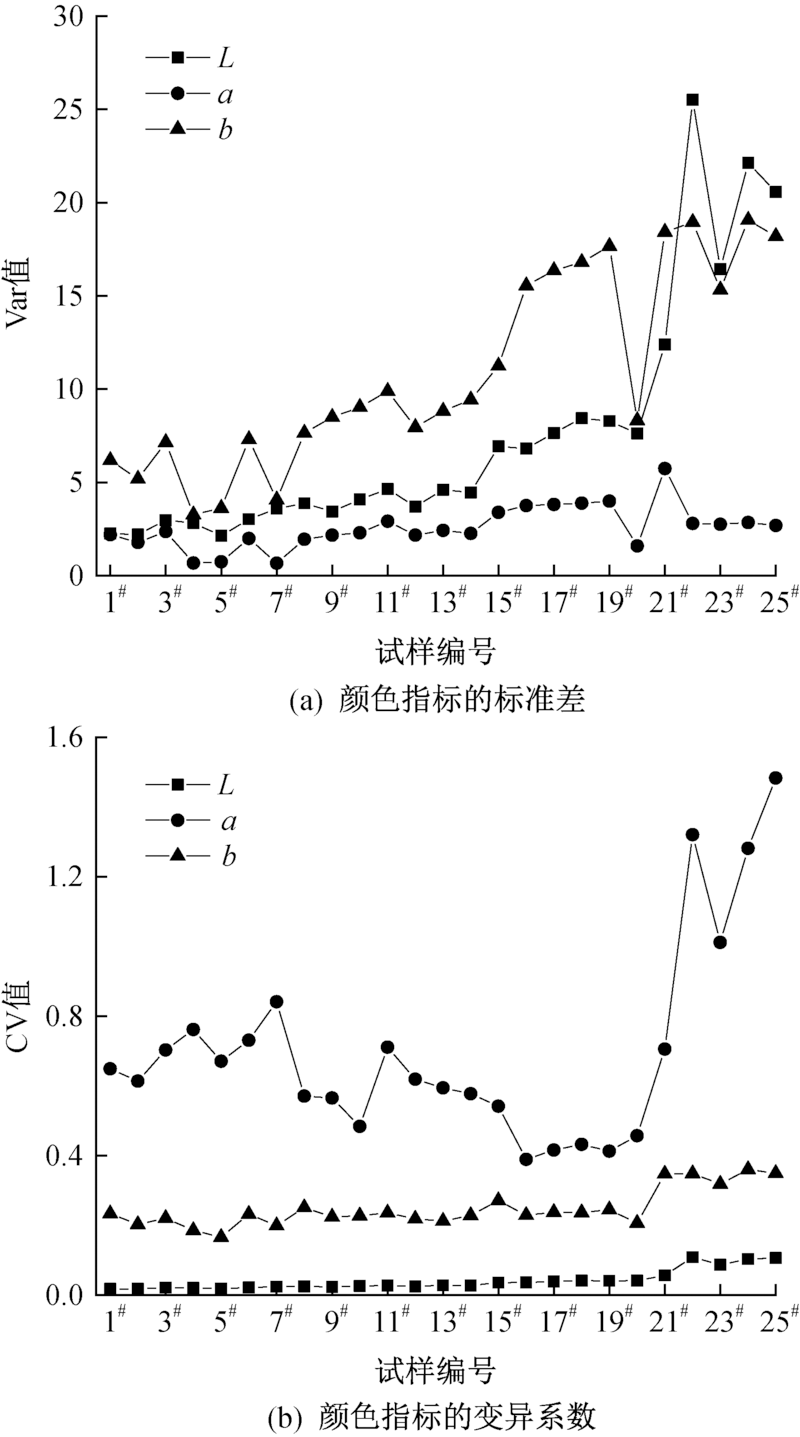

图5

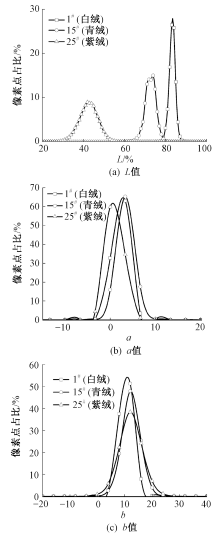

图6

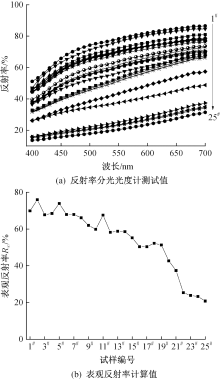

图7

图8

参考文献 15

[1]	冯晔. “羊绒”术语的辨析[J]. 中国纤检, 2013(1):40-41.
	FENG Ye. A term analysis for "cashmere"[J]. China Fiber Inspection, 2013(1):40-41.
[2]	阎思进, 冯平, 李福贵. 羊绒产业现状与质检体制改革[J]. 中国纤检, 2016,486(2):22-25.
	YAN Sijin, FENG Ping, LI Fugui. Cashmere industry current status and the quality inspection system re-form[J]. China Fiber Inspection, 2016,486(2):22-25.
[3]	夏云, 魏晓英, 蒋付良, 等. 羊绒染色的概况及展望[J]. 江苏纺织, 2012 (1):48-50.
	XIA Yun, WEI Xiaoying, JIANG Fuliang, et al. Overview and prospect of cashmere dyeing[J]. Jiangsu Textiles, 2012 (1):48-50.
[4]	邱瑞卿, 曹渭芳, 王立志. 分梳山羊绒白度的探讨[J]. 中国纤检, 2012 (15):62-63.
	QIU Ruiqing, CAO Weifang, WANG Lizhi. Discussion on whiteness of carding cashmere[J]. China Fiber Inspection, 2012 (15):62-63.
[5]	严雪峰, 沈岳. 基于灰色关联分析法的分梳山羊绒纤维综合品质评价[J]. 毛纺科技, 2014,42(11):46-50.
	YAN Xuefeng, SHEN Yue. Comprehensive quality evaluation of dehaired cashmere fiber based on grey relational analysis[J]. Wool Textile Journal, 2014,42(11):46-50.
[6]	中国纤维检验局. 2015年度山羊绒质量分析报告[J]. 中国纤检, 2012(8):26-29.
	China Fiber Inspection Bureau. Analysis report for cashmere quality in 2015[J]. China Fiber Inspection, 2012(8):26-29.
[7]	于伟东, 储才元. 纺织物理[M]. 上海: 东华大学出版社, 2002: 1-46.
	YU Weidong, CHU Caiyuan. Textile phyics[M]. Shanghai: Donghua University Press, 2002: 1-46.
[8]	杨桂芬, 付妍, 红霞, 等. 扫描电子显微镜与光学显微镜鉴别山羊绒纤维的技术探讨[J]. 中国纤检, 2006(6):13-18.
	YANG Guifen, FU Yan, HONG Xia. A technical study on the identification of cashmere fibers by scanning electron microscope and light microscope[J]. China Fiber Inspection, 2006(6):13-18.
[9]	陈雪飞, 吴美琴, 王府梅, 等. 随机须丛影像法测试羊毛长度的制样方法[J]. 毛纺科技, 2017,45(1):60-64.
	CHEN Xuefei, WU Meiqin, WANG Fumei, et al. Sampling method of random-beard image method which is used to test length of wool[J]. Wool Textile Journal, 2017,45(1):60-64.
[10]	WU Meiqin, JIN Jingye, ZHANG Jin, et al. Calculation method of a random beard fibrogram based on the derived Kubelka-Munk theory[J]. Textile Research Journal, 2019,89(12):2281-2293. doi: 10.1177/0040517518790969
[11]	吴美琴, 王府梅. 纤维层面密度的光学新算法[J]. 东华大学学报(自然科学版), 2016,42(6):827-834.
	WU Meiqin, WANG Fumei. A new optical algorithm for calculating the area density of the fiber layer[J]. Journal of Donghua Uuiversity(Natural Science), 2016,42(6):827-834.
[12]	王喻, 戴千惠, 陈丽君, 等. 双须光电法与手排法测试羊绒长度对比[J]. 毛纺科技, 2020,48(1):9-13.
	WANG Yu, DAI Qianhui, CHEN Lijun, et al. Comparison of double whisker measurement method and manual row test result for cashmere length[J]. Wool Textile Journal, 2020,48(1):9-13.
[13]	张戈, 周建, 王蕾, 等. 用分光光度计法测量纤维颜色的影响因素[J]. 纺织学报, 2020,41(4):72-77.
	ZHANG Ge, ZHOU Jian, WANG Lei, et al. Influencing factors for fiber color measurement by spectrophoto-meter[J]. Journal of Textile Research, 2020,41(4):72-77.
[14]	王府梅, 衡冲, 沈华. 一种棉纤维的颜色测试装置及方法: 201910801460.7[P]. 2020-01-03.
	WANG Fumei, HENG Chong, SHEN Hua. Testing equipment and methods for the color measurement of cotton fibers: 201910801460.7[P]. 2020-01-03.
[15]	徐海松. 颜色技术原理及在印染中的应用(一): 光与颜色[J]. 印染, 2005(18):41-45.
	XU Haisong. Color technical principle and its application to dyeing and finishing(Ⅰ)[J]. China Dyeing & Finishing, 2005(18):41-45.
