两通道环锭纺单区牵伸纺制段彩竹节纱的方法及其特点

doi:10.13475/j.fzxb.20220402307

纺织学报 ›› 2022, Vol. 43 ›› Issue (08): 21-26.doi: 10.13475/j.fzxb.20220402307

• 特约专栏:纺纱技术研究 • 上一篇下一篇

两通道环锭纺单区牵伸纺制段彩竹节纱的方法及其特点

郭明瑞, 高卫东()

生态纺织教育部重点实验室(江南大学), 江苏无锡 214122

收稿日期:2022-04-06 修回日期:2022-05-18 出版日期:2022-08-15 发布日期:2022-08-24
通讯作者: 高卫东
作者简介:郭明瑞(1989—),男,实验师,博士。主要研究方向为环锭纺纱新技术。
基金资助:
国家自然科学基金项目(52003105);江苏省博士后科研资助计划项目(2020Z140B)

Method and characteristics of section colored slub yarns spun by two-channel ring spinning based on single-zone drafting

GUO Mingrui, GAO Weidong()

Key Laboratory of Eco-Textiles(Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China

Received:2022-04-06 Revised:2022-05-18 Published:2022-08-15 Online:2022-08-24
Contact: GAO Weidong

摘要/Abstract

摘要：

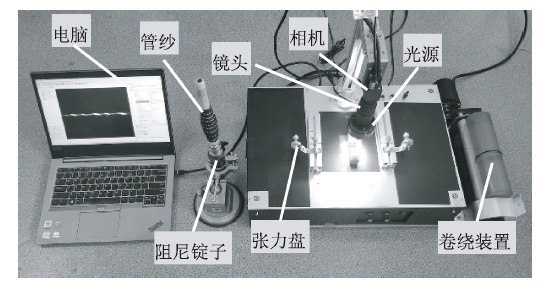

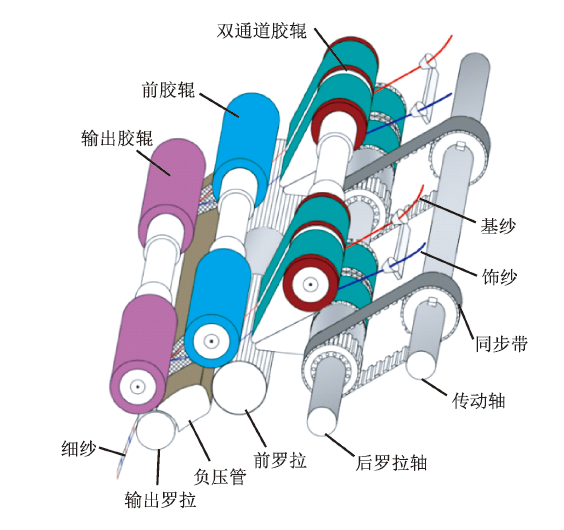

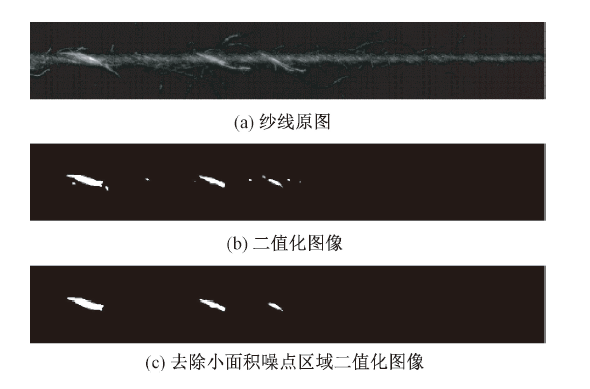

针对现有环锭纺细纱机纺制段彩竹节纱,饰纱须条受双区牵伸作用,存在段彩竹节复合片段长度波动较大,彩节形态稳定性差,影响织物产品花式效果的问题,提出一种基于单区牵伸的两通道纺纱装置纺制段彩竹节纱新方法,并解析双区牵伸、单区牵伸纺纱方法对段彩竹节纱复合片段成纱的影响因素及规律。借助纱线图像连续采集装置,对段彩竹节纱复合片段的特征参数进行测量与分析。结果表明:基于单区牵伸两通道环锭纺的段彩竹节纱,其段彩竹节片段长度稳定性和段彩竹节形态均优于双区牵伸环锭纺段彩竹节纱,20 mm短片段段彩竹节的长度变异系数由30.5％降低至16.3％,80 mm的中长片段段彩竹节的长度变异系数由10.1％降低至6.2％。

关键词: 纺纱, 双区牵伸, 单区牵伸, 两通道环锭纺, 段彩竹节纱, 花式纱

Abstract:

Decorative roving of section colored slub yarns spun on the existing ring spinning machine must be subjected to double zone drafting. There is a problem that the length of composite segment of color slub fluctuates greatly and the morphological stability of color slub is poor, which affects the fancy effect of fabric. A new double-channel ring spinning machine with single draft zone for spinning section colored slub yarn was developed. The influence factors and variation rules between two spinning methods on the composite slub yarn were analyzed. The yarn image continuous acquisition device was used to measure and analyse the characteristic parameters of the composite segments of section colored slub yarns. The results show that the section colored slub yarns spun by two-channel ring spinning based on single-zone drafting is superior to the traditional one in terms of length stability and shape of section colored slub. The coefficient of variation of color slub length of 20 mm short segment decreased from 30.5％ to 16.3％, and that of 80 mm long segment decreased from 10.1％ to 6.2％.

Key words: spinning, double-zone drafting, single-zone drafting, two-channel ring spinning, section colored slub yarn, fancy yarn

中图分类号:

TS104.1

郭明瑞, 高卫东. 两通道环锭纺单区牵伸纺制段彩竹节纱的方法及其特点[J]. 纺织学报, 2022, 43(08): 21-26.

GUO Mingrui, GAO Weidong. Method and characteristics of section colored slub yarns spun by two-channel ring spinning based on single-zone drafting[J]. Journal of Textile Research, 2022, 43(08): 21-26.

图/表 10

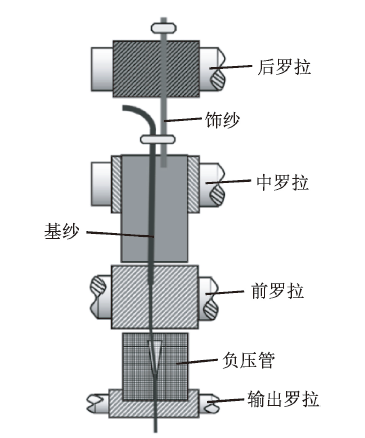

图1

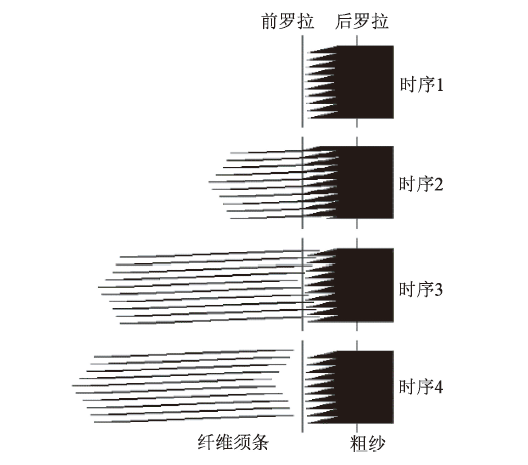

图2

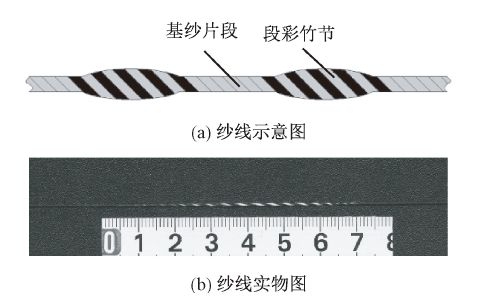

图3

图4

图5

图6

图7

表1

图8

表2

参考文献 11

[1]	桂亚夫. 色纺生产工艺流程与新型花式纱线开发[J]. 棉纺织技术, 2017, 45(5): 1-4.
	GUI Yafu. Color spun production processing and new fancy yarn development[J]. Cotton Textile Technology, 2017, 45(5): 1-4.
[2]	张洪, 谢春萍, 张昀, 等. 段彩竹节纱纺制工艺探讨[J]. 棉纺织技术, 2012, 40(3): 15-18.
	ZHANG Hong, XIE Chunping, ZHANG Yun, et al. Discussion of spinning section-color slub yarn[J]. Cotton Textile Technology, 2012, 40(3): 15-18.
[3]	沈娟, 徐伯俊, 谢春萍, 等. 紧密纺段彩竹节纱的纺制与性能分析[J]. 棉纺织技术, 2012, 40(6): 26-28.
	SHEN Juan, XU Bojun, XIE Chunping, et al. Spinning and property analyses of compact spinning section-color slub yarn[J]. Cotton Textile Technology, 2012, 40(6): 26-28.
[4]	章友鹤, 赵连英, 周济恒. CCZ系列花式纱装置在生产花式竹节纱与段彩纱上的应用[J]. 现代纺织技术, 2015, 23(5): 50-54.
	ZHANG Youhe, ZHAO Lianying, ZHOU Jiheng. Application of CCZ series fancy yarn device to produce fancy slubby yarn and segment color yarn[J]. Advanced Textile Technology, 2015, 23(5): 50-54.
[5]	刘新金, 苏旭中. 段彩竹节纱节长节距偏差修正问题研究[J]. 棉纺织技术, 2013, 41(4): 21-23.
	LIU Xinjin, SU Xuzhong. Research on correction of slub length and slub distance deviation for segment-color slub yarn[J]. Cotton Textile Technology, 2013, 41(4): 21-23.
[6]	LIU X J, ZHANG H, SU X Z. Research on evenness of section-color yarn[J]. Journal of The Textile Institute, 2014, 105(12): 1272-1278. doi: 10.1080/00405000.2014.886367
[7]	史晶晶, 陈伟雄, 薛元, 等. 后区牵伸对等线密度棉段彩纱性能的影响[J]. 纺织学报, 2013, 34(6): 30-33.
	SHI Jingjing, CHEN Weixiong, XUE Yuan, et al. Effect of back zone draft on physical properties of segment colored cotton yarn with constant linear density[J]. Journal of Textile Research, 2013, 34(6): 30-33.
[8]	高卫东, 郭明瑞, 薛元, 等. 基于环锭纺的数码纺纱方法[J]. 纺织学报, 2016, 37(7): 44-48.
	GAO Weidong, GUO Mingrui, XUE Yuan, et al. Digital spinning method developed from ring spinning[J]. Journal of Textile Research, 2016, 37(7): 44-48.
[9]	顾燕, 薛元, 杨瑞华, 等. 三通道数码纺段彩纱的纺纱原理及其性能[J]. 纺织学报, 2019, 40(1): 46-51.
	GU Yan, XUE Yuan, YANG Ruihua, et al. Principle and properties of segment colored yarn spun by three-channel digital ring spinning[J]. Journal of Textile Research, 2019, 40(1): 46-51.
[10]	郭明瑞, 李沛赢, 孙丰鑫, 等. 双色变换段彩纱成纱原理及其共混段长度与强度的影响因素[J]. 纺织学报, 2019, 40(5): 30-35.
	GUO Mingrui, LI Peiying, SUN Fengxin, et al. Spinning mechanism of two-color transformation segment color yarns and influencing factors on length and breaking tenacity of blend fragment[J]. Journal of Textile Research, 2019, 40(5): 30-35.
[11]	GUO M R, SUN F X, GAO W D. Theoretical and experimental study of color-alternation fancy yarns produced by a two-channel compact spinning machine[J]. Textile Research Journal, 2019, 89(14): 2714-2753.

相关文章 15

[1]	汪军, 史倩倩, 李玲, 张玉泽. 双喂给双分梳转杯纺技术研究进展[J]. 纺织学报, 2022, 43(08): 12-20.
[2]	邹专勇, 缪璐璐, 董正梅, 郑国全, 付娜. 喷气涡流纺工艺对粘胶/涤纶包芯纱性能的影响[J]. 纺织学报, 2022, 43(08): 27-33.
[3]	敖利民, 楼焕, 唐雯. 空心锭包覆纺纱的芯纱残留捻回及其应用[J]. 纺织学报, 2022, 43(07): 41-46.
[4]	纪杰, 韩云龙, 高杰, 汪虎明, 陆彪. 纺纱车间空调系统数学建模及动态仿真[J]. 纺织学报, 2022, 43(03): 176-184.
[5]	朱文硕, 薛元, 徐志武, 于健, 曾德军. 对称循环渐变色彩设计及其色彩渐变纱纺制[J]. 纺织学报, 2022, 43(02): 116-124.
[6]	夏治刚, 徐傲, 万由顺, 卫江, 张慧霞, 唐建东, 郑敏博, 郭沁生, 丁彩玲, 杨圣明, 徐卫林. 基于碳中和的人-机-料-法-环五位一体纺纱新技术解析[J]. 纺织学报, 2022, 43(01): 58-66.
[7]	闵小豹, 潘志娟. 生物质纤维/菠萝叶纤维多组分混纺纱线的品质与性能[J]. 纺织学报, 2022, 43(01): 74-79.
[8]	王波波, 郑小虎, 申兴旺, 鲍劲松, 刘天元. 基于Elasticsearch的纺纱生产数据追溯方法[J]. 纺织学报, 2021, 42(12): 55-62.
[9]	敖利民, 唐雯. 空心锭包覆纺纱的顺向包缠作用特征[J]. 纺织学报, 2021, 42(11): 39-45.
[10]	袁理, 熊莹, 谷迁, 王丹书, 霍达, 刘军平. 染色纤维与色纺纱线间的颜色传递规律及其影响因素[J]. 纺织学报, 2021, 42(05): 122-129.
[11]	倪洁, 杨建平, 郁崇文. 股线与单纱捻系数比对粘胶股线性能的影响[J]. 纺织学报, 2021, 42(05): 46-50.
[12]	阮丽, 孙荣基, 刘基宏, 李永贵. 特殊外观结构赛络花式纱的后区牵伸及成纱结构分析[J]. 纺织学报, 2021, 42(03): 77-81.
[13]	殷士勇, 鲍劲松, 唐仕喜, 杨芸. 环锭纺纱信息物理生产系统建模方法[J]. 纺织学报, 2021, 42(02): 65-73.
[14]	李浩, 邢明杰, 孙志豪, 吴瑶. 基于图像的喷气涡流纺纱线捻度测试方法探讨[J]. 纺织学报, 2021, 42(02): 60-64.
[15]	陈美玉, 刘玉琳, 胡革明, 孙润军. 涡流纺纱线的包缠加捻对其力学性能的影响[J]. 纺织学报, 2021, 42(01): 59-66.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

段彩竹节长度设定值/mm	单区牵伸两通道		传统双区牵伸
段彩竹节长度设定值/mm	平均长度/mm	变异系数/％	平均长度/mm	变异系数/％
20	46.1	16.3	53.2	30.5
30	57.9	11.9	70.1	21.9
40	67.5	10.9	80.5	16.5
50	81.9	9.5	100.1	14.1
60	94.5	6.8	114.5	12.8
70	102.7	6.1	126.7	10.4
80	109.3	6.2	133.7	10.1

段彩竹节长度设定值/mm	饰纱平均喂入长度实测值/mm	饰纱单次平均喂入纤维质量计算值/g	段彩竹节平均倍率计算值
段彩竹节长度设定值/mm	饰纱平均喂入长度实测值/mm	饰纱单次平均喂入纤维质量计算值/g	单区牵伸两通道	传统双区牵伸
20	1.48	0.062	1.46	1.40
30	2.18	0.092	1.54	1.45
40	2.84	0.119	1.61	1.51
50	3.65	0.153	1.64	1.52
60	4.39	0.184	1.67	1.55
70	5.12	0.215	1.72	1.58
80	5.93	0.249	1.78	1.64
