纺织学报 ›› 2022, Vol. 43 ›› Issue (10): 65-70.doi: 10.13475/j.fzxb.20210803106

• 纺织工程 • 上一篇    下一篇

间隔织物基光热-热电复合材料的制备及其性能

李沐芳, 陈佳鑫, 曾凡佳, 王栋()

  1. 武汉纺织大学 纺织纤维及制品教育部重点实验室, 湖北 武汉 430200
  • 收稿日期:2021-08-04 修回日期:2022-03-18 出版日期:2022-10-15 发布日期:2022-10-28
  • 通讯作者: 王栋
  • 作者简介:李沐芳(1985—),女,教授,博士。主要研究方向为功能纤维材料。
  • 基金资助:
    国家自然科学基金项目(51873165);湖北省杰出青年基金项目(2021CFA068);湖北省高等学校优秀中青年科技创新团队项目(T2021007)

Preparation and performance of spacer fabric-based photothermal-thermoelectric composites

LI Mufang, CHEN Jiaxin, ZENG Fanjia, WANG Dong()

  1. Key Laboratory of Textile Fiber and Products, Ministry of Education, Wuhan Textile University,Wuhan, Hubei 430200, China
  • Received:2021-08-04 Revised:2022-03-18 Published:2022-10-15 Online:2022-10-28
  • Contact: WANG Dong

RichHTML

16

PDF (PC)

140

摘要：

为提高柔性可穿戴供能设备的热电性能,首先利用NaOH和二甲亚砜(DMSO)共同掺杂聚(3,4-乙烯二氧噻吩)-聚苯乙烯磺酸(PEDOT:PSS)制备NaOH/DMSO/PEDOT:PSS热电膜,研究了NaOH及DMSO质量分数对PEDOT:PSS电导率、塞贝克系数以及功率因数的影响;然后以棉/涤纶间隔织物为基材,通过复合NaOH/DMSO/PEDOT:PSS并涂覆ZrC/聚氨酯(PU)光热层制备光热-热电复合材料,并对复合材料的形貌结构和热电性能等进行表征。结果表明:当添加质量分数为0.5%的NaOH及3.5%的DMSO时,NaOH/DMSO/PEDOT:PSS热电膜的功率因数达到最高,为25.6 μW/(m·K2),是纯PEDOT:PSS膜的2 327倍;光热-热电复合材料的塞贝克系数为35.5 μV/K,添加ZrC/PU光热层后复合材料在光照下产生的电压为无光热层复合材料的6.3倍。

关键词: 光热材料, 热电材料, 间隔织物, 碳化锆, 聚氨酯, 聚(3,4-乙烯二氧噻吩)-聚苯乙烯磺酸, 柔性可穿戴供能设备

Abstract:

In order to improve the thermoelectric performance of flexible wearable energy supply equipment, NaOH and dimethylsulfoxide (DMSO) are used together to dope poly(3,4-ethylenedioxythiophene)-poly(styrenesulfonate)(PEDOT:PSS)to prepare NaOH/DMSO/PEDOT:PSS thermoelectric film, and the influence of NaOH and DMSO concentration on the conductivity, Seebeck coefficient and power factor of PEDOT:PSS were studied. Cotton/polyester spacer fabric was used as the substrate, and the photothermal-thermoelectric composite thermoelectric material was prepared by compounding NaOH/DMSO/PEDOT:PSS and coating ZrC/polyurethane (PU) photothermal layer, and the morphology, structure and thermoelectric properties of the composites were characterized. The results show that when 0.5% NaOH and 3.5% DMSO are added, the power factor of NaOH/DMSO/PEDOT:PSS thermoelectric film reaches the peak value of 25.6 μW/(m·K2), which is 2 327 times that of pure PEDOT:PSS film. The Seebeck coefficient of the photothermal-thermoelectric composite material is 35.5 μV/K, and the voltage generated by the thermoelectric composite material under illumination after adding the photothermal layer is 6.3 times that of the thermoelectric composite material without a photothermal layer.

Key words: photothermal material, thermoelectric material, spacer fabric, ZrC, polyurethane, poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate), flexible wearable energy supply equipment

中图分类号:

  • TB34

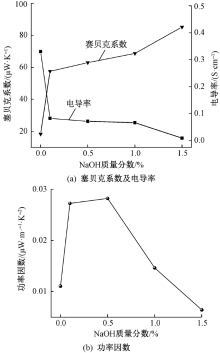

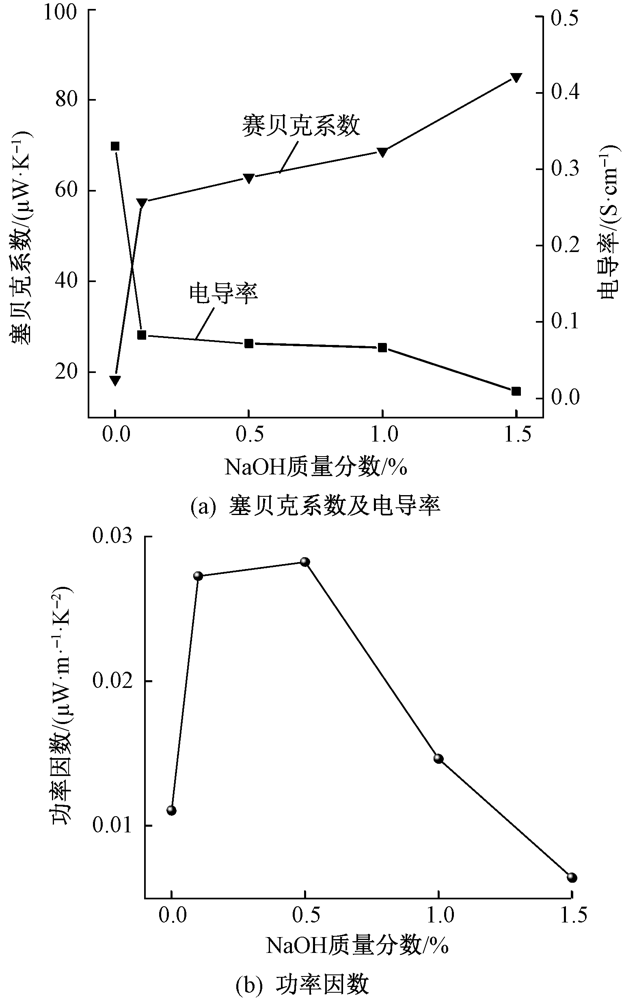

图1

NaOH掺杂质量分数对PEDOT:PSS热电膜塞贝克系数、电导率及功率因数的影响"

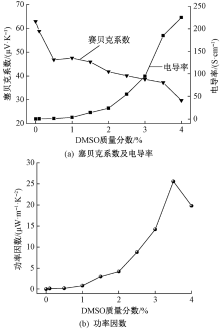

图2

DMSO质量分数对PEDOT:PSS热电膜塞贝克系数、电导率及功率因数的影响"

图3

间隔织物基光热-热电复合材料的形貌图"

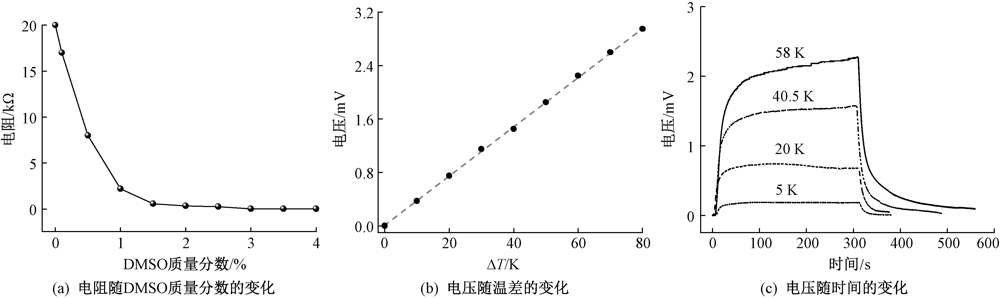

图4

间隔织物基光热-热电复合材料的热电性能"

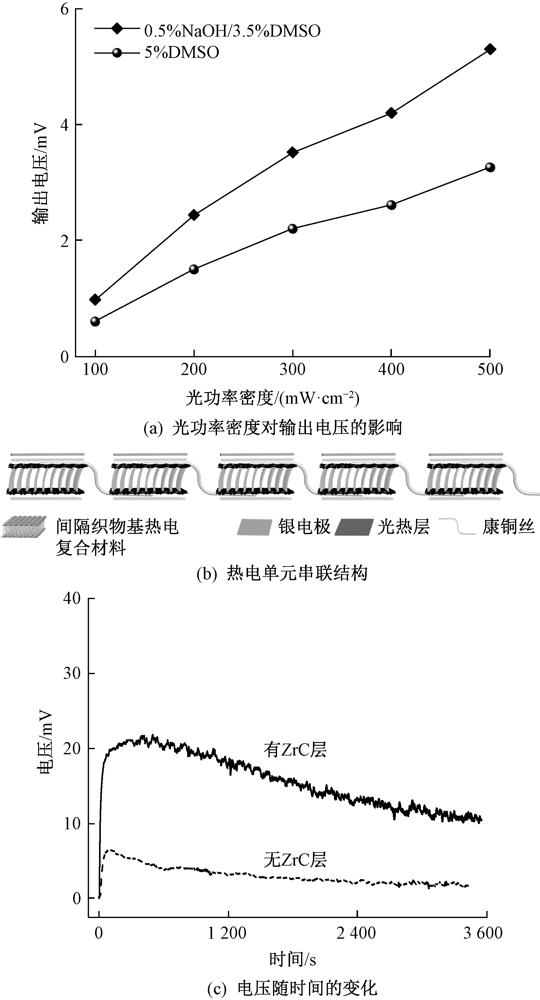

图5

光照下光热-热电复合材料的电压输出情况及热电单元串联结构"

[1] GAO J Y G, SHANG K Z, DING Y C, et al. Material and configuration design strategies towards flexible and wearable power supply devices: a review[J]. Journal of Materials Chemistry A, 2021, 9: 8950-8965.
doi: 10.1039/D0TA11260G
[2] KIM C S, LEE G S, CHOI H, et al. Structural design of a flexible thermoelectric power generator for wearable applications[J]. Applied Energy, 2018, 214: 131-138.
doi: 10.1016/j.apenergy.2018.01.074
[3] 张雪飞, 李婷婷, 许炳铨, 等. 用低温界面聚合法制备多功能核壳结构热电织物[J]. 纺织学报, 2021, 42(2): 174-179.
ZHANG Xuefei, LI Tingting, XU Bingquan, et al. Preparation of multifunctional core-shell structure thermoelectric fabrics by low-temperature interfacial polymerization[J]. Journal of Textile Research, 2021, 42(2): 174-179.
[4] FAN X, NIE W, TSAI H, et al. PEDOT:PSS for flexible and stretchable electronics: modifications, strategies, and applications[J]. Advanced Science, 2019. DOI: 10.1002/advs.201900813.
doi: 10.1002/advs.201900813
[5] KIM G H, SHAO L, ZHANG K, et al. Engineered doping of organic semiconductors for enhanced thermoelectric efficiency[J]. Nature Materials, 2013, 12: 719-723.
doi: 10.1038/nmat3635 pmid: 23644522
[6] KIM N, KANG H, LEE J H, et al. Highly conductive all-plastic electrodes fabricated using a novel chemically controlled transfer-printing method[J]. Advanced Materials, 2015, 27: 2317-2323.
doi: 10.1002/adma.201500078
[7] DENG W, DENG L, LI Z, et al. Synergistically boosting thermoelectric performance of PEDOT:PSS/SWCNT composites via the ion-exchange effect and promoting SWCNT dispersion by the ionic liquid[J]. ACS Applied Materials and Interfaces, 2021, 13: 12131-12140.
doi: 10.1021/acsami.1c01059
[8] QU S, CHEN Y, SHI W, et al. Cotton-based wearable poly(3-hexylthiophene) electronic device for thermoelectric application with cross-plane temperature gradient[J]. Thin Solid Films, 2018, 667: 59-63.
doi: 10.1016/j.tsf.2018.09.046
[9] DU Y, CAI K F, CHEN S, et al. Thermoelectric fabrics: toward power generating clothing[J]. Scientific Reports, 2015. DOI: 10.1038/srep06411.
doi: 10.1038/srep06411
[10] SUN T, ZHOU B, ZHENG Q, et al. Stretchable fabric generates electric power from woven thermoelectric fibers[J]. Nature Communications, 2020. DOI: 10.1038/s41467-020-14399-6.
doi: 10.1038/s41467-020-14399-6
[11] WEIJTENS C, ELSBERGEN V, KOK M, et al. Effect of the alkali metal content on the electronic properties of PEDOT:PSS[J]. Organic Electronics, 2005, 6 (2): 97-104.
doi: 10.1016/j.orgel.2005.02.005
[12] PARK H, LEE S H, KIM F S, et al. Enhanced thermoelectric properties of PEDOT:PSS nanofilms by a chemical dedoping process[J]. Journal Materials Chemistry A, 2014, 2: 6532-6539.
doi: 10.1039/C3TA14960A
[13] 李晓英, 蒋高明, 马丕波, 等. 三维横编间隔织物的编织工艺及其性能[J]. 纺织学报, 2016, 37(7): 66-70.
LI Xiaoying, JIANG Gaoming, MA Pibo, et al. Knitting processes and properties of three-dimensional computer flat-knitted spacer fabrics[J]. Journal of Textile Research, 2016, 37(7): 66-70.
[14] KARAMI M, AKHAVAN-BAHABADI M A, DEHKORDI M R, et al. Thermo-optical properties of copper oxide nanofluids for direct absorption of solar radiation[J]. Solar Energy Materials and Solar Cells, 2016, 144: 136-142.
doi: 10.1016/j.solmat.2015.08.018
