高疏水性双面结构生色棉织物的一步法制备

doi:10.13475/j.fzxb.20230405701

纺织学报 ›› 2024, Vol. 45 ›› Issue (04): 111-119.doi: 10.13475/j.fzxb.20230405701

高疏水性双面结构生色棉织物的一步法制备

向娇娇¹, 柳浩¹, 欧阳申珅², 马万彬¹, 柴丽琴¹, 周岚¹^,³, 邵建中¹, 刘国金¹^,³^,⁴()

1.浙江理工大学先进纺织材料与制备技术教育部重点实验室, 浙江杭州 310018
2.中国科学院宁波材料技术与工程研究所, 浙江宁波 315000
3.浙江省现代纺织技术创新中心, 浙江绍兴 312000
4.省部共建生物多糖纤维成形与生态纺织国家重点实验室(青岛大学), 山东青岛 266071

收稿日期:2023-04-28 修回日期:2024-01-13 出版日期:2024-04-15 发布日期:2024-05-13
通讯作者: 刘国金(1990—),副教授,博士。主要研究方向为纺织品结构生色。E-mail: guojin900618@163.com。
作者简介:向娇娇(1998—),女,硕士生。主要研究方向为纺织品结构生色、纺织品后整理。
基金资助:
国家自然科学基金项目(52003242);省部共建生物多糖纤维成形与生态纺织国家重点实验室开放课题项目(KFKT202216)

Preparation of cotton fabrics with both double-sided structural colored effect and high hydrophobicity by one-step method

XIANG Jiaojiao¹, LIU Hao¹, OUYANG Shenshen², MA Wanbin¹, CHAI Liqin¹, ZHOU Lan¹^,³, SHAO Jianzhong¹, LIU Guojin¹^,³^,⁴()

1. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
2. Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo, Zhejiang 315000, China
3. Zhejiang Provincial Innovation Center of Advanced Textile Technology, Shaoxing, Zhejiang 312000, China
4. State Key Laboratory of Bio-Fibers and Eco-Textiles(Qingdao University), Qingdao, Shandong 266071, China

Received:2023-04-28 Revised:2024-01-13 Published:2024-04-15 Online:2024-05-13

摘要/Abstract

摘要：

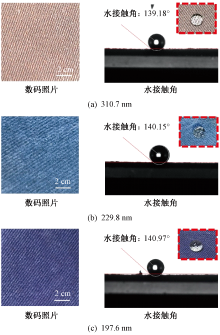

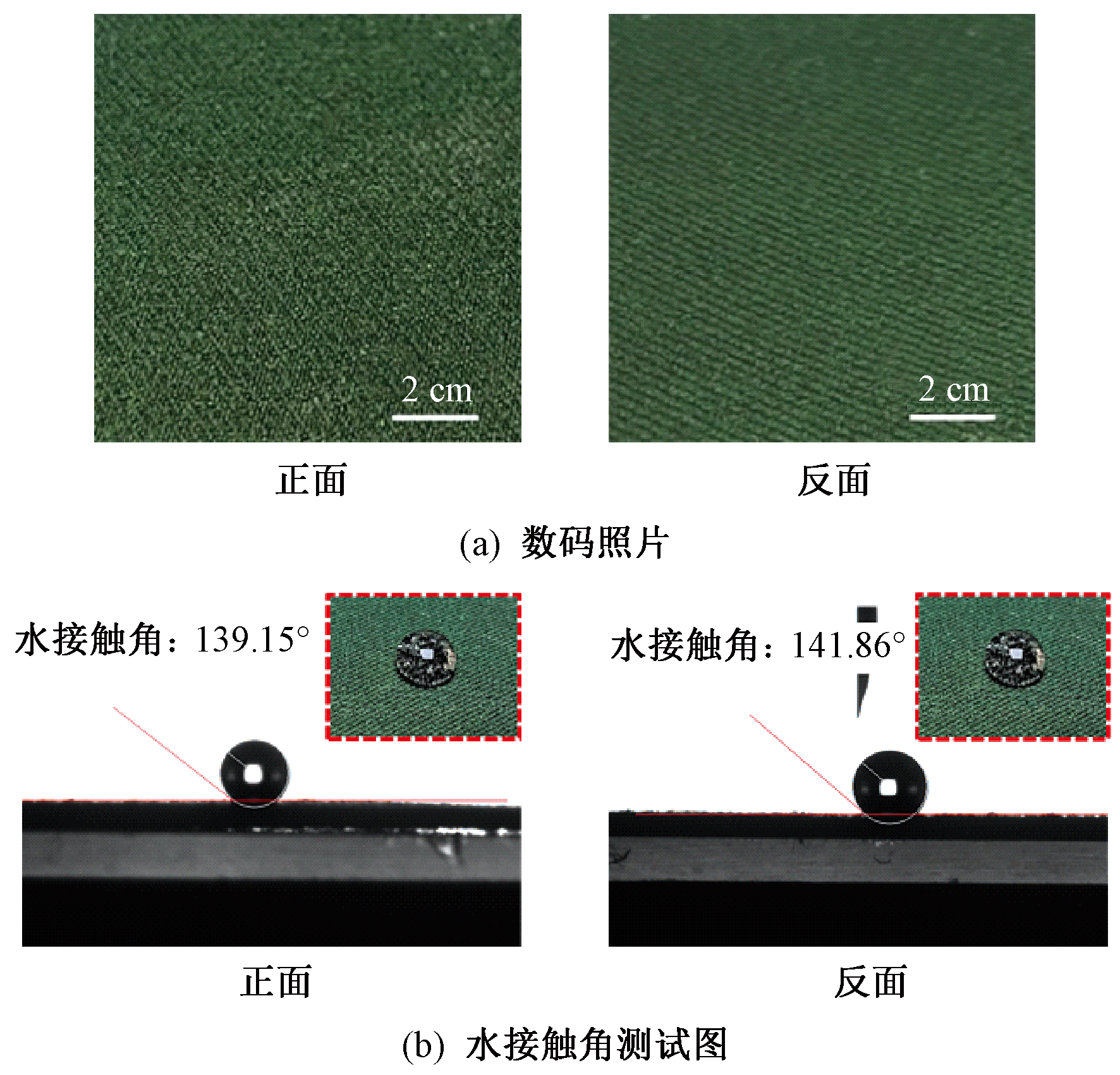

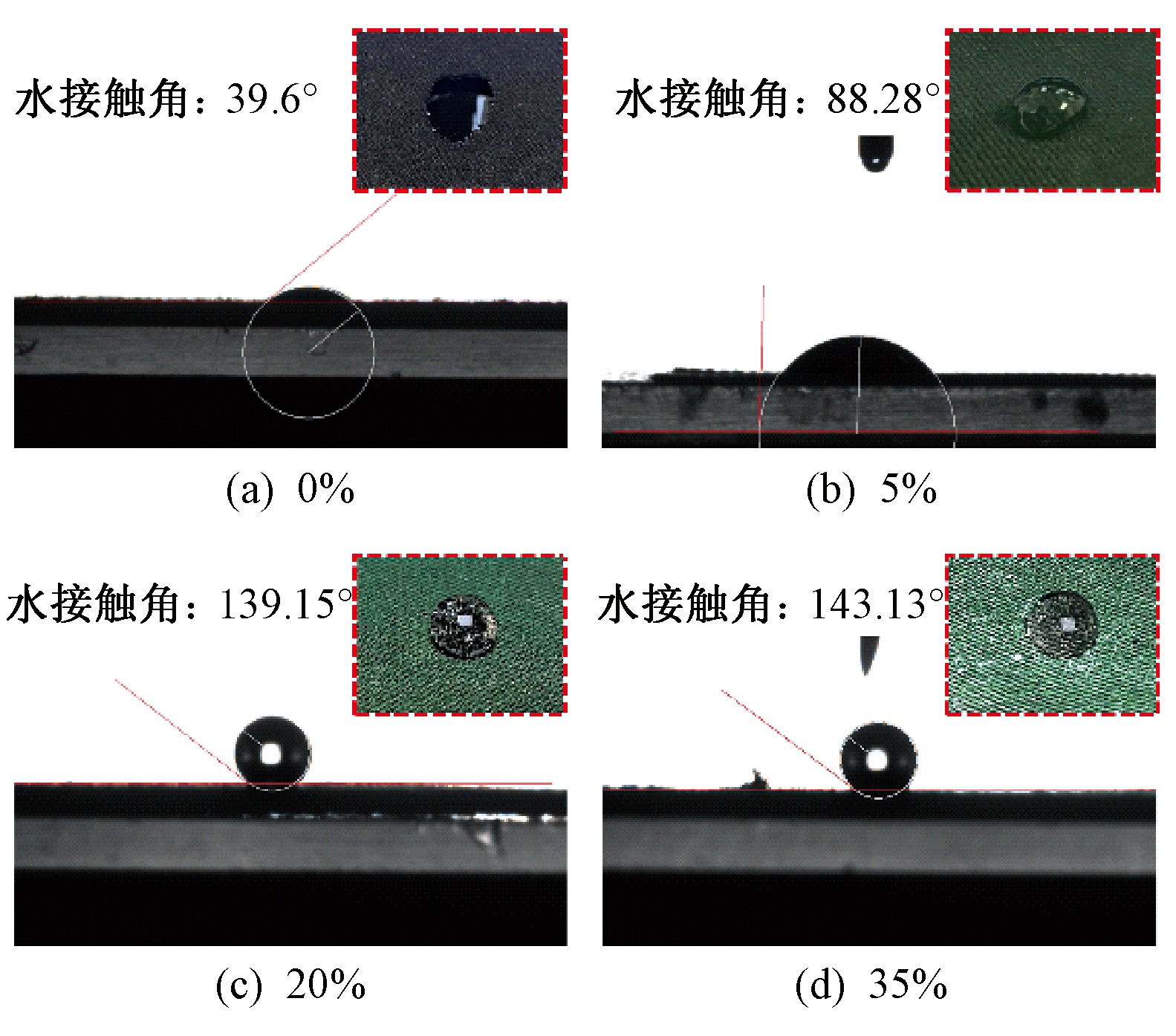

为能简便、快速地得到兼具双面结构色效果和高疏水性的棉织物,以聚甲基丙烯酸三氟乙酯(PTFEMA)胶体微球为结构单元,利用浸轧-焙烘一步法将其负载于棉织物上构筑高疏水性光子晶体生色结构。分析PTFEMA胶体微球的基本性能,探究PTFEMA胶体微球组装液质量分数对棉织物结构生色效果和疏水性的影响,并提出结构生色棉织物的疏水机制。结果表明:PTFEMA胶体微球粒径均一,单分散性优异,适宜于构筑光子晶体;当组装液质量分数为20%~30%时,通过浸轧-焙烘一步法便可制备得到结构色明显、水接触角为140°左右的棉织物;PTFEMA胶体微球因自带含—CF₃基团而具有疏水性,加之光子晶体阵列增加了棉织物的粗糙度,双重作用下使得结构生色棉织物具备高疏水性。

关键词: 棉织物, 光子晶体, 结构生色, 高疏水, 一步法, 功能性纺织品

Abstract:

Objective Cotton fabrics are widely used in the textile industry due to their excellent moisture absorption and breathability. However, the hydrophilic properties of cotton fabrics may limit their application in some hydrophobic and anti-fouling clothing. The coloring and hydrophobic effects of cotton fabrics can be achieved by a one-step method, which uses hydrophobic colloidal microspheres as the basic unit of photonic crystals to construct photonic crystals with both structural colored effect and high hydrophobicity on cotton fabric. This approach not only helps to reduce the processing process, but also generates new ideas for the development of multifunctional integrated cotton fabrics.

Method In this work, hydrophobic poly(trifluoroethyl methacrylate)(PTFEMA)colloidal microspheres were prepared by soap-free emulsion polymerization method. The microspheres were used as the building blocks of photonic crystals. The cotton fabric with double-sided structural colored effect and high hydrophobicity was obtained by a one-step method of dipping and baking.

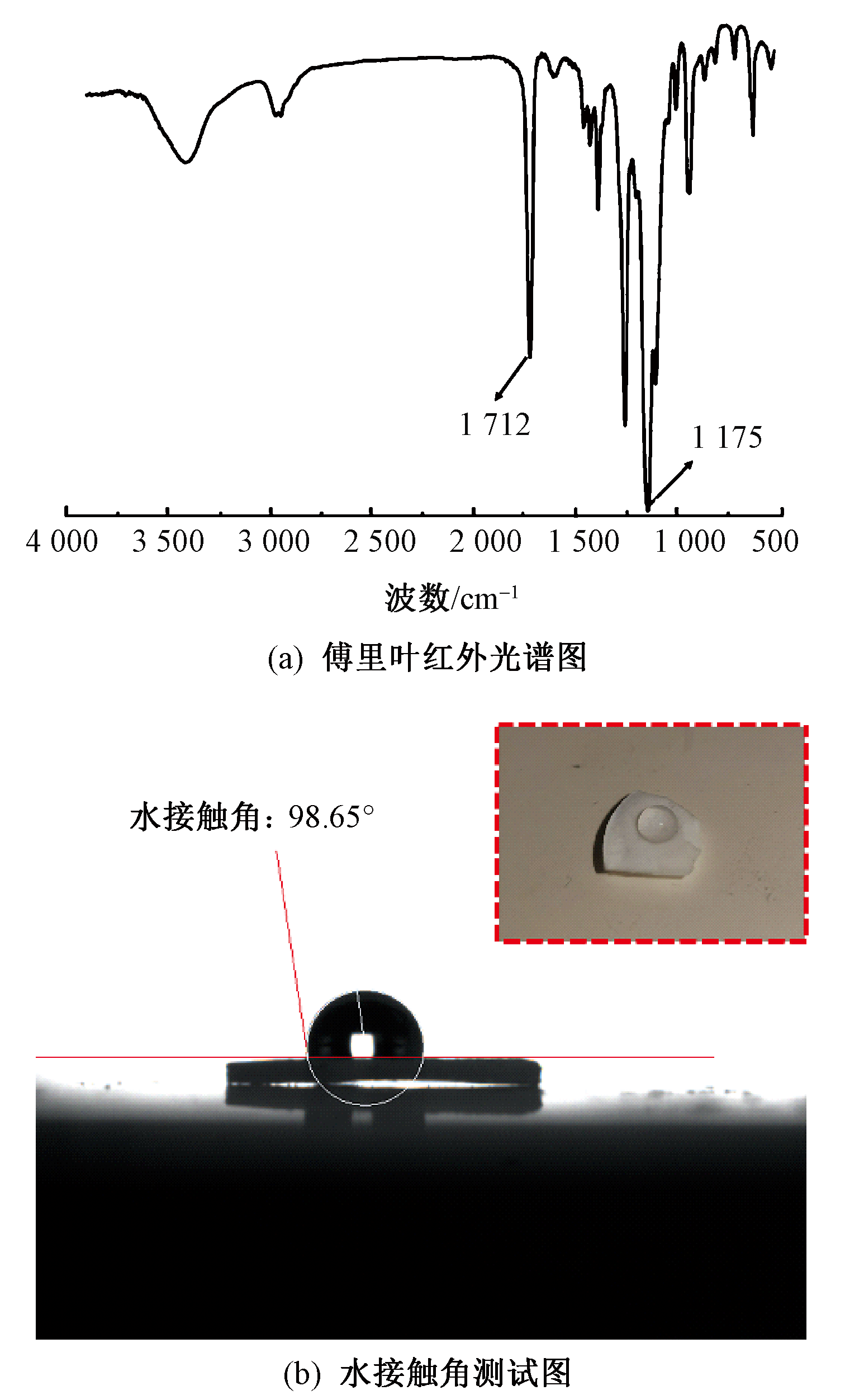

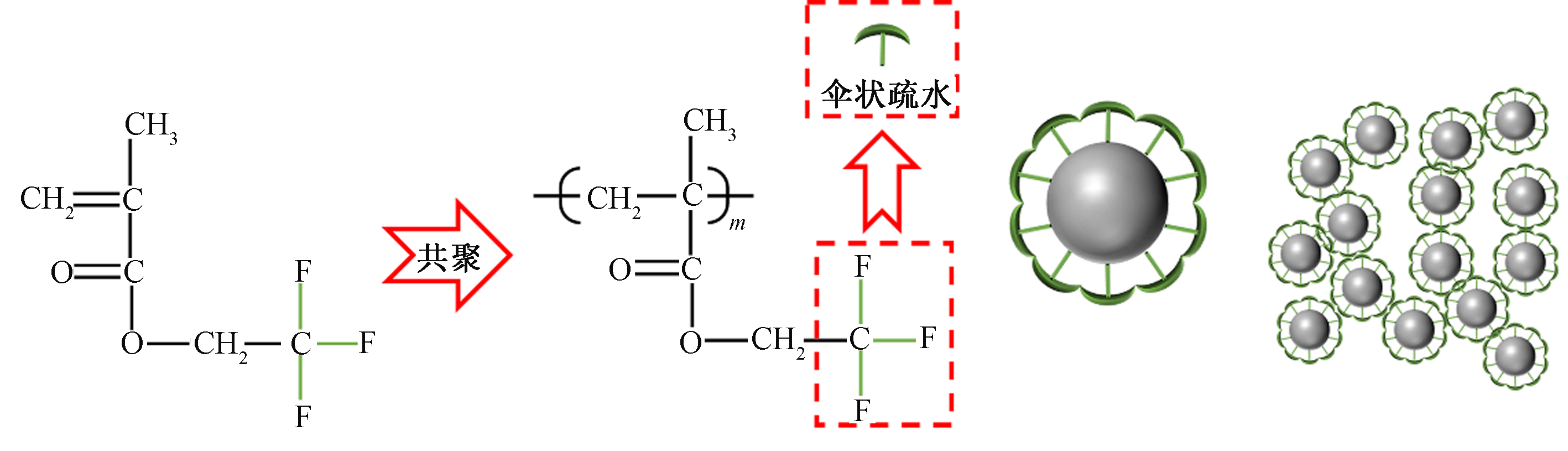

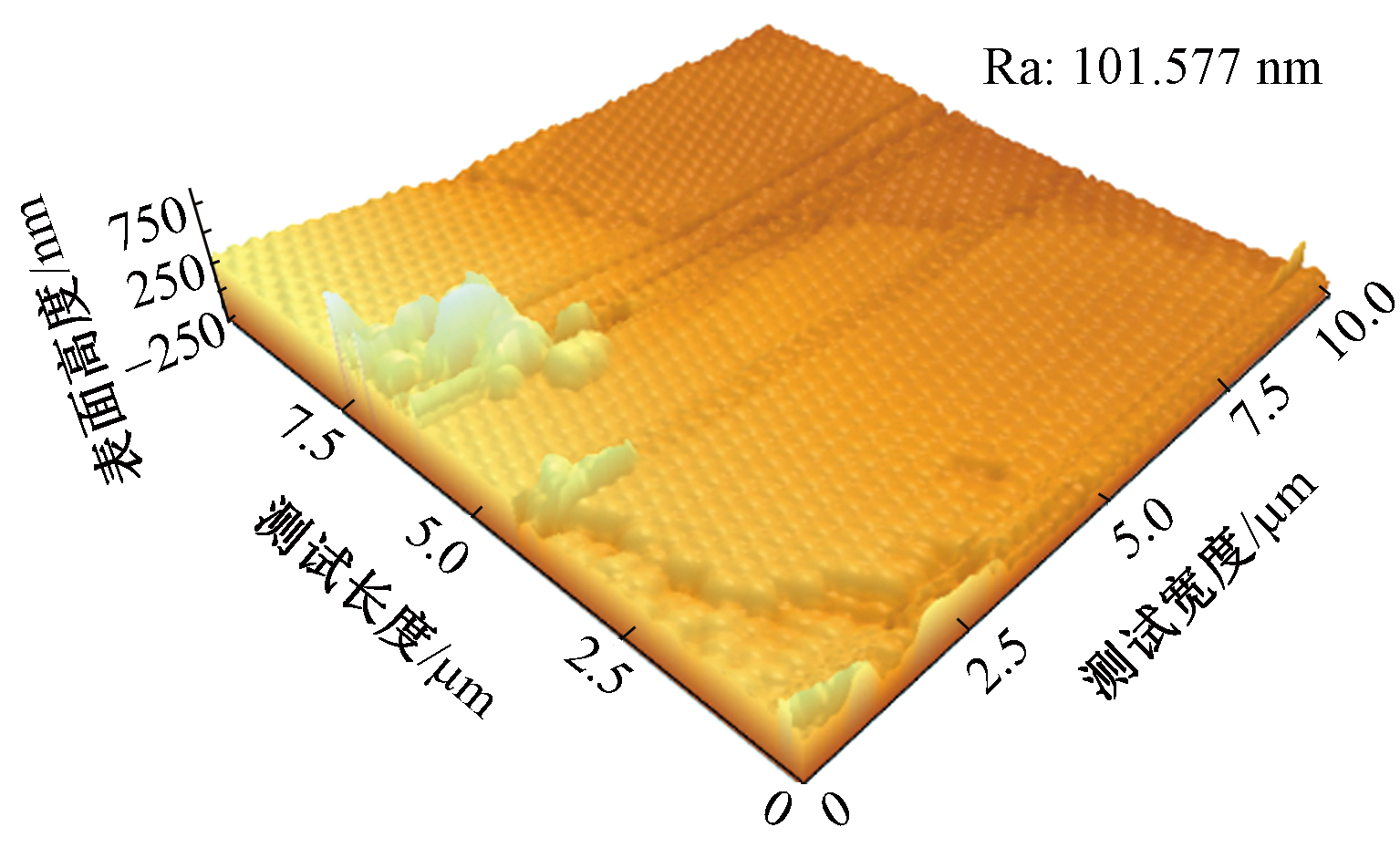

Results The size distribution of PTFEMA colloidal microspheres synthesized by soap-free emulsion polymerization was found uniform, the particle dispersion index (PDI) was less than 0.08, the colloidal microspheres had hydrophobic functional group-CF₃, and the water contact angle can reach 98.65°. When the mass fraction of PTFEMA colloidal microsphere assembly solution was 20%-30%, the cotton fabrics with obvious color and strong hydrophobicity were able to be prepared via one step method of dipping and baking. The photonic crystal structural colored cotton fabrics showed iridescent effect, and the water contact angle reached about 140°. The results showed that the high hydrophobicity of cotton fabrics with photonic crystal structural coloration was mainly caused by two aspects, i.e., the fluorine-containing group-CF₃ carried by the PTFEMA microsphere, and the roughness of the cotton fabrics increased by the photonic crystal structural layer constructed by the PTFEMA microsphere.

Conclusion Photonic crystals composed of PTFEMA colloidal microspheres with excellent monodispersion were constructed by the one-step method of dipping and baking, facilitating the color enhancement and high hydrophobicity of double-sided structure of cotton fabrics. The effect of mass fraction of PTFEMA microsphere assembly solution on the structure color and hydrophobicity of cotton fabric was studied, and the results show that 20%-30% microsphere assembly solution is suitable for forming cotton fabric with obvious structural color and high hydrophobicity. In addition, the hydrophobic mechanism of cotton fabric with photonic crystal structural coloration is discussed. It is found that the hydrophobic group-CF₃ carried by the PTFEMA colloidal microspheres, and the photonic crystal array constructed by the microspheres increase the roughness of the cotton fabric, which results in the high hydrophobicity of the structure. Therefore, the combination of the one-step method of dipping and baking, cotton fabric and photonic crystal structure can achieve the structure color of cotton fabrics and provides strategic support for the preparation of highly hydrophobic cotton fabric.

Key words: cotton fabric, photonic crystal, structural coloration, high hydrophobicity, one step method, functional textile

中图分类号:

TS101

向娇娇, 柳浩, 欧阳申珅, 马万彬, 柴丽琴, 周岚, 邵建中, 刘国金. 高疏水性双面结构生色棉织物的一步法制备[J]. 纺织学报, 2024, 45(04): 111-119.

XIANG Jiaojiao, LIU Hao, OUYANG Shenshen, MA Wanbin, CHAI Liqin, ZHOU Lan, SHAO Jianzhong, LIU Guojin. Preparation of cotton fabrics with both double-sided structural colored effect and high hydrophobicity by one-step method[J]. Journal of Textile Research, 2024, 45(04): 111-119.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20230405701

http://www.fzxb.org.cn/CN/Y2024/V45/I04/111

图/表 17

图1

图2

图3

图4

表1

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

参考文献 16

[1]	刘国金. 纺织基材上纳米微球自组装仿生光子晶体结构生色研究[D]. 杭州: 浙江理工大学,2017:204.
	LIU Guojin. Study on the structural coloration of biomimetic photonic crystals on textile substrates by self-assembly of nanospheres[D]. Hangzhou: Zhejiang Sci-Tech University, 2017:204.
[2]	LI S, XIAO Y S, SHAN G H, et al. Efficient preparation of single-sided structural color fabrics with asymmetric wettability, angle-dependence and pattern ability based on liquid photonic crystals[J]. Dyes and Pigments, 2023. DOI: 10.1016/j.dyepig.2023.111302.
[3]	ZHU K M, FANG C Q, PU M Y, et al. Recent advances in photonic crystal with unique structural colors: a review[J]. Journal of Materials Science and Technology, 2023, 141: 78-99.
[4]	MA W B, LIU H, HE W Y, et al. Preparation of acrylic yarns with durable structural colors based on stable photonic crystals[J]. ACS Omega, 2022, 7(44): 39750-39759. doi: 10.1021/acsomega.2c03672 pmid: 36385851
[5]	INOUE T, MORITA R, NIGO K, et al. Self-evolving photonic crystals for ultrafast photonics[J]. Nature Communications, 2023, 14(1): 50-50. doi: 10.1038/s41467-022-35599-2 pmid: 36707512
[6]	LIU G J, HAN P S, CHAI L Q, et al. Fabrication of cotton fabrics with both bright structural colors and strong hydrophobicity[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2020. DOI: 10.1016/j.colsurfa.2020.124991.
[7]	LIU H, ZHANG Y X, JIN M T, et al. Preparation of carbon fiber substrates with structural colors based on photonic crystals[J]. Dyes and Pigments, 2022. DOI: 10.1016/j.dyepig.2022.110338.
[8]	ZHANG L, SUN L, ZHANG Z, et al. Bioinspired superhydrophobic surface by hierarchically colloidal assembling of microparticles and colloidal nanopar-ticles[J]. Chemical Engineering Journal, 2020. DOI: 10.1016/j.cej.2020.125008.
[9]	WU S T, YANG F, ZHAO C Q, et al. Rapid fabrication of SiO₂-PHEMA photonic crystal hydrogel composite microspheres[J]. Dyes and Pigments, 2022. DOI: 10.1016/j.dyepig.2022.110089.
[10]	LI S, XIAO Y S, SHAN G H, et al. Rapid preparation of structural color coatings on flexible textiles by simple vacuum-assisted filtration self-assembly[J]. Physica E: Low-Dimensional Systems and Nanostructures, 2022. DOI: 10.1016/j.physe.2022.115424.
[11]	FU Y, DENG L B, L X, et al. Construction of amorphous photonic crystal coated fabrics with wash resistance and antifouling performance[J]. Cellulose, 2023, 30(6): 4057-4070.
[12]	LIU G J, ZHOU L, WU Y, et al. Optical properties of three-dimensional P(St-MAA) photonic crystals on polyester fabrics[J]. Optical Materials, 2015, 42: 72-79.
[13]	KOZLOW A A, AKSENOV A S, BOLSHAKOV E S, et al. Colloidal photonic crystals with controlled morphology[J]. Russian Chemical Bulletin, 2022, 71(10): 2037-2051.
[14]	FUDOUZI H. Fabricating high-quality opal films with uniform structure over a large area[J]. Journal of Colloid and Interface Science, 2004, 275(1): 277-283. pmid: 15158410
[15]	SCHRODEN R C, ALDAOUS M, AND C F B, et al. Optical properties of inverse opal photonic crystals[J]. Chemistry of Materials, 2002, 14(8): 3305-3315.
[16]	WATERHOUS G I N, WATERLAND M R. Opal and inverse opal photonic crystals: fabrication and characterization[J]. Polyhedron, 2007, 26(2): 356-368.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

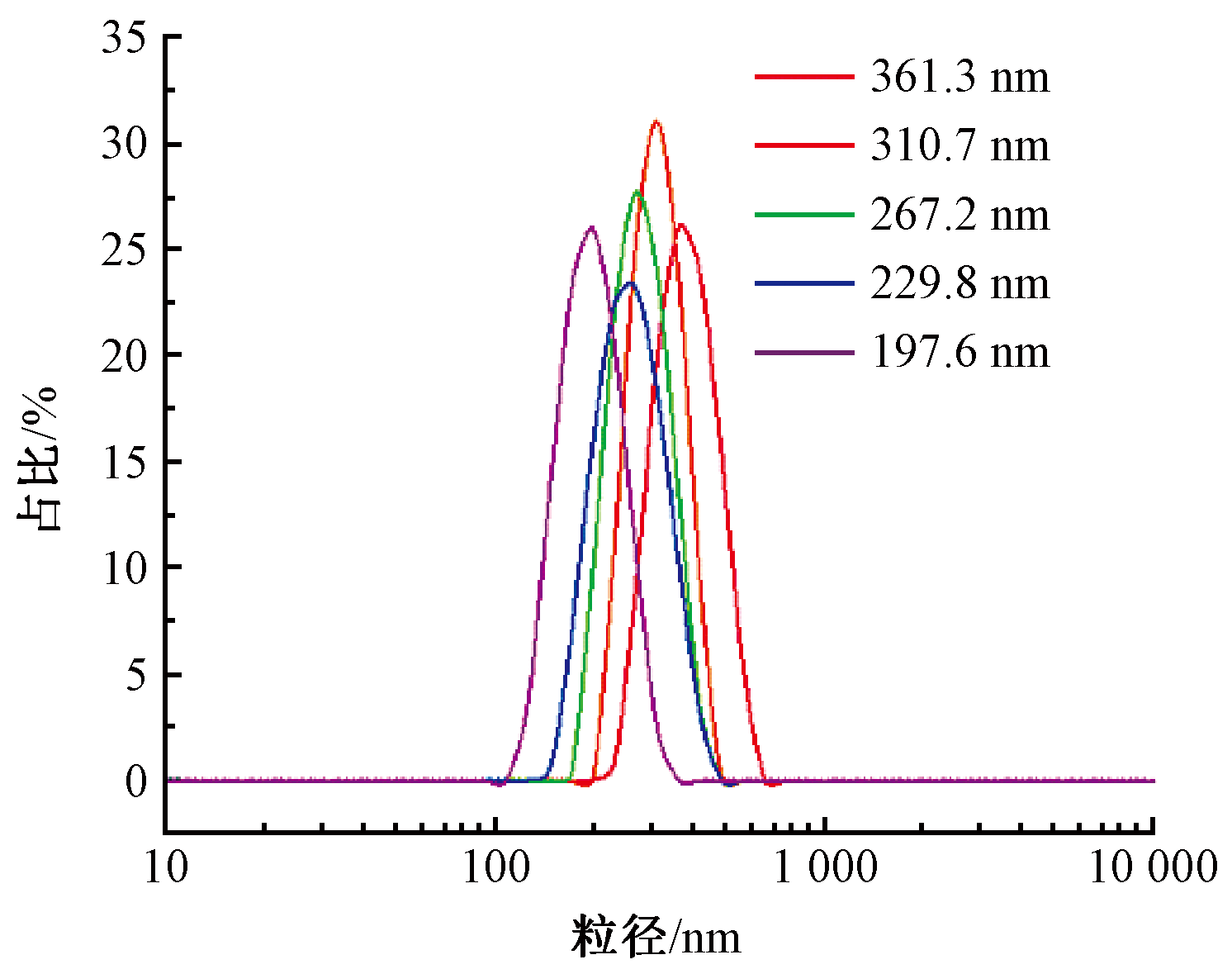

粒径/nm	PDI值
361.3	0.015
310.7	0.049
267.2	0.065
229.8	0.027
197.6	0.021
