Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (01): 142-146.doi: 10.13475/j.fzxb.20171005205

• Machinery & Accessories • Previous Articles     Next Articles

Sensitivity analysis on kinematic accuracy of needle bar mechanism in embroidery machine

GUO Huixin(), ZHANG Ganqing

  1. School of Mechanical and Electrical Engineering, Changsha University, Changsha, Hunan 410003, China
  • Received:2017-10-17 Revised:2018-10-12 Online:2019-01-15 Published:2019-01-18

RichHTML

4

PDF (PC)

334

Abstract:

In order to improve the kinematic precision and its robustness of the needle bar mechanism in the embroidery machine, the global sensitivity analysis on the kinematic accuracy of this mechanism was carried out by using the Sobol' method. On the basis of global sensitivity analysis, the optimum design of the needle bar mechanism was carried out. Firstly, considering the effect of rod manufacturing error and kinematic pair clearance on the needle bar displacement, a numerical model for kinematic accuracy analysis of needle bar mechanism was established. Then, the total sensitivity of 14 random variables was obtained by using the Sobol' global sensitivity analysis method, and 4 important factors and 1 key factor were determined according to the order of sensitivity, in which the length of the connecting rod is the key factor. By reducing the manufacturing error of the key factor, the kinematic accuracy of the needle bar mechanism was further optimized. The results show that the standard deviation of the displacement error of the needle bar mechanism is reduced obviously, and the robustness of the motion accuracy is improved.

Key words: embroidery machine, needle bar mechanism, kinematic accuracy, sensitivity, numerical model

CLC Number:

  • TS103.3

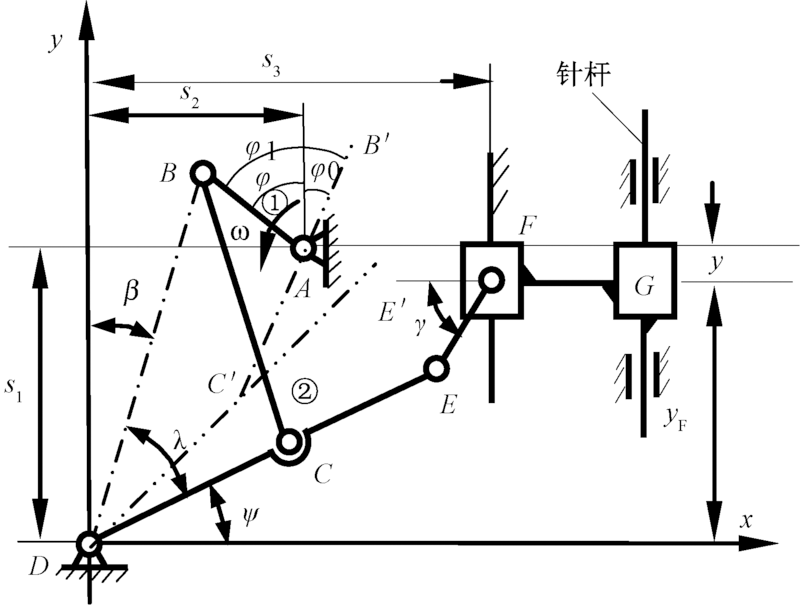

Fig.1

Schematic diagram of needle bar mechanism"

Tab.1

Influence factors and distribution rules of needle bar motion precision"

变量 几何量 均值 分布区间 标准差 分布类型
x1 s1 μ1 μ1±0.031 0.031/3 正态
x2 s2 μ2 μ2±0.021 0.021/3 正态
x3 s3 μ3 μ3±0.037 0.037/3 正态
x4 l AB μ4 μ4±0.018 0.018/3 正态
x5 lBC μ5 μ5±0.037 0.037/3 正态
x6 l DC μ6 μ6±0.026 0.026/3 正态
x7 l DE μ7 μ7±0.037 0.037/3 正态
x8 l EF μ8 μ8±0.026 0.026/3 正态
x9 ra 0.007 [0.002,0.012] 0.001 7 正态
x10 rb 0.007 [0.002,0.012] 0.001 7 正态
x11 rc 0.008 5 [0.002 5,0.014 5] 0.002 正态
x12 rd 0.008 5 [0.002 5,0.014 5] 0.002 正态
x13 re 0.008 5 [0.002 5,0.014 5] 0.002 正态
x14 rf 0.008 5 [0.002 5,0.014 5] 0.002 正态
z1 δa — [0, 360°] — 均匀
z2 δb — [0, 360°] — 均匀
z3 δc — [0, 360°] — 均匀
z4 δd — [0, 360°] — 均匀
z5 δe — [0, 360°] — 均匀
z6 δf — [0, 360°] — 均匀

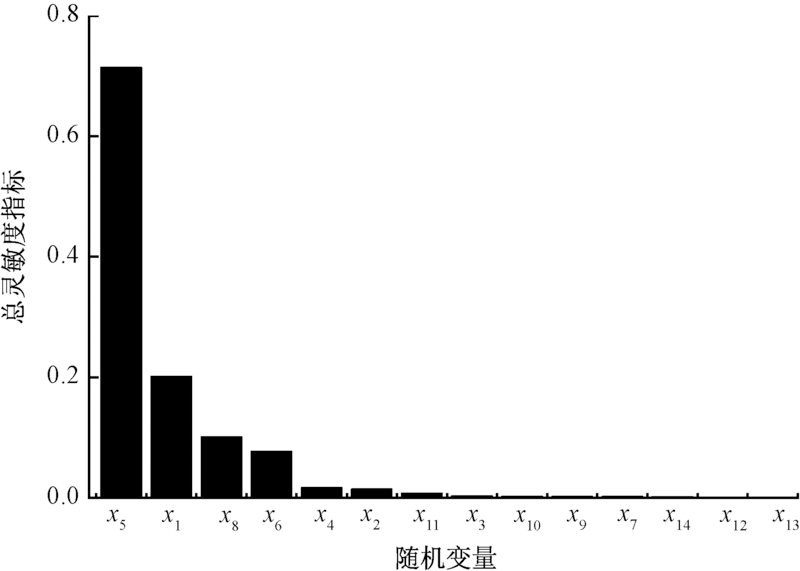

Fig.2

Bar chart of total sensitivities before optimization"

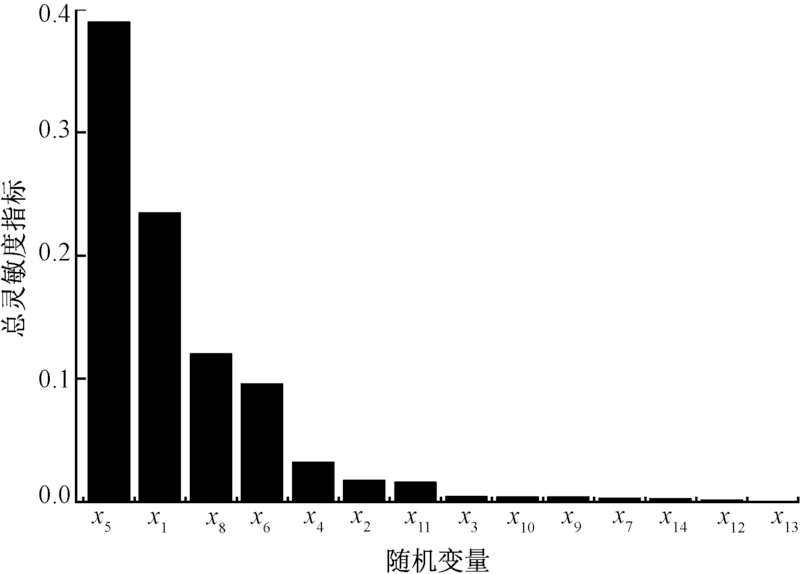

Fig.3

Bar chart of total sensitivities after optimization"

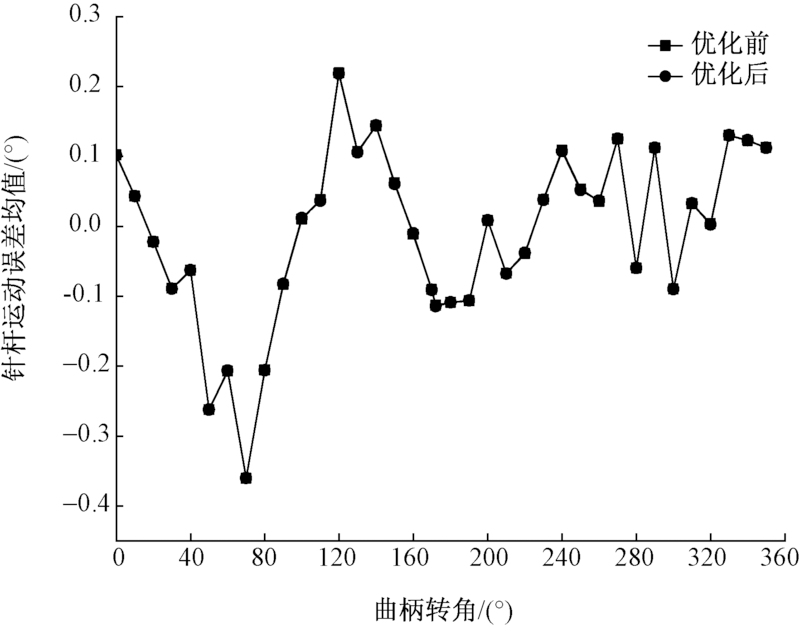

Fig.4

Mean values of needle bar motion error before and after optimization"

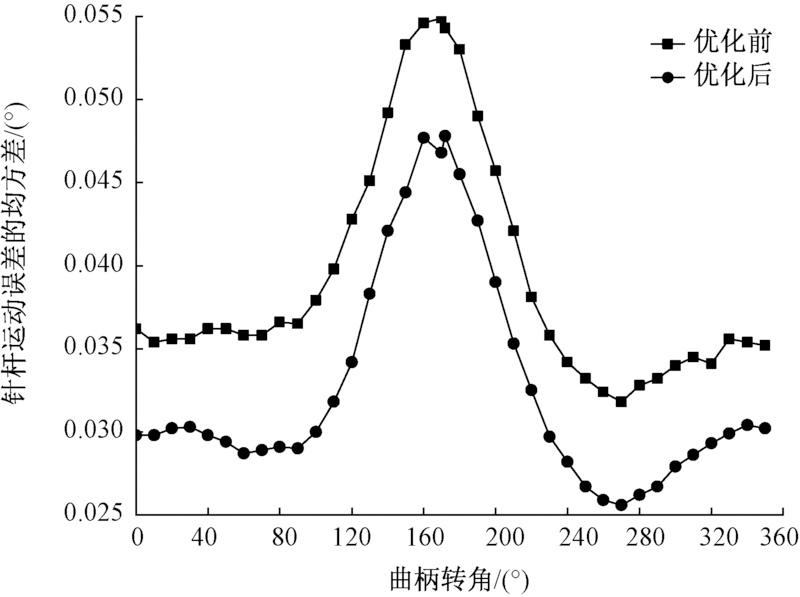

Fig.5

Mean square deviation of needle bar motion error before and after optimization"

[1] 邢家骅. GY4-1型电脑多头绣花机的传统系统和刺料机构介绍[J]. 缝纫机科技, 1994,180(5):40-42.
XING Jiahua. Introduce to the tread taking-up and needle driving mechanism in GY4-1 computerized embroidery machine[J]. Sewing Machine Technology, 1994,180(5):40-42.
[2] 林建龙, 罗智文, 张力. 电脑刺绣机针杆机构位置精度分析[J]. 纺织学报, 2010,31(7):131-134.
LIN Jianlong, LUO Zhiwen, ZHANG Li. Position accuracy analysis on needle bar mechanism of computerized embroidery machine[J]. Journal of Textile Research, 2010,31(7):131-134.
doi: 10.1177/004051756103100205
[3] 邢家骅. GY4-1电脑多头绣花机刺布机构和挑线机构的运动分析和计算[J]. 机械设计与研究, 1990(2):13-17.
XING Jiahua. Kinematic analysis and calculation of tread taking-up and needle driving mechanism in GY4-1 computerized embroidery machine[J]. Machine Design and Research, 1990(2):13-17.
[4] 赵延雯, 刘朝辉. 电脑绣花机针杆、挑线机构的分析[J]. 武汉科技学院学报, 2000(3):52-56.
ZHAO Yanwen, LIU Zhaohui. The analysis of the automatic embroidery machine's needle bar and take-up thread picker[J]. Journal of Wuhan Institute of Science and Technology, 2000(3):52-56.
[5] 李敏, 罗佑新, 曹秦钧, 等. 自动刺绣机针杆运动机构误差的泛灰分析[J]. 纺织学报, 2003,24(2):124-125.
LI Min, LUO Youxin, CAO Taijun, et al. Universal grey analysis of needle bar mechanism error of automatic embroidery machine[J]. Journal of Textile Research, 2003,24(2):124-125.
[6] 郭惠昕. 刺绣机含间隙针杆机构的运动稳健性分析与优化设计[J]. 纺织学报, 2011,32(11):131-136.
GUO Huixin. Robust design optimization of the needle bar mechanism with joint clearance in automatic embroidery machine[J]. Journal of Textile Research, 2011,32(11):131-136.
[7] SOBOL' I M. Sensitivity estimates for nonlinear mathematical models[J]. Matem Modelirovanie, 1990,2(1):112-118.
[8] SOBOL' I M. Global sensitivity indices for nonlinear mathematical models and their Monte Carlo estimates[J]. Mathematics and Computers in Simulation, 2001,55(1-3):271-280.
doi: 10.1016/S0378-4754(00)00270-6
[9] SALTELLI A, ANNONI P, AZZINI I, et al. Variance based sensitivity analysis of model output: design and estimator for the total sensitivity index[J]. Computer Physics Communications, 2010,181(2):259-270.
doi: 10.1016/j.cpc.2009.09.018
[10] 谭晓兰, 韩建友, 陈立周. 考虑运动副间隙影响的函数发生机构的稳健优化设计[J]. 北京科技大学学报, 2004,26(4):416-419.
TAN Xiaolan, HAN Jianyou, CHEN Lizhou. Robust design of function generating mechanisms considering kinematic pair clearance[J]. Journal of University of Science and Technology Beijing, 2004,26(4):416-419.
[11] HELTON J C, DAVIS F. Latin hypercube sampling and the propagation of uncertainty in analyses of complex systems[J]. Reliability Engineering & System Safety, 2002,81(1):11-30.
[12] BRATLEY P, FOX B L. Algorithm 659: implementing Sobol's quasirandom sequence generator[J]. ACM Trans Math Softw, 1988,14(1):88-100.
doi: 10.1145/42288.214372
