Matrix model and generation algorithm of regular angle-interlock weave

WANG Xu1,2(), DU Zengfeng1, NI Qingqing3, LIU Xinhua1,2

  1. 1. College of Textile and Clothing, Anhui Polytechnic University, Wuhu, Anhui 241000, China
    2. Science and Technology Public Service Platform for Textile Industry, Anhui Polytechnic University,Wuhu, Anhui 241000, China
    3. Faculty of Textile Science and Technology, Shinshu University,Nagano 3868567, Japan
  • Received:2018-01-19 Revised:2019-01-30 Online:2019-05-15 Published:2019-05-21

RichHTML

2

PDF (PC)

84

Abstract:

In order to improve design efficiency of angle-interlock, the interlacing rule of angle-interlock weave without filling and with filling warp yarns were analyzed, and the relationship between weave parameters and interlacing rule was established. The matrix model of angle-interlock weave and generation algorithm were built. The element relationship between column vectors of matrix model on no filling warp yarns and its generation algorithm were established. Then an algorithm for generating regular angle-interlock with filling warp yarns was established by matrix embedding method. The results show that the relative matrix can be generated by inputting weft layers with the algorithm. The regular angle-interlock weave can be produced rapidly, and the design efficiency can be improved by presented matrix model and its generation algorithm.

Key words: angle-interlock weave, interlacing rule, weave matrix, generation algorithm

CLC Number:

  • TS105.11

Fig.1

Diagram of regular angle-interlock weave. (a) 4 layers no-filling warps; (b) 4 layers with filling warps;(c) 5 layers no-filling warps; (d) 5 layers with filling warps"

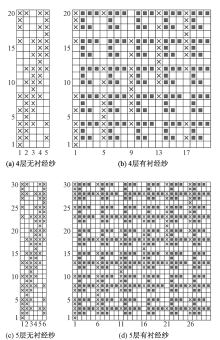

Fig.2

Weave diagram of angle-interlock. (a) 4 layers no-filling warps; (b) 4 layers with filling warps; (c) 5 layers no-filling warps; (d) 5 layers with filling warps"

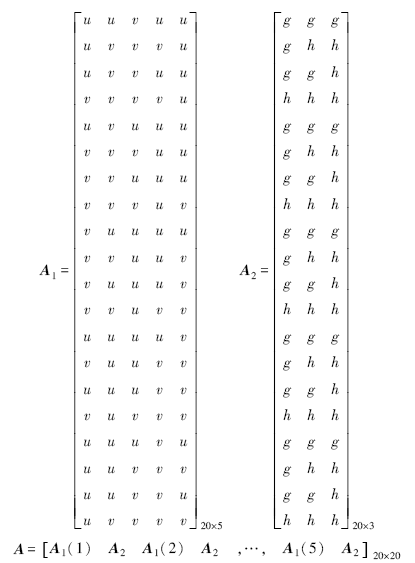

Fig.3

Weave matrix of four layers regular angle-interlock with filling warps"

[1] 马倩, 王可, 金利民. 三维角联锁机织复合材料的冲击破坏有限元模拟分析[J]. 纺织学报, 2017,38(7):63-68.
MA Qian, WANG Ke, JIN Limin. Modeling analysis on impact damage of 3-D angle-interlock woven composite based on finite element[J]. Journal of Textile Research, 2017,38(7):63-68.
doi: 10.1177/004051756803800108
[2] 冯古雨, 曹海建, 王新月, 等. 三维角联锁机织复合材料经纬向剪切性能有限元分析[J]. 材料科学与工程学报, 2017,35(4):650-654.
FENG Guyu, CAO Haijian, WANG Xinyue, et al. Finite element analysis on shear property in warp and weft direction of 3D angle interlock composites[J]. Journal of Material Science & Engineering, 2017,35(4):650-654.
[3] CHEN Xiaogang, TAYLOR Lindsay Waterton, TSAI Li Ju. An overview on fabrication of three-dimensional woven textile preforms for composites[J]. Textile Research Journal, 2011,81(9):932-944.
doi: 10.1177/0040517510392471
[4] 杨小侠. 角联锁结构三维织物的设计[J]. 棉纺织技术, 2011,39(9):4-7.
YANG Xiaoxia. Design of angle-interlock structure three dimensional fabric[J]. Cotton Textile Technology, 2011,39(9):4-7.
[5] 许鹤, 唐予远, 马菲, 等. 角联锁结构中经纬纱排列的数字表达及其规律[J]. 纺织学报, 2015,36(10):29-32.
XU He, TANG Yuyuan, MA Fei, et al. Digital expression and regularity of warp and weft repeat in angle-interlock structure[J]. Journal of Textile Research, 2015,36(10):29-32.
[6] 聂建斌, 卢士艳. 角联锁织物的组织设计[J]. 纺织学报, 2006,27(3):90-91.
NIE Jianbin, LU Shiyan. Construction of angle-interlock woven fabrics[J]. Journal of Textile Research, 2006,27(3):90-91.
[7] 白燕. 正则多重纬角联锁机织物的快速设计[J]. 纺织学报, 2013,34(2):61-64.
BAI Yan. Rapid design of regular multiple weft angle interlocking fabric[J]. Journal of Textile Research, 2013,34(2):61-64.
[8] 许璀莹, 顾冬娟, 张玲妹, 等. 实口结构重纬角联锁织物组织图计算机辅助绘制[J].丝绸, 2010(8):45-46.
XU Cuiying, GU Dongjuan, ZHANG Lingmei, et. al. Drawing of the weave diagram of multi-weft angle-interlock fabric aided with computer[J]. Journal of Silk, 2010(8):45-46.
[9] CHEN Xiaogang, POTIYARAJ P. CAD/CAM of orthogonal and angle-interlock woven structures for industrial applications[J]. Textile Research Journal, 1999,69(9):648-655.
[10] CHEN Xiaogang, KNOX R T, MCKENNA D F, et al. Automatic generation of weaves for the CAM of 2D and 3D woven textile structures[J]. The Journal of The Textile Institute, 1996,87(2):356-370.
[1] XIE Baozhu;ZHANG Yu;JIN Yao ;YANG Tingting . Fabric weave design based on swift operation and interative operation of weave matrix [J]. JOURNAL OF TEXTILE RESEARCH, 2010, 31(6): 37-42.
