Magnetic holding electronic needle selector and serial bus jacquard control system for circular knitting machine

PENG Laihu1,2(), WANG Luojun2, HU Xudong1,2, WU Zhenhui2, YUAN Yanhong1,2

  1. 1. The Center for Engineering Technology of Modern Textile Machinery & Technology of Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2018-02-01 Revised:2018-06-26 Online:2019-01-15 Published:2019-01-18

RichHTML

5

PDF (PC)

179

Abstract:

Aiming at problems of existing needle selectors in jacquard circular knitting machine, such as slow operation speed, large unit to unit performance variation and easy overheating, a novel electronic needle selector employing fast forward and reverse gaussing/degaussing of solenoid actuator was presented. Based on the magnetization of the ferromagnetic material and the operating characteristics of selector solenoid, a new circuit drive and a control method of needle selector were proposed to switch and to maintain the states of the selector blade by alternating the magnetization direction of the semi-hard ferromagnetic material of the solenoid core. To meet the requirements of such needle selectors, a design of jacquard control system for circular bi-directional industrial serial bus architecture was also proposed for minimizing signal crosstalk and enhancing anti-interference performance in unidirectional parallel bus architecture. The resnlts show both the laboratory experiment and field testing demonstrate that the new system design can sustain temperature rise within 9 ℃ during operation. The maximum operating frequency of 65 Hz is obtained. Also the design enhances the serial bus's anti-jamming performance and improves the jacquard control system reliability.

Key words: circular knitting machine, jacquard, needle selector, magnetic retention, human-computer interaction

CLC Number:

  • TS103.7

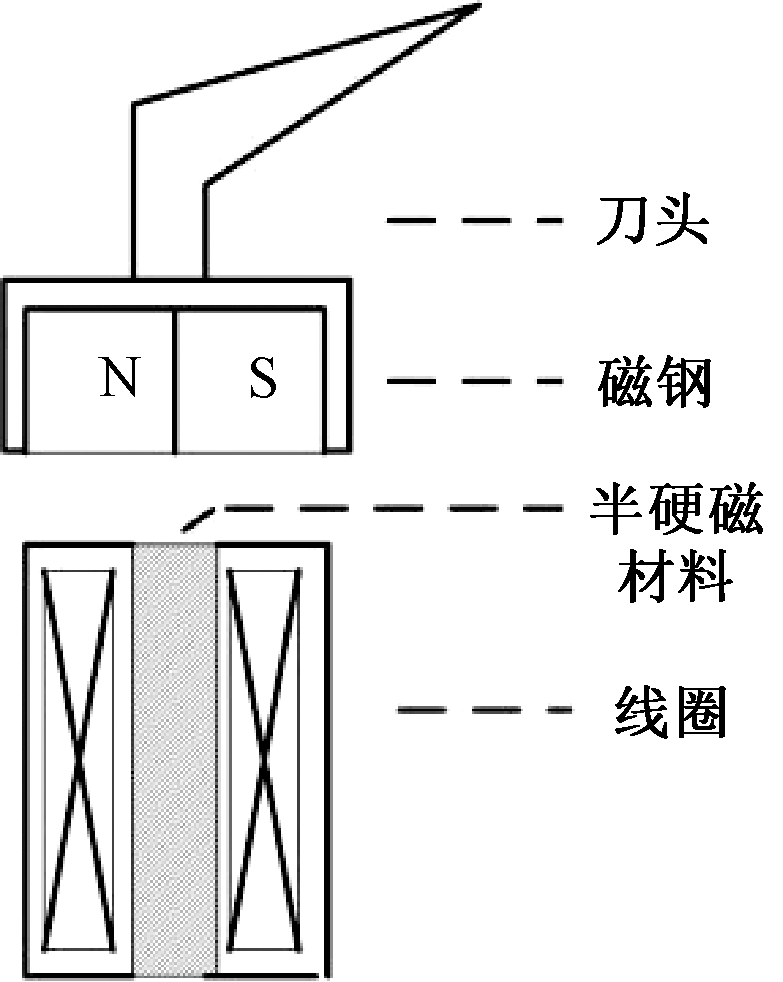

Fig.1

Diagram of core structure of needle selector"

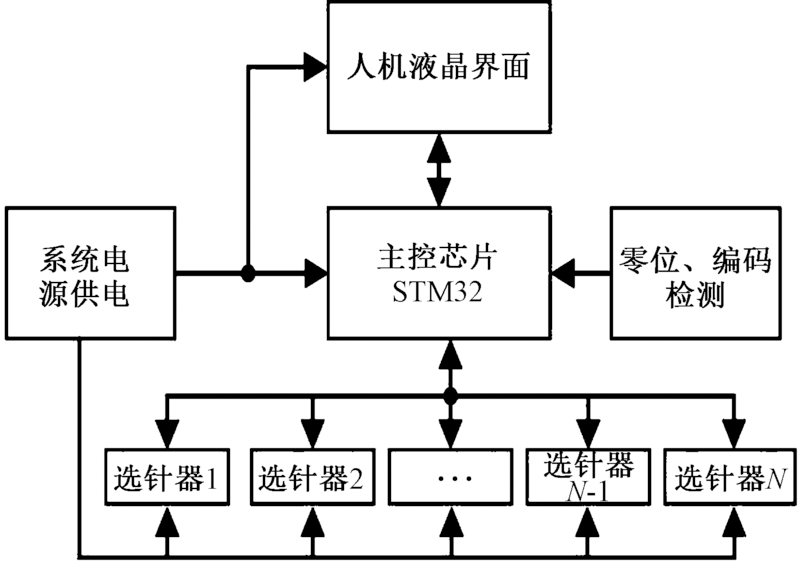

Fig.2

Control system architecture"

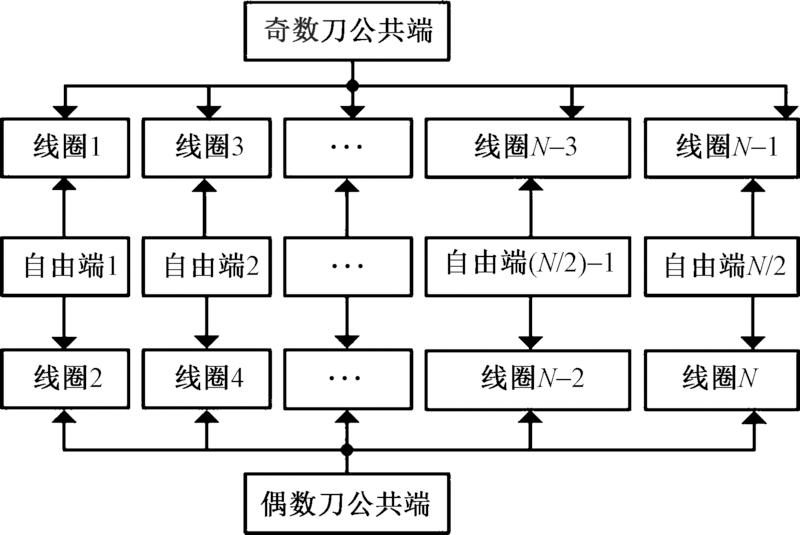

Fig.3

Diagram of 'public end' drive circuit"

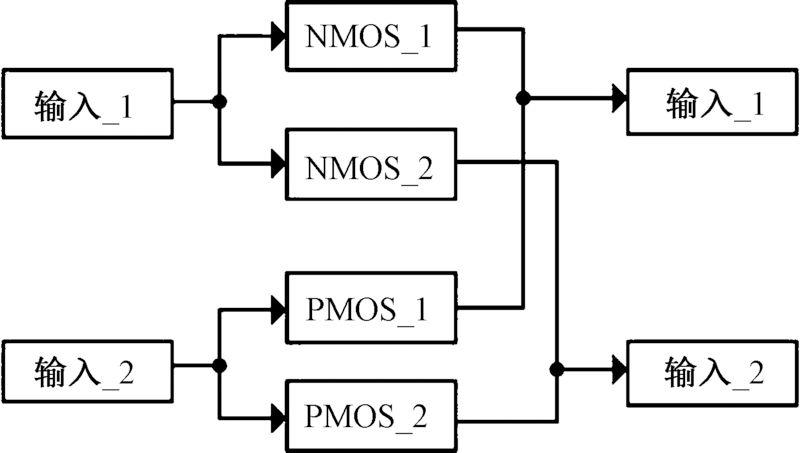

Fig.4

Diagram of 'free end' drive circuit"

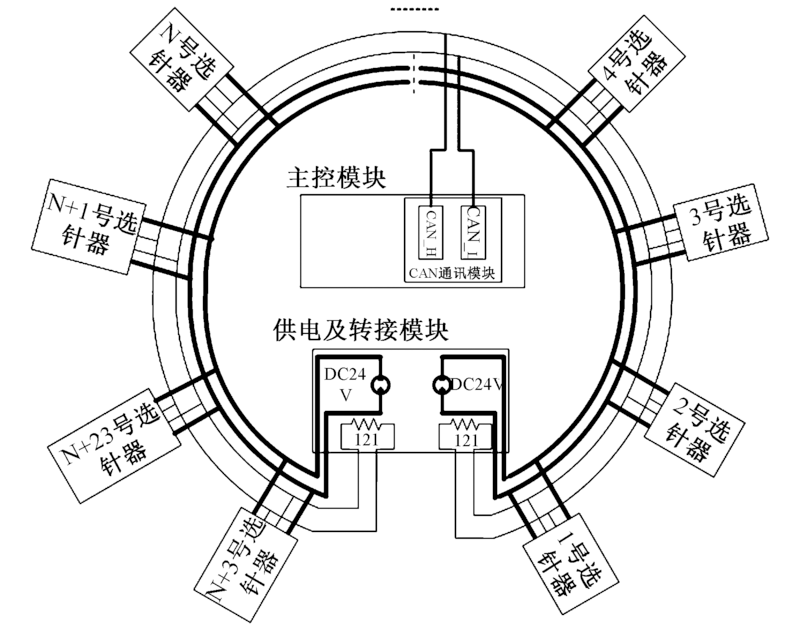

Fig.5

Structure diagram of circular CAN bus network"

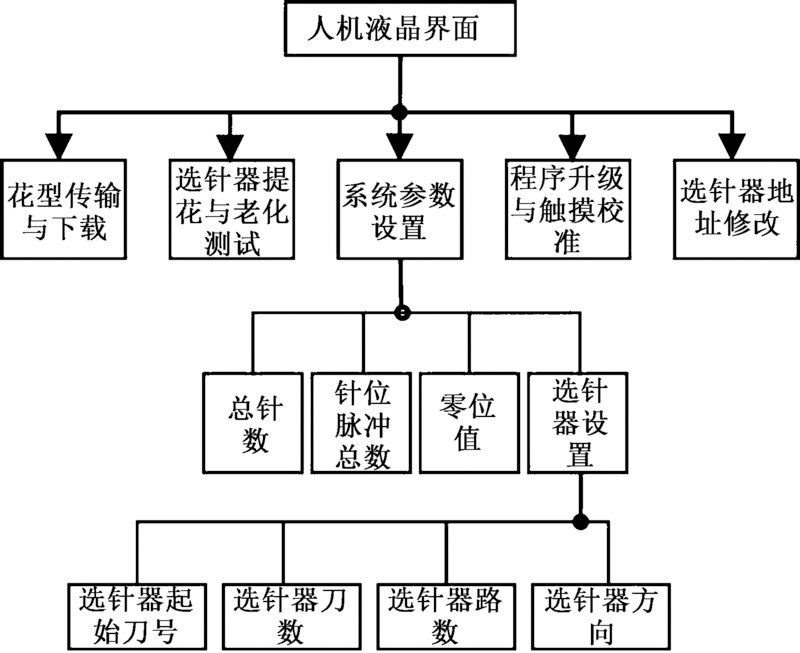

Fig.6

Structure diagram of human-computer interaction"

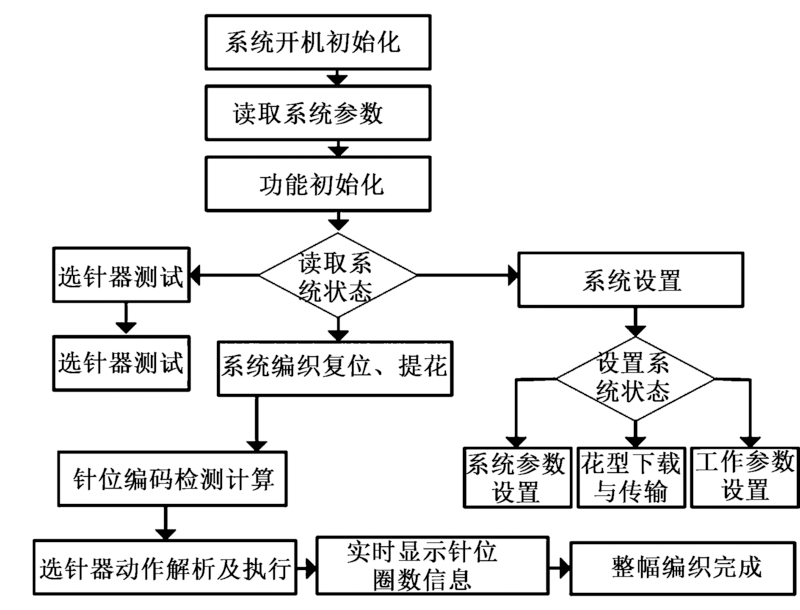

Fig.7

Flow diagram of main program"

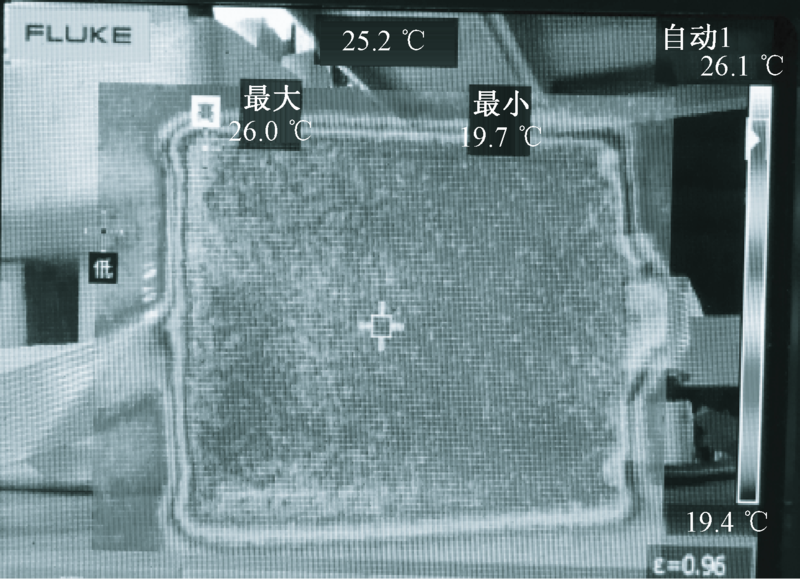

Fig.8

Infrared thermography of temperature rise of needle selector"

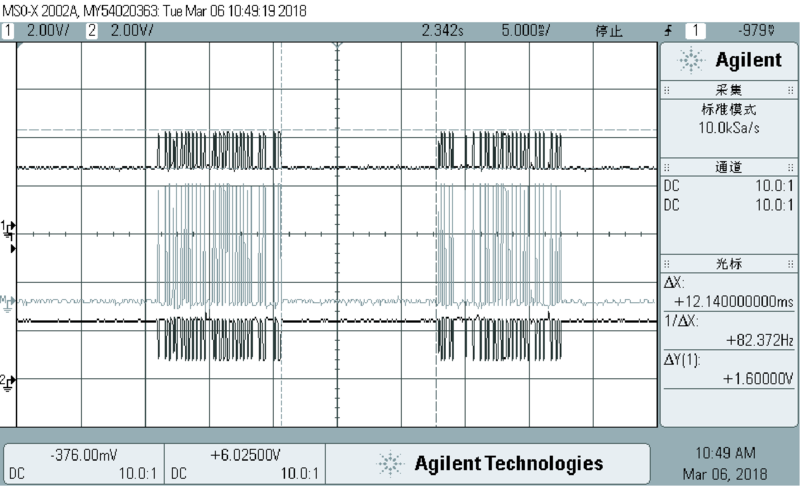

Fig.9

Diagram of CAN communication sequence"

[1] 李军, 朱方明, 周炯, 等. 应用频闪原理的选针器频率检测系统设计[J]. 纺织学报, 2017,38(3):138-142.
LI Jun, ZHU Fangming, ZHOU Jiong, et al. Appliaction of laser displacement sensor to free-form surface measurement[J]. Journal of Textile Research, 2017,38(3):138-142.
[2] 袁嫣红, 马天宇, 项宏年. 电磁选针器实时检测系统[J]. 纺织学报 2018,39(3):143-147.
YUAN Yanhong, MA Tianyu, XIANG Hongnian. Real-time detection system for electro-magnetic needle selector[J]. Journal of Textile Research, 2018,39(3):143-147.
[3] 吴晓光, 张建钢, 张成俊, 等. 压电陶瓷片受力分析及选针器设计[J]. 针织工业, 2008(2):19.
4 WU Xiaoguang, ZHANG Jiangang, ZHANG Chengjun, et al. Stress analysis of piezoelectric ceramic and design of needle selection[J]. Knitting Industries, 2008(2):19.
[4] 张一平, 吕旭东. 影响电脑横机选针器选针可靠性的几个因素[J]. 郑州纺织工学院学报, 2001,3(12):43-44.
ZHANG Yiping, LÜ Xudong. Studies on several factors affecting the reliability of needle selection for computer flat knitting machine[J]. Journal of Zhengzhou Textile Industry Institute, 2001,3(12):43-44.
[5] 范建国. 一种基于电流控制的提花机选针器驱动电路的设计与研究[J]. 浙江理工大学学报, 2014,3(31):281-282.
FAN Jianguo. Design and research on driving circuit of jacquard selector based on current control[J]. Journal of Zhejiang University of Science and Technology, 2014,3(31):281-282.
[6] 吴晓光, 张弛, 张成俊, 等. 电子选针器下位机控制系统在大圆机上的应用[J]. 针织工业, 2005(11):4-5.
WU Xiaoguang, ZHANG Chi, ZHANG Chengjun, et al. Application of electronic selector under the machine control system in the large circular machine[J]. Knitting Industries, 2005(11):4-5.
[7] 张建钢. 针织提花关键技术及发展趋势[J]. 湖北科技学院学报, 2008,8(21):20-21.
ZHANG Jiangang. Key technology and development trend of knitting jacquard[J]. Journal of Hubei Institute of Science and Technology, 2008,8(21):20-21.
[8] 吴波, 廉自生, 刘远波. 基于Maxwell 的电磁铁吸力特性研究[J]. 太原理工大学学报, 2011,42(5):490-493.
WU Bo, LIAN Zisheng, LIU Yuanbo. Study on suction characteristics of electromagnet based on maxwell[J]. Journal of Taiyuan University of Technology, 2011,42(5):490-493.
[9] 孙志宏, 陈明, 赵伯诚. HARTING电磁选针器[J]. 针织工业, 1997(3):23-24.
SUN Zhihong, CHEN Ming, ZHAO Bocheng. Harting electromagnetic sensor[J]. Knitting Industries, 1997(3):23-24.
[10] 王强. 螺管式电磁铁设计与仿真分析[D]. 湘潭:湖南科技大学, 2013: 61-68.
WANG Qiang. Design and simulation analysis of spiral solenoid[D]. Xiangtan:Hunan University of Science and Technology, 2013: 61-68.
