Water and oil repellent finishing of cotton fabric based on fluoroacrylate miniemulsion

QIAN Haihong1,2, WANG Hongbo1,2(), DU Jinmei1,2, FU Jiajia1,2, WANG Wencong1,2

  1. 1. Jiangsu Engineering Technology Research Center of Functional Textiles, Jiangnan University, Wuxi, Jiangsu 214122, China
    2. Key Laboratory of Eco-Textiles(Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
  • Received:2018-03-01 Revised:2018-08-21 Online:2019-03-15 Published:2019-03-15
  • Contact: WANG Hongbo E-mail:wxwanghb@163.com

RichHTML

2

PDF (PC)

111

Abstract:

In view of the problems of environmental pollution,poor finishing effect and washing fastness in the process of water and oil repellent finishing, a C4 short chain fluorinated acrylate miniemulsion was synthesized by miniemulsion polymerization,and its influence on water and oil repellent finishing of cotton fabric was investigated. The influence of pretreatment method, mass concentration of miniemulsion and drying/curing process on the contact angle of cotton fabric were discussed by univariate analysis. The experimental results show that the water and oil repellent properties of cotton fabric achieve the optimal effect under the conditions of the mass concentration of miniemulsion 60 g/L,the immersion time 30 min, drying at 80 ℃ for 3 min and curing at 160 ℃ for 3 min. In this process, the contact angle of cotton fabric to water is 160°,to olive oil is 154°,to hexadecane is 135°. After 30 times of washing,the contact angle of cotton fabric to water is 145°,to olive oil is 133° and to hexadecane is 113°. In addition, the crease recovery angle of the treated fabric increases by 36%, and the breaking strength and whiteness have no significant decrease.

Key words: fluoroacrylate, water and oil repellent finishing, cotton fabric, plasma pretreatment

CLC Number:

  • TS195.5

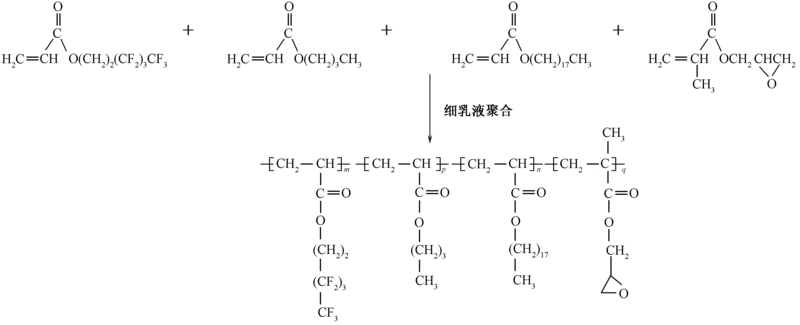

Fig.1

Synthetic route of miniemulsion polymerization"

Tab.1

Influence of pretreatment method on contact angle of cotton fabric(°)"

预处理方法 接触角
水 橄榄油 十六烷
原样 148 138 114
等离子体预处理 151 140 120
超声波预处理 150 138 117

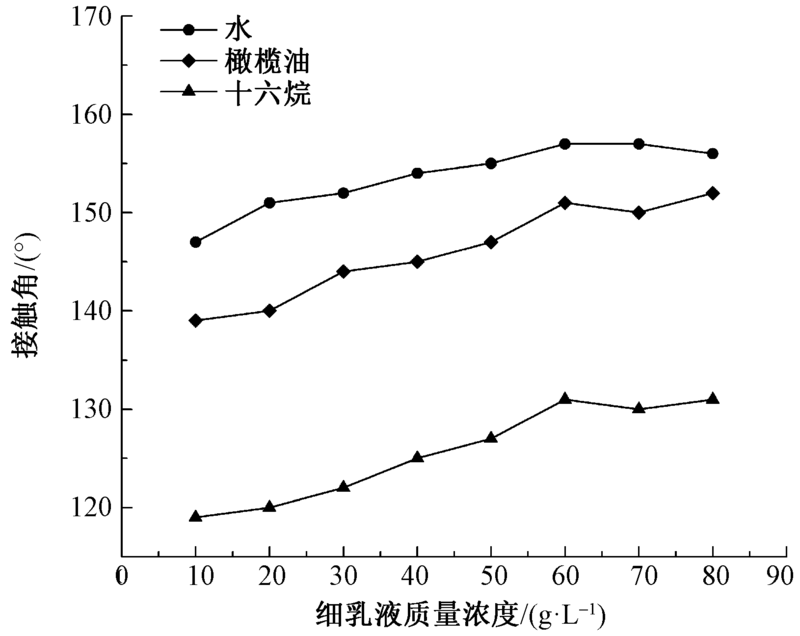

Fig.2

Influence of miniemulsion mass concentration on contact angle of cotton fabric"

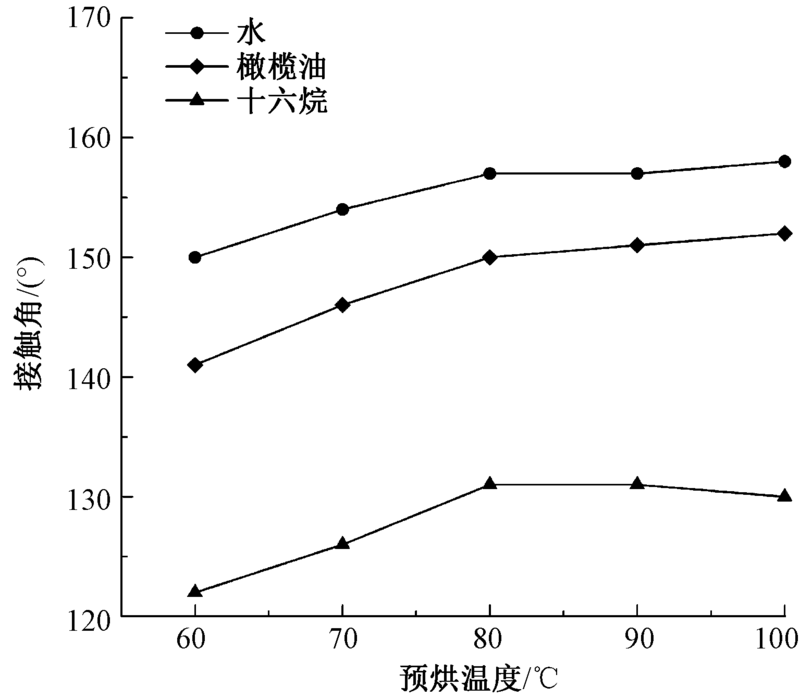

Fig.3

Influence of drying temperature on contact angle of cotton fabric"

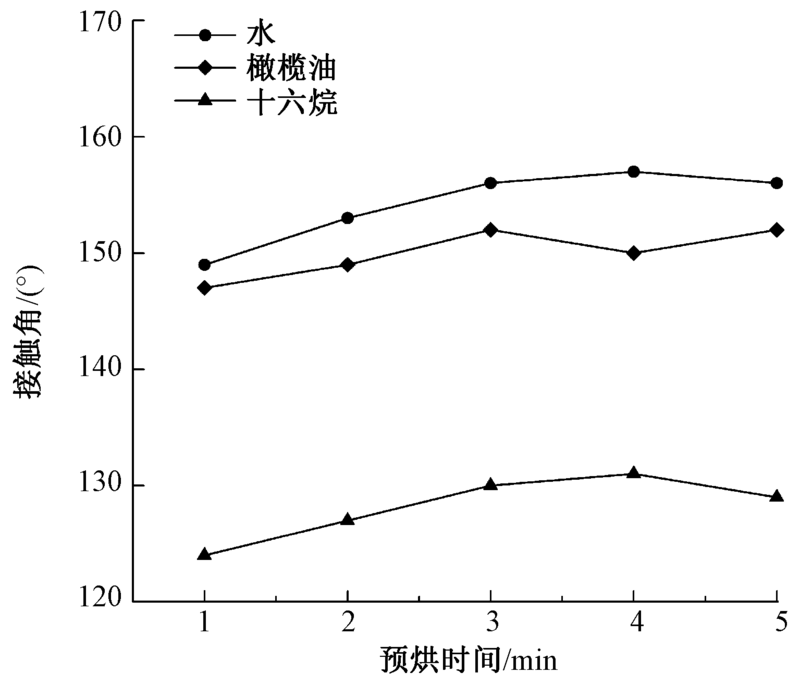

Fig.4

Influence of drying time on contact angle of cotton fabric"

Tab.2

Influence of baking temperature on contact angle of cotton fabric"

焙烘温度/℃ 接触角/(°) 白度/%
水 橄榄油 十六烷
140 153 149 128 75
150 156 152 130 70
160 160 154 135 69
170 157 153 133 61
180 158 151 132 57

Tab.3

Influence of baking time on contact angle of cotton fabric"

焙烘时间/min 接触角/(°) 白度/%
水 橄榄油 十六烷
1 152 147 125 76
2 157 150 129 74
3 160 154 135 73
4 159 151 136 69
5 158 150 132 62

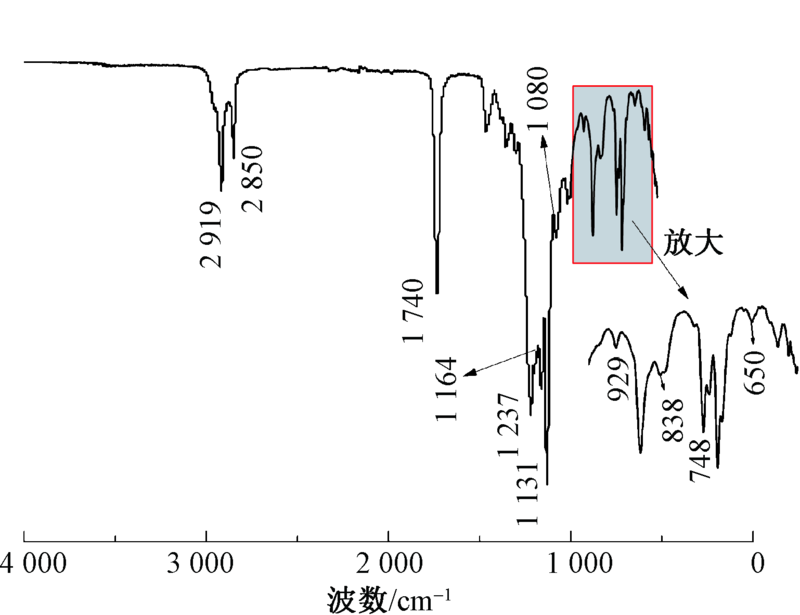

Fig.5

FT-IR spectrum of fluorinated acrylate polymer latex film"

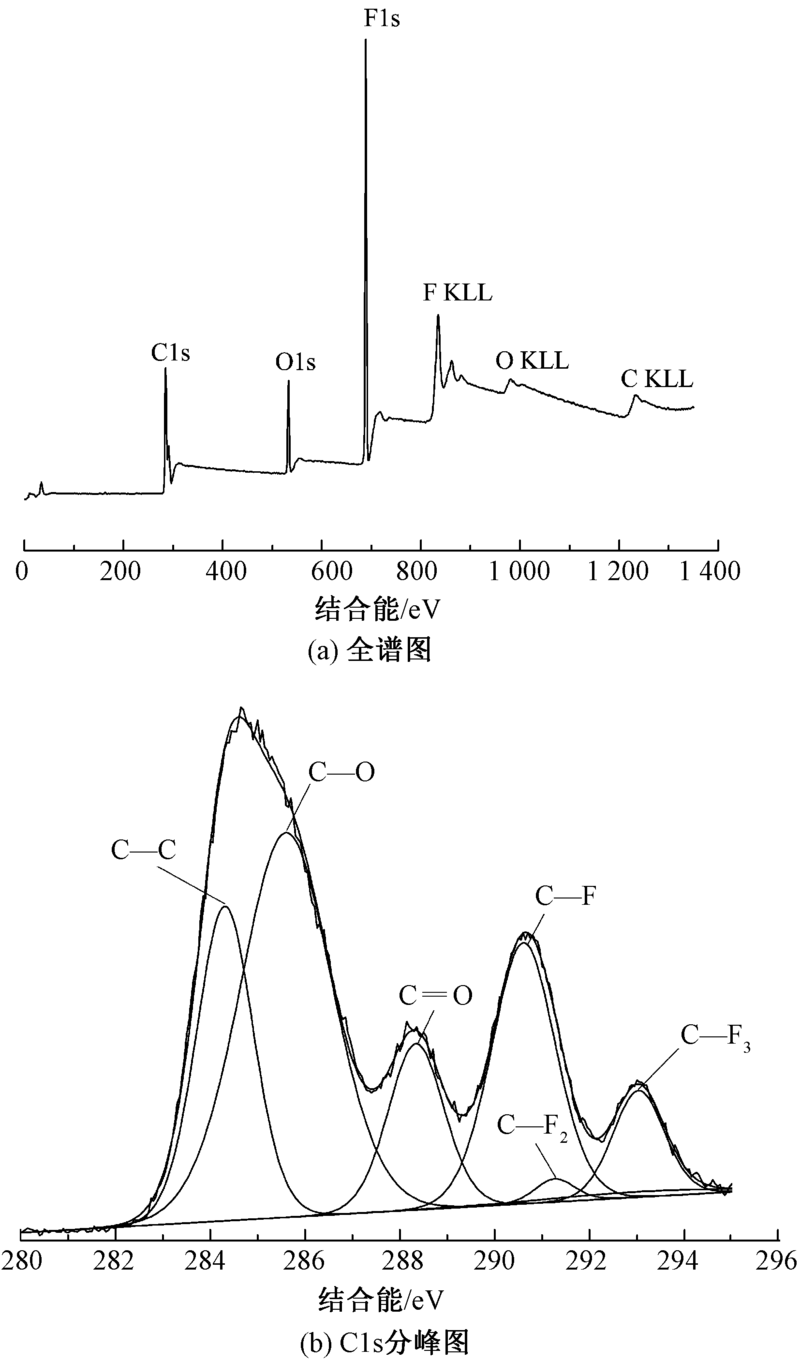

Fig.6

XPS spectra of fluorinated acrylate polymer latex film. (a) Survey scan; (b) C1s scan"

Fig.7

SEM images of raw fabric (a) and treated (b)cotton fabric (×5 000)"

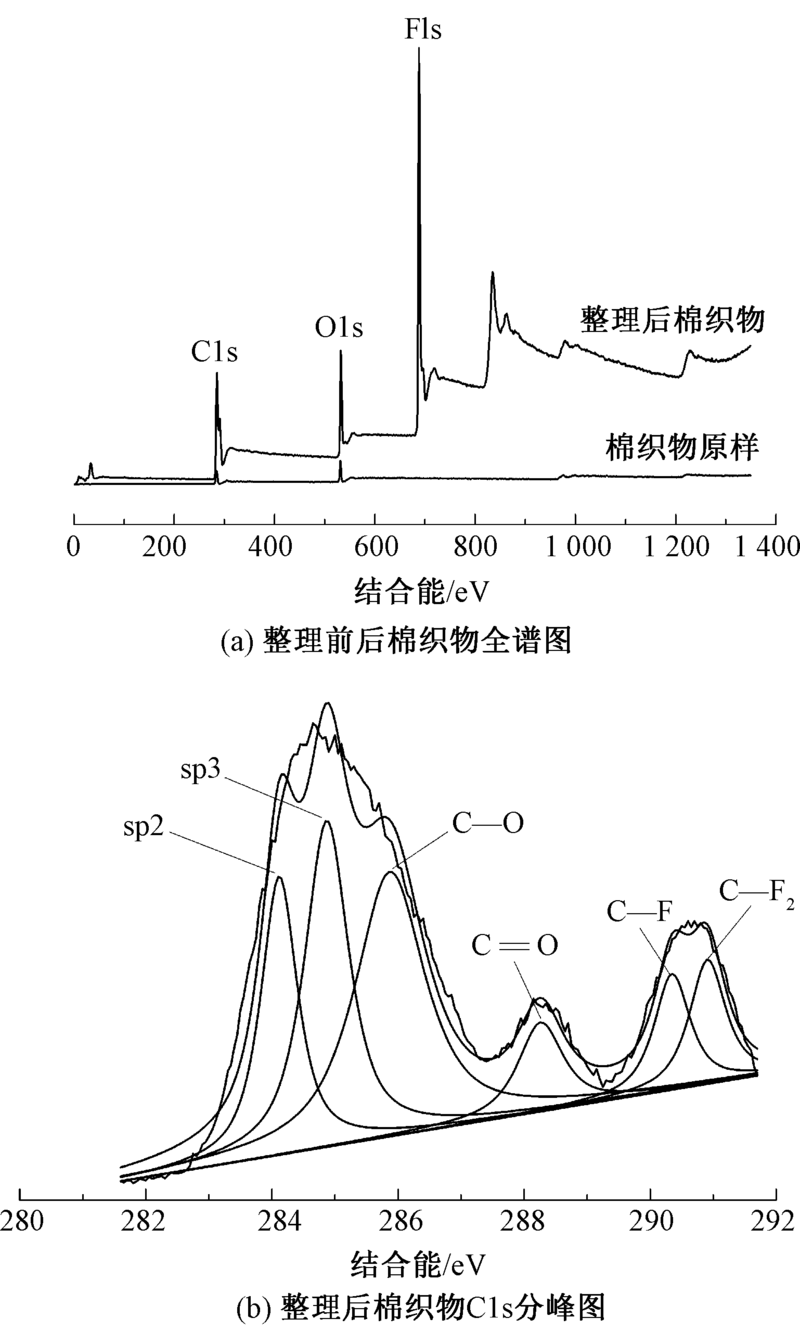

Fig.8

XPS spectra of raw fabric and treated cotton fabric. (a) Survey scan of raw fabric and treated cotton fabric;(b) C1s scan of treated cotton fabric"

Tab.4

Element content of fabric surface"

试样 C O F
棉织物原样 66.49 33.51 —
整理后棉织物 41.15 16.25 42.60

Fig.9

Influence of washing times on contact angle of cotton fabric"

Fig.10

Contact angle photographs of cotton fabric to water (a) olive oil (b) and hexadecame (c) under different washing cycles"

Tab.5

Wearability of pristine and treated cotton fabric"

织物 断裂强力/N 折皱回复角/(°)
经向 纬向 急弹 缓弹
棉织物原样 674 332 136 157
最佳工艺整理棉织物 667 316 185 213
变化率/% -1.2 -4.8 36.1 36.0
[1] 单良, 李战雄, 臧雄, 等. 核壳型含氟丙烯酸酯乳液的合成及其在棉织物整理中的应用[J]. 纺织学报, 2015,36(1):123-128.
SHAN Liang, LI Zhanxiong, ZHANG Xiong, et al. Synjournal of fluoro-acrylate emulsion with core-shell syructure and its application on cotton fabric finishing[J]. Journal of Textile Research, 2015,36(1):123-128.
[2] 安恩来. 新型含氟丙烯酸酯共聚物的合成及应用[D]. 西安:西安工程大学, 2015: 2-3.
AN Enlai. Synthesis and application of new fluorinated acrylate copolymer[D].Xi'an:Xi'an Polytechnic University, 2015: 2-3.
[3] LINDSTROM A B, STRYNAR M J, LIBELO E L. Polyfluorinated compounds:past,present,and future[J]. Environmental Science & Technology, 2011,45(19):7954-7961.
doi: 10.1021/es2011622 pmid: 21866930
[4] HENRIK B S, STEL J M, MARJIN V D, et al. Acute and chronic toxicity of short chained perfluoroalkyl substances to daphnia magna[J] . Environmental Pollution, 2015,198:47-53.
doi: 10.1016/j.envpol.2014.12.025 pmid: 25553346
[5] JIANG J, ZHANG G, WANG Q, et al. Novel fluorinated polymers containing short perfluorobutyl side chains and their super wetting performance on diverse subs-trates[J]. Acs Appl Mater Interfaces, 2016,8(16):10513-10523.
pmid: 27052113
[6] ZHANG Q, WANG Q, ZHAN X, et al. Synjournal and performance of novel fluorinated acrylate polymers:preparation and reactivity of short perfluoroalkyl group containing monomers[J]. Industrial & Engineering Chemistry Research, 2014,53(19):18026-18034.
[7] 李晓伟. 新型含全氟短碳链拒水拒油整理剂的合成与应用[D]. 上海:东华大学, 2014: 50-51.
LI Xiaowei. Preparation and application of novel water and oil-repellent finishing agent containing a short perfluoroalkyl chain[D]. Shanghai:Donghua University, 2014: 50-51.
[8] DONG C, LU Z, ZHANG F, et al. Preparation and properties of cotton fabrics treated with a novel polysiloxane water repellent and flame retardant[J]. Materials Letters, 2015,152:276-279.
doi: 10.1016/j.matlet.2015.03.132
[9] 隋智慧, 杨康乐, 陈杰, 等. 含氟聚丙烯酸酯乳液整理剂的性能及其应用[J]. 纺织学报, 2016,37(9):100-105.
SUI Zhihui, YANG Kangle, CHEN Jie, et al. Properties and application of fluorine-containing acrylate copolymer emulsion as finishing agent[J]. Journal of Textile Research, 2016,37(9):100-105.
[10] DENG B, CAI R, YU Y, et al. Laundering durability of superhydrophobic cotton fabric[J]. Advanced Materials, 2010,22(48):5473.
doi: 10.1002/adma.201002614 pmid: 20941799
