Bending properties of zigzag 3-D woven spacer composites

ZHANG Xuefei, WANG Jingjing, LÜ Lihua(), YE Fang

  1. Dalian Polytechnic University, Dalian, Liaoning 116034, China
  • Received:2018-03-28 Revised:2018-11-21 Online:2019-03-15 Published:2019-03-15
  • Contact: Lü Lihua E-mail:lvlh@dlpu.edu.cn

Abstract:

For solving the easily-cracking and poor-integrated problem of laminated composites, the zigzag 3-D woven spacer fabric with the basalt fiber filaments tows as warp and weft yarns were fabricated on the common loom by reasonable design, which had three different spacer heights. The 3-D woven basalt fiber spacer composites were obtained from epoxy vinyl resin as matrix and 3-D woven basalt fiber spacer fabric as reinforced material by vacuum assisted resin transfer molding process. Then, the three-point bending property of 3-D woven basalt fiber spacer composite was tested by using RGY-5 microcomputer to control electronic universal machine, and the load-displacement curves, absorption energy-displacement histogram and failure model were obtained. Results show that the main bearing direction is the weft of material. The more numbers of organization will have better bending property at the rang of certain heights, the values of the load and absoption energy are bigger with the higher spacer height. The failure model of zigzag shaped 3-D woven spacer composite is that the upper surface of the material is under pressure, the bottom surface is under tension, and the connecting layer is under pressure. Under the bending load, the material are not integrally destructed, but obviously deforms.

Key words: 3-D woven spacer composite, basalt fiber, bending property, vacuum assisted resin transfer molding process

CLC Number:

  • TS101.2

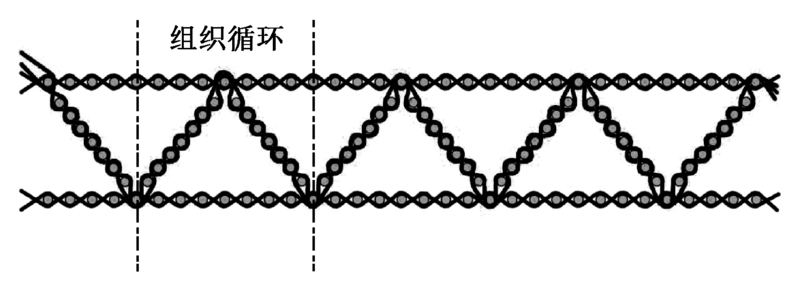

Fig.1

Warp section of zigzag 3-D spacer fabric"

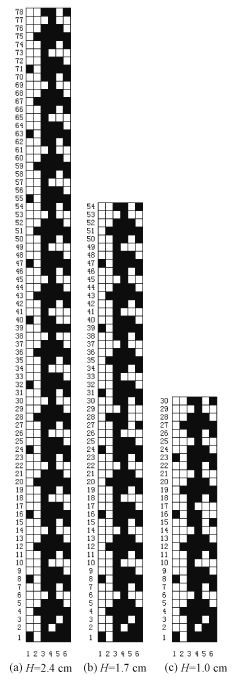

Fig.2

Weaving diagram of zigzag 3-D spacer fabrics"

Fig.3

VARTM system"

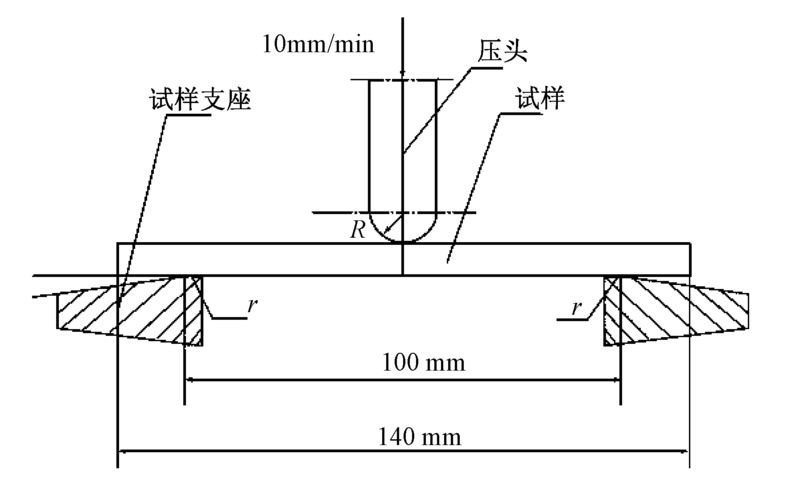

Fig.4

Schematic diagram of bending device"

Fig.5

Bending load-displacement curves of zigzag 3-D spacer composites with warp and weft orientation"

Fig.6

Warp sample schematic diagram"

Fig.7

Weft sample schematic diagram"

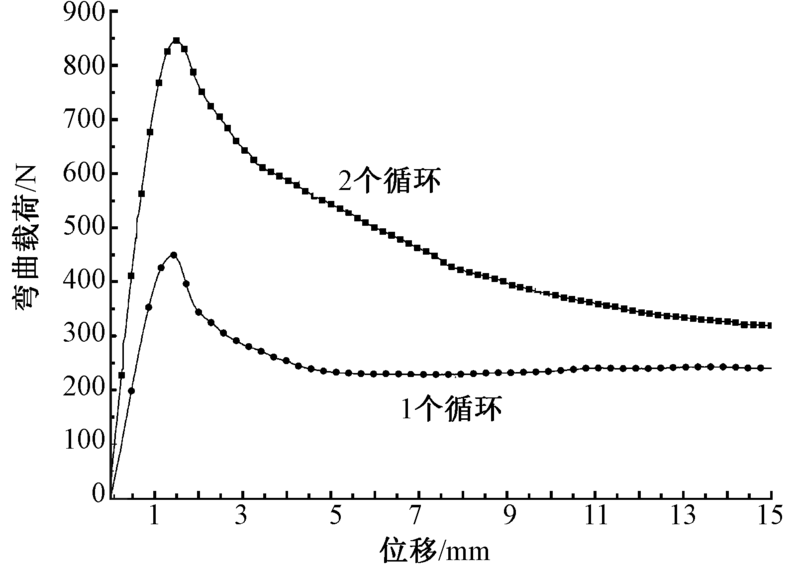

Fig.8

Bending load-displacement curves of single and doublezigza 3-D spacer composites"

Tab.1

Results of bending strength"

H/cm 方向 试样平均数/个 方差 强度/MPa
1.0 415.7 21.1 5 668.6
1.7 74.0 10.1 153.6
1.7 449.3 12.1 1 166.0
2.4 499.3 24.9 433.2

Fig.9

Bending load-displacement curves of zigzag 3-D spacer composites with different heights"

Fig.10

Process of three-point bending test of zigzag 3-D woven spacer composites. (a) Initial stage of bending; (b) Intermediate stage of bending; (c) Last stage of bending"

Fig.11

Bending failure mode of zigzag 3-D woven spacer composites. (a) Compressed surface;(b)Side surface;(c)Strained surface"

[1] 沈浩清, 曹海建, 黄晓梅, 等. 三维间隔织物复合材料弯曲性能研究[J]. 产业用纺织品, 2016,34(11):6-9.
SHEN Haoqing, CAO Haijian, HUANG Xiaomei, et al. Study on bending properties of three-dimensional spacer fabric composites[J]. Technical Textiles, 2016,34(11):6-9.
[2] MENTA V G K, VUPPALAPATI R R, CHANDDRASHEKHARA K, et al. Manufacturing and mechanical performance evaluation of resin-infused honeycomb composites[J]. Journal of Reinforced Plastics and Composites, 2012,31(6):415-423.
doi: 10.1177/0731684412439792
[3] 李嘉禄, 杨红娜, 寇长河. 三维编织复合材料的疲劳性能[J]. 复合材料学报, 2005,22(4):172-176.
LI Jialu, YANG Hongna, KOU Changhe. Fatigue properties of three dimensional braiding composites[J]. Acta Materiae Compositae Sinica, 2005,22(4):172-176.
[4] LI M, WANG S, ZHANG Z, et al. Effect of structure on the mechanical behaviors of three-dimensional spacer fabric composites[J]. Applied Composite Materials, 2009,16(1):1-14
doi: 10.1007/s10443-008-9072-4
[5] SHANNA M, GARY S. Three-dimensionally knit spacer fabrics: a review of production techniques and applications[J]. Journal of Textile and Apparel, Technology and Management, 2005,4(4):1-25.
[6] PEREIRA S, ANAND S C, RAJENDRAN S, et al. A study of the structure and properties of novel fabrics for knee braces[J]. Journal of Industrial Textiles, 2007,36(4):279-300.
doi: 10.1177/1528083707072357
[7] VASILE S, LANGENHOVE L V, MEULEMESTEER S D. Effect of production process parameters on different properties of nonwoven spacer produced on a 3D web linker[J]. Fibres & Textiles in Eastern Europe, 2006,14(4):68.
[8] RUSSELL S J, POURMOHAMMADI A, MAO N, et al. Nonwoven spacer fabrics: US7814625[P]. 2010-05-08.
[9] 陈思. 经编间隔织物增强聚氨酯复合材料吸能性能[D]. 上海:东华大学, 2015: 1-36.
CHEN Si. Energy absorption properties of warp-knitted spacer fabrics reinforced polyurethane composites[D]. Shanghai: Donghua University, 2015: 1-36.
[10] 李晓英, 蒋高明, 马丕波, 等. 3D横编间隔织物的编织工艺及其性能[J]. 纺织学报, 2016,37(7):66-70.
LI Xiaoying, JIANG Gaoming, MA Pibo, et al. Knitting processes and properties of three- dimensional computer flat-knitted spacer fabrics[J]. Journal of Textile Research, 2016,37(7):66-70.
[11] 李嘉禄. 3D编织技术和3D编织复合材料[J]. 新材料产业, 2010(1):46-49.
LI Jialu. 3D braiding technology and 3D braided composites[J]. Advanced Materials Industry, 2010(1):46-49.
[12] MOUNTASIR A, HOFFMANN G, CHERIF C. Development of weaving technology for manufacturing three-dimensional spacer fabrics with high-performance yarns for thermoplastic composite applications: an analysis of two-dimensional mechanical properties[J]. Textile Research Journal, 2011,81(13):1354-1366.
doi: 10.1177/0040517511402125
[13] 张敏, 吴刚, 蒋语楣, 等. 连续玄武岩纤维增强复合材料力学性能试验研究[J]. 高科技纤维与应用, 2007,32(2):15-21.
ZHANG Min, WU Gang, JIANG Yumei. Experimental research on mechanical properties of continuous basalt fiber reinforced composites[J]. Hi-Tech Fiber and Application, 2007,32(2):15-21.
[14] LÜ L, ZHANG X, YAN S, et al. Bending properties of T-Shaped 3-D integrated woven composites: experiment and FEM simulation[J]. Journal of Fiber Science and Technology, 2017,73(7):170-176
doi: 10.2115/fiberst.2017-0022
[15] LÜ L, ZHANG X, LIU G, et al. Mechanical properties of 3D woven basalt fiber composite materials: experiment and FEM simulation[J]. Journal of Fiber Science and Technology, 2016,72(1):33-39.
