Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (03): 59-64.doi: 10.13475/j.fzxb.20180405206

• Textile Engineering • Previous Articles     Next Articles

Development of warp-knitted three-layer and double color stereo jacquard shoe-upper

ZHANG Qi1,2(), WEI Li1, XIA Fenglin1

  1. 1. Engineering Research Center for Knitting Technology, Ministry of Education, Jiangnan University, Wuxi, Jiangsu 214122, China
    2. Hubei Provincial Key Laboratory of Digital Textile Equipment, Wuhan Textile University, Wuhan, Hubei 430077, China
  • Received:2018-04-23 Revised:2018-11-22 Online:2019-03-15 Published:2019-03-15

RichHTML

10

PDF (PC)

134

Abstract:

Aiming to the difficult production of the warp-knitted three-layer and double color stereo jacquard shoe-upper in one-time for the ordinary double-needle bed jacquard warp knitting machine, a comparative analysis was made on the weaving institutions of double needle bed one/double-jacquard warp knitting machine and two-color sesame point effect and the pure two-color jacquard effect, and a new comb configuration method and jacquard control system and new jacquard method were proposed. According to the new comb configuration method, the double needle bed seamless warp knitting machine was modified, and the interval comb was installed. The new jacquard control scheme was adopted to control the Pre-Jaka comb to weave in front needle bed selectively. In combination with a new color block jacquard process that overcomes the drawbacks of the existing two-color process due to excessive dots or slices connections hard to line the spacer filaments, a two-color stereo jacquard shoe with a spacer layer was successfully woven on the upgraded RDJ6/2 warp knitting machine finally. The results show that the key for development of warp-knitted three-layer and double color stereo jacquard shoe-upper is the assembly optimization of knitting structure, control system and jacquard process.

Key words: spacer, double color effect, 3-D jacquard, warp-knitting shoe-upper, double needle bed and double jacquard

CLC Number:

  • TS184.3

Fig.1

Jacquard-bar configuration of warp knitting machine. (a) Single-knit with one jacquard bar; (b) Hollow-knit with double jacquard bars; (c) 3-D jacquard of double-knit with double jacquard bars"

Tab.1

Configuration of combs"

机器类型 梳栉编织位置
前针床 后针床 前后针床
双针床单贾卡经编机
(图1(a)RDPJ7/1)		 GB1、GB2 JB5、GB6、GB7 GB3、GB4形成间隔层
双针床双贾卡经编机
(图1(b)RDPJ4/2)		 GB1 GB4 JB2、JB3根据需要在前后针床选择性地
编织,并将前后片紧密地连接起来
新型双针床双贾卡立体
提花经编机(图1(c)
改造后的RDJ6/2)		 GB1、GB2 JB5、GB6 GB3形成间隔层,JB4根据需要选择性
地在前后针床进行编织,结合新工艺不
会将前后片紧密连接

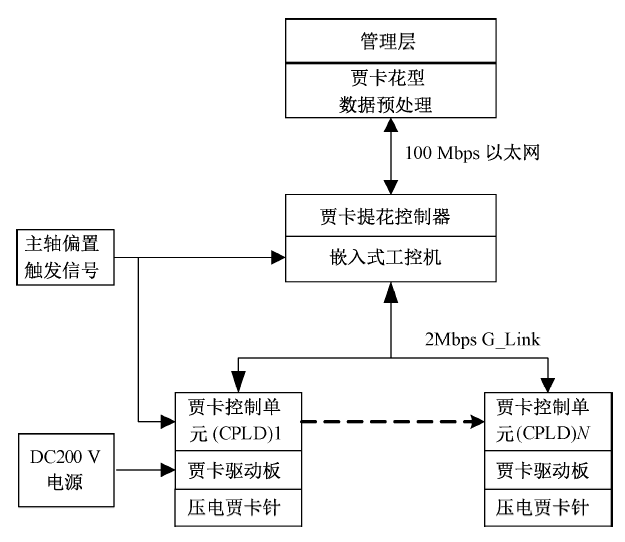

Fig.2

Structure of 3-D jacquard control for double jacquard"

Tab.2

Jacquard principle of sesame dot"

提花效应 垫纱数码 偏移信号 组织颜色 绘图色号
厚组织 1-0-1-1/2-3-1-1// HHHHTTHH 红色 1号色
薄组织 1-0-1-1/1-2-1-1// HHHHHHHH 绿色 4号色
薄组织 1-0-0-0/1-2-0-0// TTHHTTHH 蓝色 8号色
网孔组织 1-0-0-0/0-1-0-0// TTHHHHHH 白色 12号色
薄组织连接组织 1-0-1-2/1-2-1-1// TTHTHHHH 黄色 2号色
网孔组织连接组织 1-0-0-1/0-1-0-0// HHHTHHHH 浅绿色 18号色
厚组织连接组织 1-0-1-2/2-3-1-1// HHHTTTHH 浅粉色 23号色

Tab.3

Jacquard principle of pure color"

色纱 组织 垫纱数码 偏移信息
JB2
A色		 薄组织 1-0-2-2/1-2-1-1// HHHTHHHT
网孔组织 2-1-2-2/1-2-1-1// TTHTHHHT
厚组织 1-0-2-2/2-3-1-1// HHHTTTHT
JB2
B色		 薄组织 1-1-1-2/2-2-1-0// HTHHTHHH
网孔组织 1-1-1-2/2-2-1-0// HTHHTHHH
厚组织 1-1-1-2/2-2-1-0// HTHHTHHH
JB3
A色		 薄组织 0-0-1-2/1-1-1-0// THHHHTHH
网孔组织 0-0-1-2/1-1-1-0// THHHHTHH
厚组织 0-0-1-2/1-1-1-0// THHHHTHH
JB3
B色		 薄组织 1-0-1-1/1-2-0-0// HHHTHHTH
网孔组织 2-1-1-1/1-2-0-0// TTHTHHTH
厚组织 1-0-1-1/2-3-0-0// HHHTTTTH

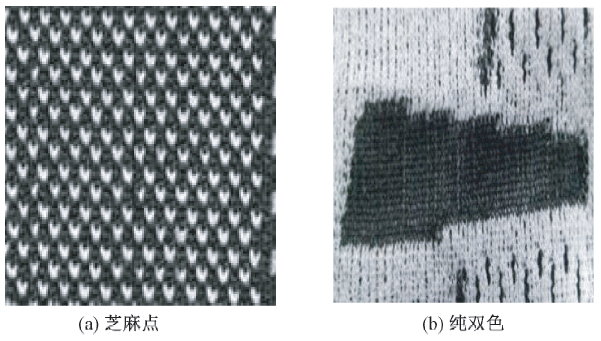

Fig.3

Comparison of sesame dot and pure color. (a) Sesame dot; (b) Pure color"

Fig.4

Samples with color blocks"

Tab.4

Jacquard principle of color blocks"

提花效应 JB4 JB5
垫纱数码 偏移信息 垫纱数码 偏移信息
A色 1-1-2-1/2-2-1-2// HTTHTHHT 1-1-2-3/1-1-2-1// HHTTHHTT
B色 1-0-2-2/2-3-1-1// HHTTTTHH 1-1-2-3/1-1-3-2// HHHHHHTT

Fig.5

Jacquard drafted pattern and sample. (a) Front pattern;(b)Behind pattern;(c) Sample"

Tab.5

Machine parameters"

梳栉 垫纱数码 原料规格 穿经 送经量/
(mm·腊克-1)
GB1 0-1-1-1/
1-0-0-0//		 166.7 dtex
阳离子涤纶		 满穿 1 690
GB2 2-3-1-1/
1-0-1-1//		 166.7 dtex
阳离子涤纶		 满穿 2 500
GB3 1-0-2-1/
2-3-1-2//		 33.3 dtex
涤纶单丝		 满穿 7 600
JB4 1-0-1-1/
1-2-1-1//		 166.7 dtex
阳离子涤纶		 满穿 2 600
JB5 1-1-1-2/
1-1-1-0//		 222.2 dtex
涤纶		 满穿 2 550
GB6 0-0-0-1/
1-1-1-0//		 222.2 dtex
涤纶		 满穿 1 690
[1] 韩玉梅, 缪旭红, 黄忠清. 经编成型鞋面的设计与开发[J]. 产业用纺织品, 2014,32(12):9-12.
HAN Yumei, MIAO Xuhong, HUANG Zhongqing. Design and development of warp-knitted uppers[J]. Technical Textiles, 2014,32(12):9-12.
[2] 钟君, 丛洪莲, 蒋高明. 经编提花间隔鞋面材料的开发[J]. 针织工业, 2016(7):11-14.
ZHONG Jun, CONG Honglian, JIANG Gaoming. Development of warp-knit jacquard shoe upper material[J]. Knitting Industries, 2016(7):11-14.
[3] 刘文升. 我国纺织工业需要绿色生产[J]. 上海毛麻科技, 2015(3):45-48.
LIU Wensheng. China's textile industry needs green production[J]. Shanghai Wool & Jute Journal, 2015(3):45-48.
[4] 张姿叶, 蒋高明, 丛洪莲, 等 经编贾卡提花间隔织物编织工艺探讨[J]. 纺织导报, 2010(2):56,58-60.
ZHANG Ziye, JIANG Gaoming, CONG Honglian, Discussion on weaving process of jacquard interwoven fabric[J]. China Textile Leader, 2010(2):56,58-60.
[5] 钟君, 丛洪莲, 张燕婷, 等. 经编双贾卡提花鞋面织物的计算机辅助设计[J]. 纺织学报, 2016,37(11):148-153.
ZHONG Jun, CONG Honglian, ZHANG Yanting, et al. Computer-aided design of warp knitted double Jacquard shoe upper fabrics[J]. Journal of Textiles Research, 2016,37(11):148-153.
[6] 李筱一, 缪旭红, 杨大伟, 等. 经编间隔双色成形鞋面的工艺设计[J]. 针织工业, 2016(2):21-23.
LI Xiaoyi, MIAO Xuhong, YANG Dawei, et al. Design of warp-knitted double-colored shoe upper[J]. Knitting Industries, 2016(2):21-23.
[7] KLEJIMIR, MIZTA, Warp knitting machine with piezo electrically controlled jacquard patterning: Korea, 960000085[J]. 1996-01-03.
[8] 魏赛男, 姚继明, 彭志远. 鞋材用经编间隔织物的服用性能[J]. 上海纺织科技, 2012(11):16-19.
WEI Sainan, YAO Jiming, PENG Zhiyuan. Wearing properties of warp-knitted spacer fabrics for shoe-making[J]. Shanghai Textile Science and Technology, 2012 (11):16-19.
[9] 钟君. 经编贾卡提花鞋面织物的设计与仿真[D]. 无锡:江南大学, 2017: 13-14.
ZHONG Jun. Design and simulation of warp jacquard vest fabric[D]. Wuxi:Jiangnan University, 2017: 13-14.
[10] 夏风林, 刘浪, 郑静 经编双针床双贾卡双色成形鞋材开发[J]. 纺织导报, 2018(2):44,46-48.
XIA Fenglin, LIU Lang, ZHENG Jing, Development of two-tone fully-fashioned vamp on two-needle bar double-jacquard warp-knitting machine[J]. China Textile Leader,
[11] 钟君, 丛洪莲, 张燕婷, 等. 经编单层立体提花鞋面织物的花型设计与生产工艺[J]. 纺织学报, 2017,38(2):111-116.
ZHONG Jun, CONG Honglian, ZHANG Yanting, et al. Pattern design and production process of warp-knitted single-layer stereo jacquard shoe-upper[J]. Journal of Textile Research, 2017,38(2):111-116.
