Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (04): 77-82.doi: 10.13475/j.fzxb.20180406506

• Dyeing and Finishig & Chemicals • Previous Articles     Next Articles

Aggregation behavior of Reactive Red 195 in neutral electrolyte solution

WANG Aming1, XIA Liangjun1,2, WANG Yunli1()

  1. 1. Institute of National Key Laboratory of Textile New Materials and Advanced Processing Technology, Wuhan Textile University, Wuhan, Hubei 430200, China
    2. Institute for Frontier Materials, Deakin University, Geelong VIC 3220, Australia
  • Received:2018-04-27 Revised:2018-08-22 Online:2019-04-15 Published:2019-04-16
  • Contact: WANG Yunli E-mail:ylwang@wtu.edu.cn

Abstract:

In order to study the aggregation behavior of Reactive Red 195 and its effect on dye uptake, six neutral electrolytes with different concentrations were added into the Reactive Red 195 dye solution. The aggregation behaviors of Reactive Red 195 in different electrolyte solutions were studied by means of UV-Vis spectrophotometer and laser particle size analyzer, and the influence of different electrolytes on the dye uptake of Reactive Red 195 was investigated. The results show that with the increase of the electrolyte concentration, the degree of dye aggregation increases. At room temperature, the degree of influence of the six metal ions on dye aggregation is Al3+ > Ca2+ > Mg2+ > K+ > Na+ > Li+. The degree of dye aggregation is enhanced with the increase in ionic radius and valence of metal ions. Among them, the valence of metal ions is the main factor influencing dye aggregation. During dyeing process, the dye uptake is enhanced with the increase of dye aggregation.

Key words: reactive dye, electrolyte, aggregation behavior, particle size, dye uptake

CLC Number:

  • TS190

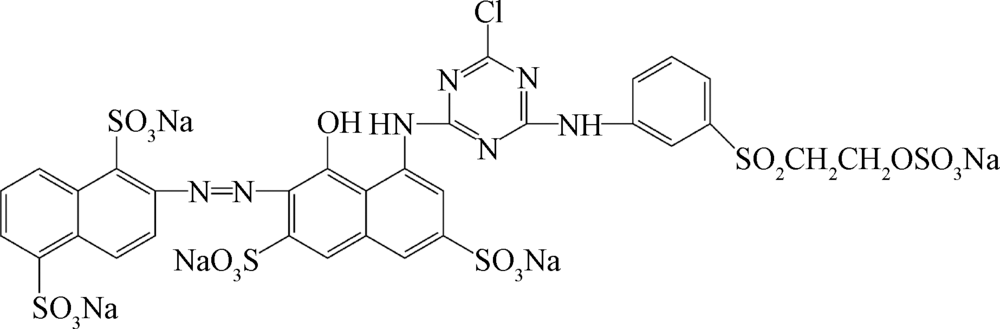

Fig.1

Chemical structure of Reactive Red 195"

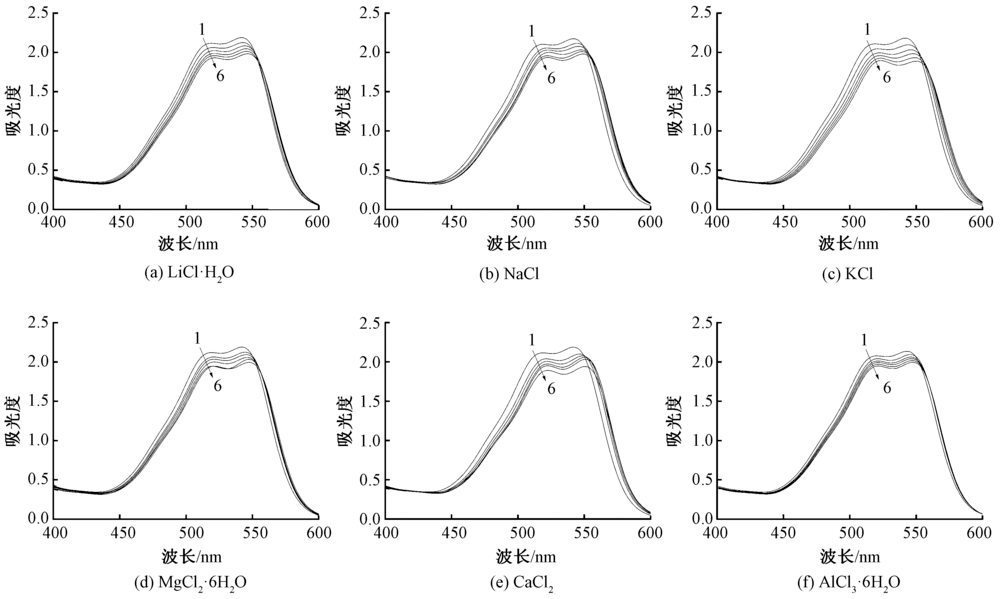

Fig.2

Effect of electrolyte concentration on absorption spectra of Reactive Red 195"

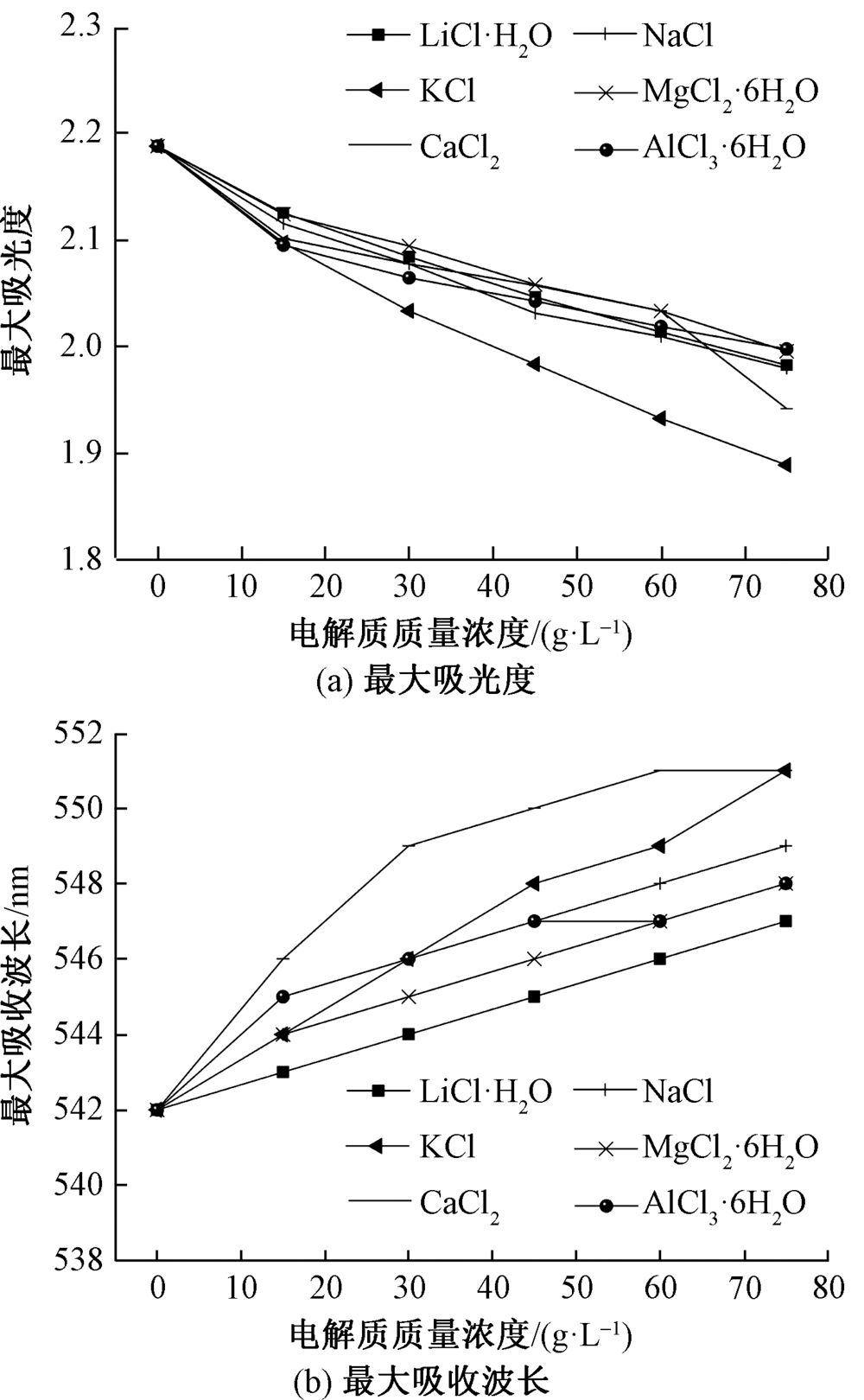

Fig.3

Effect of electrolyte concentration on maximum absorbance (a) and maximum absorption wavelength (b) of Reactive Red 195"

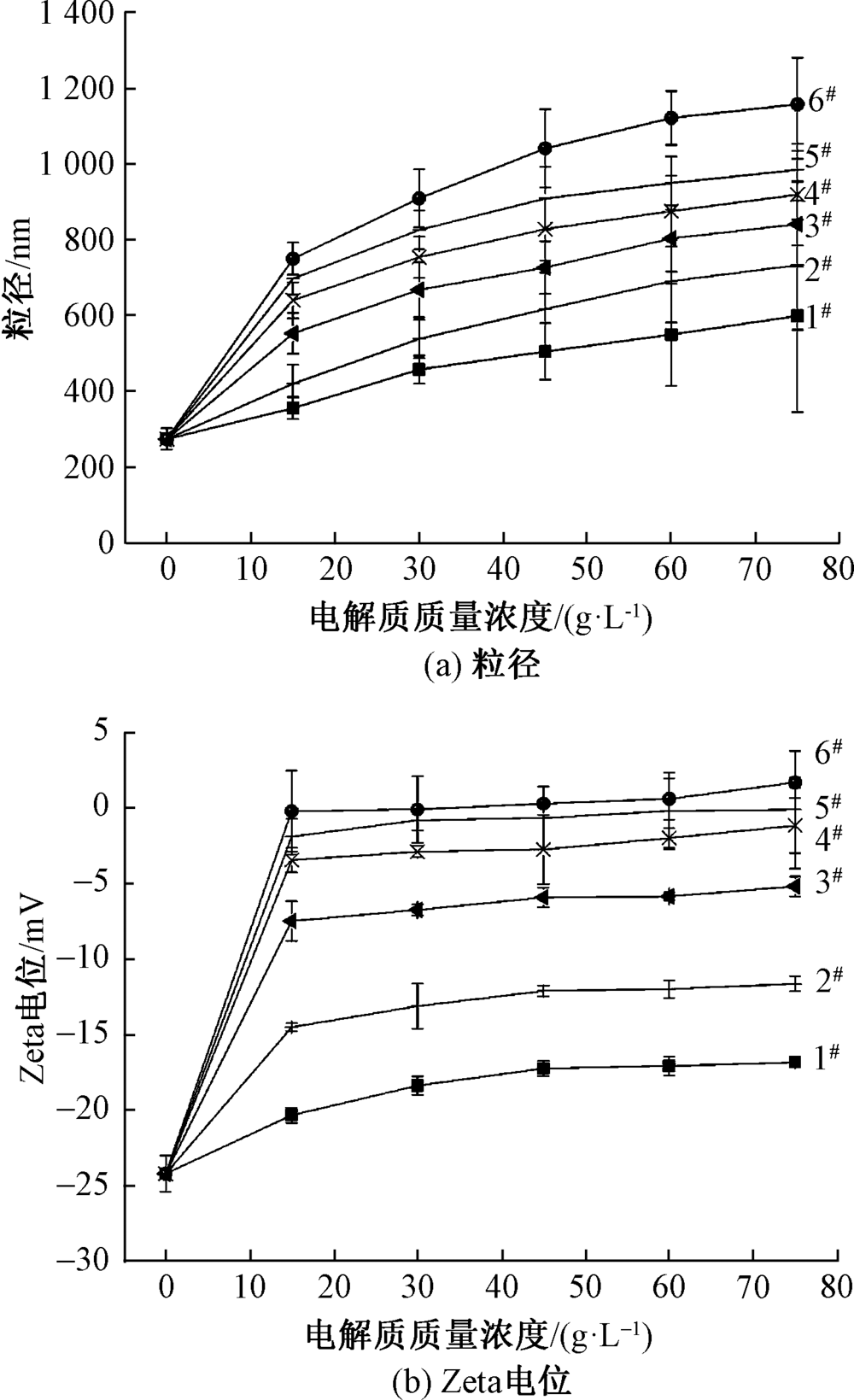

Fig.4

Effect of electrolyte concentration on particle size (a) and Zeta potential (b) of Reactive Red 195"

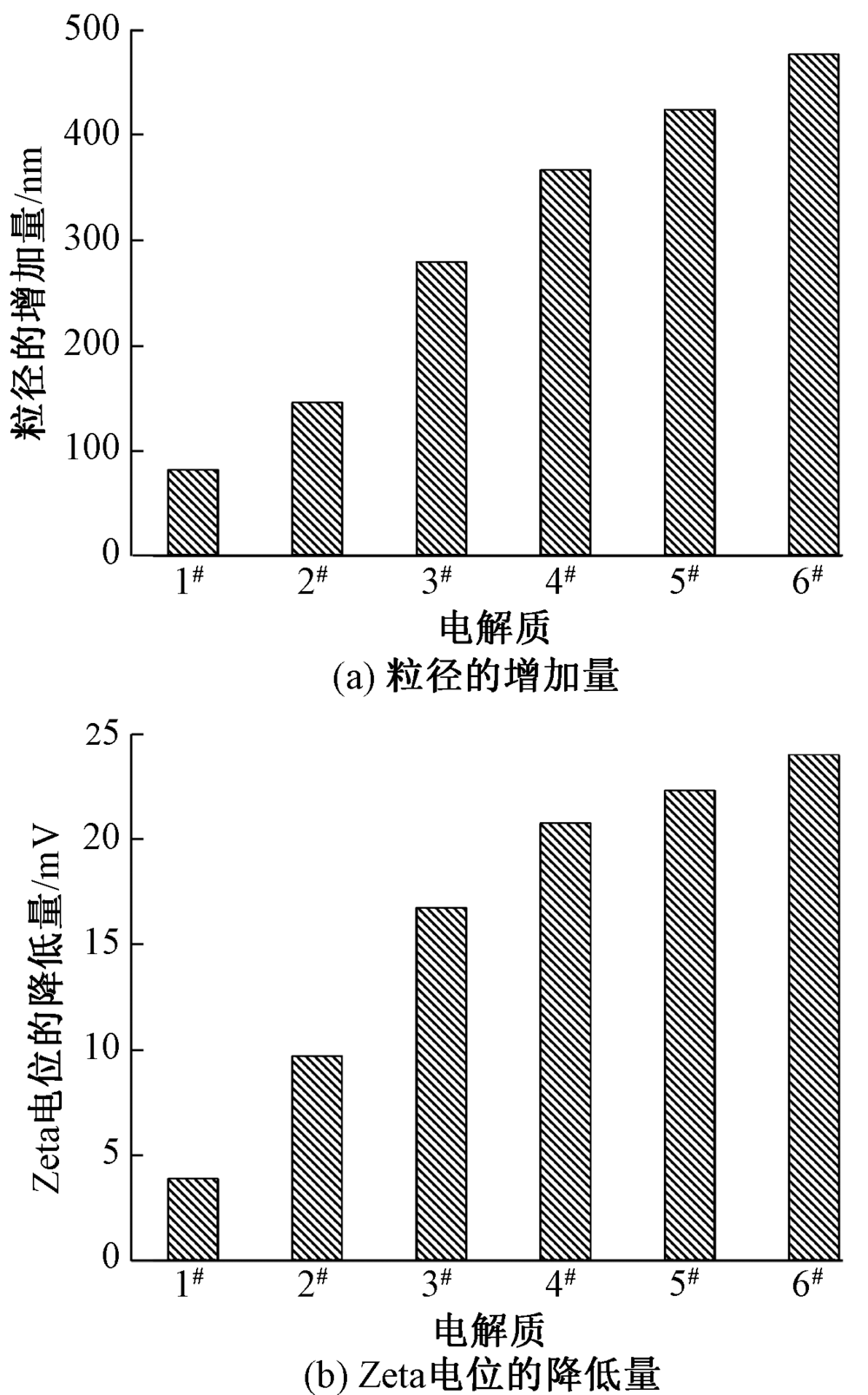

Fig.5

Effect of electrolyte concentration on the increments of particle size (a) and reduction of Zeta potential (b) of Reactive Red 195"

Tab.1

Effect of electrolyte type on exhaustion%"

电解质名称 平均上染率
LiCl· H2O 17.8
NaCl 26.8
KCl 38.1
CaCl2 39.4
MgCl2· 6H2O 29.2
AlCl3· 6H2O 34.3
[1] 舒大武, 房宽峻, 刘秀明, 等. 织物升温速率对活性染料轧-蒸无盐染色的影响[J]. 纺织学报, 2018,39(2):106-111.
SHU Dawu, FANG Kuanjun, LIU Xiuming, et al. Influence of fabric heating rate on salt-free pad-steam dyeing of reactive dye[J]. Journal of Textile Research, 2018,39(2):106-111.
[2] SARDARI K, ASKEGAARD J, CHIAO Y H, et al. Electrocoagulation followed by ultrafiltration for treating poultry processing wastewater[J]. Journal of Environmental Chemical Engineering, 2018,6(4):4937-4944.
[3] IQBAL M, KHATRI Z, AHMED A, et al. Prediction of low-sensitivity reactive dye recipe in exhaust dyeing influenced by material to liquor ratio and nature of salt[J]. Journal of Saudi Chemical Society, 2016,16(1):1-6.
[4] JIANG S, WANG Y L, SHENG D, et al. Examination of the dyeing properties of pigment printing fabrics in a water-ethanol mixed solvent[J]. Carbohydrate Polymers, 2016,153:364-370.
pmid: 27561507
[5] TENG X X, MA W, ZHANG S F. Application of tertiary amine cationic polyacrylamide with high cationic degree in salt-free dyeing of reactive dyes[J]. Chinese Journal of Chemical Engineering, 2010,18(6):1023-1028.
[6] GILANI A G, MOGHADAM M, HOSSEINI S E, et al. A comparative study on the aggregate formation of two oxazine dyes in aqueous and aqueous urea solutions[J]. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 2011,83(1):100-105.
[7] 梁静, 钟毅, 毛志平, 等. 晶型对分散染料染色性能的影响[J]. 纺织学报, 2018,39(7):69-73.
LIANG Jing, ZHONG Yi, MAO Zhiping, et al. Effect of crystal form on dyeing behavior of disperse dyes[J]. Journal of Textile Research, 2018,39(7):69-73.
[8] FUNAZUKURI T, YAMASAKI T, TAGUCHI M, et al. Measurement of binary diffusion coefficient and solubility estimation for dyes in supercritical carbon dioxide by CIR method[J]. Fluid Phase Equilibria, 2016,420:7-13.
[9] NICOLA G D, PIERANTOZZI M, TOMASSETTI S, et al. Surface tension calculation from liquid viscosity data of silanes[J]. Fluid Phase Equilibria, 2018,463:11-17.
[10] WILSON A D, STEWART F F. Deriving osmotic pressures of draw solutes used in osmotically driven membrane processes[J]. Journal of Membrane Science, 2013,431:205-211.
[11] BOUZIDI A, YAHIA I S, EL-SADEK M S A. Novel and highly stable indigo (C. I. Vat Blue I) organic semiconductor dye: crystal structure, optically diffused reflectance and the electrical conductivity/dielectric behaviors[J]. Dyes and Pigments, 2017,146:66-72.
[12] PETUKHOV A V, MEIJER J M, VROEGE G J. Particle shape effects in colloidal crystals and colloidal liquid crystals: small-angle X-ray scattering studies with microradian resolution[J]. Current Opinion in Colloid & Interface Science, 2015,20(4):272-281.
[13] NAVARRO A, SANZ F. Dye aggregation in solution: study of C.I. direct red I[J]. Dyes and Pigments, 1999,40(2/3):131-139.
[14] ENCHEV V, GADJEV N, ANGELOV I. Green synjournal, structure and fluorescence spectra of new azacyanine dyes[J]. Journal of Molecular Structure, 2017,1147:380-387.
doi: 10.1016/j.molstruc.2017.06.119
[15] MURUGESAN J R, SHAHOUT F, DLIM M, et al. Revealing dye and dye-drug aggregation into nano-entities using NMR[J]. Dyes and Pigments, 2018,153:300-306.
doi: 10.1016/j.dyepig.2018.02.026
[16] 刘艳春, 白刚, 钱红飞. 聚酰亚胺织物的羧基化表面改性[J]. 纺织学报, 2018,39(3):103-107.
LIU Yanchun, BAI Gang, QIAN Hongfei. Surface modification of polyimide fabric by carboxylation[J]. Journal of Textile Research, 2018,39(3):103-107.
[17] ZHANG Y Z, XIANG J F, TANG Y L, et al. Aggregation behaviour of two thiacarbocyanine dyes in aqueous solution[J]. Dyes and Pigments, 2008,76(1):88-93.
[18] 廖霞, 唐人成. 活性染料在中性盐溶液中的聚集[J]. 染料与染色, 2007,44(1):21-24.
LIAO Xia, TANG Rencheng. Aggregation of reactive dyes in neutral salt solution[J]. Dye and Dyeing, 2007,44(1):21-24.
[19] 俞巨乐. 高浓度活性染料溶液聚集性能的研究[D]. 上海: 东华大学, 2014: 5.
YU Jule. Study on the aggregation performance of reactive dye solution with high concentration[D]. Shanghai: Donghua University, 2014: 5.
[20] HAMLIN J D, PHILLIPS D A S, WHITING A. UV/visible spectroscopic studies of the effects of common salt and urea upon reactive dye solution[J]. Dyes and Pigments, 1999,41(1/2):137-142.
[21] 俞巨乐, 高方容, 王建庆. 高浓度活性染料溶液的电导率[J]. 纺织学报, 2014,35(9):85-89.
YU Jule, GAO Fangrong, WANG Jianqing. Conductivity of highly concentrated solution of reactive dye[J]. Journal of Textile Research, 2014,35(9):85-89.
[22] 张向宇. 实用化学手册[M].2版. 北京: 国防工业出版社, 2011: 16-21.
ZHANG Xiangyu. Practical Chemistry Handbook[M]. 2nd ed. Beijing: National Defense Industry Press, 2011: 16-21.
[23] 俞巨乐, 胡重法, 高方容, 等. 活性橙13溶液的染料聚集行为[J]. 印染, 2014 (10):1-5.
YU Jule, HU Chongfa, GAO Fangrong, et al. Aggregation behavior of Reactive Orange 13 in aqueous solution[J]. China Dyeing & Finishing, 2014 (10):1-5.
[24] 赵涛. 染整工艺与原理: 下册[M]. 北京: 中国纺织出版社, 2009: 86.
ZHAO Tao. Dyeing and Finishing Technology and Principles Volume II[M]. Beijing: China Textile & Apparel Press, 2009: 86.
[25] JOHN A D. Lange's Handbook of Chemistry[M]. 15th ed. New York: Mcgraw-Hill Inc, 1985: 846-852.
