Bending properties of three-dimensional I-shaped woven composites

HUANG Yaoli, LÜ Lihua(), WANG Guanju

  1. School of Textile and Material Engineering, Dalian Polytechnic University, Dalian, Liaoning 116034, China
  • Received:2018-05-02 Revised:2018-11-20 Online:2019-04-15 Published:2019-04-16
  • Contact: Lü Lihua E-mail:lvlh@dlpu.edu.cn

RichHTML

7

PDF (PC)

116

Abstract:

In order to solve the delamination of I-shaped laminated composites under bending loads, three I-shaped three-dimensional (3-D) woven fabrics with different heights were prepared by rational design of conventional weaving process on the common loom, then I-shaped 3-D woven fabrics with three different heights were fabricated into I-shaped 3-D woven composites by vacuum assisted resin transfer moulding technology to study the mechanical characteristics of the composites. Bending experiment and ABAQUS finite element simulation were used to compare and analyze the relationship between load/energy and displacement and the bending failure mode of I-shaped 3-D woven composites with three different heights under the same loading speed, respectively. The results show that the experimental data are in good agreement with the finite element model, showing that the finite element model has high reliability and can be used to predict the mechanical properties of I-shaped 3-D woven composites with different heights, which can provide theoretical guidance for the optimization design of I-shaped 3-D woven composites with high impact damage tolerance.

Key words: composity, I-shaped, three-dimensional woven structure, vacuum assisted resin transfer molding, finite element analysis

CLC Number:

  • TS101.2

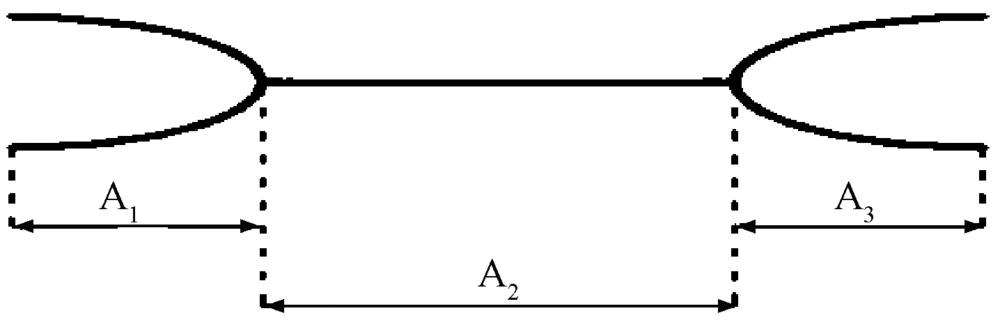

Fig.1

Schematic drawing of I-shaped 3-D woven fabric with flattening reduction method"

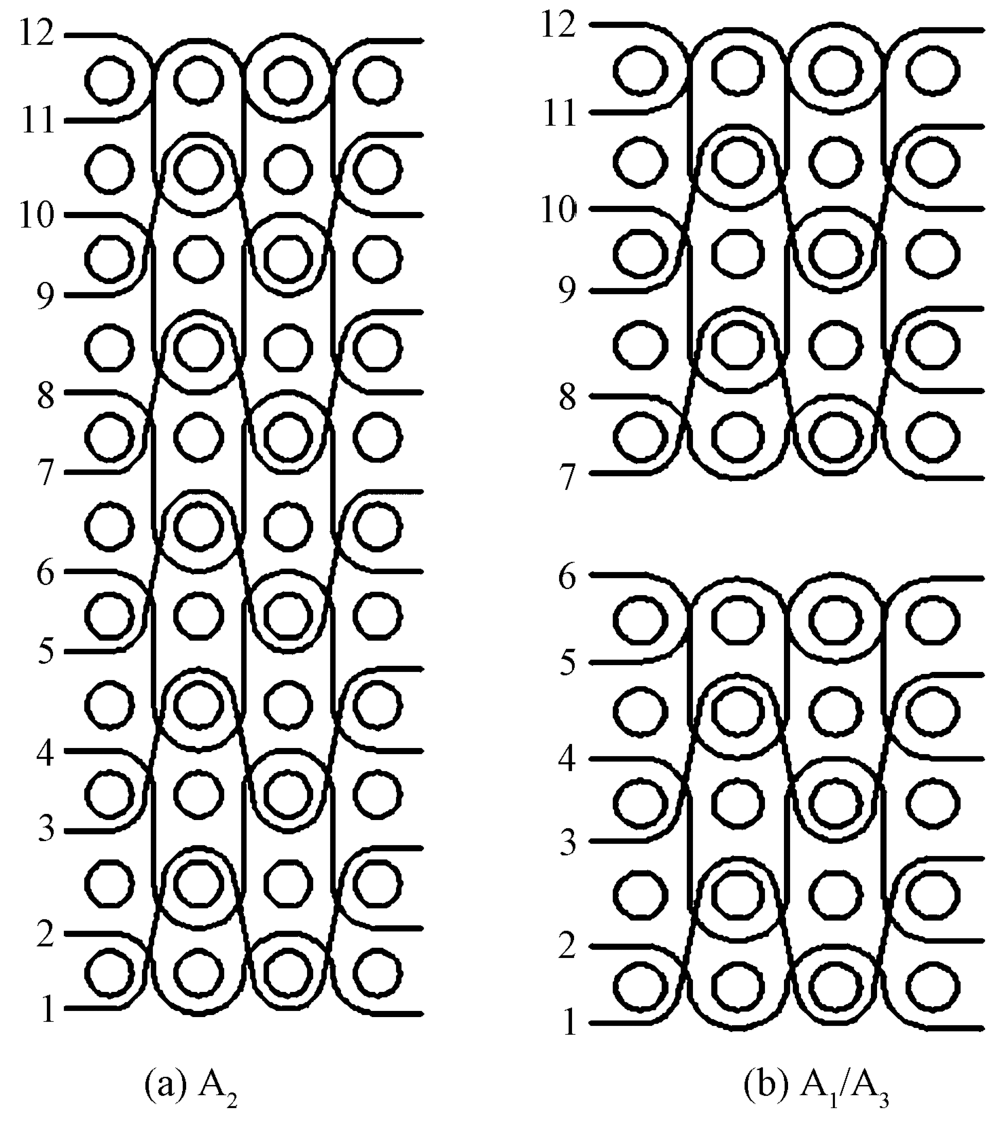

Fig.2

Warp section drawing of 3-D I-shaped woven fabrics with different heights"

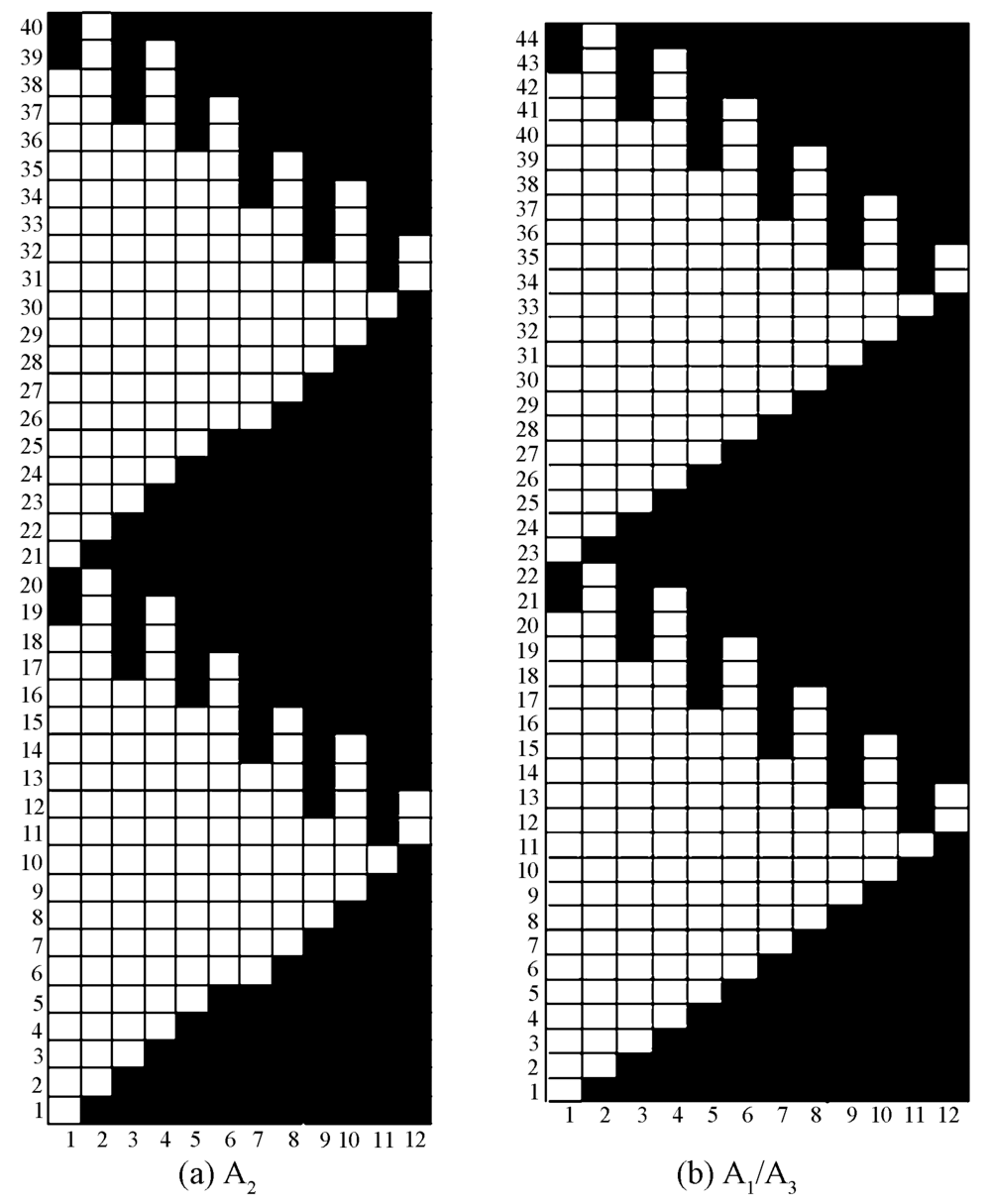

Fig.3

Chain drafts of 3-D I-shaped woven fabrics with different heights"

Tab.1

Weaving parameters of 3-D I-shaped woven fabric with three different heights"

高度/mm 纱线层数 纱线密度/tex
A1/A3 A2 经纱 纬纱
20 5 11 800 800
40 5 11 800 800
60 5 11 800 800

Tab.2

Material parameters of 3-D I-shaped woven composites with different heights"

高度/mm E11/GPa E22/GPa E33/GPa V12 V23 V13 G12/GPa G13/GPa G23/GPa
20 76.12 5.82 5.82 0.25 0.25 0.21 2.32 2.32 1.55
40 125.90 7.29 7.29 0.25 0.25 0.21 4.31 4.31 3.65
60 160.70 10.57 10.57 0.30 0.30 0.21 7.38 7.38 5.75

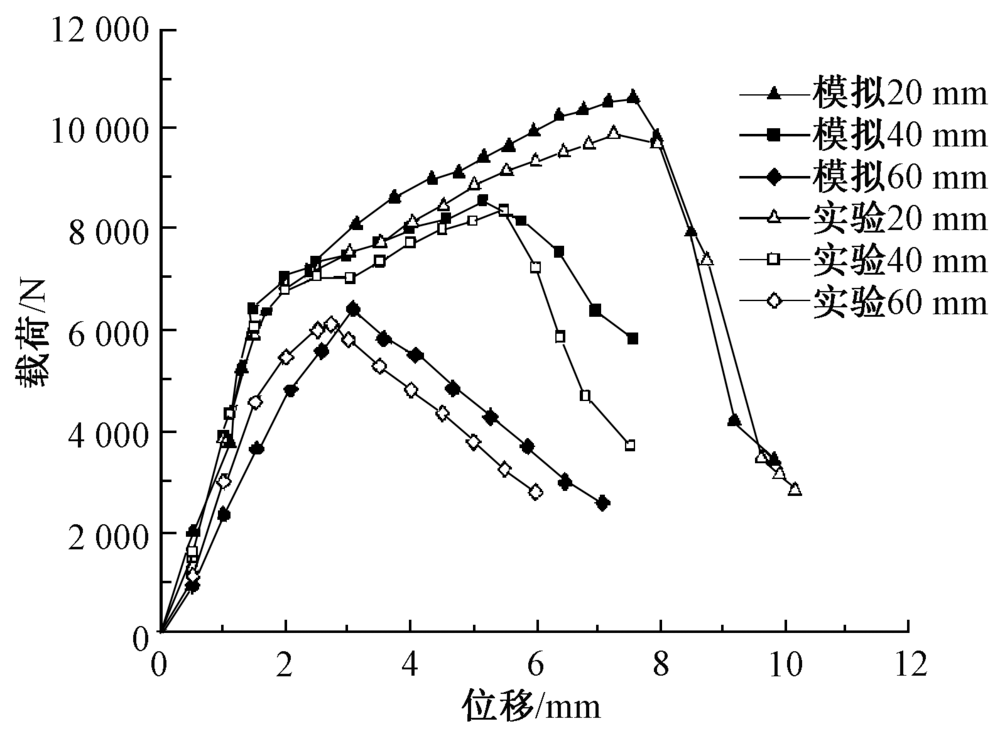

Fig.4

Load-displacement curves of experiments and finite element analysis with different heights"

Tab.3

Errors of maximum load of experiments and FEM with different heights"

高度/mm 实验值/kN 模拟值/kN 误差/%
20 9.89 10.60 6.7
40 8.36 8.56 2.3
60 6.12 6.42 4.7

Tab.4

Errors of bending strength of experiments and FEM with different heights"

高度/mm 实验值/MPa 模拟值/MPa 误差/%
20 824.86 883.33 6.7
40 696.67 713.33 2.3
60 510.07 535.00 4.7

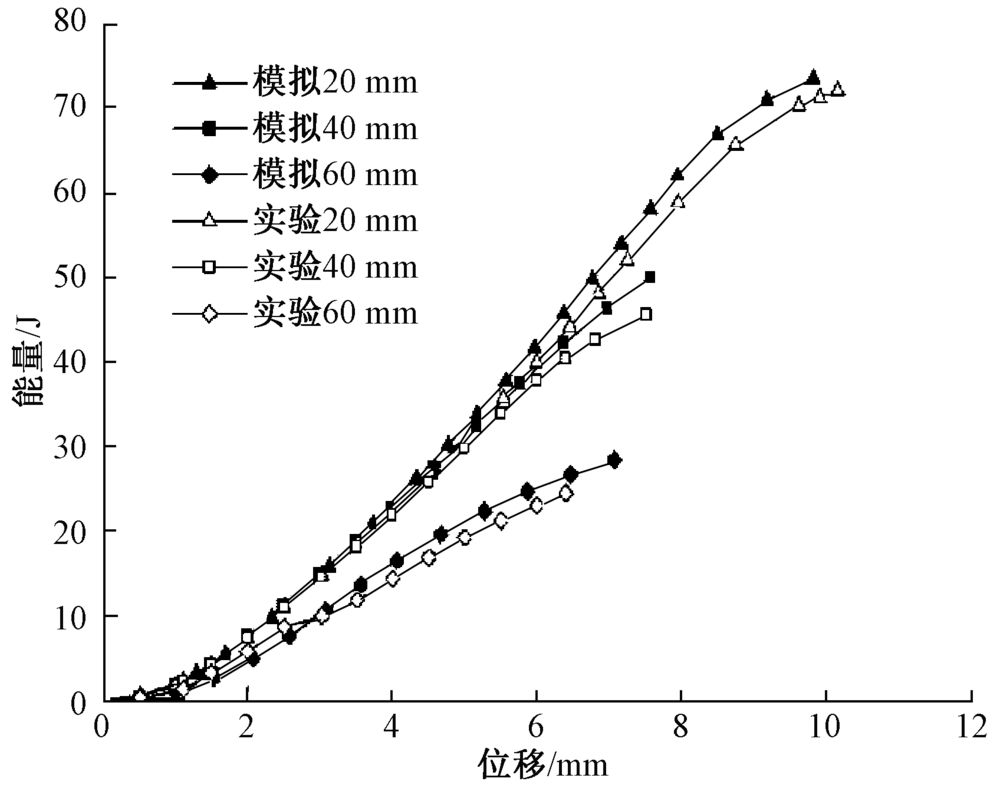

Fig.5

Energy-displacement curves of experiments and finite element analysis with different heights"

Fig.6

Photographs of experiments (a) and finite element analysis (b) of 3-D I-shaped woven composites with height of 20 mm"

[1] YU Fu, XIONG Junjiang, LUO Chuyang, et al. Static mechanical properties of hybrid RTM-made composite I- and Π-beams under three-point flexure[J]. Chinese Journal of Aeronautics, 2015,28(3):903-913.
[2] UMAIR Muhammad, NAWAB Yasir, MALIK Mumtazhasan, et al. Development and characterization of three-dimensional woven-shaped preforms and their associated composites[J]. Journal of Reinforced Plastics & Composites. DOI: 10.11771073168441560 8959.
[3] 张雪飞, 吕丽华. 带孔管纬向T字型三维机织物的设计与试织[J]. 上海纺织科技, 2016(9):14-15.
ZHANG Xuefei, LV Lihua. Design and weaving of T-shaped three-dimensional woven fabric with hole tube insertion[J]. Shanghai Textile Science & Technology>, 2016(9):14-15.
[4] LV Lihua, ZHANG Xuefei, LIU Guibin, et al. Mechanical properties of 3D woven basalt fiber composite materials: experiment and FEM simula-tion[J]. Journal of Fiber Science & Technology, 2016,72(1):33-39.
[5] 吕丽华, 魏春艳, 王晓, 等 .蜂窝形和 T 字形立体机织物的织造要点[J]. 棉纺织技术, 2013,41(5):1-4.
LYU Lihua, WEI Chunyan, WANG Xiao, et al. Weaving key points of honeycomb shape and T shape dimensional woven fabric[J]. Cotton Textile Technology, 2013,41(5):1-4.
[6] KIM Nammii, LEE Jaehong. Lateral buckling of shear deformable laminated composite I-beams using the finite element method[J]. International Journal of Mechanical Sciences, 2013,68(3):246-257.
[7] HAMADA Hiroyuki, NAKATANI Tamotsu, NAKAI Asami, et al. The crushing performance of a braided I-beam[J]. Composites Science & Technology, 1999,59(12):1881-1890.
[8] PETERSON Kirstnl, UNDERHILL Jason, CARLSON Barry, et al. The mechanics of plastic-aluminum composite I-beams[J]. Composite Structures, 2016,136:241-250.
[9] ZHOU Haili, HU Dongmei, ZHANG Wei, et al. The transverse impact responses of 3-D braided composite I-beam[J]. Composites Part A: Applied Science & Manufacturing, 2017,94:158-169.
[10] 郑春红, 周光明, 董伟峰, 等. 三维五向编织复合材料工字梁弯曲性能研究[J]. 玻璃纤维, 2014(5):39-45.
ZHENG Chunhong, ZHOU Guangming, DONG Weifeng, et al. Study on bending properties of three-dimensional five-directional braided I-shaped composites structure[J]. Fiber Glass>, 2014(5):39-45.
[11] 黄故, 马崇启, 林国财, 等. 三维机织复合材料的研究[J]. 纺织学报, 1999,20(1):4-6.
HUANG Gu, MA Chongqi, LIN Guocai, et al. Research on the composite of three-dimensional woven fabric[J]. Journal of Textile Research, 1999,20(1):4-6.
[12] 高雄, 胡侨乐, 马颜雪, 等. 不同结构厚截面三维机织碳纤维复合材料的弯曲性能对比[J]. 纺织学报, 2017,38(9):66-71.
GAO Xiong, HU Qiaole, MA Yanxue, et al. Bending properties comparison of thick-section carbon fiber composites based on different three-dimensional woven structures[J]. Journal of Textile Research, 2017,38(9):66-71.
[13] 杨萍, 成玲, 陈利, 等. 三维编织复合材料工字梁的弯曲性能分析[J]. 天津工业大学学报, 2002,21(2):40-42.
YANG Ping, CHENG Ling, CHEN Li, et al. Analysis of the bending properties of the three-dimensional braided I-shape beam[J]. Journal of Tianjin Polytechnic University, 2002,21(2):40-42.
[14] HE Zongbei, ZHANG Litong, CHEN Bo, et al. Failure behavior of 2D C/SiC I-beam under bending load[J]. Composite Structures, 2015,132:321-330.
[15] 吕丽华, 黄耀丽, 崔婧蕊. 蜂窝状三维整体机织复合材料的弯曲性能及其有限元模拟[J]. 纺织学报, 2017,38(11):56-60.
LÜ Lihua, HUANG Yaoli, CUI Jingrui. Bending properties and finite element method simulation of honeycomb 3-D integrated woven composites[J]. Journal of Textile Research, 2017,38(11):56-60.
[16] LV Lihua, ZHANG Xuefei, YAN Shujuan, et al. Bending properties of T-shaped 3-D integrated woven composites: experiment and FEM simulation[J]. Journal of Fiber Science & Technology, 2017 ( 7):170-176.
[17] 梅启林, 冀运东, 陈小成. 复合材料液体模塑成型工艺与装备进展[J]. 玻璃钢/复合材料, 2014(9):52-61.
MEI Qilin, JI Yundong, CHEN Xiaocheng. Progresses in the process and equipment of liquid modeling for composite[J]. Fiber Reinforced Plastic/Composites, 2014 (9):52-61.
[18] SCHENKE Maik, EHLERS Wolfgang. Numerical investigation of vacuum-assisted resin transfer moulding (VARTM) within deformable fibre fabrics[J]. Pamm, 2016,16(1):479-480.
[19] JIN Limin, YAO Yao, YU Yimin, et al. Structural effects of three-dimensional angle-interlock woven composite undergoing bending cyclic loading[J]. Science China, 2014,57(3):501-51.
