Spinning mechanism of two-color transformation segment color yarns and influencing factors on length and breaking tenacity of blend fragment

GUO Mingrui, LI Peiying, SUN Fengxin, GAO Weidong()

  1. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
  • Received:2018-06-01 Revised:2019-02-16 Online:2019-05-15 Published:2019-05-21
  • Contact: GAO Weidong E-mail:gaowd3@163.com

RichHTML

2

PDF (PC)

69

Abstract:

In order to spin the two-color transformation segment color yarn with constant linear density, and find out the influencing factors of the length and strength of the blend fragment, the yarns were spun by a double-channel ring spining machine with an improved compact device. Meanwhile, the length was measured by artificial recognition based on the image acquisition device. The forming mechanism of the blend fragment was analyzed. The intluence of the break draft and the roving feeding advance on the length and strength of the blend fragment were investigated. The results show that the mean length of the blend fragments increases with the increase of roving feeding advance, and decreases with the increase of break draft; and the yarn breaking tenacity also increases with the increase of roving feeding advance. When the break draft is 1.7, the yarn has the max breaking tenacity.

Key words: two-color transformation segment color yarn, blend fragment, draft configuration, roving feeding advance

CLC Number:

  • TS104.1

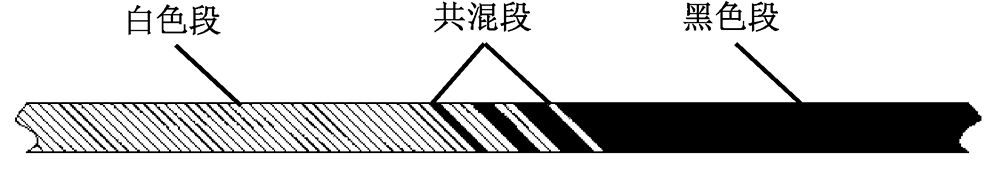

Fig.1

Diagram of two color transformation segment yarn"

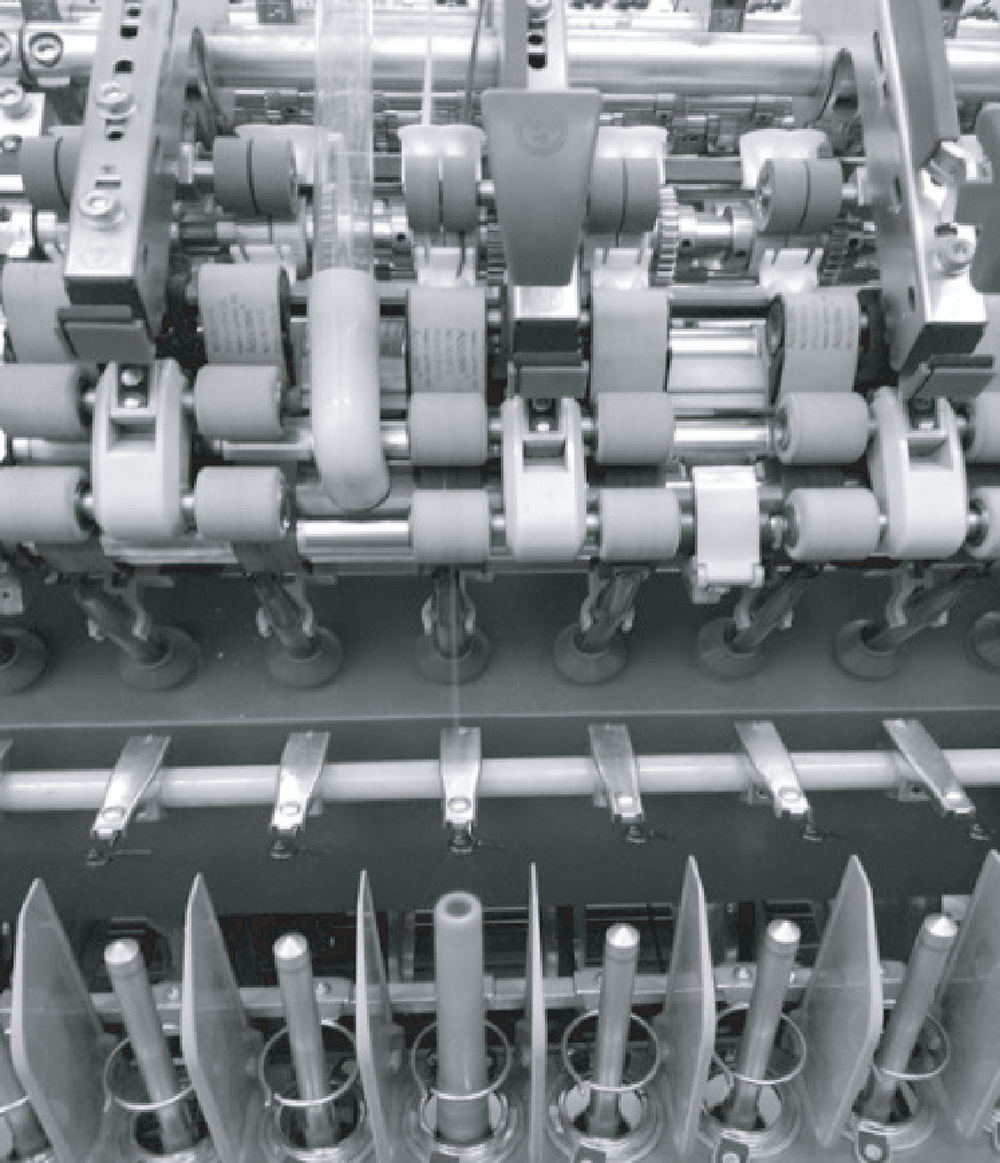

Fig.2

Image of double-channel ring spinning machine"

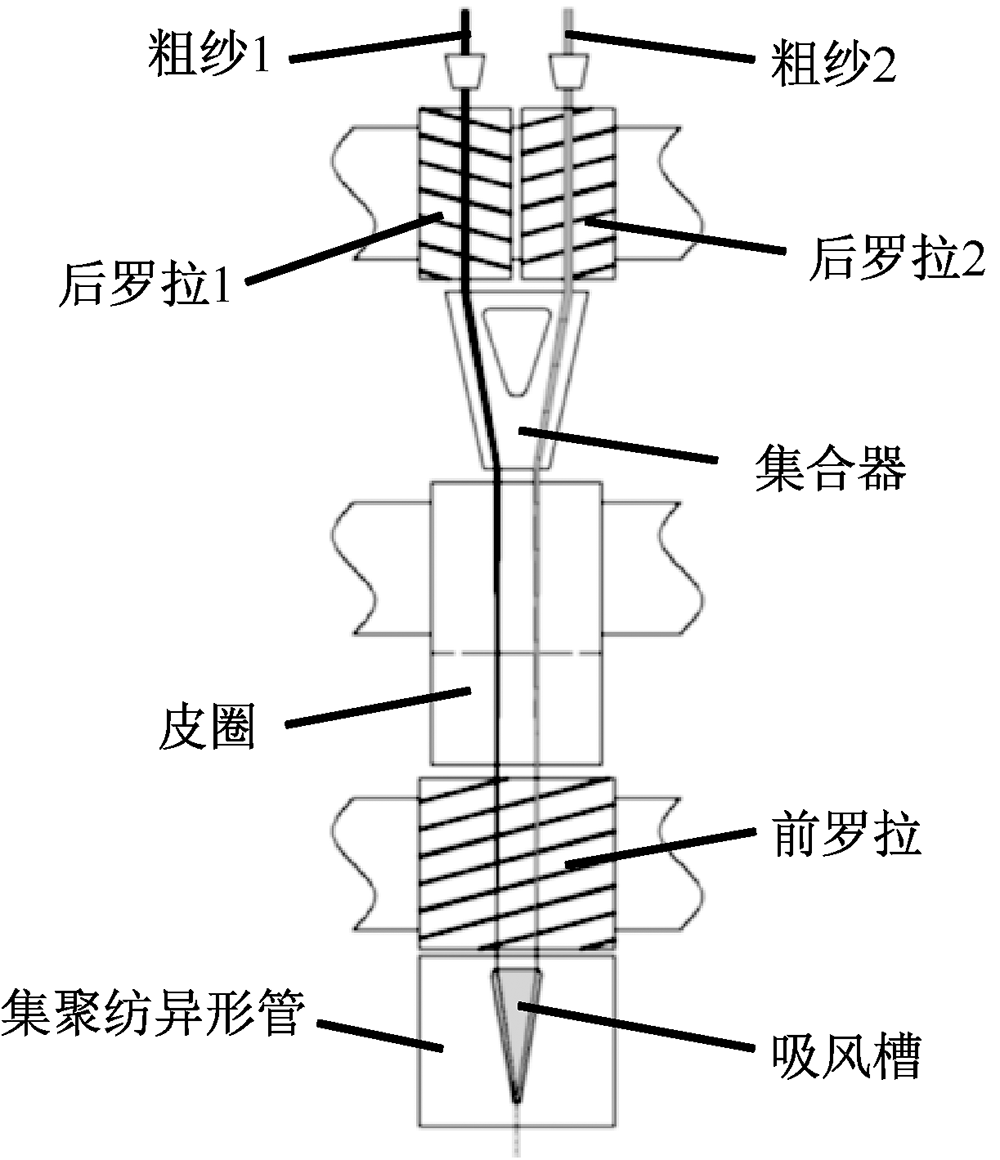

Fig.3

Diagram of double-channel ring spinning"

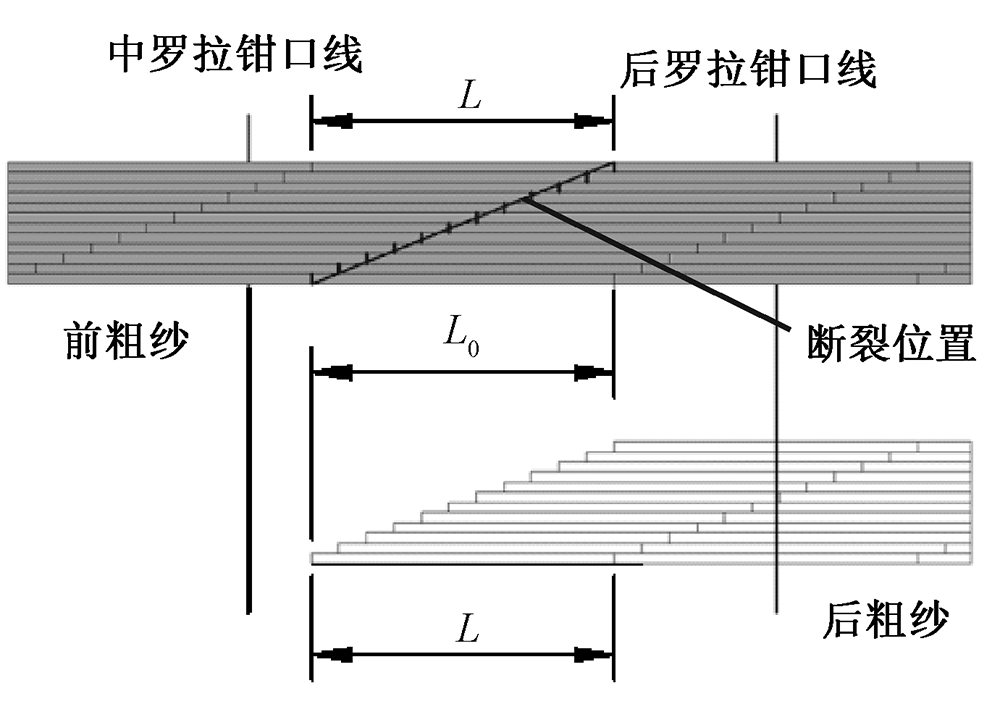

Fig.4

Diagram of ideal head and end of roving in break draft zone"

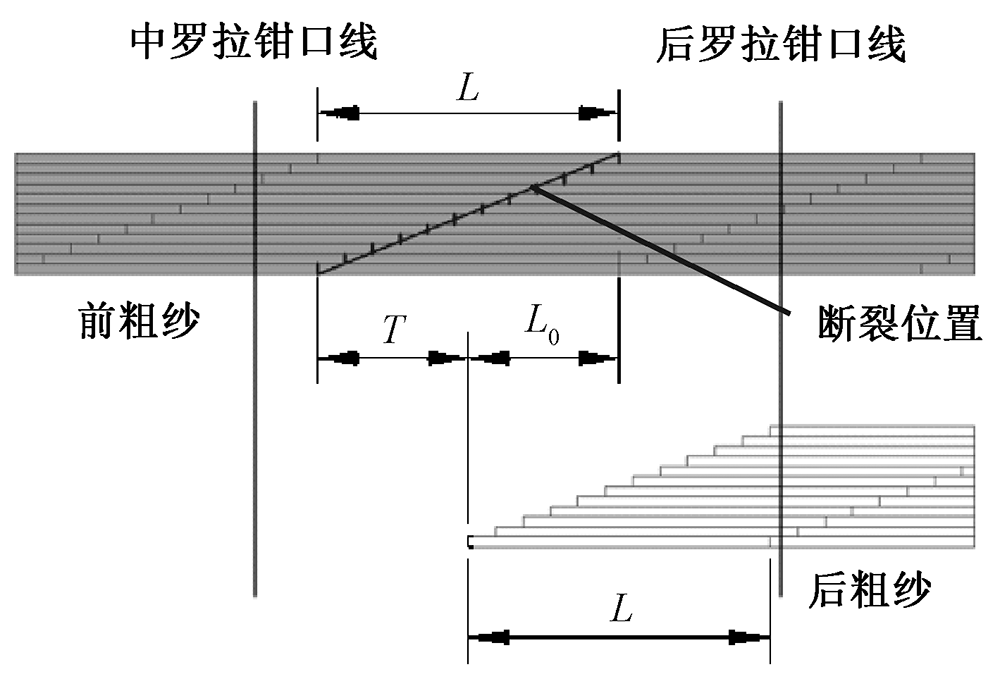

Fig.5

Diagram of actual head and end of roving in break draft zone"

Fig.6

Weft knitted fabric of segment color yarn"

Fig.7

Image acquisition unit"

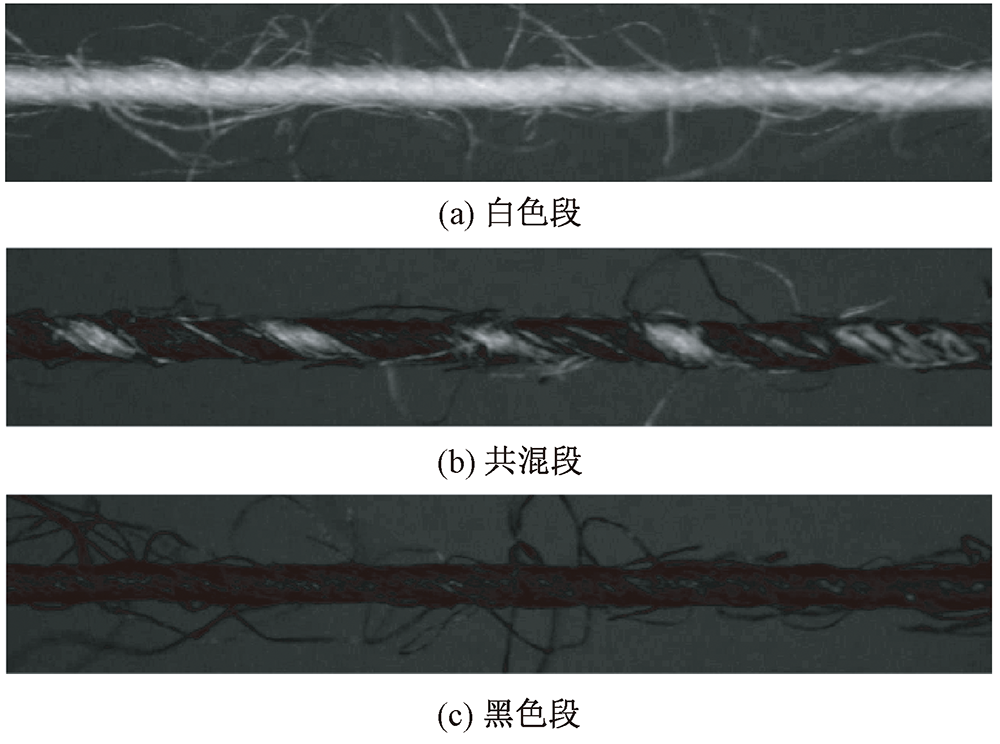

Fig.8

Image of typical yarn fragments. (a) White segment;(b) Blend segment; (c) Black segment"

Fig.9

Length of blends fragment"

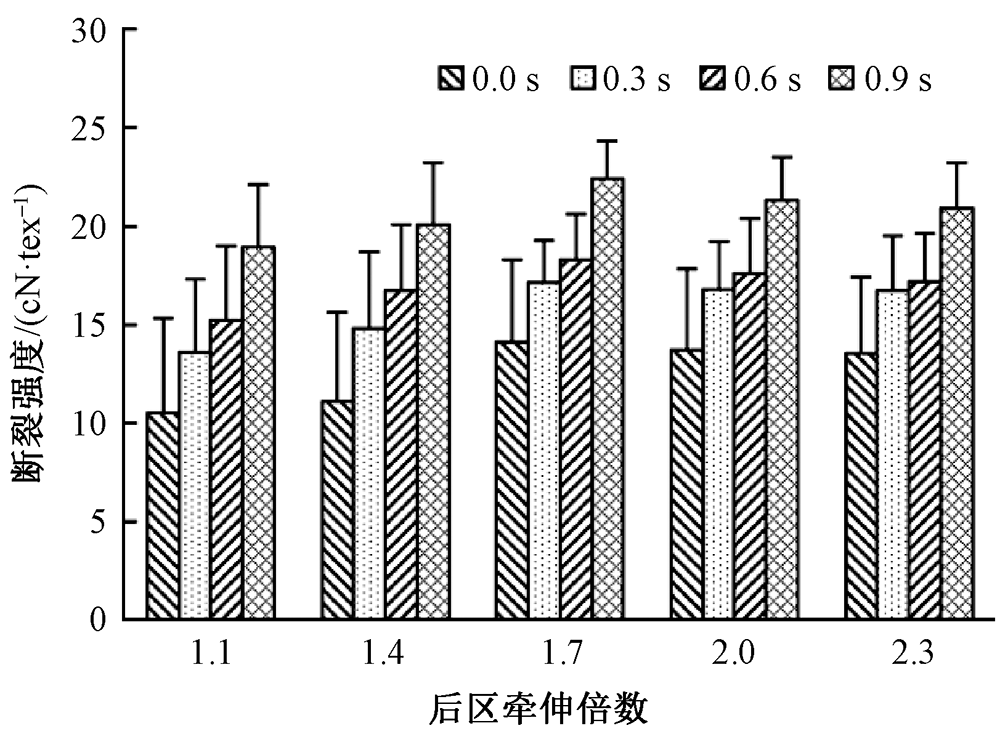

Fig.10

Tensile breaking tenacity of blends fragment"

[1] 桂亚夫. 色纺生产工艺流程与新型花式纱线开发[J]. 棉纺织技术, 2017,45(5):1-4.
GUI Yafu. Color spun production processing and new fancy yarn development[J]. Cotton Textile Technology, 2017,45(5):1-4.
[2] 詹霞, 张毅. 段彩纱纺纱风格的探讨[J]. 纺织导报, 2016(2):43-45.
ZHAN Xia, ZHANG Yi. On spinning different styles of segment colored yarn[J].China Textile Leader, 2016(2):43-45.
[3] 章友鹤, 赵连英, 周济恒. CCZ系列花式纱装置在生产花式竹节纱与段彩纱上的应用[J]. 现代纺织技术, 2015,23(5):50-54.
ZHANG Youhe, ZHAO Lianying, ZHOU Jiheng. Application of CCZ series fancy yarn device to produce fancy slubby yarn and segment color yarn[J]. Advanced Textile Technology, 2015,23(5):50-54.
[4] 赵慧, 叶静. 彩涤/棉纤维段彩纱的工艺研究[J]. 轻纺工业与技术, 2010,39(4):5-6, 21.
ZHAO Hui, YE Jing. Technology research of colored polyester/cotton segment-color yarn[J]. Textile Science and Technology, 2010,39(4):5-6, 21.
[5] 程四新, 阮浩芬. 棉和粘纤混纺段彩纱的生产实践[J]. 现代纺织技术, 2014,22(2):29-31.
CHENG Sixin, RUAN Haofen. Production practice of cotton and viscose blended segment color yarn[J]. Advanced Textile Technology, 2014,22(2):29-31.
[6] 刘红群, 李国锋, 黄机质. 改善纯棉普梳段彩纱条干水平的工艺实践[J]. 棉纺织技术, 2015,43(2):7-11.
LIU Hongqun, LI Guofeng, HUANG Jizhi. Technology practice of improving pure cotton carded segment color yarn evenness level[J]. Cotton Textile Technology, 2015,43(2):7-11.
[7] 王学元. 段彩纱质量控制技术的探讨[J]. 纺织器材, 2015,42(5):33-37.
WANG Xueyuan. Probing into quality control technology of segment colored yarn[J]. Textile Accessories, 2015,42(5):33-37.
[8] 张洪, 谢春萍, 张昀, 等. 段彩竹节纱纺制工艺探讨[J]. 棉纺织技术, 2012,40(3):15-18.
ZHANG Hong, XIE Chunping, ZHANG Yun, et al. Discussion of spinning section-color slub yarn[J]. Cotton Textile Technology, 2012,40(03):15-18.
[9] 史晶晶, 陈伟雄, 薛元, 等. 后区牵伸对等线密度棉段彩纱性能的影响[J]. 纺织学报, 2013,34(6):30-33.
SHI Jingjing, CHEN Weixiong, XUE Yuan, et al. Effect of back zone draft on physical properties of segment colored cotton yarn with constant linear density[J]. Journal of Textile Research, 2013,34(6):30-33.
[10] 高卫东, 郭明瑞, 薛元, 等. 基于环锭纺的数码纺纱方法[J]. 纺织学报, 2016,37(7):44-48.
GAO Weidong, GUO Mingrui, XUE Yuan, et al. Digital spinning method developed from ring spinning[J]. Journal of Textile Research, 2016,37(7):44-48.
[11] SU C I, JIANG J Y. Fine count yarn spun with a high draft ratio[J]. Textile Research Journal, 2004,74(2):123-126.
[12] YASEMIN A K, HASSANA M B. Relationship between fiber fineness, break draft, and drafting force in roller drafting[J]. Textile Research Journal, 2004,74(5):405-408.
[13] SU C I, FANG J X. Optimum drafting conditions of non-circular polyester and cotton blend yarns[J]. Textile Research Journal, 2006,76(6):441-447.
