Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (05): 70-77.doi: 10.13475/j.fzxb.20180601108

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

In-situ synthesis of calcium carbonate from oleic acid and application there of in wet coating of polyamide

LEI Pengfei1, HUANG Yawei1, YUAN Senhao1, LI Hongyan2, WANG Chenglong1, ZHENG Jinhuan1,3()

  1. 1. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Ministry of Education,Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Huzhou Siny Label Material Co., Ltd.,Huzhou, Zhejiang 313000, China
    3. Engineering Research Center for Eco-Dyeing and Finishing of Textiles,Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2018-06-01 Revised:2018-12-11 Online:2019-05-15 Published:2019-05-21
  • Contact: ZHENG Jinhuan E-mail:hzzjh1968@163.com

RichHTML

0

PDF (PC)

82

Abstract:

In order to solve poor ink absorption and high pH value of polyamide coated fabric with calcium carbonate, novel calcium carbonate was prepared from oleic acid by in-situ synthesis. The effect of in situ synthesized calcium carbonate was evaluated by activation degree and sedimentation volume. The mechanism was investigated by Fourier transform infrared spectroscopy, X ray diffraction, scanning electron microscopy, transmission electron microscopy and thermogravimetric analysis. The in-situ synthesized calcium carbonate is used in the polyamide wet coating, the structure of the coating film and the ink absorption, mechanical properties and pH value of the coated fabric were investigated. The results show that when the content of oleic acid is 15% of the mass fraction of calcium carbonate, the in-situ synthesized calcium carbonate is the best in various properties, the activation degree is 99% and the sedimentation volume is 3.95 mL. The in-situ synthesized calcium carbonate is used in wet polyamide coating, the contact angle of coating film decreases by 8.29°, the ink length of coated fabric decreases by 10.42 mm and the pH value decreases to 7.27,the ink absorption increases, and the pH well meets the safety standards of textiles.

Key words: oleic acid, calcium carbonate, in-situ synthesis, polyamide wet coating, ink absorption

CLC Number:

  • TS195

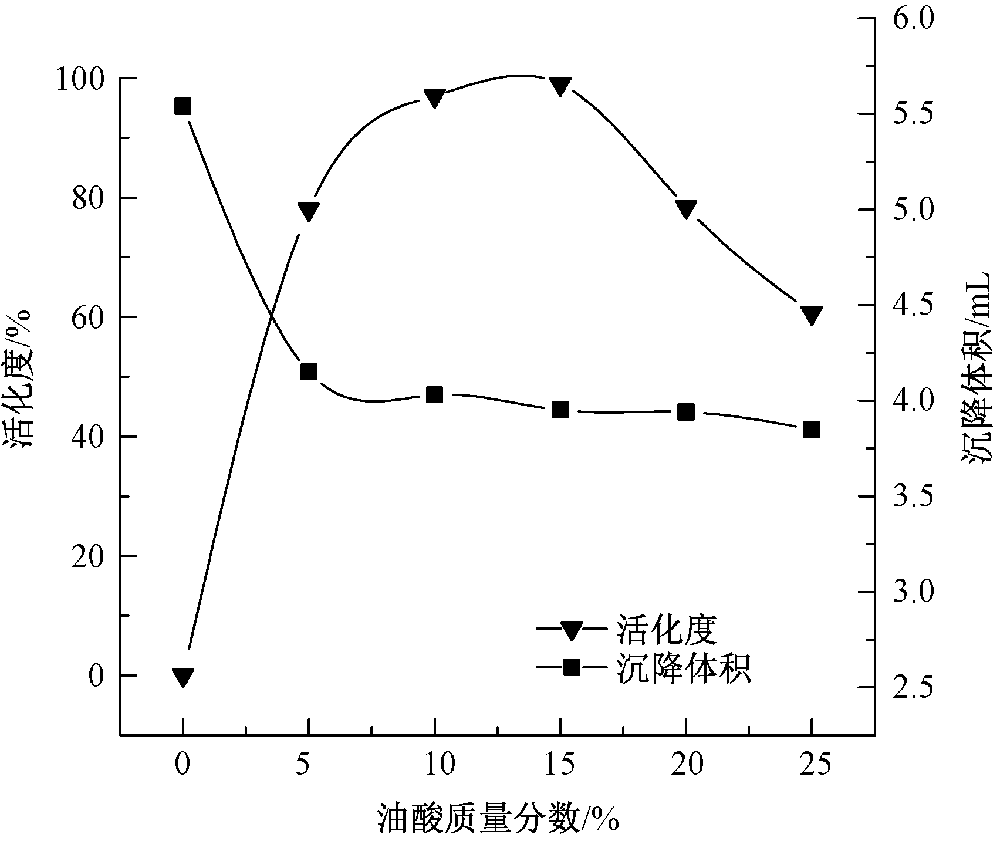

Fig.1

Influence of oleic acid content on activation grade and sedimentation volume of calcium carbonate"

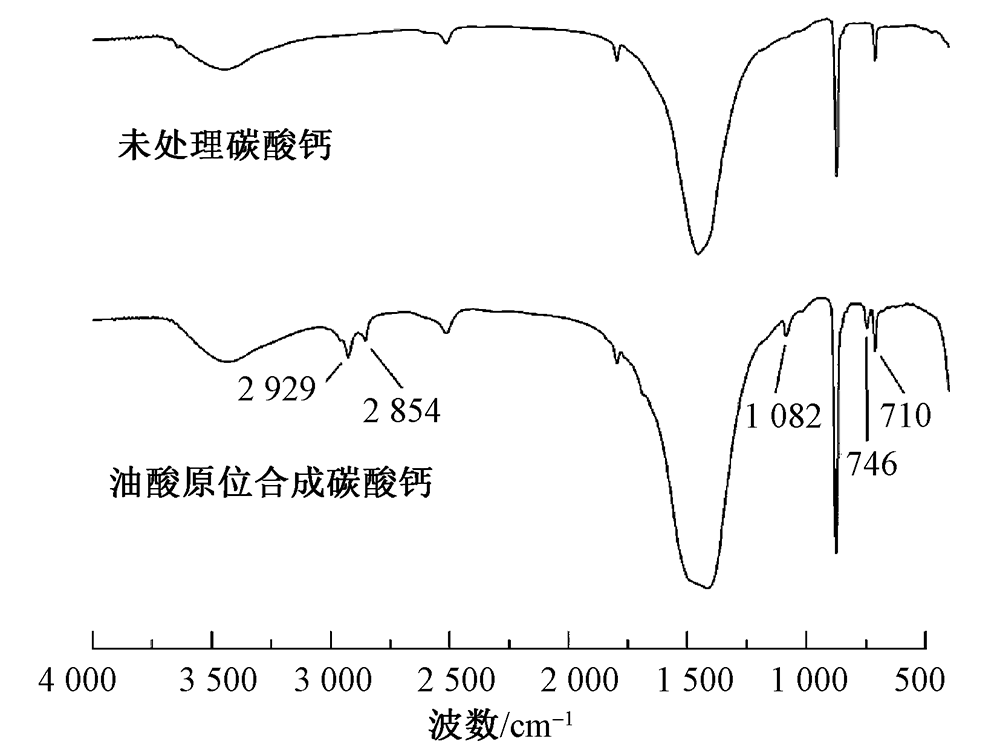

Fig.2

FT-IR spectra of untreated calcium carbonate and calcium carbonate in-situ synthesized from oleic acid"

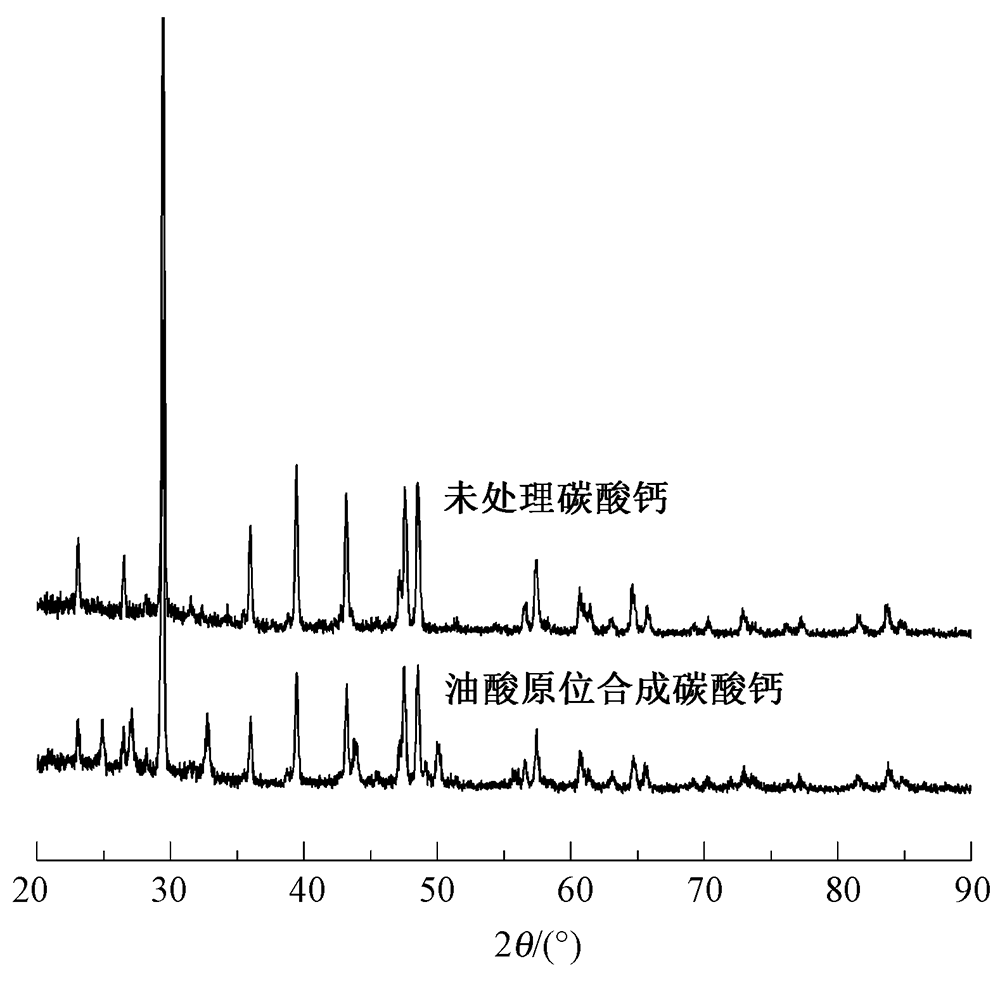

Fig.3

X-Ray diffraction of untreated calcium carbonate and calcium carbonate in-situ synthesized from oleic acid"

Fig.4

SEM images of untreated calcium carbonate (a) and calcium carbonate in-situ synthesized from oleic acid (b) (×5 000)"

Fig.5

TEM images of untreated calcium carbonate (a) and calcium carbonate in-situ synthesized from oleic acid (b)"

Fig.6

Influence of oleic acid content on surface morphology of polyamide wet coating film(×1 000)"

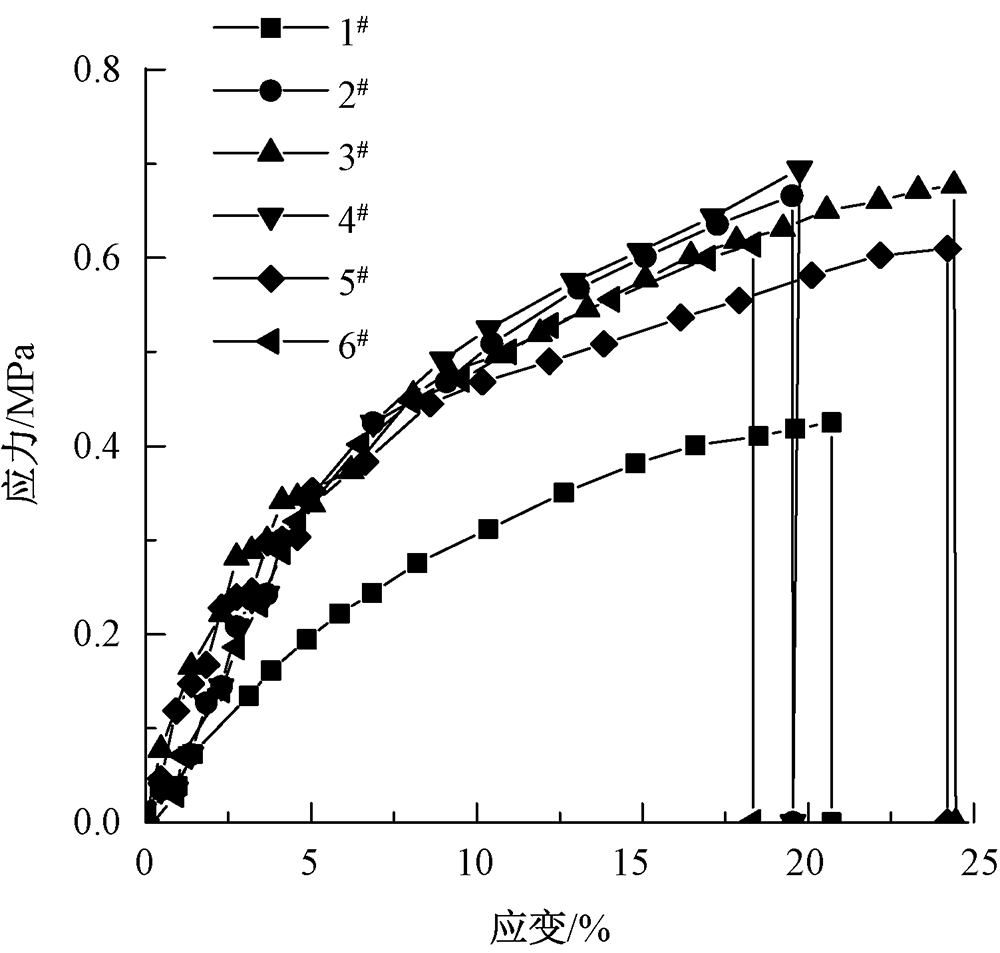

Fig.7

Influence of oleic acid content on mechanical properties of polyamide wet coating film"

Tab.1

Influence of oleic acid content on mechanical properties of polyamide wet coating film"

样品 断裂应力/MPa 断裂伸长率/% 初始弹性模量/MPa
1# 0.54 20.88 0.043 5
2# 0.66 22.17 0.078 3
3# 0.67 22.21 0.137 3
4# 0.68 23.50 0.146 2
5# 0.66 23.54 0.101 0
6# 0.62 21.71 0.052 3

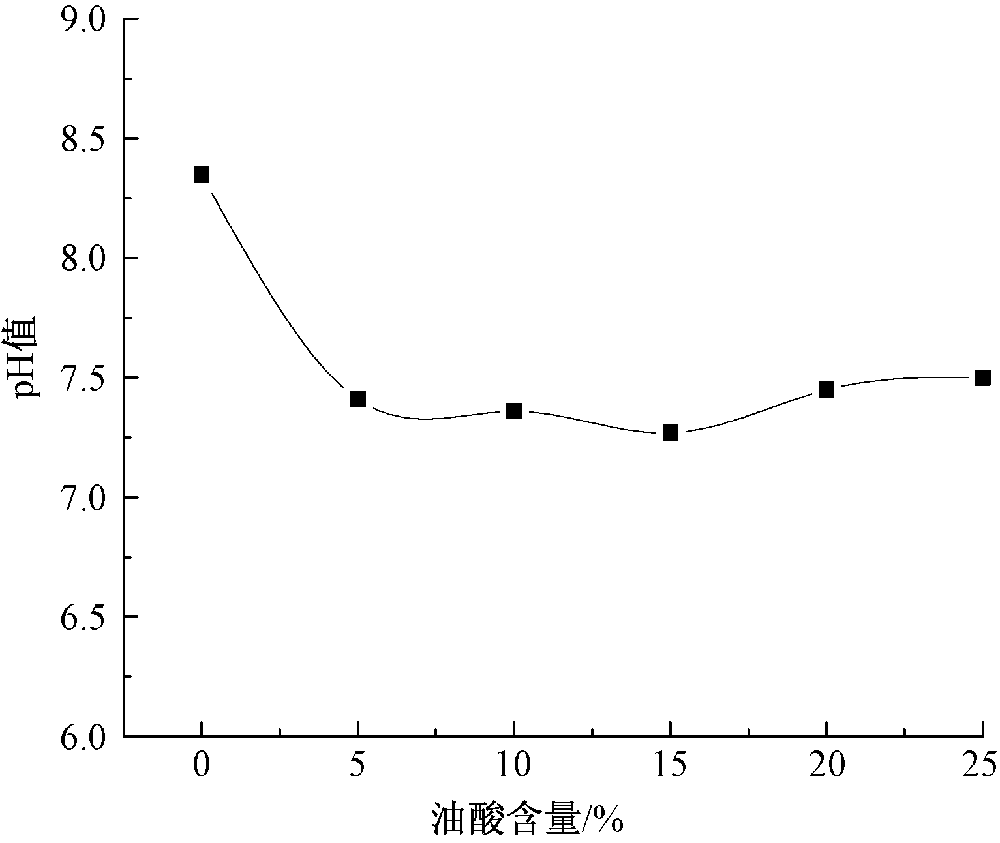

Fig.8

Influence of oleic acid content on pH value of polyamide wet coated textile"

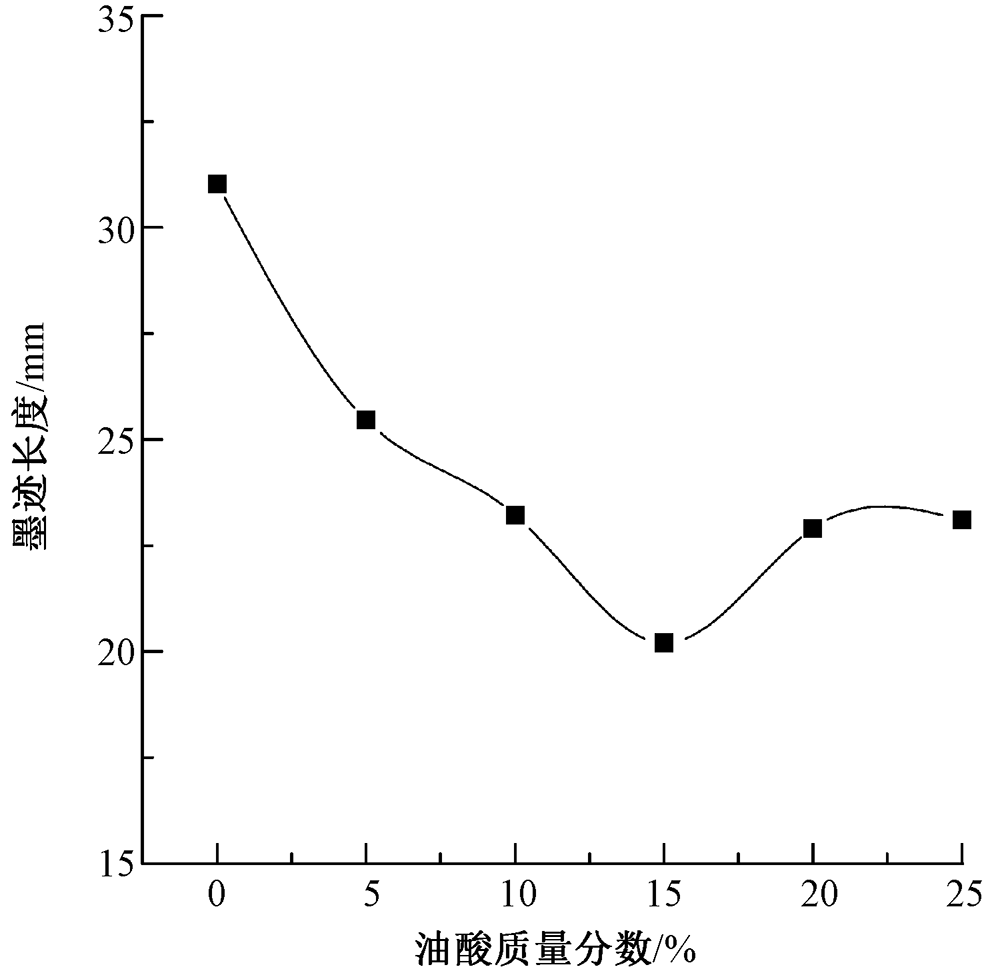

Fig.9

Influence of oleic acid content on ink length of polyamide wet coated textile"

[1] 陈杨轶, 郑今欢, 郭燕. 尼龙6废丝涂层浆的制备及其涂层膜性能[J]. 浙江理工大学学报, 2013,30(6):829-33.
CHEN Yangyi, ZHENG Jinhuan, GUO Yan. Preparation of nylon 6 waste silk coating slurry and properties of its coating film[J]. Journal of Zhejiang Sci-Tech University, 2013,30(6):829-833.
[2] 姜兴华. 聚酰胺湿法凝固涂层[C]//2007年度上海印染新技术交流研讨会.上海:上海纺织工程学会, 2007: 318.
JIANG Xinghua. Wet solidified coating for polyamide[C]//Proceedings of Shanghai Printing and Dyeing Technology on 2007.Shanghai: Shanghai Textile Engineering Society, 2007: 318.
[3] 俞永平, 谢天耘. 新型印刷用商标布生产工艺探讨[J]. 染整技术, 1992(5):31-33.
YU Yongping, XIE Tianyun. Discussion on the production technology of new printing trademark cloth[J]. Textile Dyeing and Finishing Journal, 1992(5):31-33.
[4] 赵丽娜, 孔治国, 王秀艳. 自组装片状纳米碳酸钙的制备及表面改性[J]. 化工进展, 2010,29(12):2346-2350.
ZHAO Lina, KONG Zhiguo, WANG Xiuyan. Preparation and surface modification of self-assembled flake nano-CaCO3[J]. Chemical Progress, 2010,29(12):2346-2350.
[5] BEUVIER T, BRICE C, DELCKOIX G J, et al. Synjournal of hollow vaterite CaCO3 microspheres in supercritical carbon dioxide medium[J]. Journal of Materials Chemistry, 2011,21(26):9757-9761.
[6] BUASRINC A, CHAIYUT N, BORVORNCHETTANUWAT K, et al. Thermal and mechanical properties of modified CaCO3 PP nanocomposites[J]. International Journal of Materials and Metallurgical Engineering, 2012,6(8):689-692.
[7] KISS A, FEKETE E, PUKANSZKY B. Aggregation of CaCO3 particles in PP composites: effect of surface coating[J]. Composites Science and Technology, 2007,67(7/8):1574-83.
[8] 郑延成, 黄倩, 梅平. 脂肪酸烷醇酰胺磷酸酯表面活性剂的合成及性能研究[J]. 日用化学工业, 2011,41(4):240-243.
ZHENG Yancheng, HUANG Qian, MEI Ping. Synjournal and properties of fatty acid alkanolamide phosphate surfactants[J]. China Surfactant Detergent & Consmetics, 2011,41(4):240-243.
[9] BENHUI S. Study on the mechnism of nylon 6,6 dissolving process using CaCl2/MeOH as the solvent[J]. Chinese Journal of Polymer Science, 1994,12(1):57-65.
[10] VASANTHAN N, KOTEK R, JUNG D W, et al. Lewis acid-base complexation of polyamide 66 to control hydrogen bonding, extensibility and crystallinity[J]. Polymer, 2004,45(12):4077-4085.
[11] 李涛, 杜奕铃, 李红艳, 等. 无机填充剂对聚酰胺湿法涂层商标织物性能的影响[J]. 纺织学报, 2017,38(3):114-21.
LI Tao, DU Yiling, LI Hongyan, et al. Effect of inorganic fillers on properties of polyamide wet-coating trademark fabrics[J]. Journal of Textile Research, 2017,38(3):114-121.
[12] 叶思佳, 雷鹏飞, 李红艳, 等. 高岭土对聚酰胺湿法涂层商标织物吸墨性的影响[J]. 印染, 2017(18):15-22.
YE Sijia, LEI Pengfei, LI Hongyan, et al. Effect of kaolin on ink absorption of polyamide wet coated trademark fabrics[J].China Dyeing & Finishing, 2017(18):15-22.
[13] 李巧云. 羧酸及其盐结构红外定性研究[J]. 哈尔滨师范大学自然科学学报, 1996,12(1):68-72.
LI Qiaoyun. Infrared qualitative study on the structure of carboxylic acids and their salts[J]. Natural Science Journal of Harbin Normal University, 1996,12(1):68-72.
[14] ATTA A M, AL-LOHEDA H A, EZZAT A O, et al. Characterization of superhydrophobic epoxy coatings embedded by modified calcium carbonate nano-particles[J]. Progress in Organic Coatings 2016(101):577-586.
[15] WANG C, ZHAO X, ZHAO J, et al. Biomimetic nucleation and growth of hydrophobic vaterite nanoparticles with oleic acid in a methanol solution[J]. Applied Surface Science, 2007,253(10):4768-4772.
[16] 毛志平, 储才元. 聚氨酯涂层膜的微结构和性能添加剂的效能[J]. 纺织学报, 1996,17(2):68-73.
MAO Zhiping, CHU Caiyuan. Performance and microstructure of polyurethane coating film[J]. Journal of Textile Research, 1996,17(2):68-73.
[17] 景浩, 张钧, 赵时璐, 等. 硬质涂层膜基结合力的测定方法与改善途径[J]. 热加工工艺, 2015,44(24):40-44.
JING Hao, ZHANG Yun, ZHAO Shilu, et al. Methods of determination and improvement of adhesion of hard coating film substrate[J]. Hot Working Technology, 2015,44(24):40-44.
[1] ZHU Qing, XU Dandan, PAN Yuange, WANG Chenglong, ZHENG Jinhuan. Influence of waterborne polyacrylate on printing effect of coated label fabrics [J]. Journal of Textile Research, 2020, 41(08): 55-62.
[2] . Influence of inorganic fillers on properties of polyamide wet-coating trademark fabrics [J]. JOURNAL OF TEXTILE RESEARCH, 2017, 38(03): 114-121.
[3] . Influence of ultrasound treatment on mechanical property of bamboo fibers modified by nanoparticles [J]. Journal of Textile Research, 2016, 37(3): 16-20.
[4] . Microwave-assisted low temperature in-situ synthesis and coating of Tungsten-doped TiO2 onto cotton fabric and photocatalytic peerformance of coated fabric [J]. JOURNAL OF TEXTILE RESEARCH, 2014, 35(7): 88-0.
[5] . Microwave-assisted in-situ synthesis and application of nano zinc phosphate in UV-resistance finishing of cotton fabric [J]. JOURNAL OF TEXTILE RESEARCH, 2014, 35(7): 83-0.
[6] HOU Chun-Chun, TAO Si-Jie, ZHU Yong, XU Shui. The Preparation and Property Characterization of the Composite Scaffold Fabricated With Silk Fibroin and Calcium Carbonate [J]. JOURNAL OF TEXTILE RESEARCH, 2012, 33(3): 27-33.
[7] Qi LU. Study on Application of Titanate Coupling Agent in CaCO3-filled SF/PVA Blend Films [J]. JOURNAL OF TEXTILE RESEARCH, 2010, 31(8): 12-15.
