Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (07): 64-70.doi: 10.13475/j.fzxb.20180601607

• Textile Engineering • Previous Articles     Next Articles

Preparation and mechanical properties of aramid/ ultra-high molecular weight polyethylene fabric reinforced polyurethane sandwich composite

WU Liwei1,2, WANG Wei1, LIN Jiahorng1,3,4, JIANG Qian1,2

  1. 1. School of Textile Science and Engineering, Tianjin Polytechnic University, Tianjin 300387, China
    2. Tianjin and Ministry of Education Key Laboratory of Advanced Textile Composite Materials, Tianjin Polytechnic University, Tianjin 300387, China
    3. Ocean College, Minjiang University, Fuzhou, Fujian 350108, China
    4. Department of Fiber and Composite Materials, Feng Chia University, Taiwan 40724, China
  • Received:2018-06-01 Revised:2019-04-02 Online:2019-07-15 Published:2019-07-25

RichHTML

5

PDF (PC)

133

Abstract:

By applying ultra-high molecular weight polyethylene fiber (UHMWPE) and aramid as reinforced fabric panels and flexible polyurethane (PU) as core, a sandwich flexible composite with good cushioning property was developed by textile technique and one-step foaming process. PU composites reinforced by nylon nonwoven and basalt plain weave fabric were prepared as control group, and static and dynamic mechanical testing were conducted on all three composites. The results show aramid/UHMWPE plain weave reinforced sandwich composite has excellent mechanical property. The tensile strengths and elongation at breaks of aramid/UHMWPE plain weave reinforced sandwich composite in longitudinal and horizontal direction are 1 930 N, 1 744 N, 5.8% and 6.5%, respectively. The sandwich composite is compact when the compressive displacement reaches to 7.5 mm, and the compressive deformation is 93%. Impact strength of aramid/UHMWPE plain weave reinforced sandwich composite is 1 260 N with absorbed energy of 13.4 J and energy density of 4.95 J/g, proving good energy absorption capability on the basis of lightweight.

Key words: ultra-high molecular weight polyethylene fiber, aramid, polyurethane, sandwich composite, mechanical property

CLC Number:

  • TB332

Tab.1

Yarn parameters"

材料 生产厂家 线密度/
tex		 拉伸
强度/
MPa		 拉伸
模量/
GPa		 断裂
伸长
率/%
芳纶短纤纱 仪征化纤有限责任公司 58 1 020 65 2.4
超高分子量聚乙烯纤维 连云港神特新材料有限公司 63 2 000 80 3.1

Tab.2

Fabric parameters"

材料 密度/
(根·(10 cm)-1)		 断裂强力/N 面密度/
(g·m-2)		 厚度/
mm
经密 纬密 经向 纬向
芳纶/UHMWPE平纹织物 120 110 657.3 577.1 176 0.4
玄武岩平纹
织物		 100 100 876.0 907.0 330 0.4
锦纶非织造布 - - 96.6 43.3 180 1.5

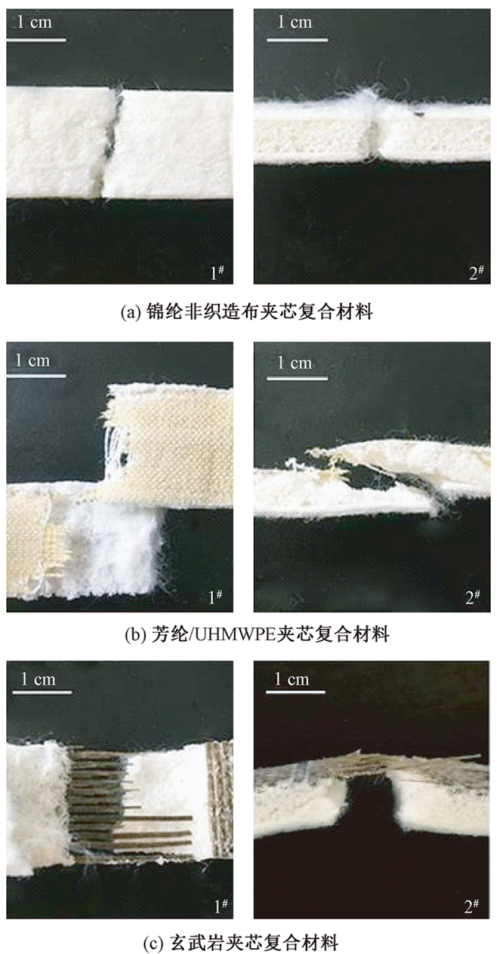

Fig.1

Front and lateral fracture images of three fabric reinforced polyurethane sandwich composites after tensile loading. (a) Nylon nonwoven sandwich composite;(b) Aramid/UHMWPE sandwich composite; (c) Basalt sandwich composite"

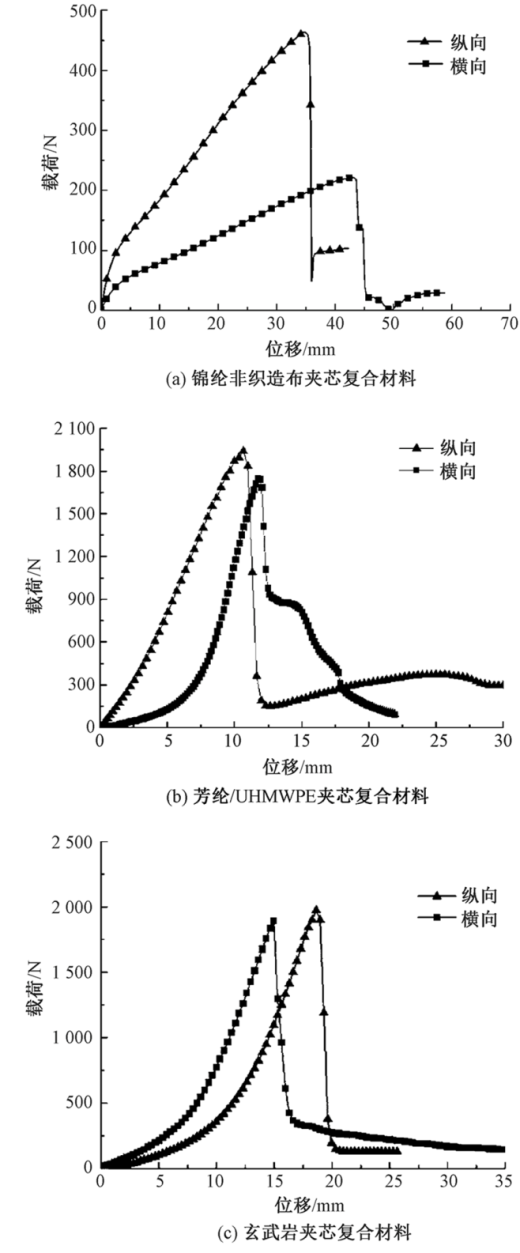

Fig.2

Load-displacement curves of three fabric reinforced polyurethane sandwich composites. (a)Nylon nonwoven sandwich composite; (b)Aramid/UHMWPE sandwich composite; (c)Basalt sandwich composite"

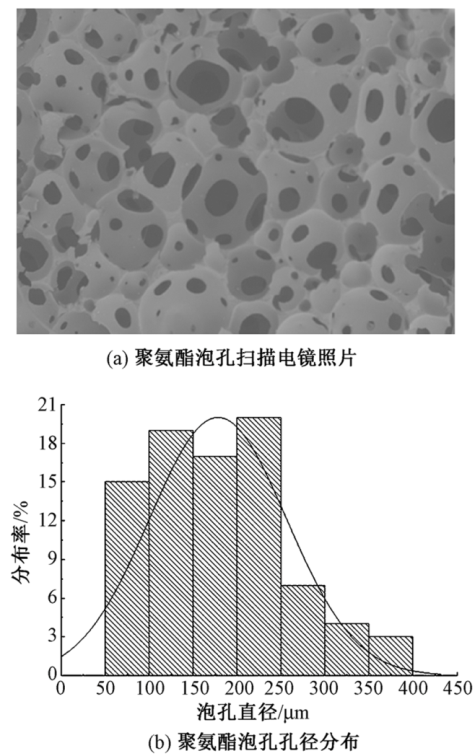

Fig.3

Morphology and diameter distribution of PU pores of sandwich composites. (a) SEM image of PU pores;(b) Diameter distribution of PU pores"

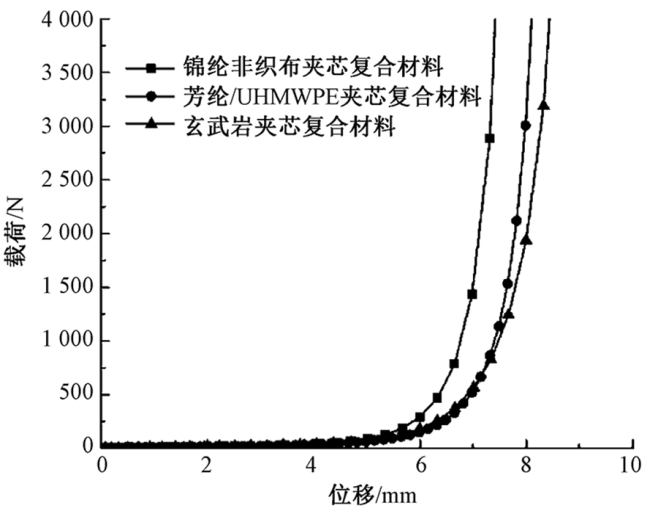

Fig.4

Load-displacement curves of fabric reinforced polyurethane sandwich composites under compression loading"

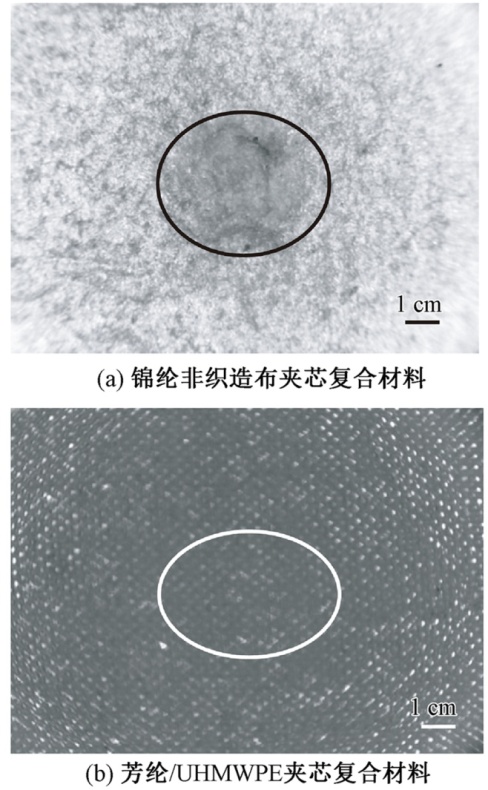

Fig.5

Fracture morphologies of nylon nonwoven composite (a) and aramid/UHMWPE sandwich composite (b)"

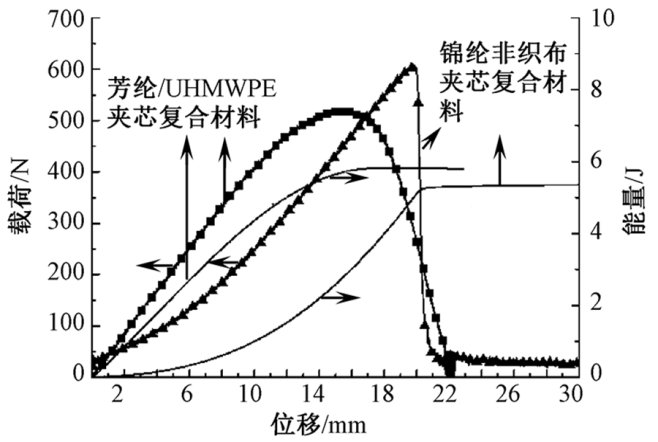

Fig.6

Load-displacement curves of nylon nonwoven and aramid/UHMWPE sandwich composites"

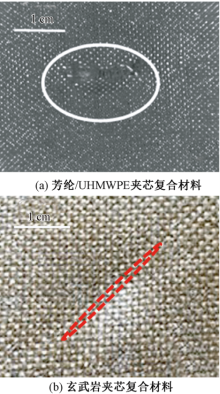

Fig.7

Fracture morphology of aramid/UHMWPE composite (a) and basalt sandwich composite (b)"

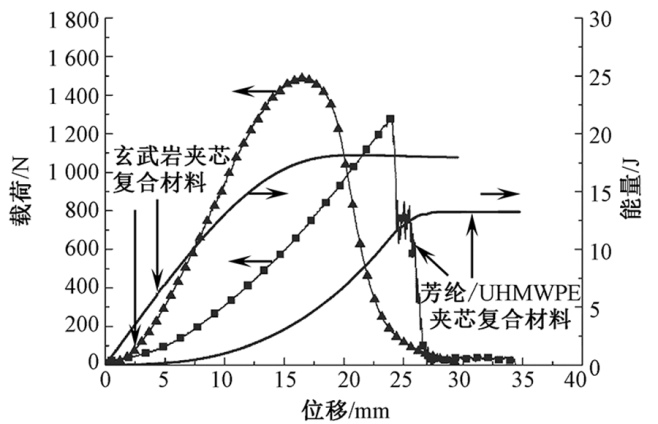

Fig.8

Load-displacement curves of aramid/UHMWPE and basalt sandwich composites"

[1] ENGELS H W, PIRKL H G, ALBERS R , et al. Polyurethanes: versatile materials and sustainable problem solvers for today's challenges[J]. Angewandte Chemie, 2013,52(36):9422-9441.
doi: 10.1002/anie.201302766 pmid: 23893938
[2] MOHAMED M, ANANDAN S, HUO Z , et al. Manufacturing and characterization of polyurethane based sandwich composite structures[J]. Composite Structures, 2015,123:169-17.
[3] 方路平, 陆春, 陈平 , 等. 3种复合材料夹芯结构在弯曲载荷下破坏行为研究[J]. 玻璃钢/复合材料, 2016(4):36-40.
FANG Luping, LU Chun, CHEN Ping , et al. Study on damage behavior of three kinds of composite sandwich structure panel under bending load[J]. Fiber Reinforced Plastics Composites, 2016(4):36-40.
[4] TUWAIR H, HOPKINS M, VOLZ J , et al. Evaluation of sandwich panels with various polyurethane foam-cores and ribs[J]. Composites Part B, 2015,79:262-276.
[5] GARRIDO M, CORREIA J R, BRANCO F A , et al. Creep behaviour of sandwich panels with rigid polyurethane foam core and glass-fibre reinforced polymer faces: experimental tests and analytical modelling[J]. Journal of Composite Materials, 2014,48(18):2237-2249.
[6] ZHANG J, SUPERNAK P, MUELLER-ALANDER S , et al. Improving the bending strength and energy absorption of corrugated sandwich composite structure[J]. Materials & Design, 2013,52(24):767-773.
[7] AMIR F, TAREK S . Flexural performance of sandwich panels comprising polyurethane core and GFRP skins and ribs of various configurations[J]. Composite Structures, 2010,92(12):2927-2935.
[8] GHALAMICHOOBAR M, SADIGHI M . Investigation of high velocity impact of cylindrical projectile on sandwich panels with fiber-metal laminates skins and polyurethane core[J]. Aerospace Science & Technology, 2014,32(1):142-152.
[9] ATAS C, POTOGLU U . The effect of face-sheet thickness on low-velocity impact response of sandwich composites with foam cores[J]. Journal of Sandwich Structures & Materials, 2016,18(2):215-228.
[10] 薛启超, 邹广平, 李佳 , 等. 基于裂纹开裂角度的夹层板层间开裂[J]. 复合材料学报, 2017(8):1870-1877.
XUE Qichao, ZOU Guangping, LI Jia , et al. Debonding analysis for sandwich plates based on crack opening angle[J]. Acta Materiae Compositae Sinica, 2017(8):1870-1877.
[11] 武晓东, 夏凡, 吴晓青 . 不同纤维面层对泡沫夹层复合材料低速冲击性能的影响[J]. 纤维复合材料, 2010,27(4):8-11.
WU Xiaodong, XIA Fan, WU Xiaoqing . Work on low-velocity impact properties of foam sandwich composites with various face sheets[J]. Fiber Composites, 2010,27(4):8-11.
