Preperation and properties of heat-resistant phase change wax/polypropylene blends

WEI Haijiang1,2, JIANG Li3, ZHANG Shunhua1,2()

  1. 1. Silk Institute, College of Materials and Textiles, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    3. Zhejiang Henglan Technology Co., Ltd., Hangzhou, Zhejiang 311200, China
  • Received:2018-07-11 Revised:2019-03-12 Online:2019-06-15 Published:2019-06-25
  • Contact: ZHANG Shunhua E-mail:zshhzj@163.com

Abstract:

To solve low initial volatilization temperature of paraffin wax, phase change wax(PC-WAX)/ polypropylene(PP) blends were prepared by melt blending with twin-screw extruder. The thermal and rheological properties of blends were characterized by differential scanning calorimeter, thermal gravimetric analyzer and twin-bore capillary rheometer. The results demonstrate that the initial evaporation temperature of 20% mass fraction PC-WAX blends is 225.91 ℃. Compared with the initial evaporation temperature of PC-WAX, its value increases and thermal evaporation rate declines. The blends belong to the fluids of shear thinning type. As PC-WAX mass fraction increases, the shear stress, shear viscosity and viscous flow activation energy of blends will gradually decrease. At 180 ℃ and shearing rate of 5 571.21 s-1, the shear stress, shear viscosity and viscous flow activation energy of blends with 20% mass fraction PC-WAX has fallen by 52.9%, 48.6% and 66.3% respectively compared with the pure PP. Furthermore, the structure viscosity index of blends decreases with the increase of temperature and the mass fraction of PC-WAX.

Key words: phase change wax, polypropylene, volatilization temperature, blending modification, rheological property, thermal property

CLC Number:

  • TS102.5

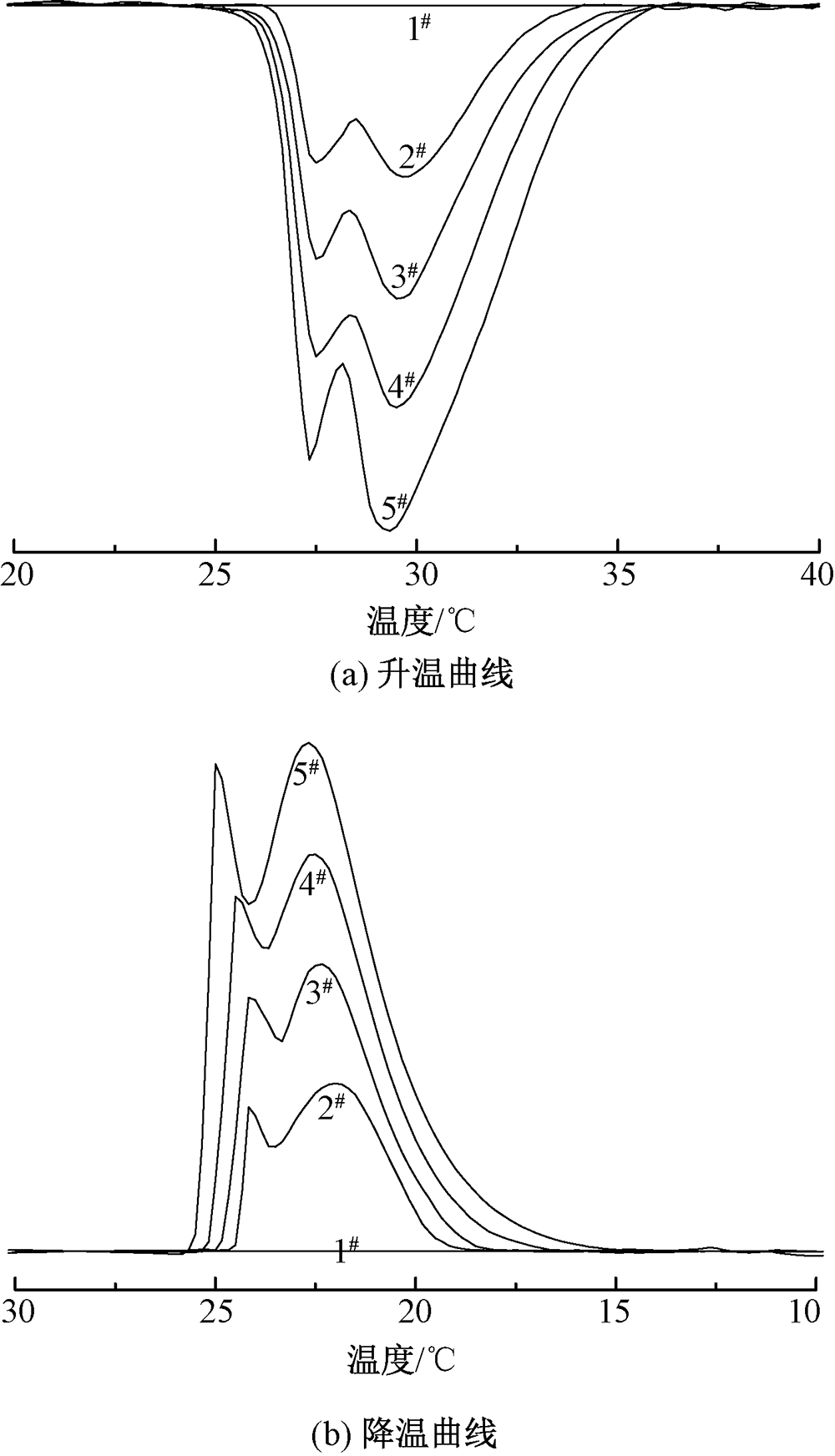

Fig.1

Heating (a) and cooling (b) curves of blends with different PC-WAX mass fractions"

Tab.1

DSC dates of blends with different PC-WAX mass fractions"

样品
编号
升温 降温
Tmo/
Tm/
ΔHm/
(J·g-1)
Tco/
Tc/
ΔHc/
(J·g-1)
1# 0 0
2# 26.83 29.67 7.05 24.50 22.00 6.95
3# 26.50 29.50 13.51 24.67 22.33 13.34
4# 26.33 29.50 19.98 25.00 22.50 19.82
5# 26.16 29.33 25.68 25.33 22.67 25.43

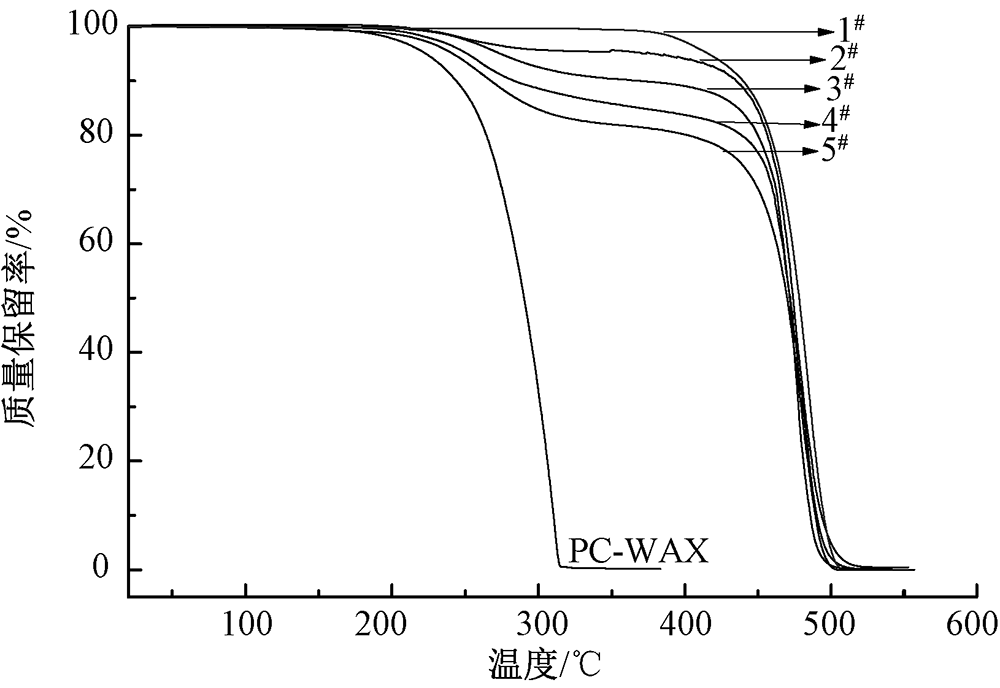

Fig.2

TG curve of blends with different mass fractions of PC-WAX"

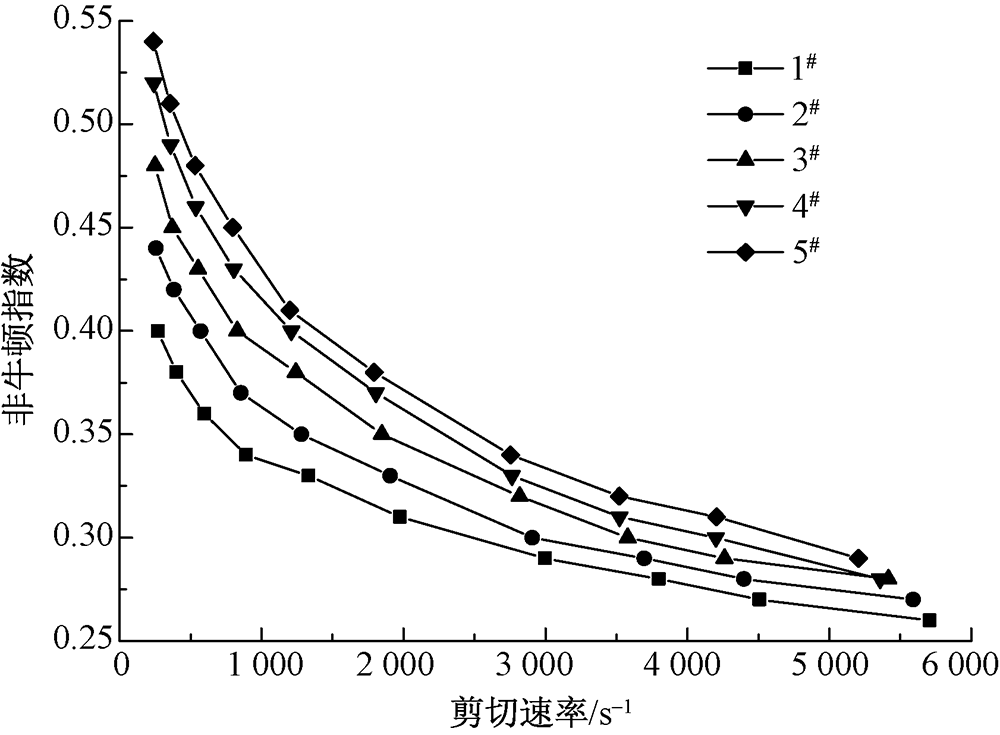

Fig.3

Non-Newtonian index of PC-WAX /PP blends"

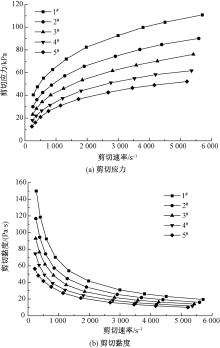

Fig.4

Effect of shear rate on rheological properties of PC-WAX/PP blends. (a) Shear stress; (b) Shear viscosity"

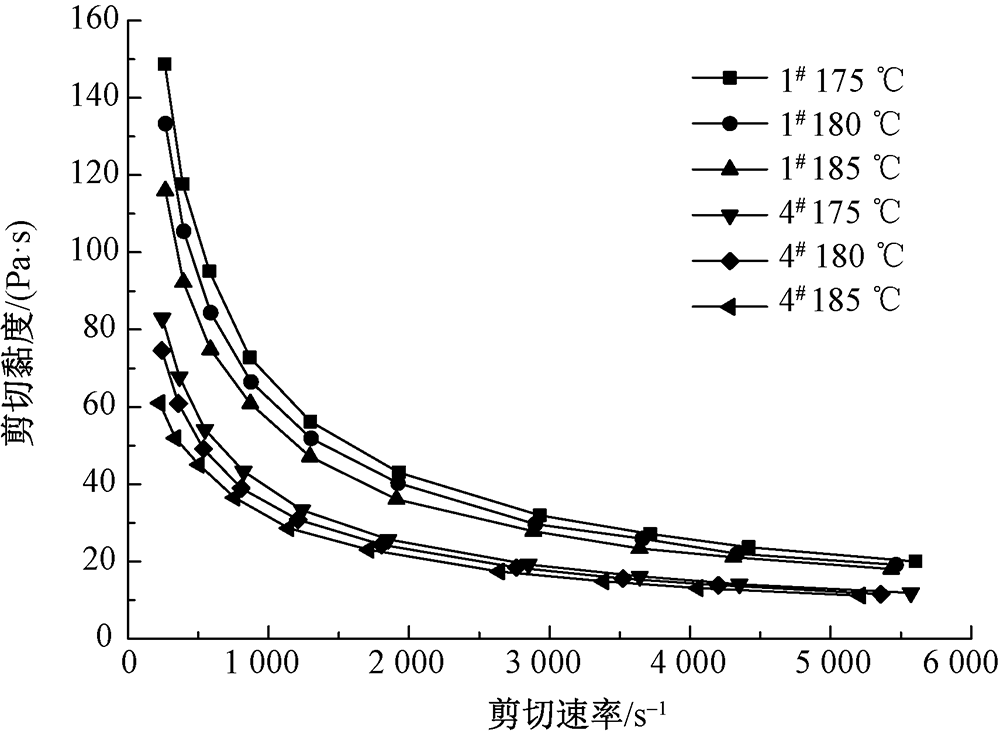

Fig.5

Effect of temperature on shear viscosity of blends"

Tab.2

Viscous flow activation energy of blends at different shear rates $\ \ \ \ \ \ \ $ kJ/mol"

试样
编号
556.55 s-1 1 281.42 s-1 2 818.36 s-1 5 571.21 s-1
1# 42.22 35.61 32.93 27.44
3# 34.23 27.49 19.42 16.22
5# 28.35 20.68 15.12 9.25

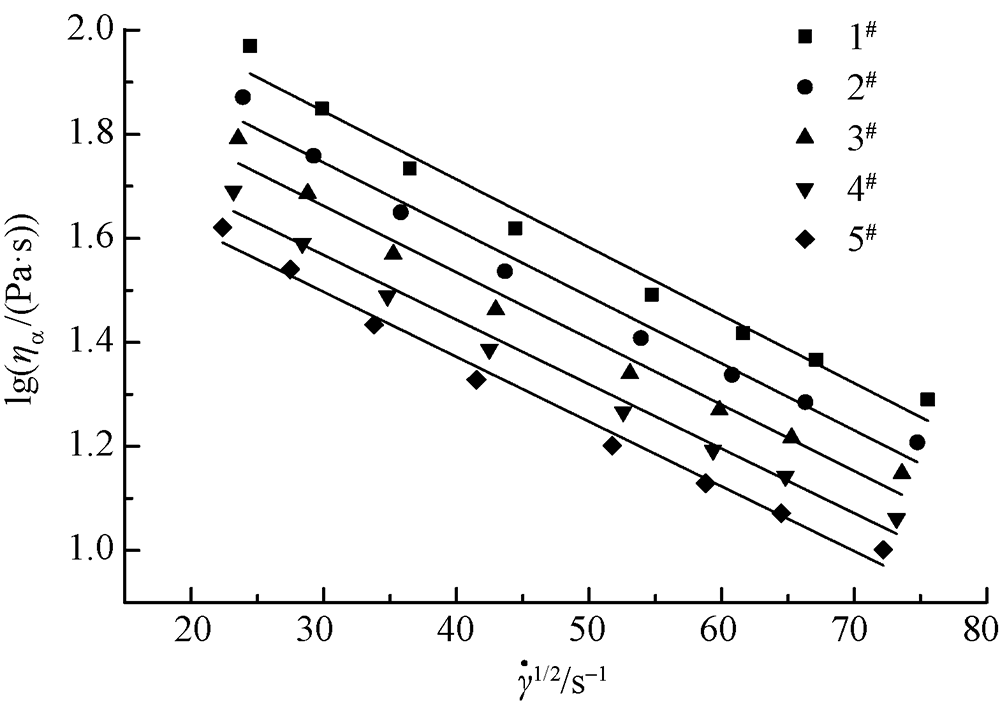

Fig.6

lgηα-γ·1/2 curves of blends with different quality fraction of PC-WAX at 180 ℃"

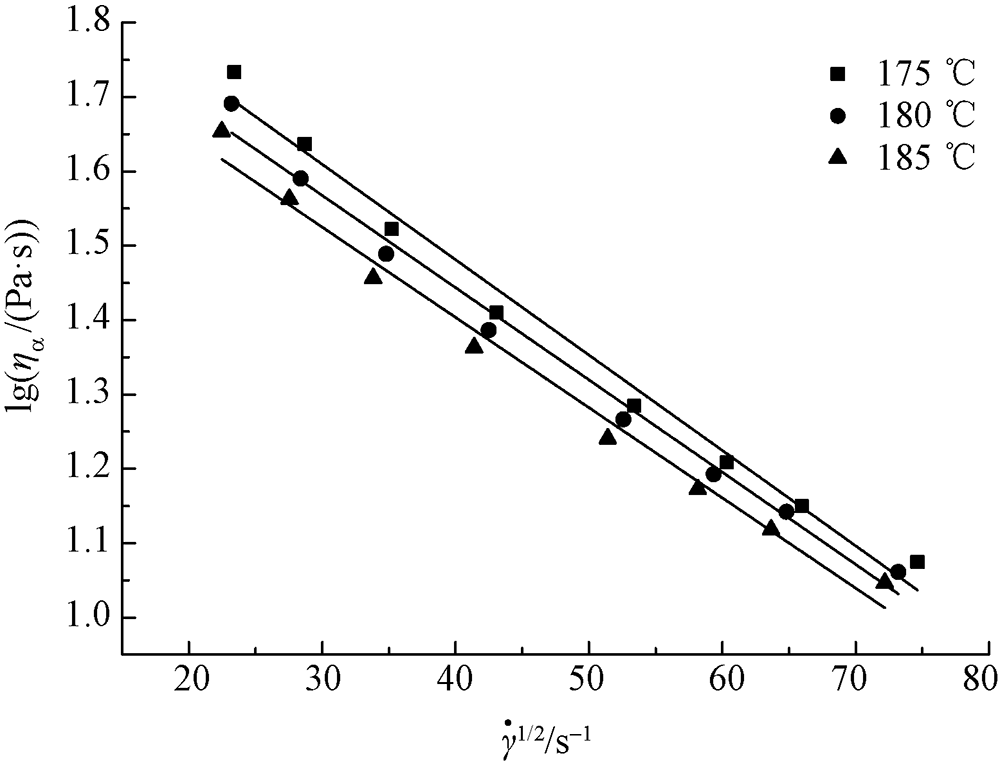

Fig.7

lgηα-γ·1/2 curves of 4# sample at different temperatures"

[1] HONG H Z, PAN Y, SUN H X, et al. Superwetting polypropylene aerogel supported form-stable phase change materials with extremely high organics loading and enhanced thermal conductivity[J]. Solar Energy Materials and Solar Cells, 2018,174:307-313.
[2] HUANG X, ALVA G, JIA Y T, et al. Morphological characterization and applications of phase change materials in thermal energy storage: a review[J]. Renewable and Sustainable Energy Reviews, 2017,72:128-145.
[3] KARAIPEKLI A, BICER A, SARI A, et al. Thermal characteristics of expanded perlite/paraffin composite phase change material with enhanced thermal conductivity using carbon nanotubes[J]. Energy Conversion and Management, 2017,134:373-381.
[4] 王瑞, 孙艳丽, 刘星, 等. 碳纳米管改性相变微胶囊的力学与热学性能[J]. 纺织学报, 2018,39(2):119-125.
WANG Rui, SUN Yanli, LIU Xing, et al. Mechanical and thermal properties of phase change microcapsules modified with carbon nanotubes[J]. Journal of Textile Research, 2018,39(2):119-125.
[5] 林启松, 江力, 汪凯, 等. 新型改性聚酯的制备及其性能[J]. 纺织学报, 2018,39(8):22-26.
LIN Qisong, JIANG Li, WANG Kai, et al. Preparation and properties of novel modified polyester[J]. Journal of Textile Research, 2018,39(8):22-26.
[6] 张如心, 张顺花, 杨勉. 壳聚糖/聚丙烯共混熔体的剪切流变性能[J]. 现代纺织技术, 2016,24(5):1-4.
ZHANG Ruxin, ZAHNG Shunhua, YANG Mian. Shear and rheological properties of CTS/PP blends melt[J]. Advanced Textile Technology, 2016,24(5):1-4.
[7] KONUKLU Y, PAKSOY O H, UNAL M. Nanoencapsulation of n-alkanes with poly(styrene-co-ethylacrylate) shells for thermal energy storage[J]. Applied Energy, 2015,150:335-340.
[8] FANG Y T, WEI H, LIANG X H, et al. Preparation and thermal performance of silica/n-tetradecane microencapsulated phase change material for cold energy storage[J]. Energy and Fuels, 2016,30(11):9652-9657.
[9] 夏维, 陈立军, 赵杰, 等. 皮芯型复合储能调温聚酰胺 6 纤维的制备与表征[J]. 纺织学报, 2018,39(4):1-8.
XIA Wei, CHEN Lijun, ZHAO Jie, et al. Preparation and characterization of sheath-core energy storage and thermo-regulated composite fibers of polyamide 6[J]. Journal of Textile Research, 2018,39(4):1-8.
[10] ZHANG G Q, CAI C W, ZHU G C, et al. Preparation and properties of high thermo stability phase-change material microcapsules[C] // YI L, LING G, WEI L X. 11th Textile Bioengineering and Informatics Symposium. Manchester: Textile Bioengineering and Informatics Society, 2018: 840-847.
[11] ZHANG Q L, ZHAO Y Q, FENG J C. Systematic investigation on shape stability of high-efficiency SEBS/paraffin form-stable phase change materials[J]. Solar Energy Materials and Solar Cells, 2013,118:54-60.
